Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

45 part groups · 15 illustrations

Illustrations

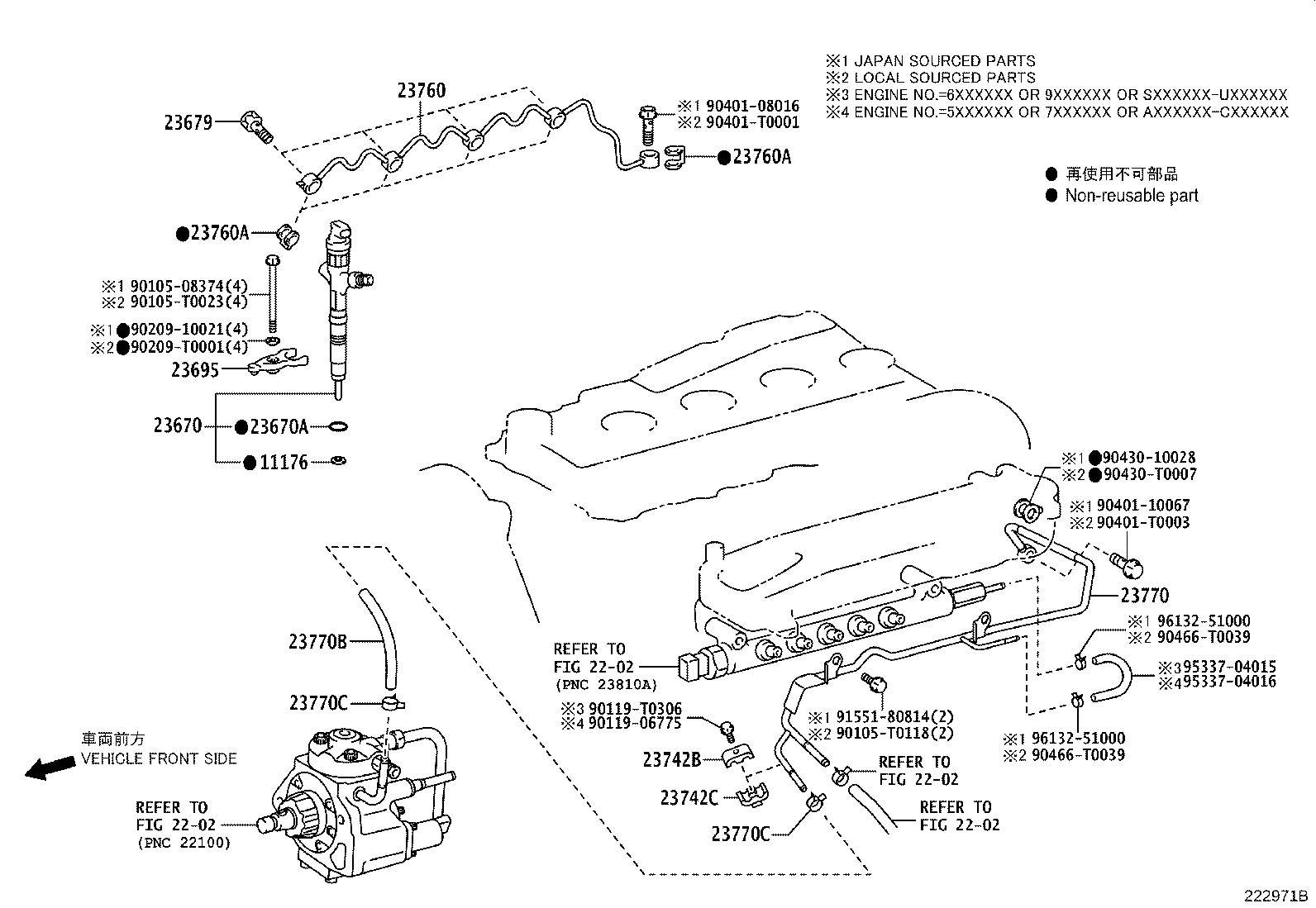

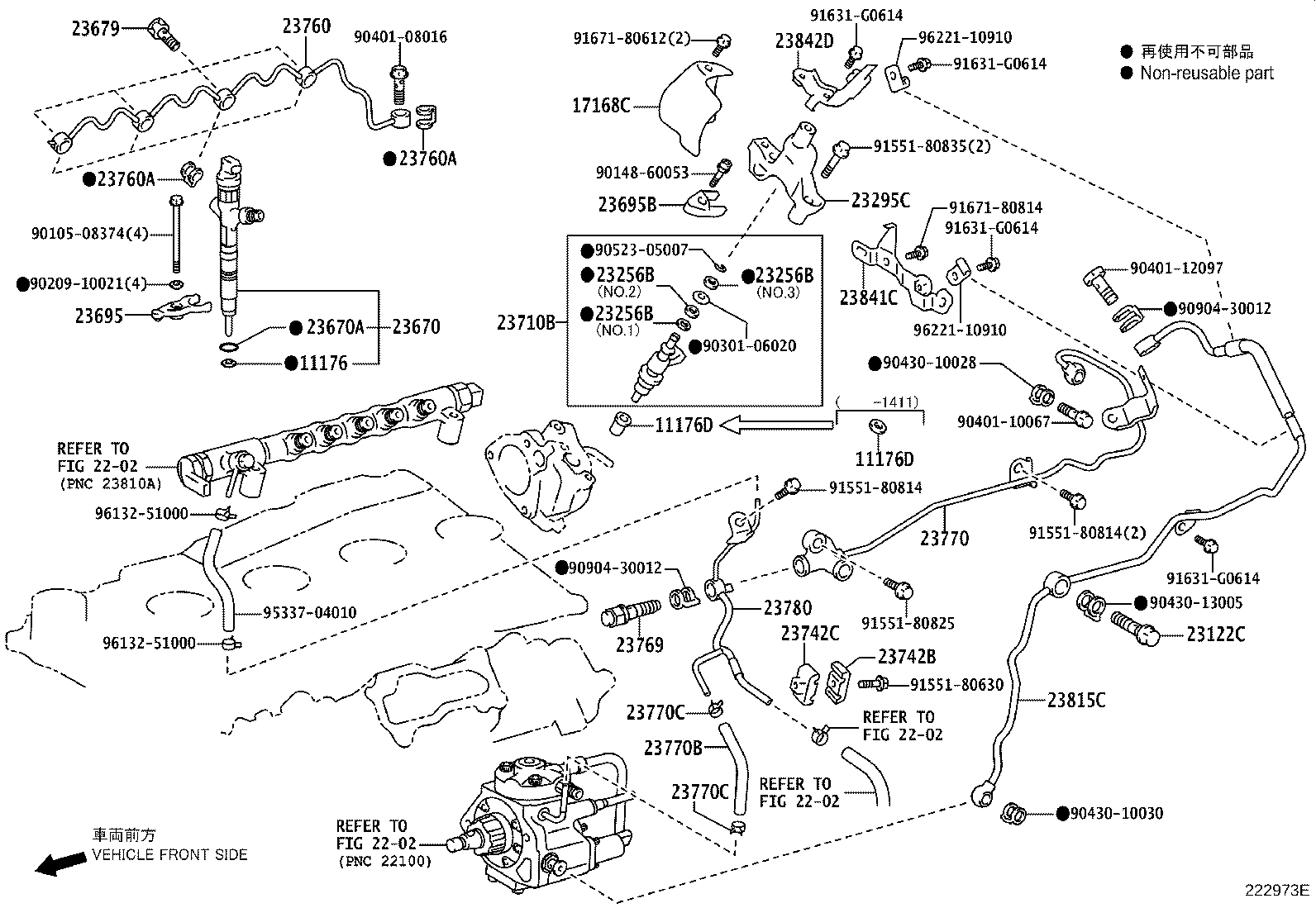

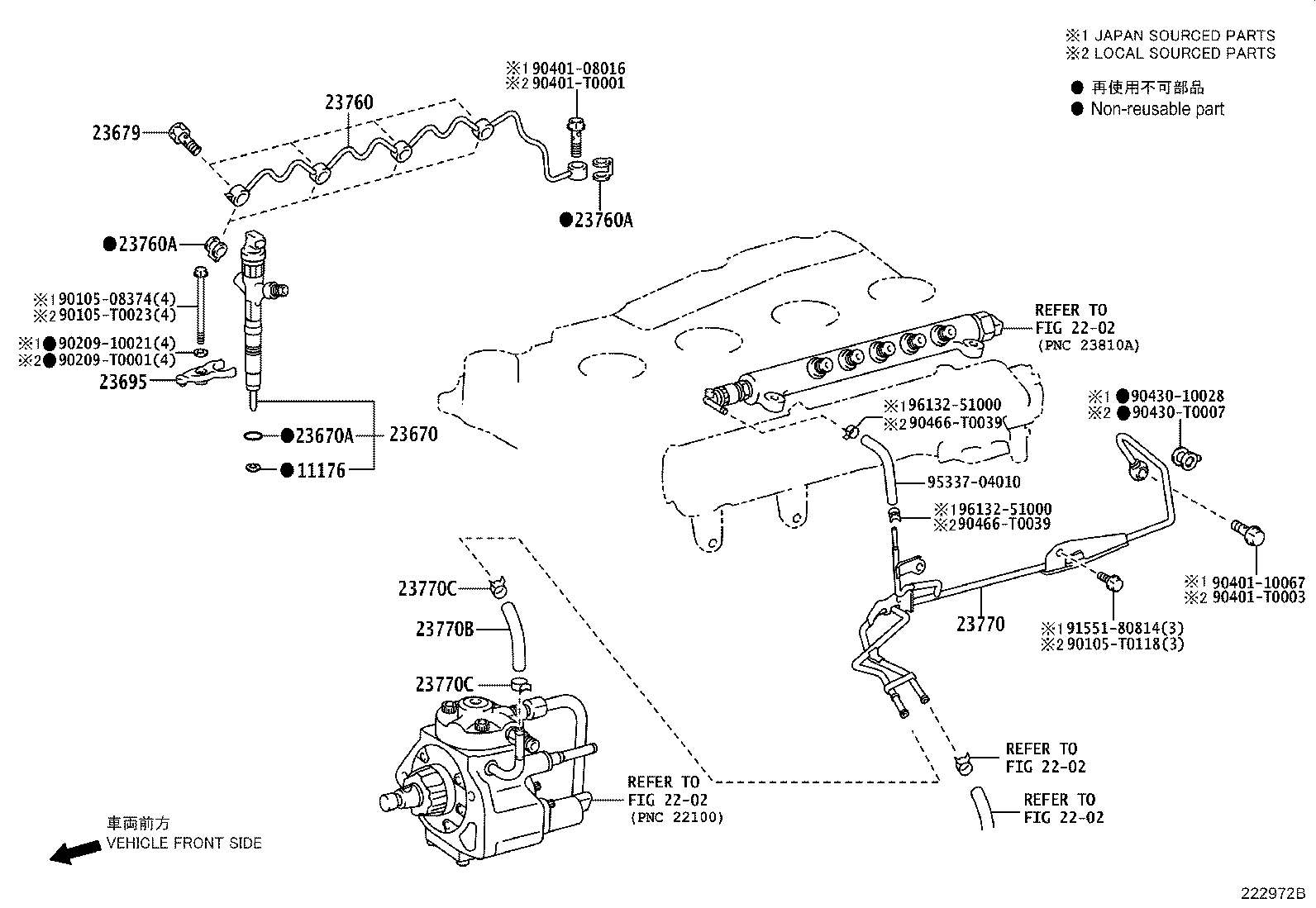

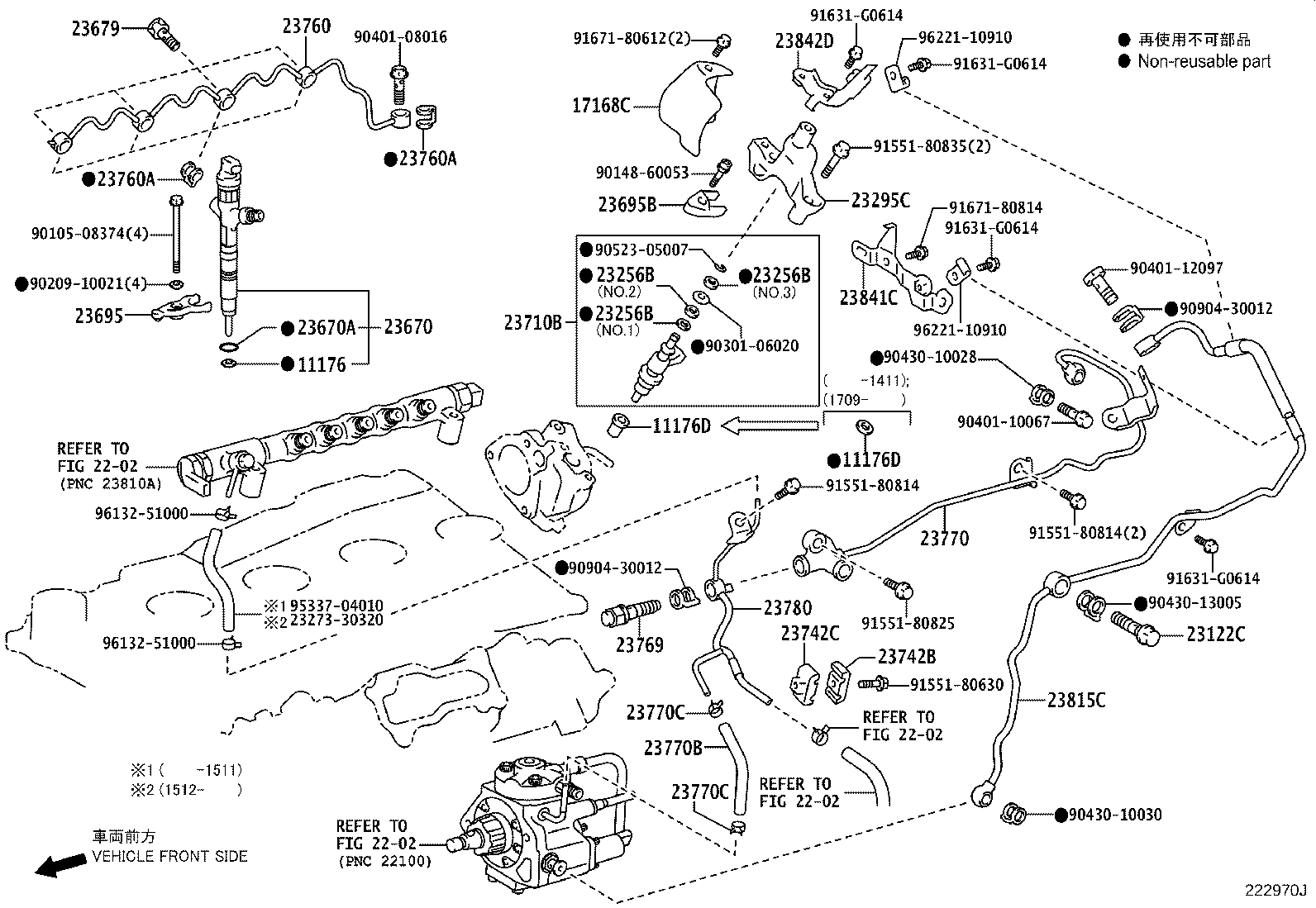

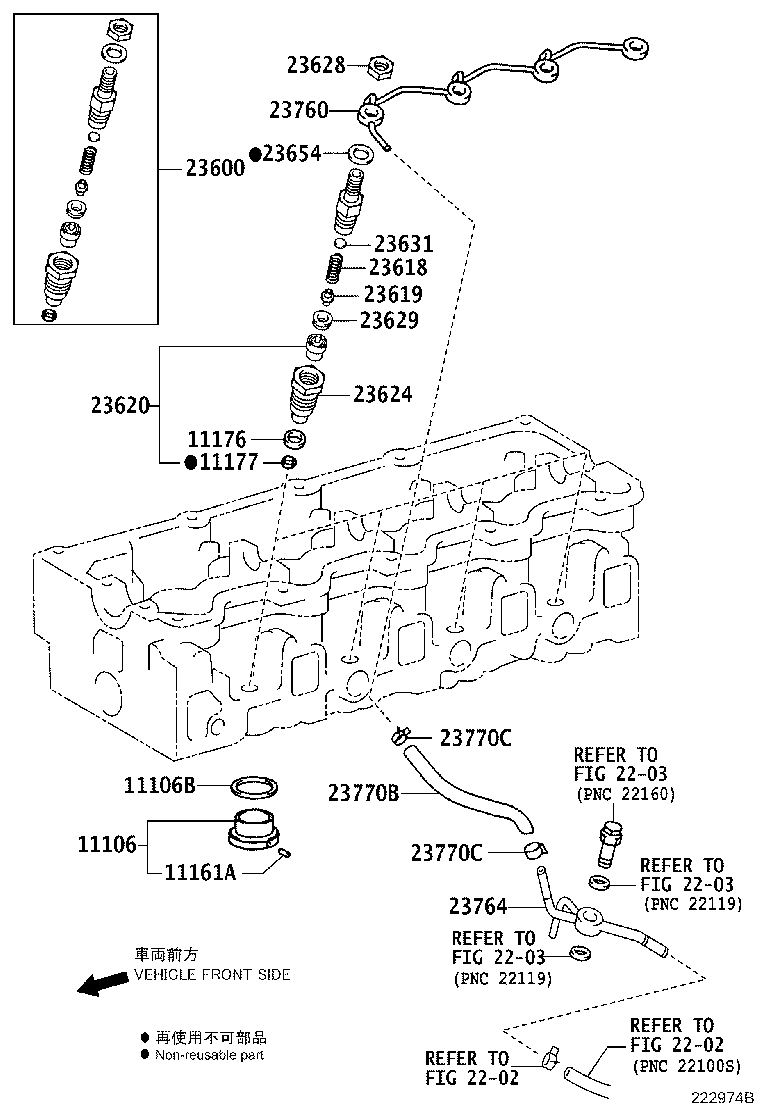

Figure 22439E 22439E 2017-01 → — Figure 222972B 222972B 2013-12 → 2015-01 Figure 222972B 222972B 2013-12 → 2016-06 Figure 222972B 222972B 2013-12 → — Figure 222972B 222972B 2013-12 → — Figure 222972B 222972B 2015-06 → — Figure 222972B 222972B 2015-12 → — Figure 222972B 222972B 2016-06 → — Figure 222970J 222970J 2013-12 → — Figure 222970J 222970J 2015-01 → — Figure 222970J 222970J 2016-06 → — Figure 222970J 222970J 2016-06 → — Figure 222973E 222973E 2013-12 → 2016-06 Figure 222971B 222971B 2013-12 → — Figure 222974B 222974B 2013-12 → —

Part groups

PNCDescription
11106 Chamber Sub-assy, Combustion
11106B Shim(FOR COMBUSTION CHAMBER)
11161A Pin, Straight(FOR COMBUSTION CHAMBER)
11176 Seat, Injection Nozzle
11176D Seat, Injection Nozzle, NO.2
11177 Gasket, Injection Nozzle Seat
17168C Insulator, Exhaust Manifold Heat, NO.2
23122C Valve, Check
23256B Ring, Fuel Injector Back-up, NO.1
23257B Ring, Fuel Injector Back-up, NO.2
23258B Ring, Fuel Injector Back-up, NO.3
23282H Hose, Fuel, NO.4
23284C Hose, Fuel, NO.5
23286C Hose, Fuel, NO.6
23295C Holder, Injector
23600 Holder & Nozzle Set, Nozzle
23618 Spring, Nozzle Holder Pressure
23619 Pin, Nozzle Holder Pressure
23620 Nozzle Assy
23624 Nut, Nozzle Retaining
23628 Nut(FOR RING PACKING SETTING)
23629 Piece, Distance(FOR NOZZLE)
23631 Washer(FOR NOZZLE HOLDER PRESSURE SPRING)
23654 Washer(FOR RING PACKING)
23670 Injector Assy
23670A Ring, O(FOR INJECTOR ASSY)
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23699A Seat, Nozzle Holder Clamp
23710B Injector Assy, Exhaust Fuel Addition
23742B Clamp, Injection Pipe, NO.2
23742C Clamp, Injection Pipe, NO.3
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23764 Pipe, Nozzle Leakage, NO.4
23769 Valve, Fuel Check
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
23780 Pipe, Nozzle Leakage, NO.3
23811H Pipe, Fuel, NO.1
23815C Pipe, Fuel, NO.3
23841C Clamp, Fuel Pipe, NO.1
23842D Clamp, Fuel Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
