Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

17 part groups · 7 illustrations

Illustrations

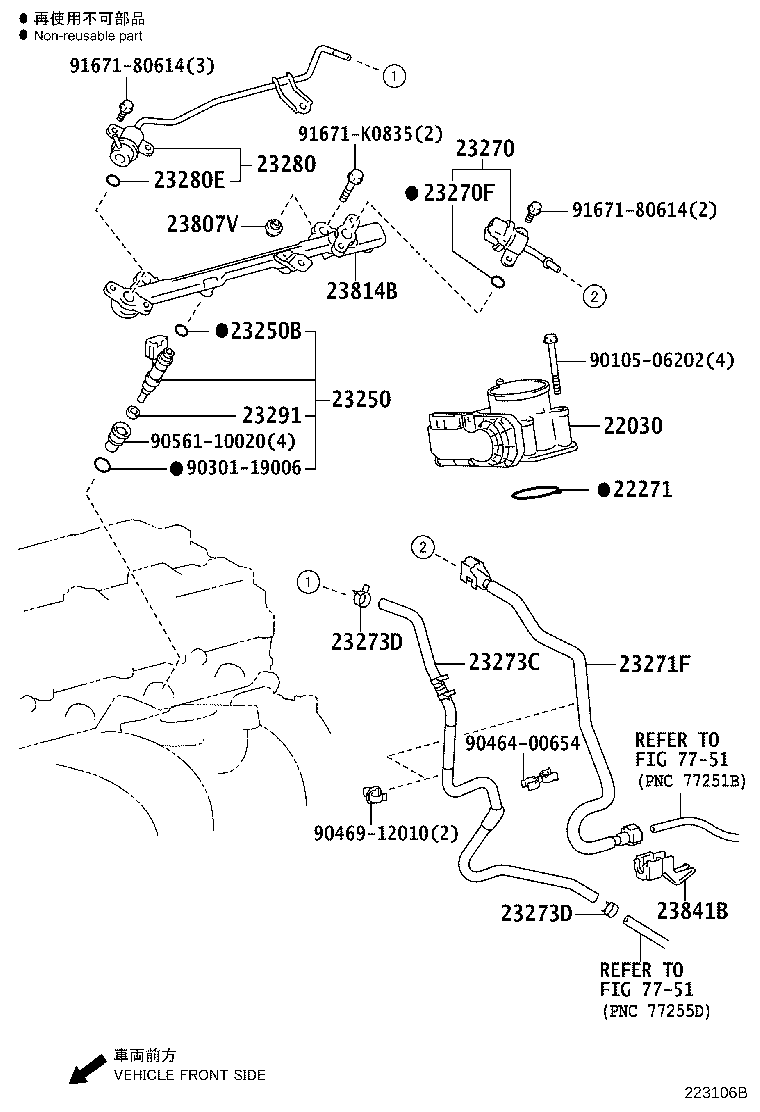

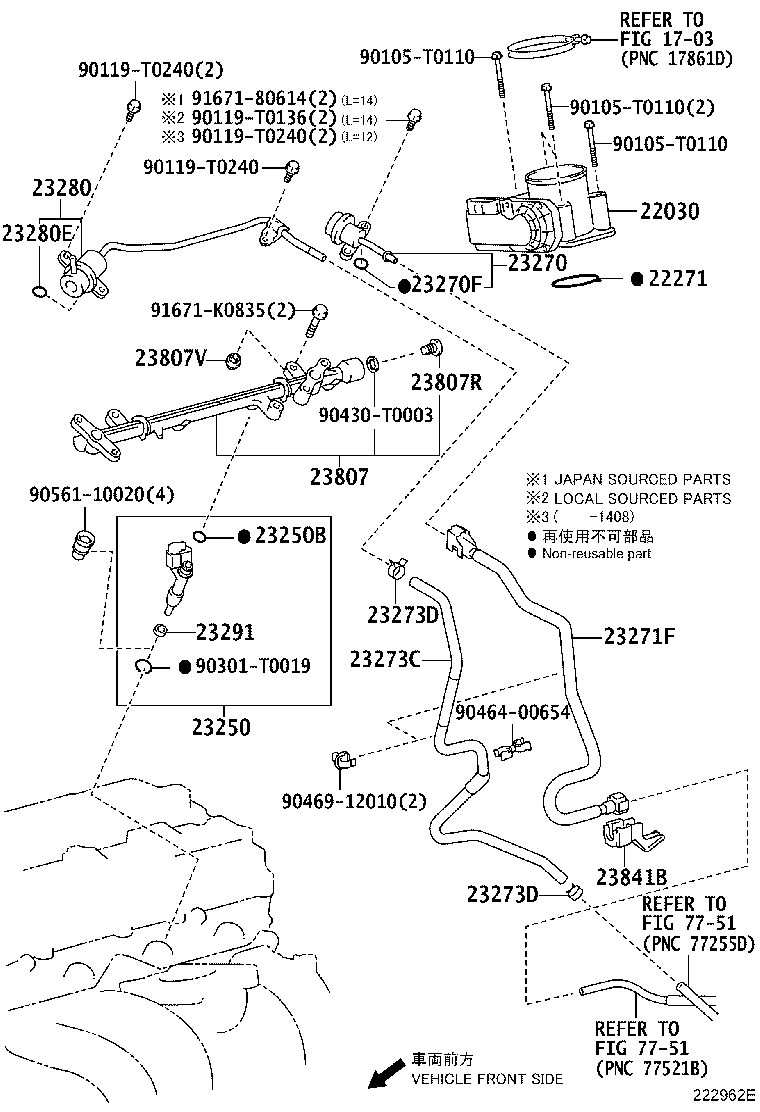

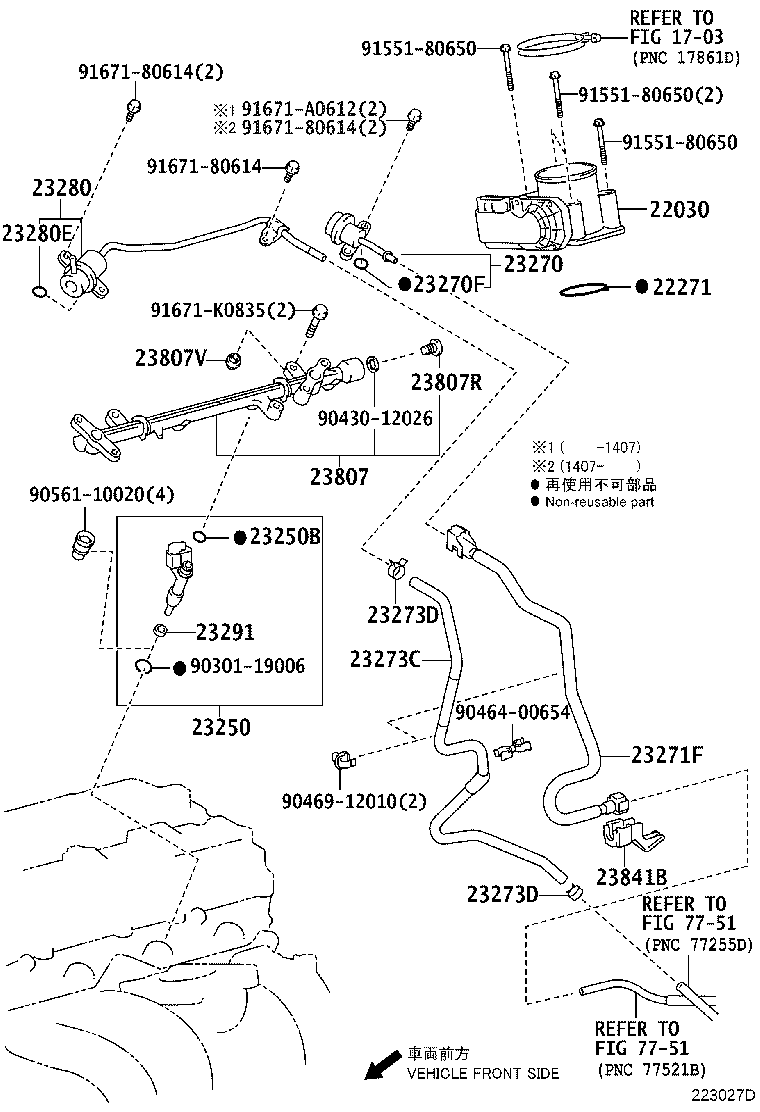

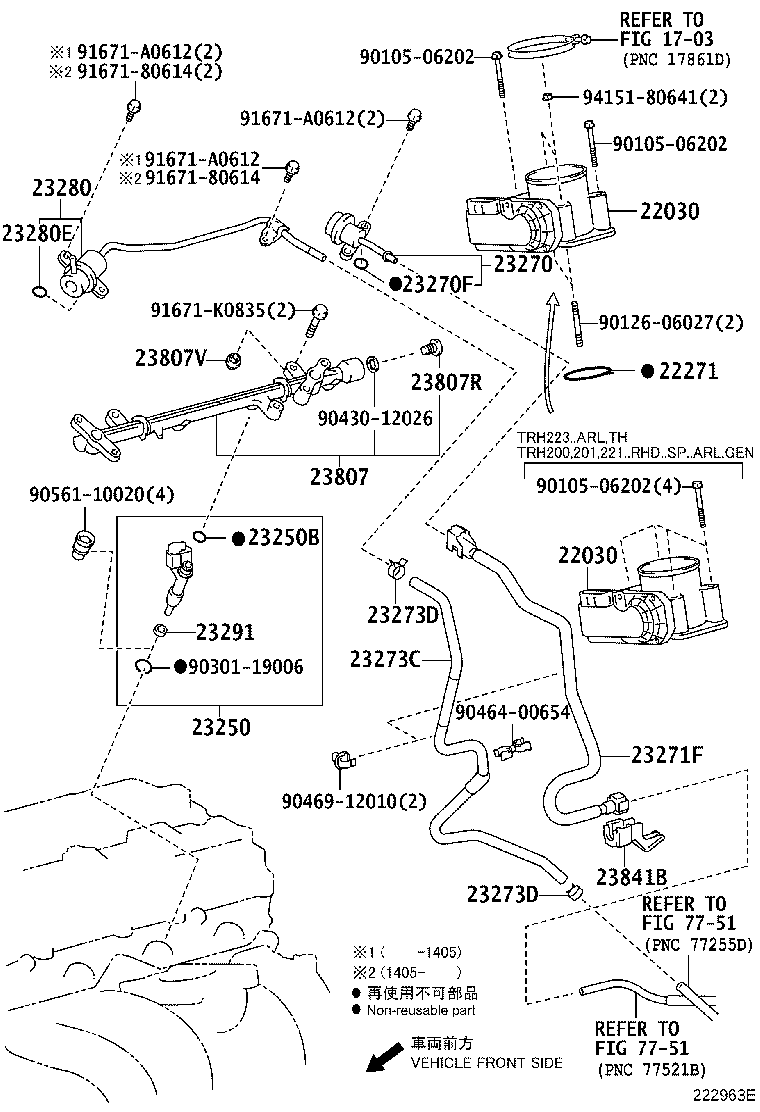

Figure 222961G 222961G 2013-12 → 2015-01 Figure 222962E 222962E 2014-01 → — Figure 222963E 222963E 2013-12 → 2014-06 Figure 223027D 223027D 2014-06 → 2015-01 Figure 223027D 223027D 2014-06 → — Figure 223027D 223027D 2014-06 → — Figure 223106B 223106B 2015-01 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270F Ring, O(FOR PULSATION DAMPER)
23271F Hose, Fuel
23273C Hose, Fuel, NO.2
23273D Clip(FOR FUEL HOSE NO.2)
23280 Regulator Assy, Fuel Pressure
23280E Ring, O(FOR FUEL PRESSURE REGULATOR)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23807R Plug, Fuel Delivary Pipe
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23814B Pipe, Fuel Delivery
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
