Toyota Hiace
2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General
Supported model
Data version 2024-01

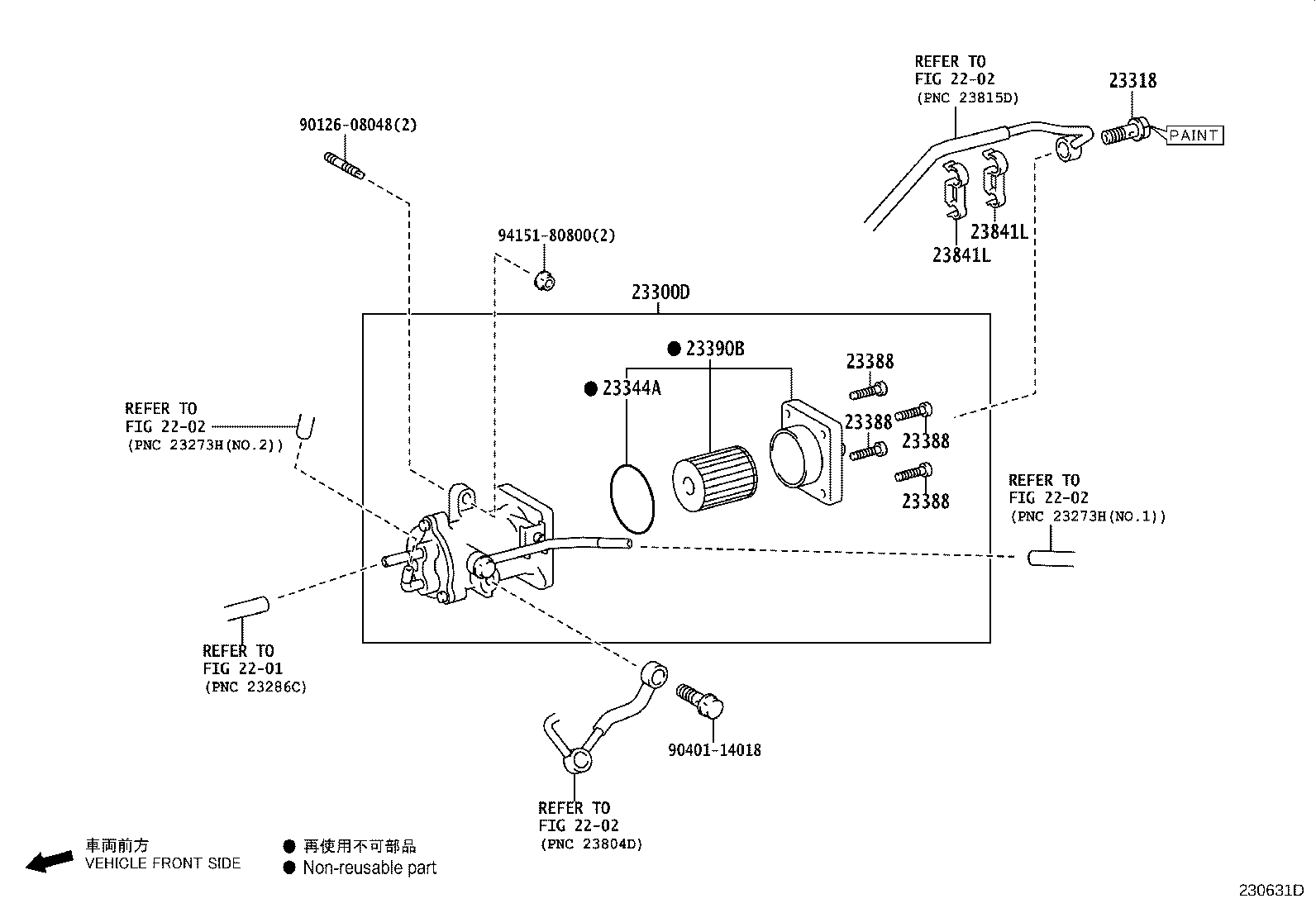

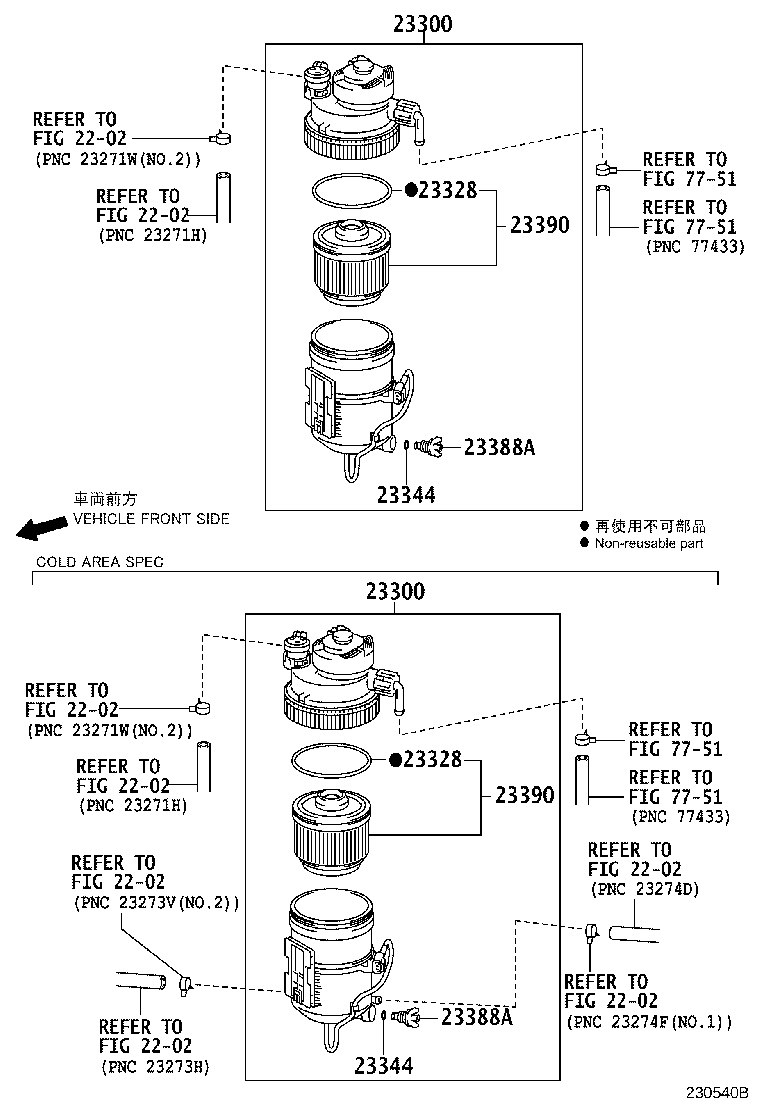

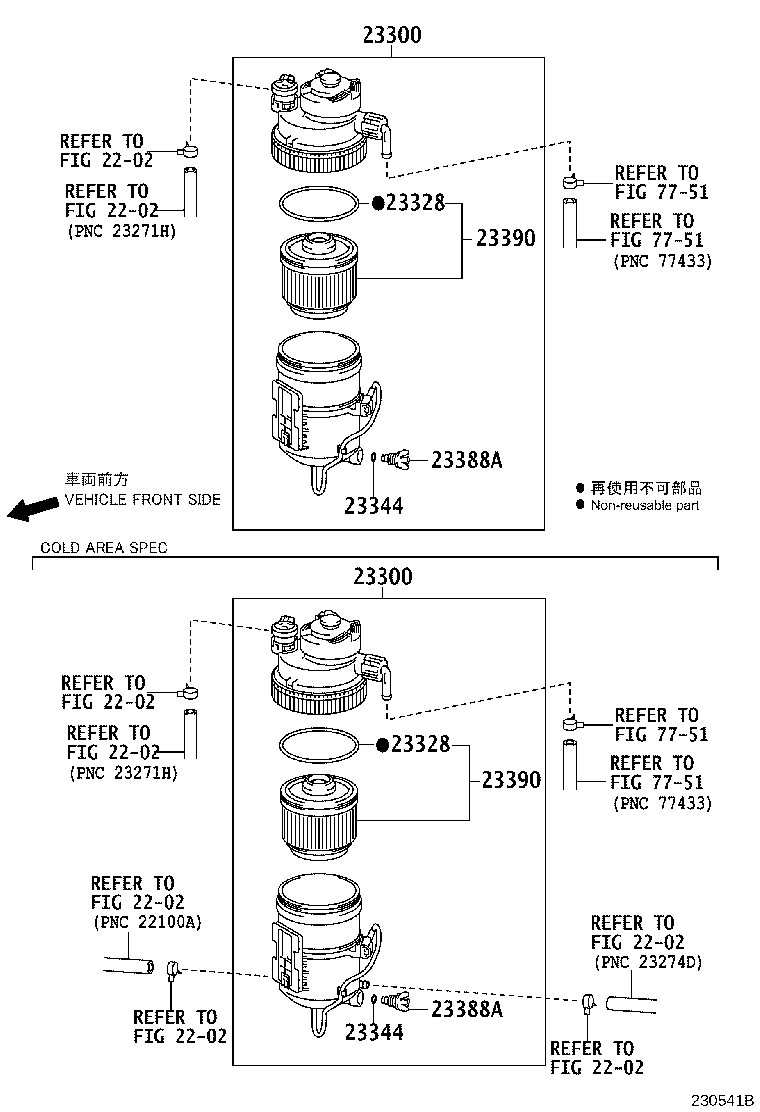

Fuel Filter
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 23300 | Filter Assy, Fuel |
| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23318 | Bolt, Union |
| 23328 | Gasket(FOR FUEL FILTER) |
| 23344 | Gasket, Clamping Nut(FOR FUEL FILTER) |
| 23344A | Gasket, Fuel Filter Element |
| 23388 | Plug, Fuel Filter Drain |
| 23388A | Plug, Fuel Filter Drain |
| 23390 | Element Assy, Fuel Filter |
| 23390B | Element Assy, Fuel Filter, NO.2 |
| 23841L | Clamp, Fuel Pipe |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
