Exhaust Gas Recirculation System

21 part groups · 17 illustrations

Illustrations

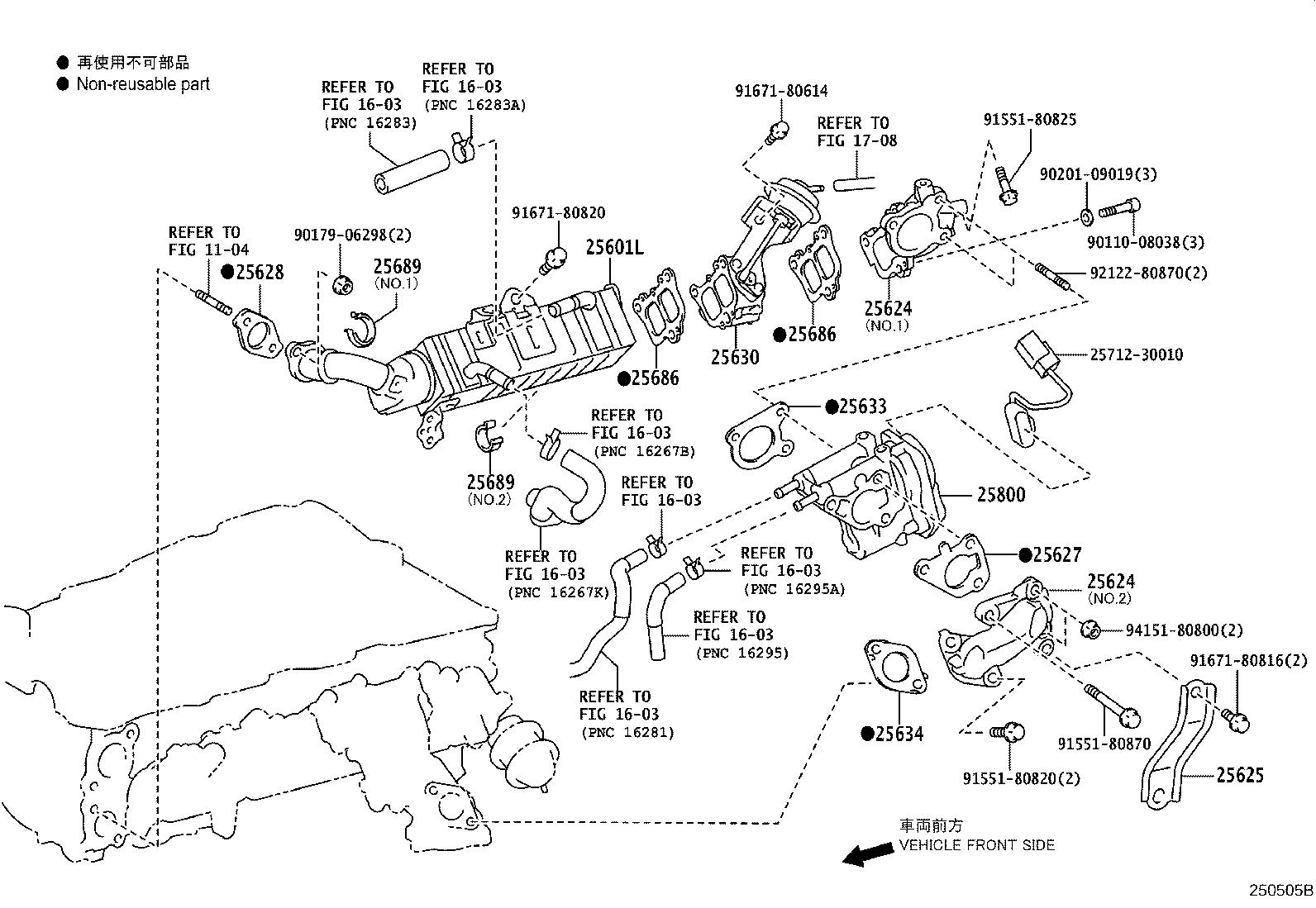

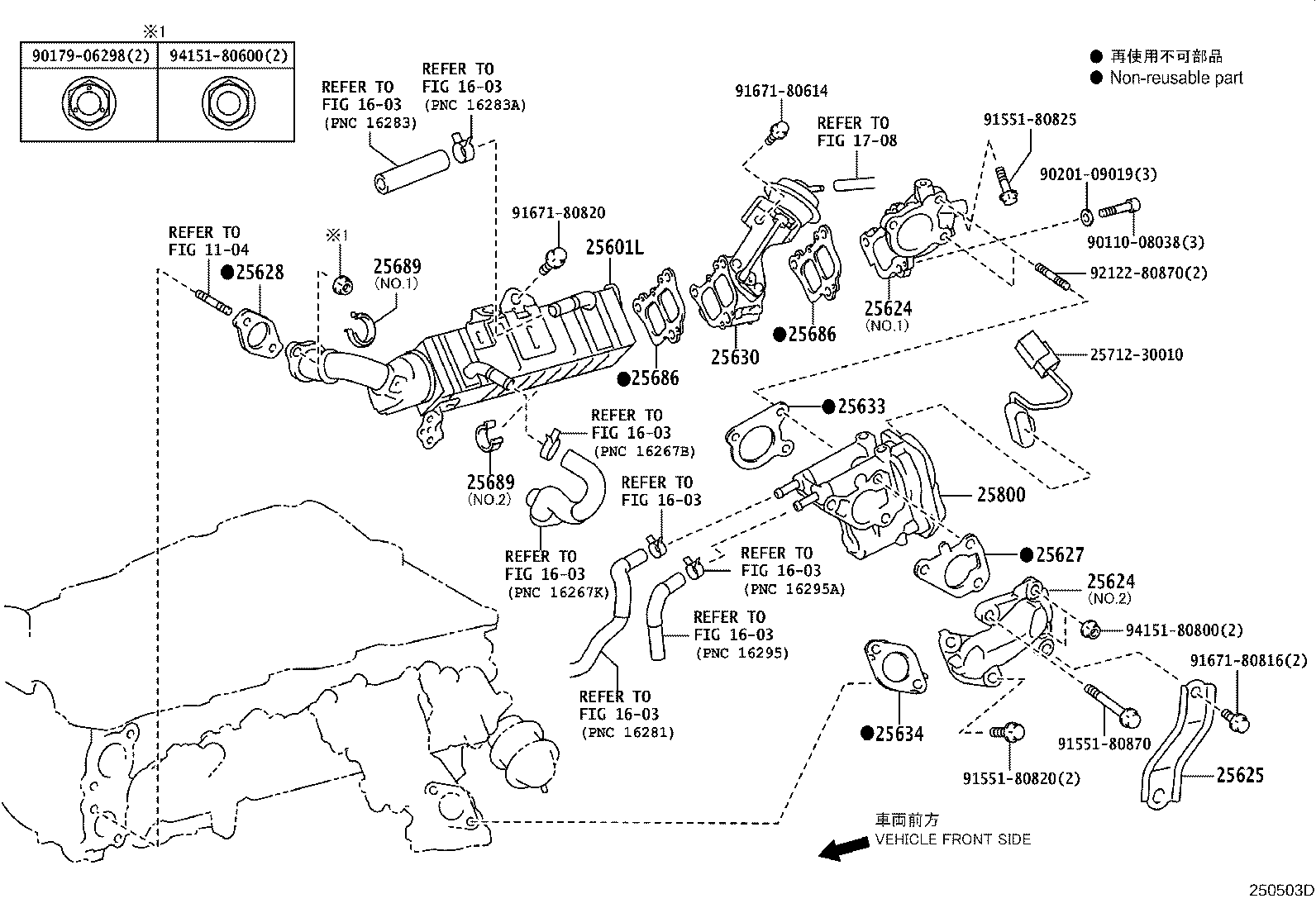

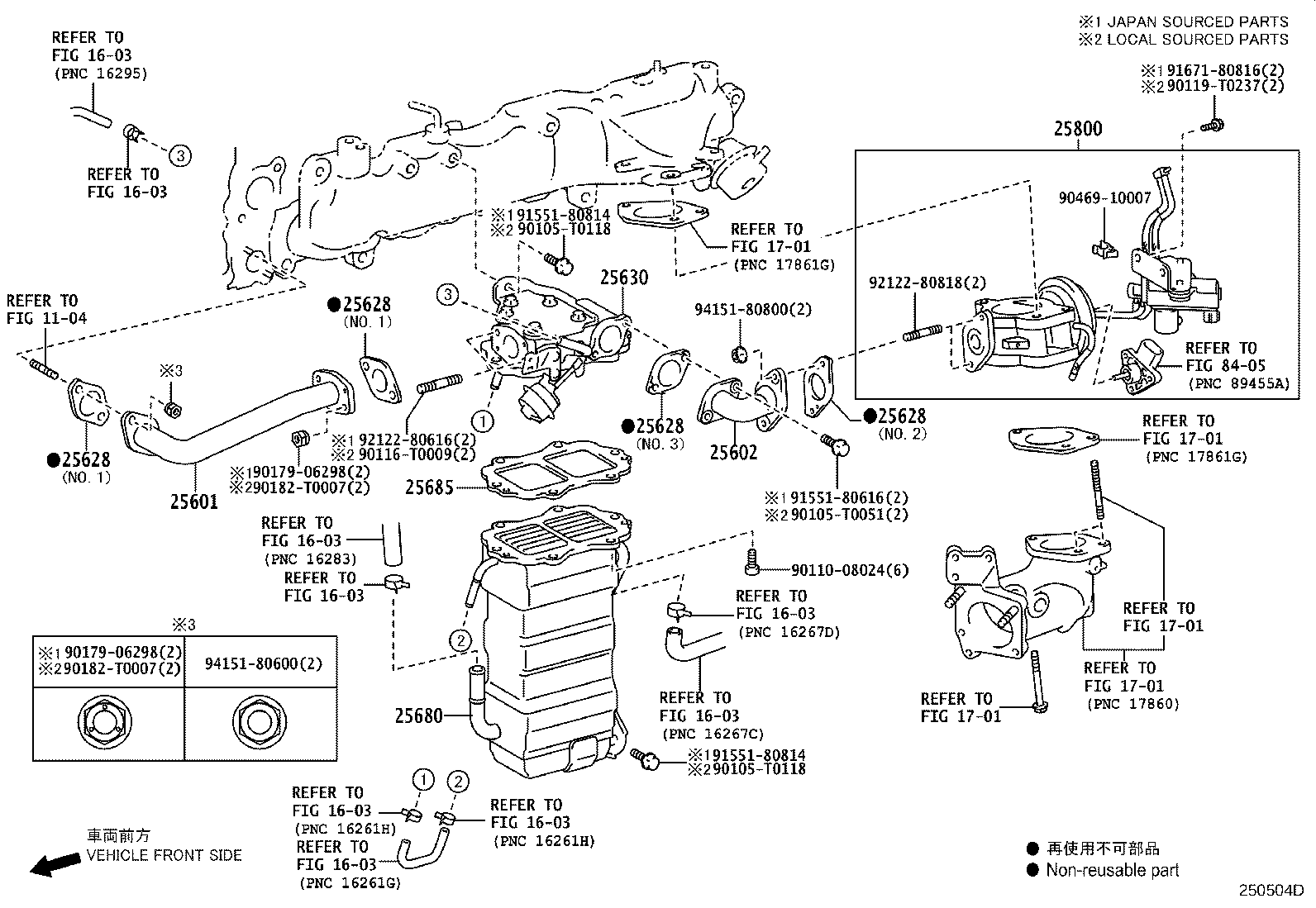

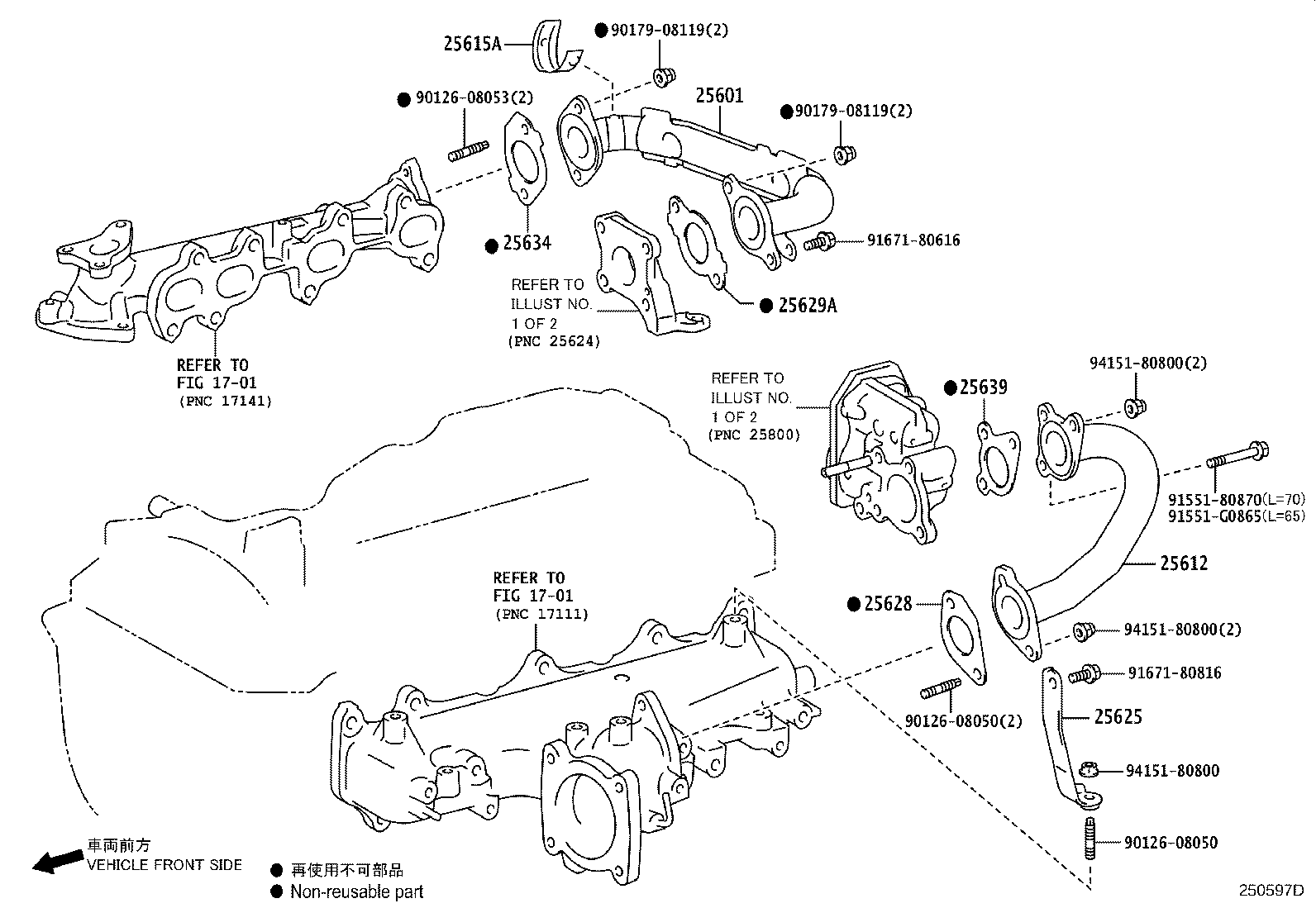

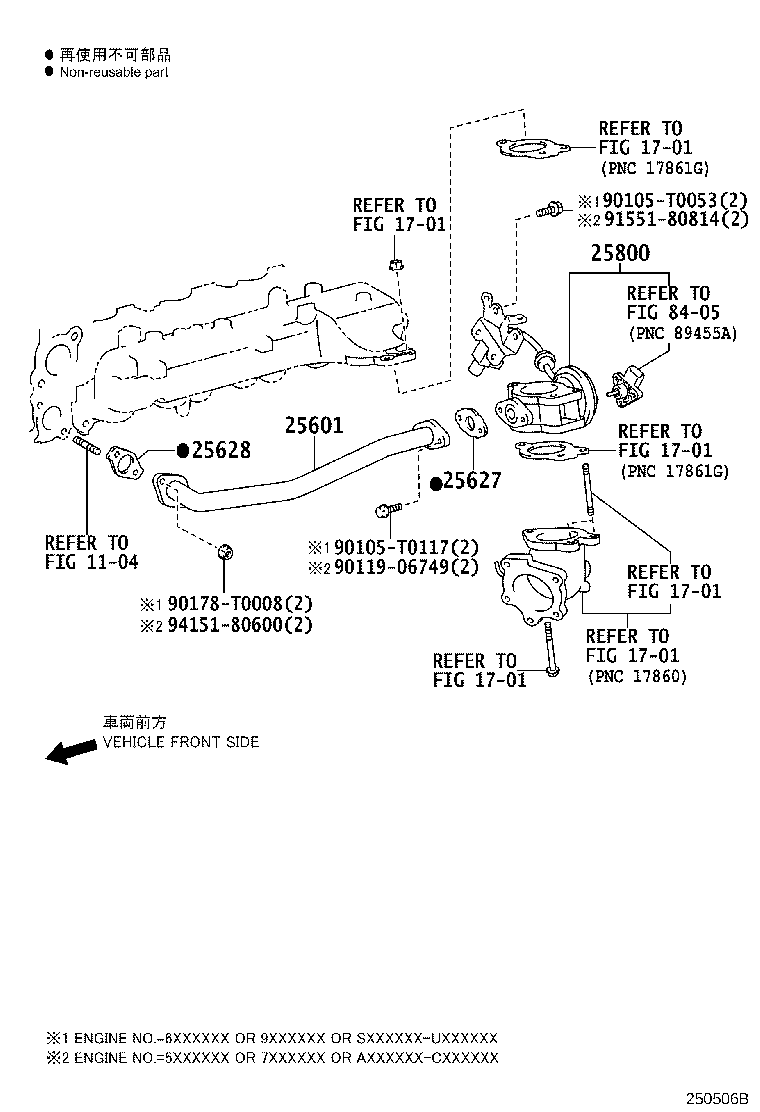

Figure 250596D 250596D 2017-01 → — Figure 250597D 250597D 2017-01 → — Figure 250504D 250504D 2013-12 → 2015-01 Figure 250504D 250504D 2013-12 → 2016-06 Figure 250504D 250504D 2013-12 → — Figure 250504D 250504D 2013-12 → — Figure 250504D 250504D 2015-06 → — Figure 250504D 250504D 2015-12 → — Figure 250504D 250504D 2016-06 → — Figure 250503D 250503D 2013-12 → — Figure 250503D 250503D 2015-01 → — Figure 250503D 250503D 2016-06 → — Figure 250503D 250503D 2016-06 → — Figure 250505B 250505B 2013-12 → 2016-06 Figure 250506B 250506B 2013-12 → — Figure 250506B 250506B 2013-12 → — Figure 250506B 250506B 2017-12 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25601L Pipe Sub-assy, Egr W/Cooler
25602 Pipe Sub-assy, Egr, NO.2
25612 Pipe, Egr, NO.2
25615A Insulator, Egr Pipe
25620A Bolt, Stud(FOR EGR VALVE)
25624 Adapter, Egr Valve
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629A Gasket, Egr Pipe, NO.2
25630 Valve Assy, Egr, NO.2
25633 Gasket, Egr Valve
25634 Gasket, Egr Pipe
25639 Gasket, Egr Pipe, NO.3
25680 Cooler Assy, Egr
25681 Cooler, Egr, NO.1
25685 Gasket, Egr Cooler, NO.1
25686 Gasket, Egr Cooler, NO.2
25689 Insulator, Egr Cooler
25800 Valve Assy, Electric Egr Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
