Toyota Hiace
2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General
Supported model
Data version 2024-01

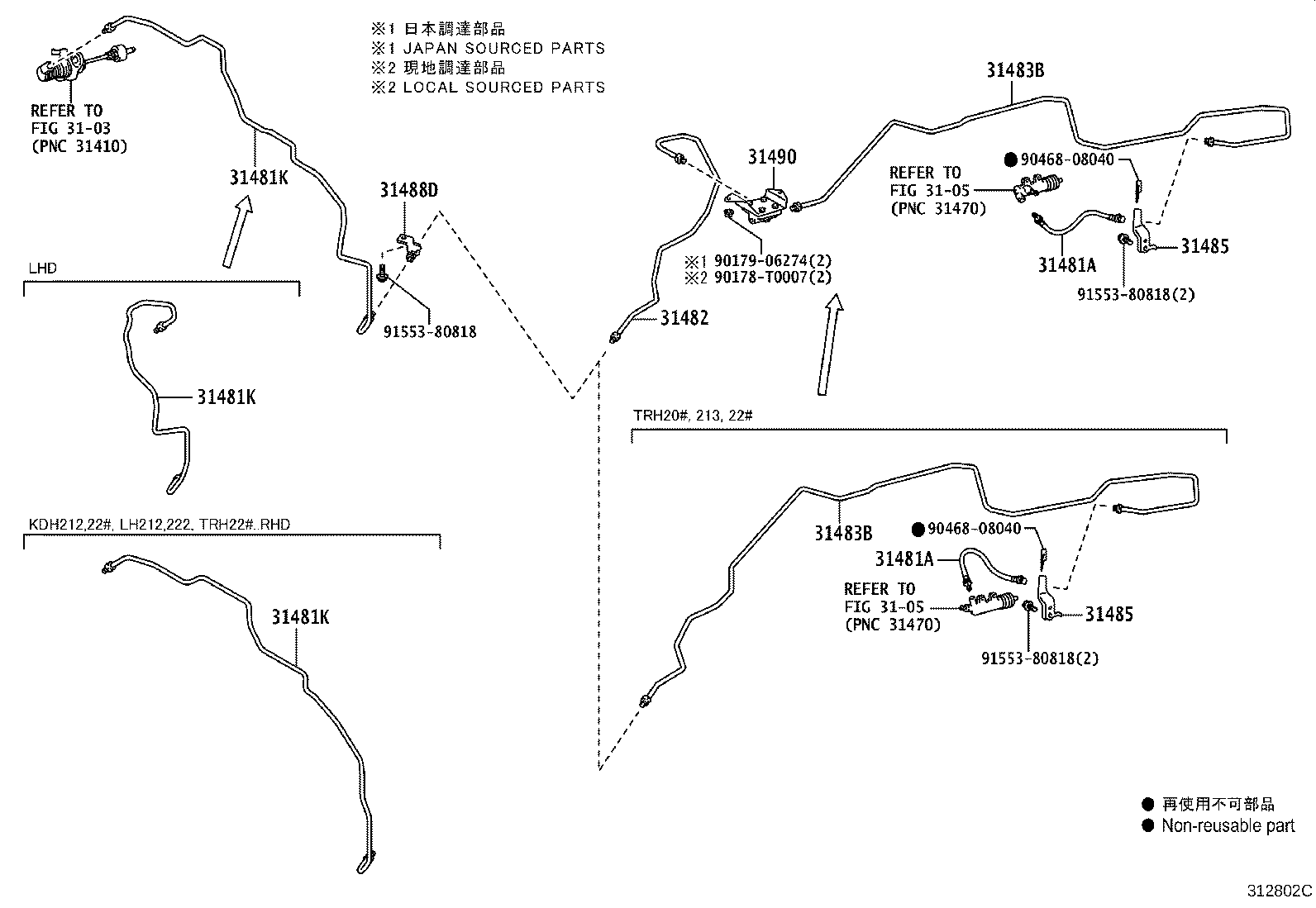

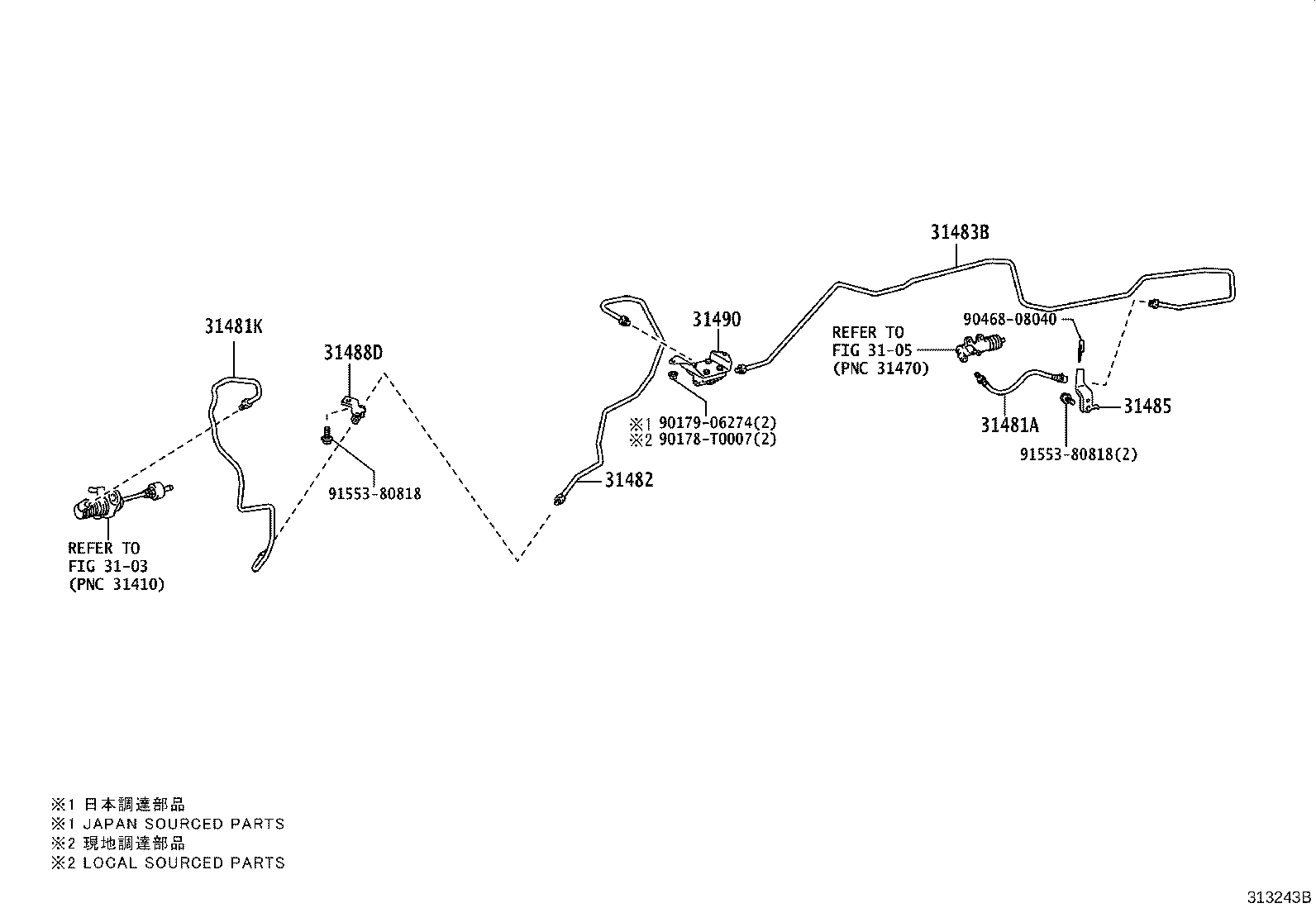

Clutch Pedal & Flexible Hose
20 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 31301 | Pedal Sub-assy, Clutch |
| 31301A | Spring(FOR CLUTCH PEDAL) |
| 31301C | Bush(FOR CLUTCH PEDAL) |
| 31301F | Bolt(FOR CLUTCH PEDAL STOPPER) |
| 31301R | Spring, Compression(FOR TURNOVER SPRING SEAT) |
| 31321 | Pad, Clutch Pedal |
| 31324A | Collar, Clutch Pedal Shaft |
| 31329B | Ring, E(FOR CLUTCH PEDAL PAWL) |
| 31353 | Holder, Clutch Pedal Spring |
| 31388A | Stopper, Clutch Release Sector |
| 31481A | Hose, Clutch, NO.1 |
| 31481K | Tube, Master Cylinder TO Tube Connector |
| 31482 | Tube, Clutch Release Cylinder TO Flexible Hose |
| 31483B | Tube, Accumulator TO Flexible Hose |
| 31485 | Bracket, Flexible Hose, NO.2(FOR CLUTCH) |
| 31488D | Way, 2(FOR CLUTCH TUBE TO RELEASE CYLINDER) |
| 31490 | Accumulator Assy, Clutch |
| 55105D | Bracket Sub-assy, Clutch Pedal |
| 55107A | Support Sub-assy, Clutch Pedal |
| 55196A | Bracket, Clutch Start Switch Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
