Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

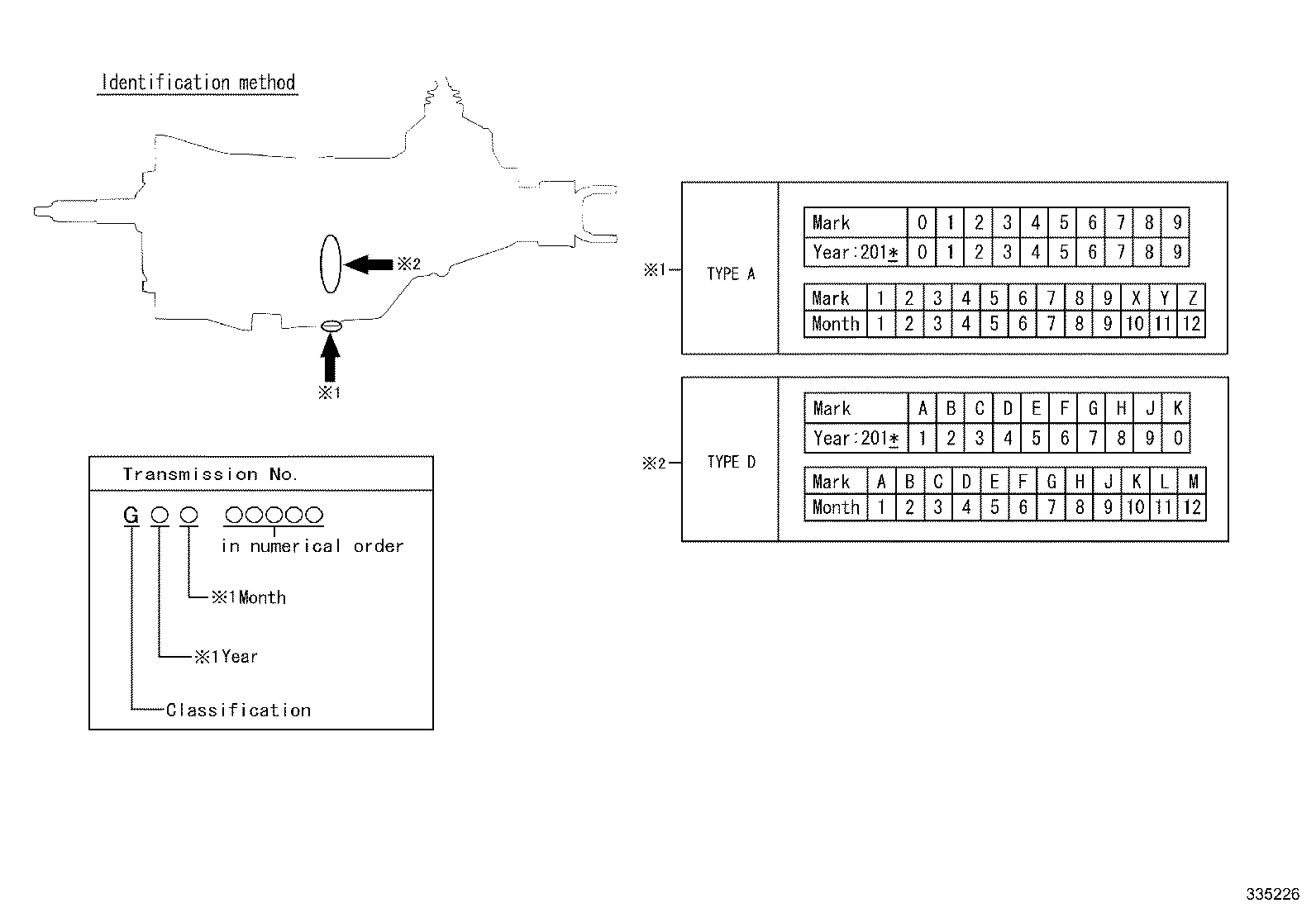

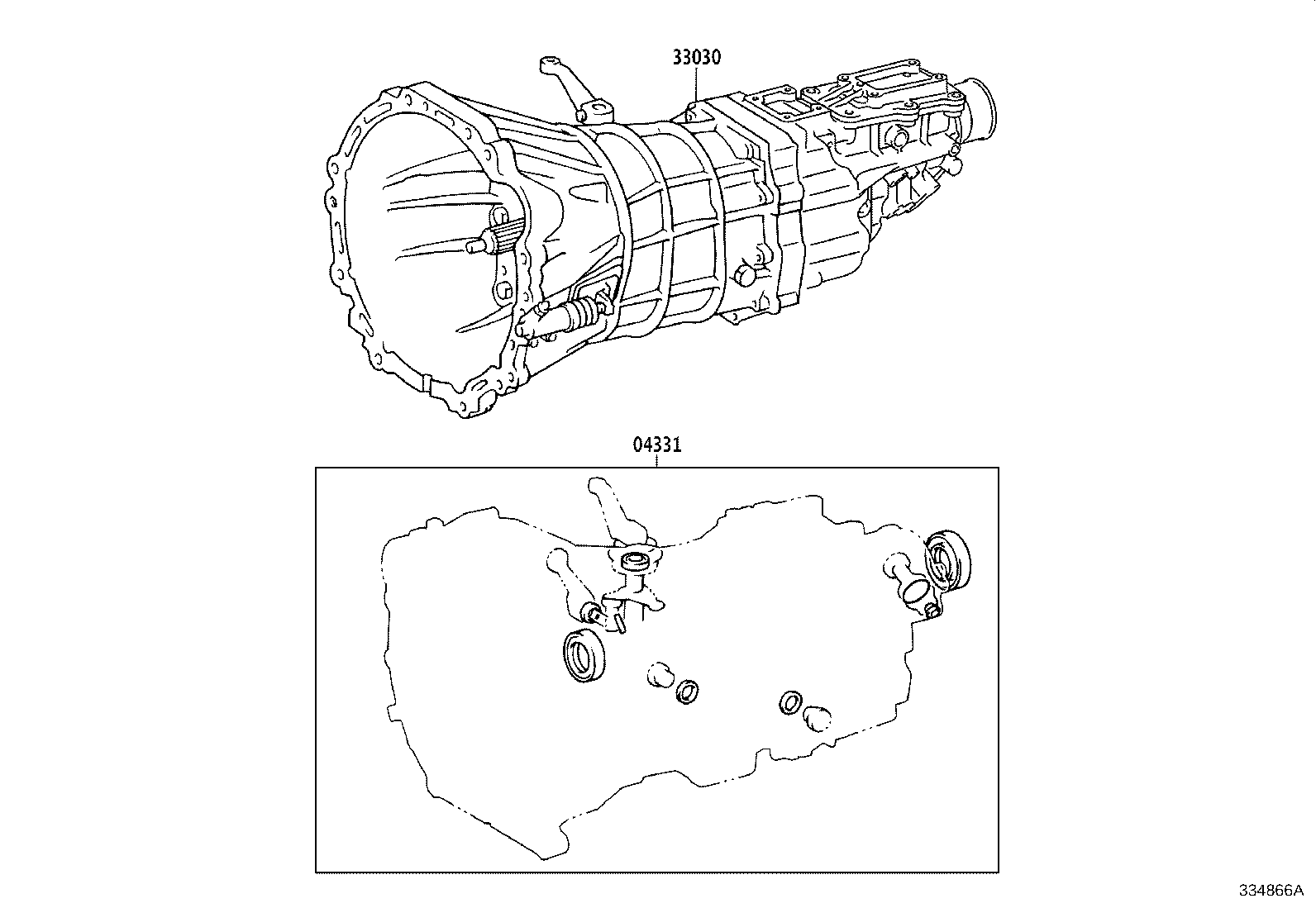

Figure 334865A 334865A 2013-12 → — Figure 335226 335226 2013-12 → — Figure 334866A 334866A 2013-12 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
