Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Extension Housing (MTM)

11 part groups · 2 illustrations

Illustrations

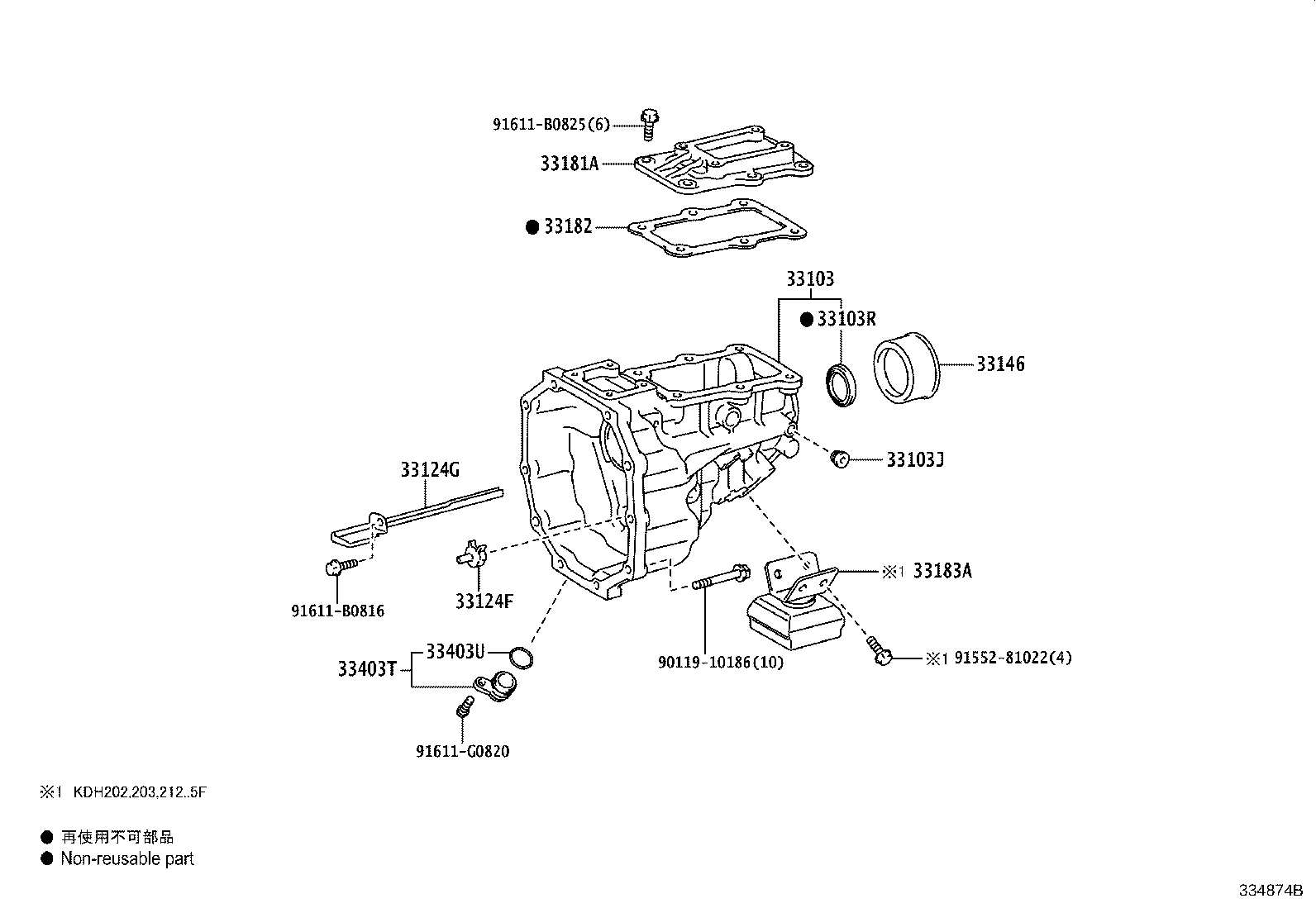

Figure 334868D 334868D 2013-12 → — Figure 334874B 334874B 2013-12 → —

Part groups

PNCDescription
33103 Housing Sub-assy, Extension(MTM)
33103J Plug, Tight(FOR EXTENSION HOUSING)
33103R Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124F Pipe, Oil Receiver, NO.1(FOR EXTENSION HOUSING)
33124G Pipe, Oil Receiver, NO.2(FOR EXTENSION HOUSING)
33146 Deflector, Extension Housing Dust(MTM)
33181A Cover, Extension Housing(MTM)
33182 Gasket, Extension Housing Cover(MTM)
33183A Damper, Extension Housing Dynamic(MTM)
33403T Cover Sub-assy, Speedometer Driven Hole
33403U Ring, O(FOR MTM SPEEDOMETER DRIVEN HOLE COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
