Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

17 part groups · 6 illustrations

Illustrations

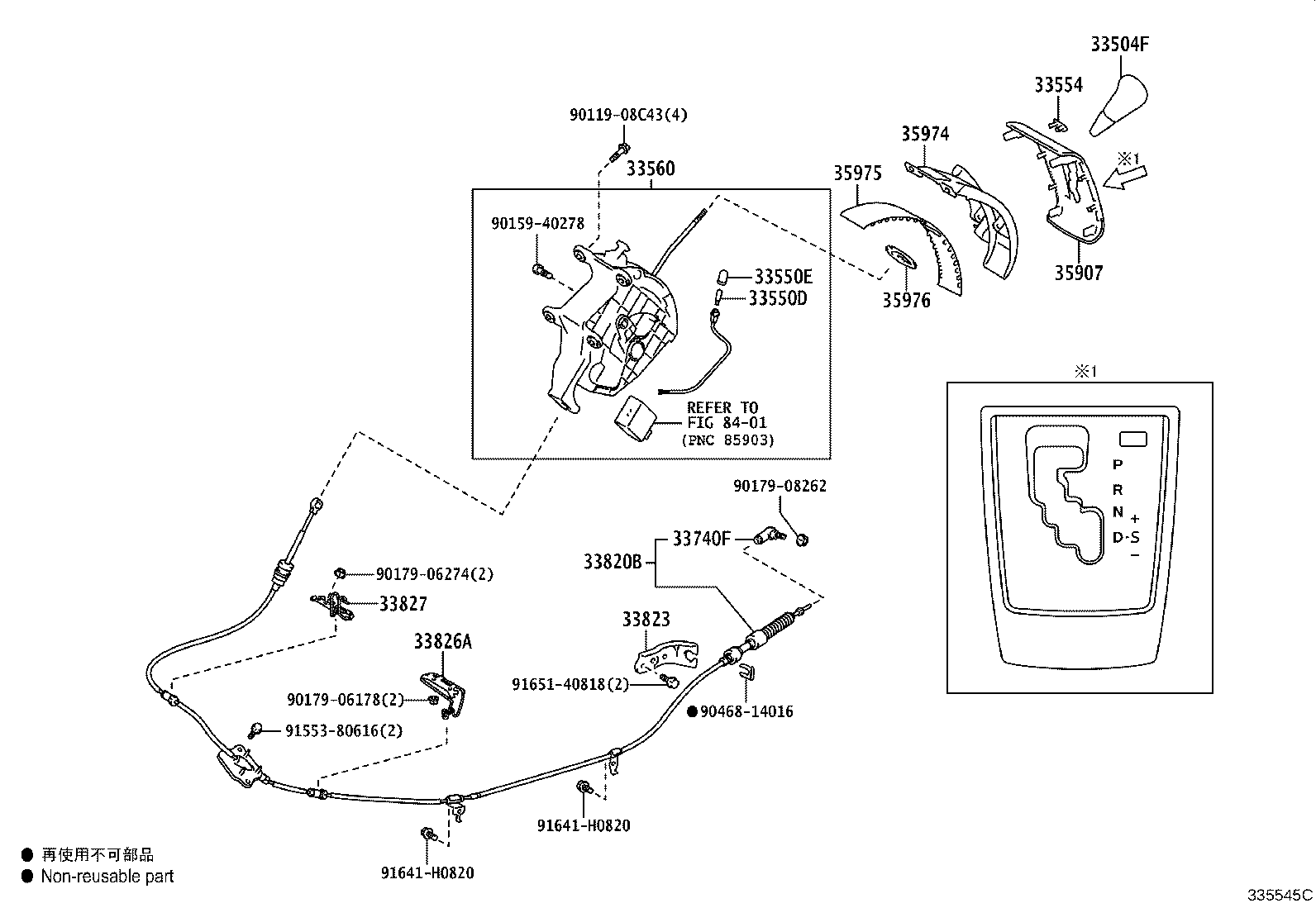

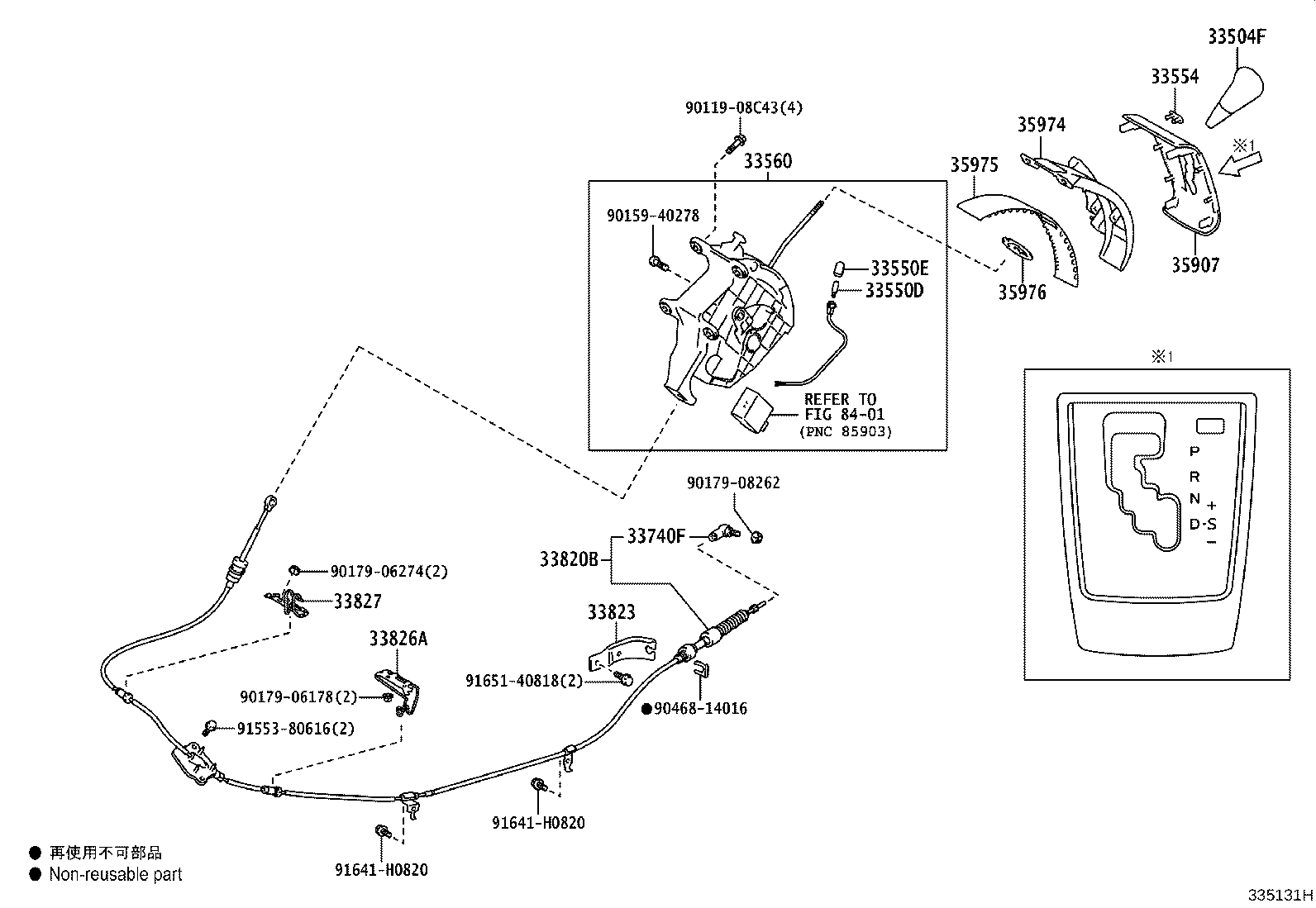

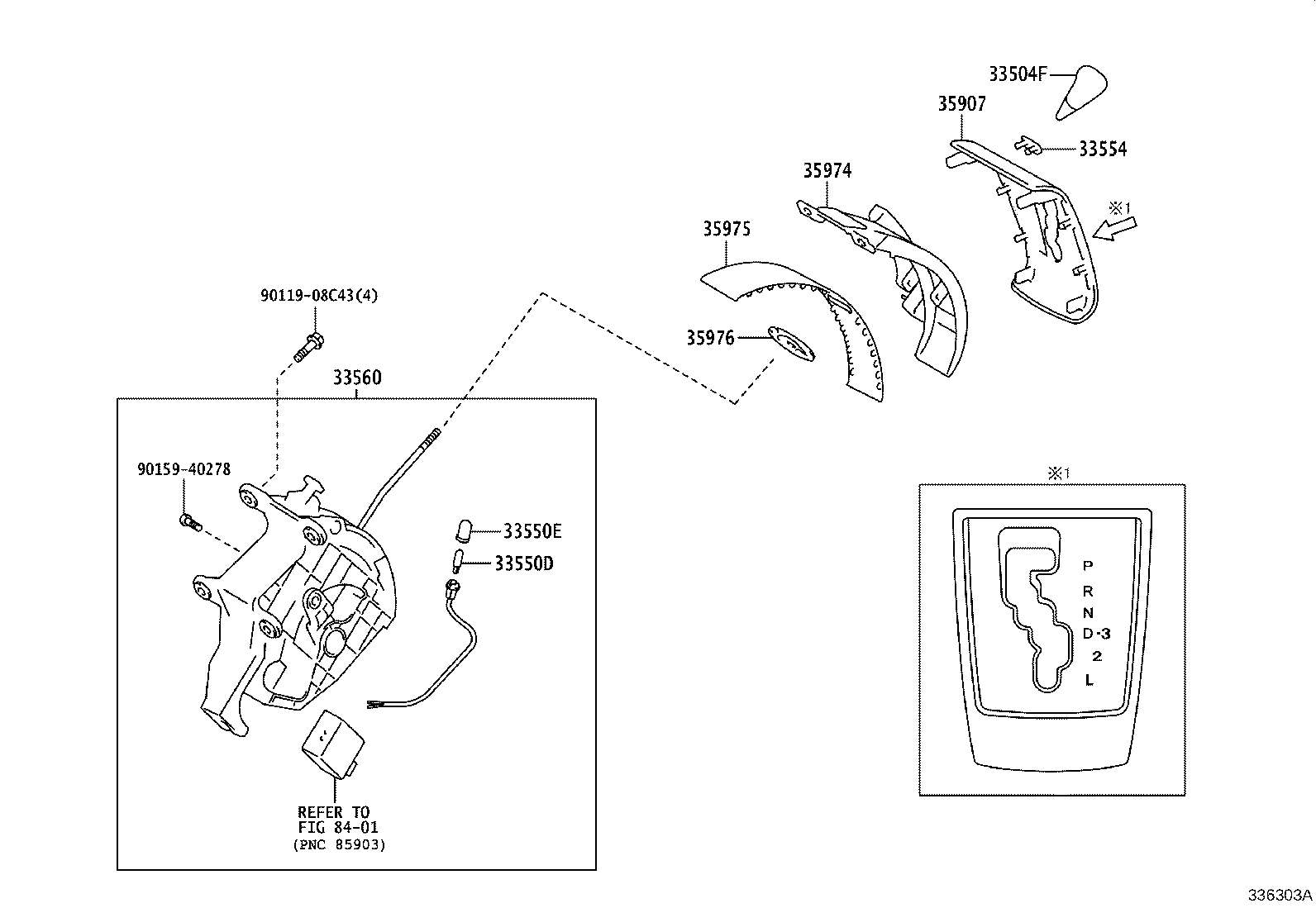

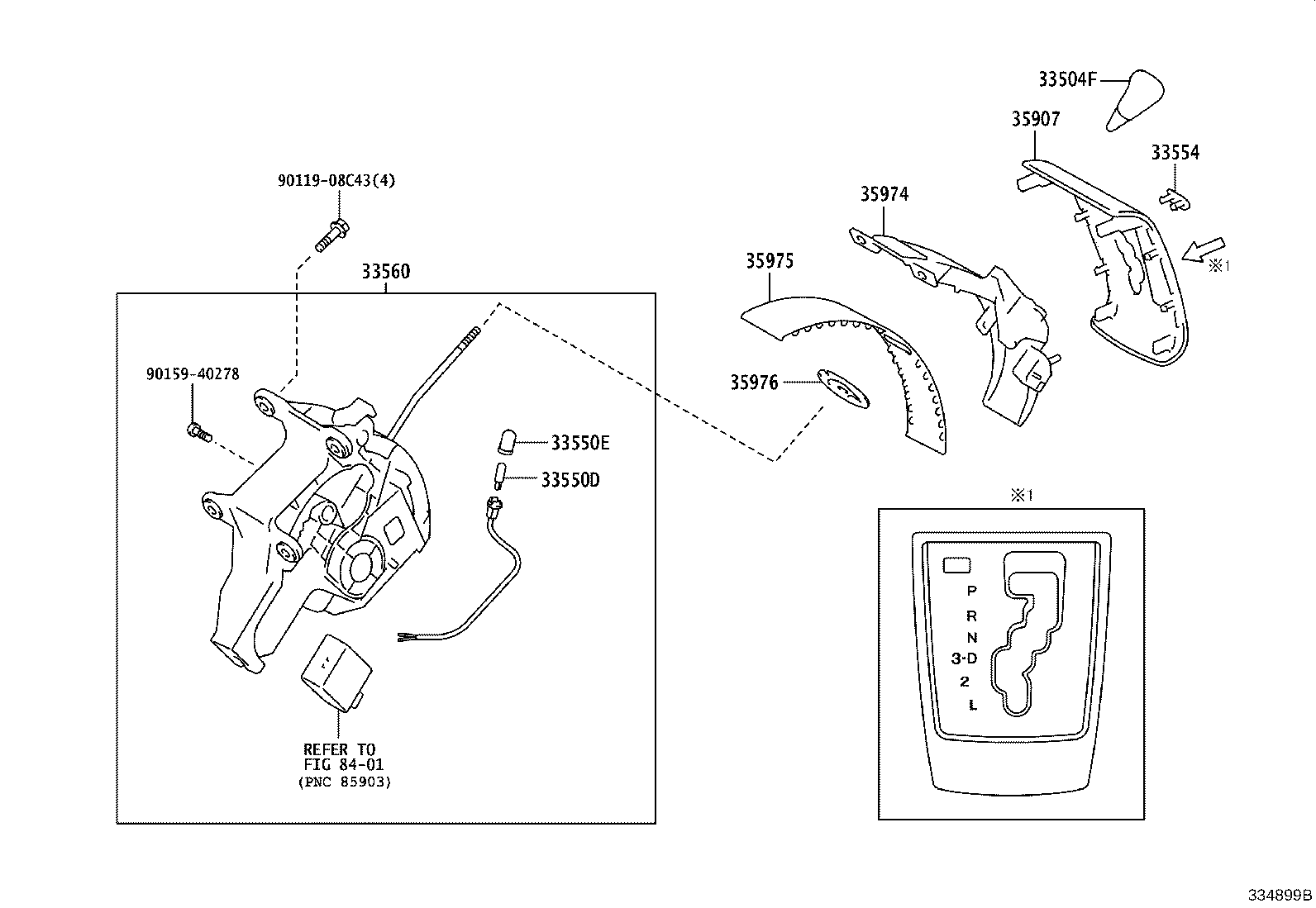

Figure 334895C 334895C 2013-12 → — Figure 334899B 334899B 2013-12 → — Figure 336303A 336303A 2013-12 → — Figure 334897B 334897B 2013-12 → — Figure 335131H 335131H 2015-01 → — Figure 335545C 335545C 2017-01 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33554 Cap, Shift Lever
33560 Unit Assy, Shift Lock Control
33740F End Assy, Connecting Rod, NO.1(FOR FLOOR SHIFT)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33825 Insulator, Transmission Control Cable
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
33829 Support, Transmission Control Cable
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
