Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake NO.3, 1ST & Reverse Brake (ATM)

34 part groups · 3 illustrations

Illustrations

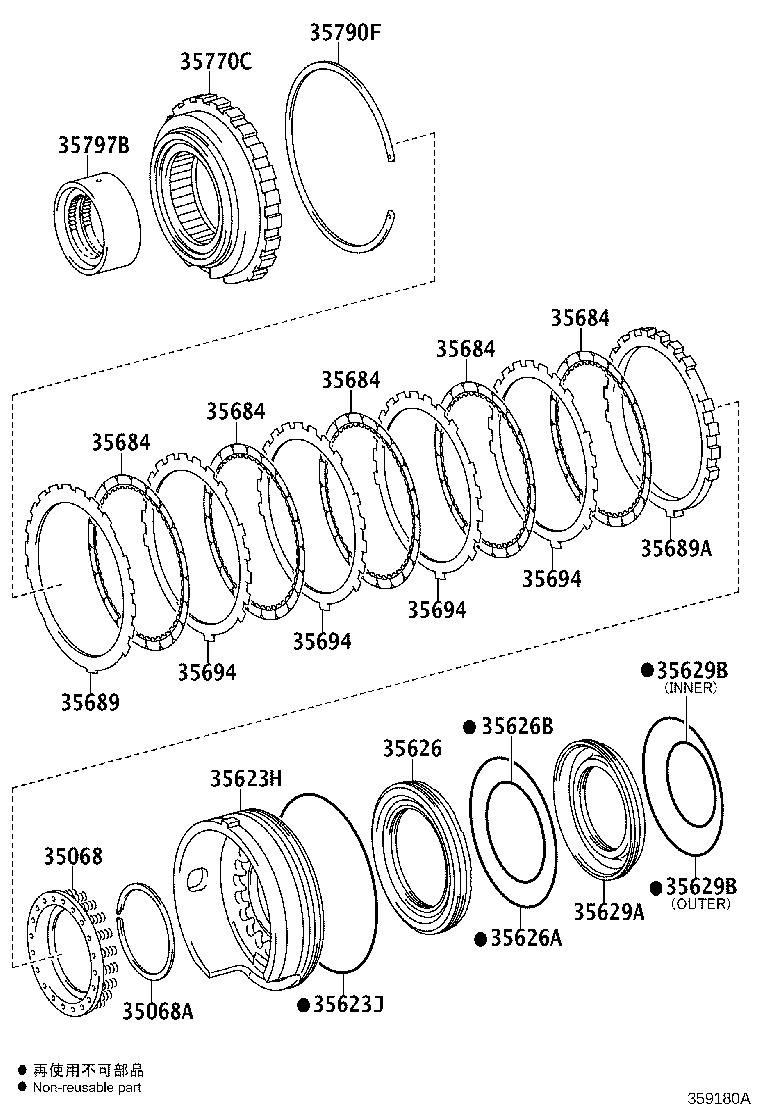

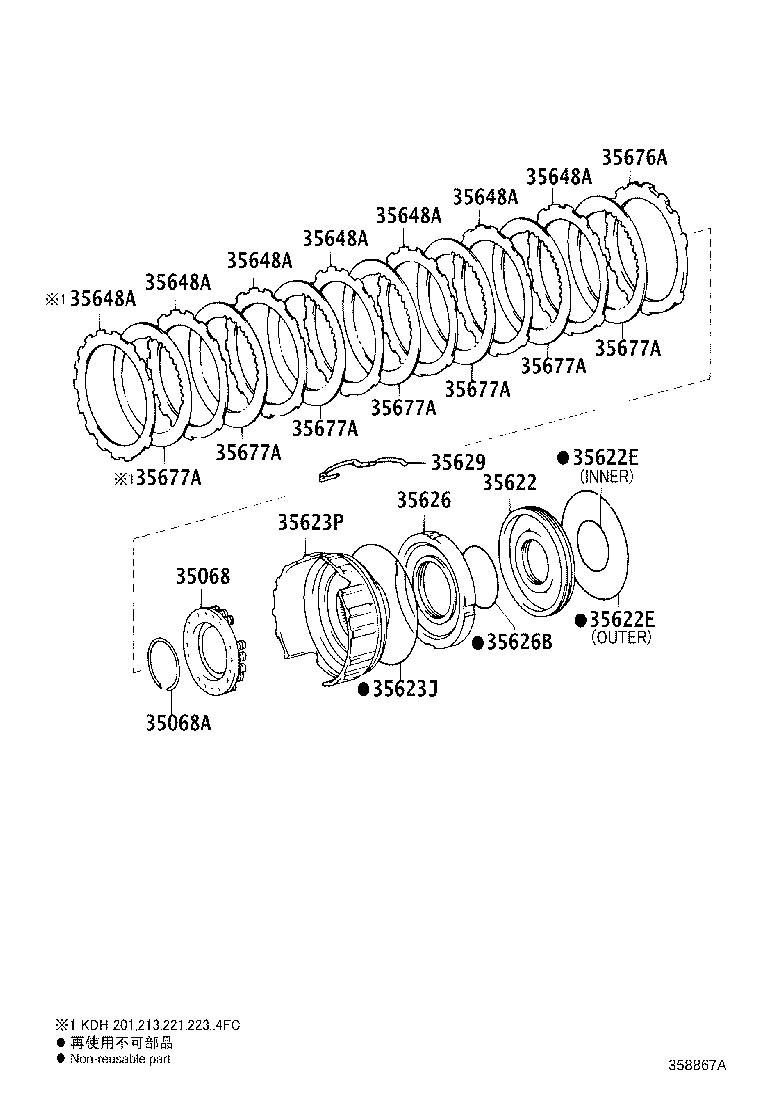

Figure 354844C 354844C 2013-12 → 2015-01 Figure 358867A 358867A 2013-12 → — Figure 359180A 359180A 2015-01 → —

Part groups

PNCDescription
35068 Spring Sub-assy, 1ST & Reverse Brake Return
35068A Ring, Shaft Snap (FOR 1ST & REVERSE BRAKE RETURN SPRING)
35608C Spring Sub-assy, NO.3 Brake Piston Return
35622 Piston, Brake, NO.2
35622A Ring (FOR BRAKE PISTON OUTER)
35622E Ring, O (FOR BRAKE PISTON NO.2)
35623 Piston, Brake, NO.3
35623D Ring, Shaft Snap (FOR BRAKE)
35623E Ring, O, NO.1 (FOR BRAKE PISTON)
35623H Piston, 1ST & Reverse Brake
35623J Ring, O (FOR 1ST & REVERSE BRAKE)
35623P Piston, 1ST & Reverse Brake, NO.2
35626 Sleeve, Brake Reaction
35626A Ring (FOR BRAKE REACTION SLEEVE OUTER)
35626B Ring (FOR BRAKE REACTION SLEEVE INNER)
35629 Spring (1ST & REVS BRAKE PLATE STOPPER)
35629A Piston, Brake, NO.4
35629B Ring, O (FOR BRAKE PISTON NO.4)
35639A Plate, Clutch Pressure (FOR BRAKE)
35647 Plate, Clutch, NO.2
35648A Plate, Clutch (FOR 1ST & REVERSE BRAKE)
35666 Tube, Brake Apply
35666B Disc, Clutch (FOR BRAKE)
35676A Flange, Brake (FOR 1ST & REVERSE BRAKE)
35677A Disc, Clutch (FOR 1ST & REVERSE BRAKE)
35684 Disc, Brake, NO.4
35689 Flange, Brake, NO.4
35689A Flange, Brake, NO.4
35694 Plate, Brake, NO.4
35707 Race Sub-assy, 1 Way Clutch, Inner
35707A Ring, Hole Snap (FOR 1 WAY CLUTCH INNER RACE)
35770C Clutch Assy, 1Way NO.3
35790F Ring, Hole Snap(FOR 1WAY CLUTCH)
35797B Race, 1 Way Clutch, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
