Valve Body & Oil Strainer (ATM)

47 part groups · 7 illustrations

Illustrations

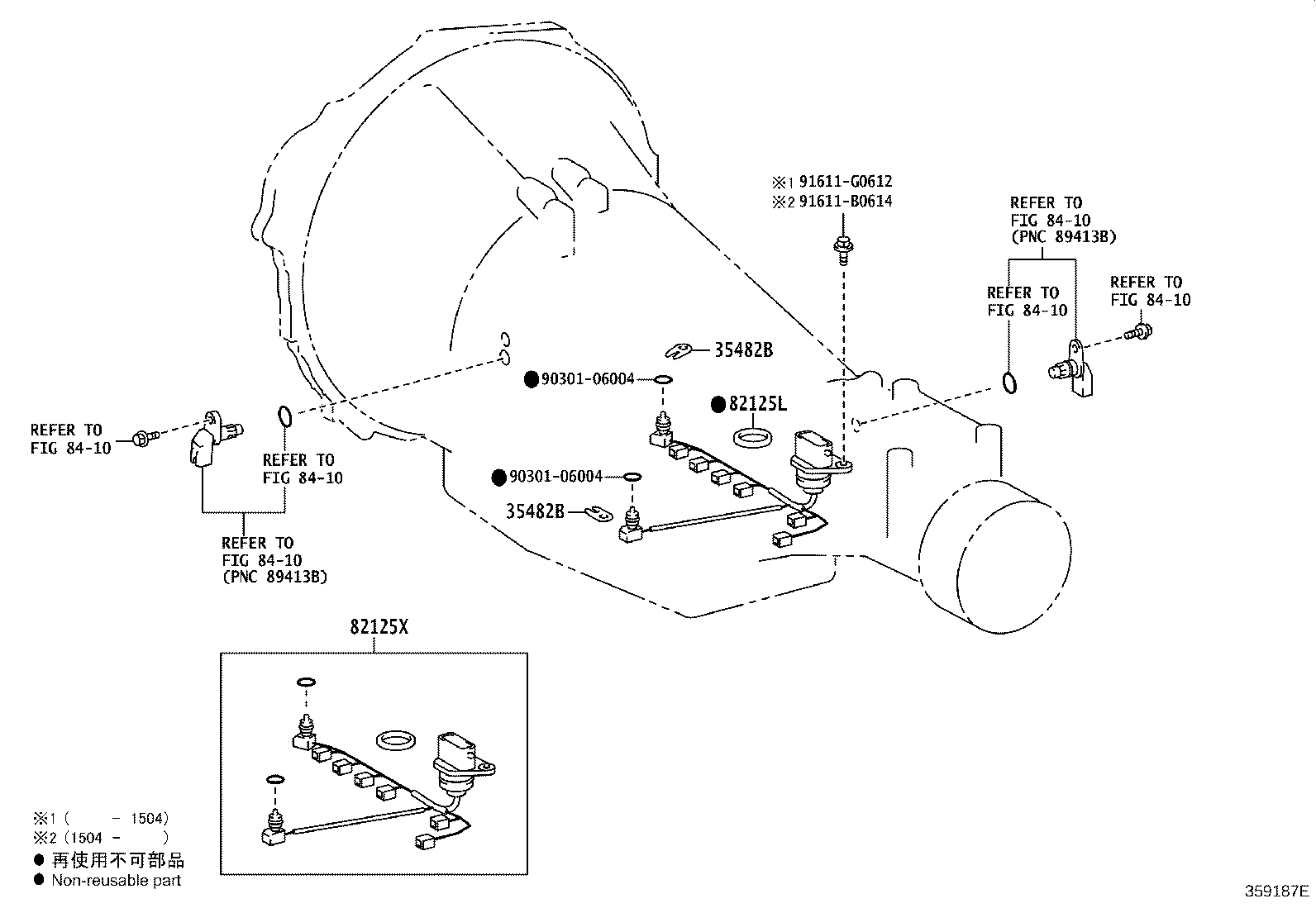

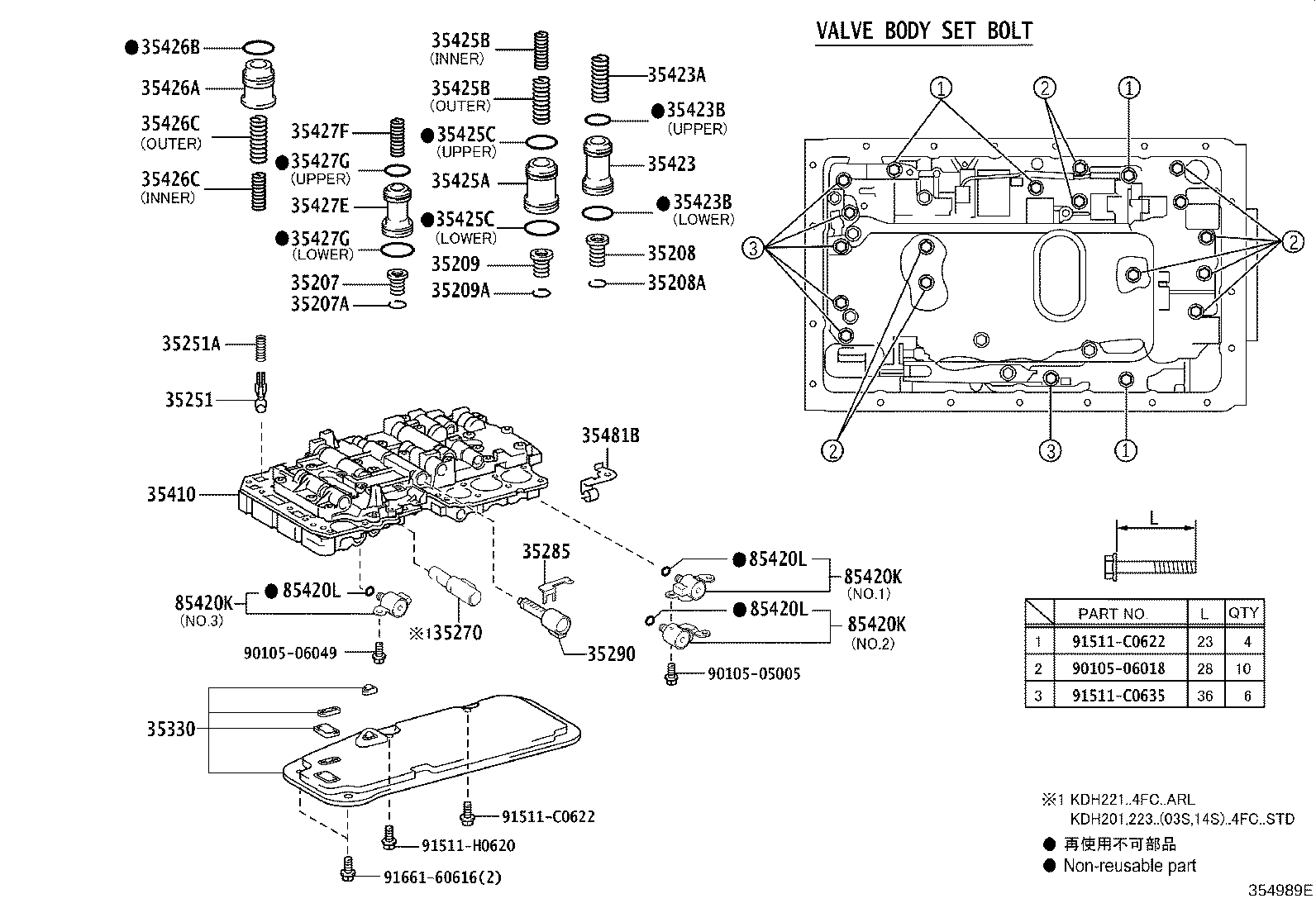

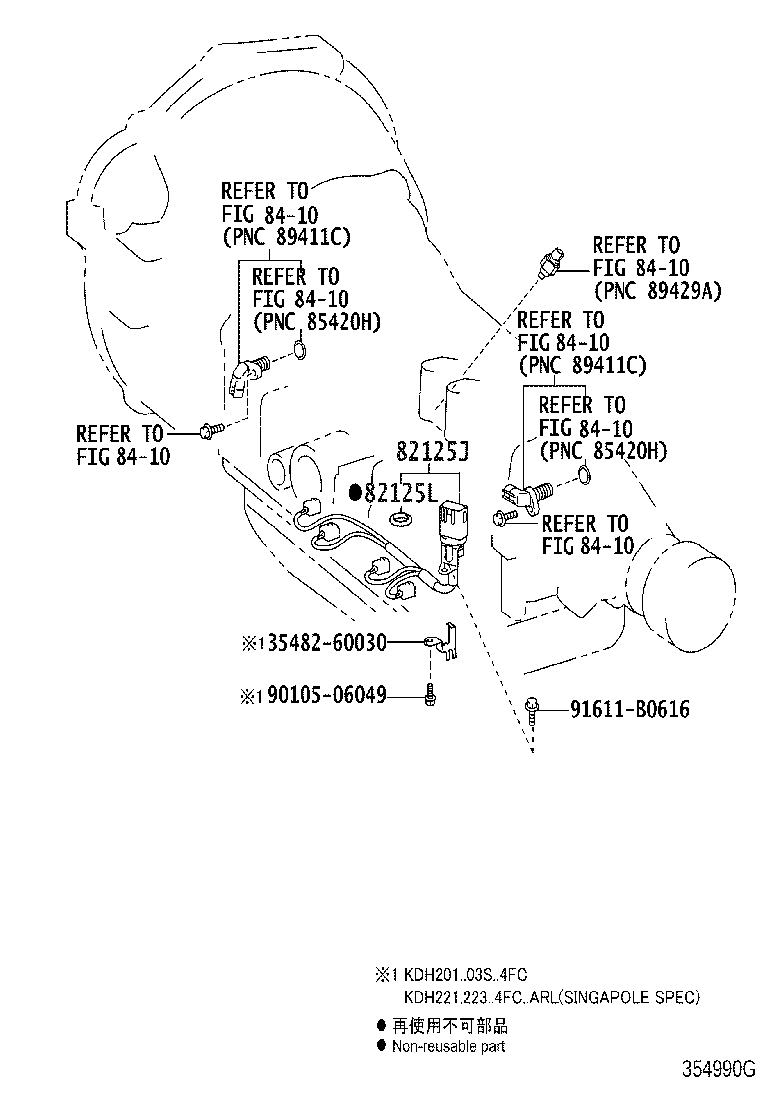

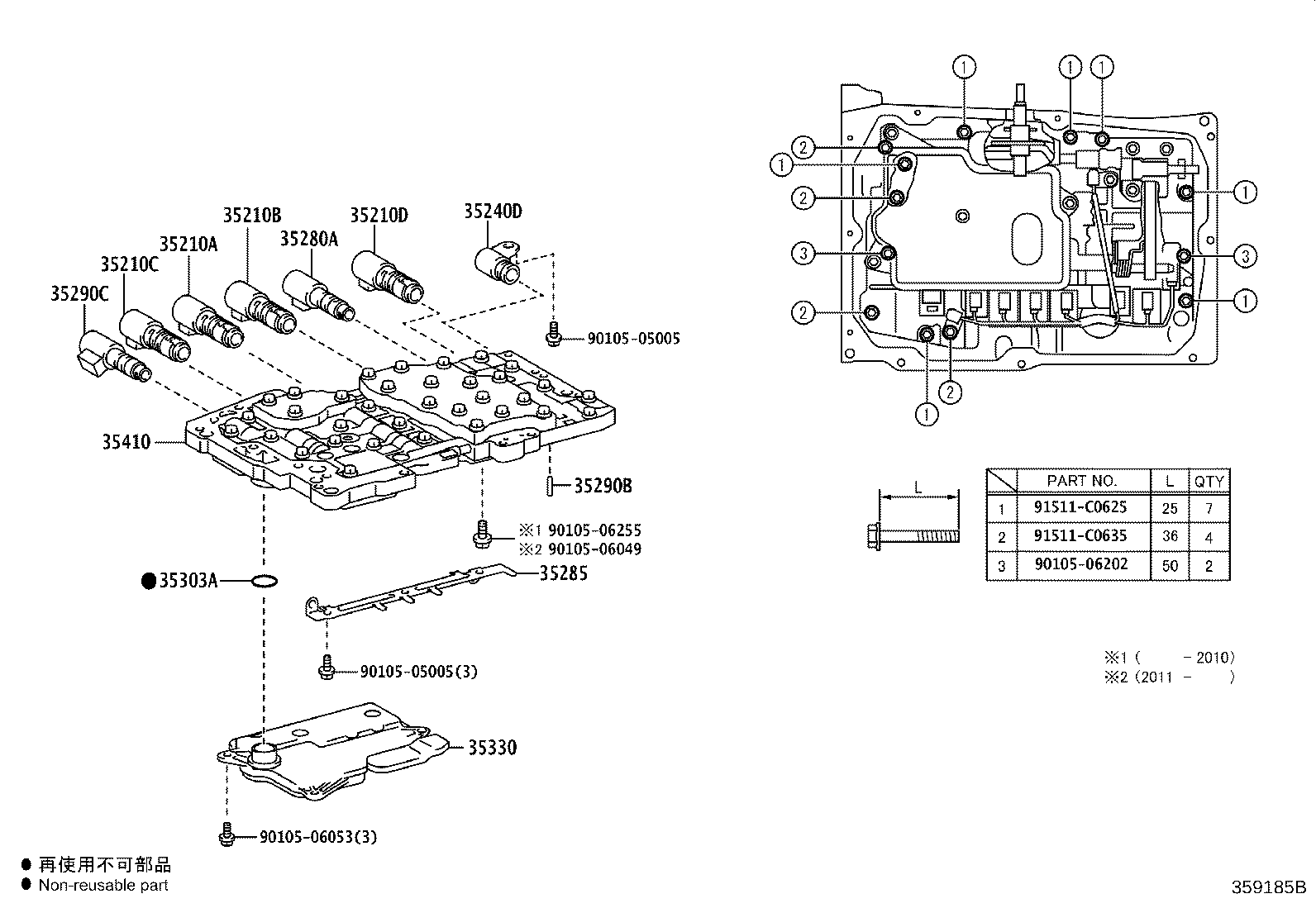

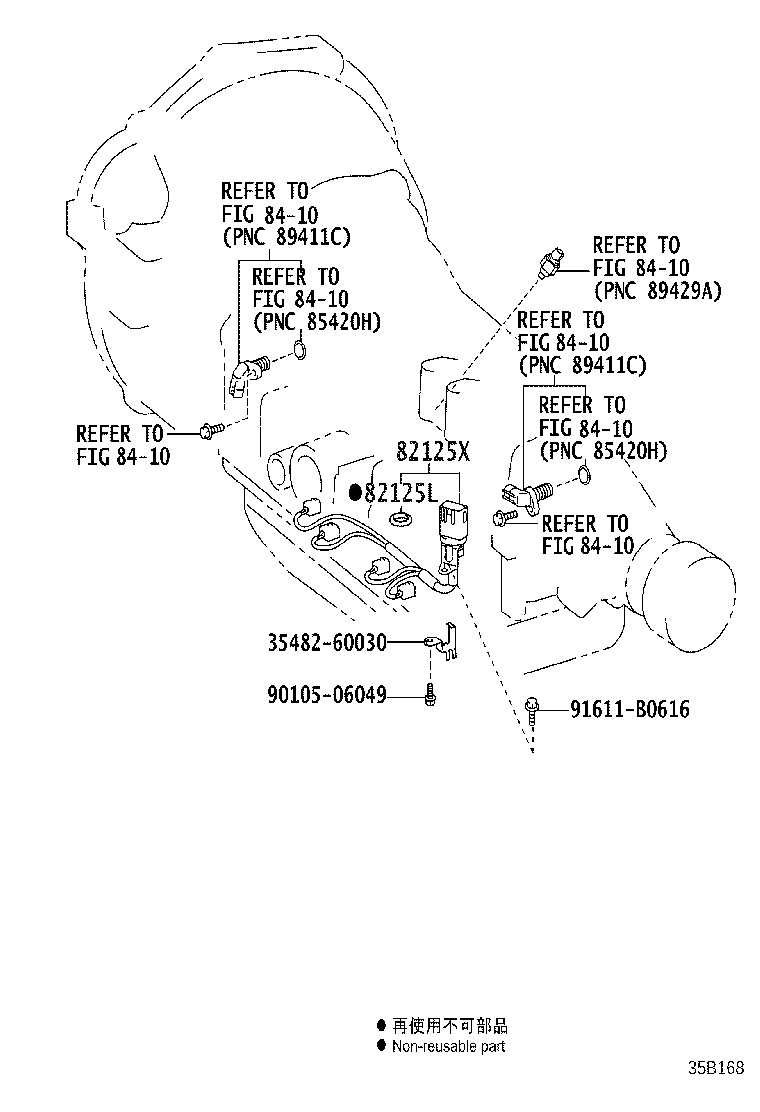

Figure 358767B 358767B 2013-12 → 2015-01 Figure 354989E 354989E 2013-12 → — Figure 359185B 359185B 2015-01 → — Figure 354881D 354881D 2013-12 → 2015-01 Figure 354990G 354990G 2013-12 → — Figure 35B168 35B168 2017-01 → — Figure 359187E 359187E 2015-01 → —

Part groups

PNCDescription
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35210A Valve, Solenoid(SL1)
35210B Valve, Solenoid(SL3)
35210C Valve, Solenoid(SL2)
35210D Valve, Solenoid(SL4)
35216 Stopper, Valve Sleeve
35240D Valve, Solenoid(SL)
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35270 Solenoid Assy, Shift Control
35280A Valve, Solenoid(SLU)
35283 Sleeve, Lock UP Control Solenoid
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35290B Pin, Straight (FOR LINE PRESSURE CONTOROL SOLENOID)
35290C Valve, Solenoid(SLT)
35303A Ring, O (FOR OIL STRAINER)
35330 Strainer Assy, Valve Body Oil
35410 Body Assy, Transmission Valve
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35481B Clamp, Valve Body Wire Harness
35482B Clamp, Temperature Sensor
35892 Tube, Overdrive Brake
82125J Wire, Transmission
82125L Ring, O(FOR TRANSMISSION WIRE)
82125X Wire, Transmission, With Temperature Sensor
85420K Solenoid Assy, Transmission
85420L Ring, O(FOR TRANSMISSION SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
