Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

8 part groups · 3 illustrations

Illustrations

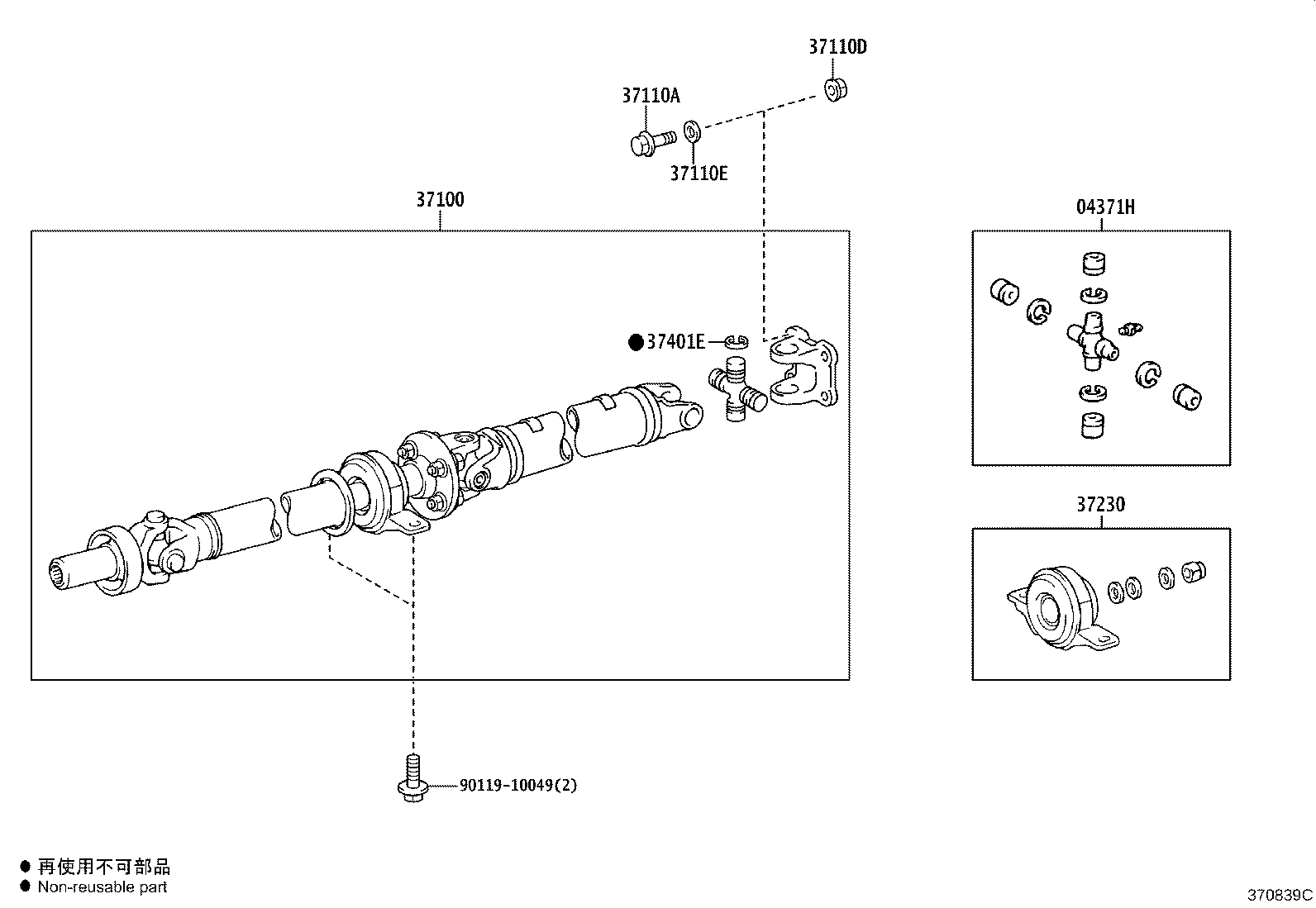

Figure 370838B 370838B 2013-12 → — Figure 370839C 370839C 2013-12 → — Figure 370839C 370839C 2018-01 → —

Part groups

PNCDescription
04371H Spider Kit, Rear Propeller Shaft Universal Joint
37100 Shaft Assy, Propeller W/Center Bearing
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37110D Nut (FOR PROPELLER SHAFT)
37110E Washer (FOR PROPELLER SHAFT)
37230 Bearing Assy, Center Support, NO.1
37401E Ring, Snap (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
