Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

10 part groups · 14 illustrations

Illustrations

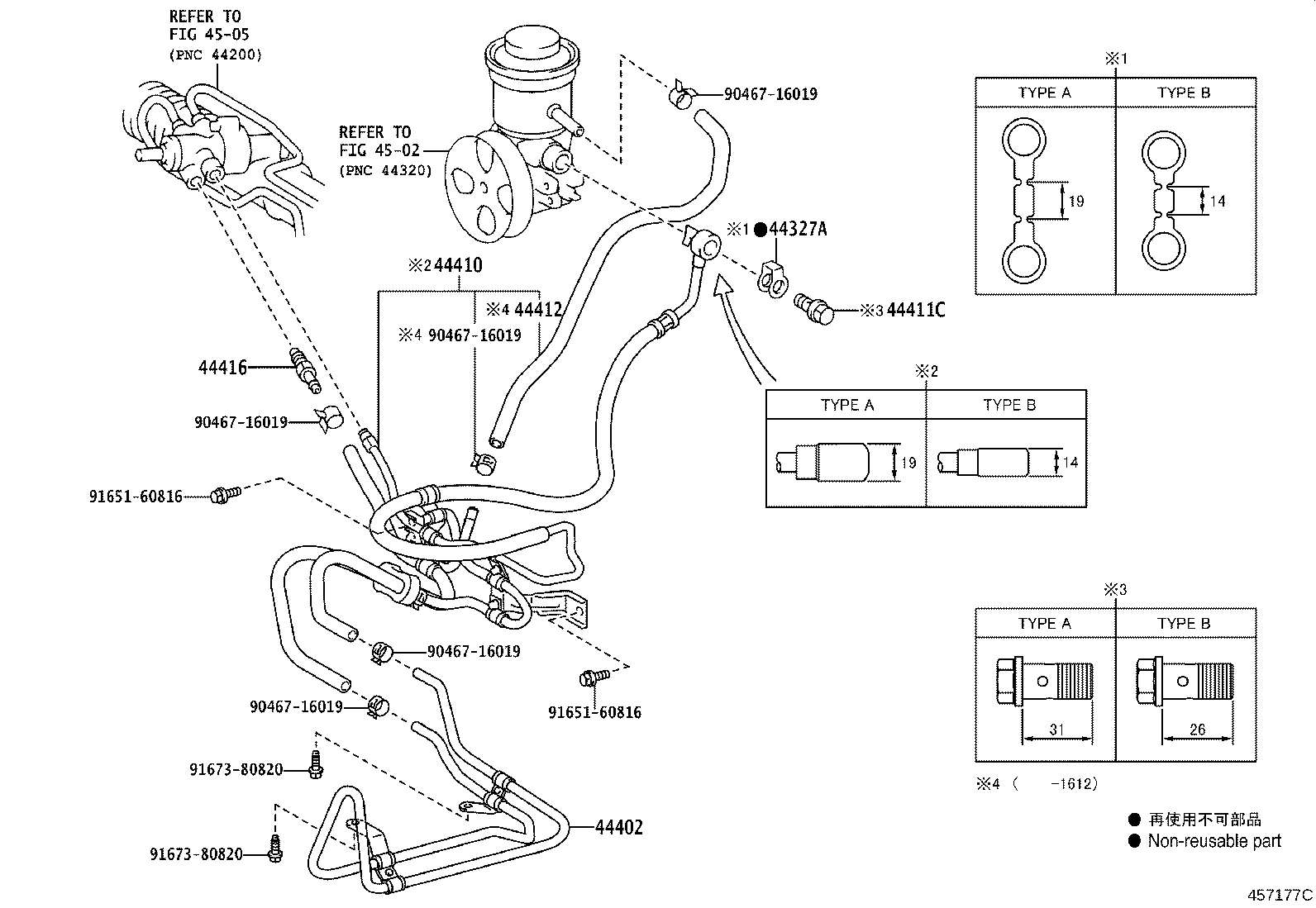

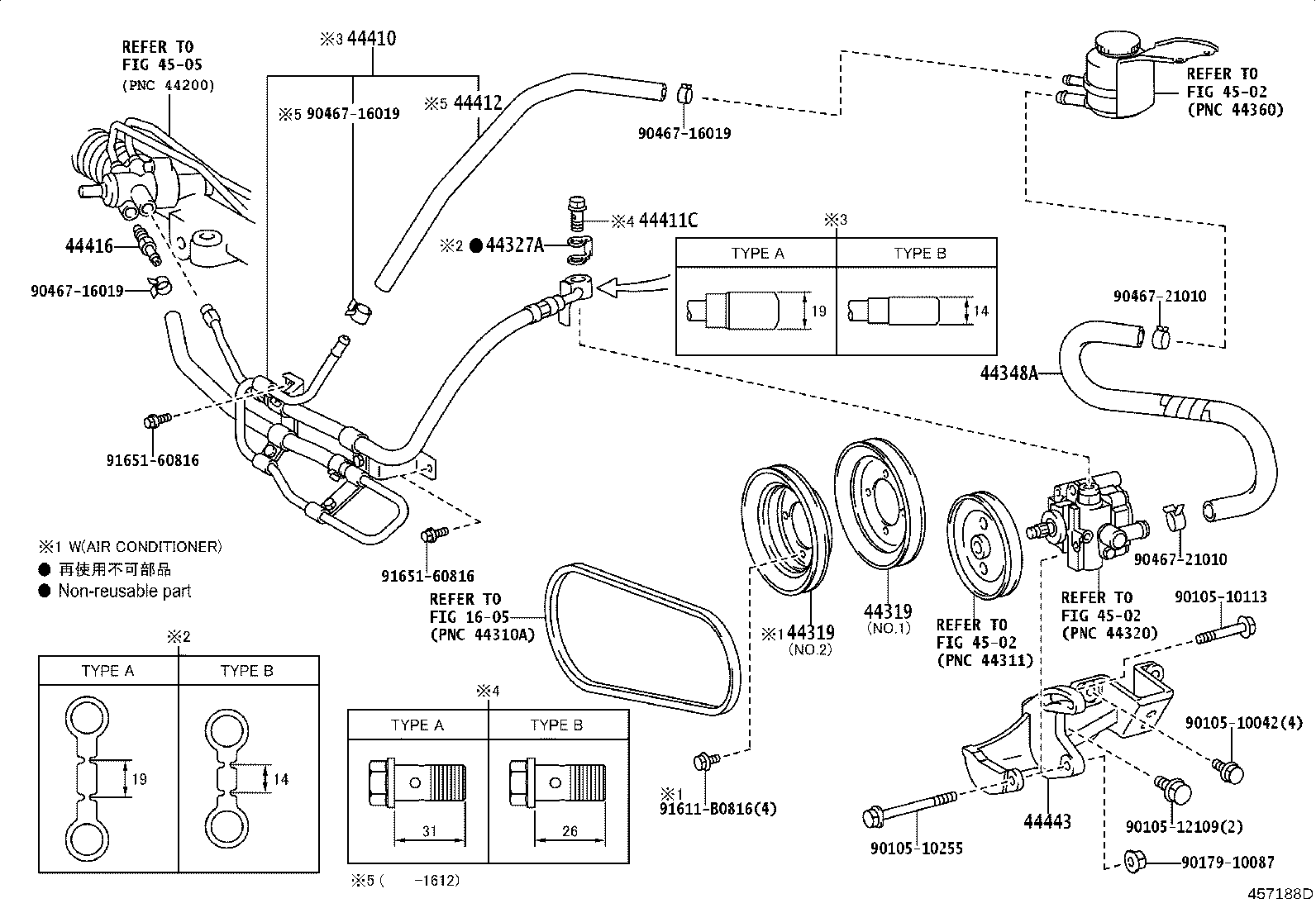

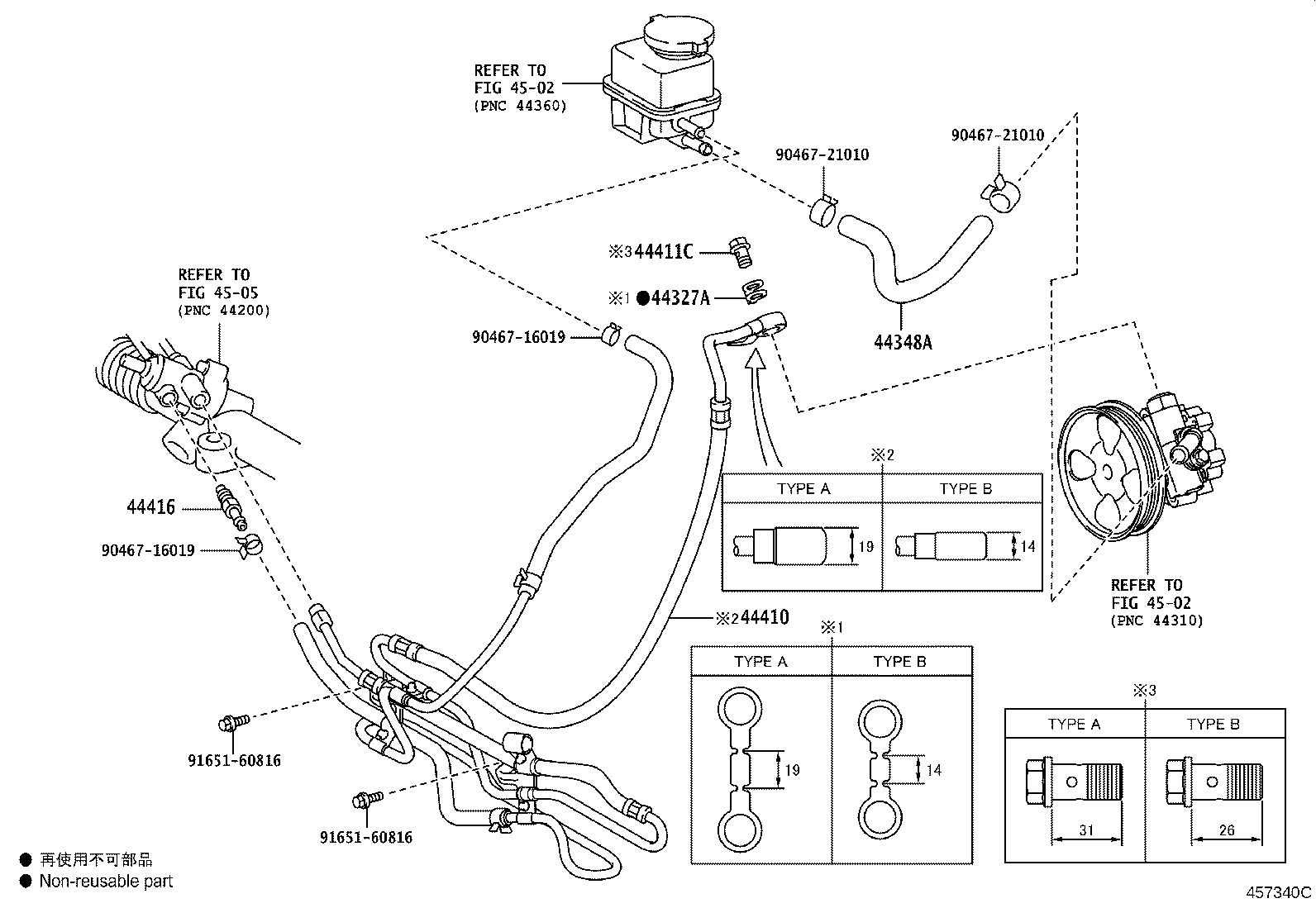

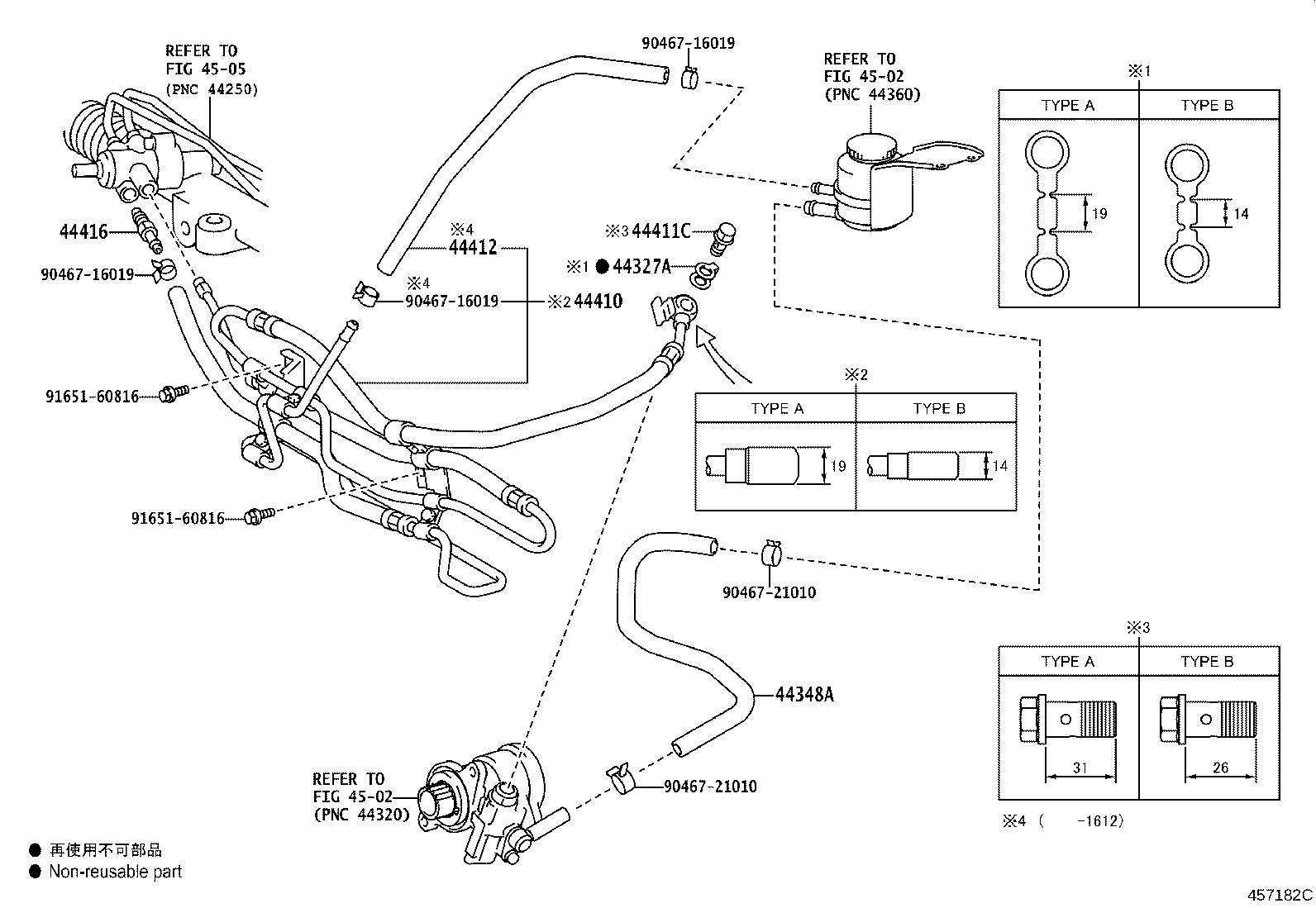

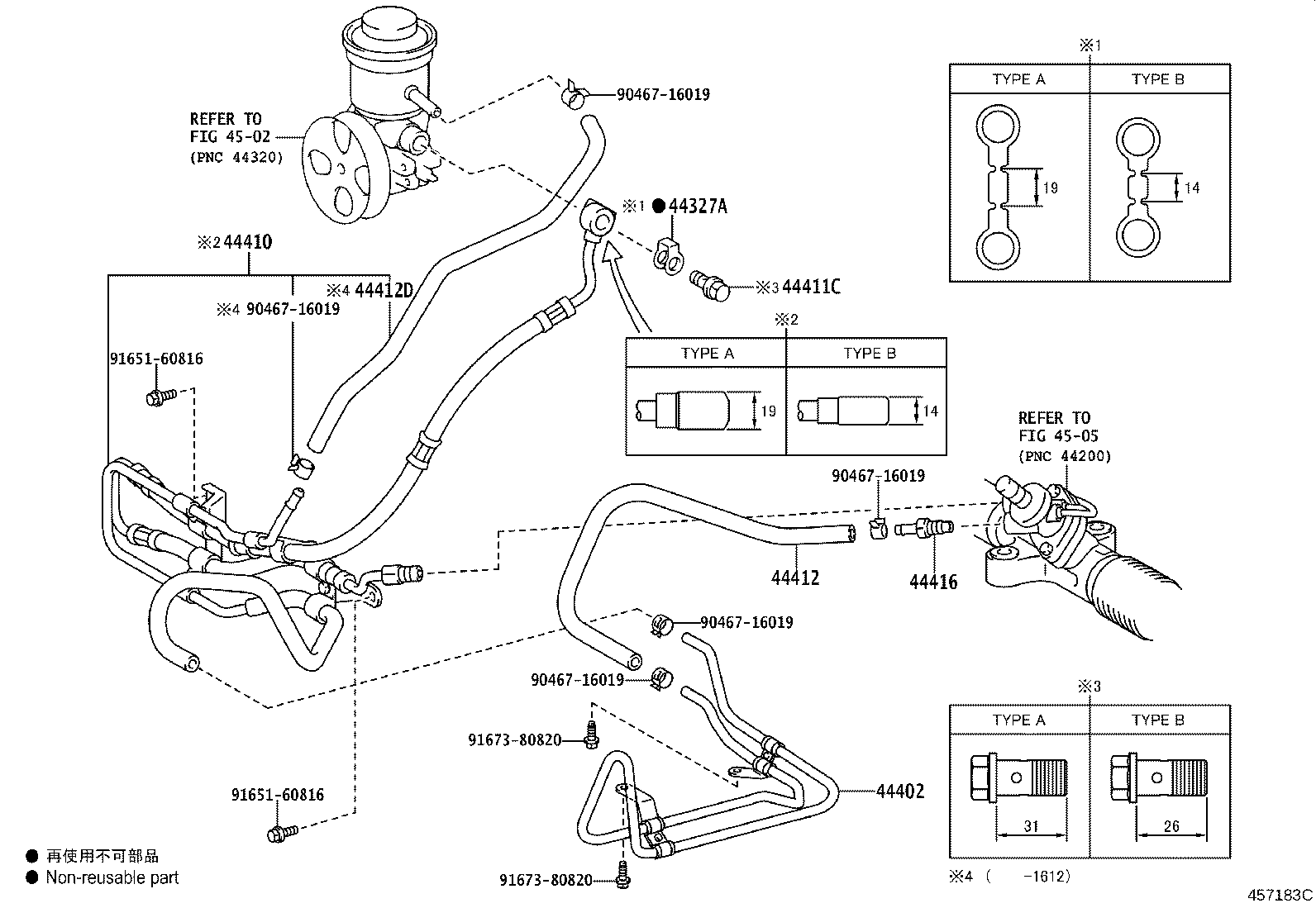

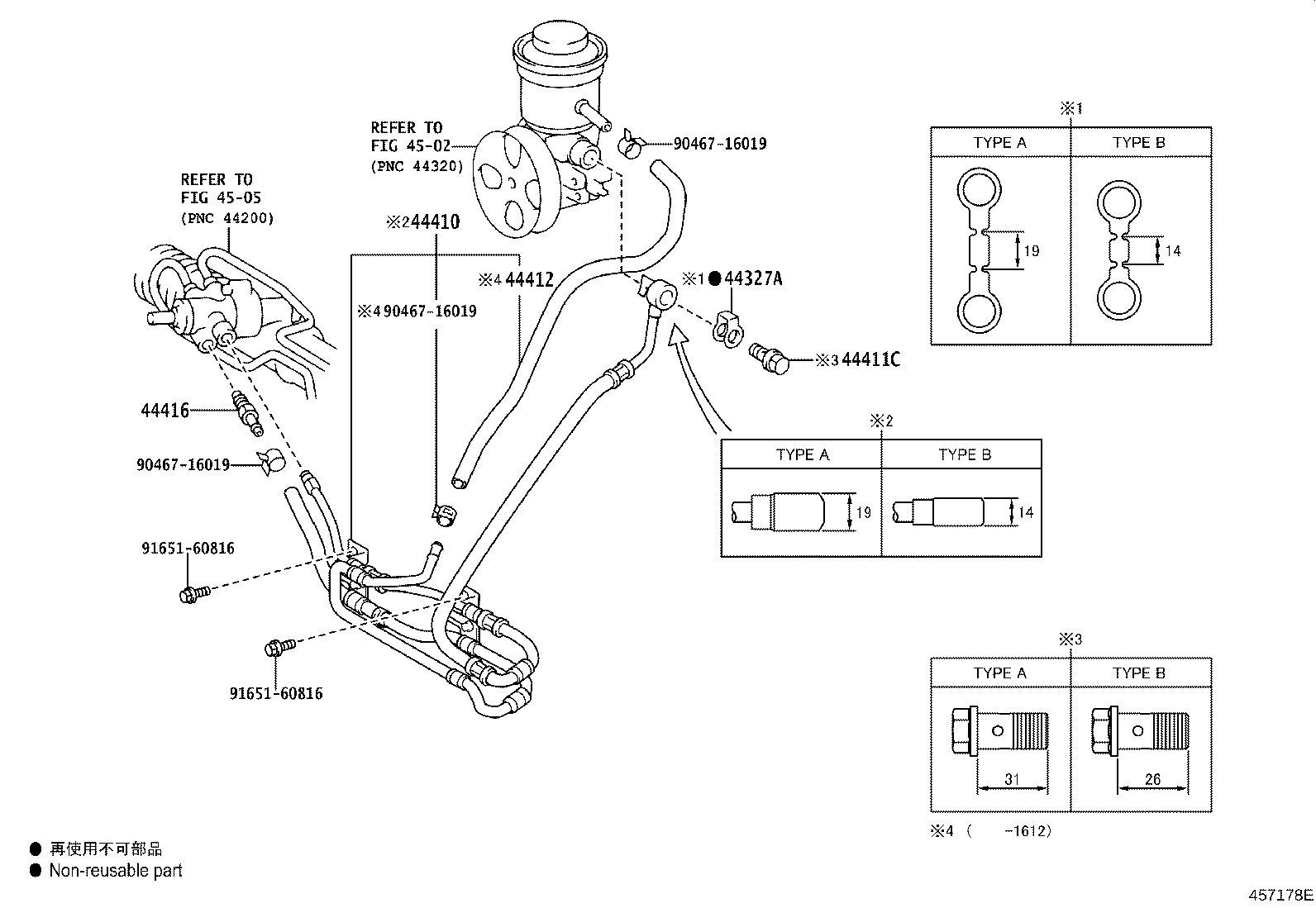

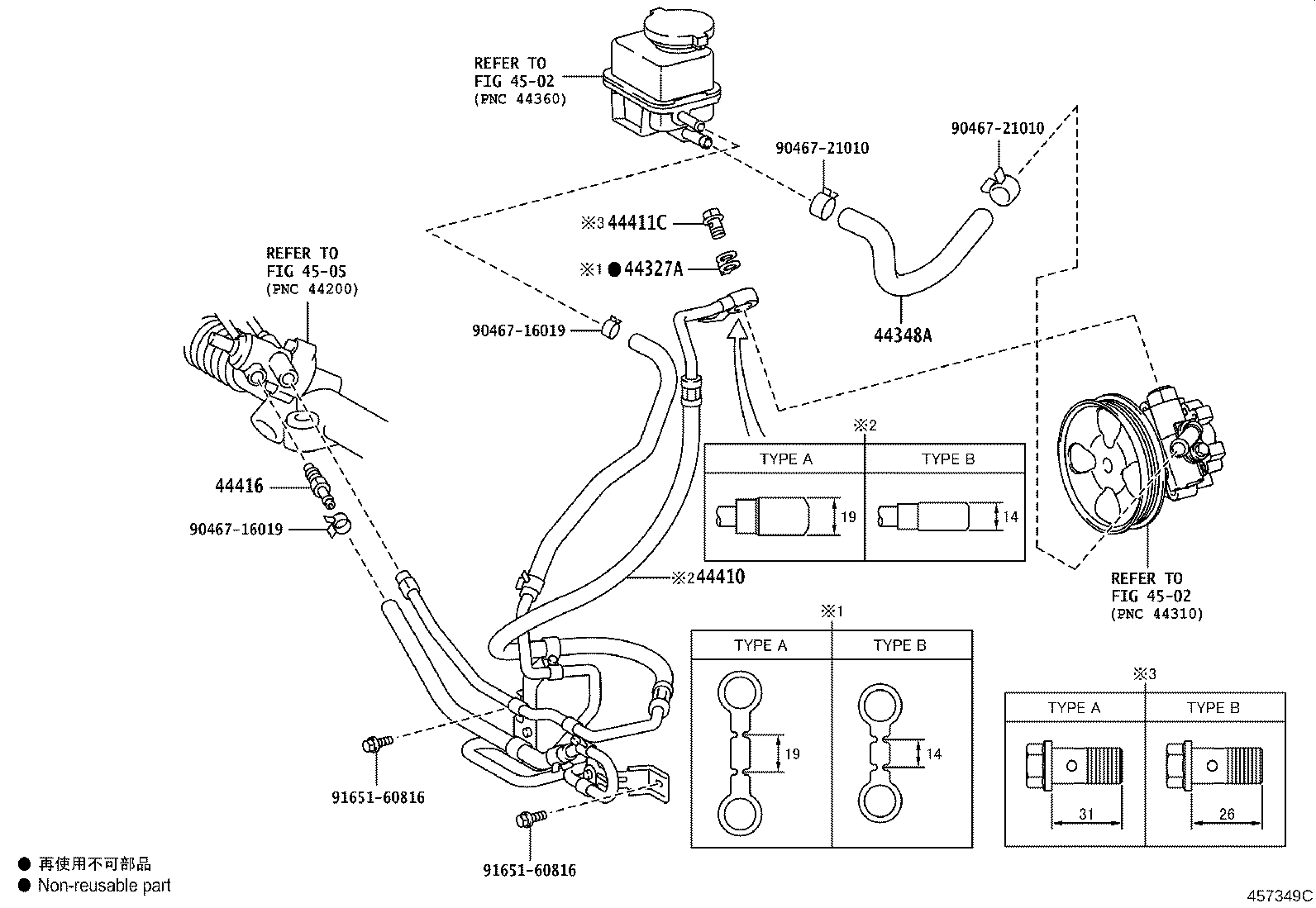

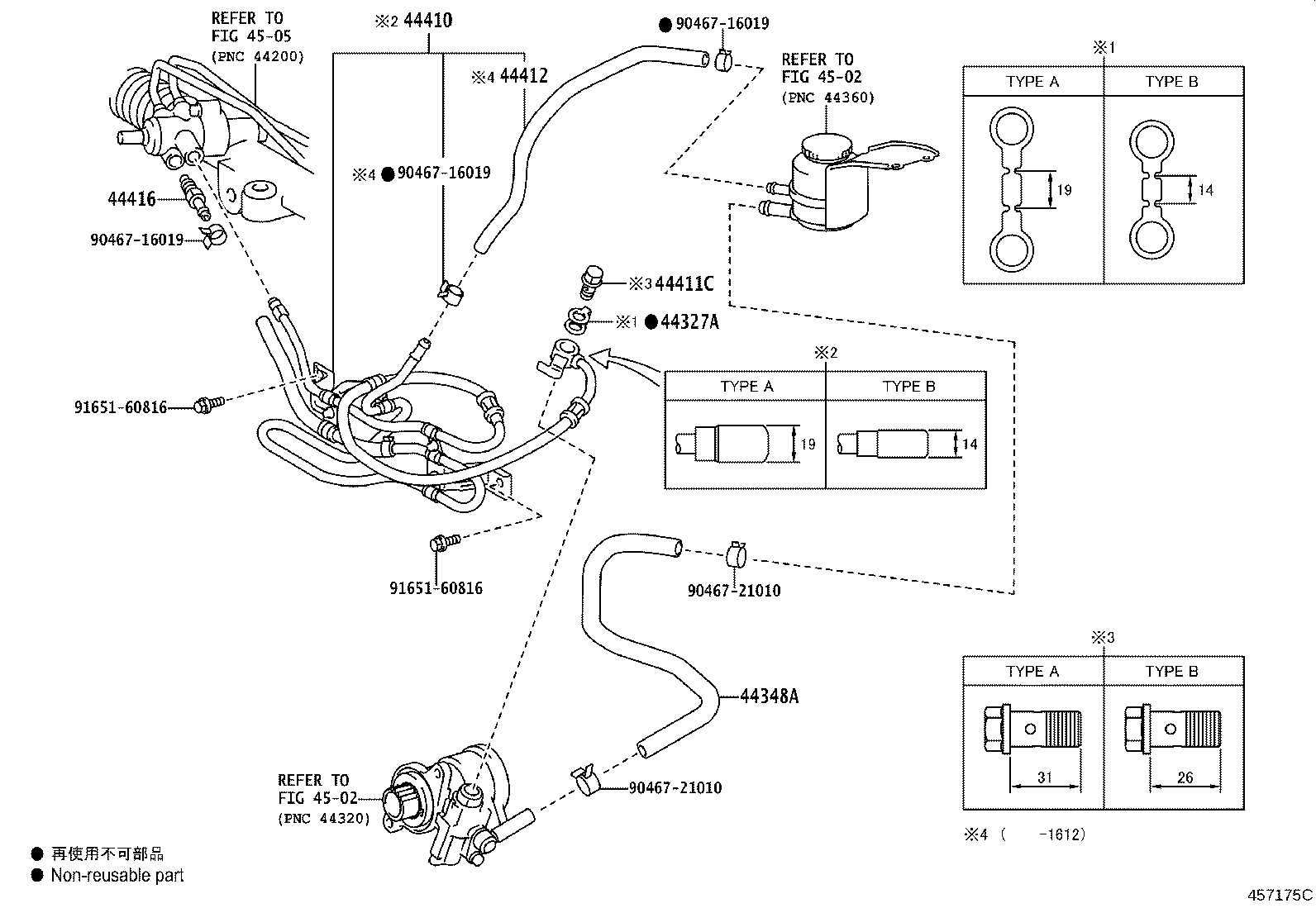

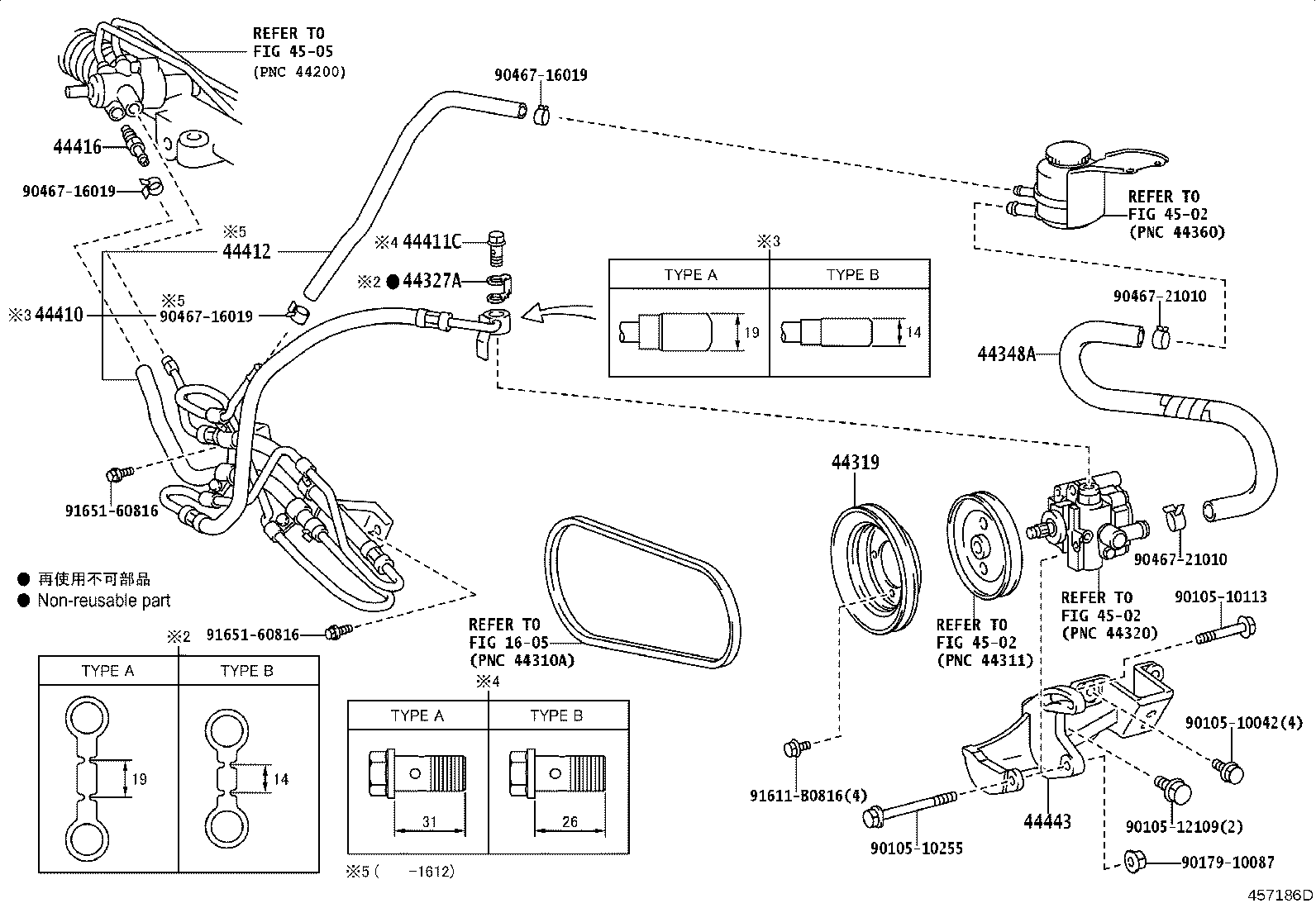

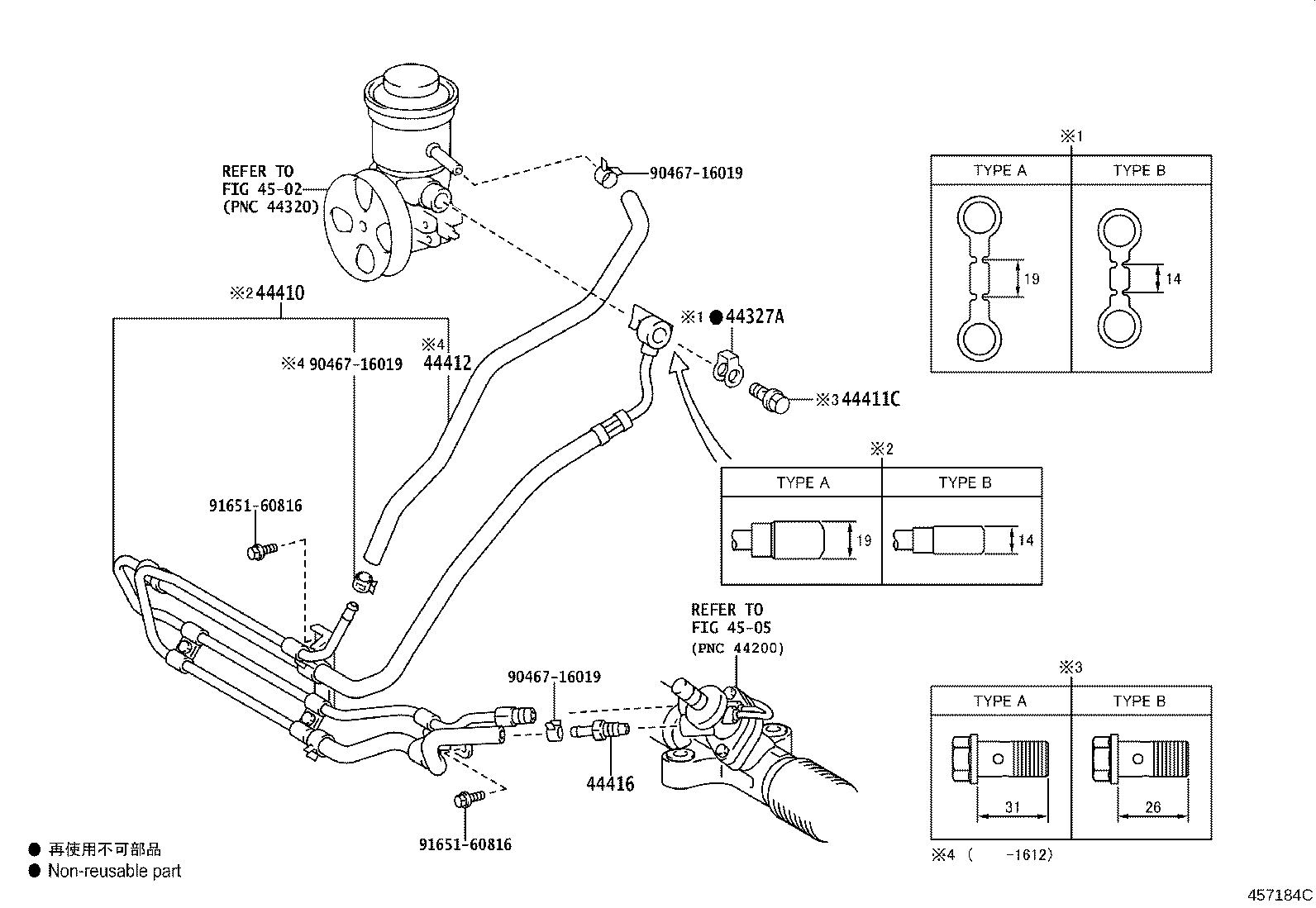

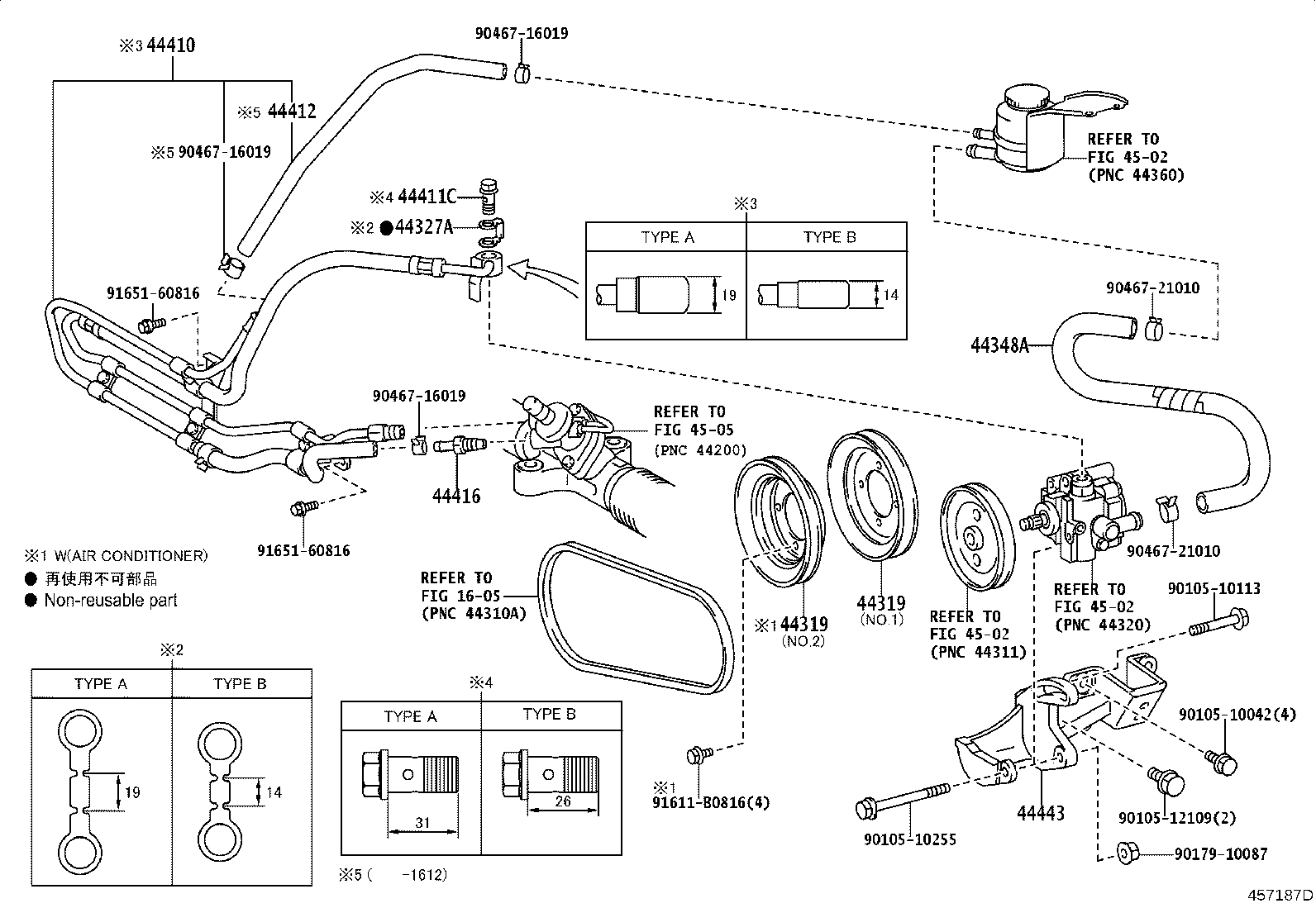

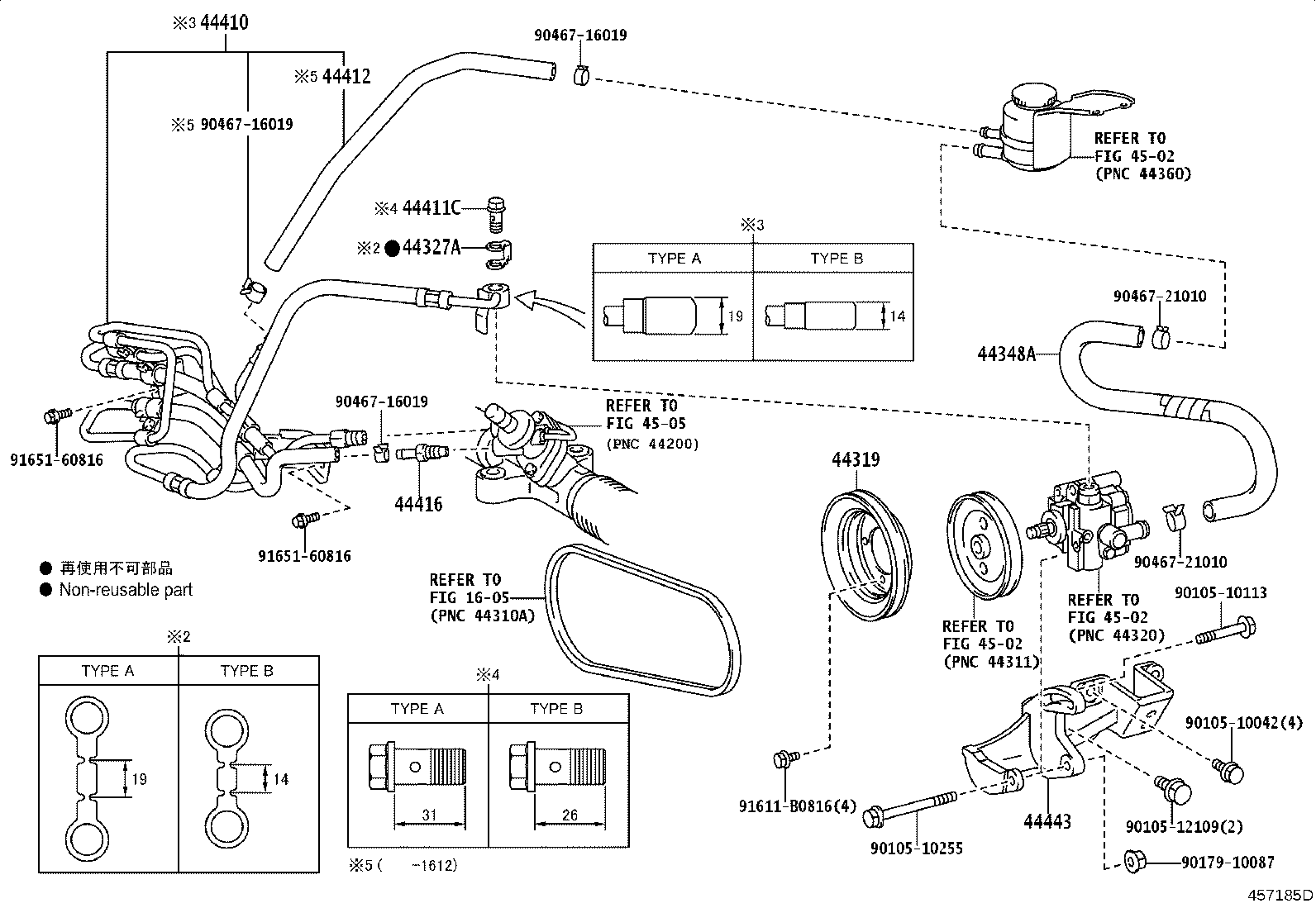

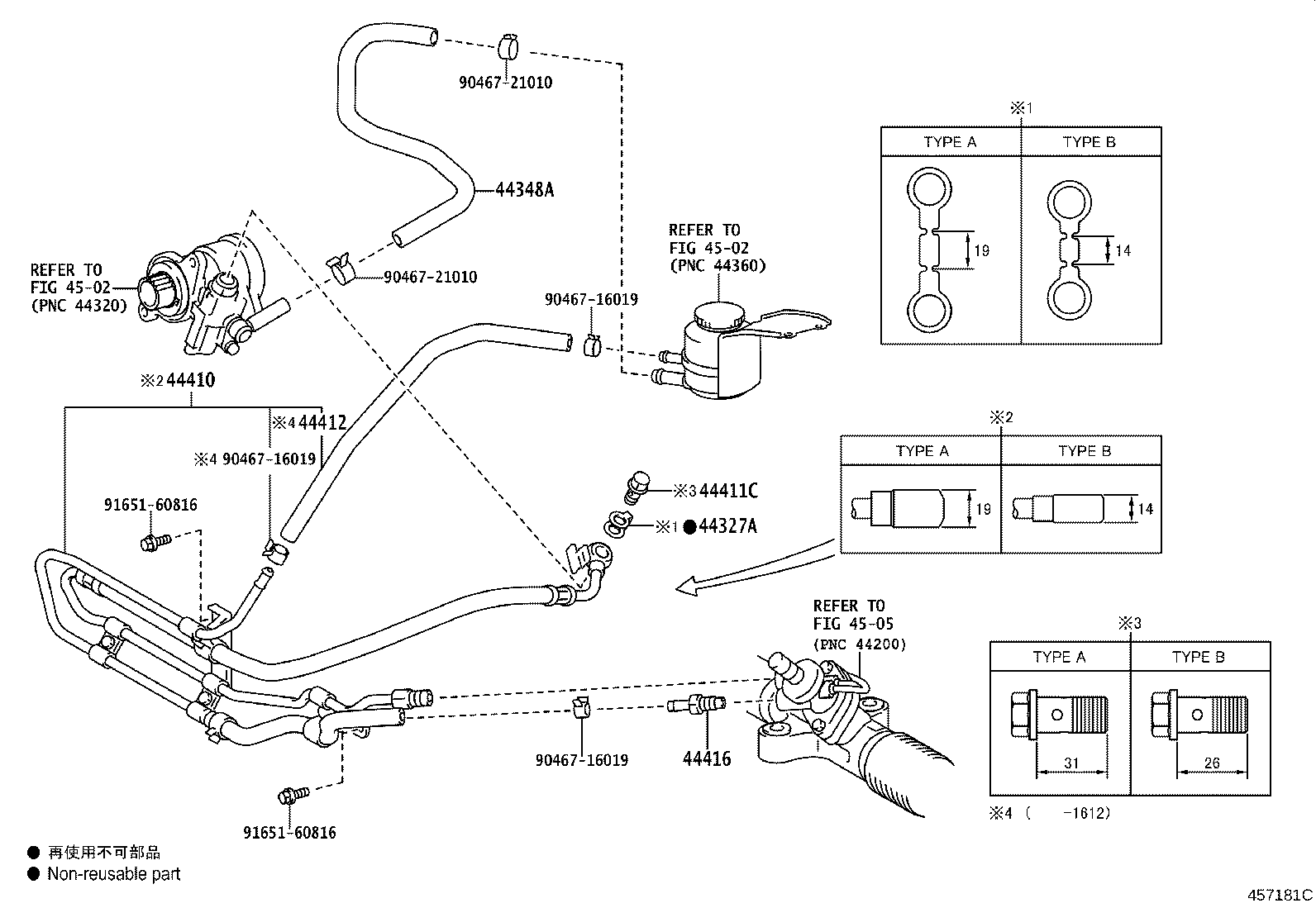

Figure 457180C 457180C 2013-12 → — Figure 457175C 457175C 2013-12 → — Figure 457181C 457181C 2013-12 → — Figure 457182C 457182C 2013-12 → — Figure 457183C 457183C 2013-12 → — Figure 457177C 457177C 2013-12 → — Figure 457184C 457184C 2013-12 → — Figure 457178E 457178E 2013-12 → — Figure 457185D 457185D 2013-12 → — Figure 457186D 457186D 2013-12 → — Figure 457187D 457187D 2013-12 → — Figure 457188D 457188D 2013-12 → — Figure 457349C 457349C 2017-01 → — Figure 457340C 457340C 2023-02 → —

Part groups

PNCDescription
44319 Pulley, Vane Pump Drive
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44412D Hose, Return, NO.1
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
