Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 6 illustrations

Illustrations

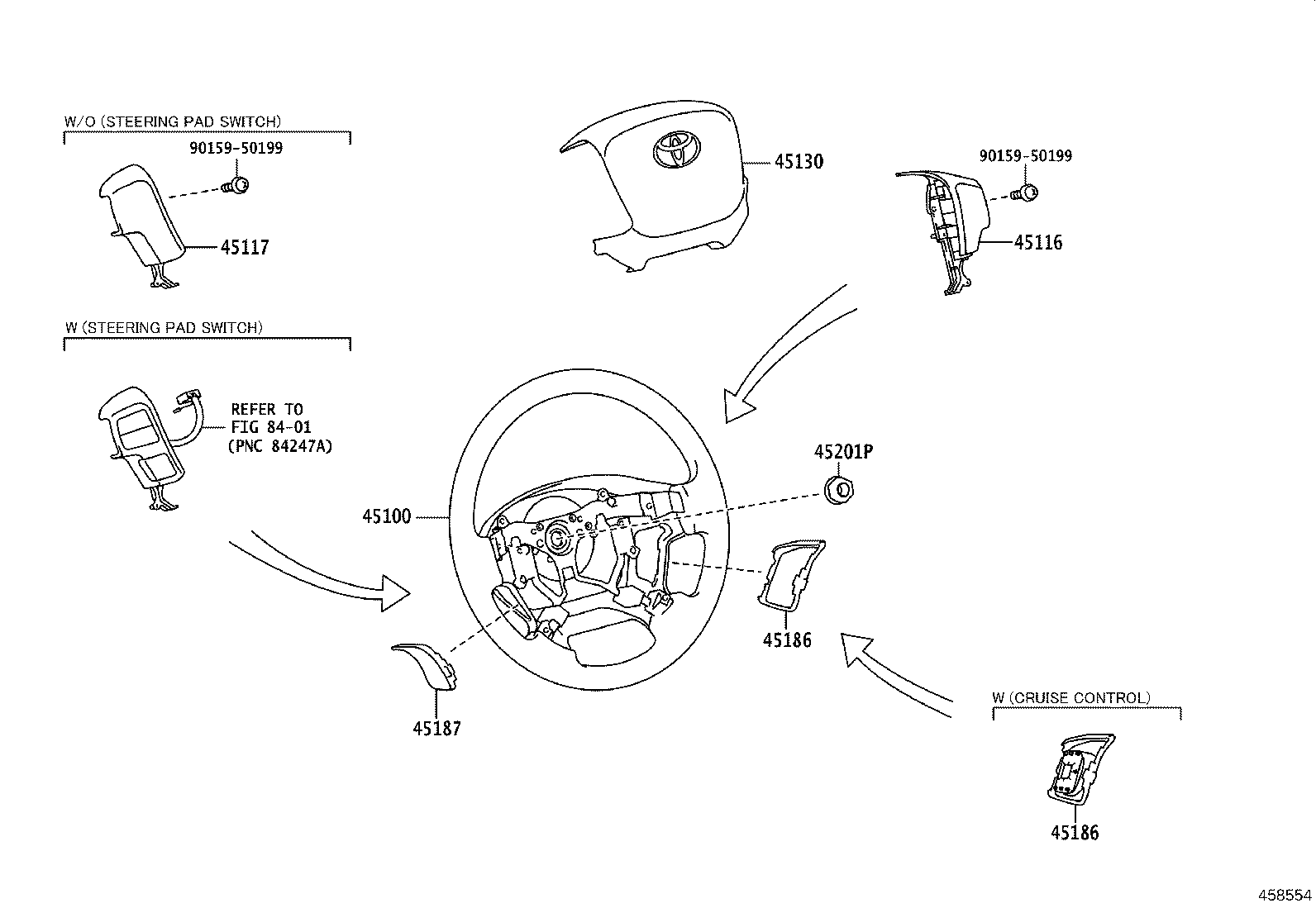

Figure 456500 456500 2013-12 → — Figure 456500 456500 2013-12 → — Figure 456501 456501 2013-12 → — Figure 456501 456501 2013-12 → — Figure 458554 458554 2013-12 → — Figure 458554 458554 2013-12 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45186 Cover, Steering Wheel, Lower NO.2
45187 Cover, Steering Wheel, Lower NO.3
45201P Nut, Steering Wheel Set
84258 Cover, Steering Pad, RH
84259 Cover, Steering Pad, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
