Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

21 part groups · 11 illustrations

Illustrations

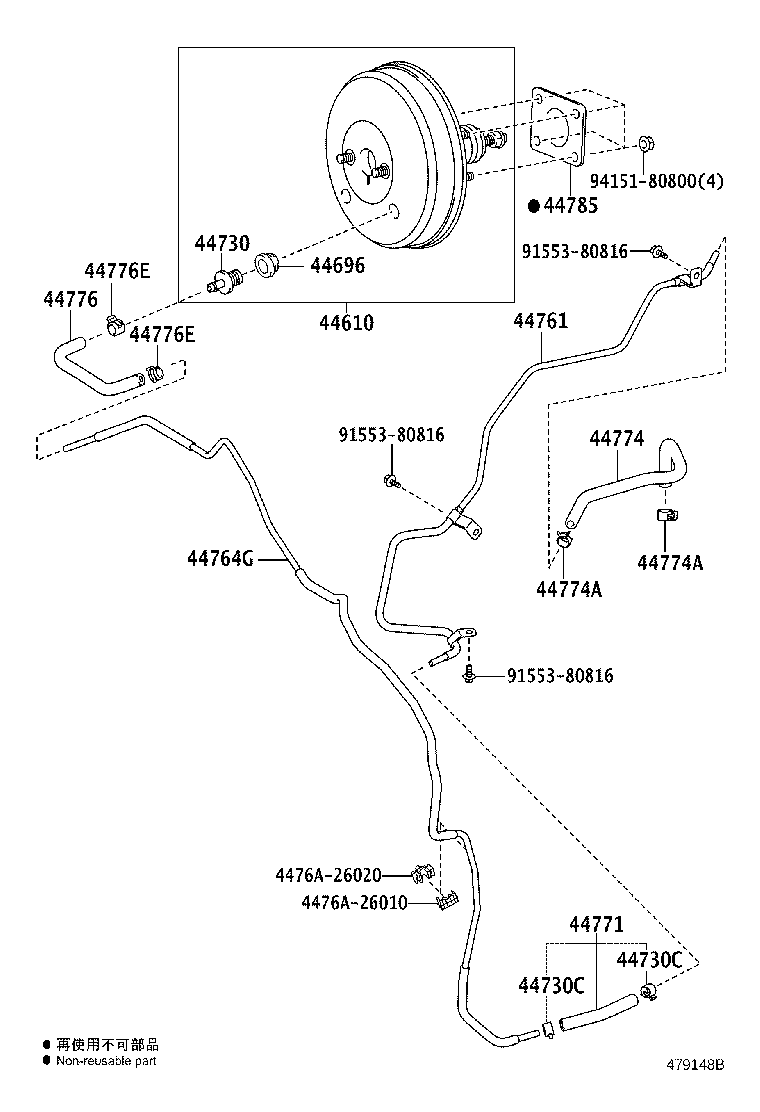

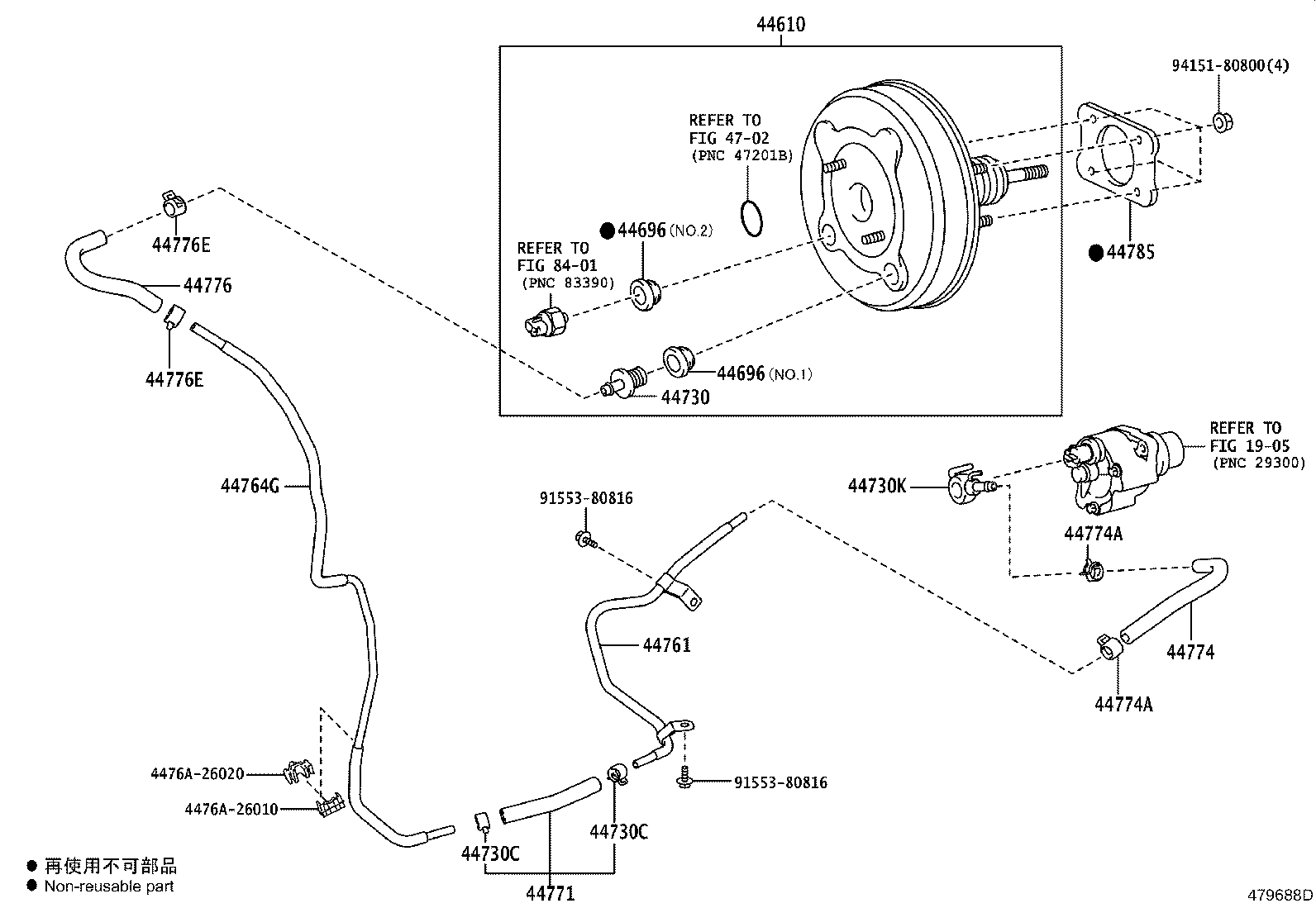

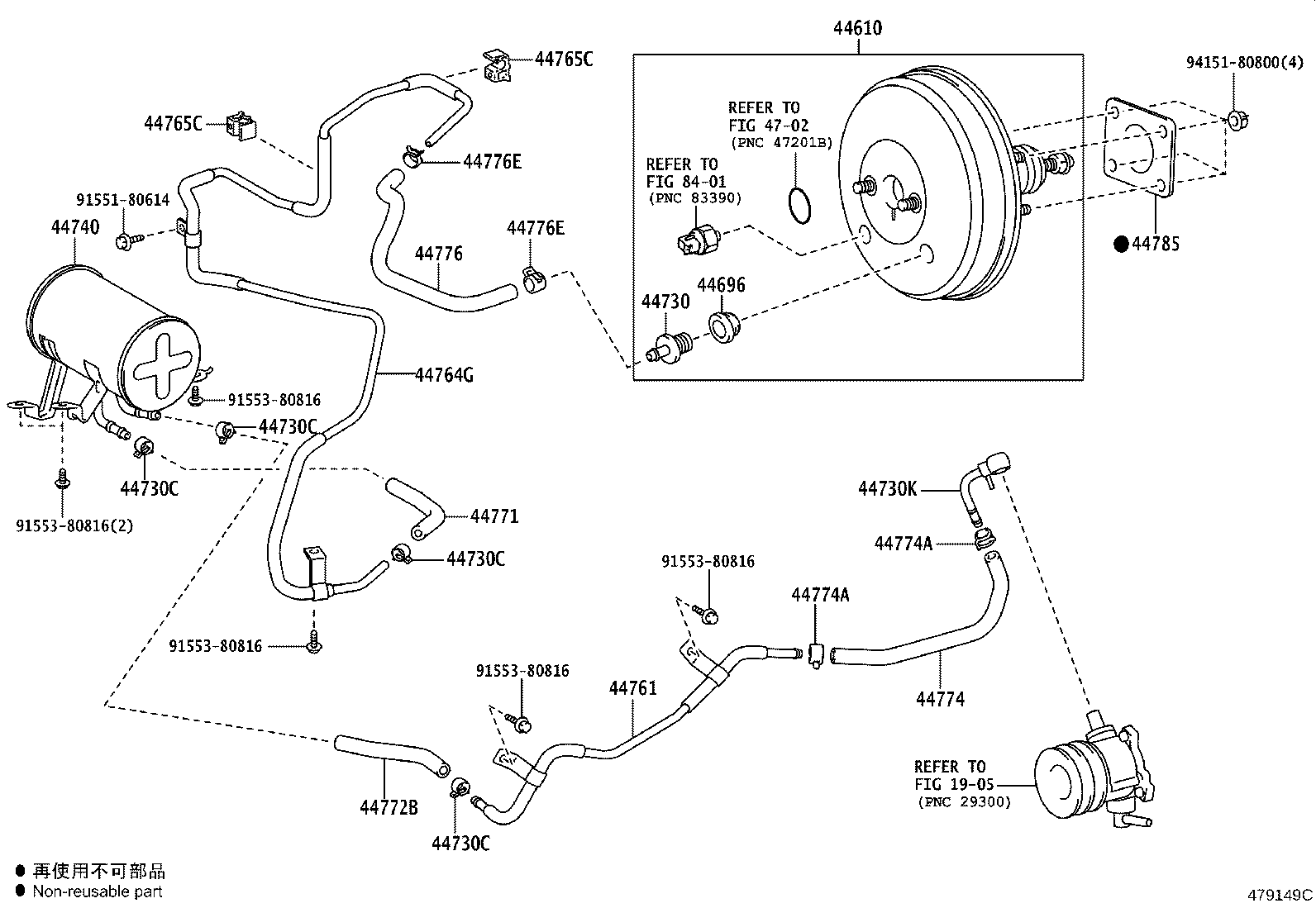

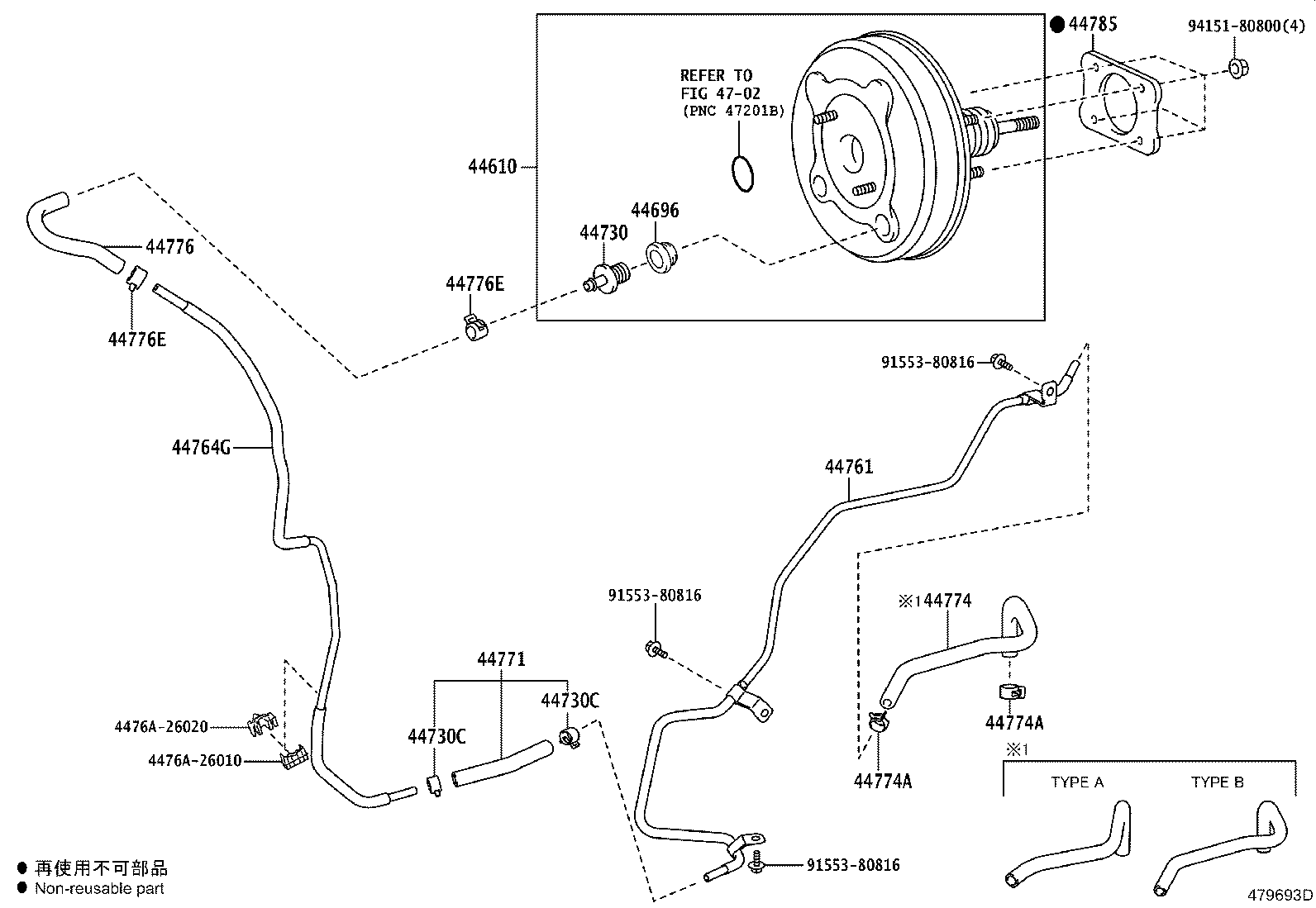

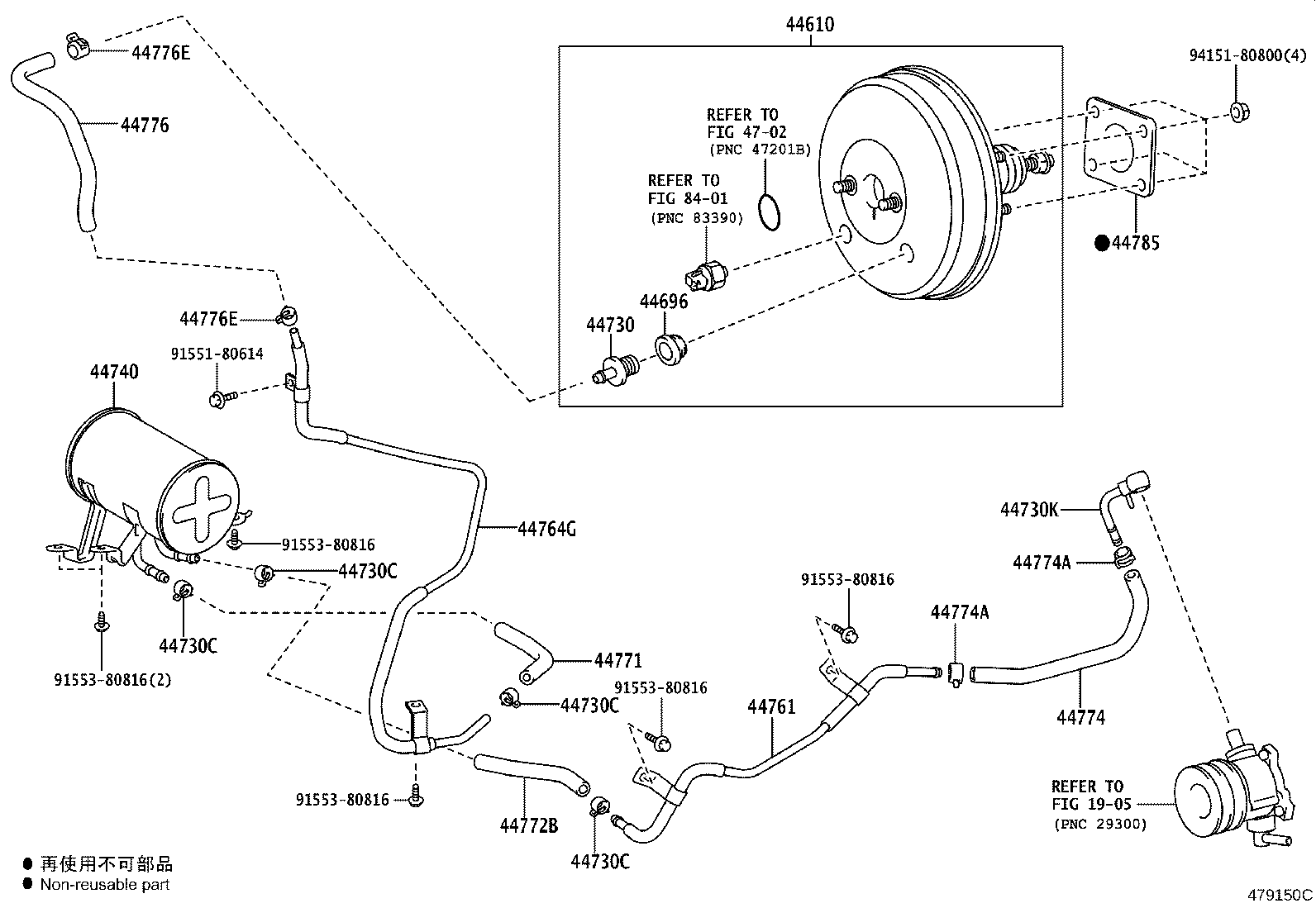

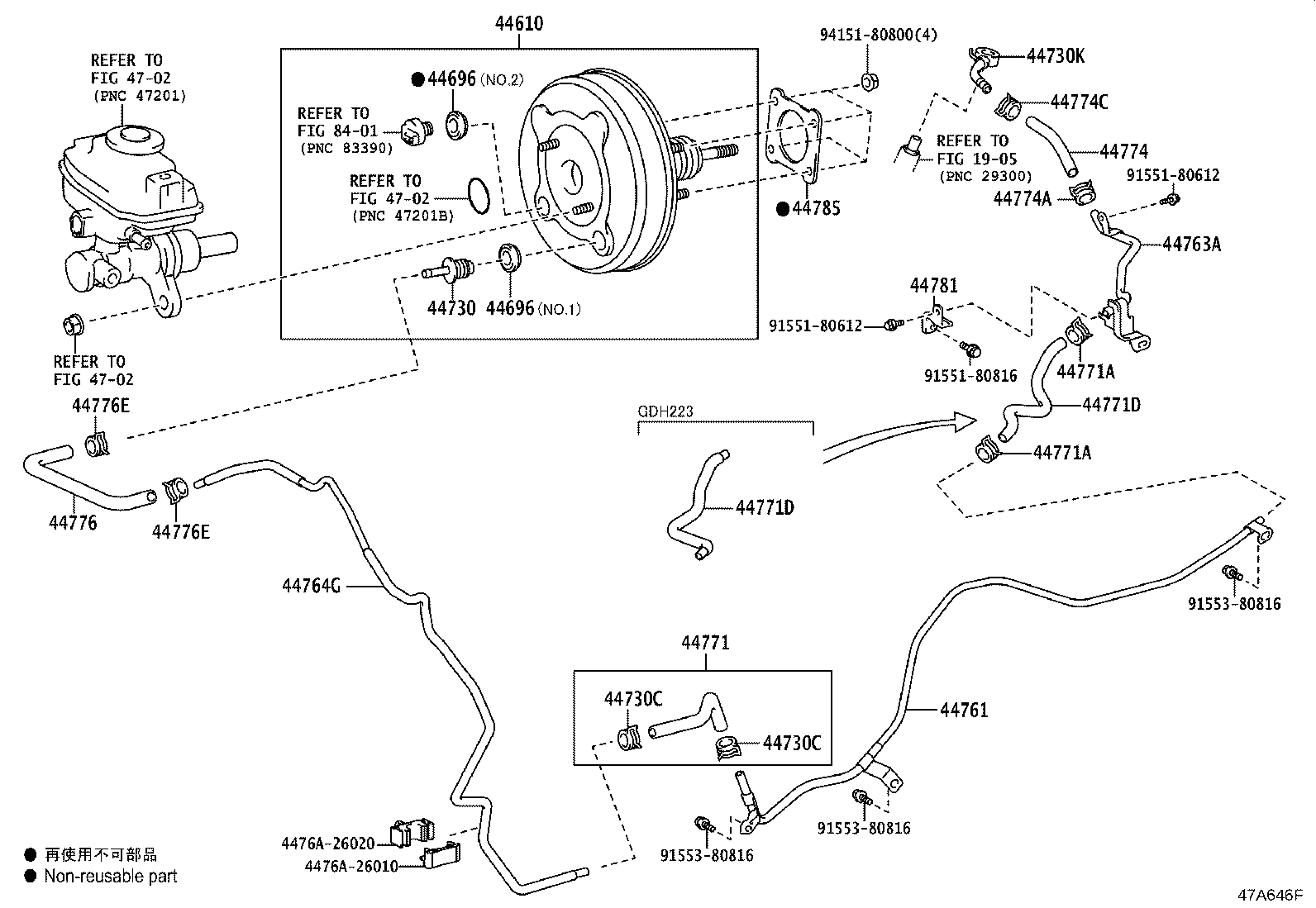

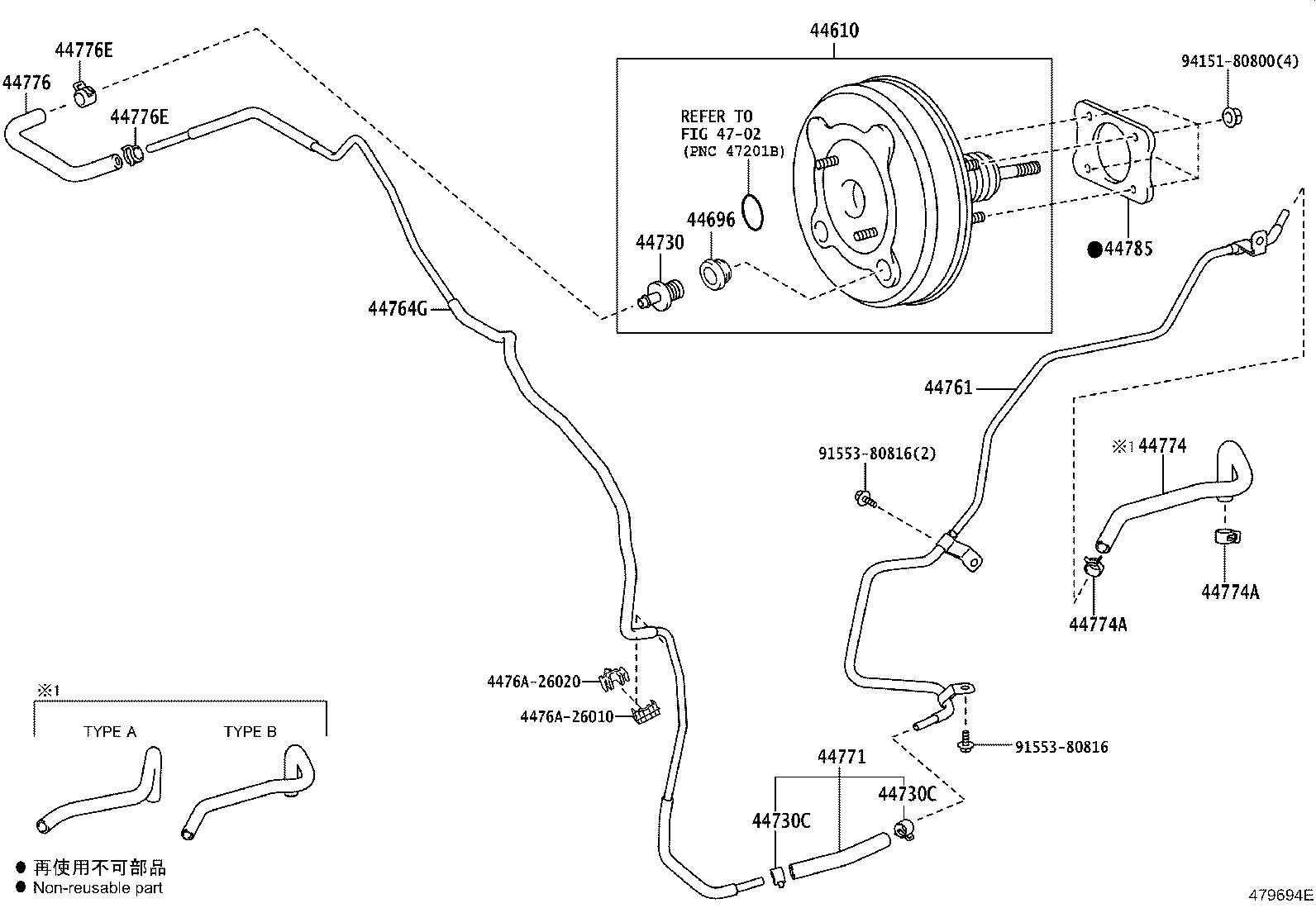

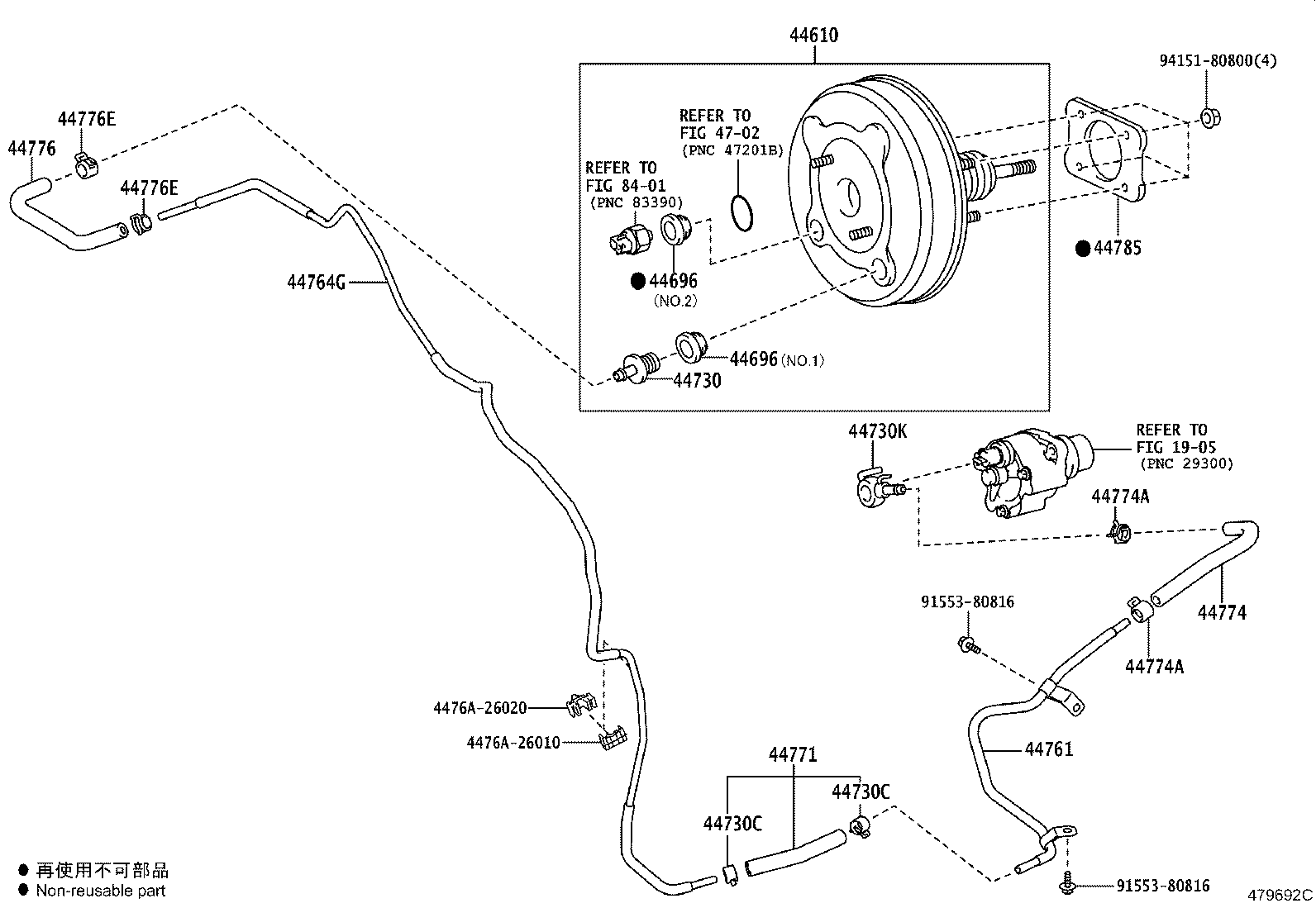

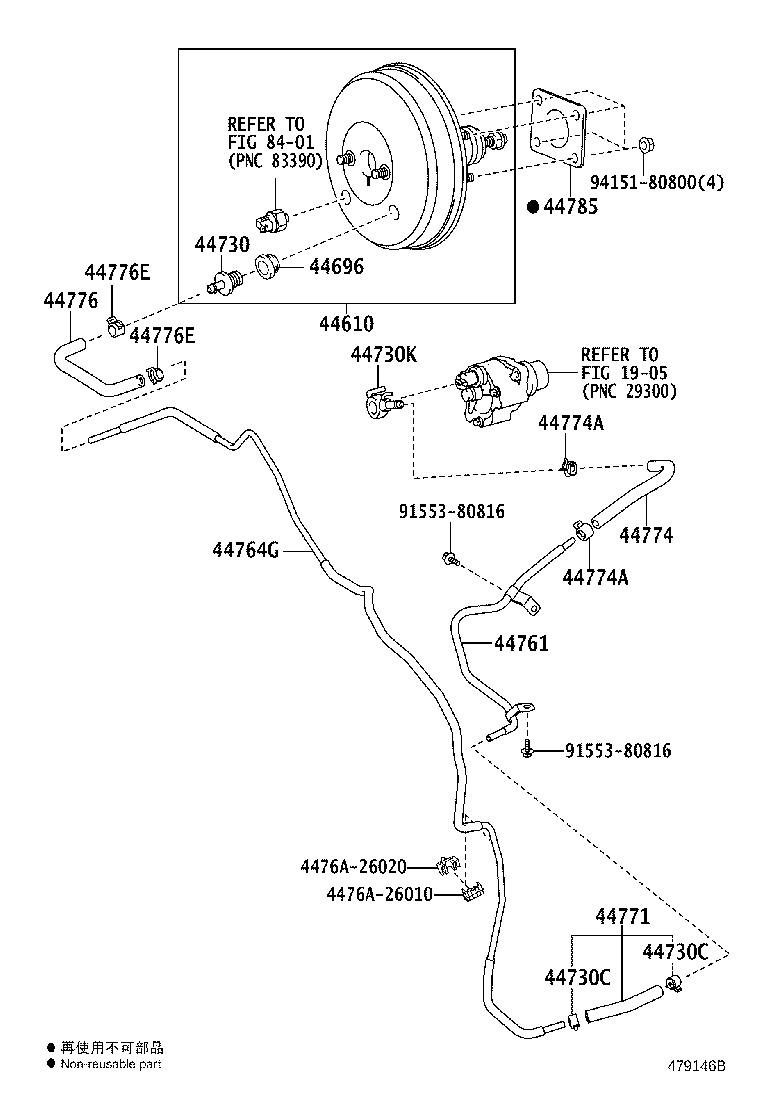

Figure 479135B 479135B 2013-12 → 2015-01 Figure 479146B 479146B 2013-12 → 2015-01 Figure 479147B 479147B 2013-12 → 2015-01 Figure 479148B 479148B 2013-12 → 2015-01 Figure 479688D 479688D 2015-01 → — Figure 479692C 479692C 2015-01 → — Figure 479693D 479693D 2015-01 → — Figure 479694E 479694E 2015-01 → — Figure 479149C 479149C 2013-12 → — Figure 479150C 479150C 2013-12 → — Figure 47A646F 47A646F 2017-01 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730C Clip(FOR VACUUM HOSE)
44730K Union, Vacuum Hose(FOR VACUUM PUMP)
44740 Reservoir Assy, Vacuum
44761 Tube, Intake Manifold OR Vacuum Pump TO Connector
44763A Tube, Hose TO Hose, NO.1
44764G Tube, Connector TO Brake Booster
44765C Clamp, Connector TO Brake Booster
44771 Hose, Vacuum Tube Connector
44771A Clip(FOR VACUUM TUBE CONNECTOR HOSE)
44771D Hose, Vacuum Tube Connector
44772B Hose, Check Valve TO Brake Booster
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44776 Hose, Brake Booster
44776E Clip(FOR BRAKE BOOSTER HOSE)
44781 Bracket, Hose
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
