Rear Spring & Shock Absorber

29 part groups · 8 illustrations

Illustrations

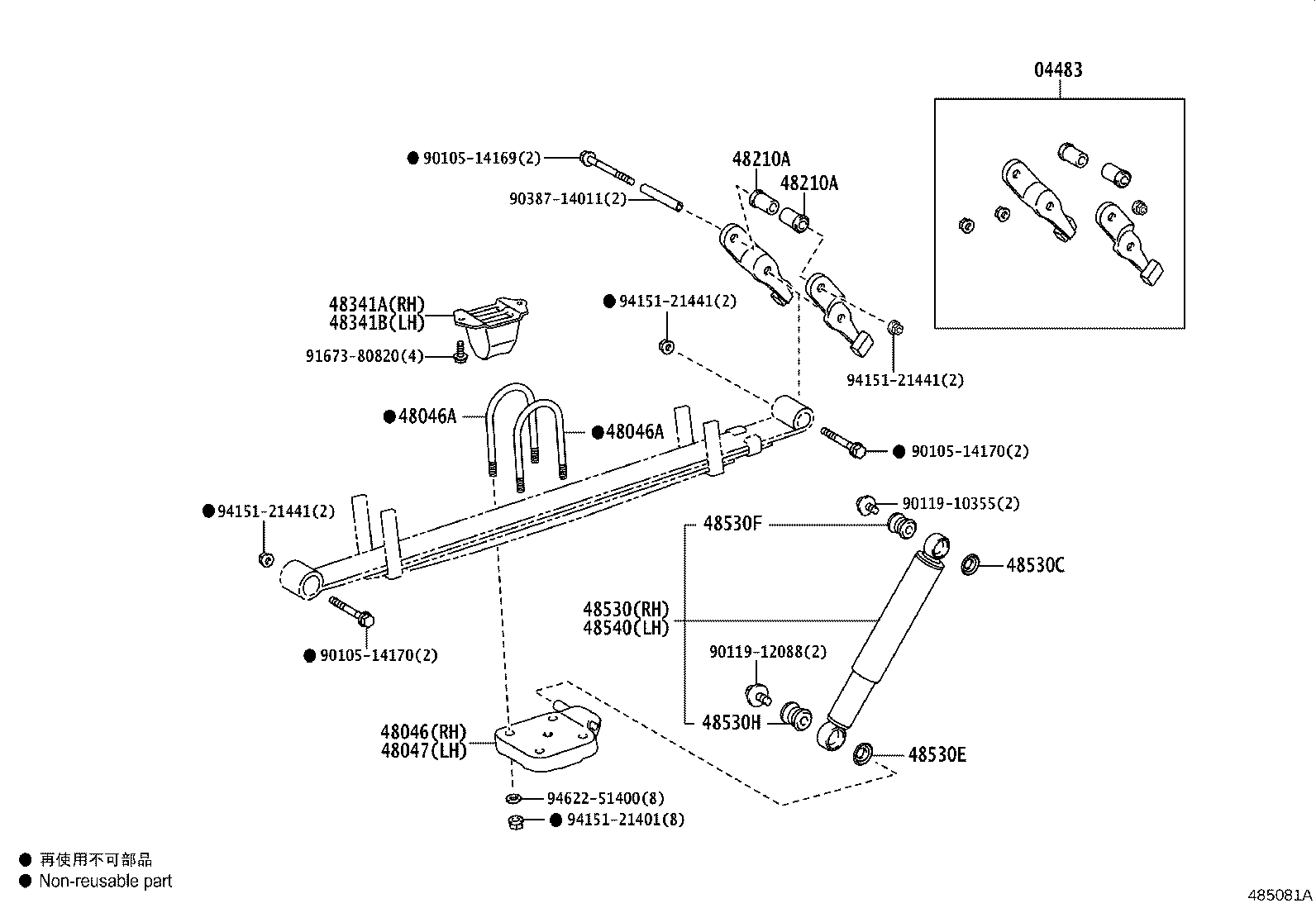

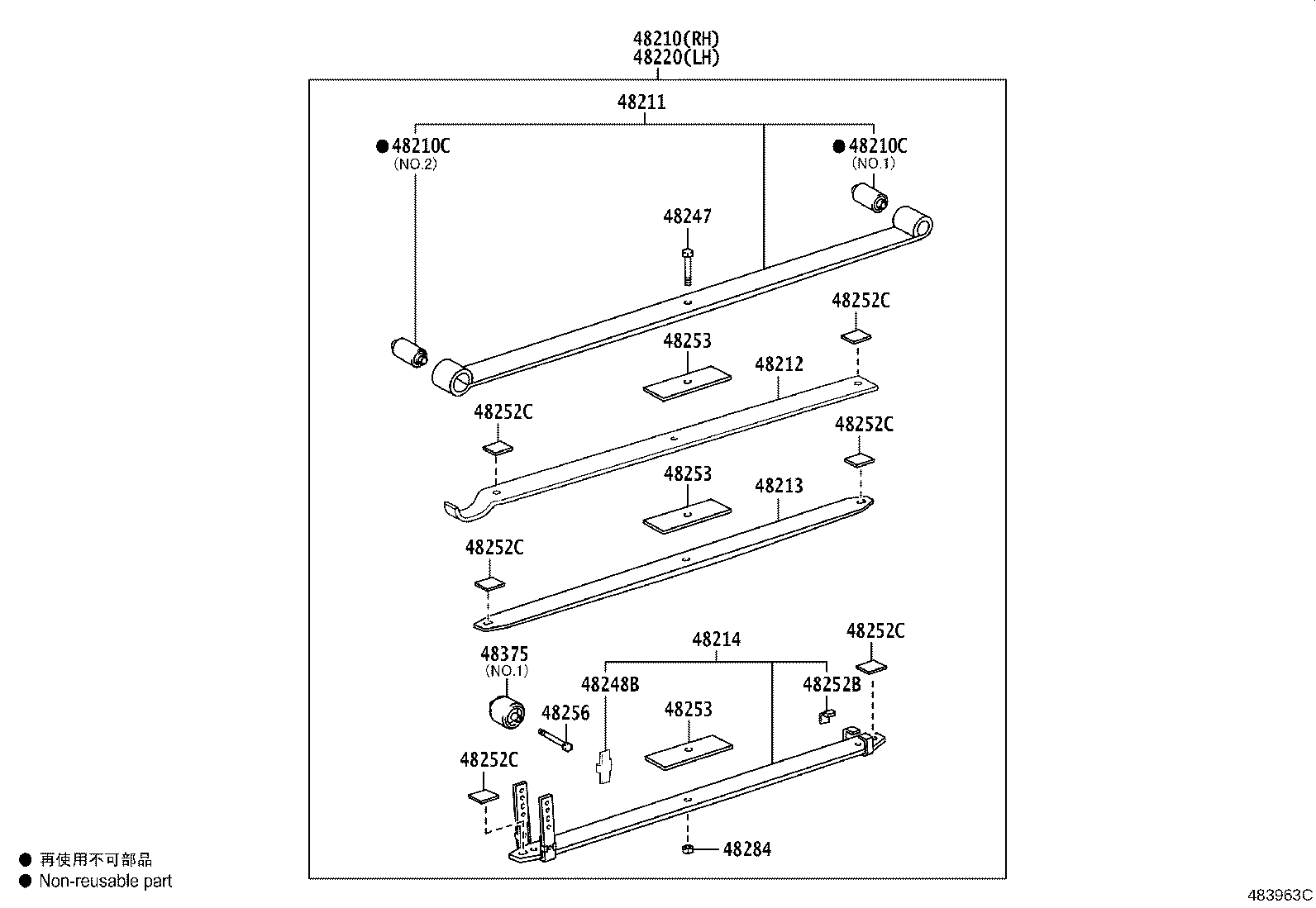

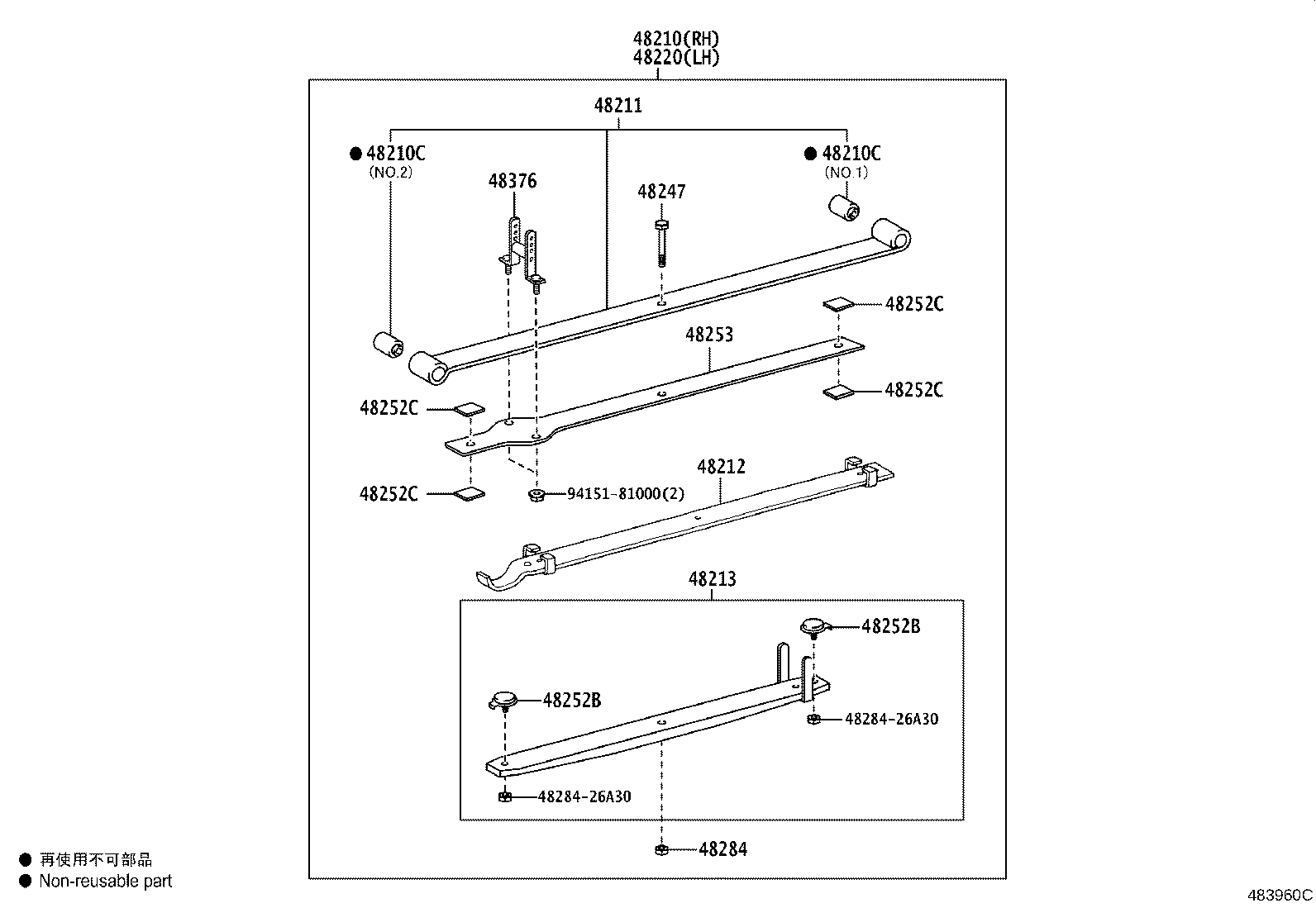

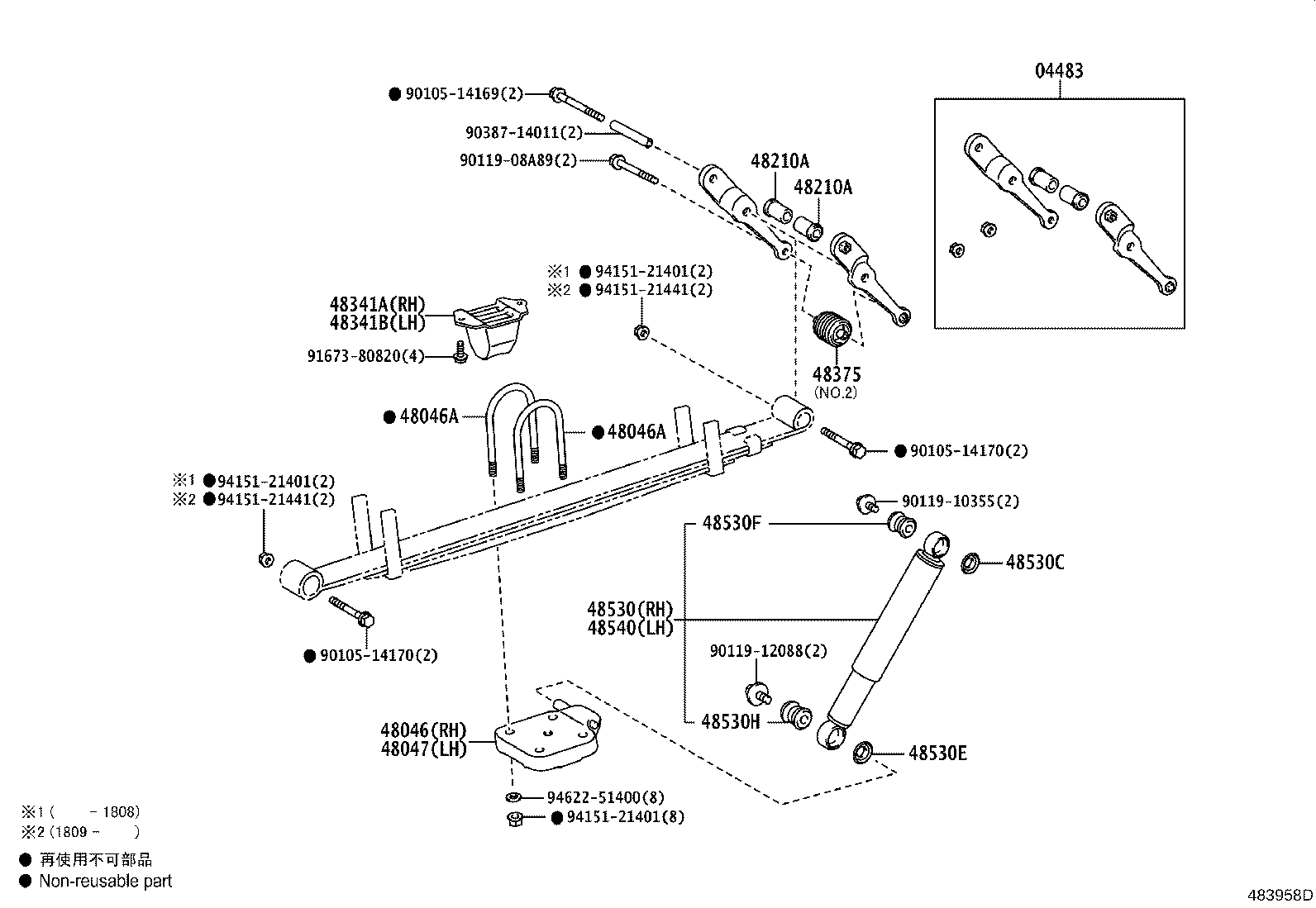

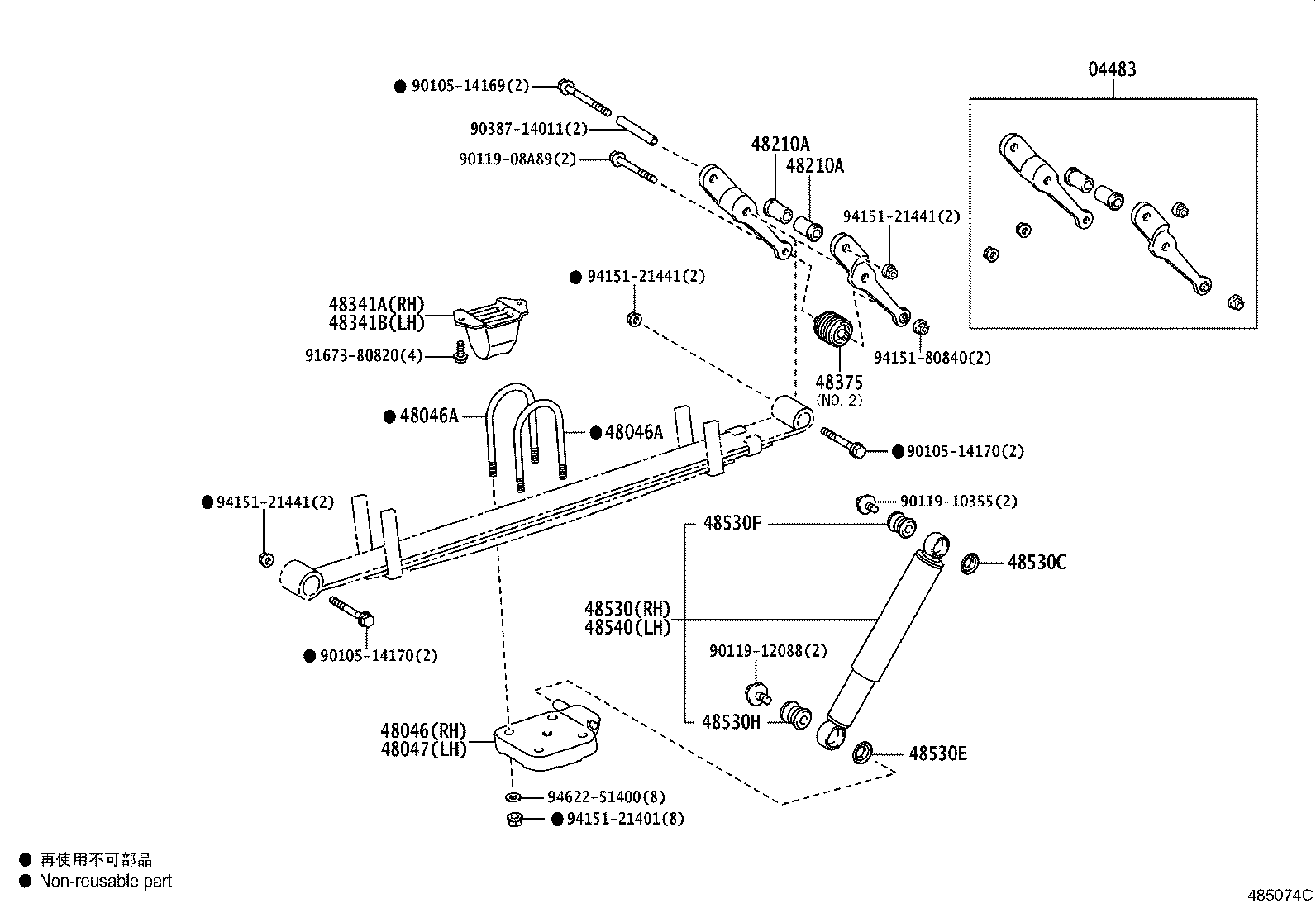

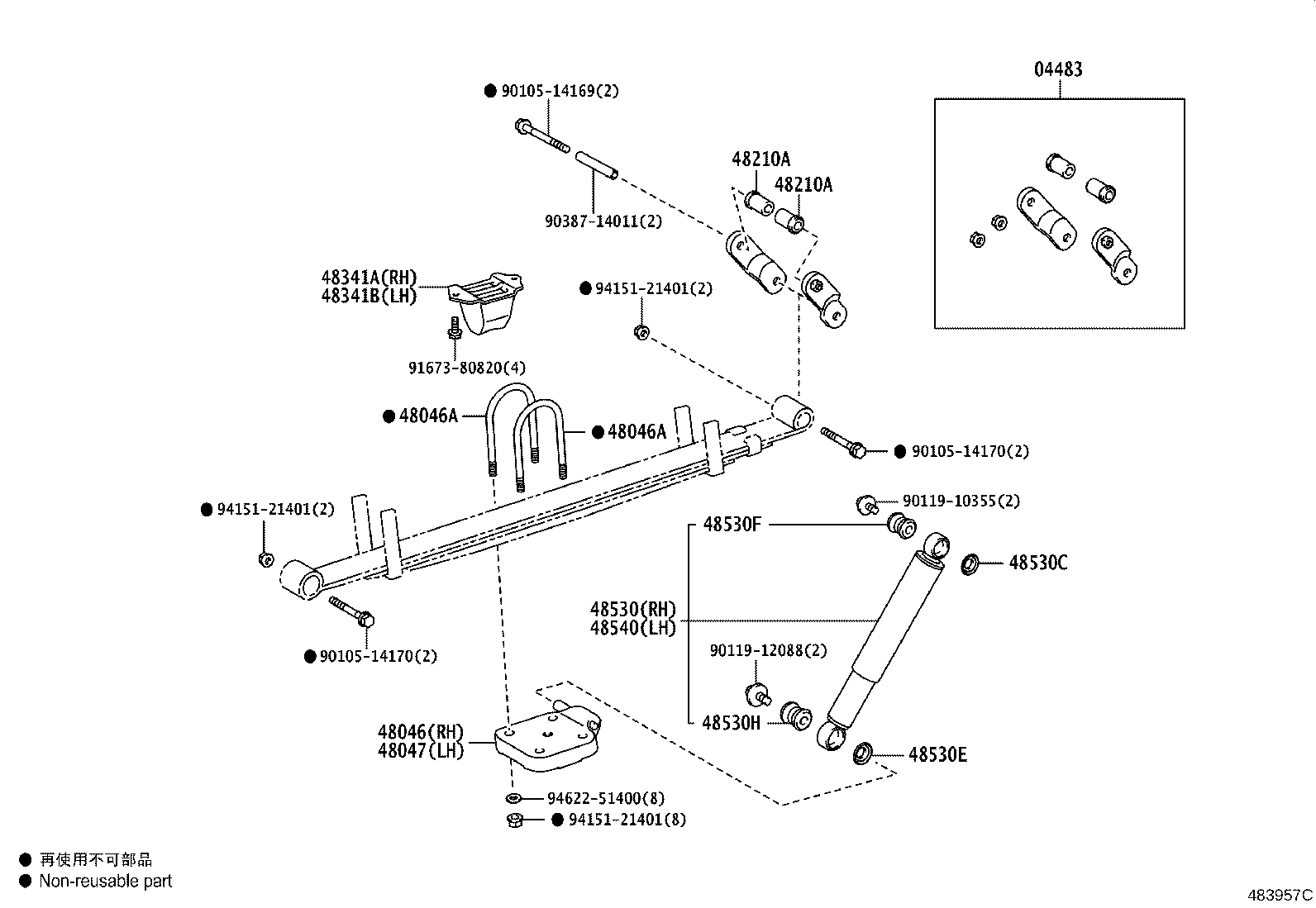

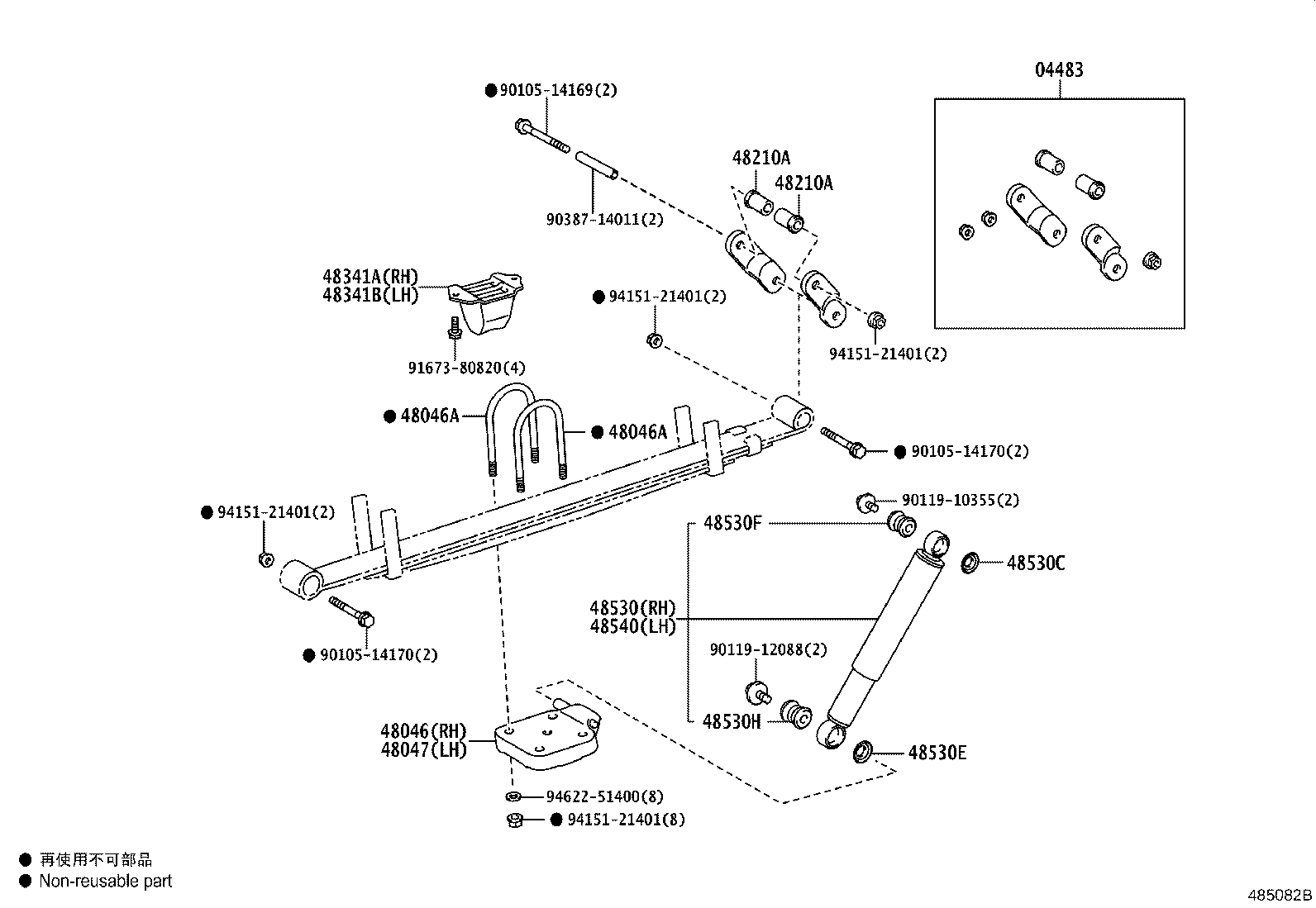

Figure 483959D 483959D 2013-12 → 2020-06 Figure 485081A 485081A 2020-06 → — Figure 483958D 483958D 2013-12 → 2020-06 Figure 485074C 485074C 2020-06 → — Figure 483957C 483957C 2013-12 → 2020-06 Figure 485082B 485082B 2020-06 → — Figure 483960C 483960C 2013-12 → — Figure 483963C 483963C 2013-12 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48248B Spacer, Rear Spring, NO.3
48252B Silencer, Rear Spring, NO.1
48252C Silencer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48284 Nut, Rear Spring Center Bolt
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48375 Damper, Leaf Spring Dynamic
48376 Bracket, Rear Leaf Spring Dynamic Danper
48530 Absorber Assy, Shock, Rear RH
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530E Washer, Rear Shock Absorber Cushion, NO.4
48530F Retainer, Shock Absorber Cushion(FOR REAR)
48530H Bush, Rear Shock Absorber
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
