Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

6 part groups · 2 illustrations

Illustrations

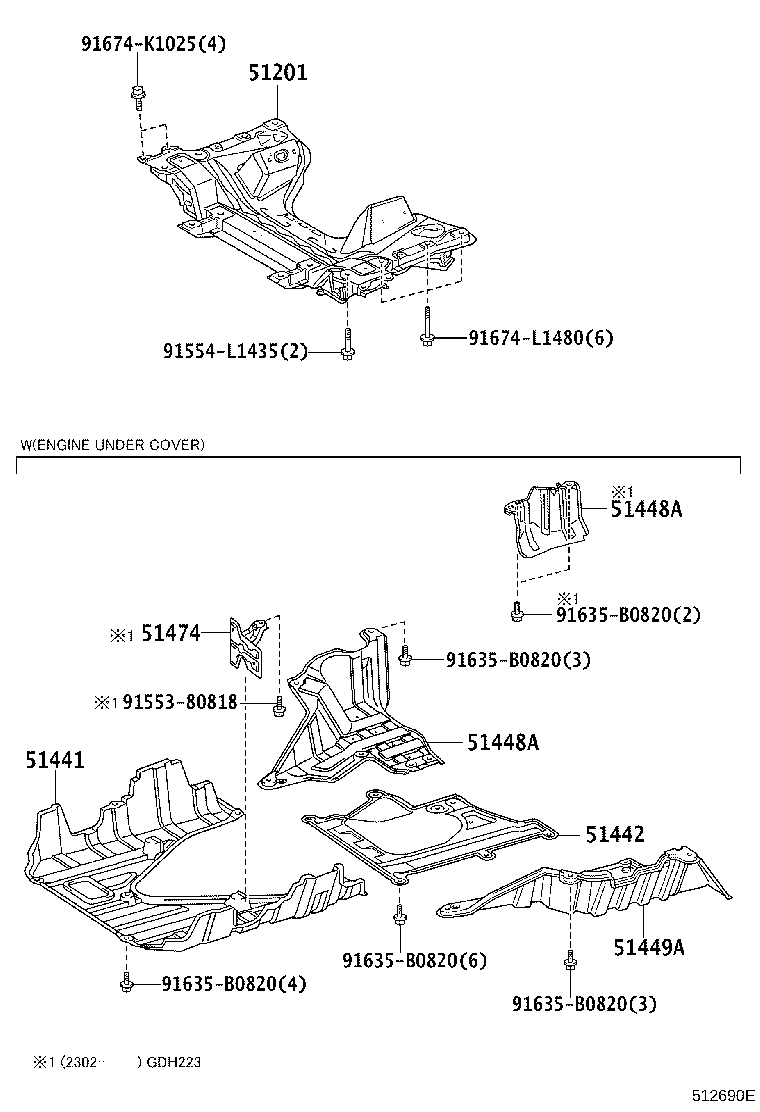

Figure 512689A 512689A 2013-12 → — Figure 512690E 512690E 2013-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51448A Cover, Engine Side Under, RH
51449A Cover, Engine Side Under, LH
51474 Cover Sub-assy, Engine Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
