Toyota Hiace
2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General
Supported model
Data version 2024-01

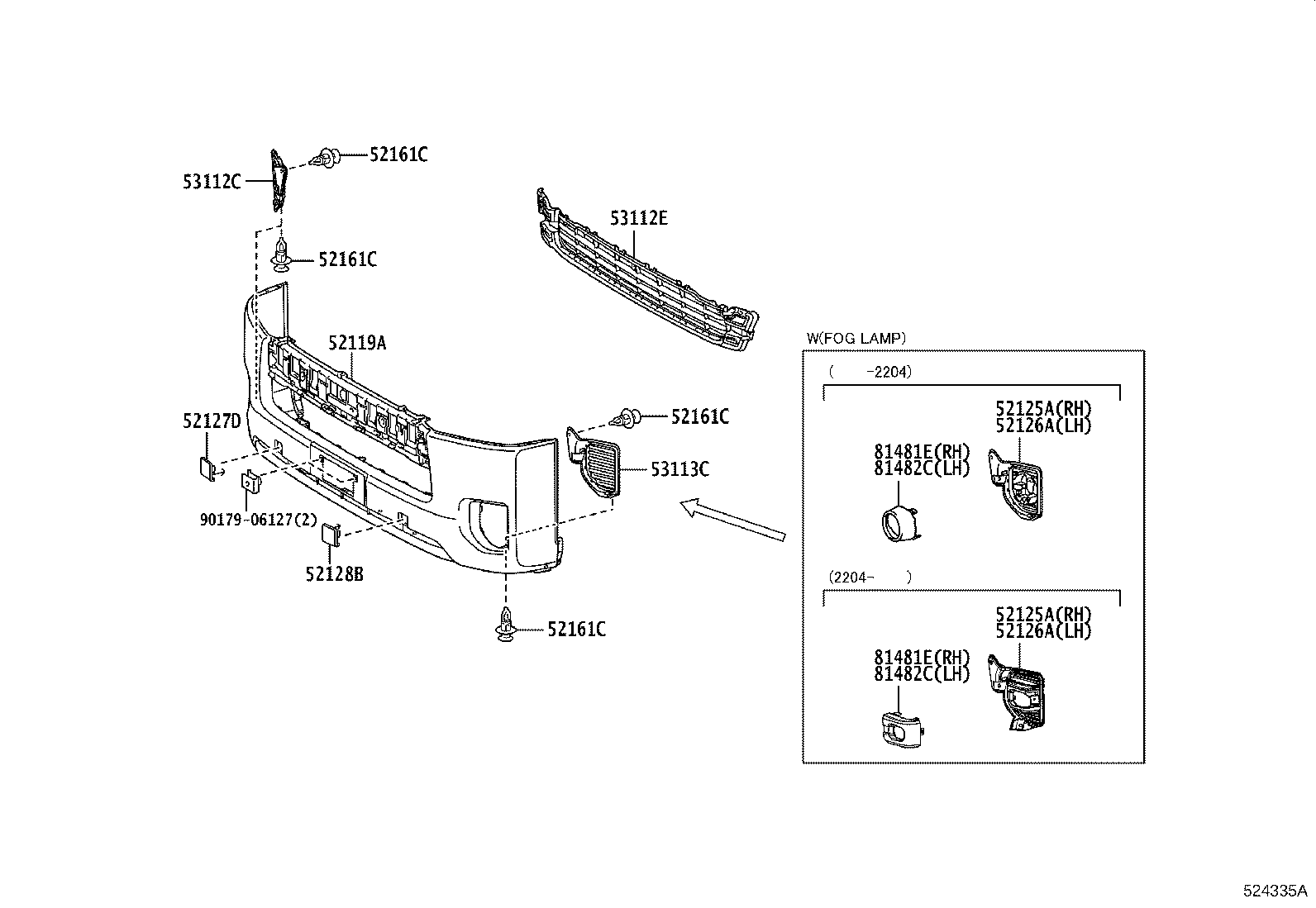

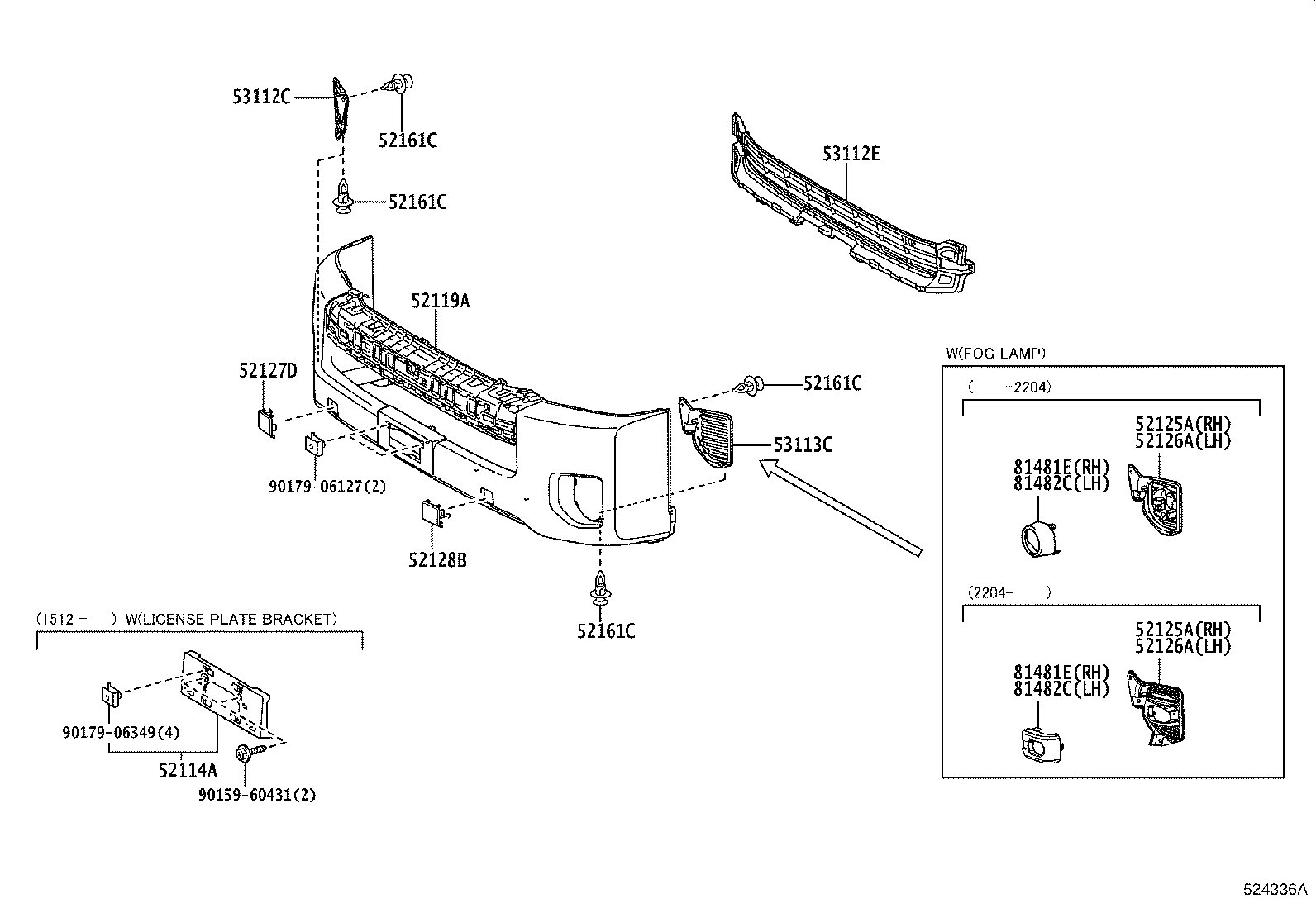

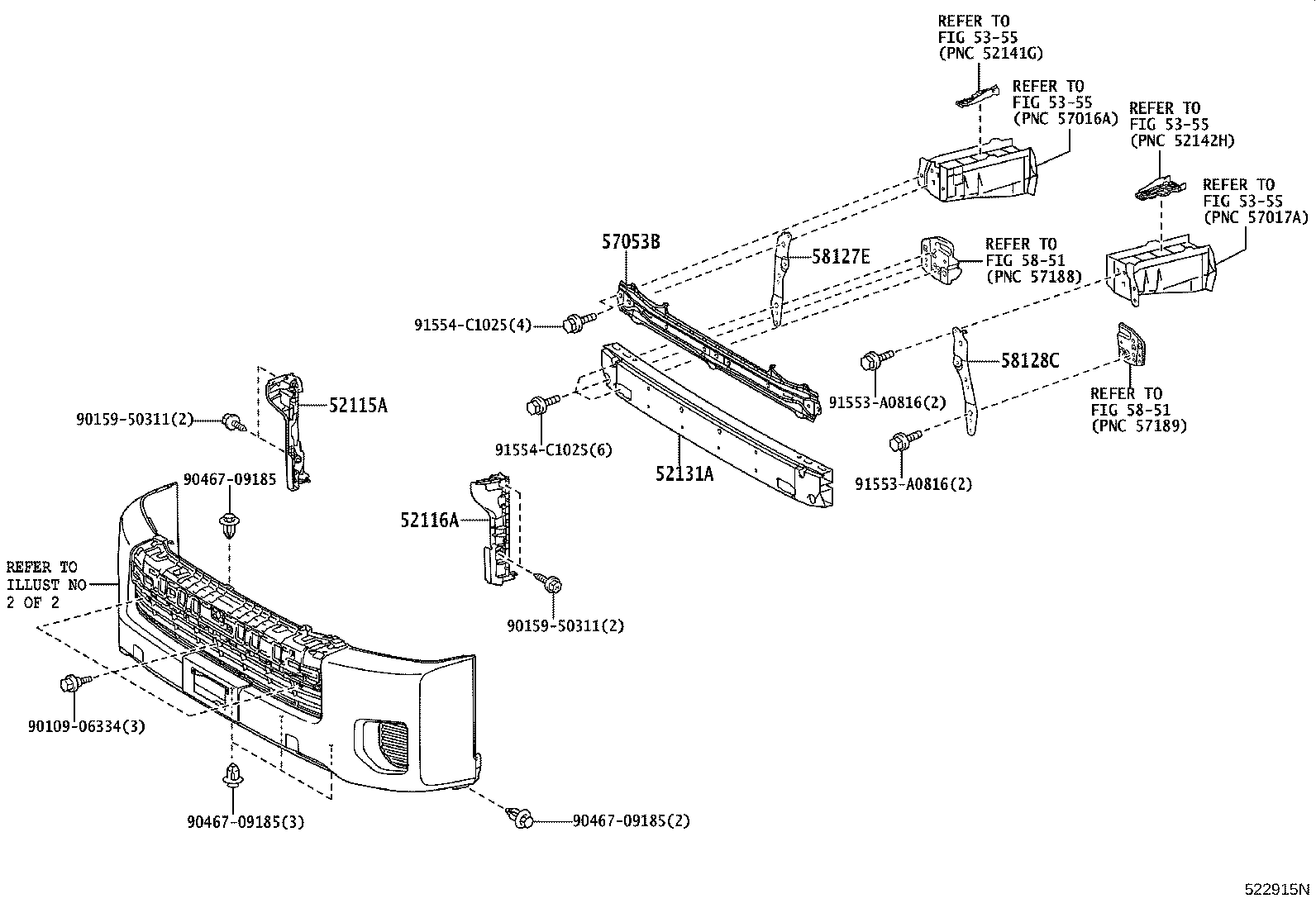

Front Bumper & Bumper Stay
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52114A | Bracket, Front Bumper Extension Mounting |
| 52115A | Support, Front Bumper Side, RH |
| 52116A | Support, Front Bumper Side, LH |
| 52119A | Cover, Front Bumper |
| 52125A | Bracket, Fog Lamp Mounting, RH |
| 52126A | Bracket, Fog Lamp Mounting, LH |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52131A | Reinforcement, Front Bumper |
| 52161C | Piece, Front Bumper |
| 53112C | Grille, Radiator, Lower RH |
| 53112E | Grille, Radiator, Lower NO.1 |
| 53113C | Grille, Radiator, Lower LH |
| 57053B | Reinforce Sub-assy, Front Floor Crossmember |
| 58127E | Reinforce, Front Cross TO Front Panel Member, RH |
| 58128C | Reinforce, Front Cross TO Front Panel Member, LH |
| 81481E | Cover, Fog Lamp, RH |
| 81482C | Cover, Fog Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
