Radiator Grille

3 part groups · 2 illustrations

Illustrations

Figure 534170C

534170C 2013-12 → —

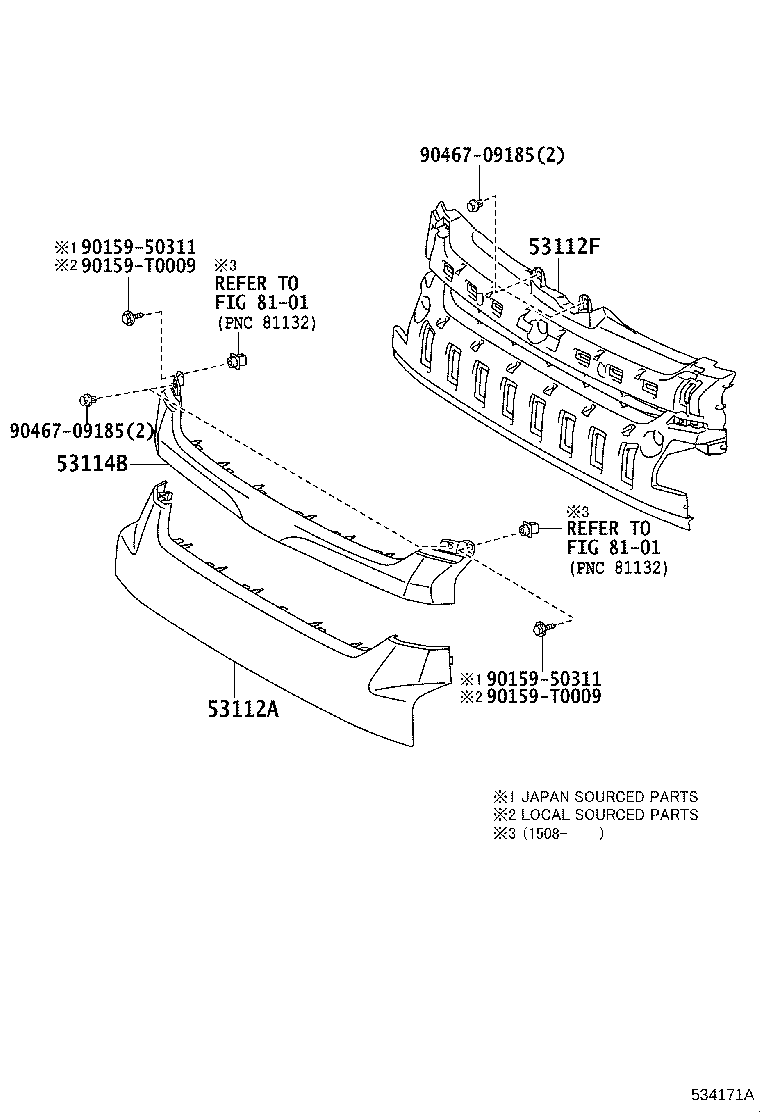

Figure 534171A

534171A 2013-12 → —

Part groups

PNC	Description
53112A	Grille, Radiator, Lower
53112F	Grille, Radiator, Inside
53114B	Grille, Radiator, Upper

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
