Toyota Hiace
2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General
Supported model
Data version 2024-01

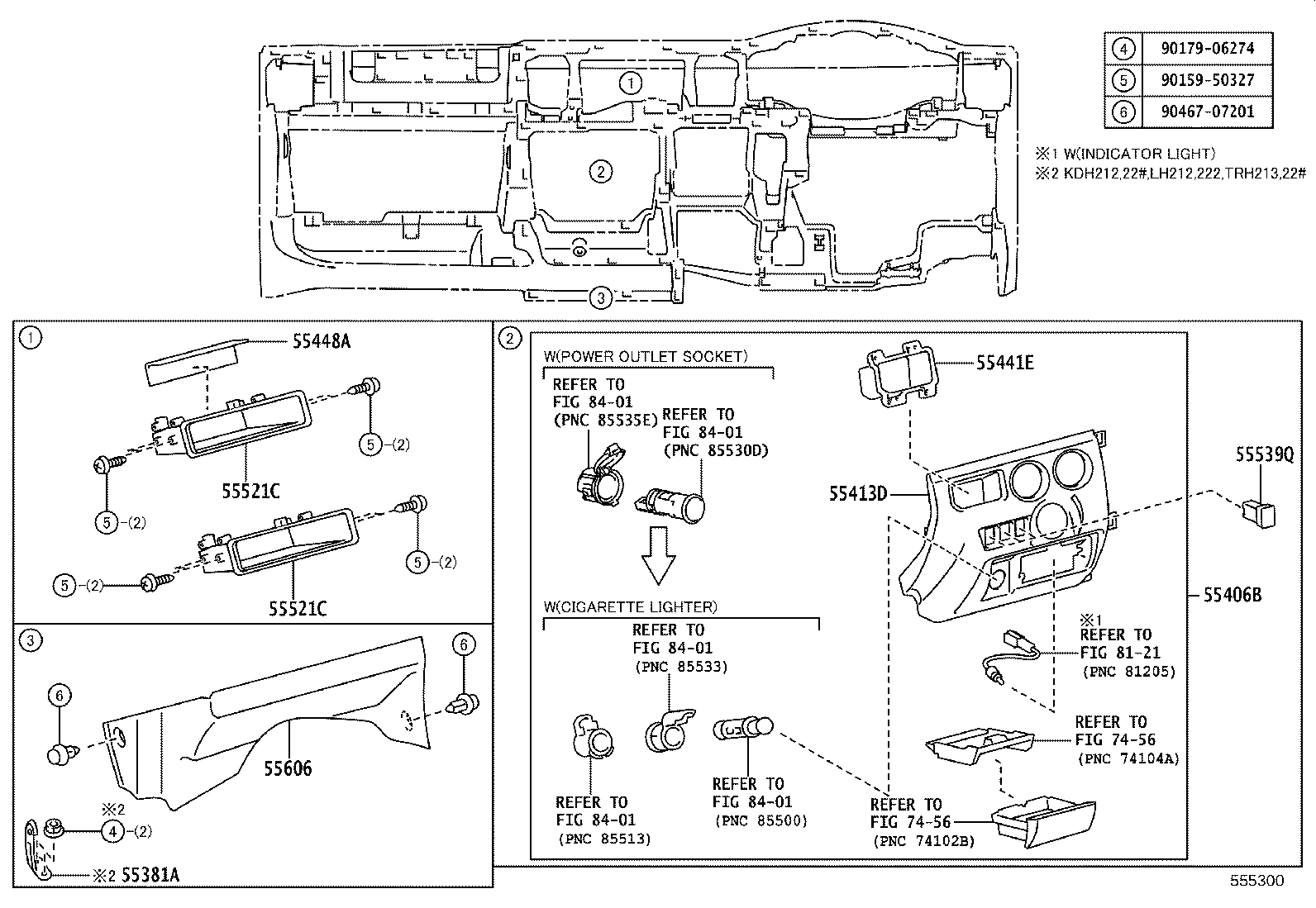

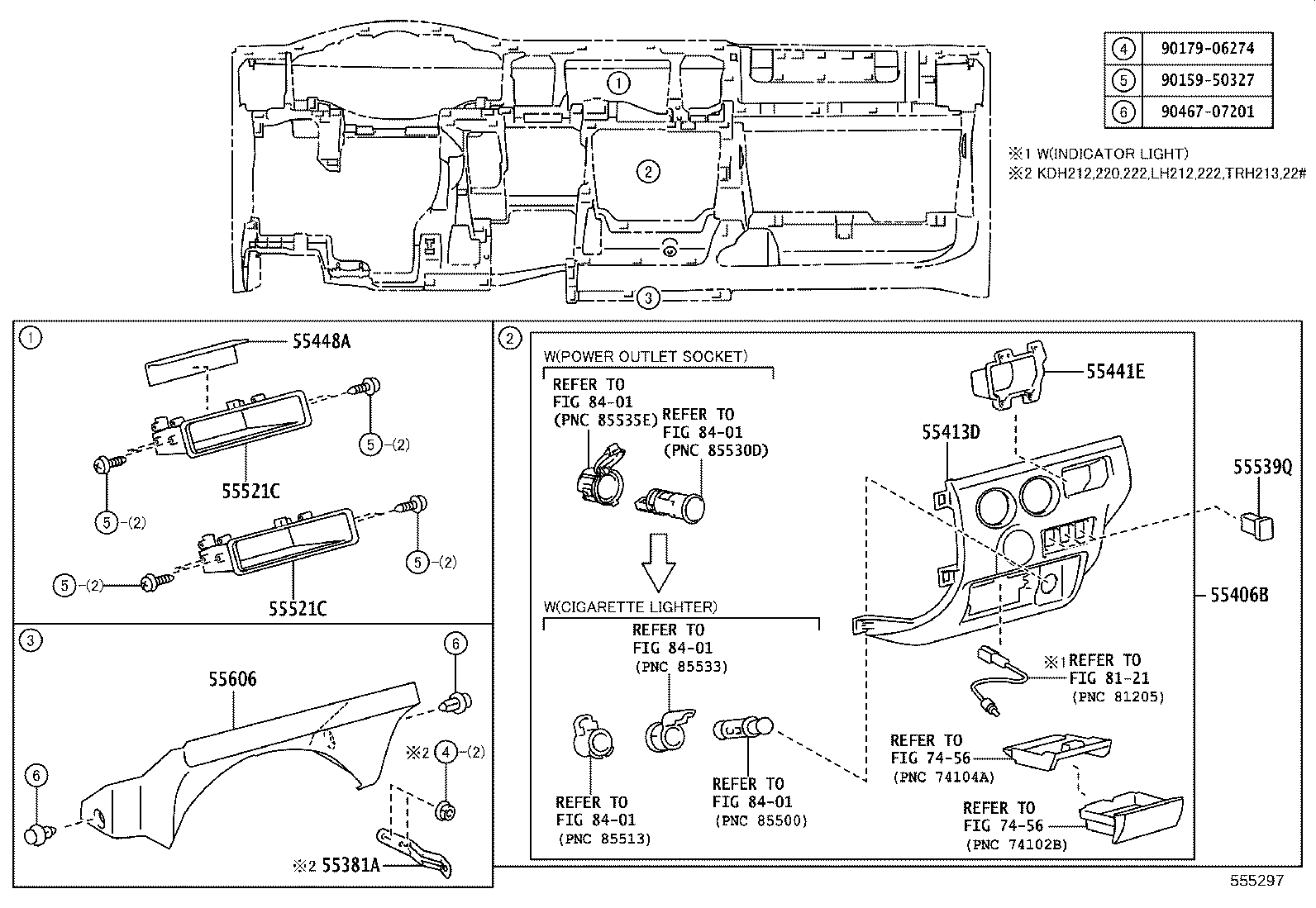

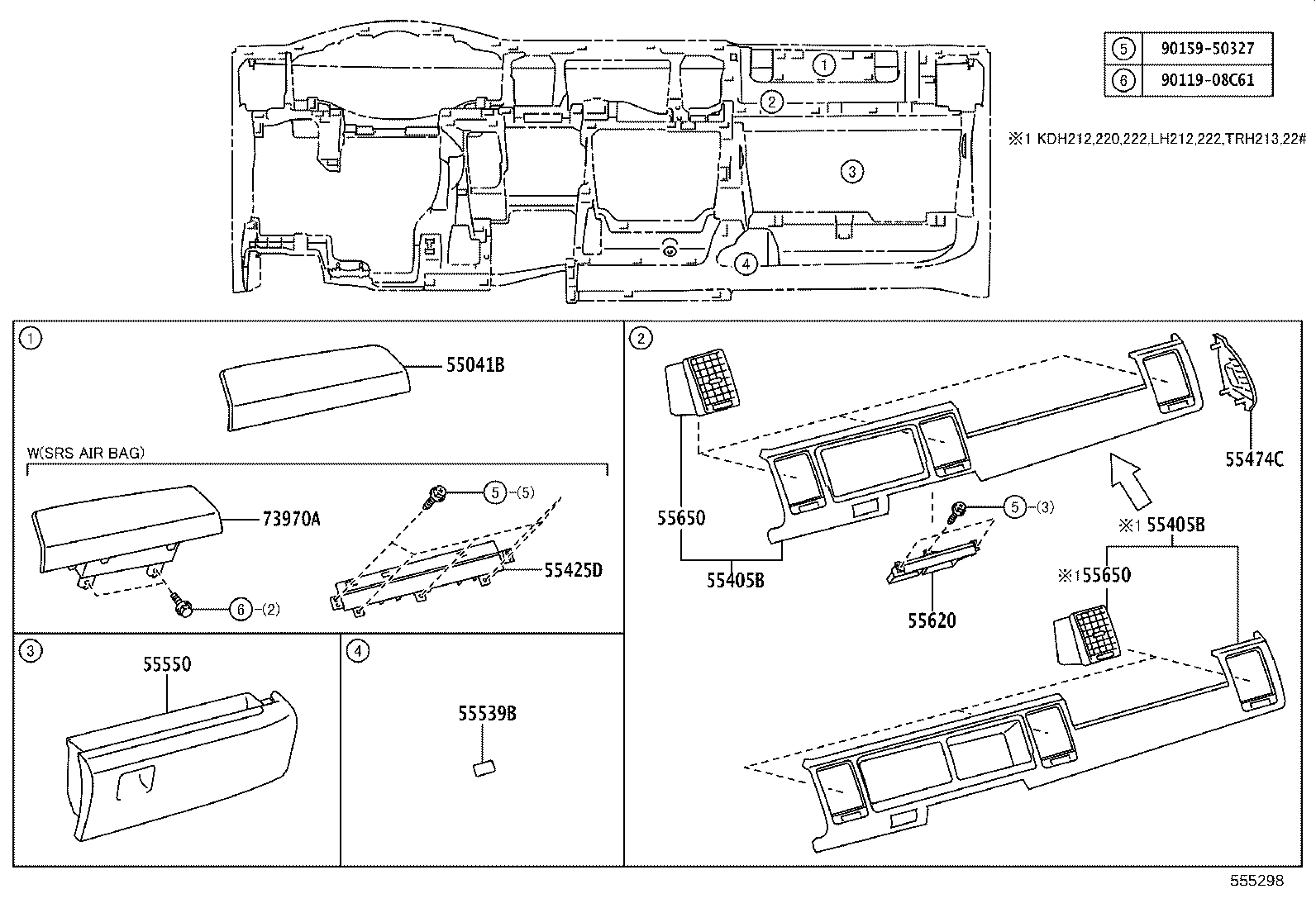

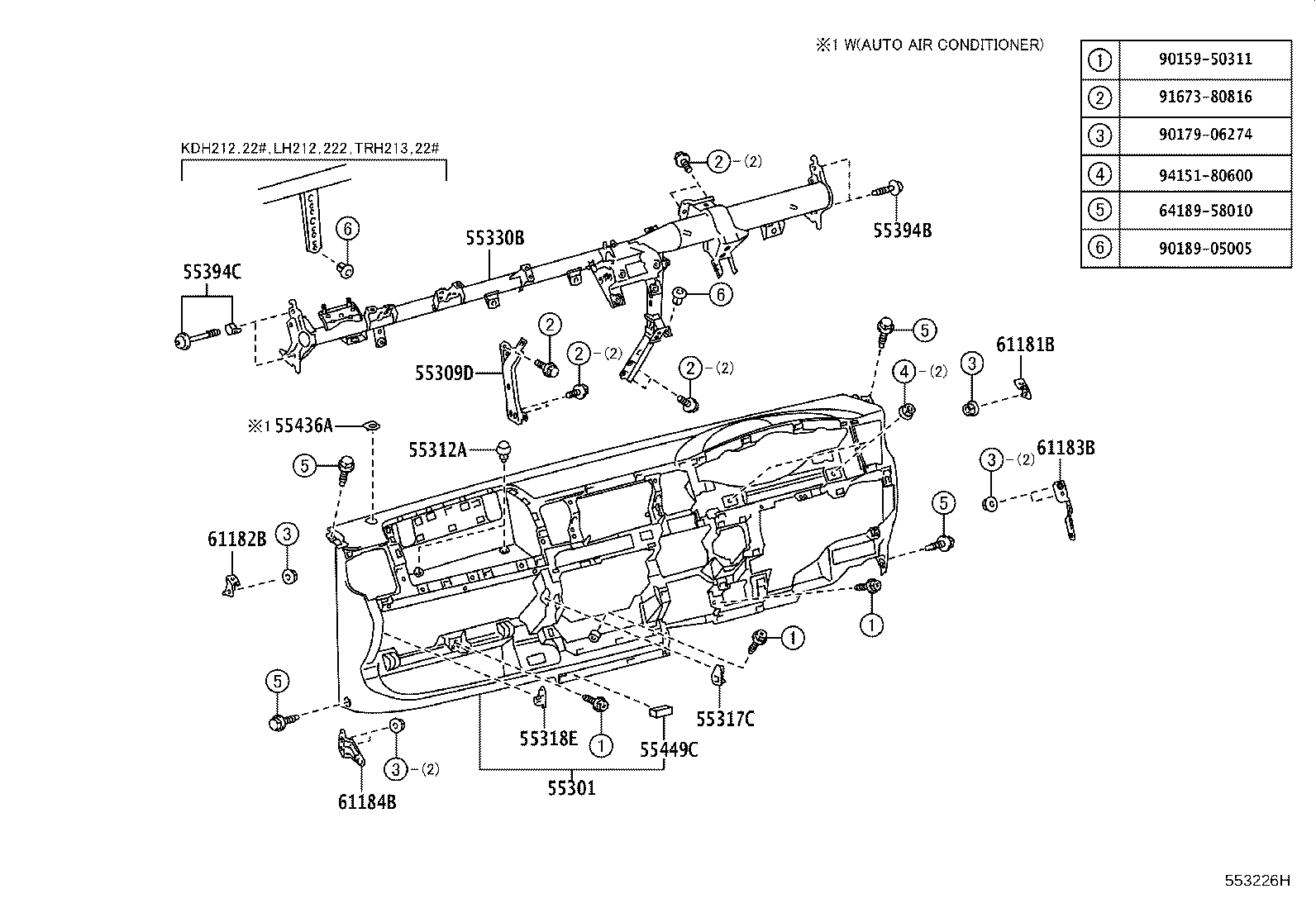

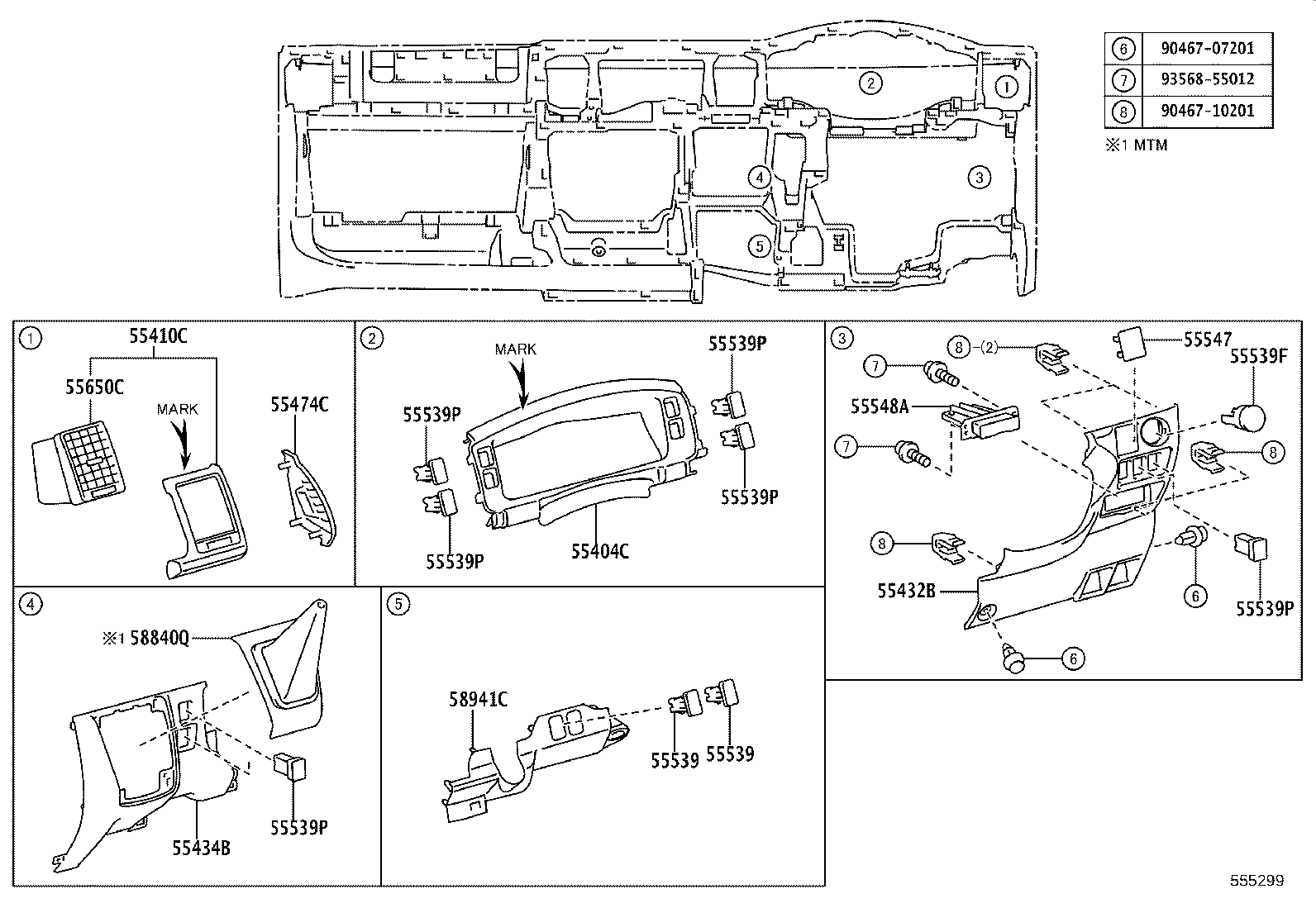

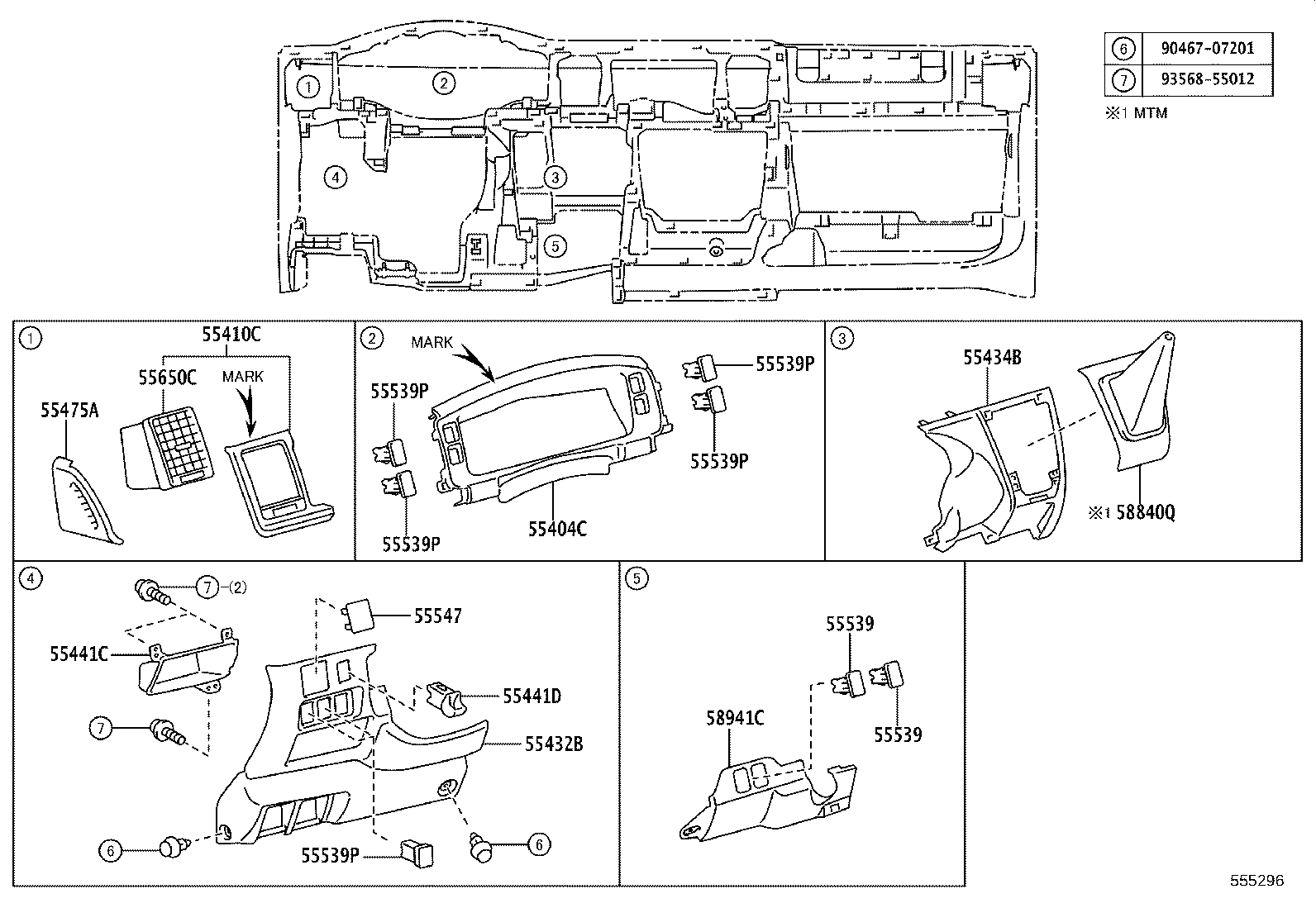

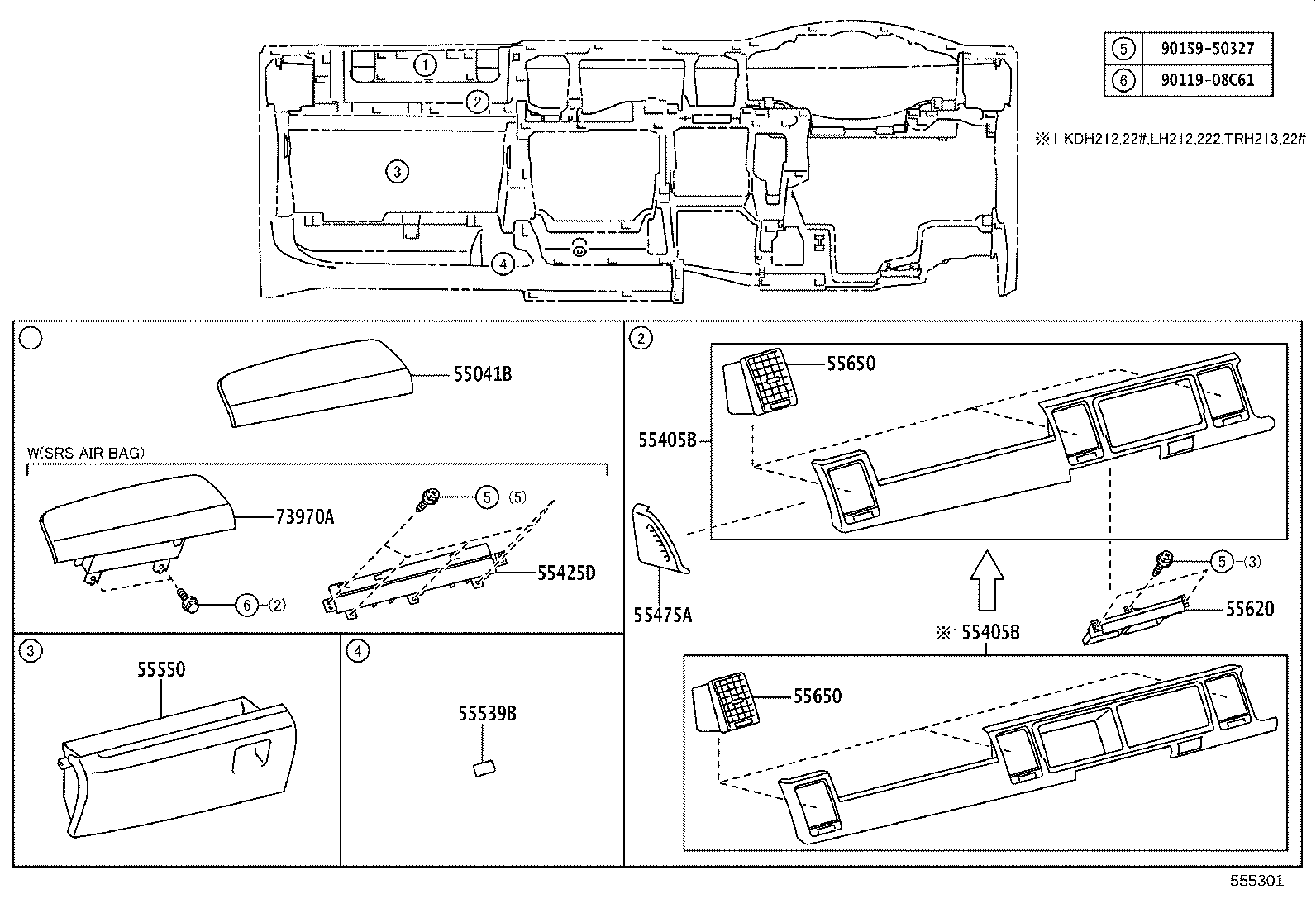

Instrument Panel & Glove Compartment
46 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55041B | Door Sub-assy, Instrument Panel Box, NO.1 |
| 55301 | Panel Sub-assy, Instrument |
| 55309D | Brace Sub-assy, Instrument Panel TO Floor |
| 55312A | Clip, Instrument Panel |
| 55317C | Patch, Instrument Side, Lower RH |
| 55318E | Patch, Instrument Side, Lower LH |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55381A | Bracket, Finish Panel Mounting |
| 55394B | Bolt, Instrument Panel |
| 55394C | Bolt, Instrument Panel |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55406B | Panel Sub-assy, Instrument Cluster Finish, Lower Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55425D | Base, Airbag Passenger Mounting |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55436A | Panel, Instrument Panel Finish, End LH |
| 55441C | Box, Instrument Panel Coin |
| 55441D | Box, Instrument Panel Coin |
| 55441E | Box, Instrument Panel |
| 55448A | Cushion, Instrument Panel Finish, NO.1 |
| 55449C | Cushion, Instrument Panel Finish Panel, NO.2 |
| 55474C | Garnish, Instrument Cluster Finish Panel, NO.1 |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55521C | Cover, Stereo Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55539F | Cover, Spare Switch Hole |
| 55539P | Cover, Spare Switch Hole |
| 55539Q | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55550 | Door Assy, Glove Compartment |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55620 | Holder Assy, Instrument Panel Cup |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55650C | Register Assy, Instrument Panel, NO.1 |
| 58840Q | Cover Assy, Shifting Hole |
| 58941C | Cover, Parking Brake Hole |
| 61181B | Bracket, Instrument Panel Side, NO.1 RH |
| 61182B | Bracket, Instrument Panel Side, NO.1 LH |
| 61183B | Bracket, Instrument Panel Side, NO.2 RH |
| 61184B | Bracket, Instrument Panel Side, NO.2 LH |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
