Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

16 part groups · 2 illustrations

Illustrations

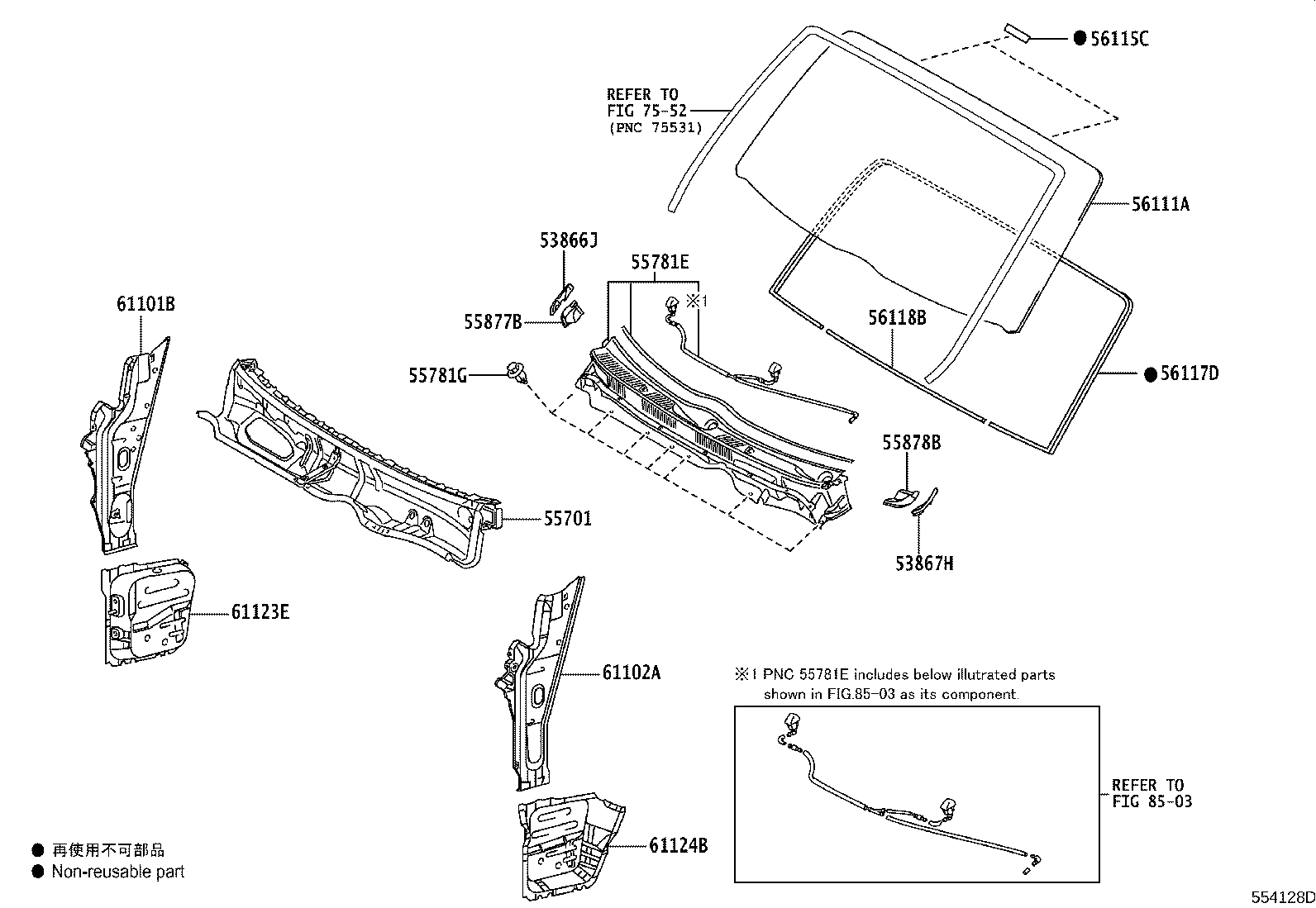

Figure 553438D 553438D 2013-12 → — Figure 554128D 554128D 2018-01 → —

Part groups

PNCDescription
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701 Panel Sub-assy, Cowl
55757C Plate, Heater Air Duct Sub
55781E Louver Sub-assy, Cowl Top Ventilator
55781G Clip, Cowl Top Ventilator Louver
55877B Cover, Cowl Vent, RH
55878B Cover, Cowl Vent, LH
56111A Glass, Windshield
56115C Stopper, Windshield Glass
56117D Dam, Windshield Glass Adhesive
56118B Dam, Window Glass Adhesive, NO.2
61101B Panel Sub-assy, Cowl Side, RH
61102A Panel Sub-assy, Cowl Side, LH
61123E Panel, Cowl Side, Lower RH
61124B Panel, Cowl Side, Lwr LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
