Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

41 part groups · 11 illustrations

Illustrations

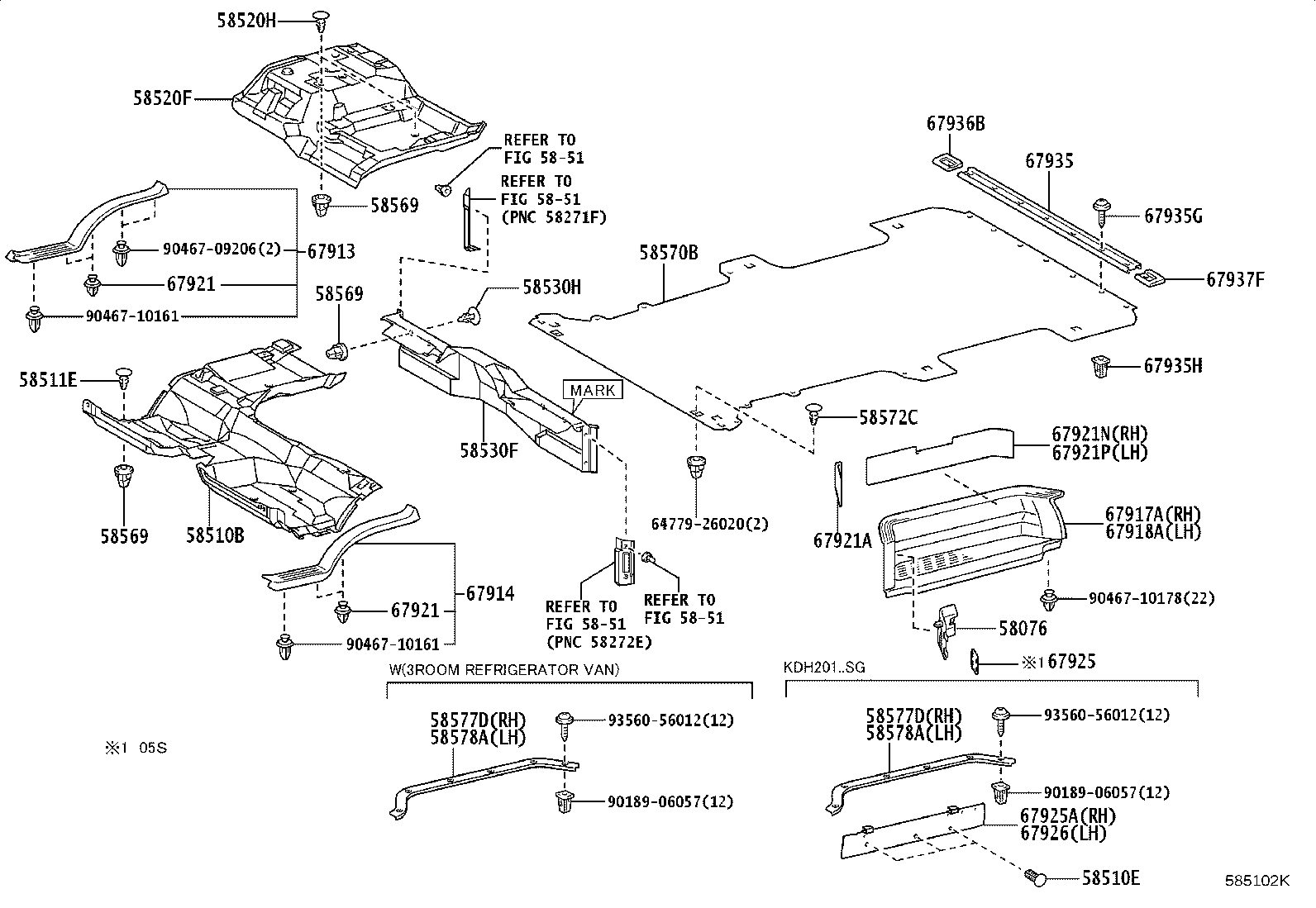

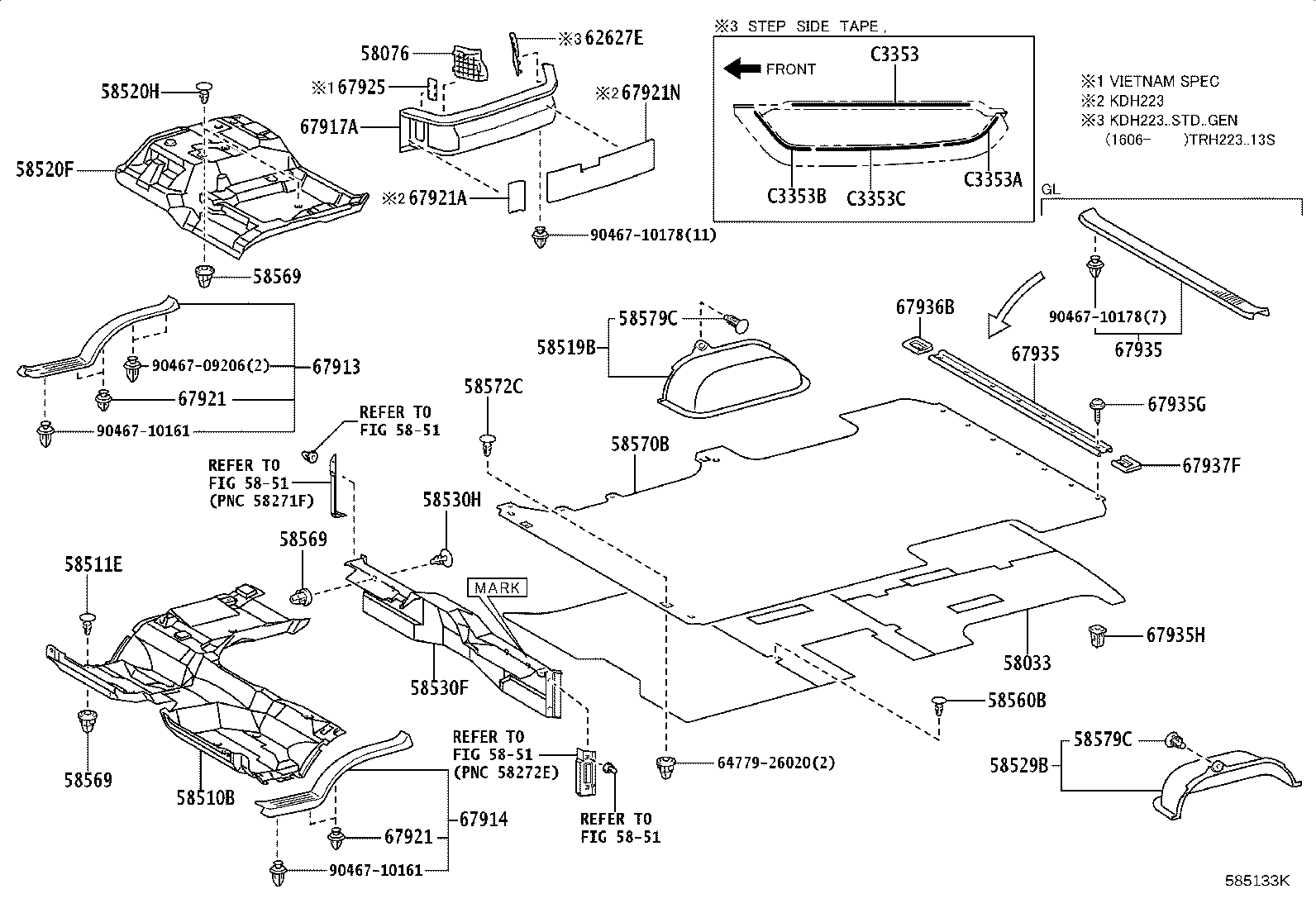

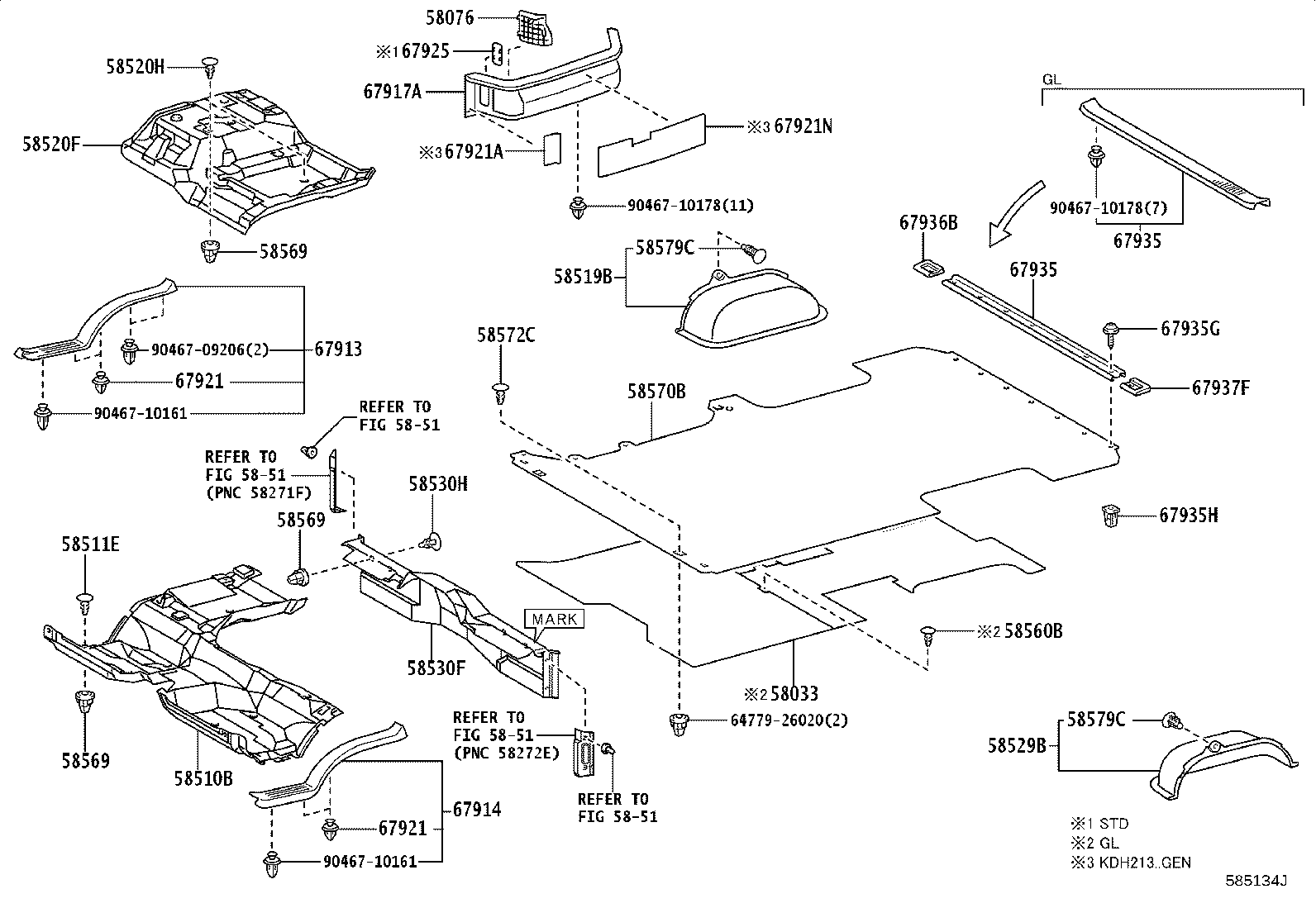

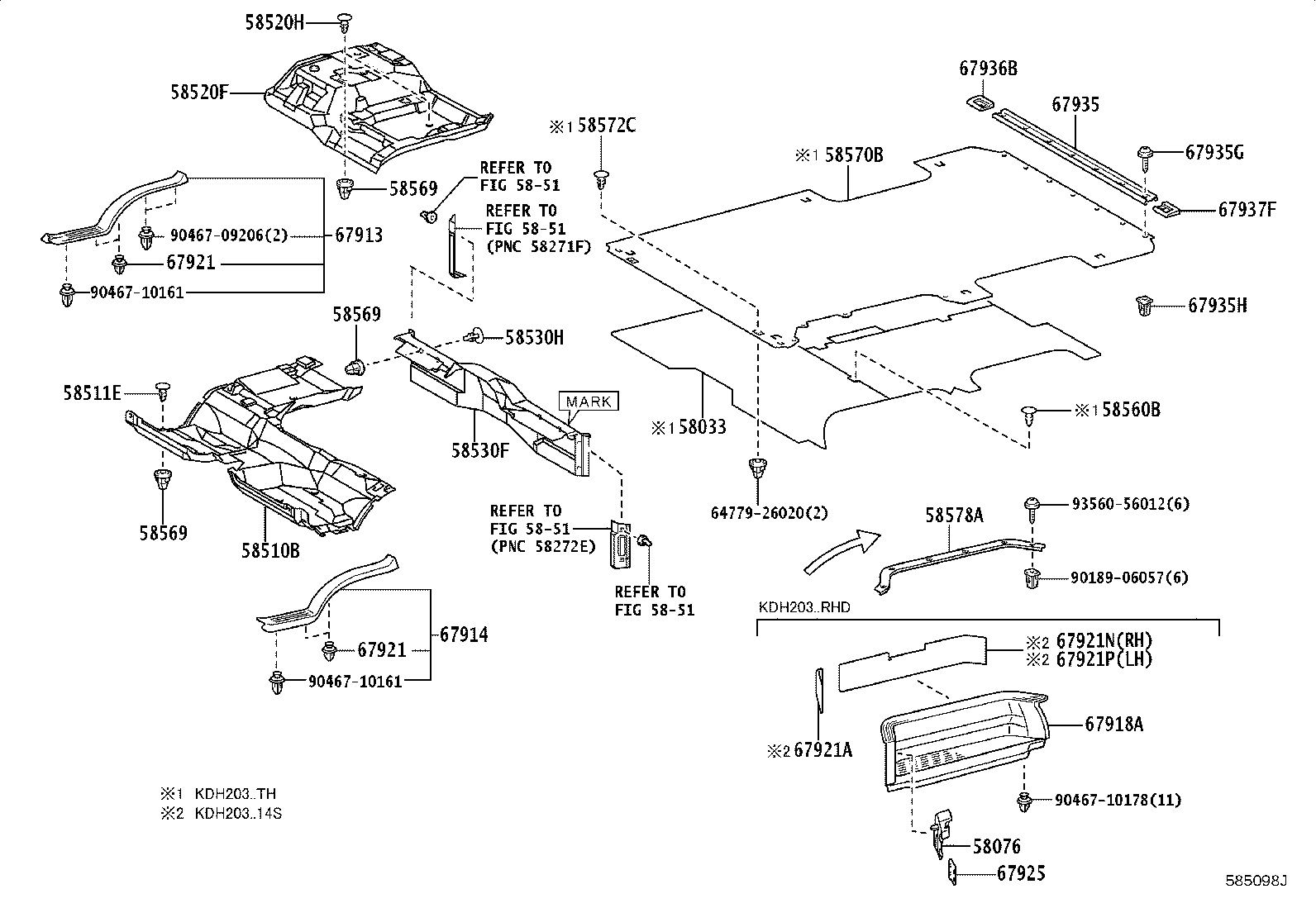

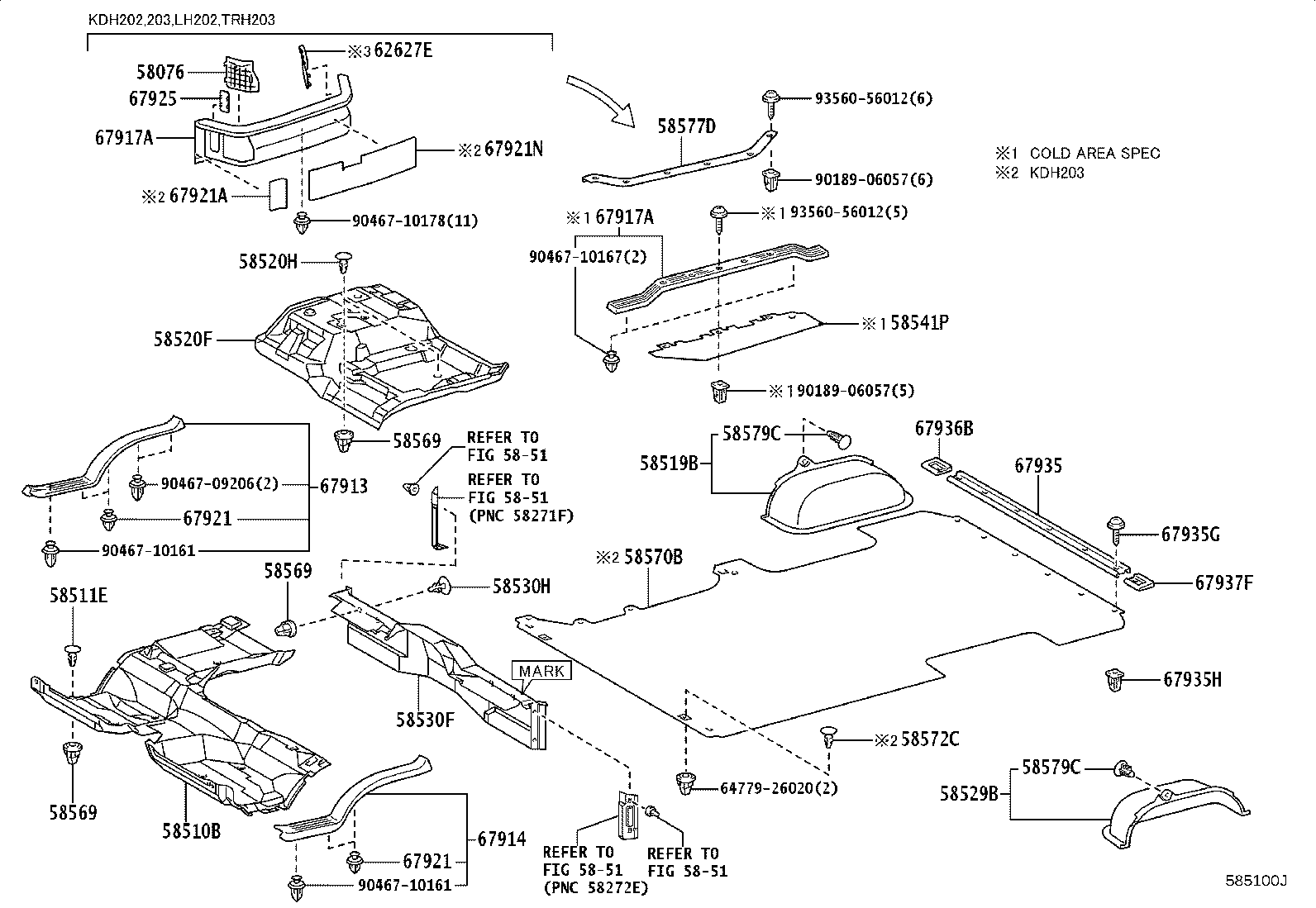

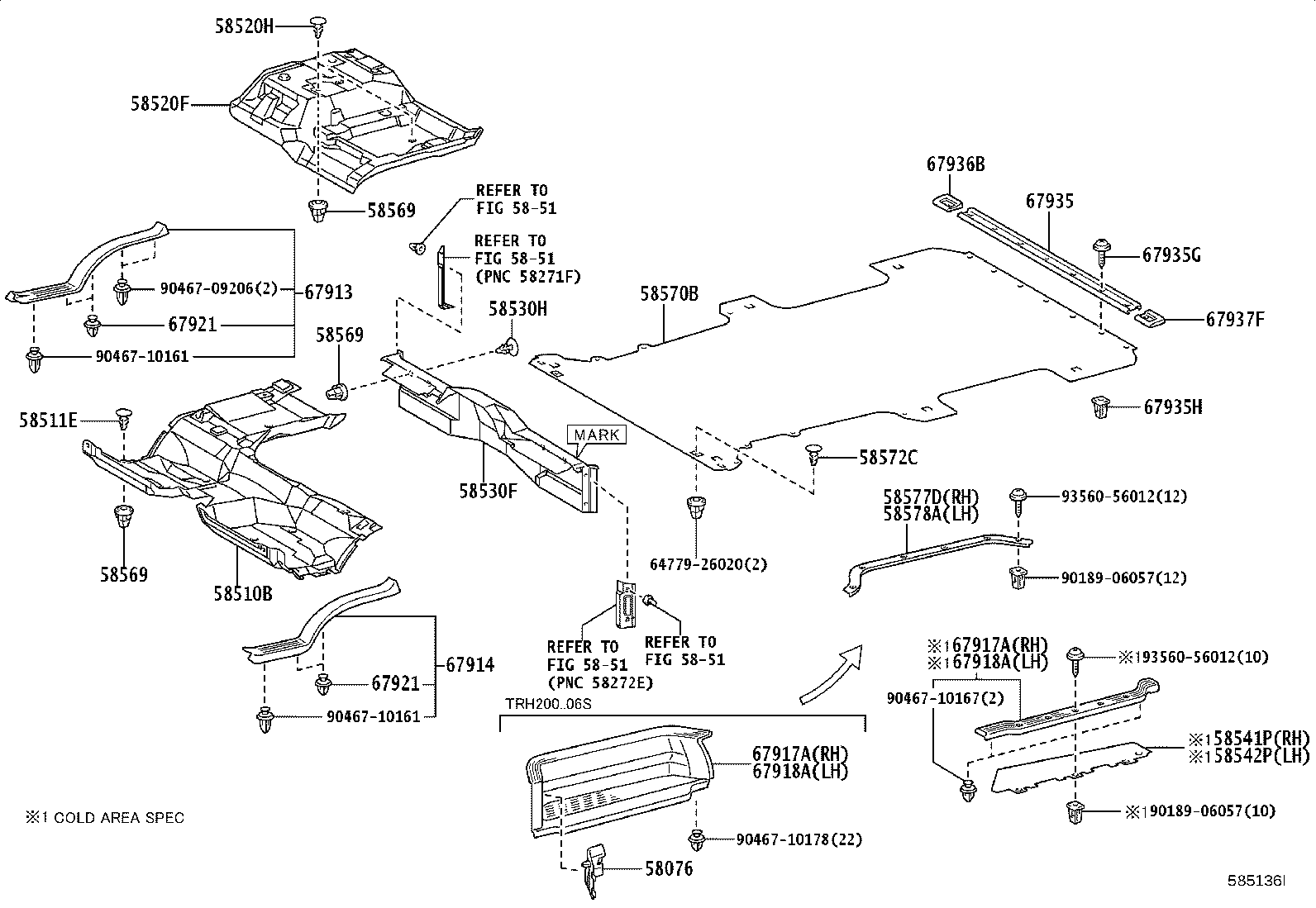

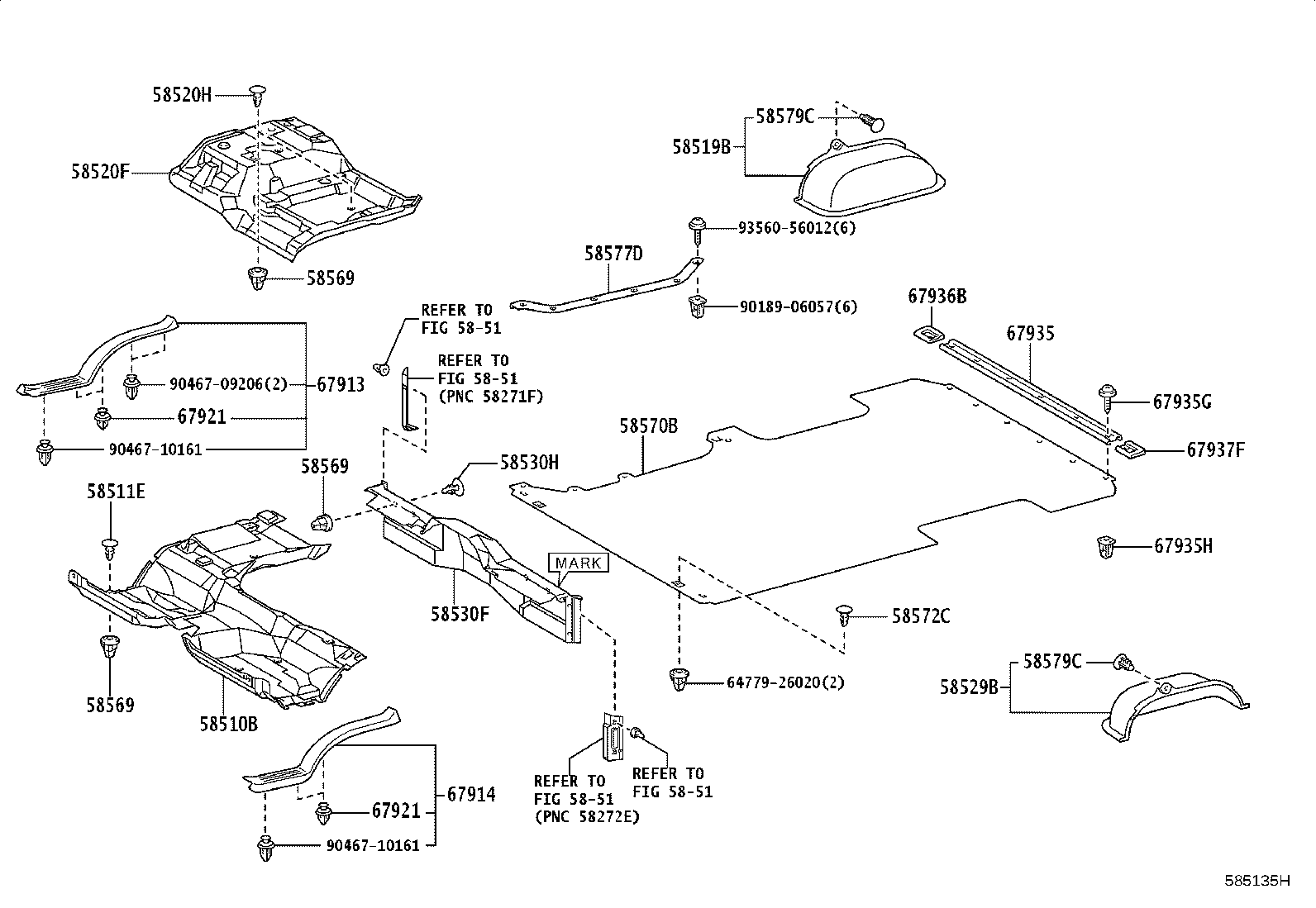

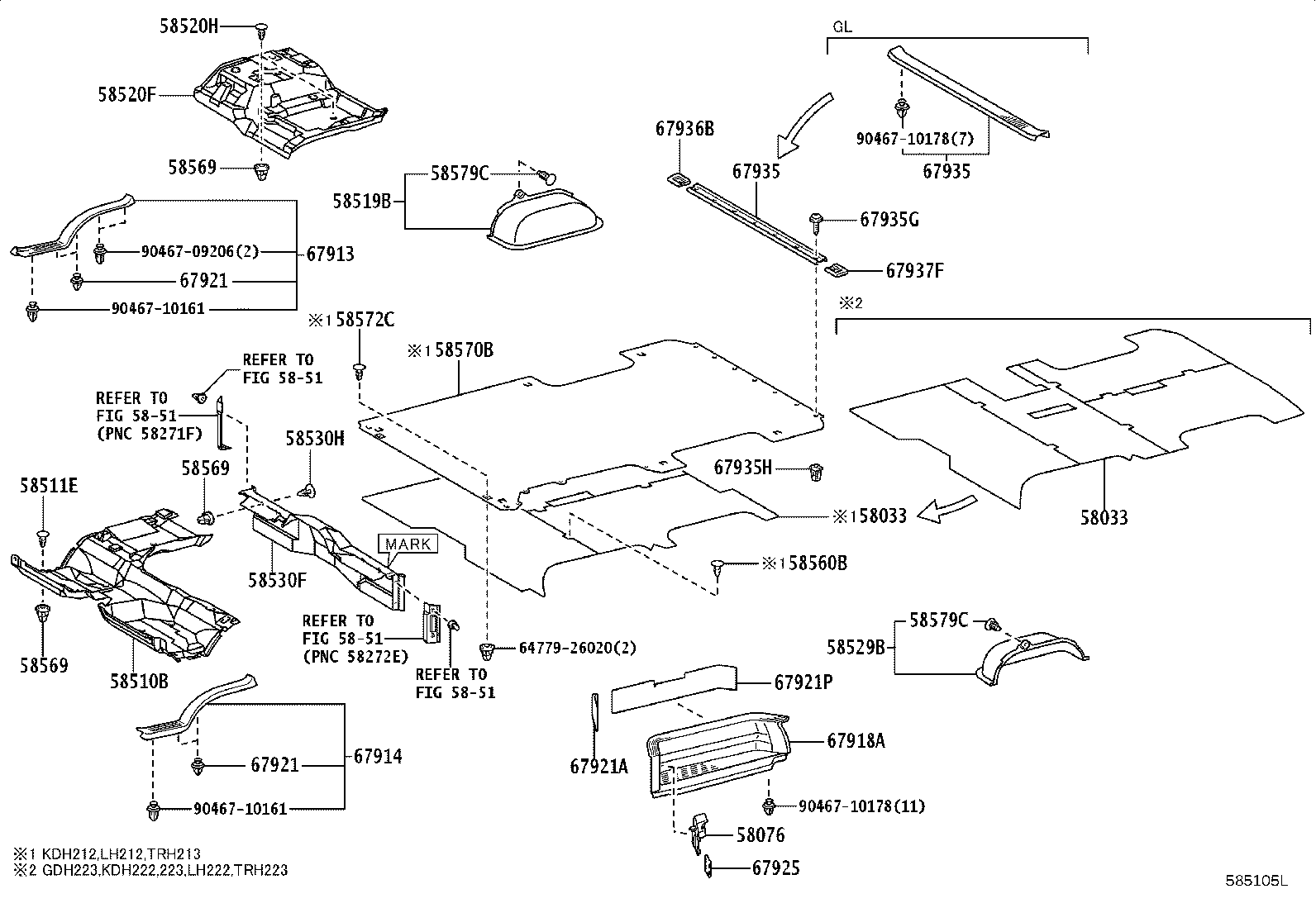

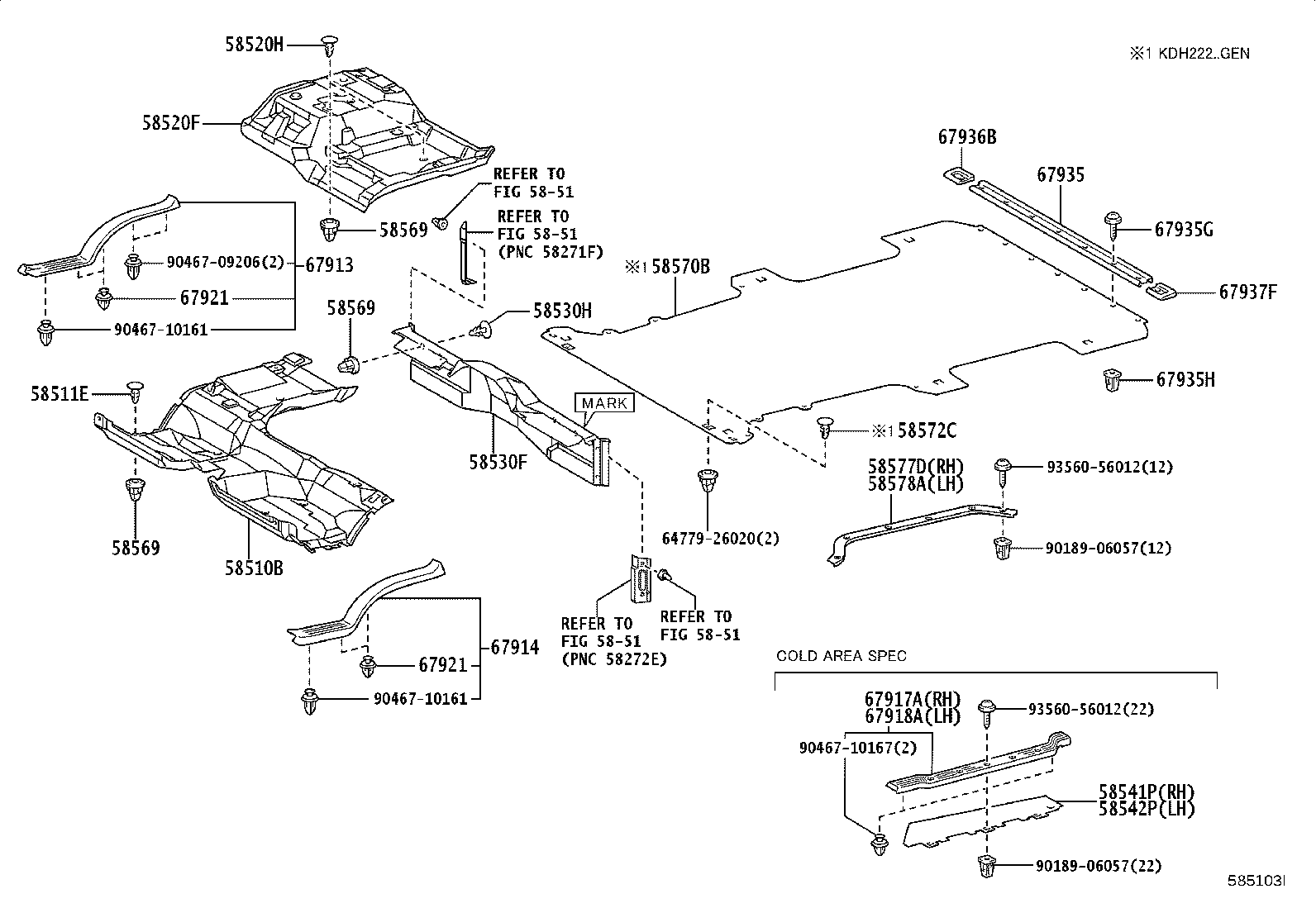

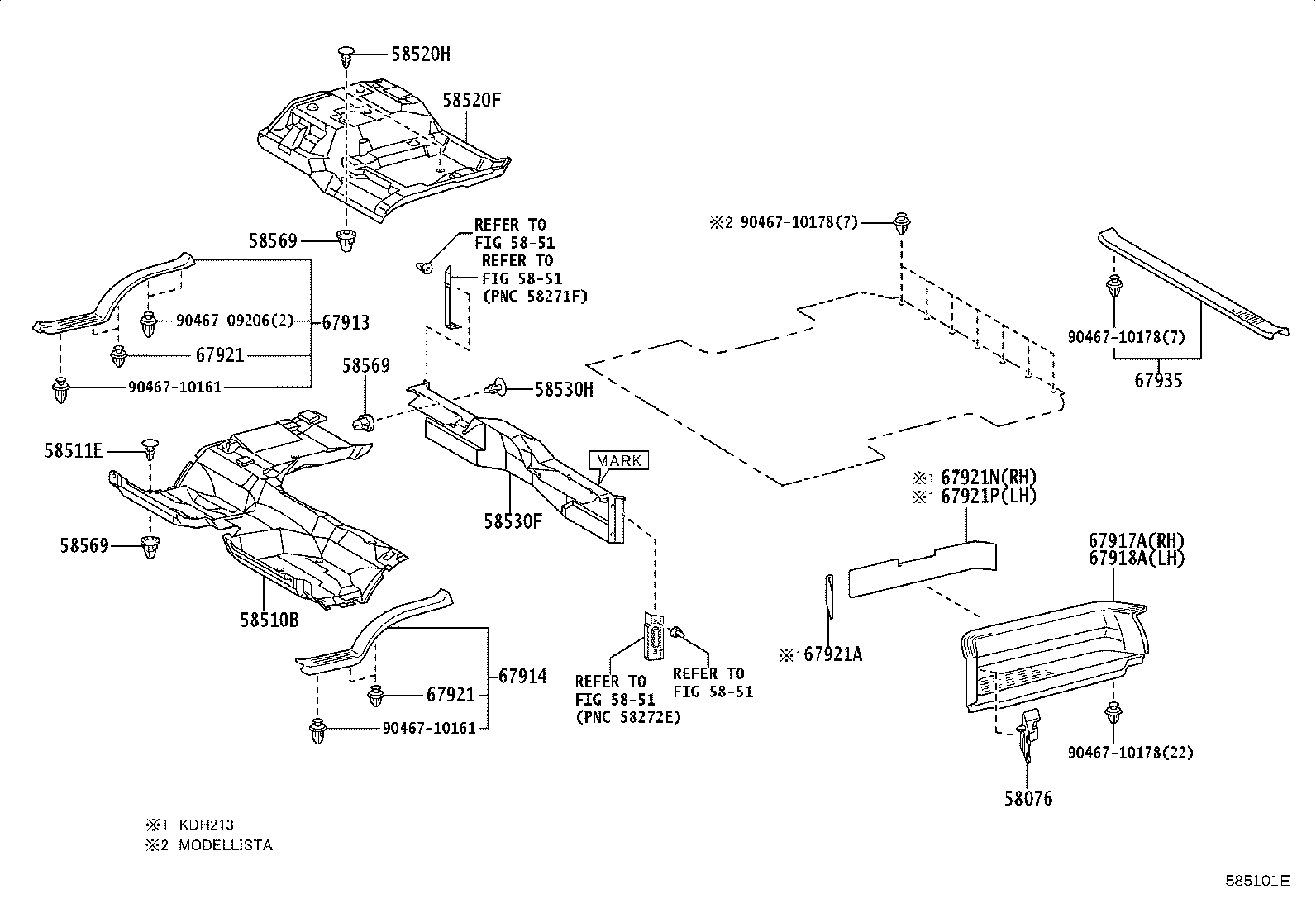

Figure 585104I 585104I 2013-12 → — Figure 585105L 585105L 2013-12 → — Figure 585098J 585098J 2013-12 → — Figure 585100J 585100J 2013-12 → — Figure 585134J 585134J 2013-12 → — Figure 585133K 585133K 2013-12 → — Figure 585136I 585136I 2013-12 → — Figure 585102K 585102K 2013-12 → — Figure 585103I 585103I 2013-12 → — Figure 585101E 585101E 2013-12 → — Figure 585135H 585135H 2013-12 → —

Part groups

PNCDescription
58033 Board Sub-assy, Rear Floor
58076 Cover Sub-assy, Jack Box Hole
58510B Mat, Front Floor, Front
58510E Retainer, Floor Carpet
58511E Clip(FOR FRONT FLOOR MAT)
58519B Mat, Rear Wheel House, RH
58520F Mat Assy, Engine Cover
58520H Clip(FOR ENGINE COVER MAT)
58529B Mat, Rear Wheel House, LH
58530F Mat Assy, Header
58530H Clip(FOR HEADER MAT & HEADER CARPET)
58541P Mat, Step, RH
58542P Mat, Step, LH
58560B Clip(FOR FLOOR CARPET, REAR)
58569 Stopper, Rear Floor Mat
58570B Mat Assy, Rear Floor
58572C Clip, Rear Floor Mat Set
58577D Plate, Rear Floor Mat Support Side, RH
58578A Plate, Rear Floor Mat Support Side, LH
58579C Clip, Rear Floor Carpet Set
62627E Cover, Side Trim Cover, RH
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67921 Retainer, Front Door Scuff Plate
67921A Pad, Center Door Scuff Plate
67921N Pad, Center Door Scuff Plate, RH
67921P Pad, Center Door Scuff Plate, LH
67925 Cover, Door Scuff Plate
67925A Panel, Rear Door Scuff, RH
67926 Panel, Rear Door Scuff, LH
67935 Plate, Back Door Scuff
67935G Screw, Back Door Scuff Plate
67935H Grommet, Back Door Scuff Plate
67936B Cover, Back Door Scuff Side, RH
67937F Cover, Back Door Scuff Side, LH
C3353 Tape, Step Side, NO.1
C3353A Tape, Step Side, NO.2
C3353B Tape, Step Side, NO.3
C3353C Tape, Step Side, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
