Roof Panel & Back Panel

19 part groups · 6 illustrations

Illustrations

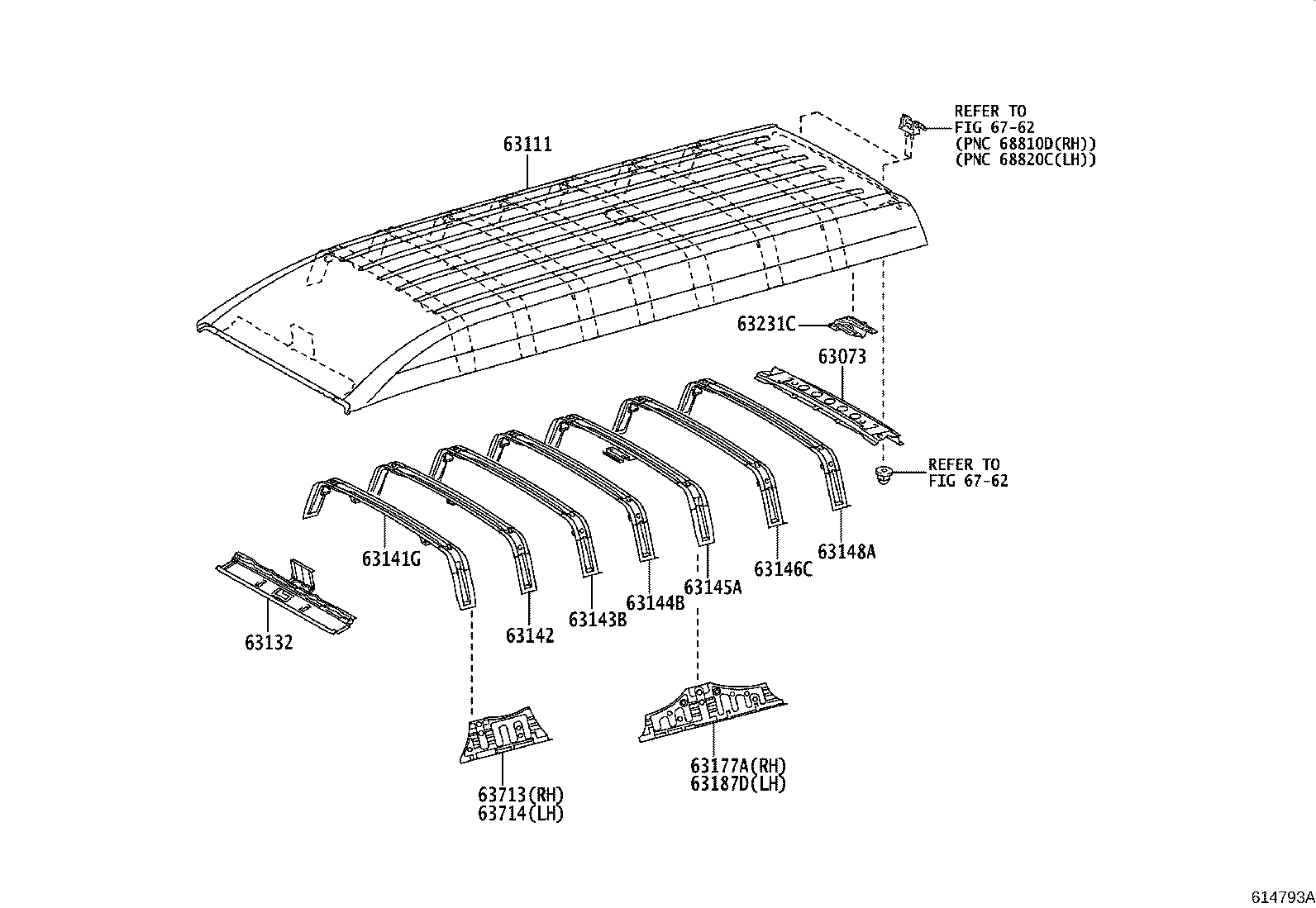

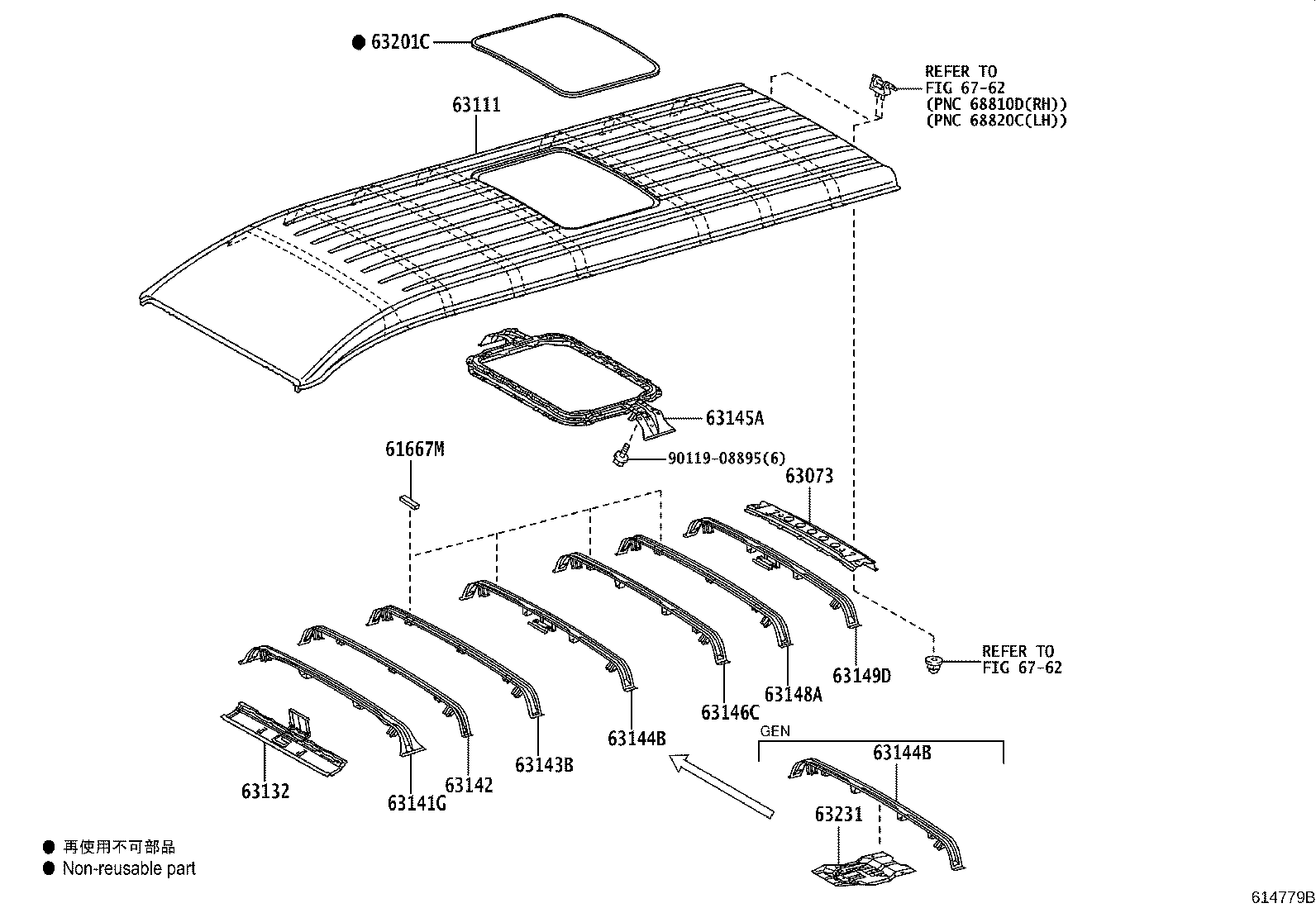

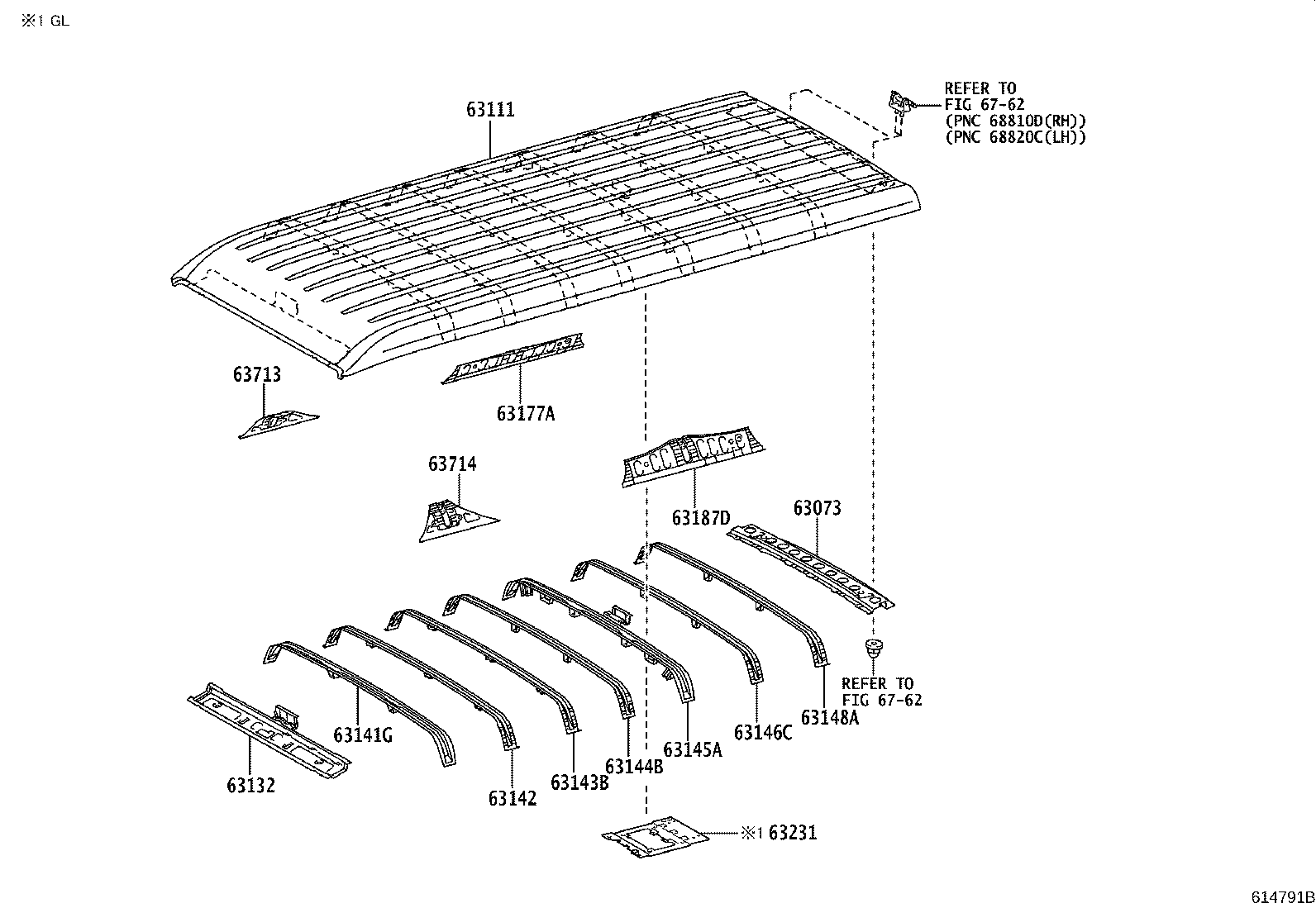

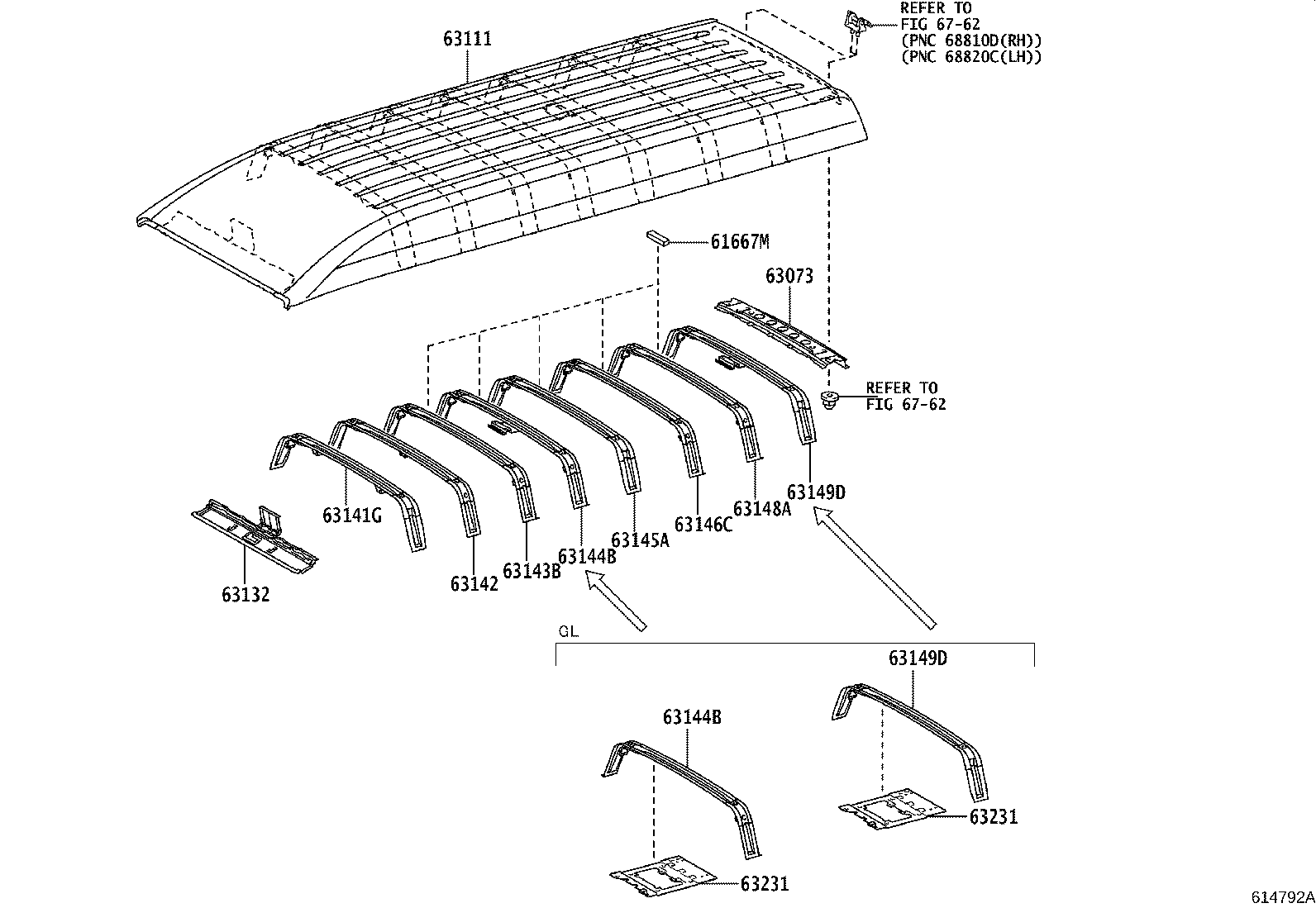

Figure 614790B 614790B 2013-12 → — Figure 614791B 614791B 2013-12 → — Figure 614793A 614793A 2013-12 → — Figure 614792A 614792A 2013-12 → — Figure 614792A 614792A 2013-12 → — Figure 614779B 614779B 2013-12 → —

Part groups

PNCDescription
61667M Seal, Roof Panel
63073 Frame Sub-assy, Back Door Opening, Upper Outer
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63141G Reinforcement, Roof Panel, NO.1
63142 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144B Reinforcement, Roof Panel, NO.4
63145A Reinforcement, Roof Panel, NO.5
63146C Reinforcement Sub-assy, Roof Panel, NO.6
63148A Reinforcement, Roof Panel, NO.7
63149D Reinforcement, Roof Panel, NO.8
63177A Reinforcement, Roof Panel, RH NO.7
63187D Reinforcement, Roof Panel, LH NO.7
63201C Glass Sub-assy, Tilt Roof
63231 Bracket, Room Lamp
63231C Bracket, Room Lamp
63713 Bracket, Roof Panel Reinforcement, NO.3
63714 Bracket, Roof Panel Reinforcement, NO.4
