Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

38 part groups · 17 illustrations

Illustrations

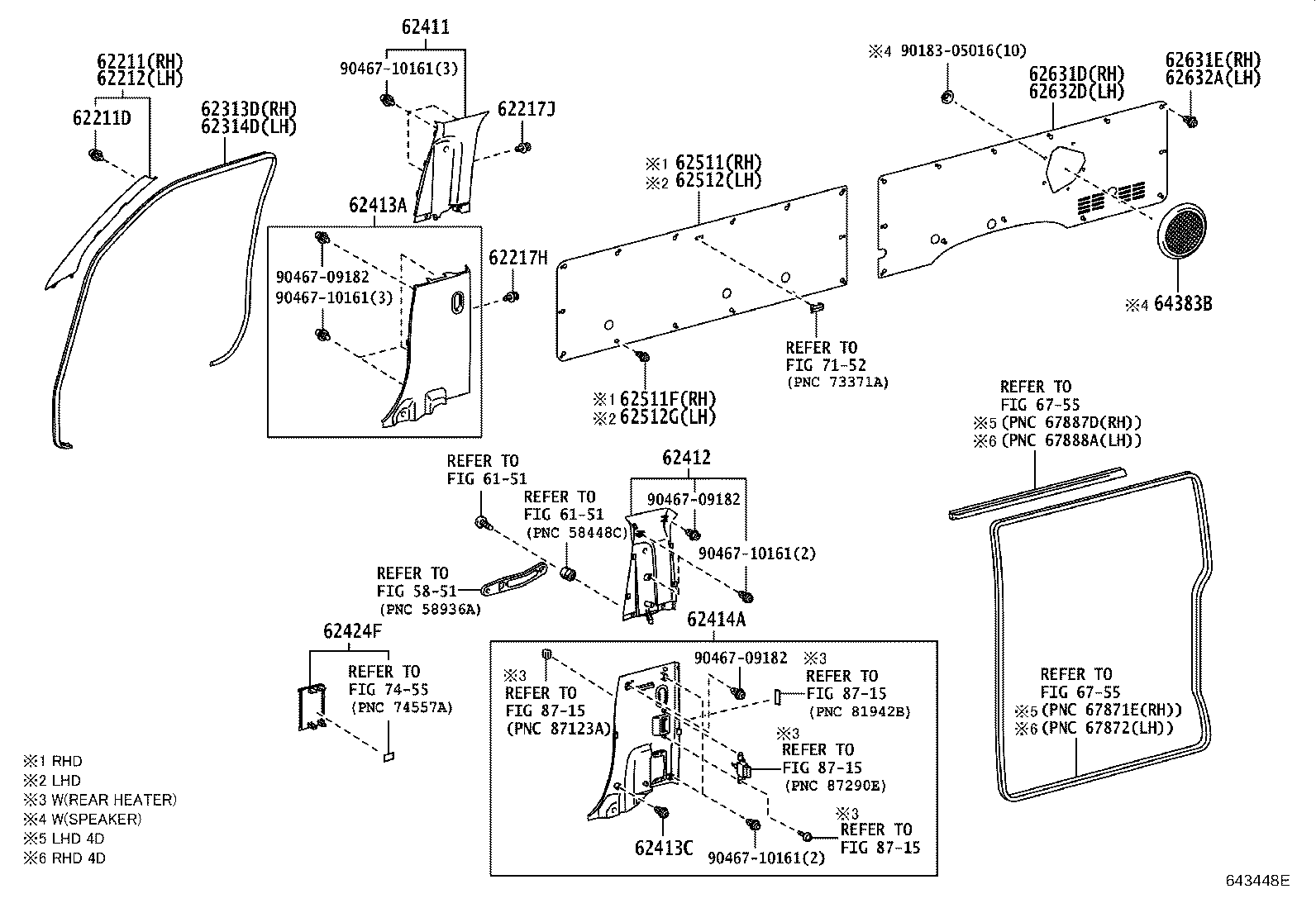

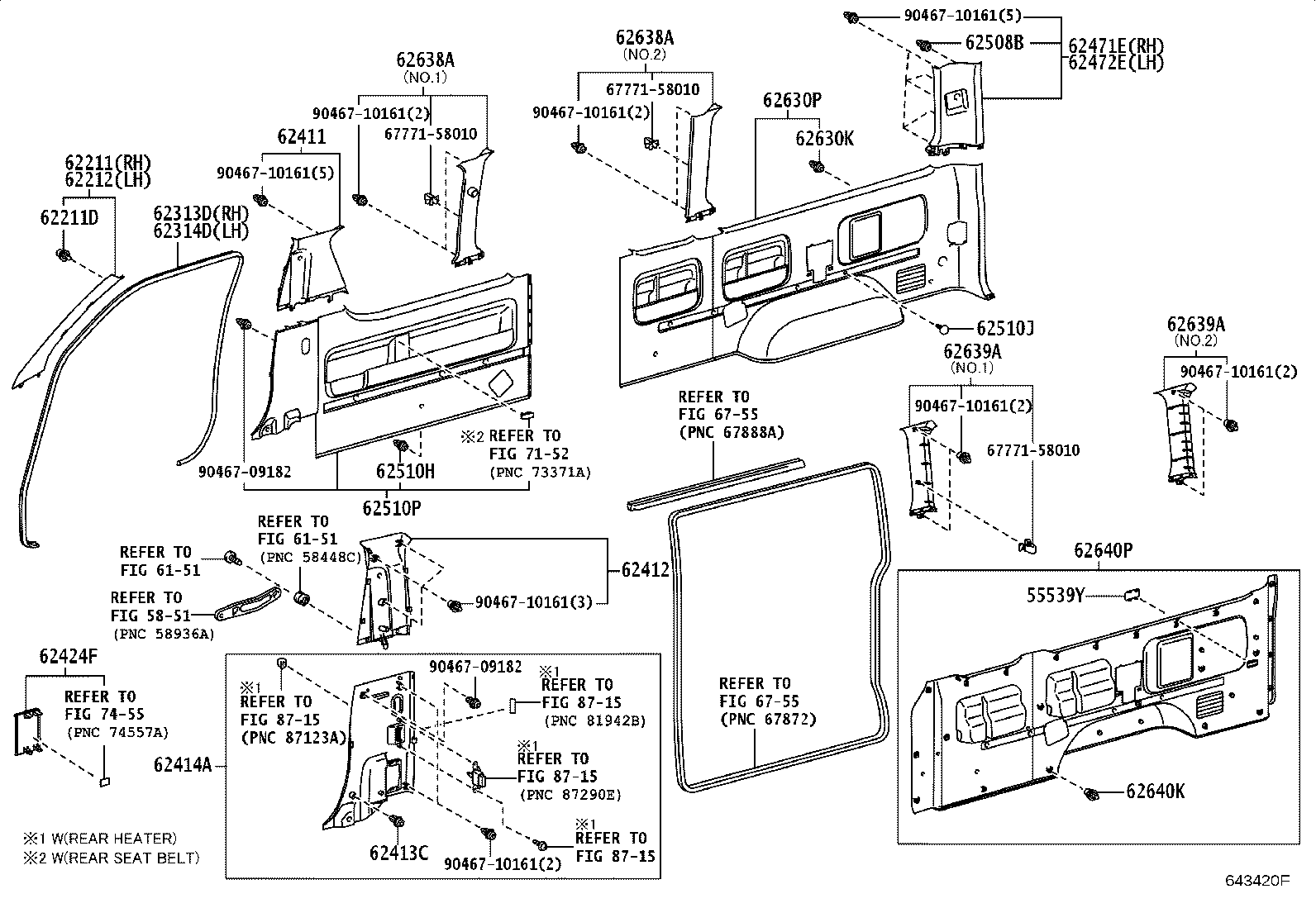

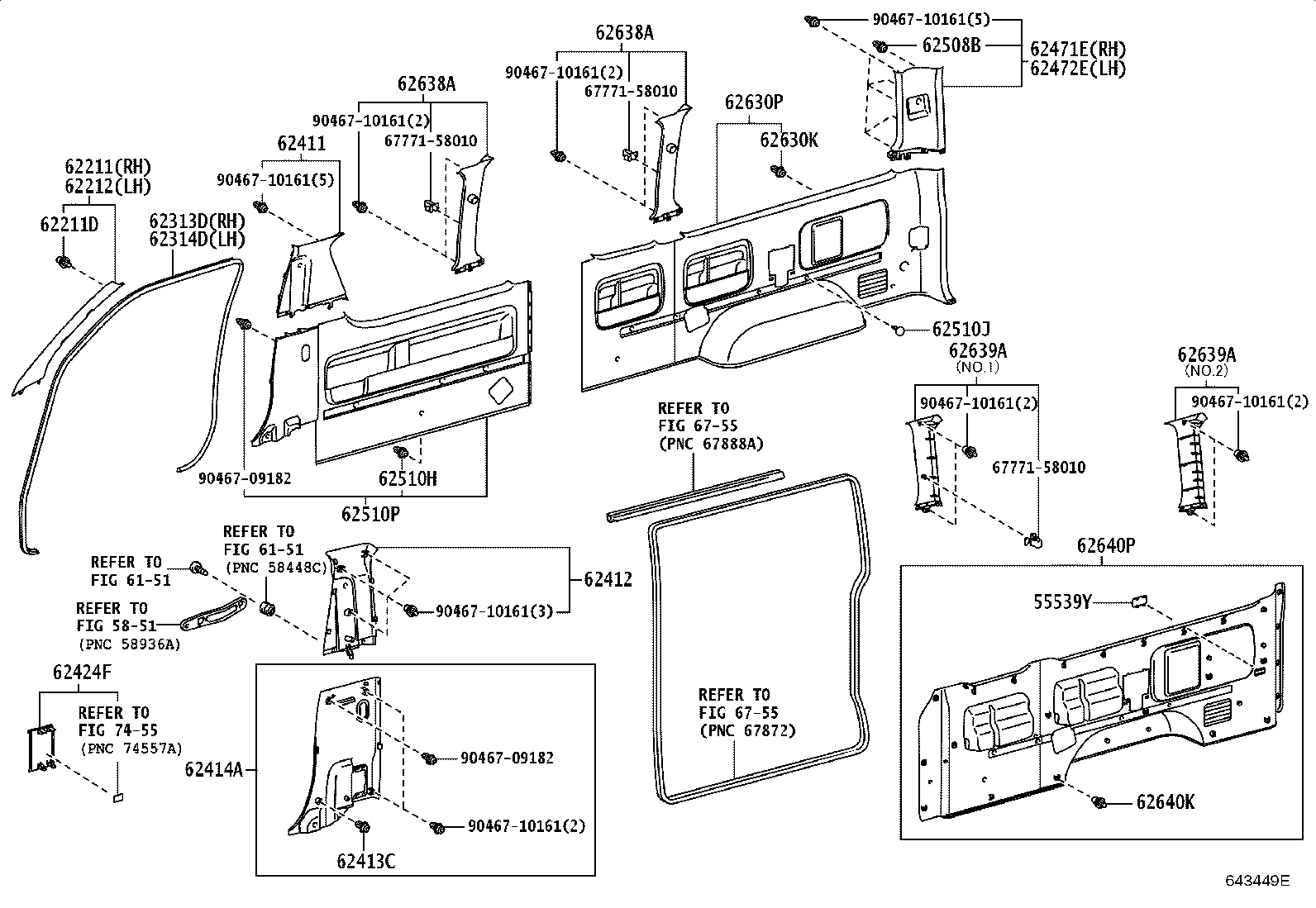

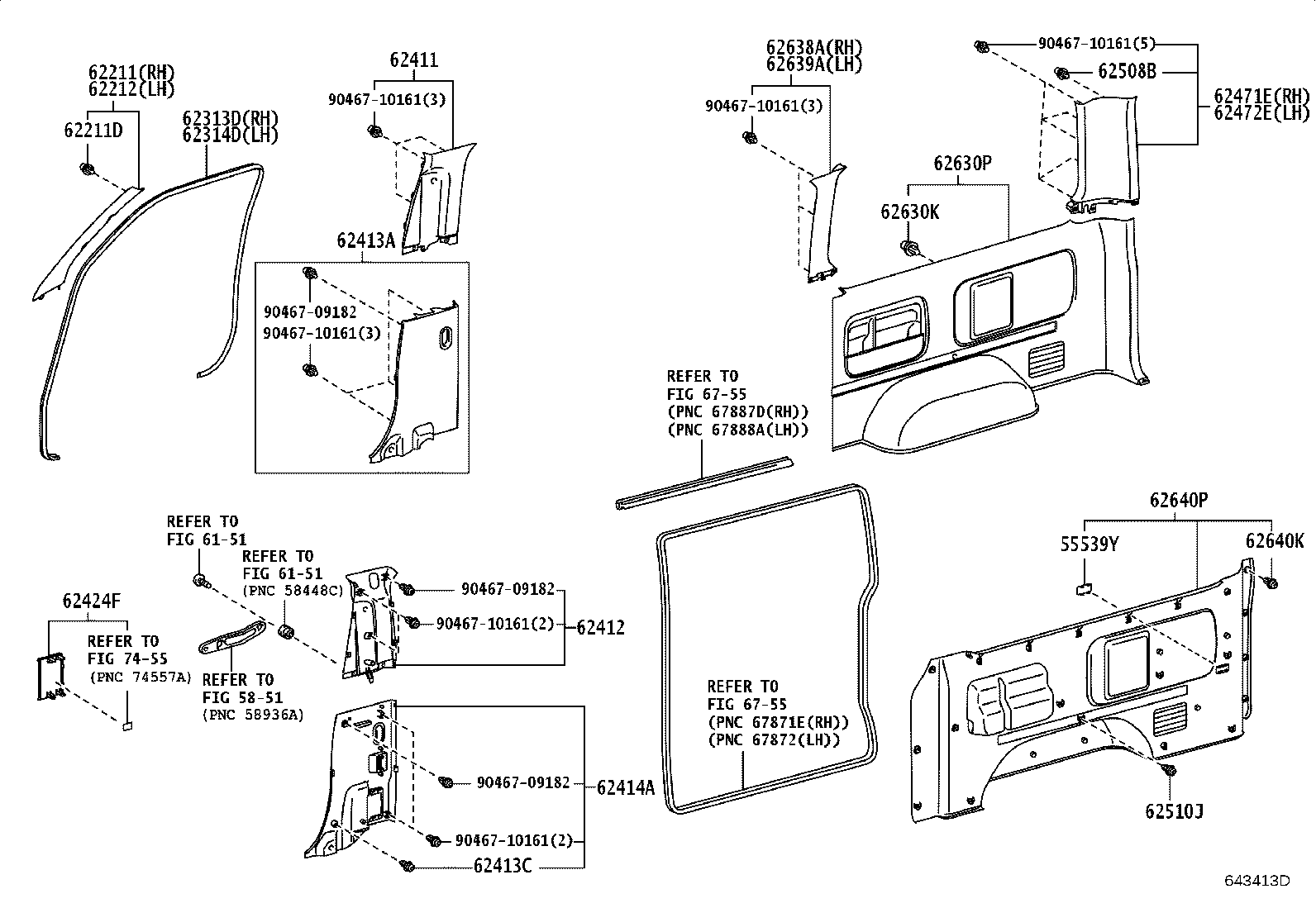

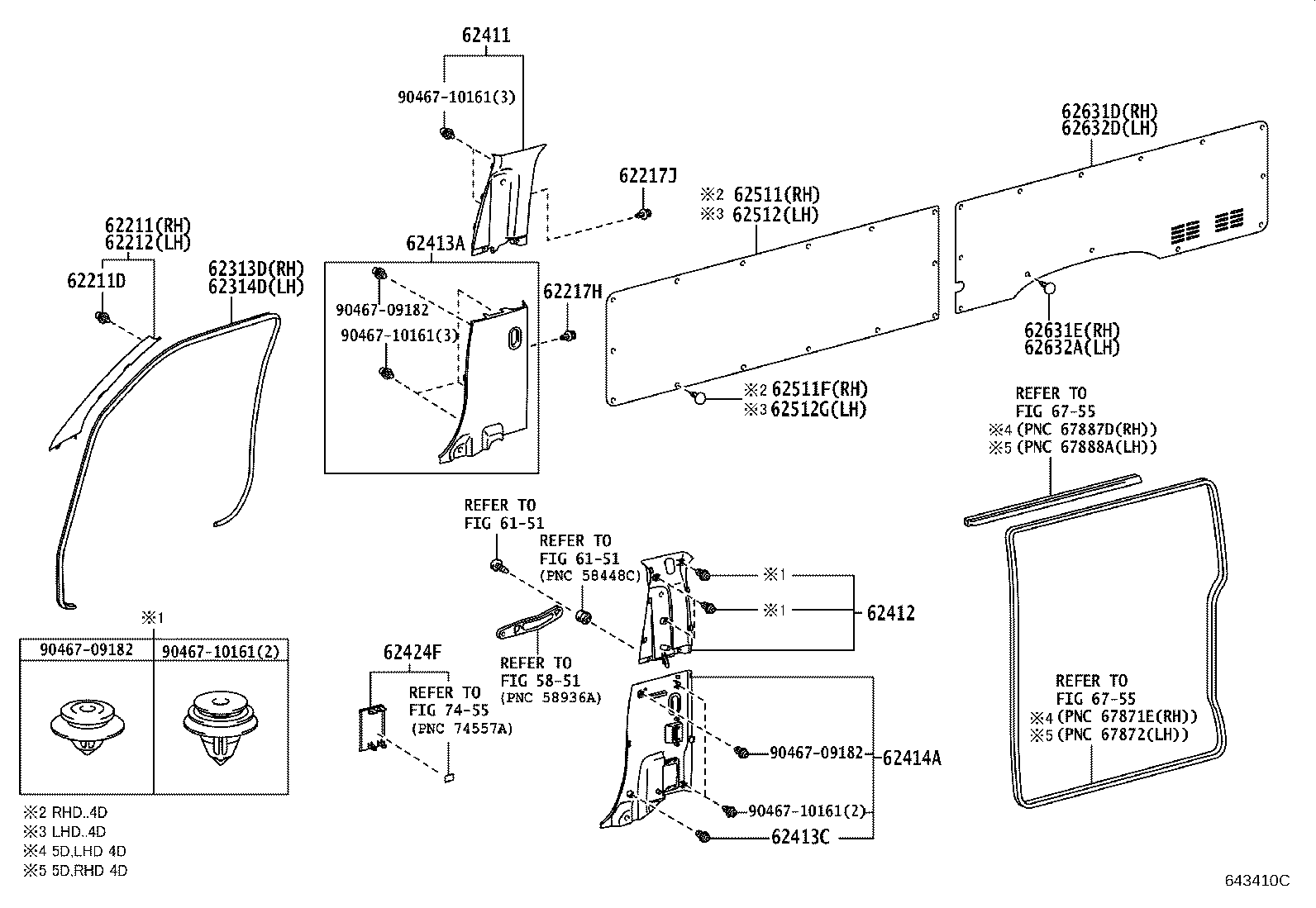

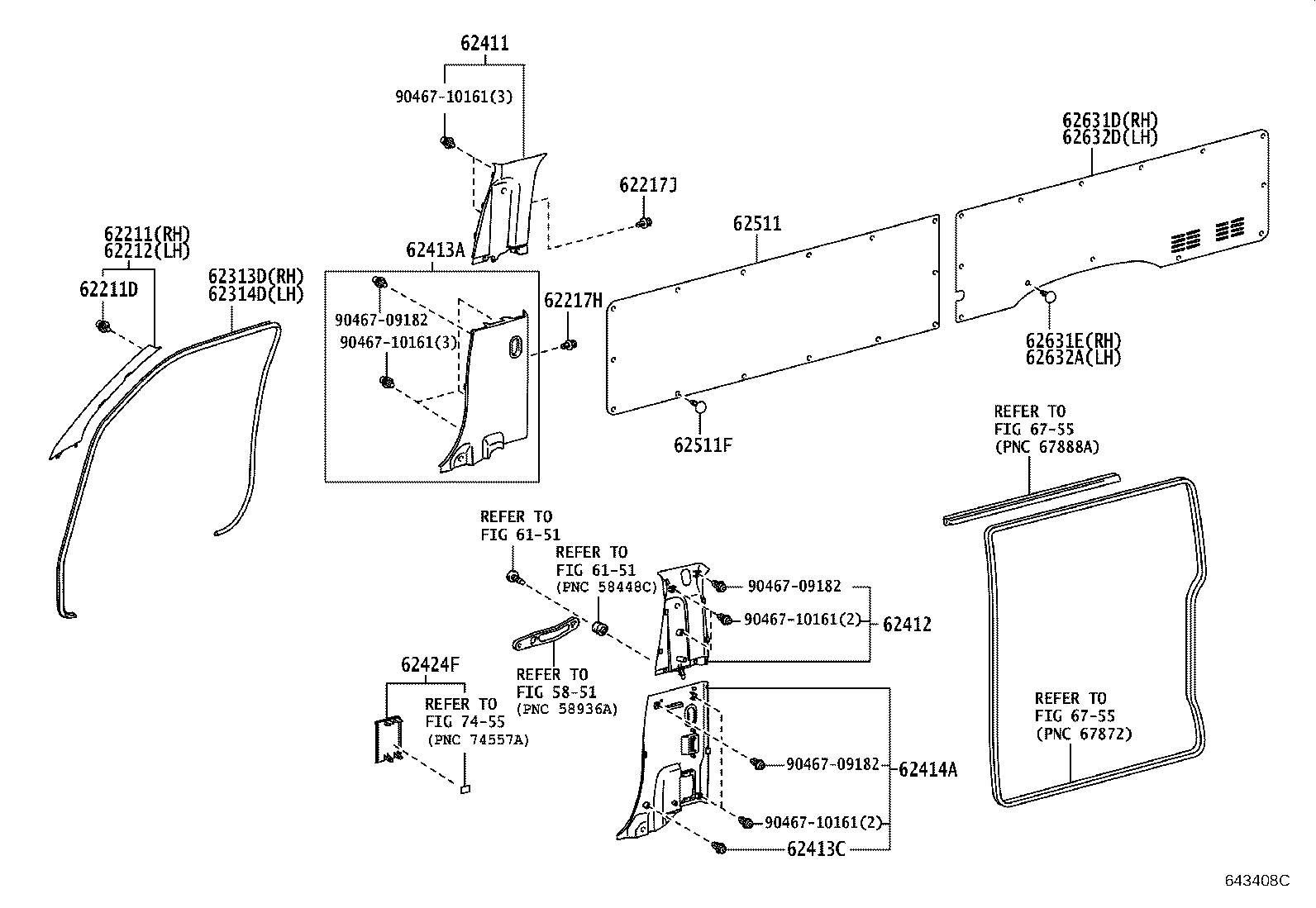

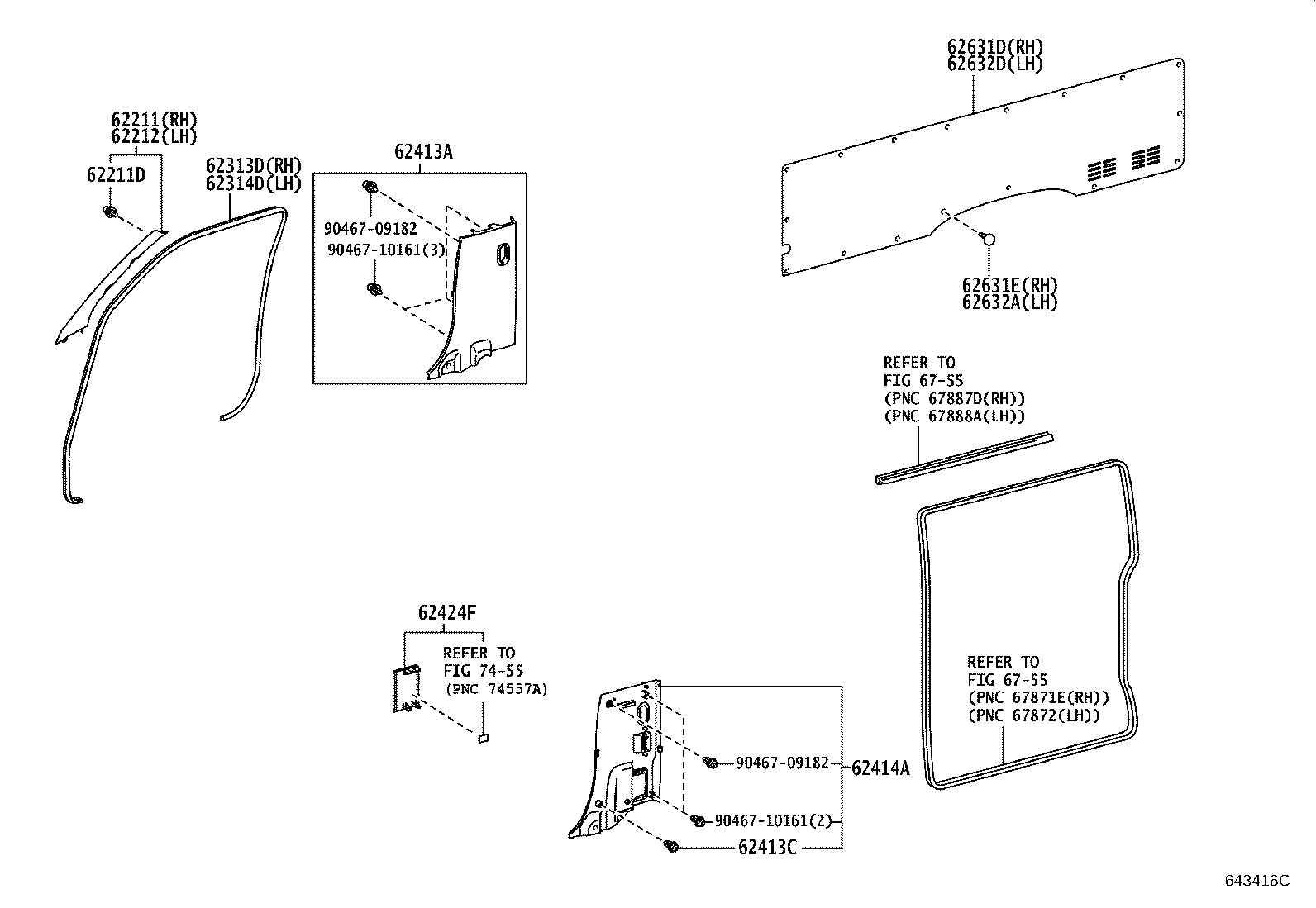

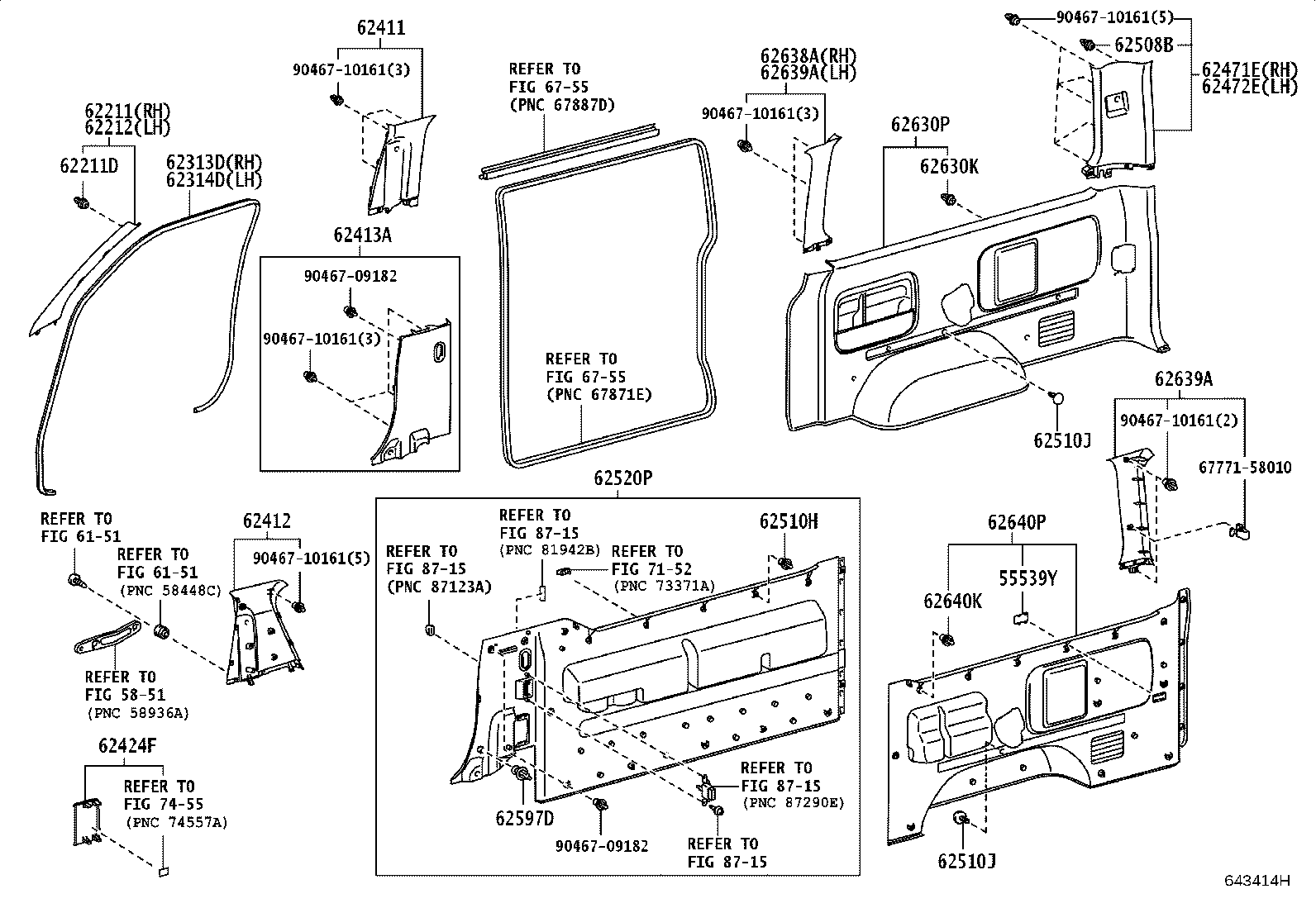

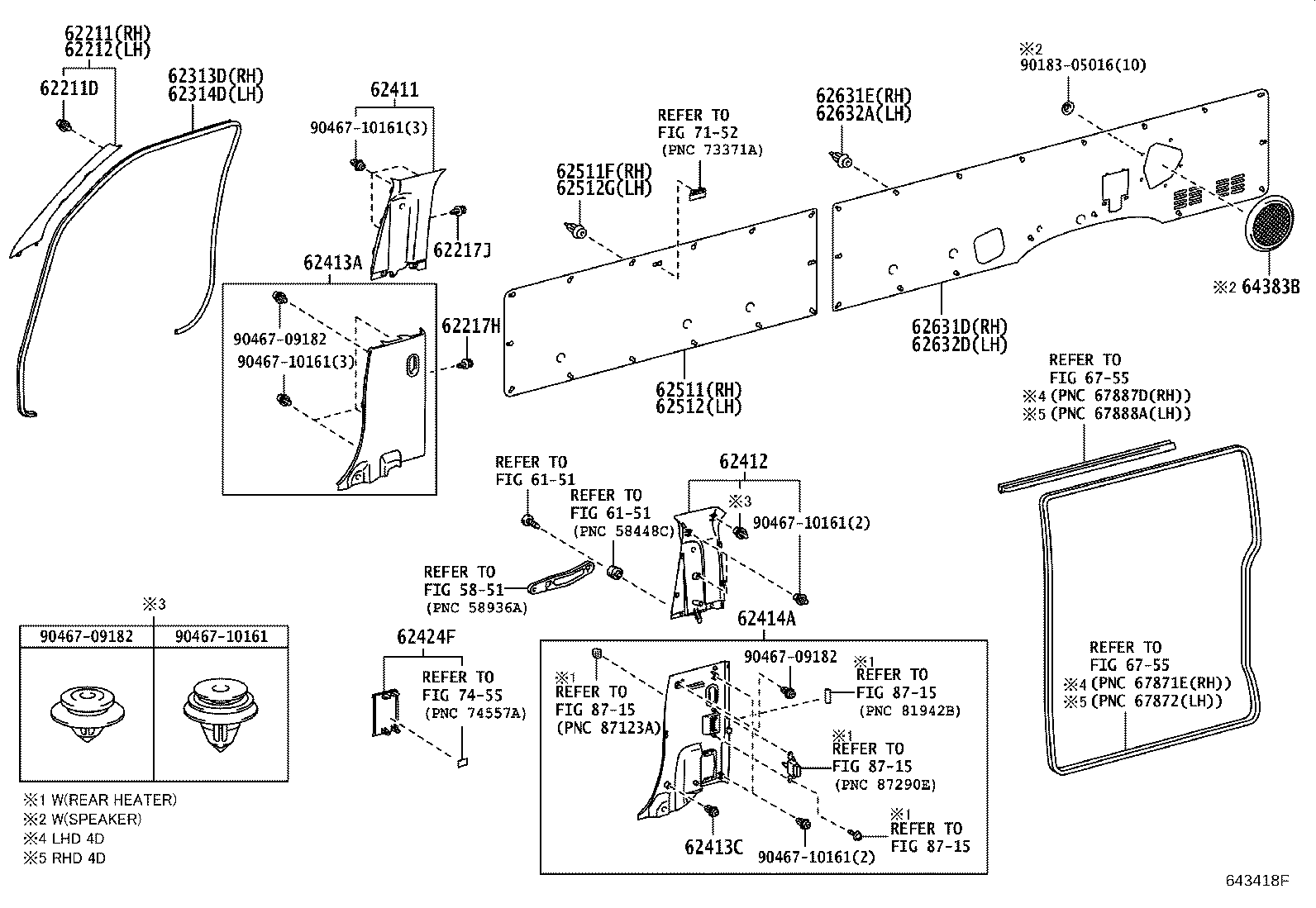

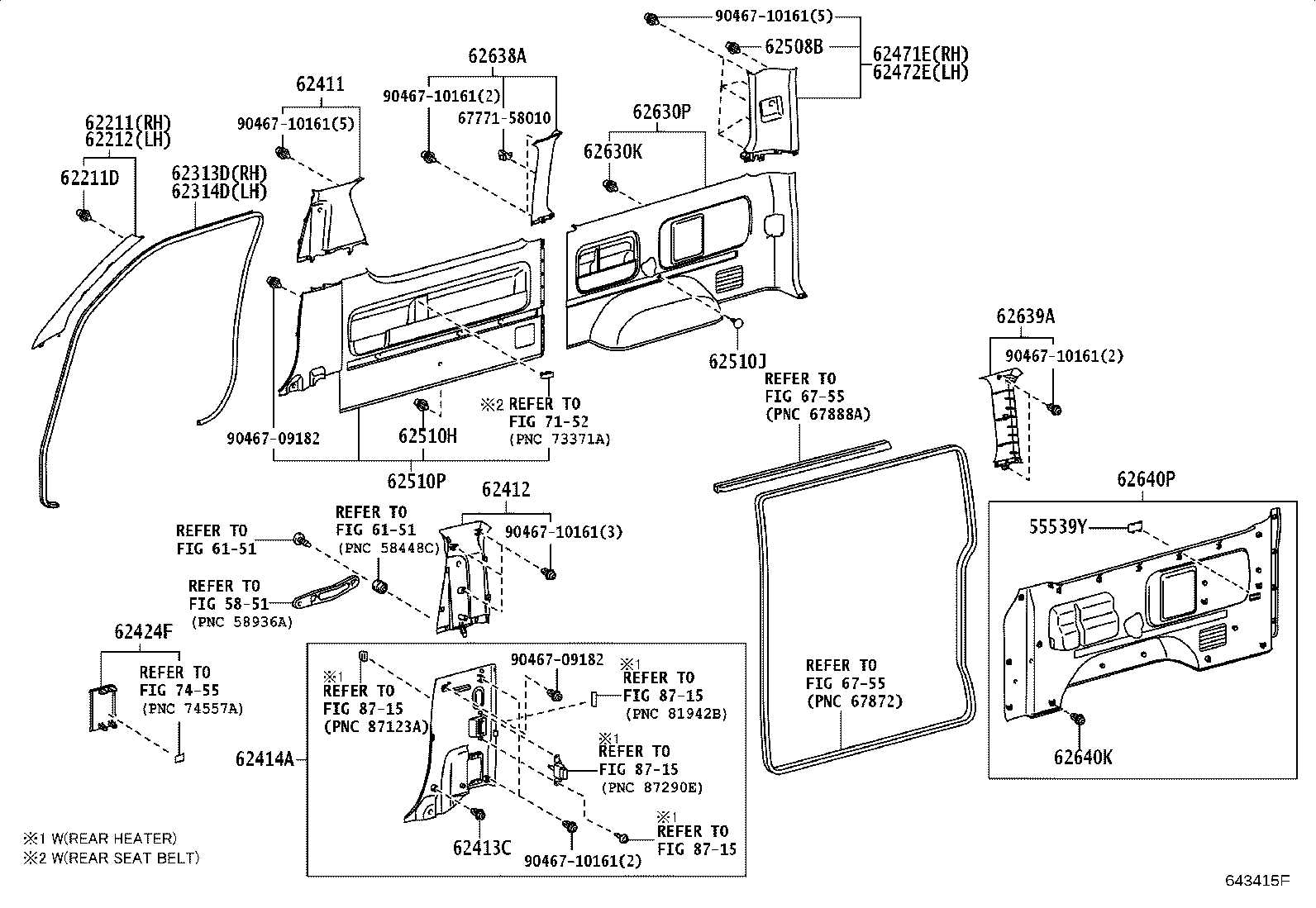

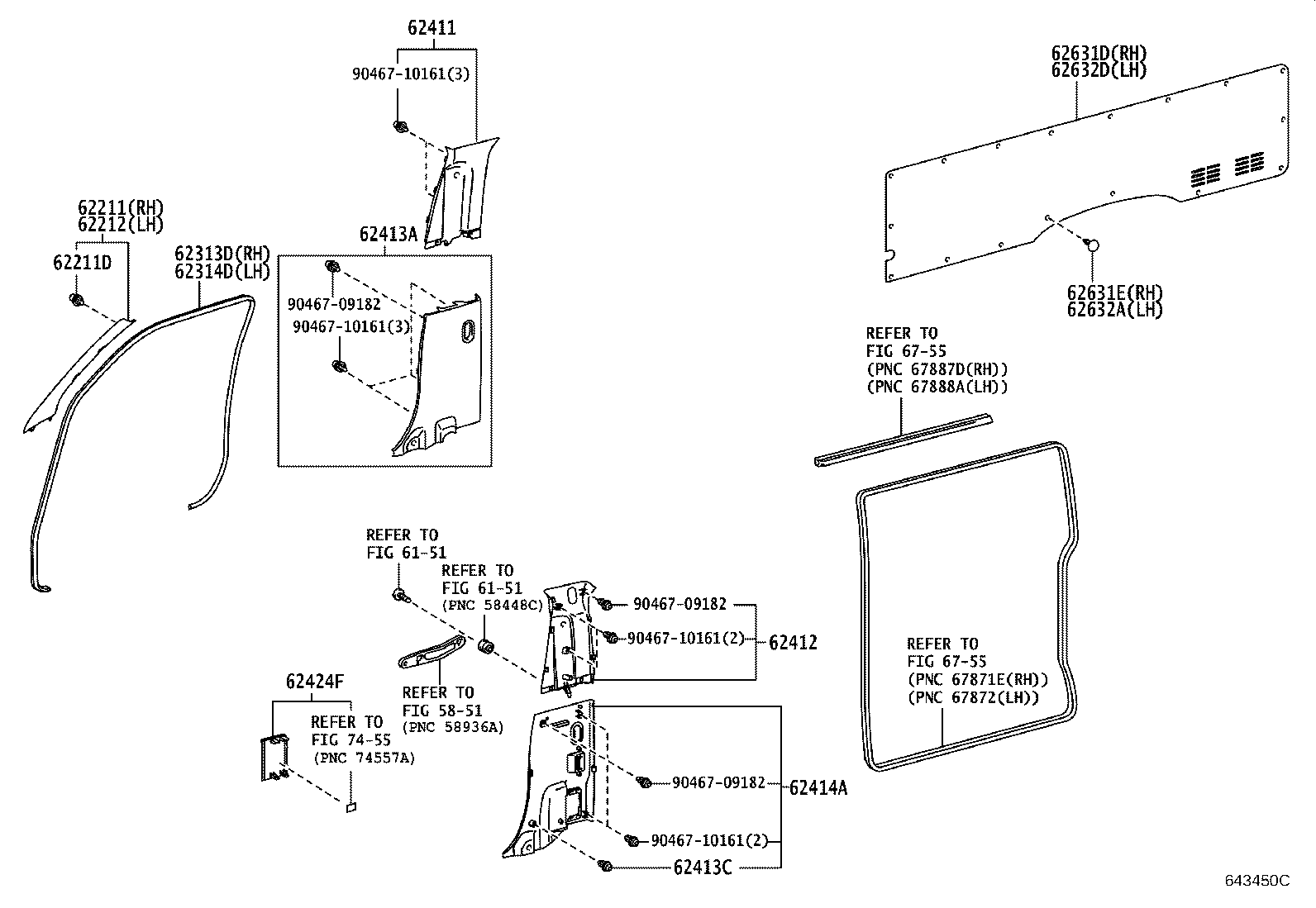

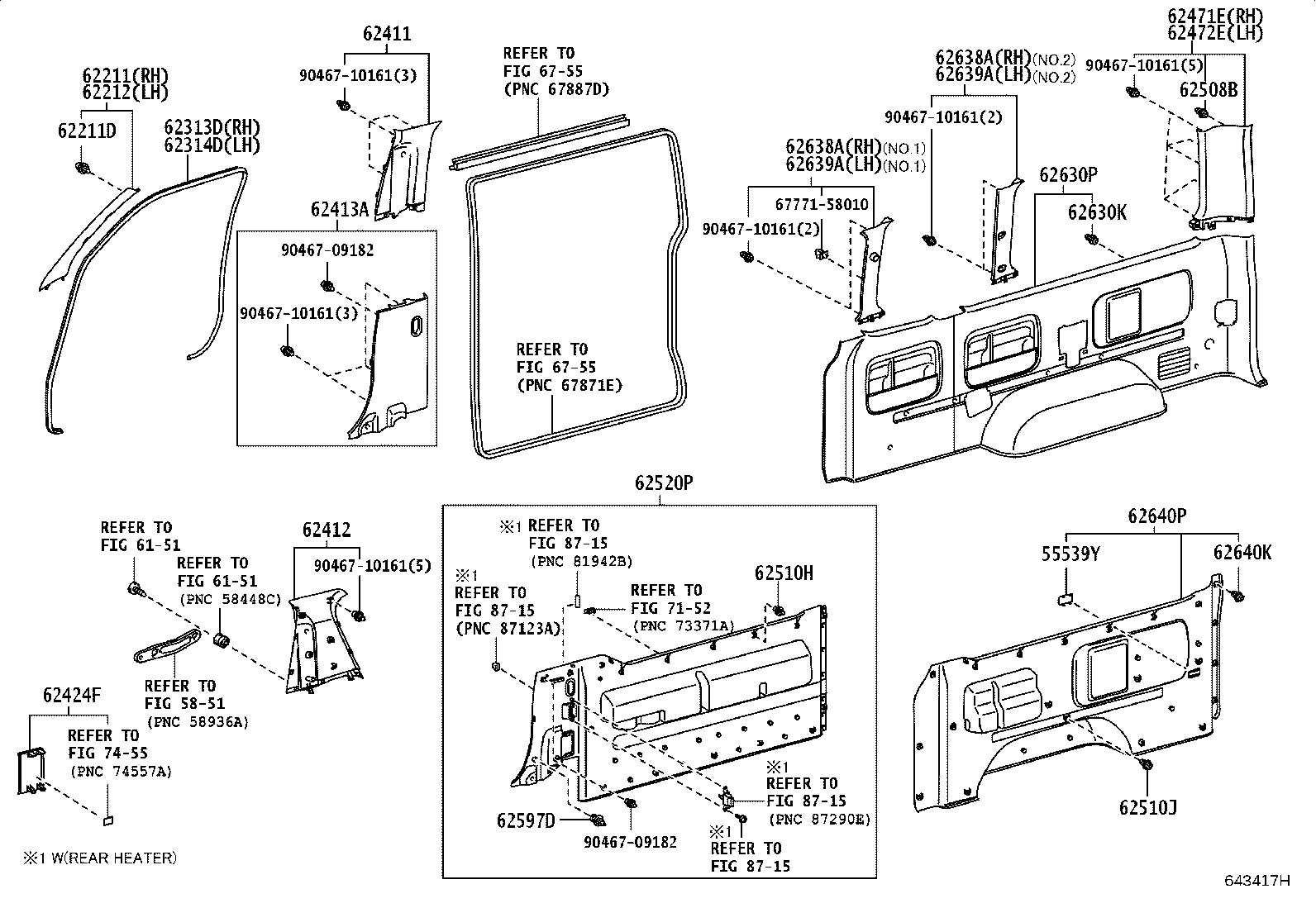

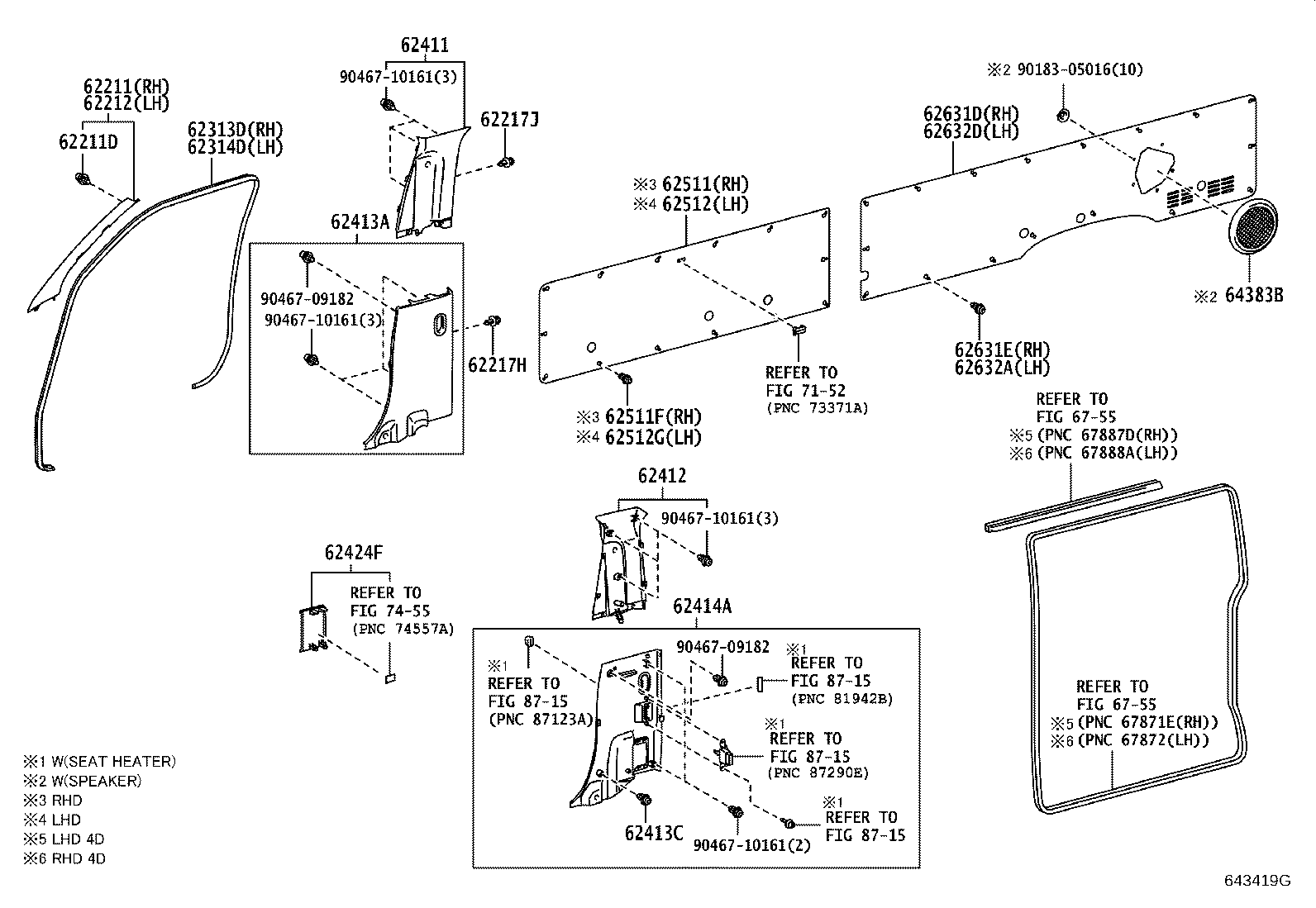

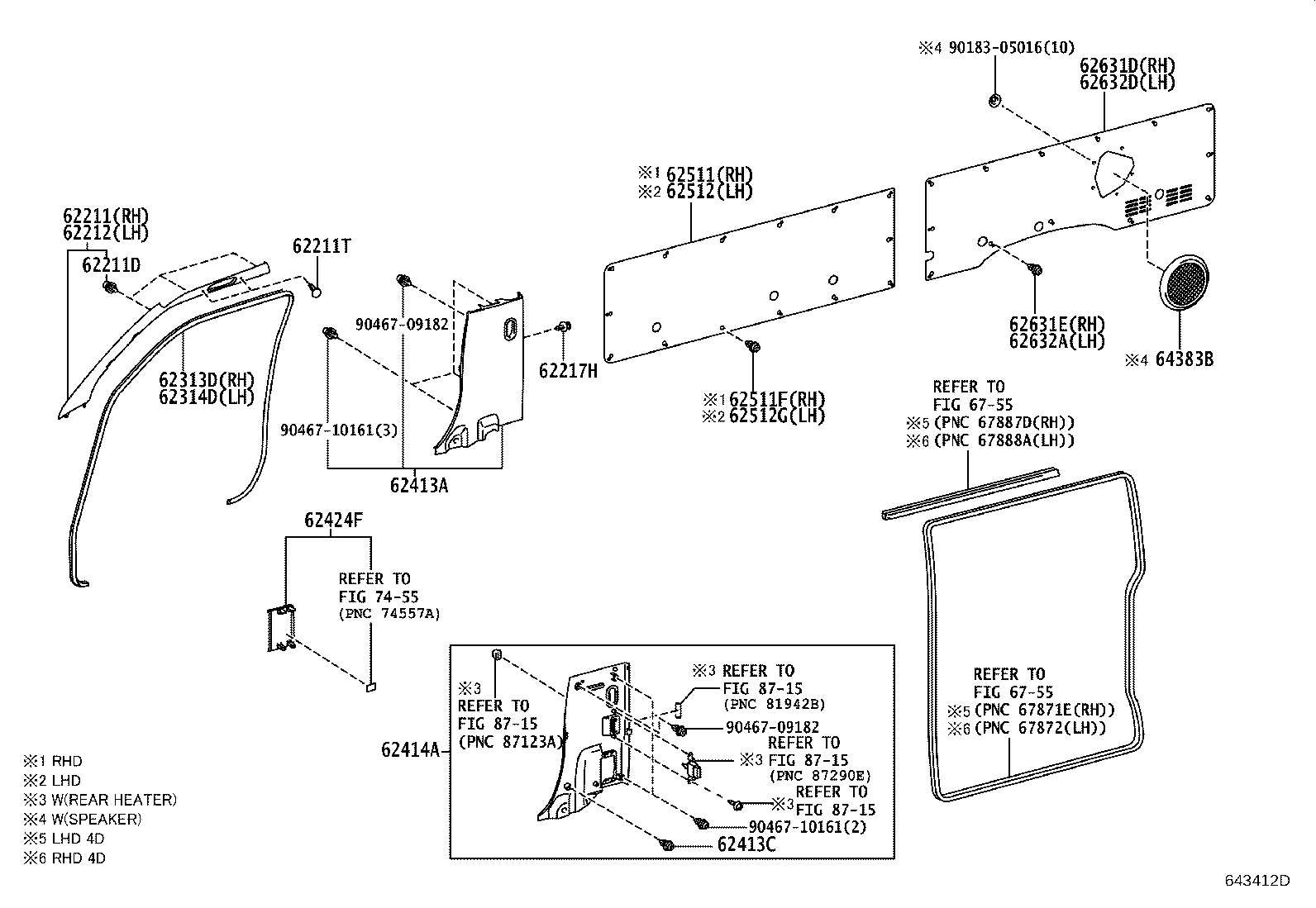

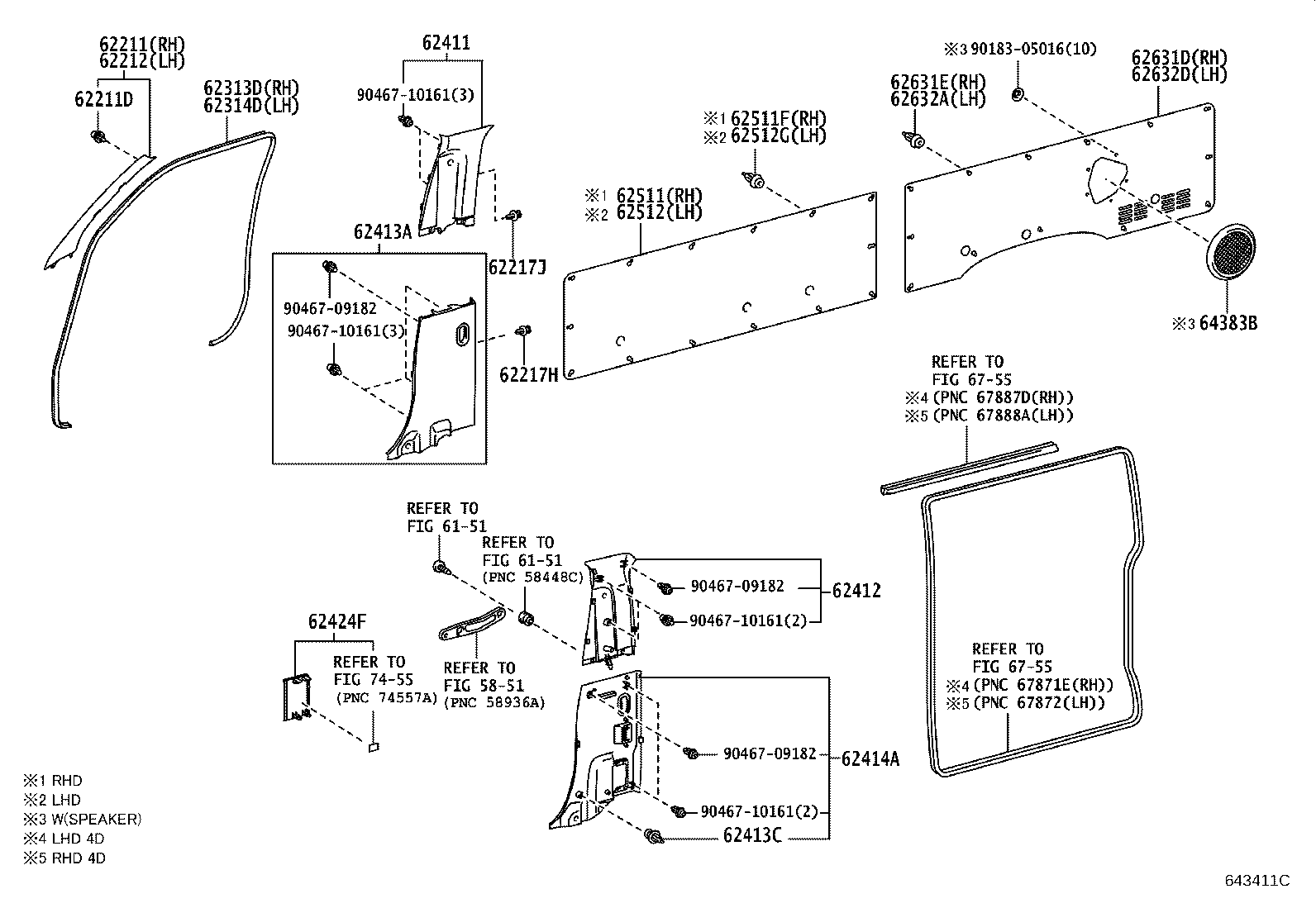

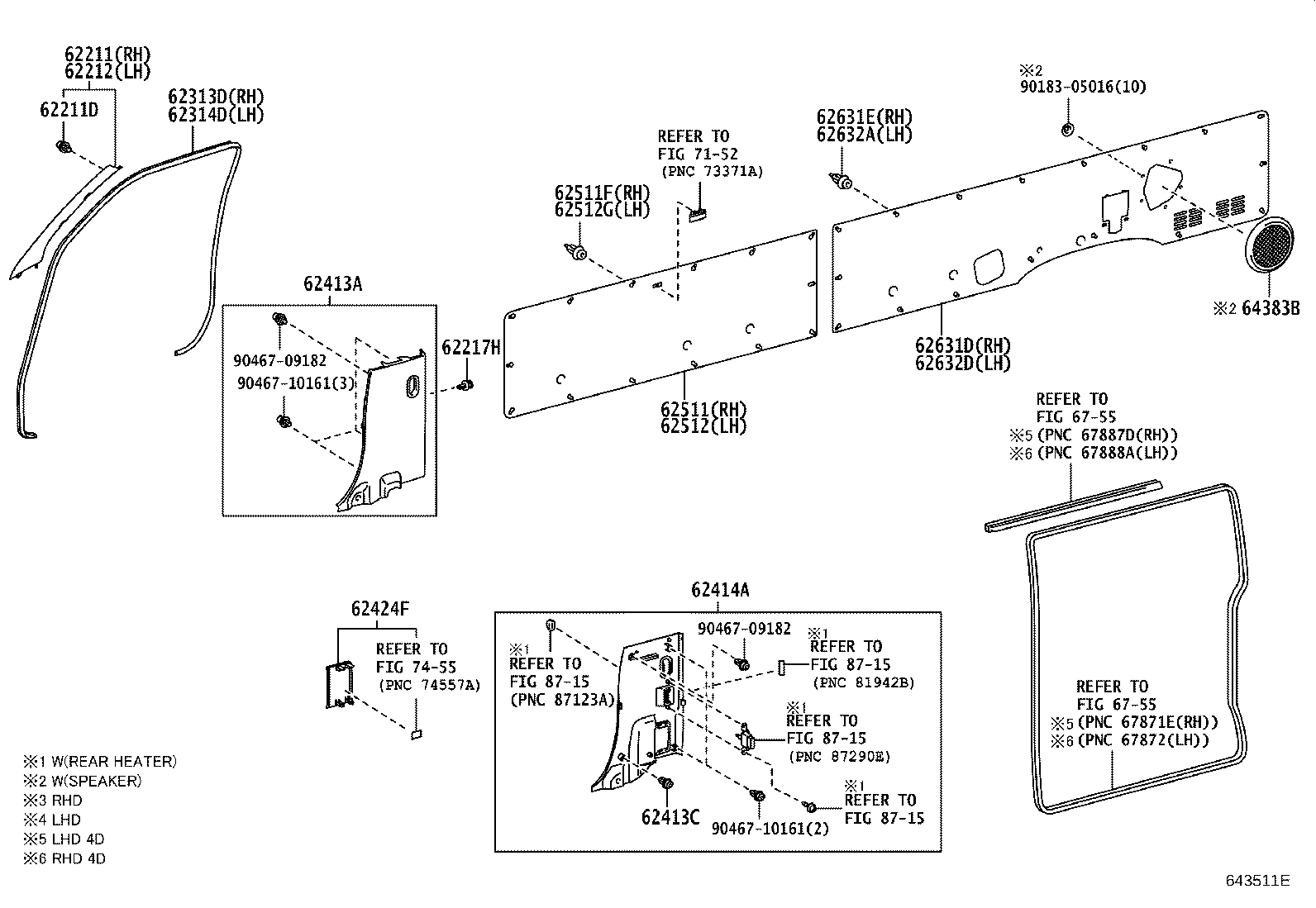

Figure 643409C 643409C 2013-12 → — Figure 643410C 643410C 2013-12 → — Figure 643411C 643411C 2013-12 → — Figure 643412D 643412D 2013-12 → — Figure 643448E 643448E 2013-12 → — Figure 643408C 643408C 2013-12 → — Figure 643413D 643413D 2013-12 → — Figure 643414H 643414H 2013-12 → — Figure 643415F 643415F 2013-12 → — Figure 643416C 643416C 2013-12 → — Figure 643450C 643450C 2013-12 → — Figure 643417H 643417H 2013-12 → — Figure 643418F 643418F 2013-12 → — Figure 643420F 643420F 2013-12 → — Figure 643449E 643449E 2013-12 → — Figure 643511E 643511E 2013-12 → — Figure 643419G 643419G 2014-01 → —

Part groups

PNCDescription
55539Y Cover, Spare Switch Hole
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62217H Clip, Center Piller Garnish
62217J Clip, Center Piller Garnish
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62424F Cover, Center Pillar Garnish, Lower LH
62471E Garnish, Roof Side, Inner Upper RH
62472E Garnish, Roof Side, Inner Upper LH
62508B Clip
62510H Clip(FOR QUARTER TRIM FRONT PANEL)
62510J Retainer, Quarter Trim
62510P Panel Assy, Quarter Trim, Front RH
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62512 Board, Quarter Inside Trim, LH
62512G Retainer, Quater Trim
62520P Panel Assy, Quarter Trim, Front LH
62597D Clip
62630K Clip(FOR QUARTER TRIM REAR PANEL)
62630P Panel Assy, Quarter Trim, Rear RH
62631D Board, Quarter Trim, Rear RH
62631E Retainer, Quater Trim
62632A Retainer(FOR QUARTER INSIDE TRIM BOARD)
62632D Board, Quarter Trim, Rear LH
62638A Garnish, Quarter Pillar, RH
62639A Garnish, Quarter Pillar, LH
62640K Clip(FOR QUARTER TRIM REAR PANEL)
62640P Panel Assy, Quarter Trim, Rear LH
64383B Grille, Rear Speaker, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
