Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

20 part groups · 2 illustrations

Illustrations

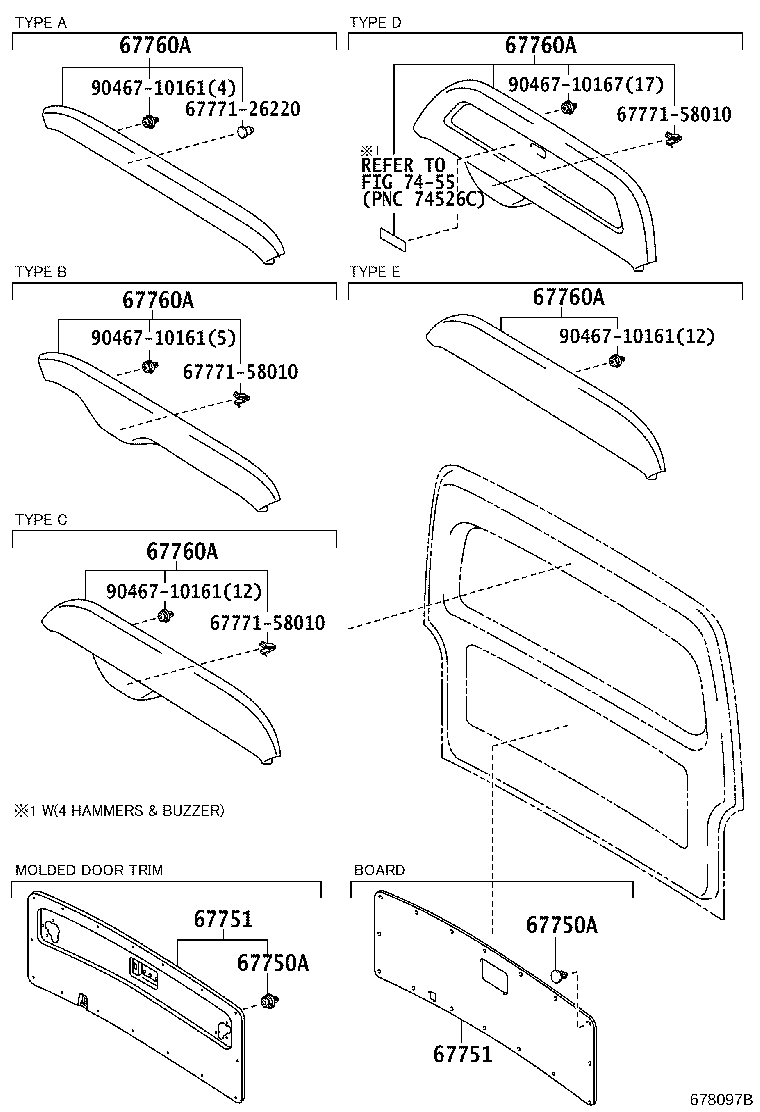

Figure 678093M 678093M 2013-12 → — Figure 678097B 678097B 2013-12 → —

Part groups

PNCDescription
64655 Cover, Back Door Closer
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
64819B Spacer, Back Window Glass, NO.2
64827A Clip, Back Window Glass, RH
64828 Clip, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67751 Board, Back Door Trim
67753 Cover, Back Door
67760A Board Assy, Back Door Trim, Upper
67837L Seal, Door Dust Proof
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68294A Dam, Back Door Glass Adhesive
76801 Garnish Sub-assy, Back Door, Outside
76819 Seal, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
76881B Protector, Back Door Lower Moulding, RH
76882B Protector, Back Door Lower Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
