Toyota Hiace
2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General
Supported model
Data version 2024-01
Rear Seat & Seat Track
254 part groups · 140 illustrations
Illustrations

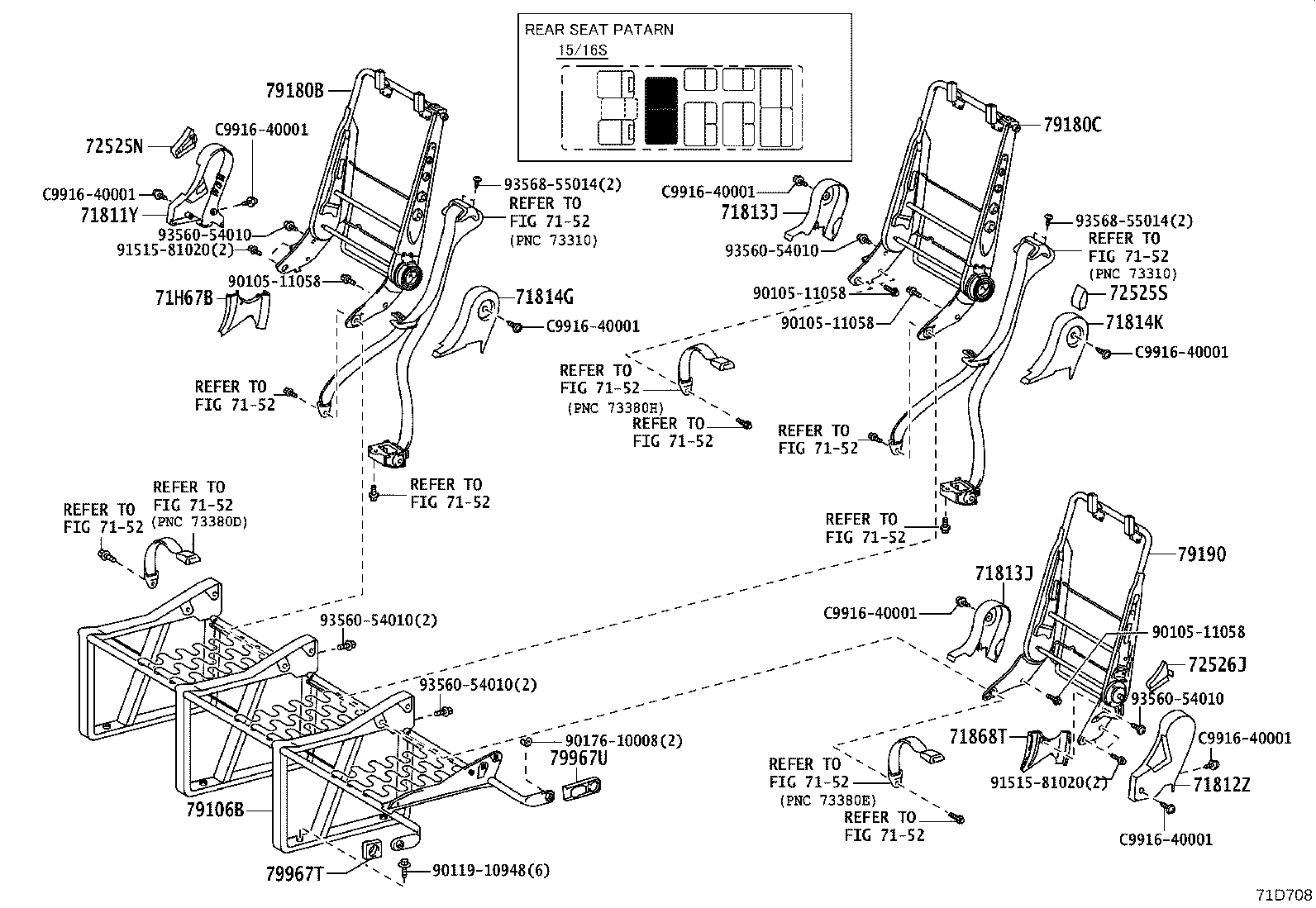

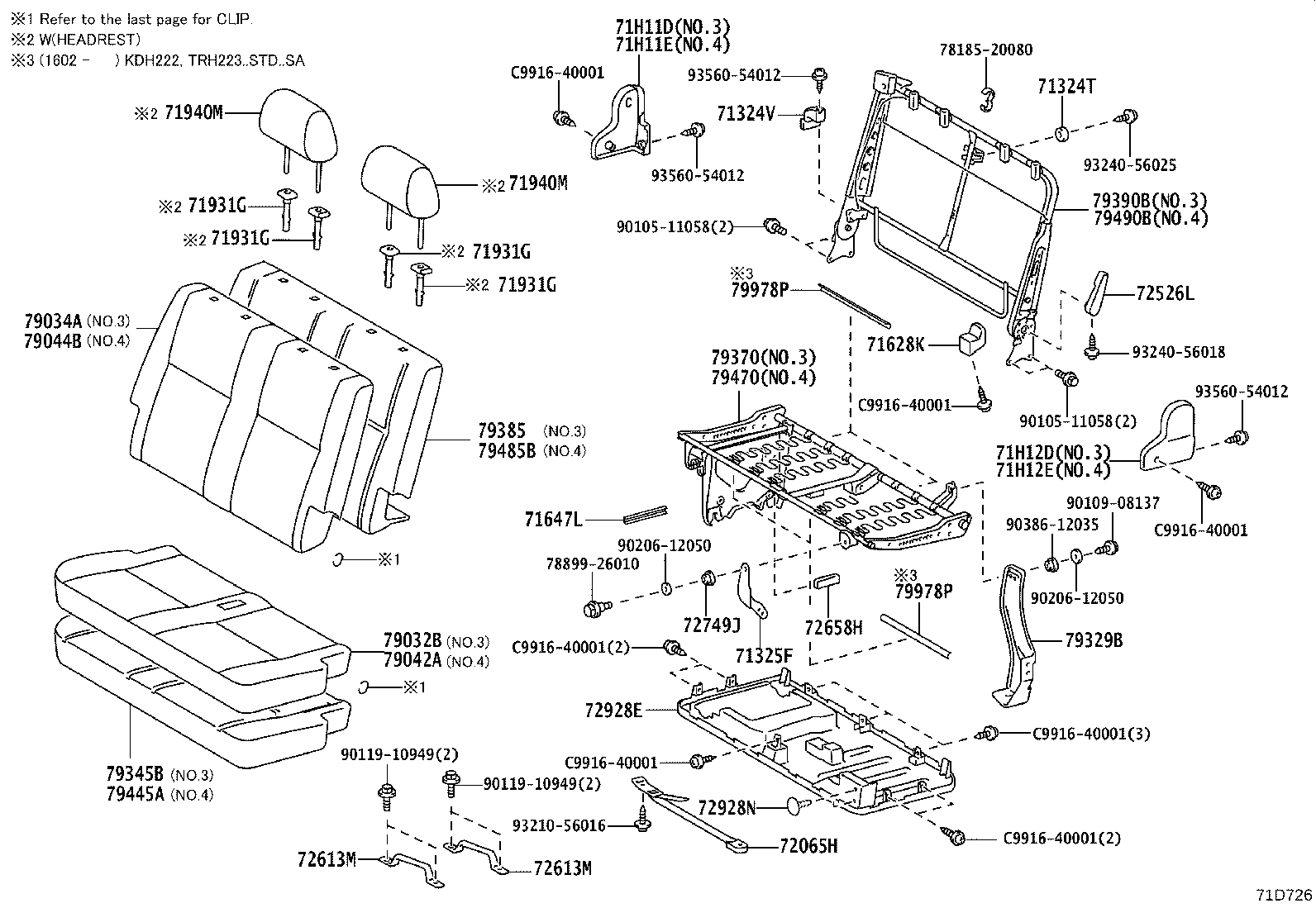

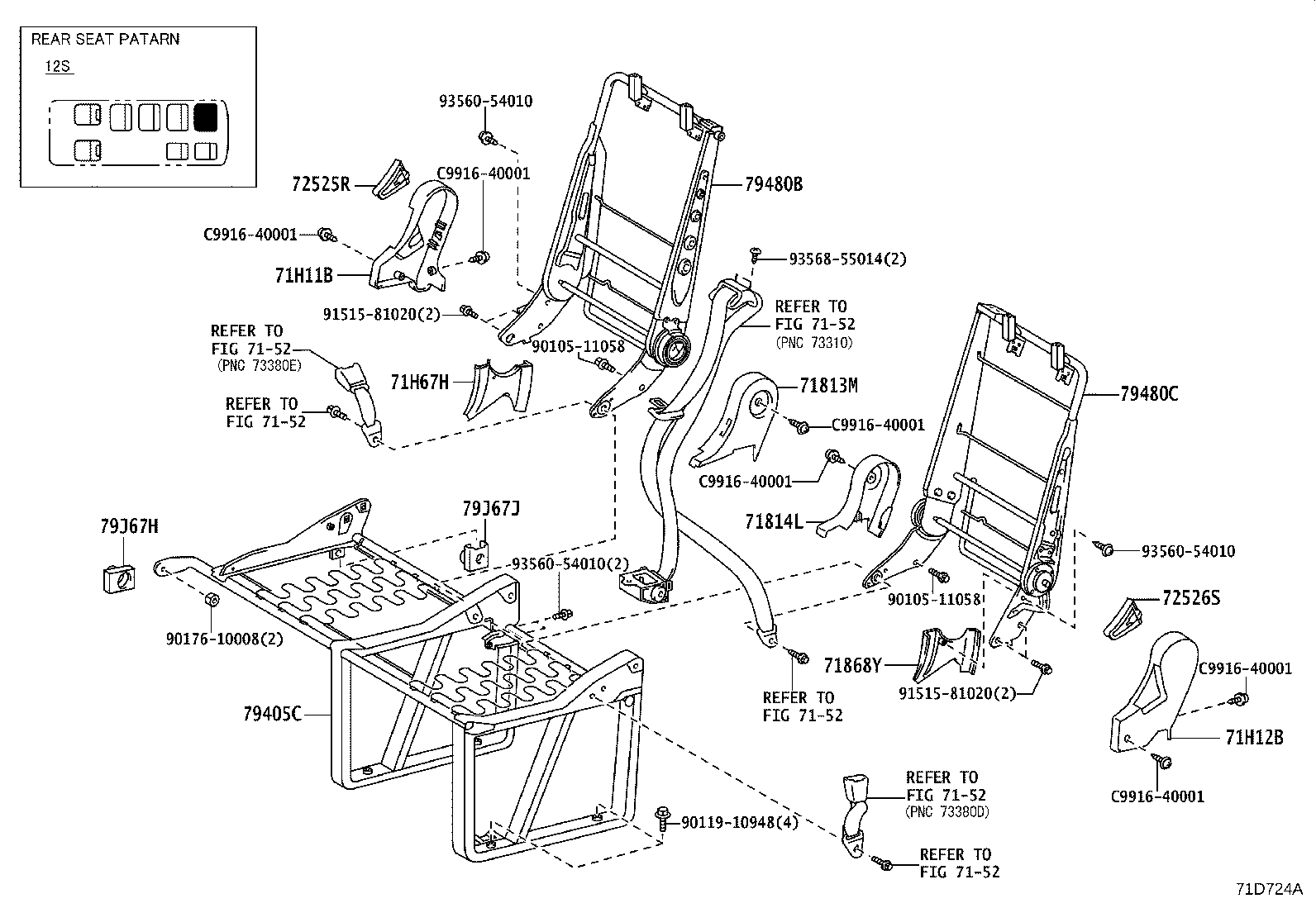

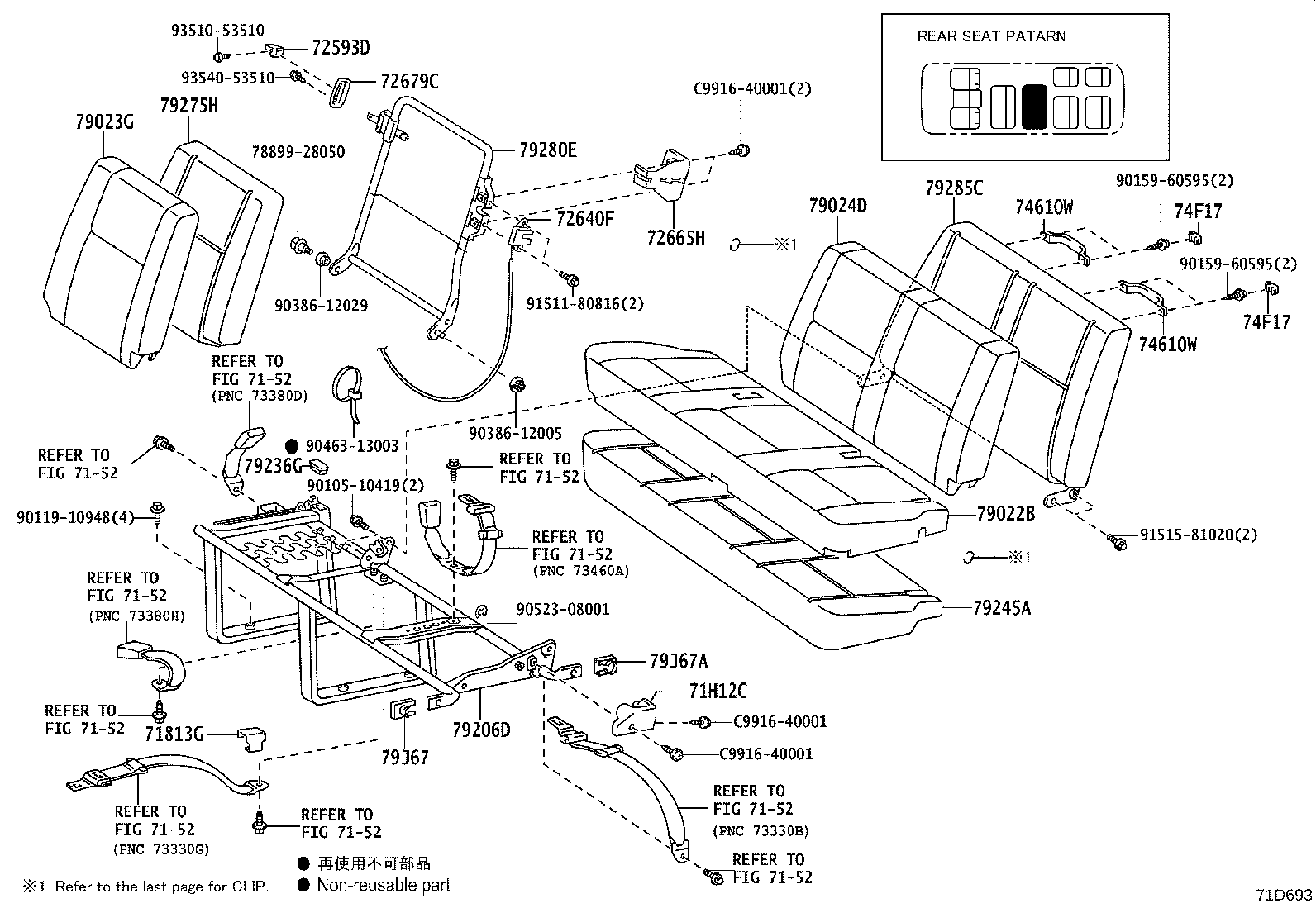

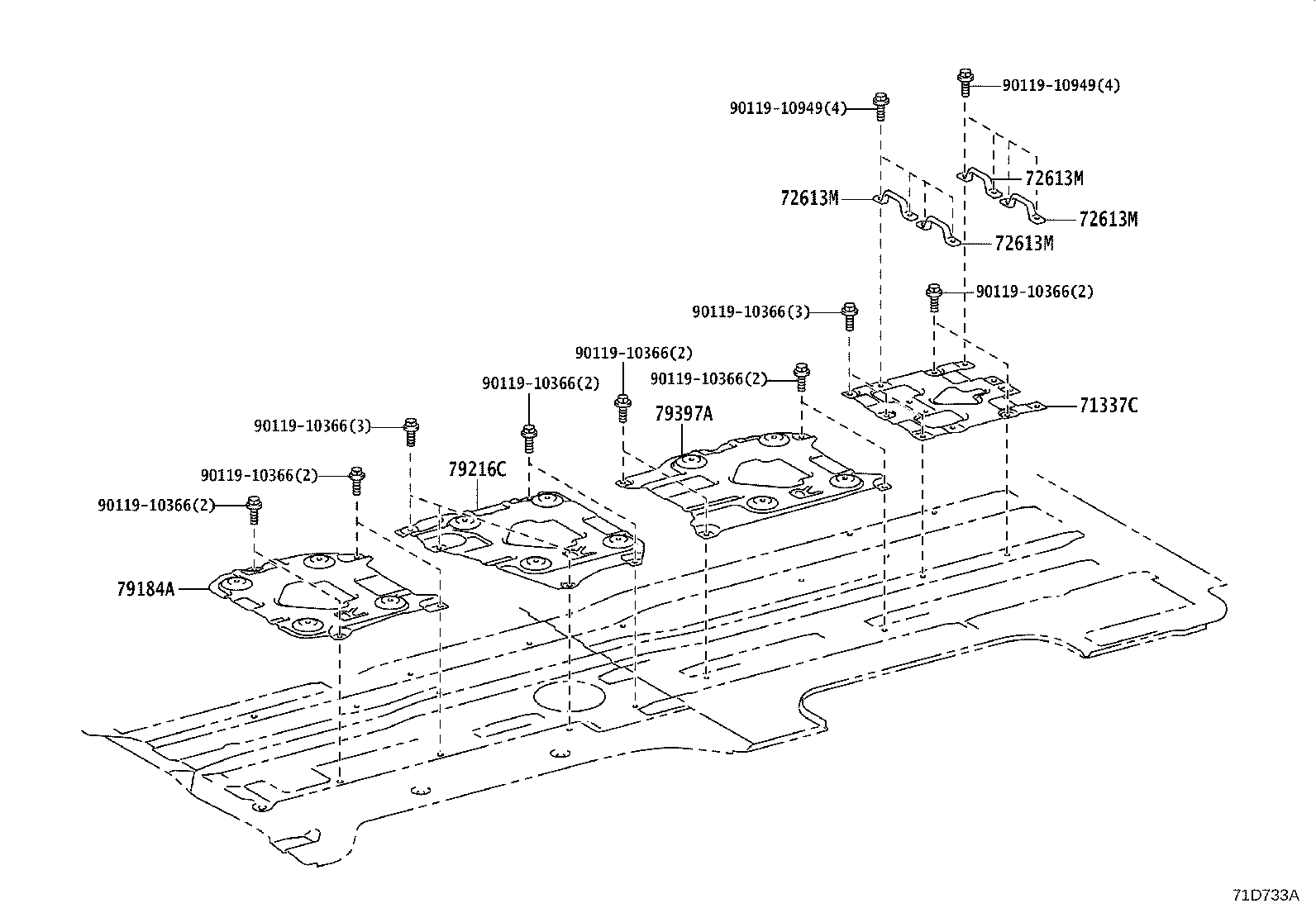

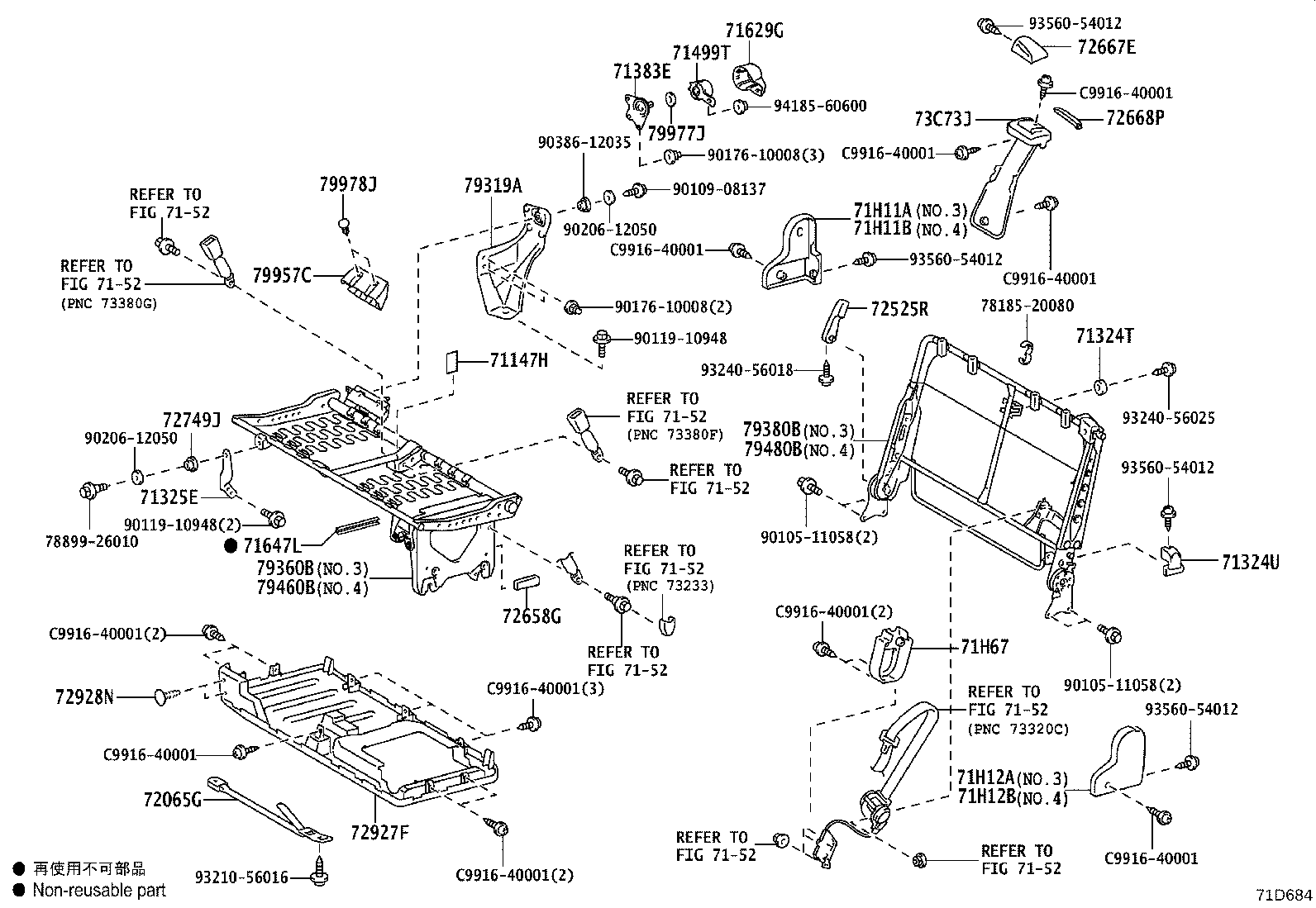

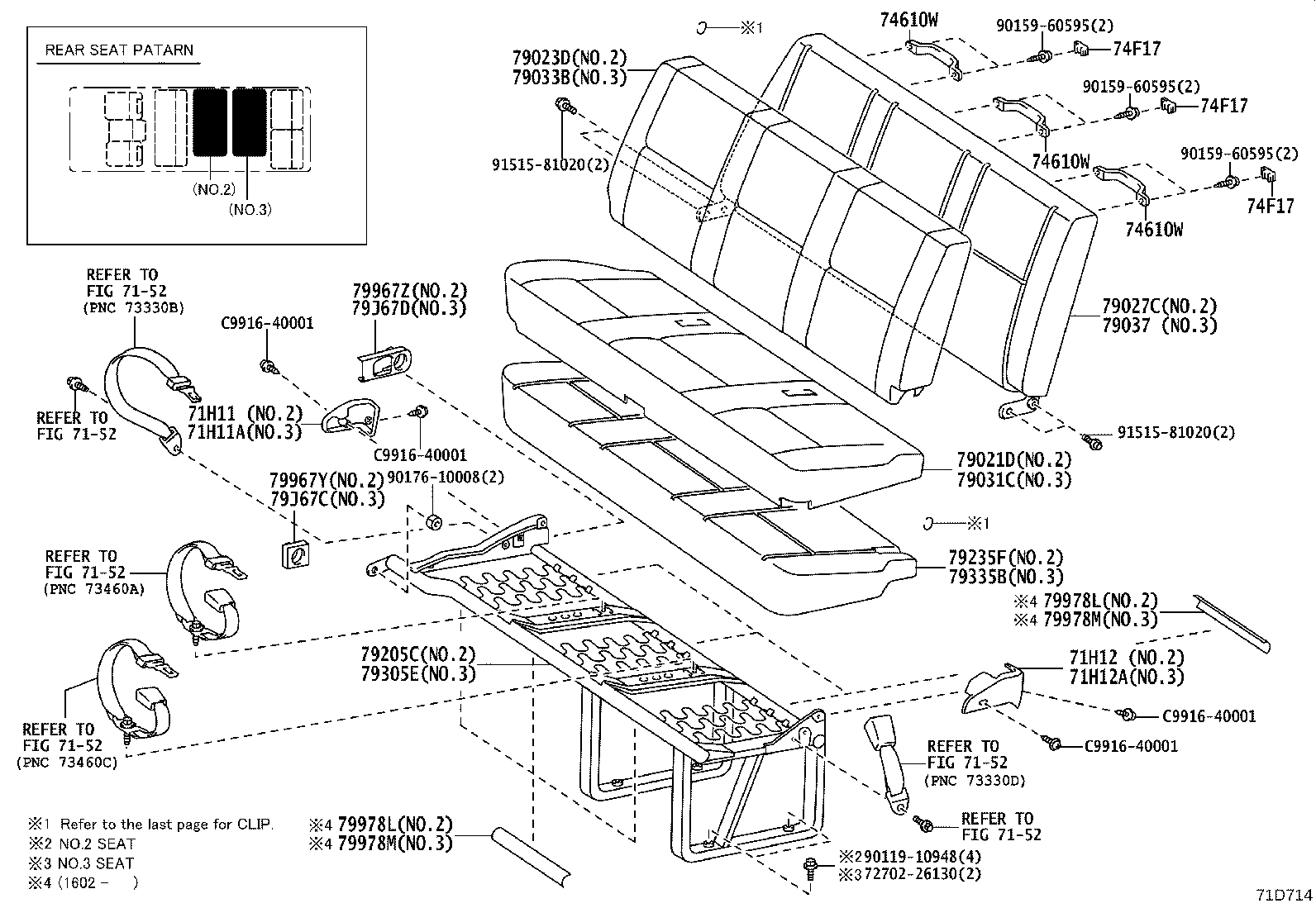

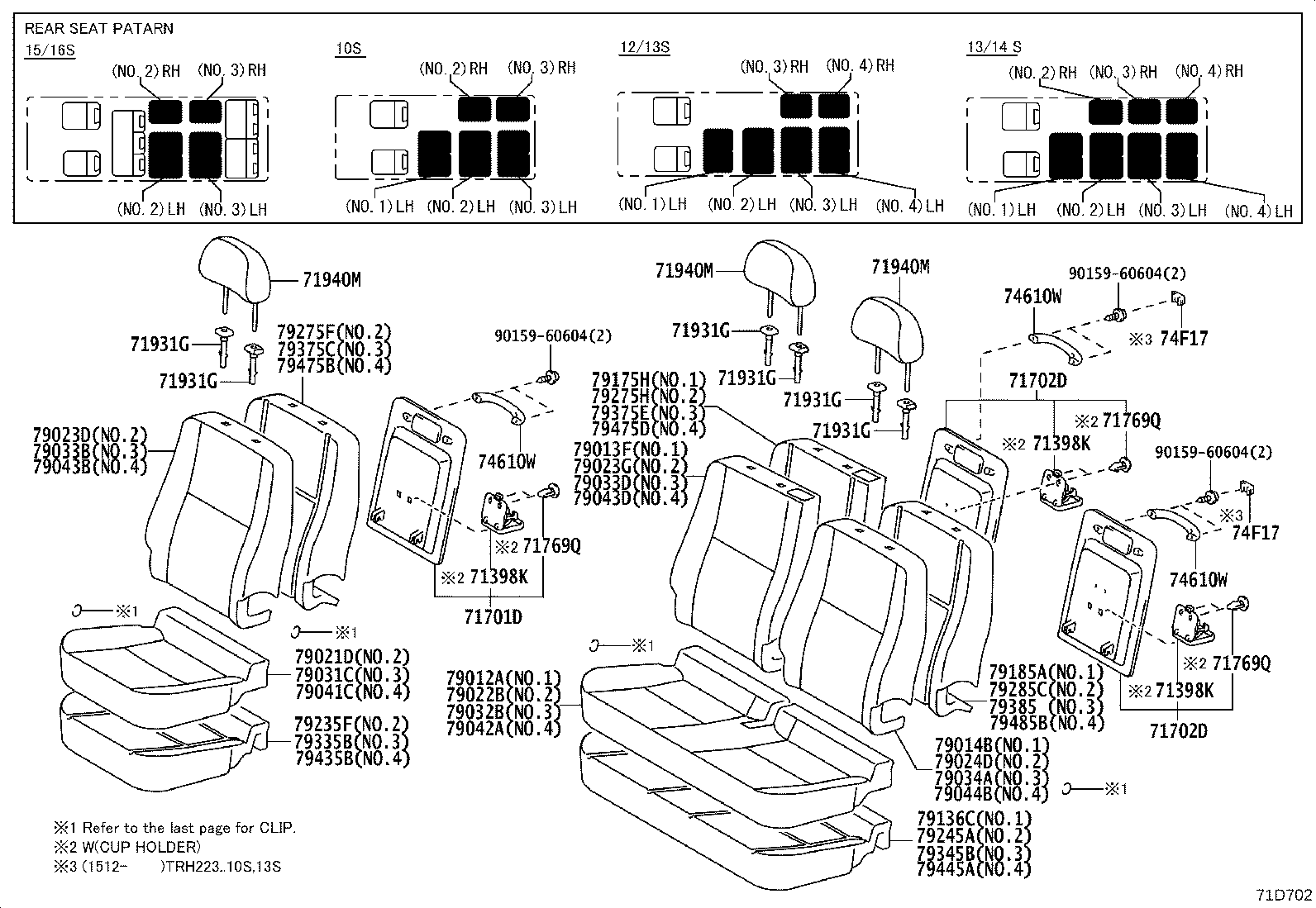

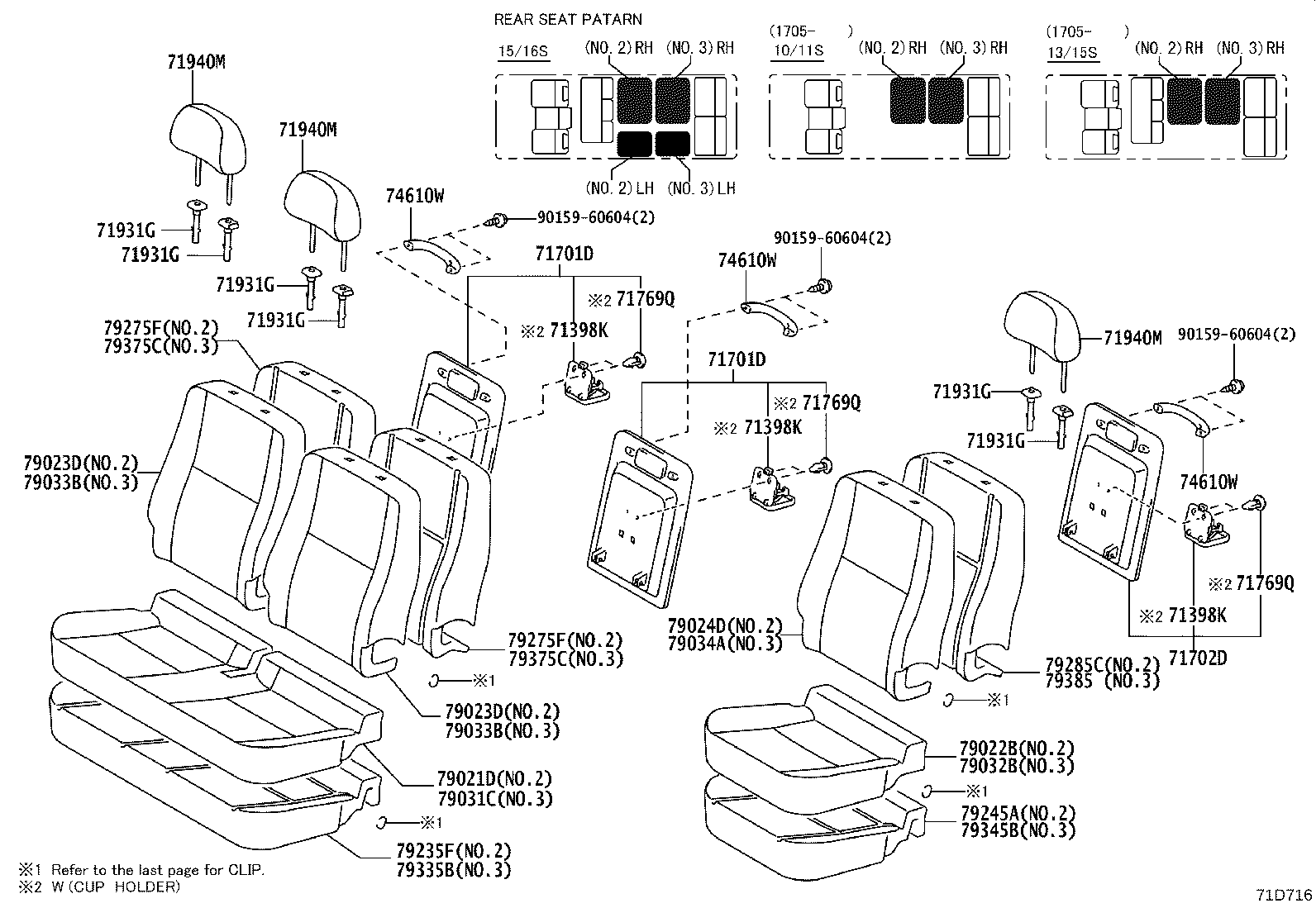

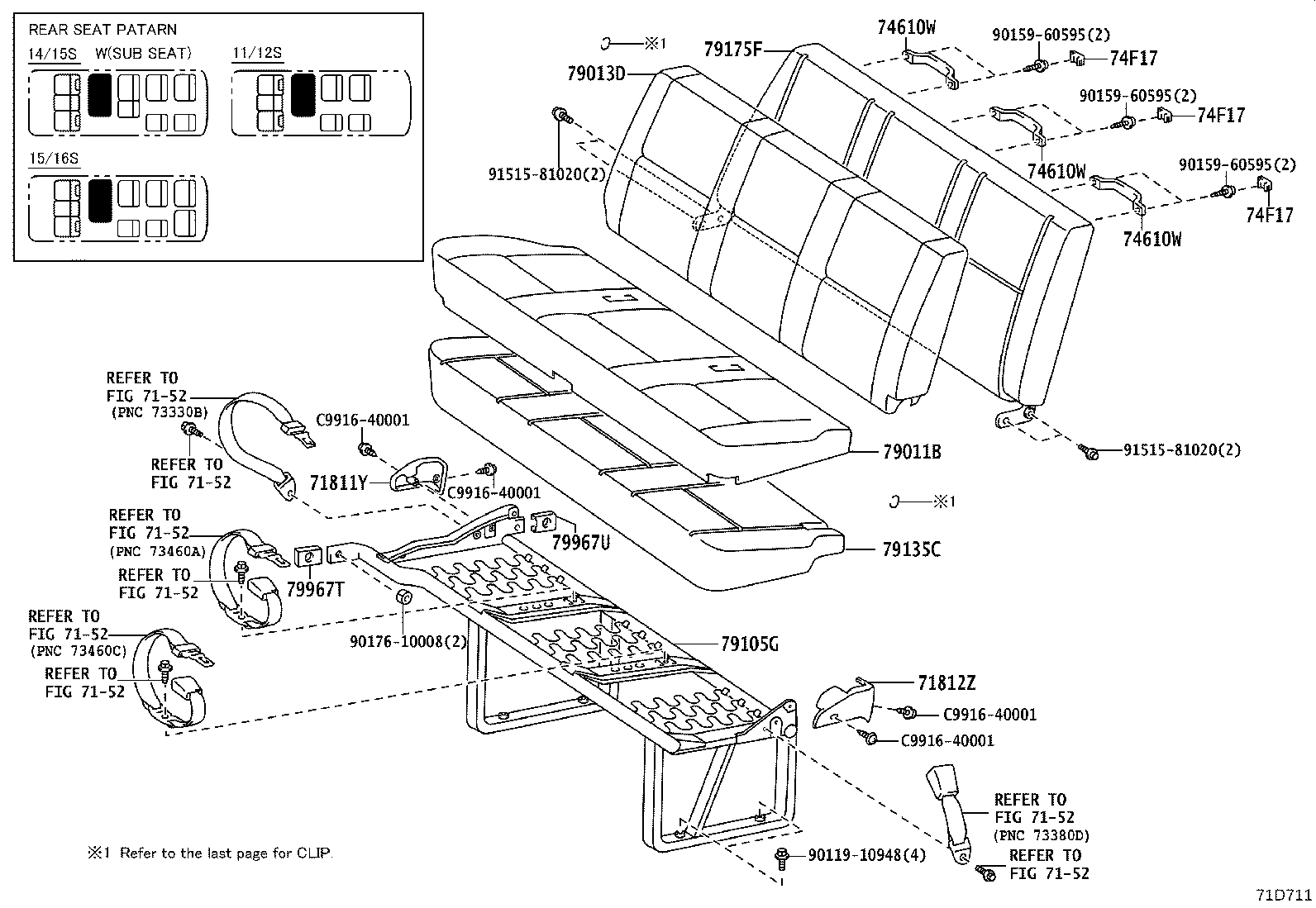

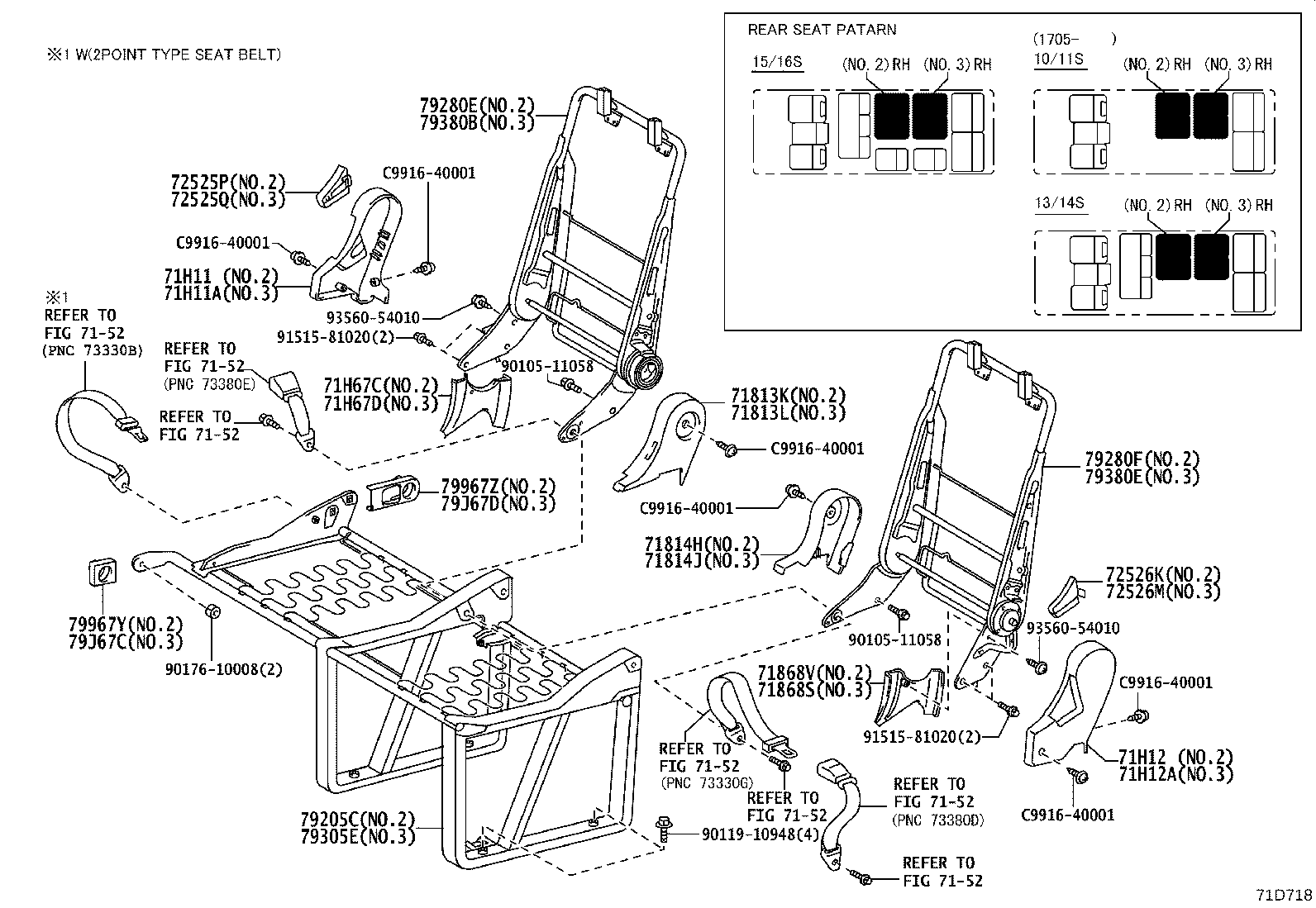

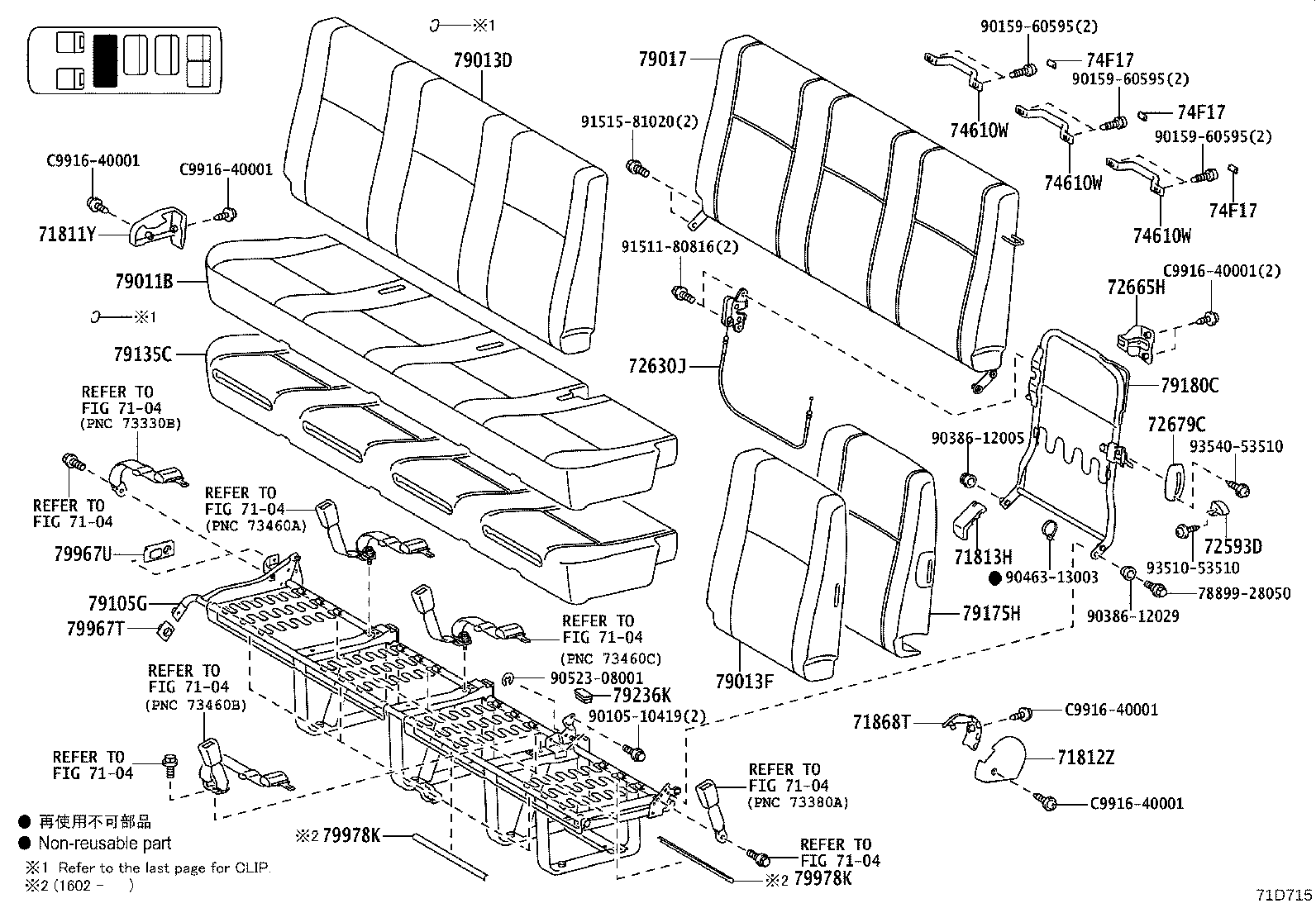

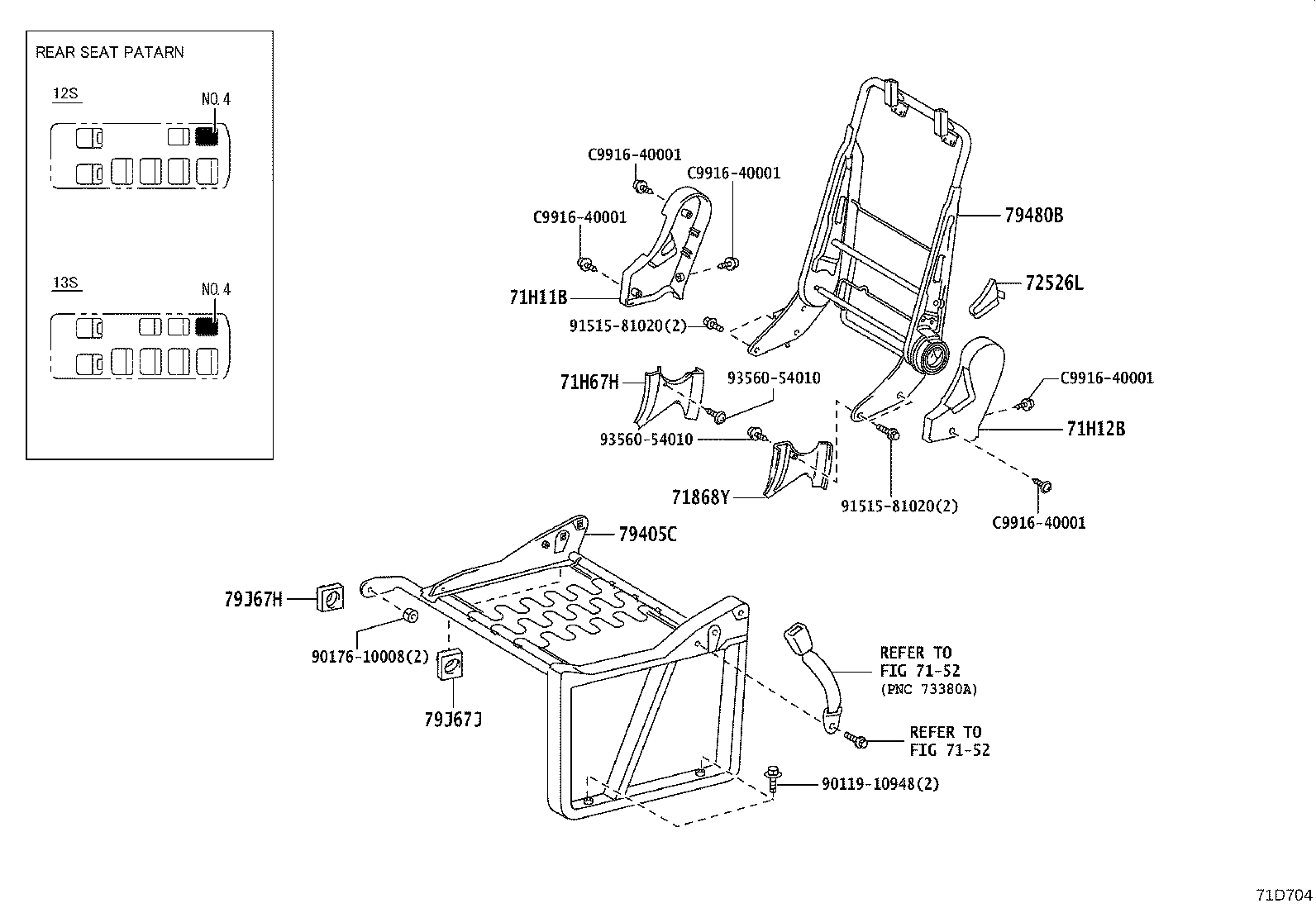

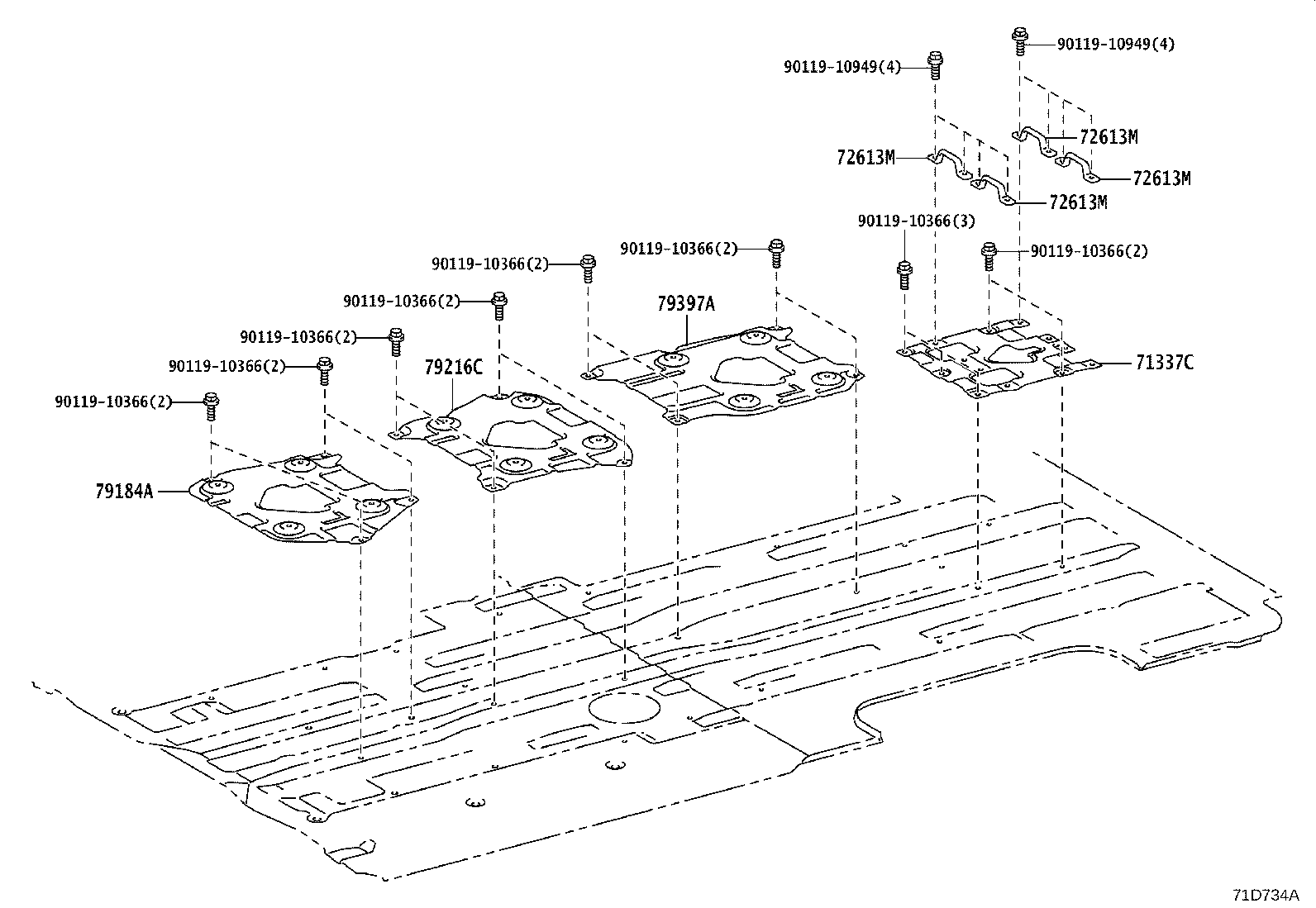

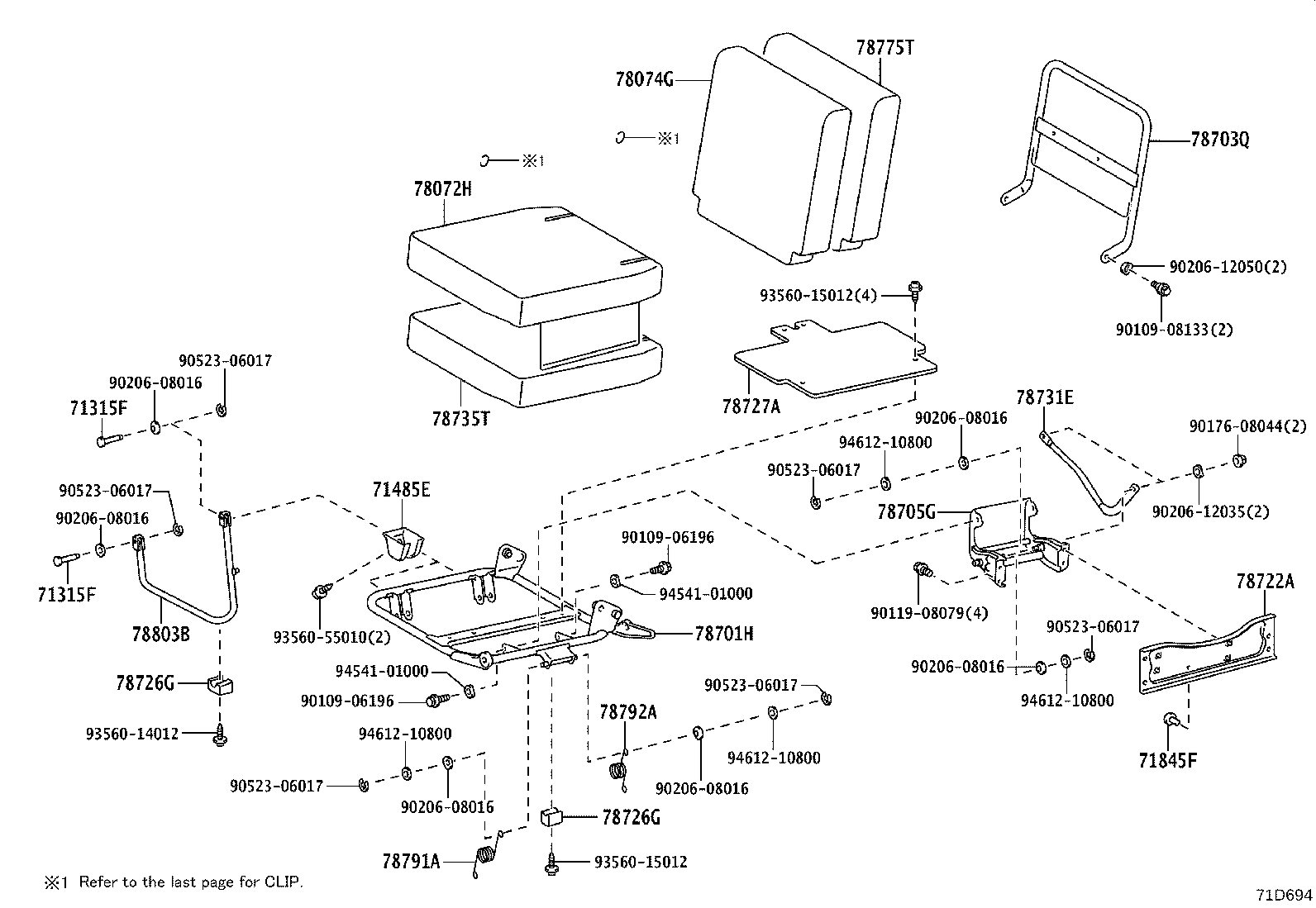

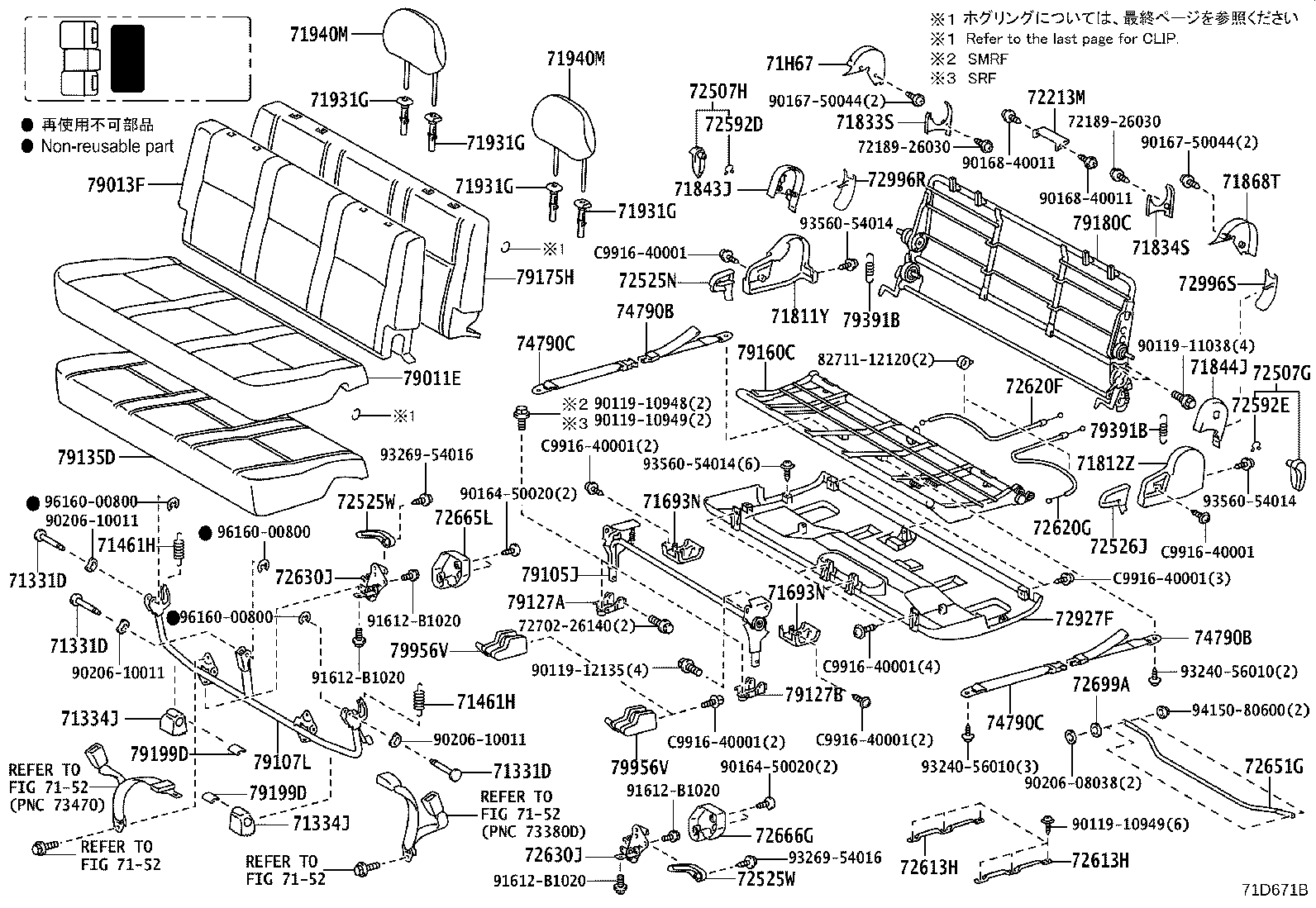

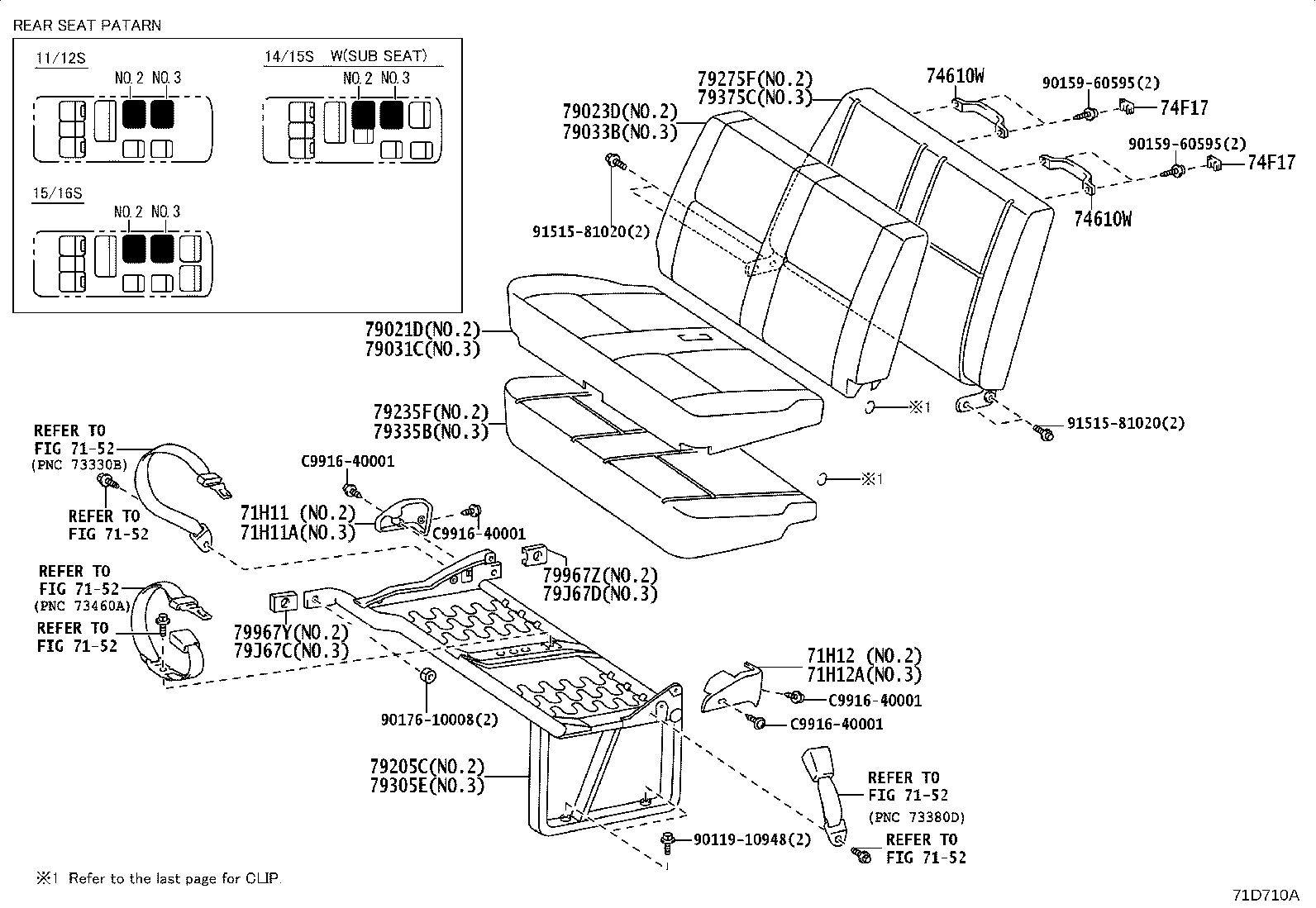

71D670A
71D671B

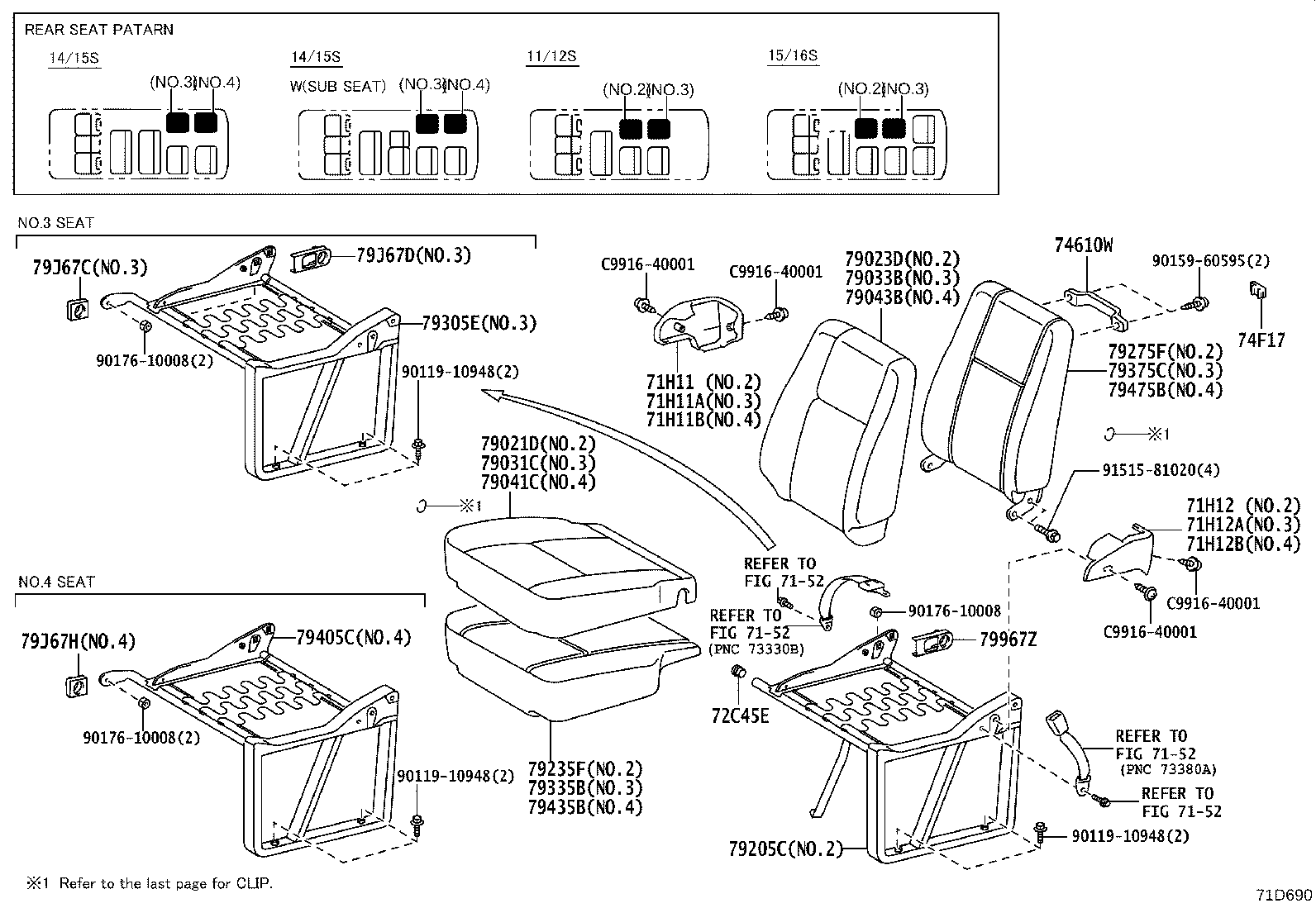

71D690

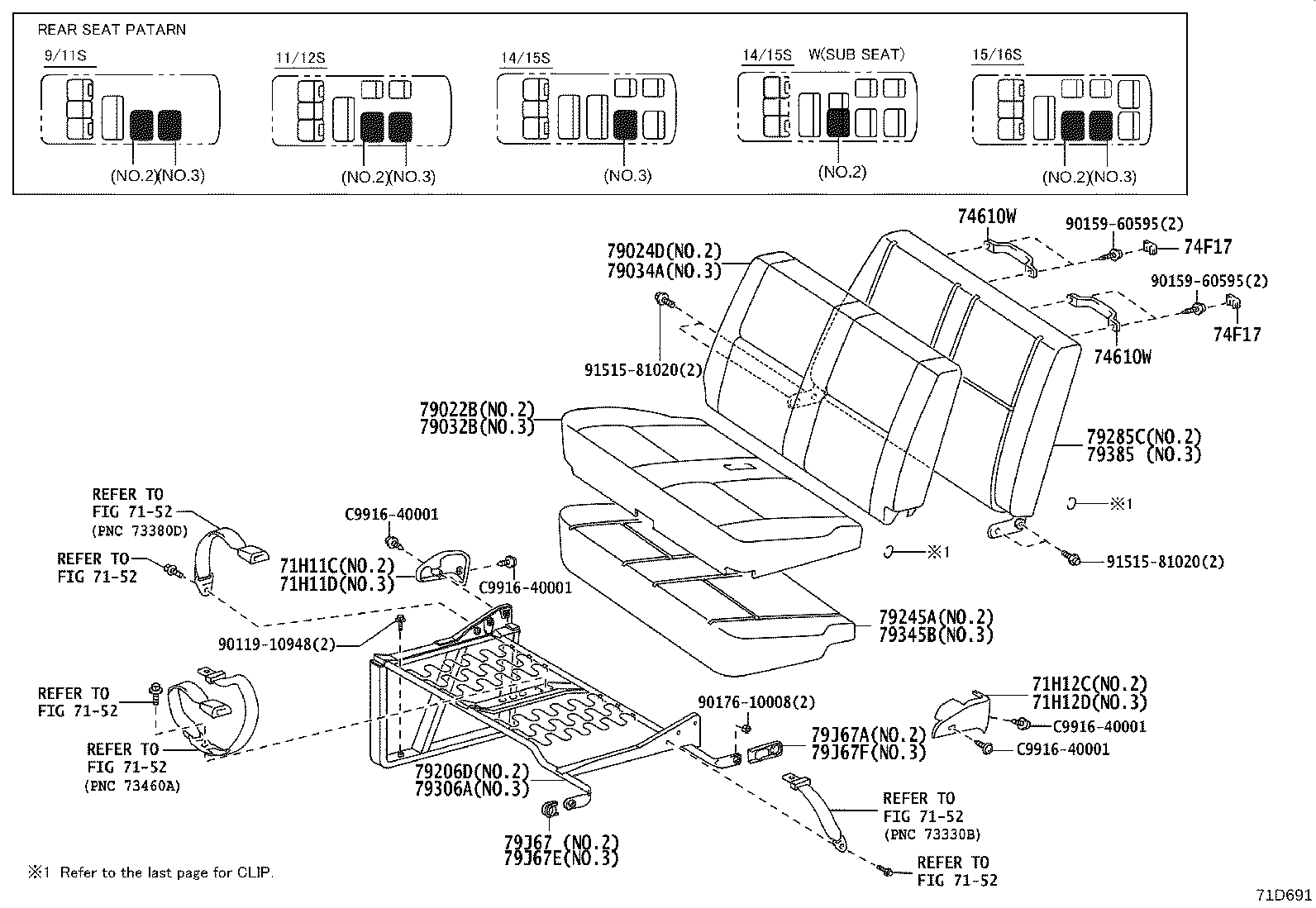

71D691

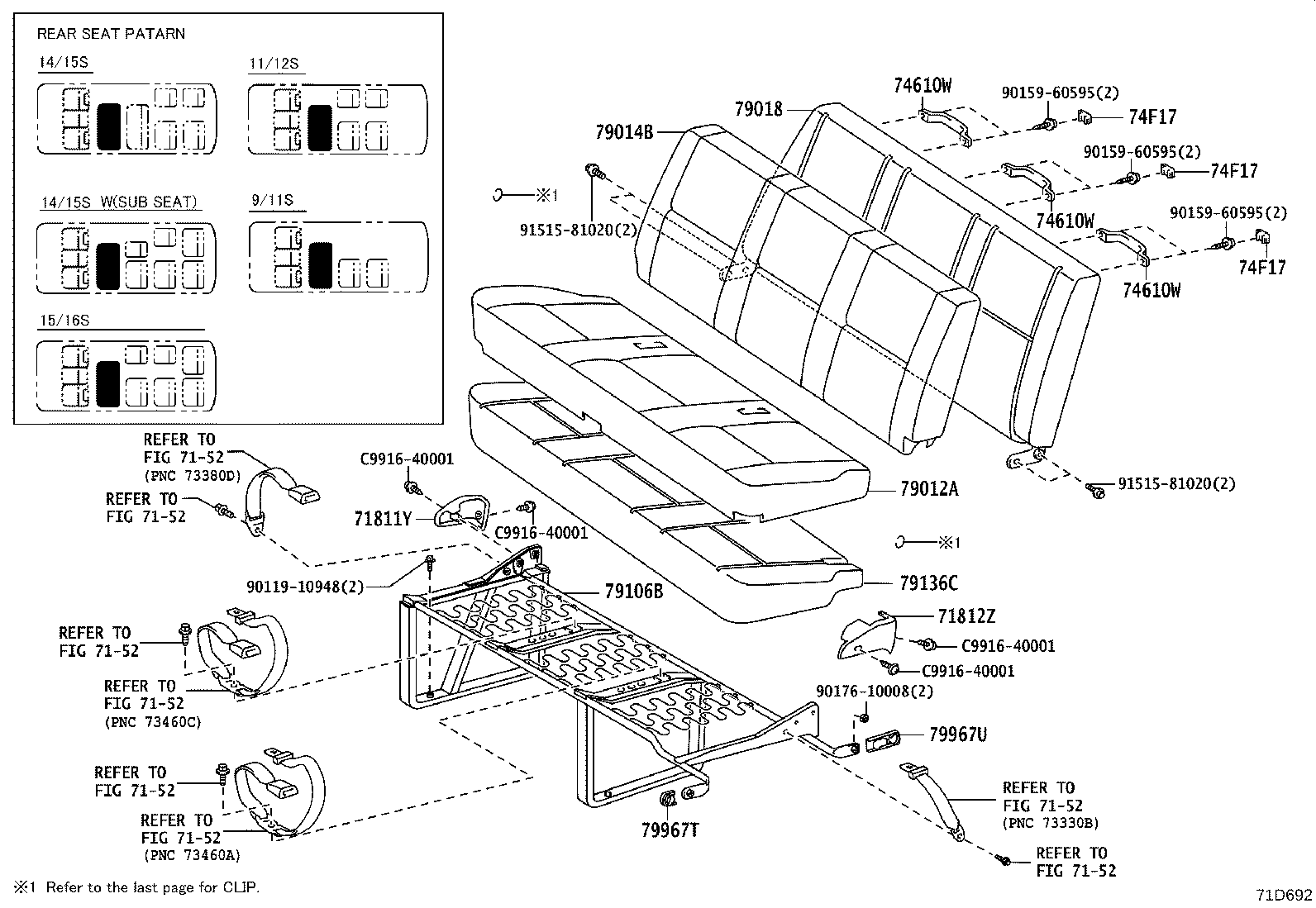

71D692
71D693
71D694

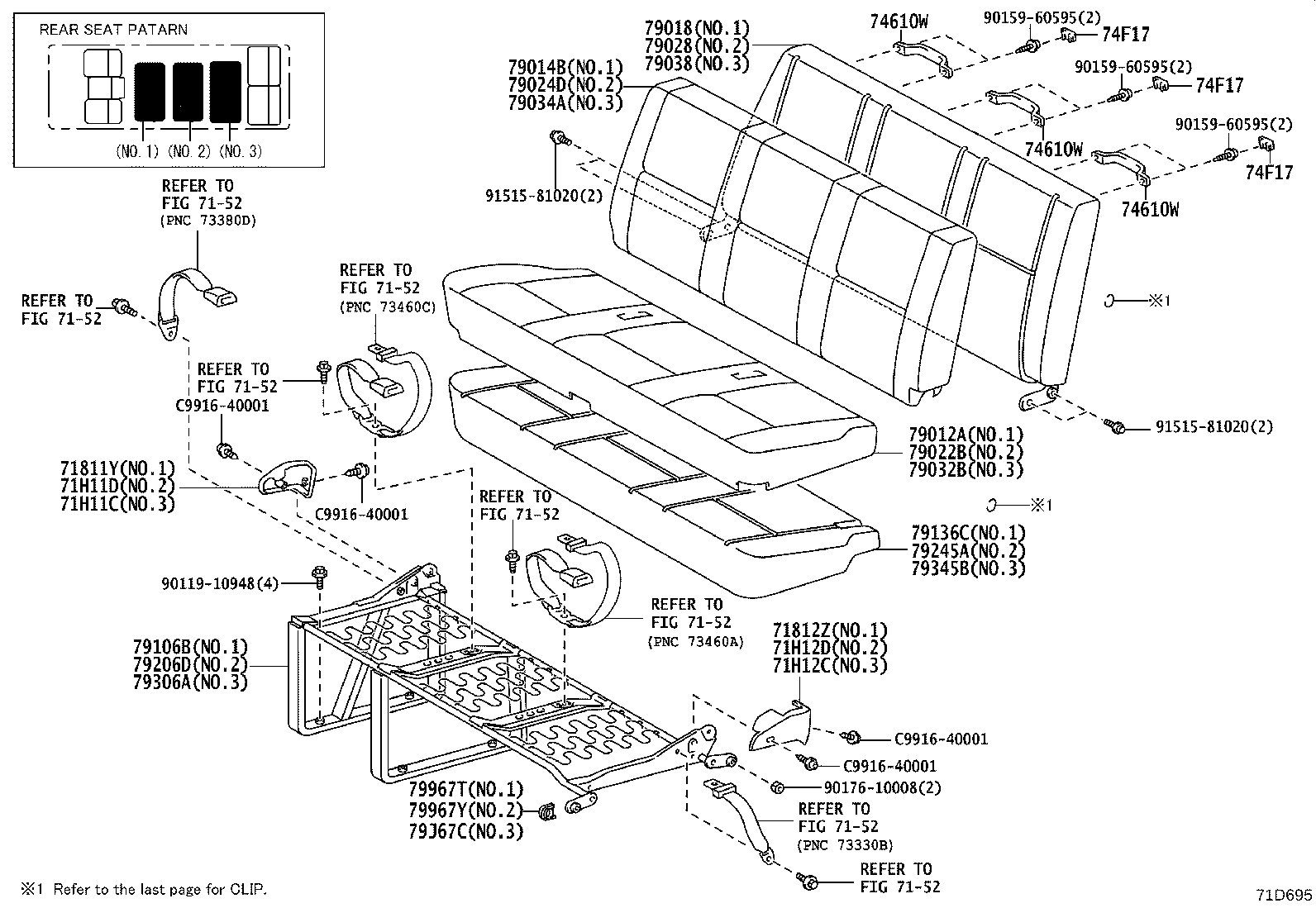

71D695

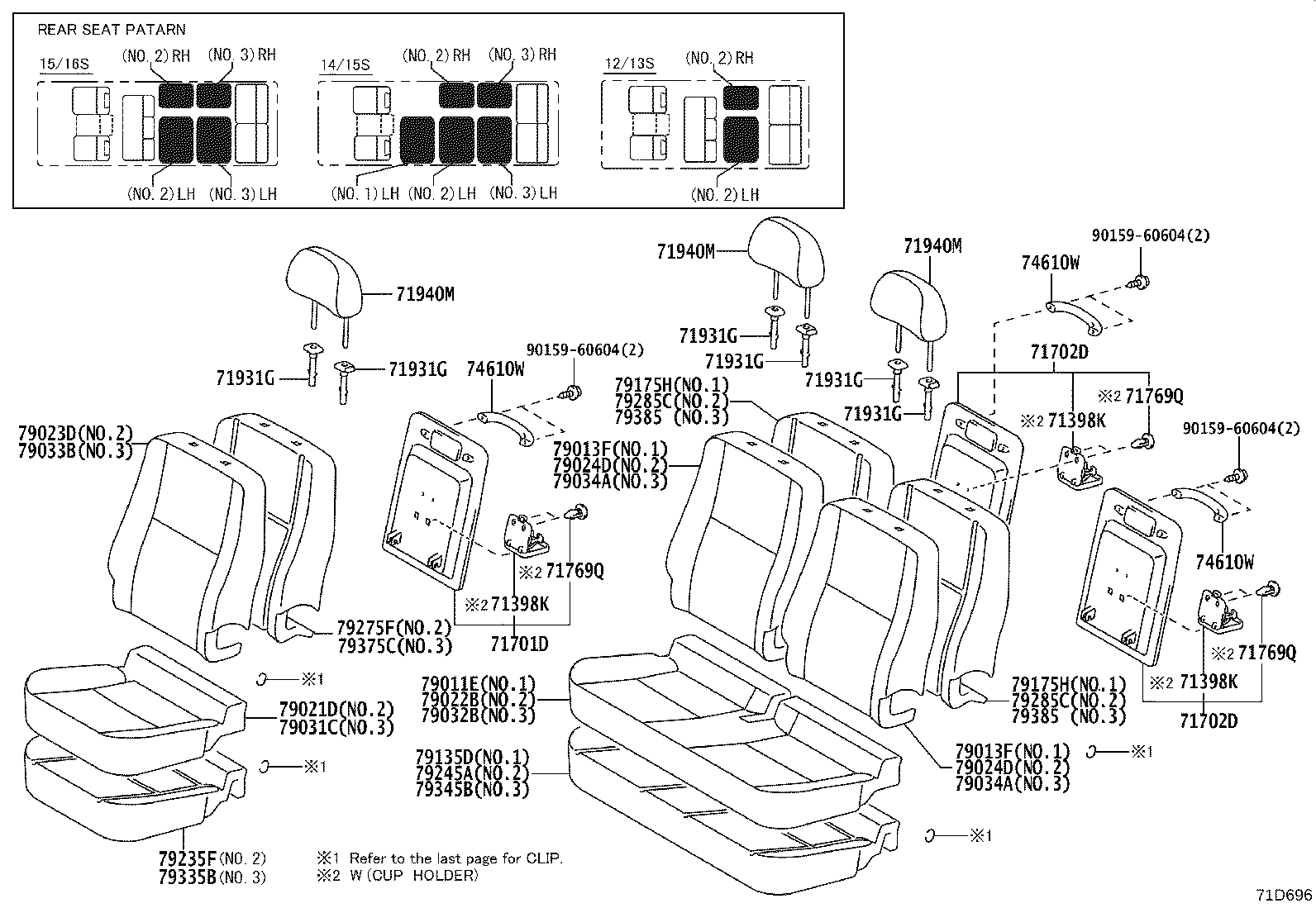

71D696
71D696
71D696
71D696
71D696

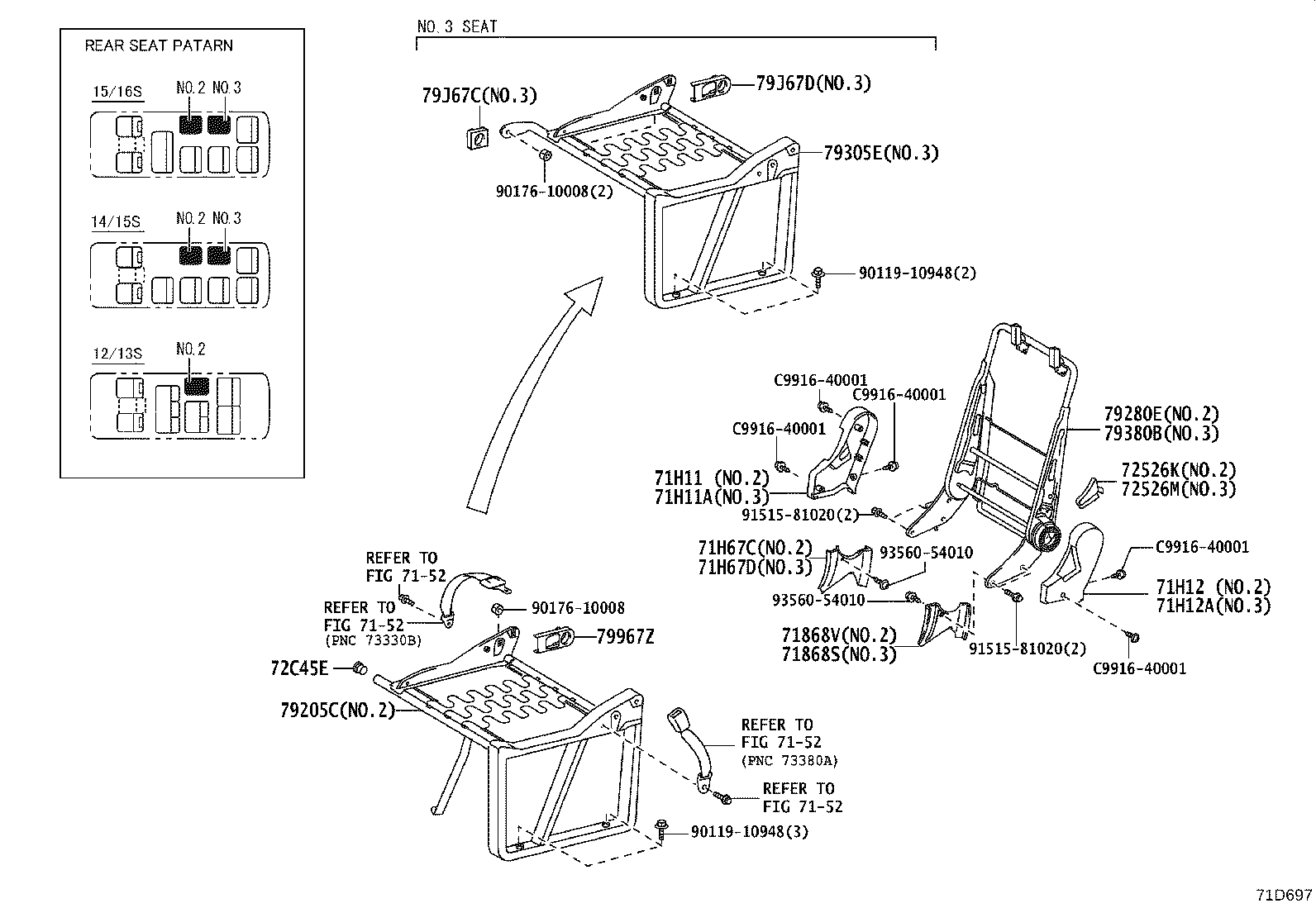

71D697
71D697
71D697
71D697
71D697

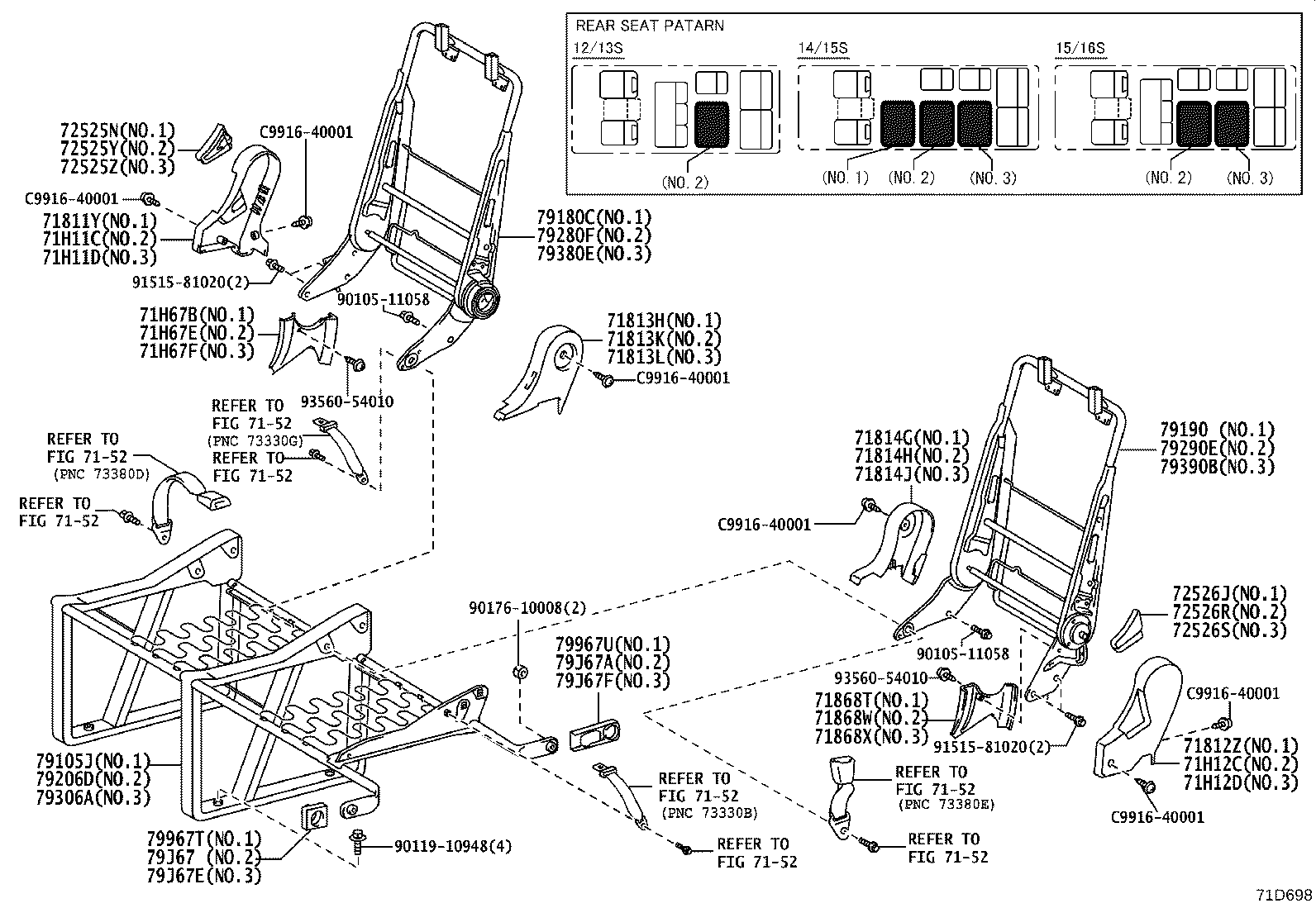

71D698
71D698
71D698
71D698
71D698

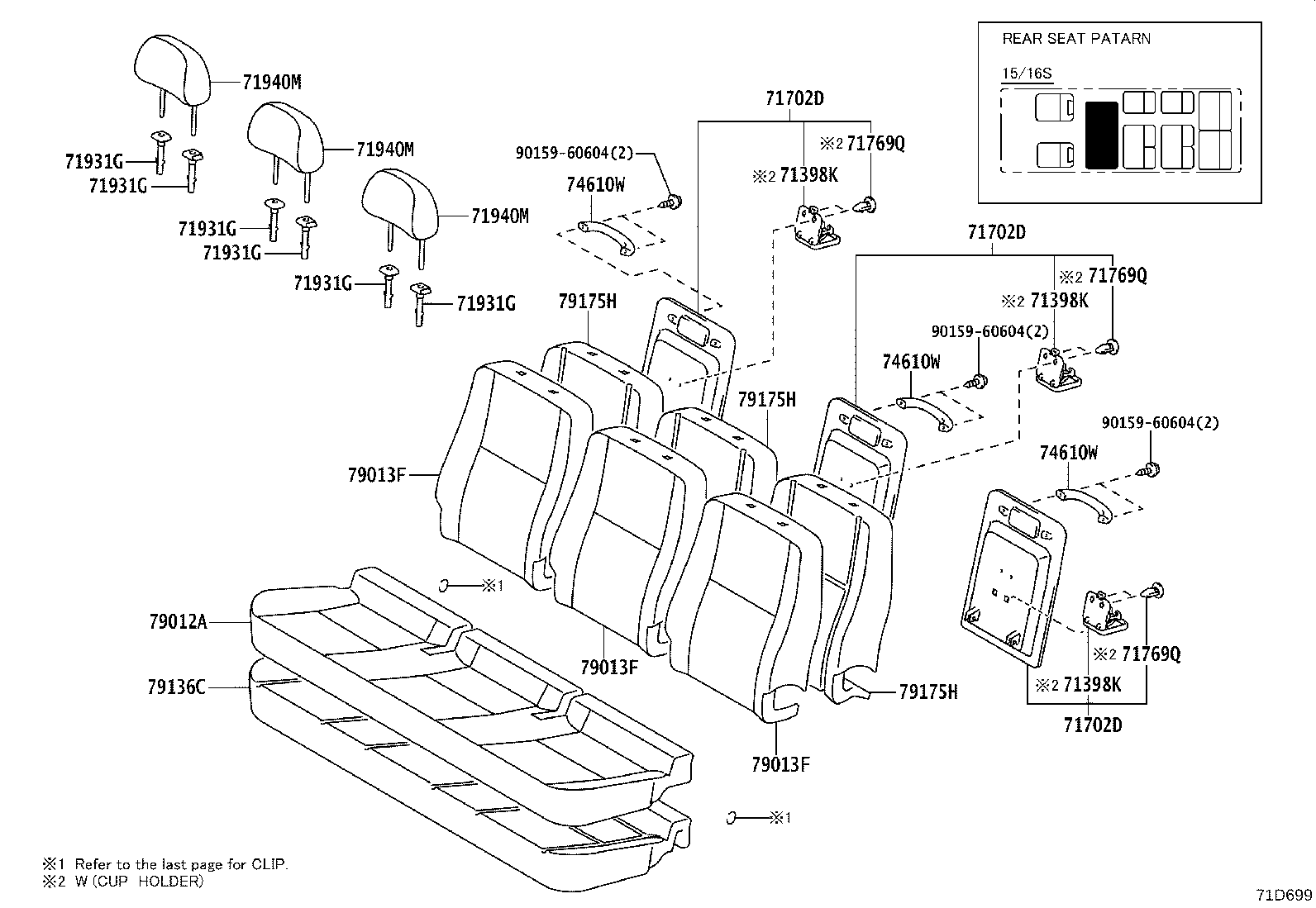

71D699
71D699
71D699
71D699
71D699

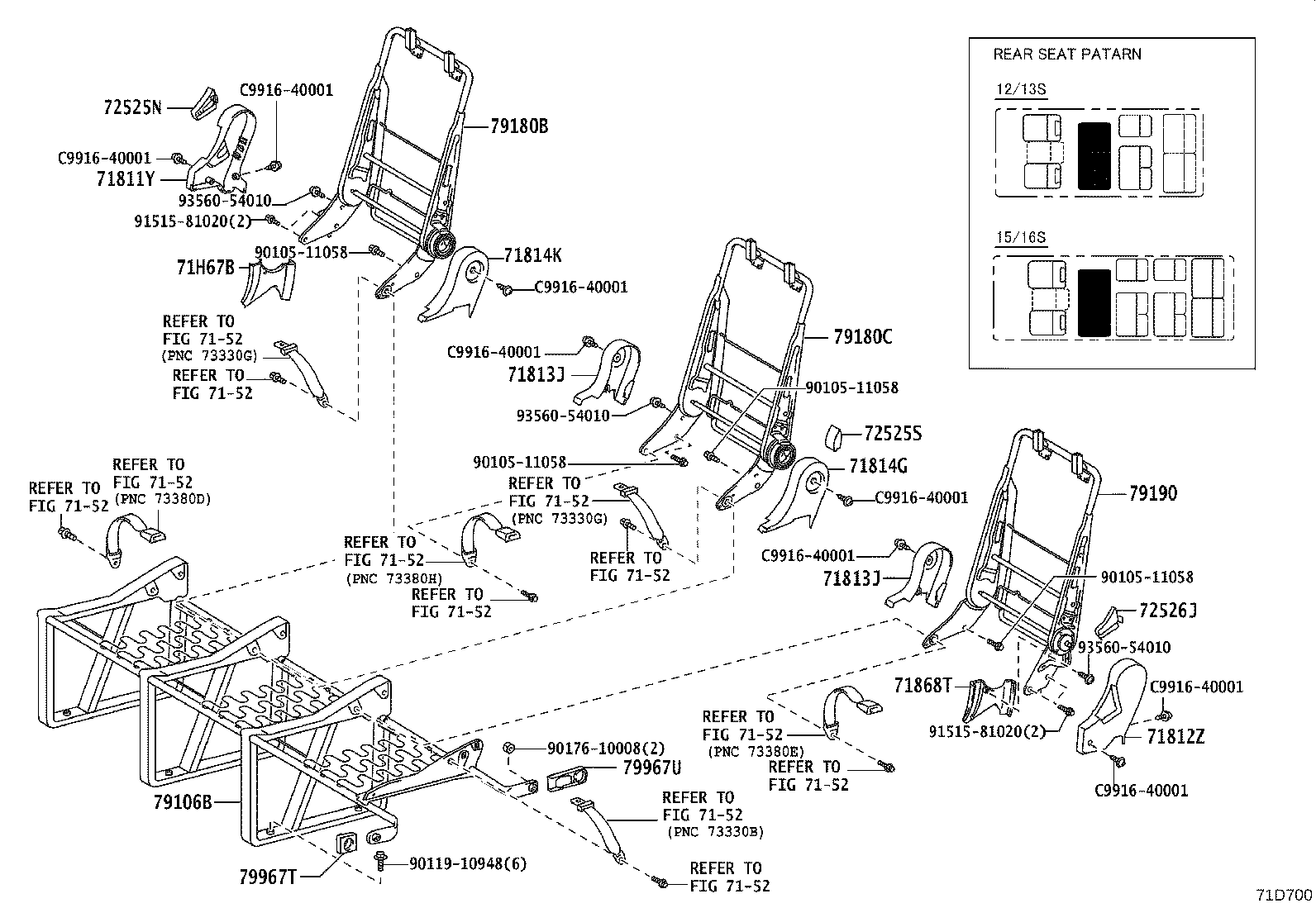

71D700
71D700
71D700
71D700
71D702
71D702
71D702
71D702
71D702
71D702
71D702

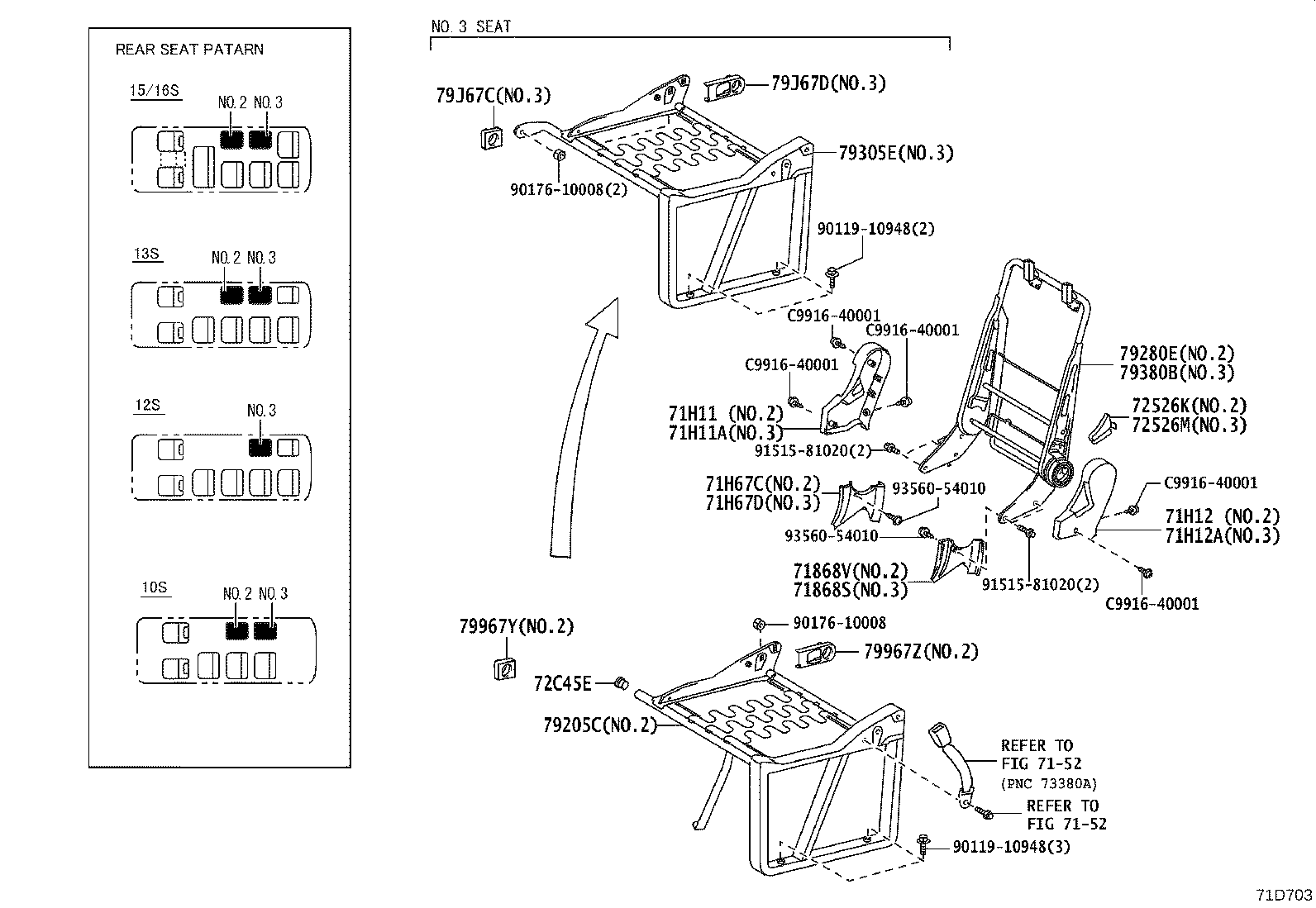

71D703
71D703
71D703
71D703
71D703
71D703
71D704
71D704
71D704
71D704

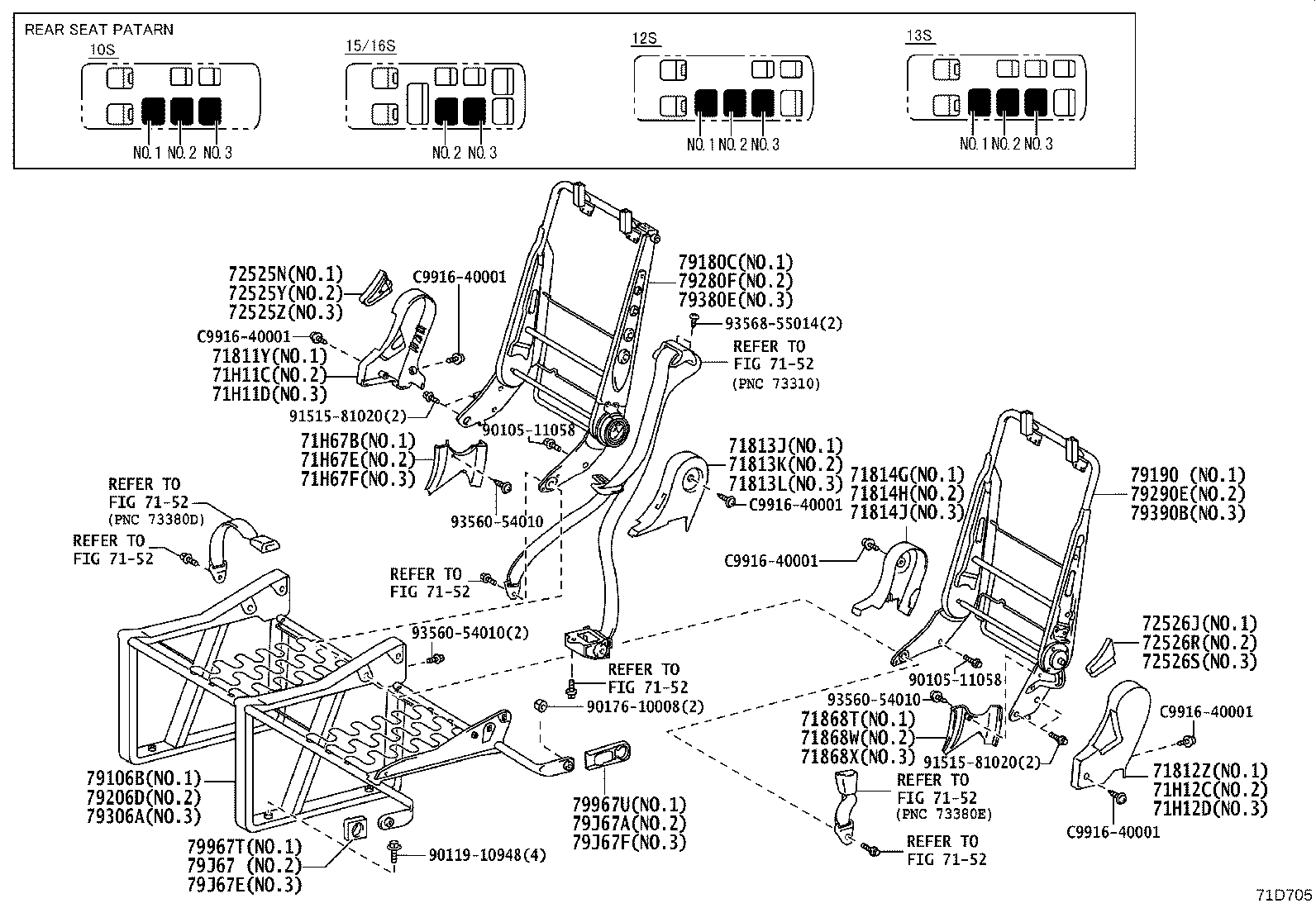

71D705
71D705
71D705
71D705
71D705
71D705

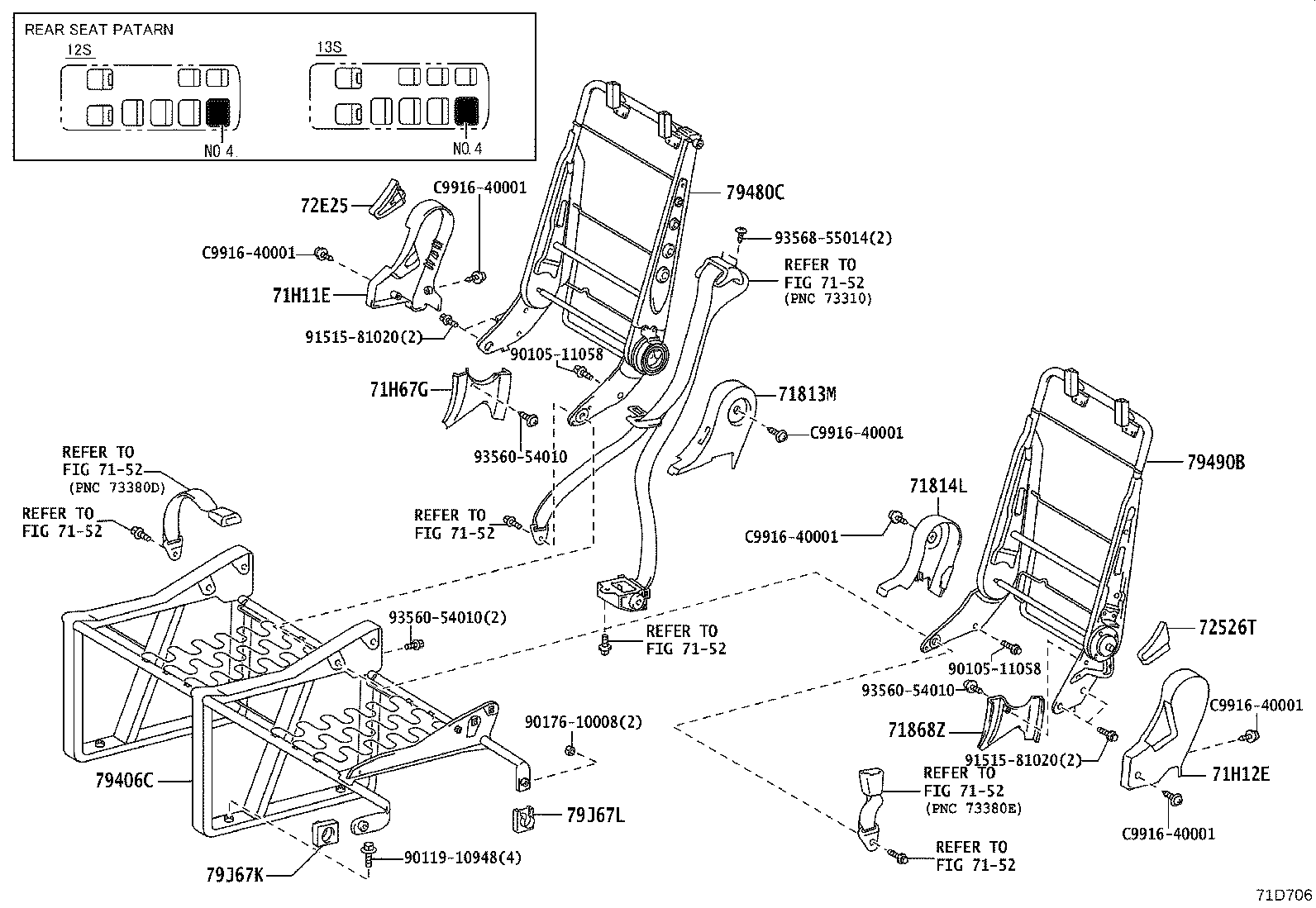

71D706
71D706
71D706
71D706

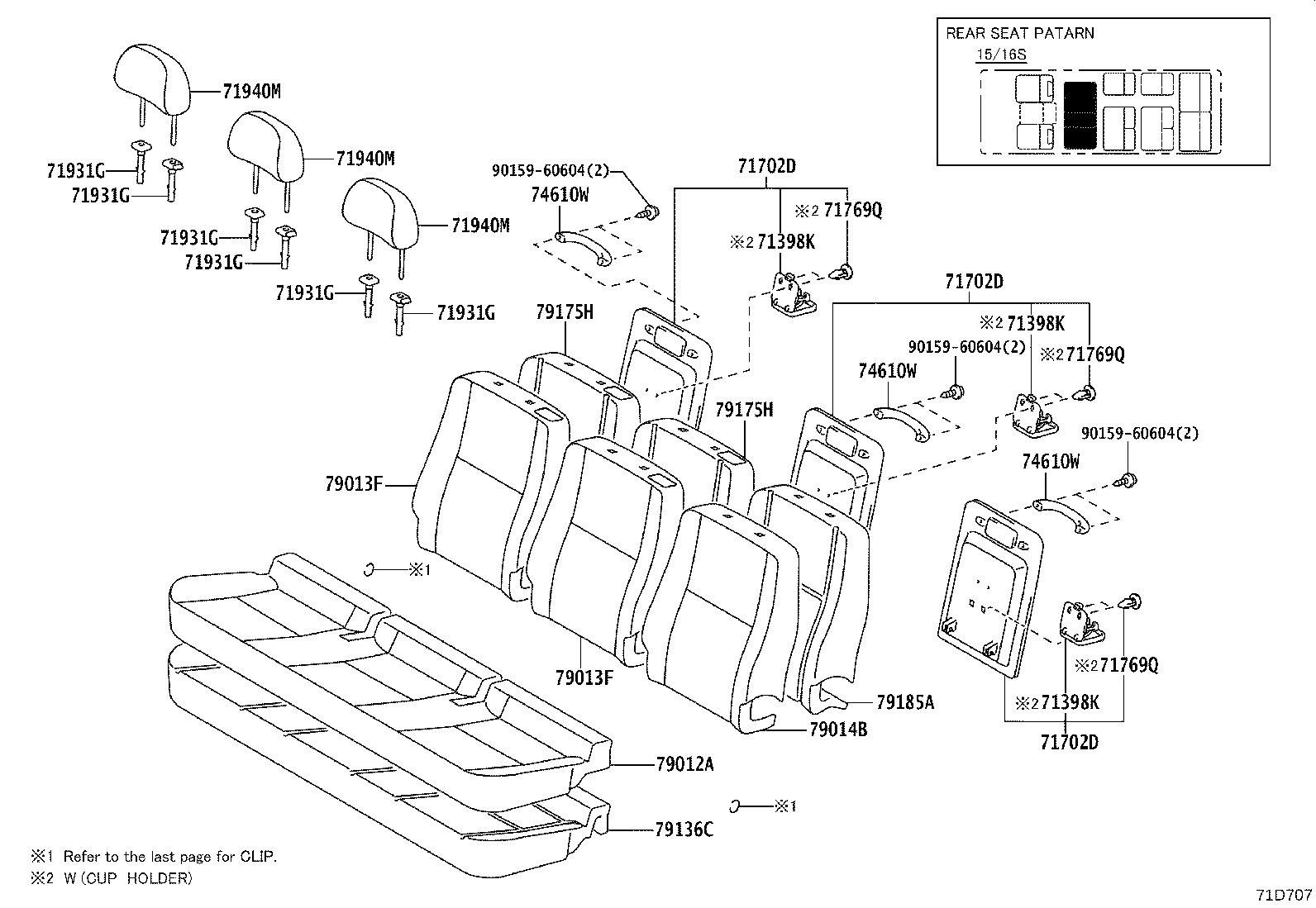

71D707
71D707
71D707
71D707
71D707
71D707
71D708
71D708
71D708
71D708
71D708
71D708

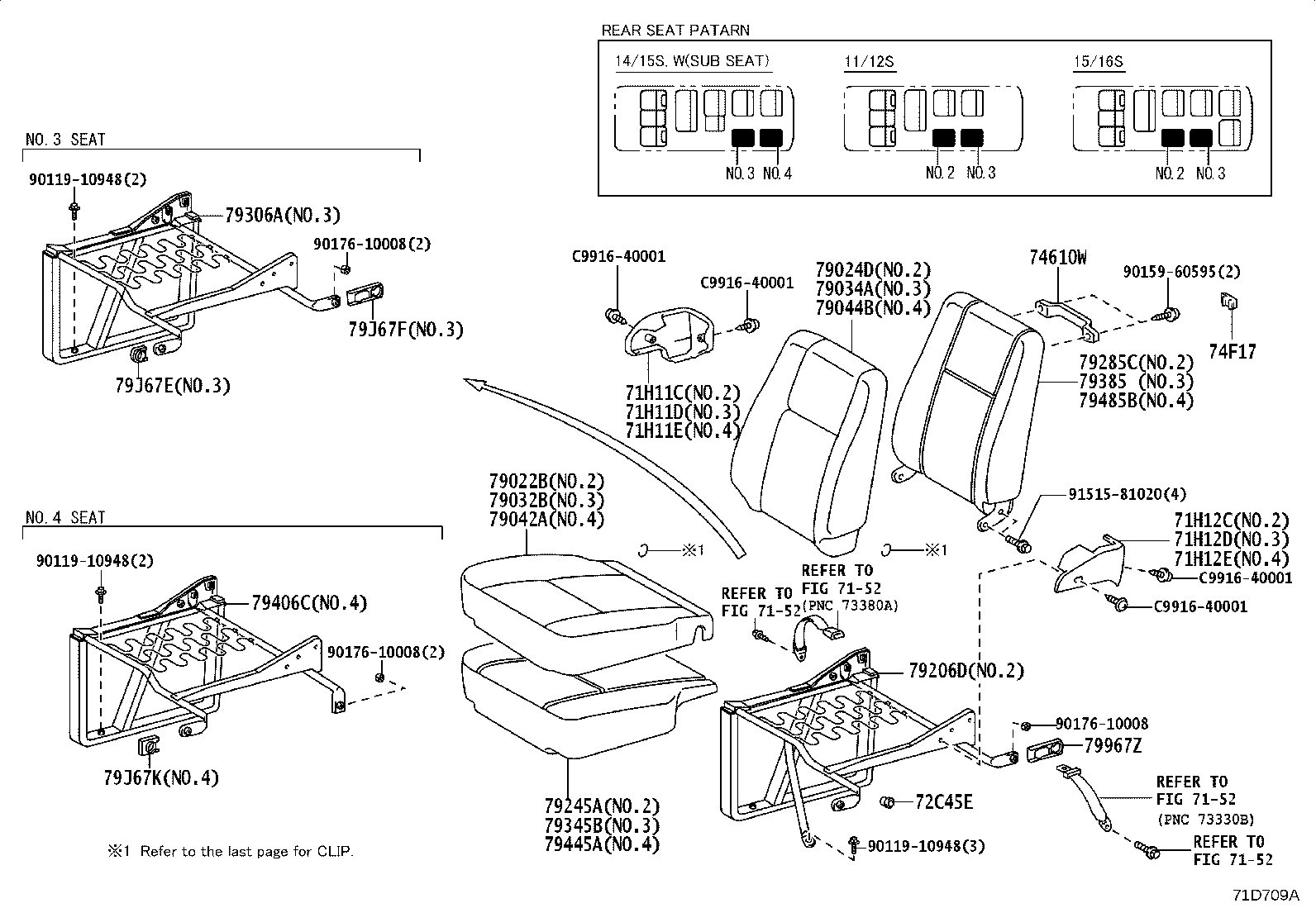

71D709A
71D709A
71D710A
71D710A
71D711
71D711

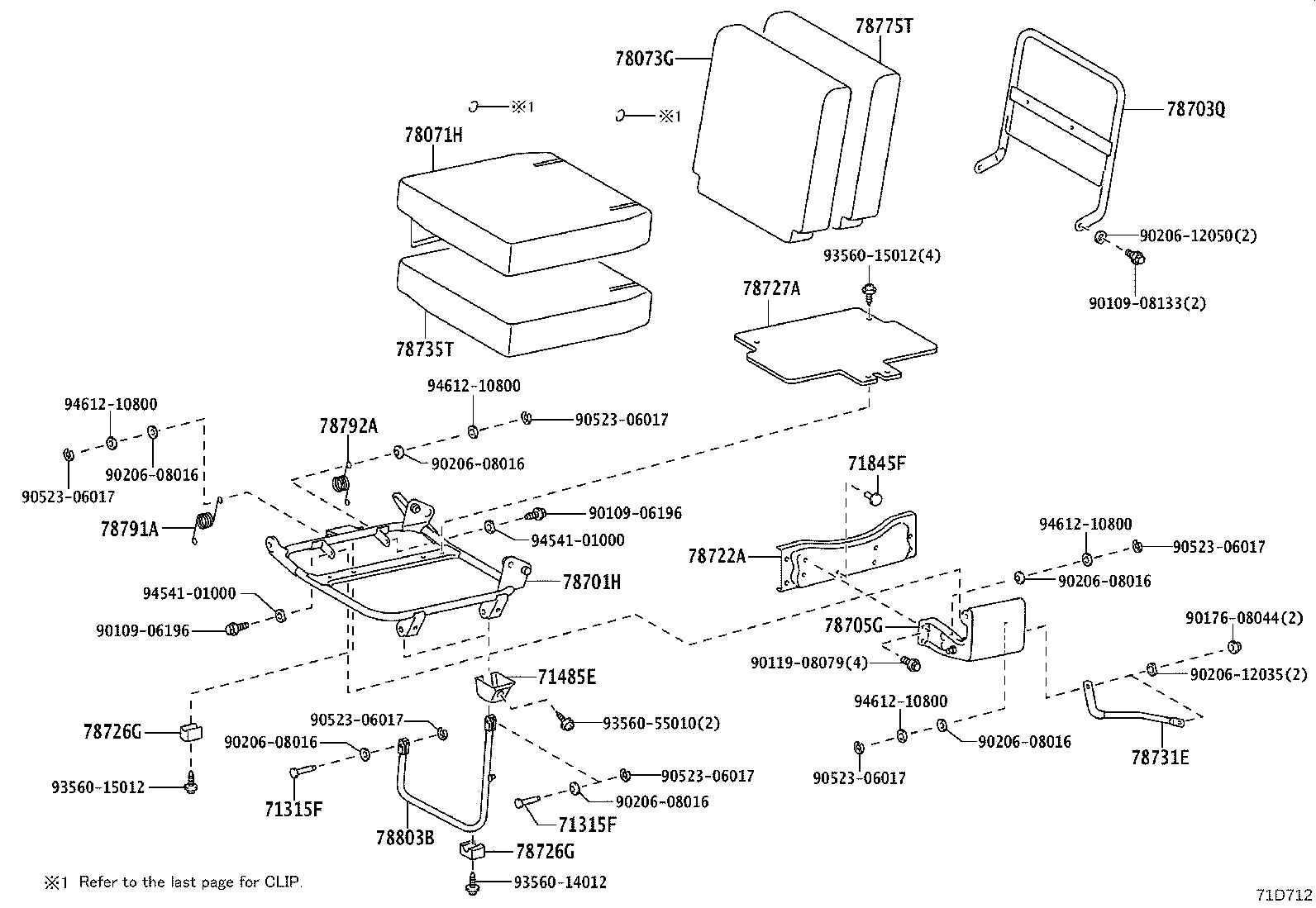

71D712

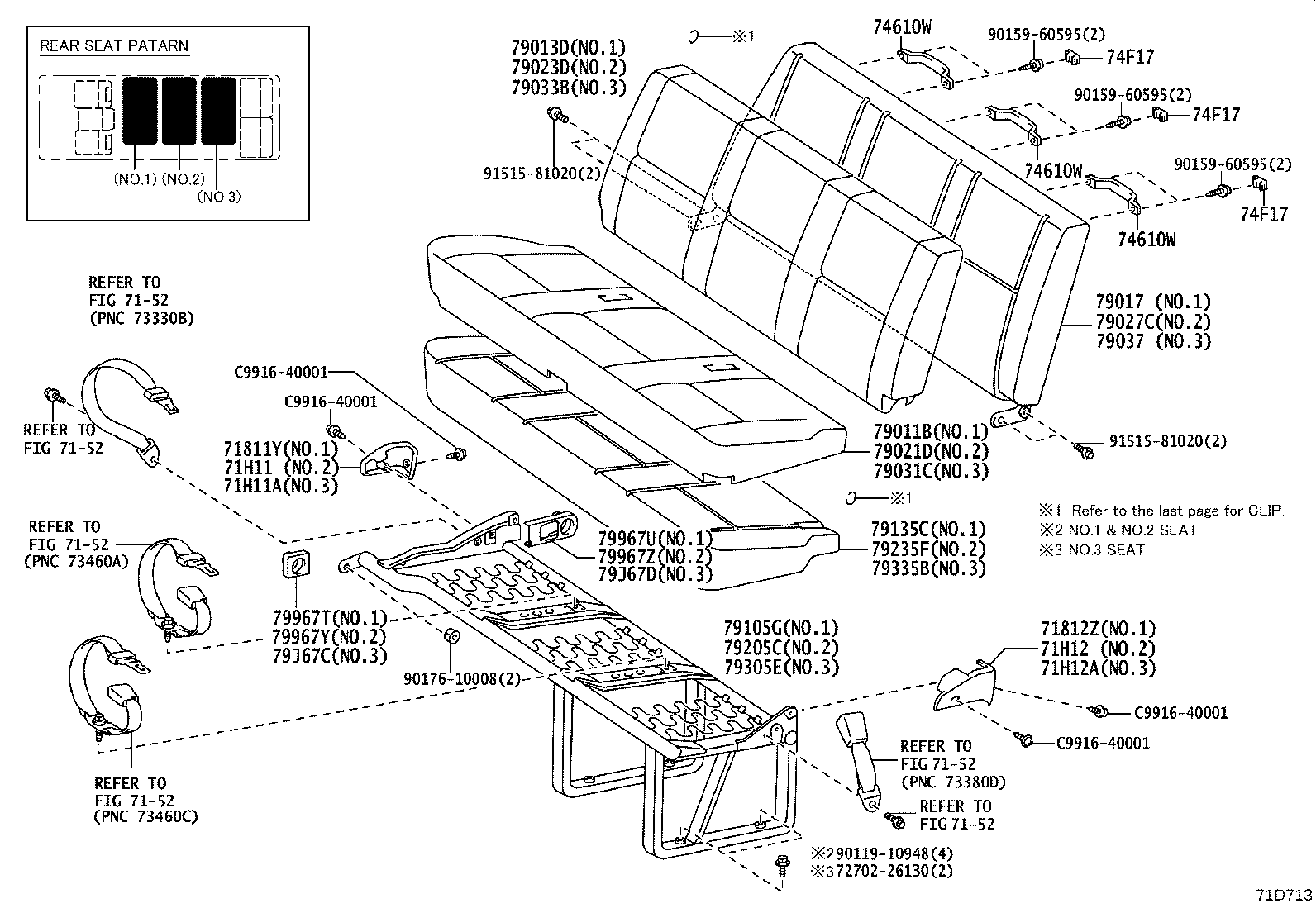

71D713
71D714
71D715
71D716
71D716

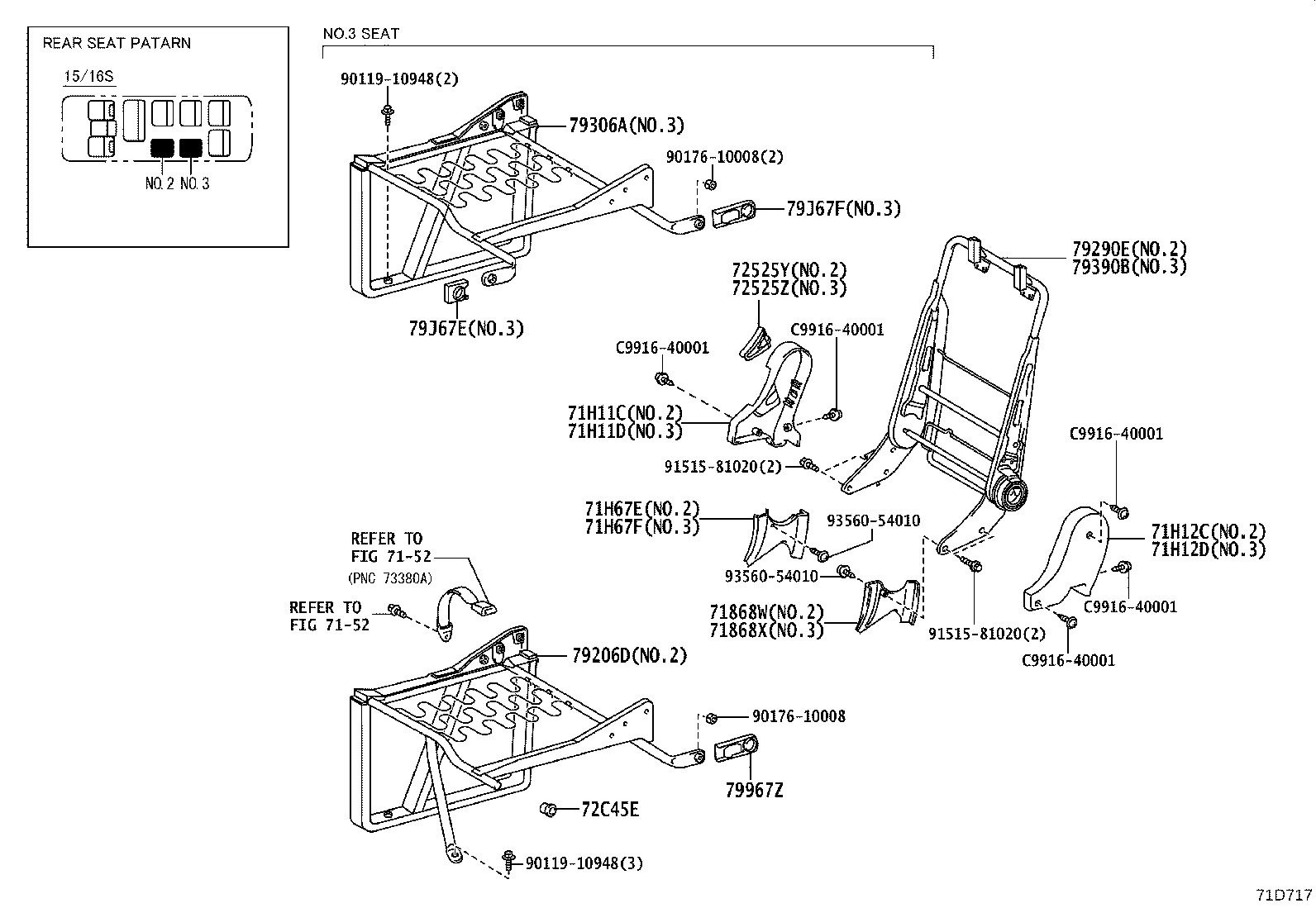

71D717
71D717
71D718
71D718

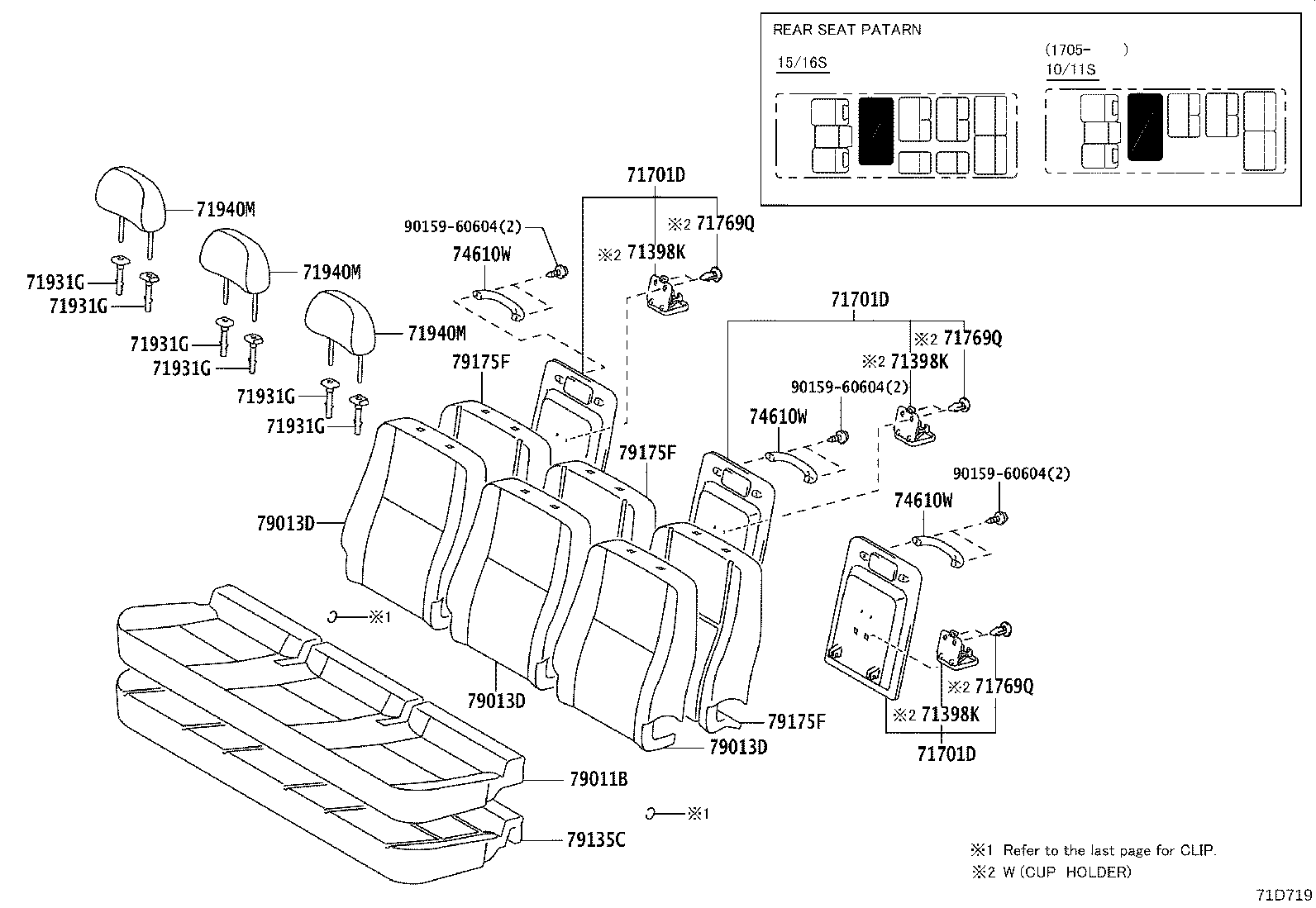

71D719
71D719

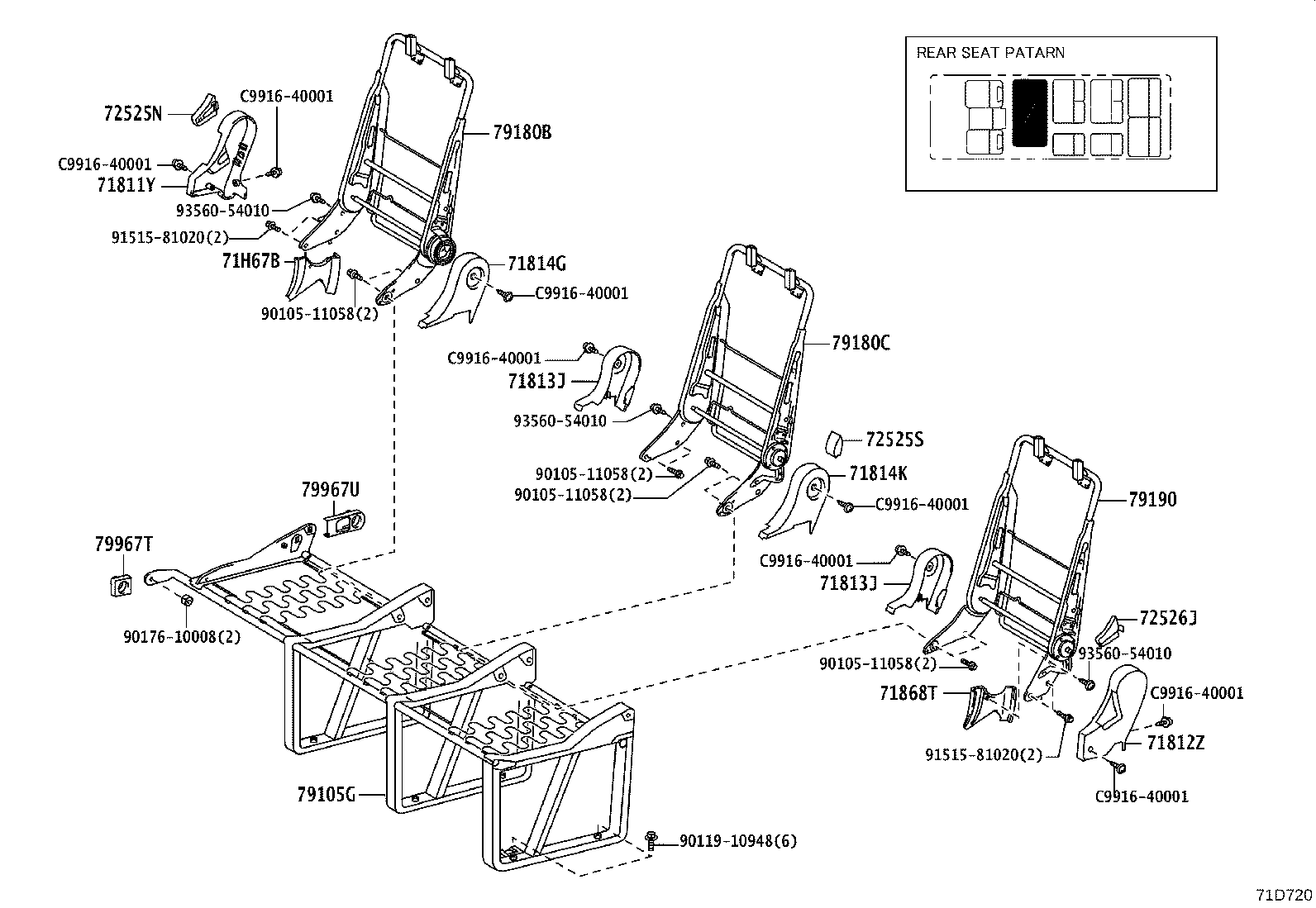

71D720
71D720

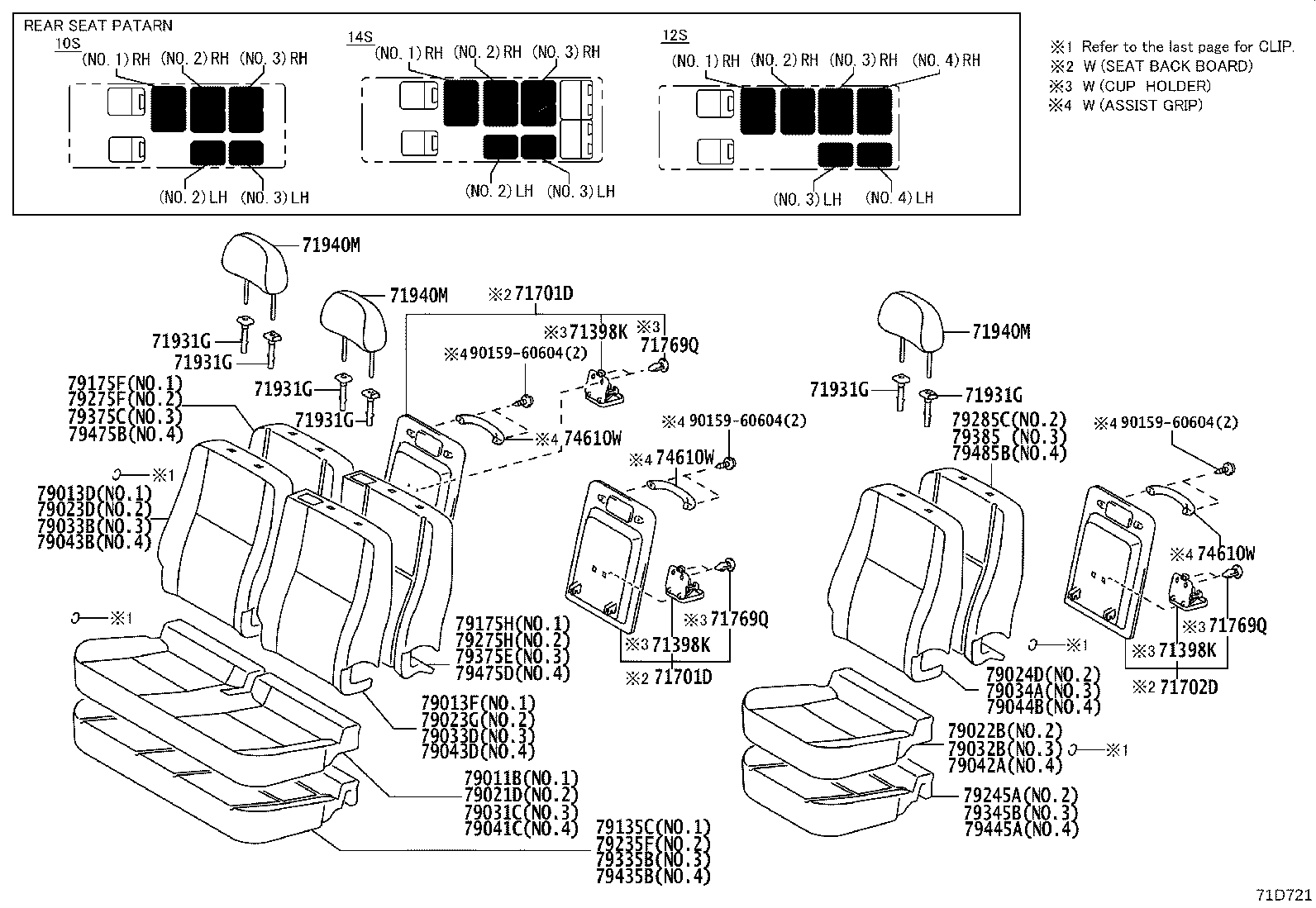

71D721
71D721

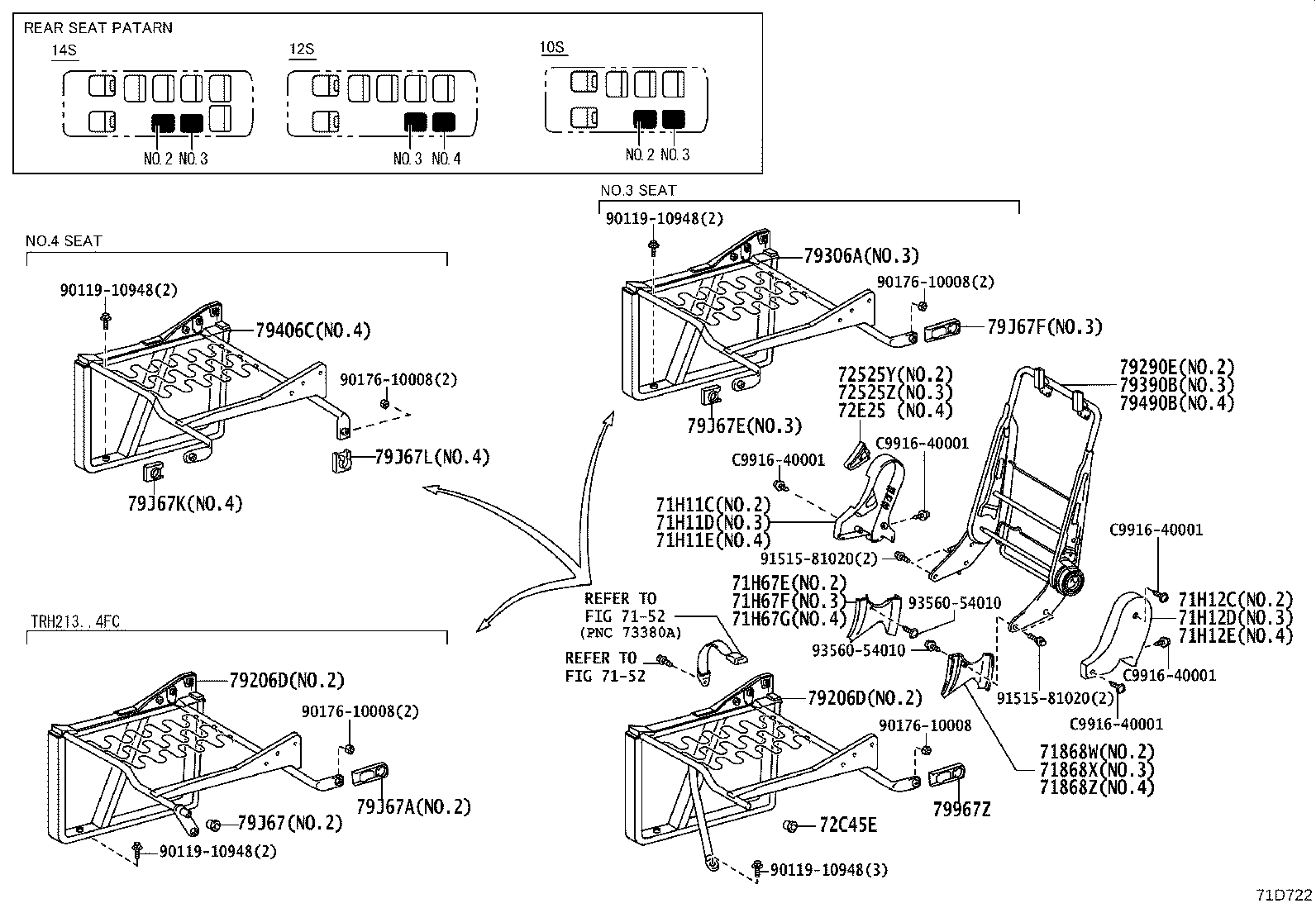

71D722
71D722

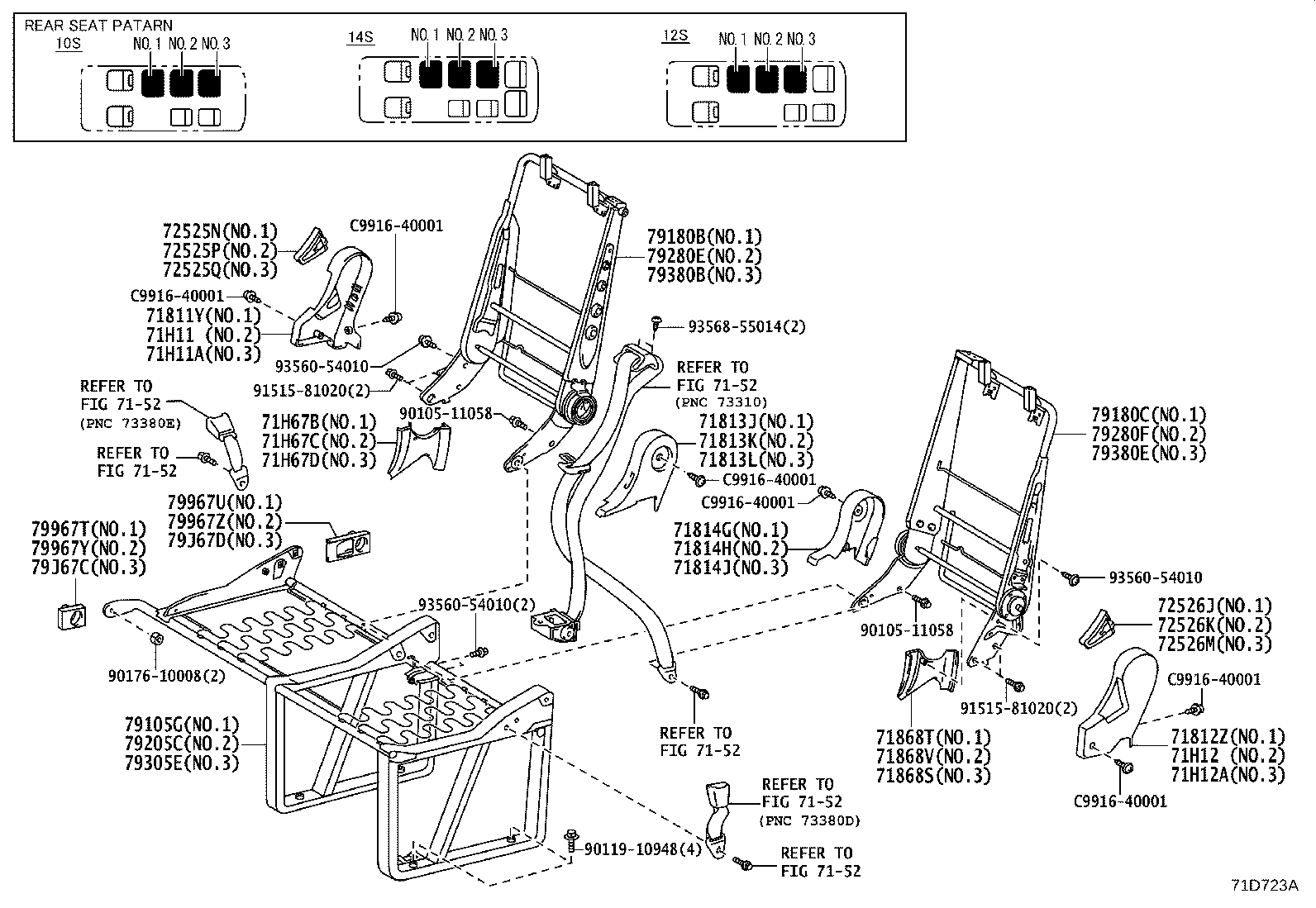

71D723A
71D723A
71D723A
71D723A
71D723A
71D724A
71D724A

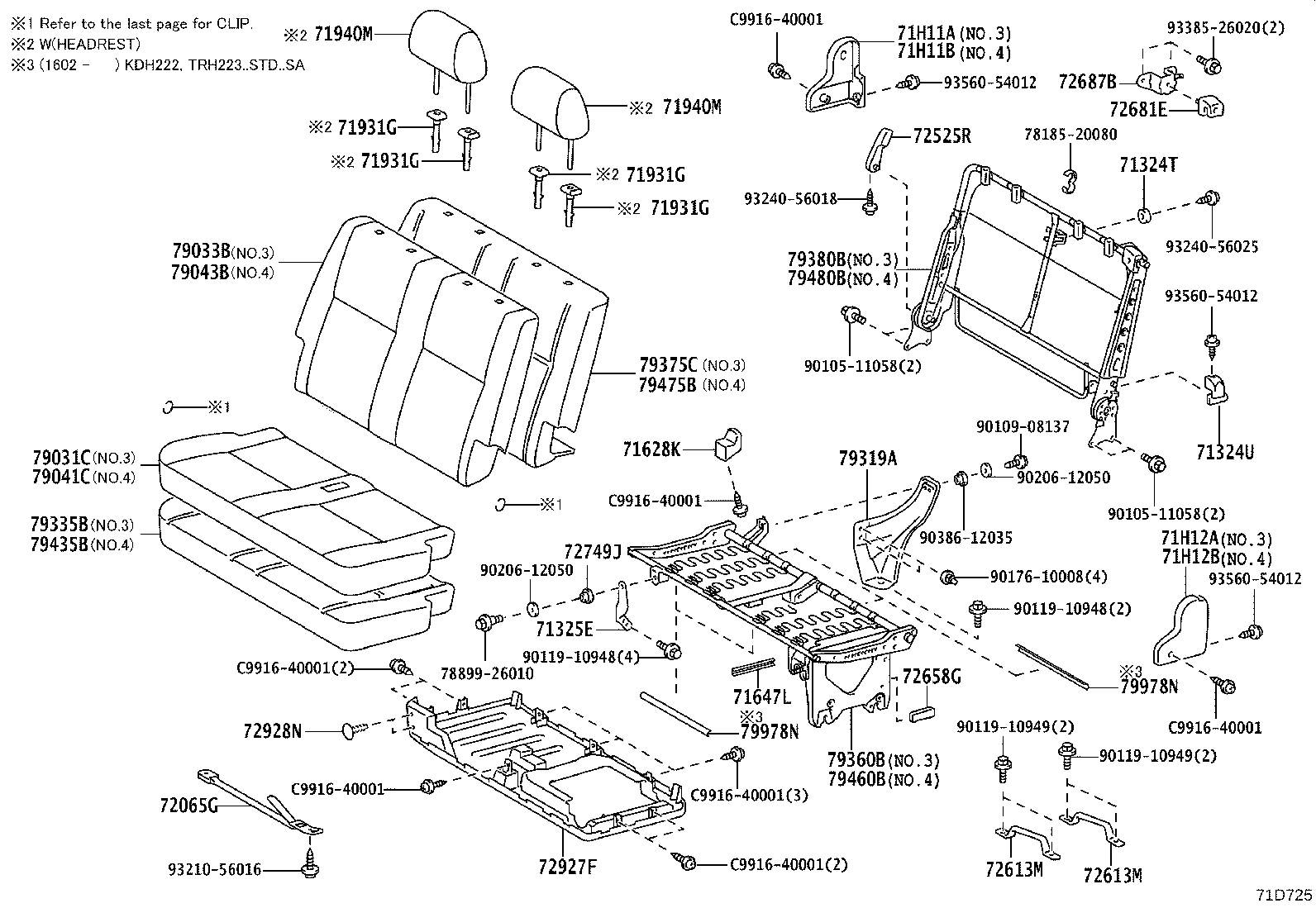

71D725
71D725
71D726
71D726

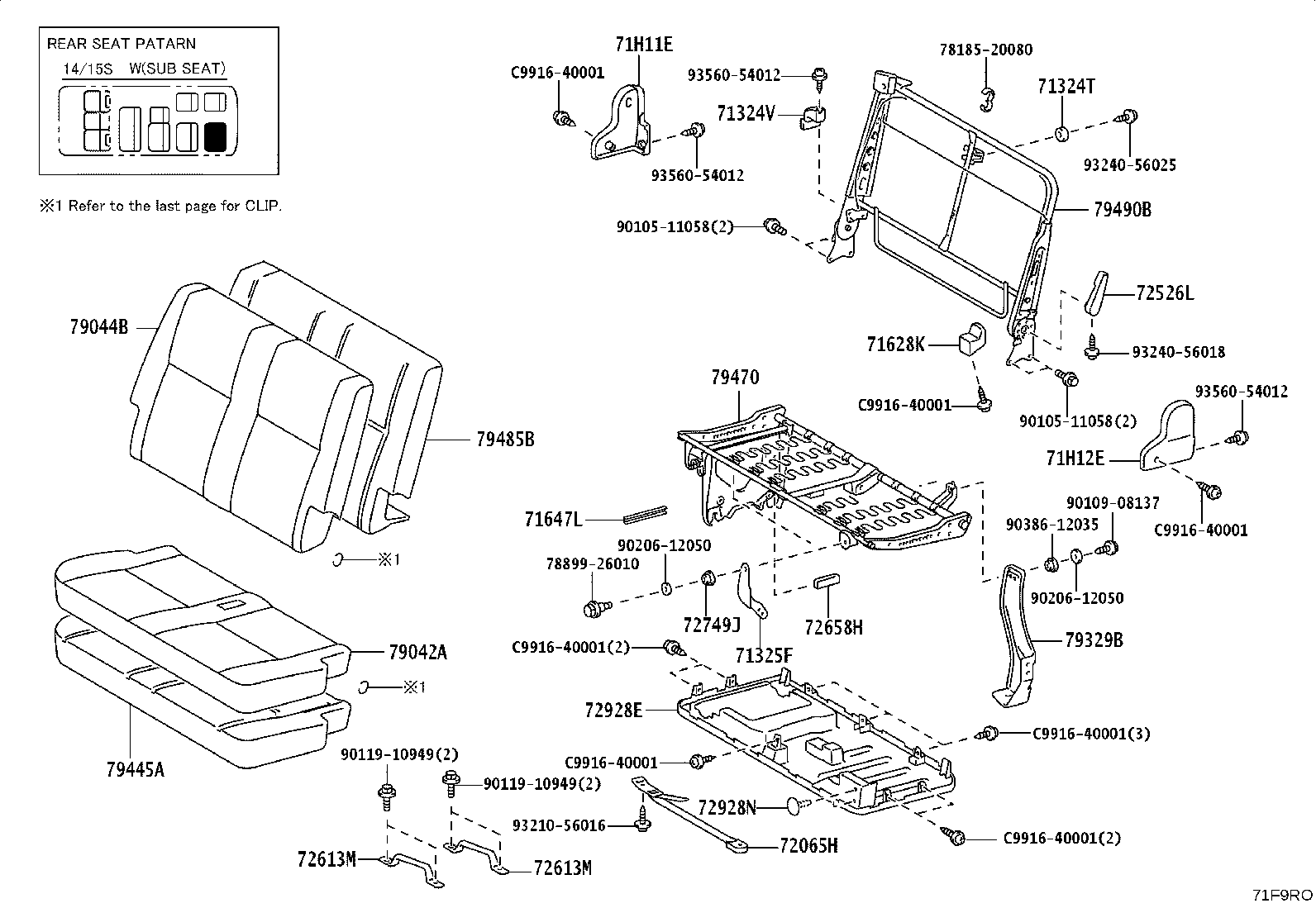

71F9RO

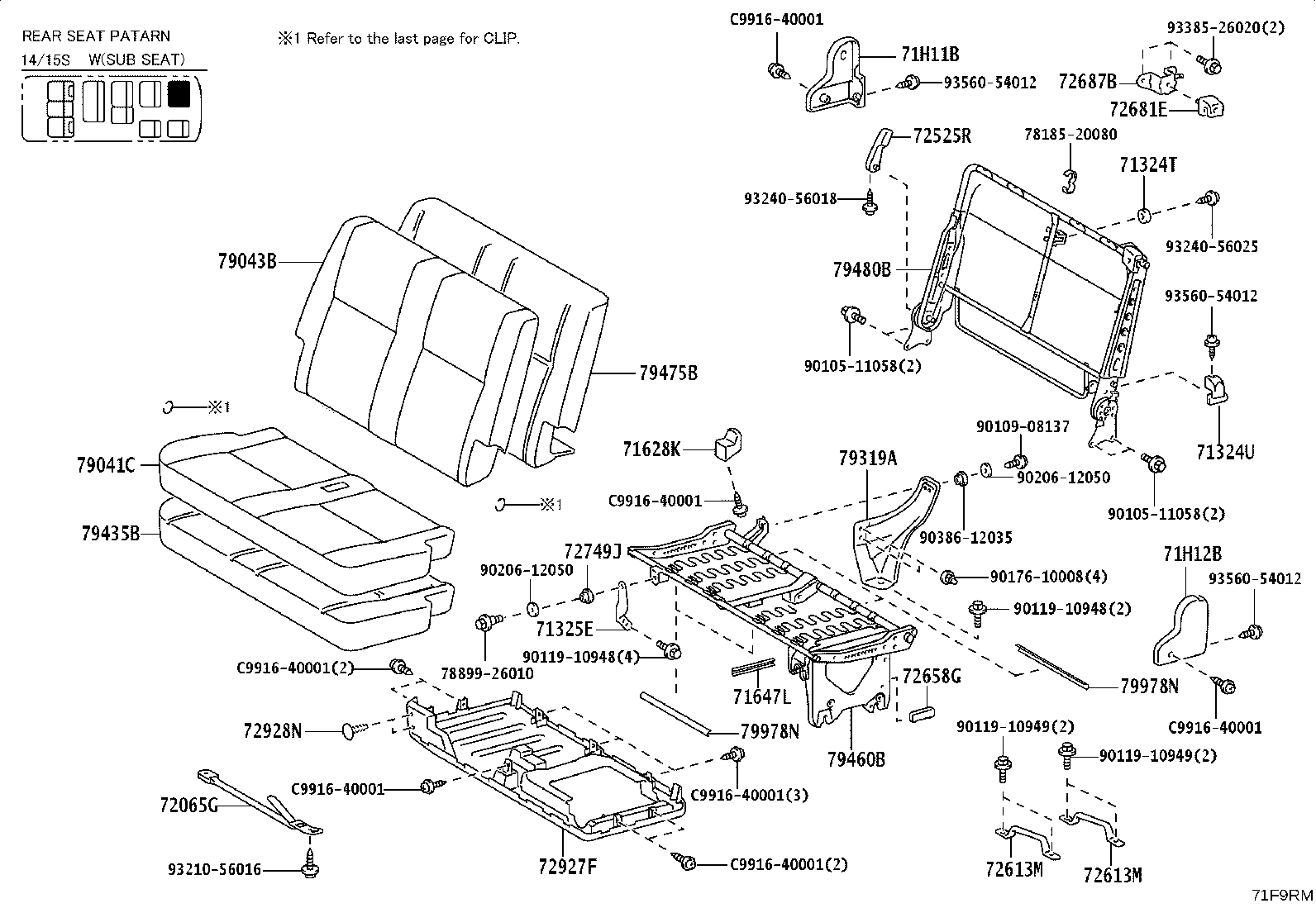

71F9RM

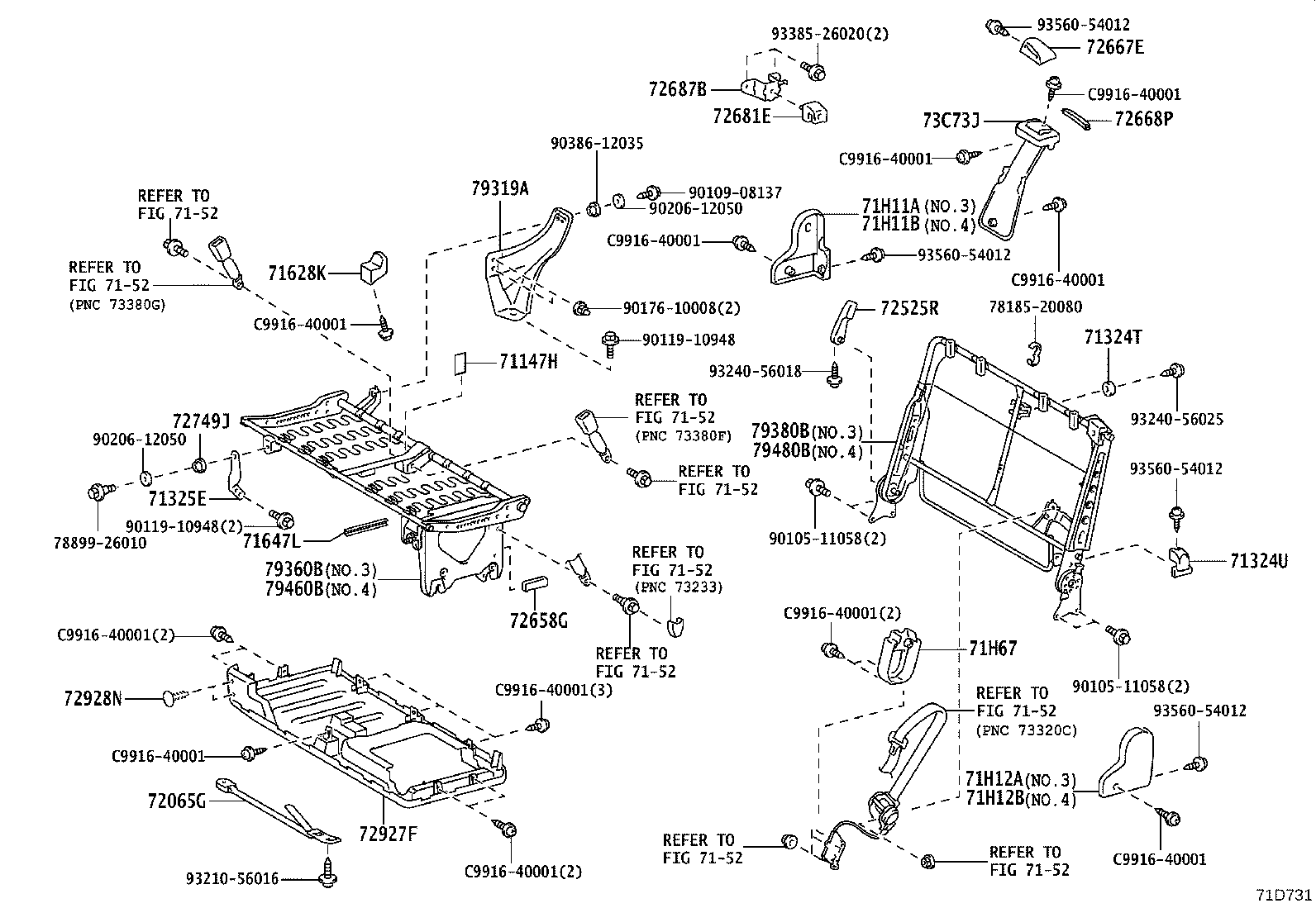

71D731
71D731
71D731
71D731
71D731

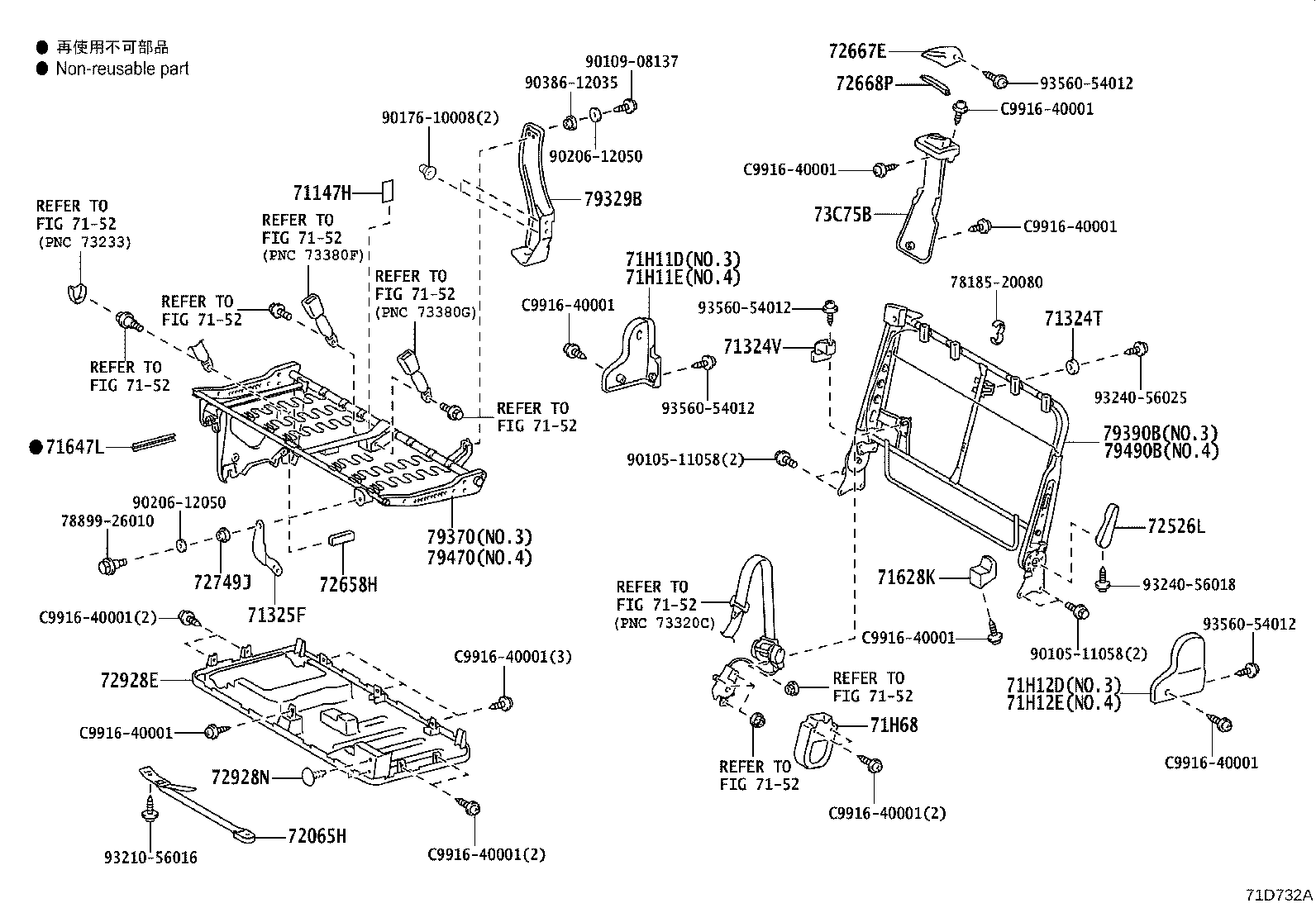

71D732A
71D732A
71D732A
71D732A
71D732A

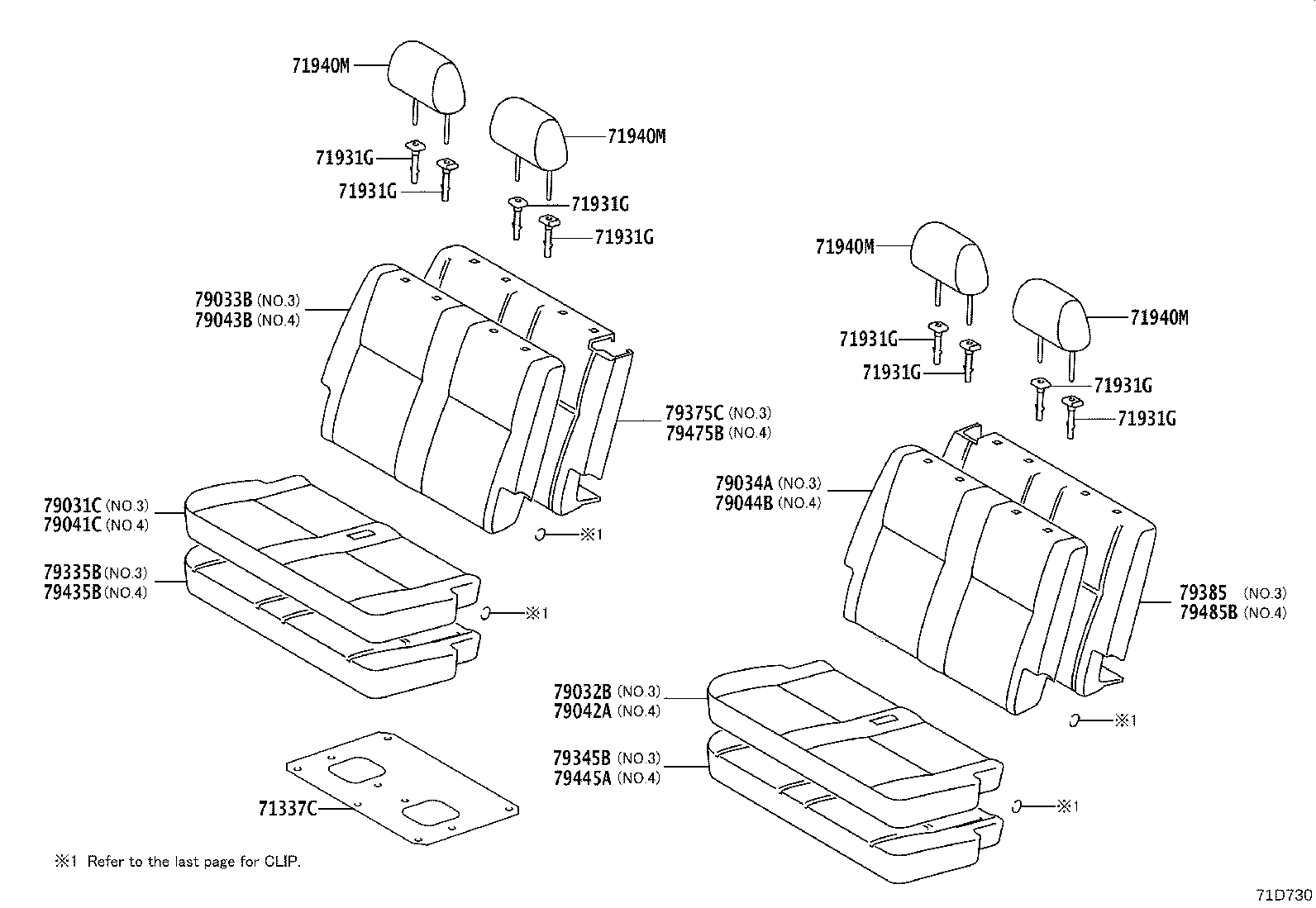

71D730
71D730
71D730
71D730
71D730

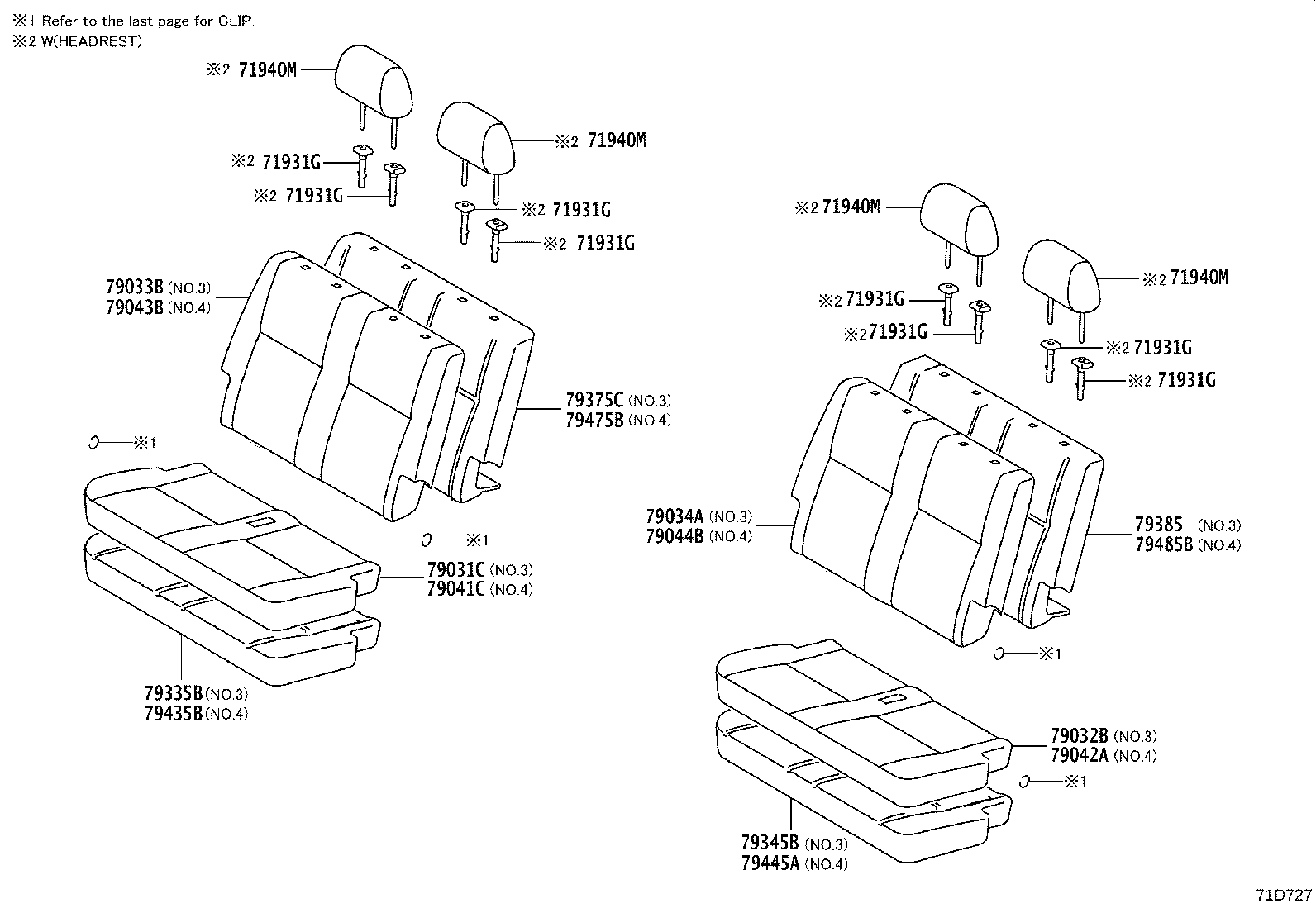

71D727

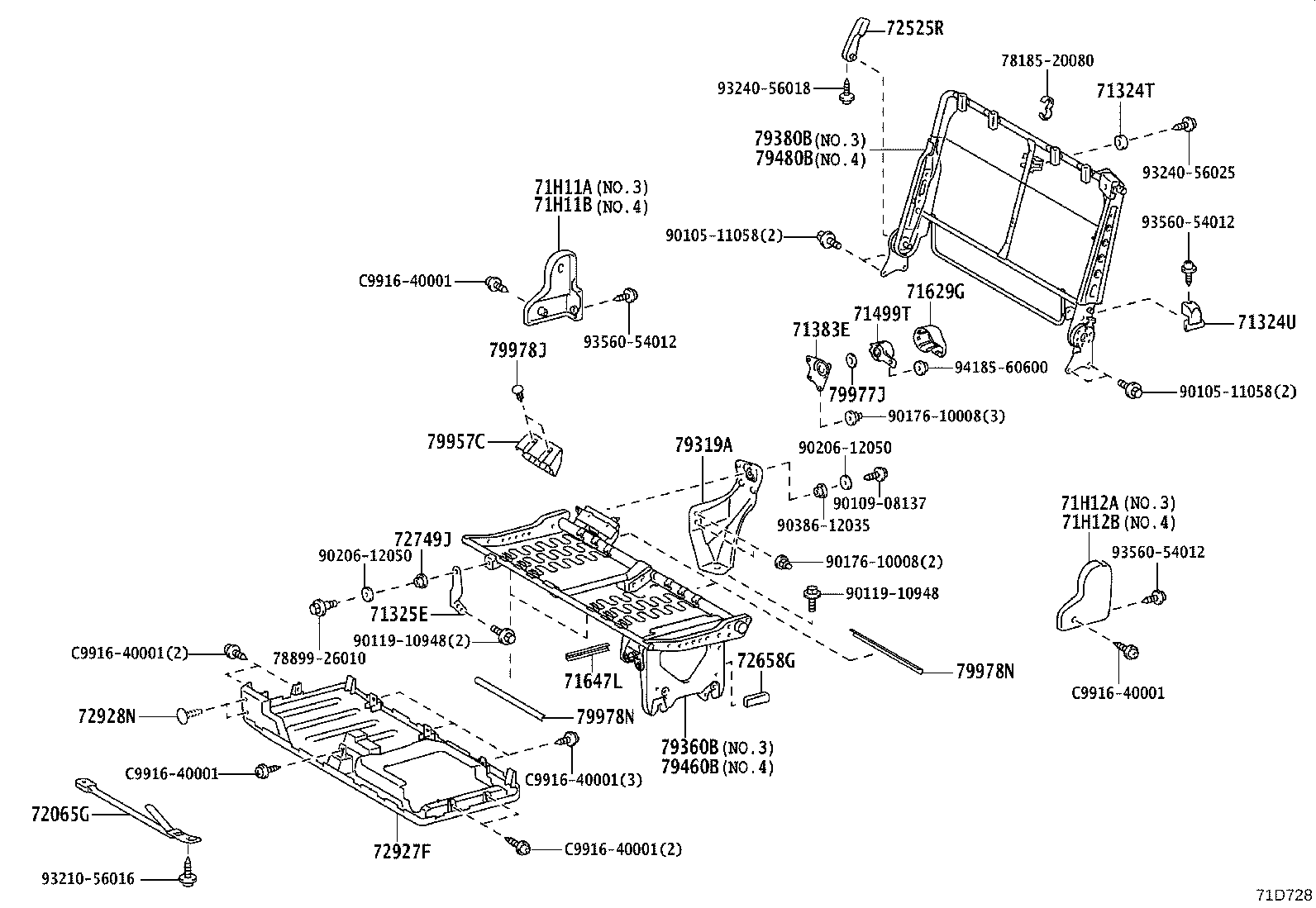

71D728

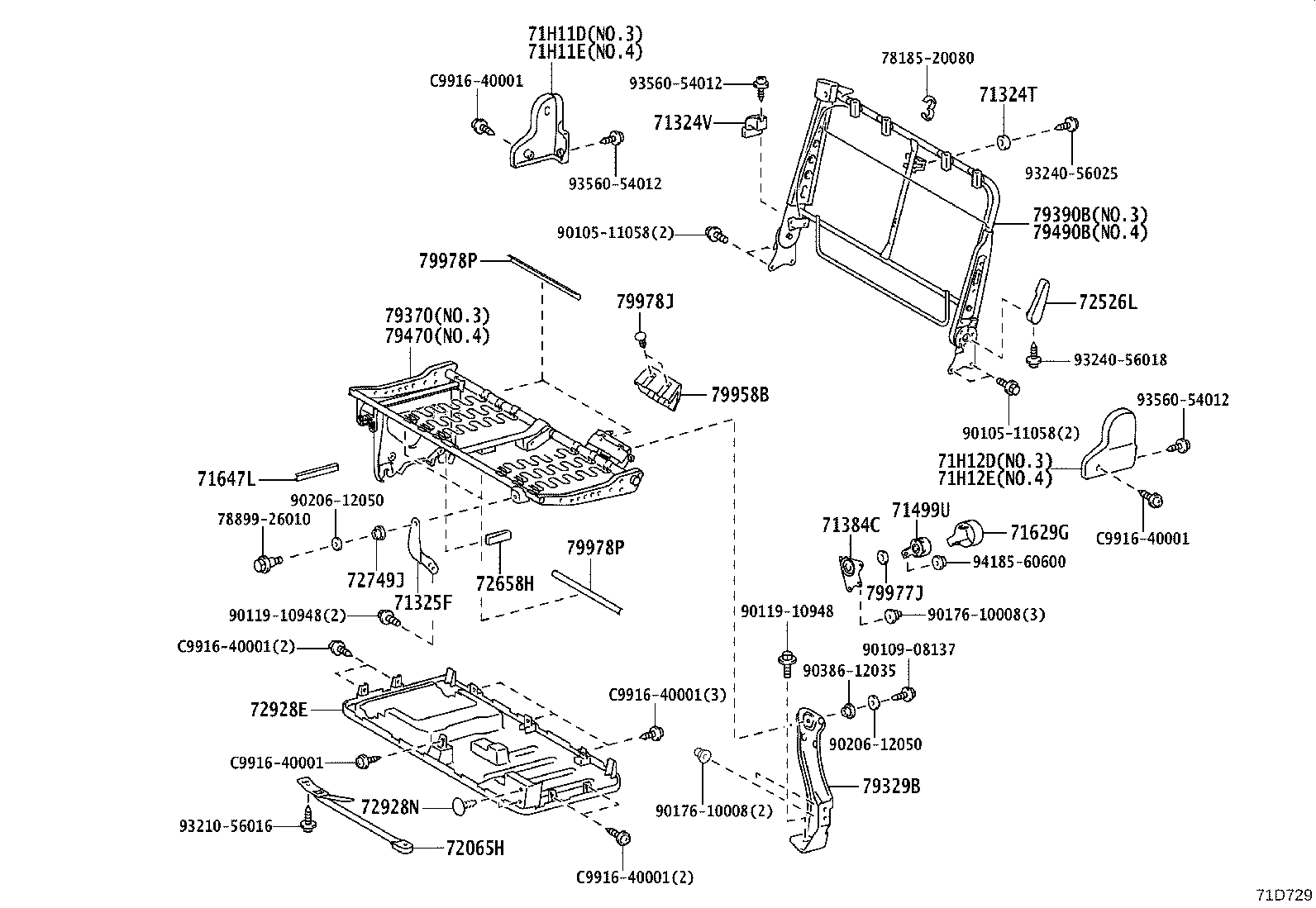

71D729

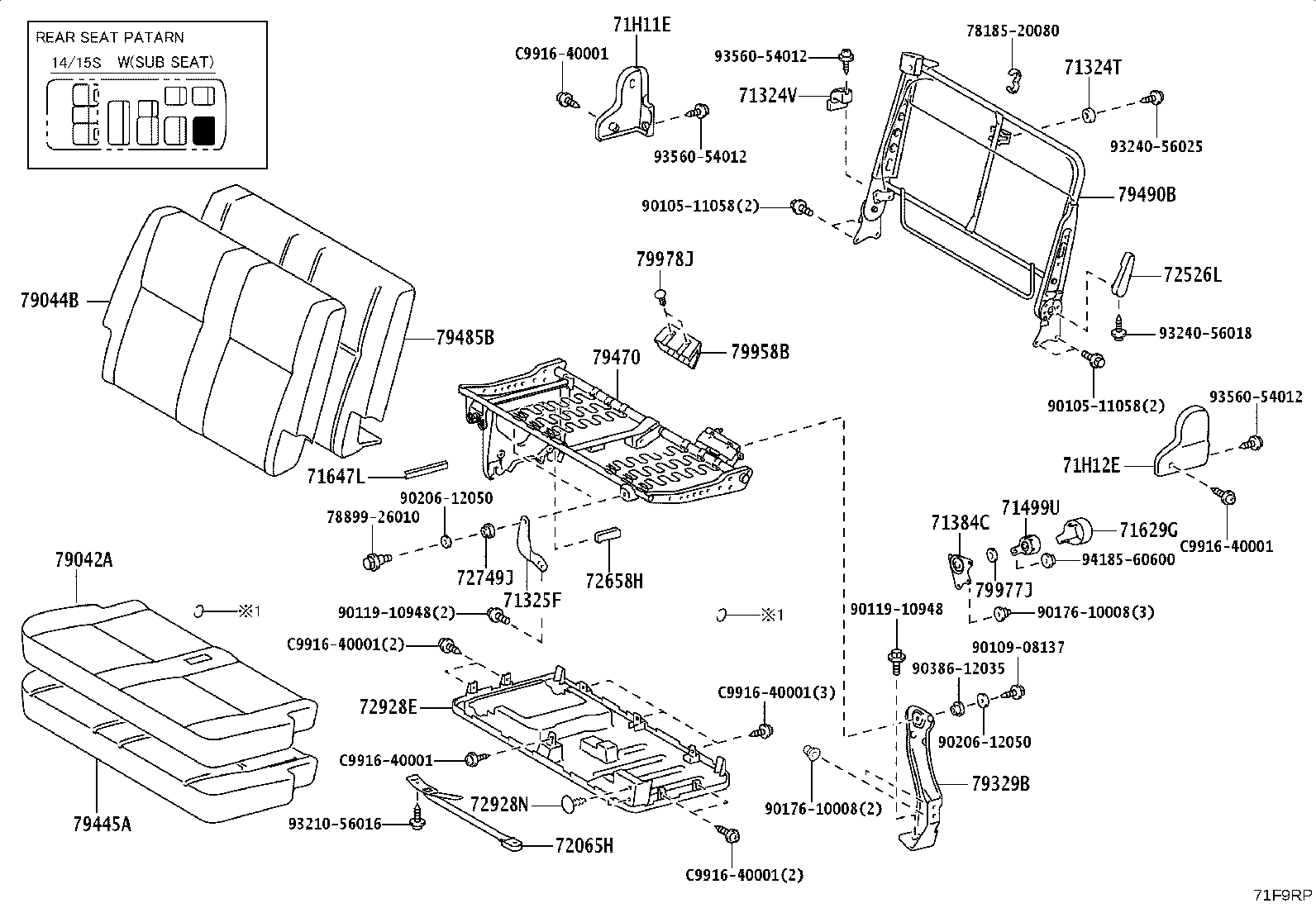

71F9RP

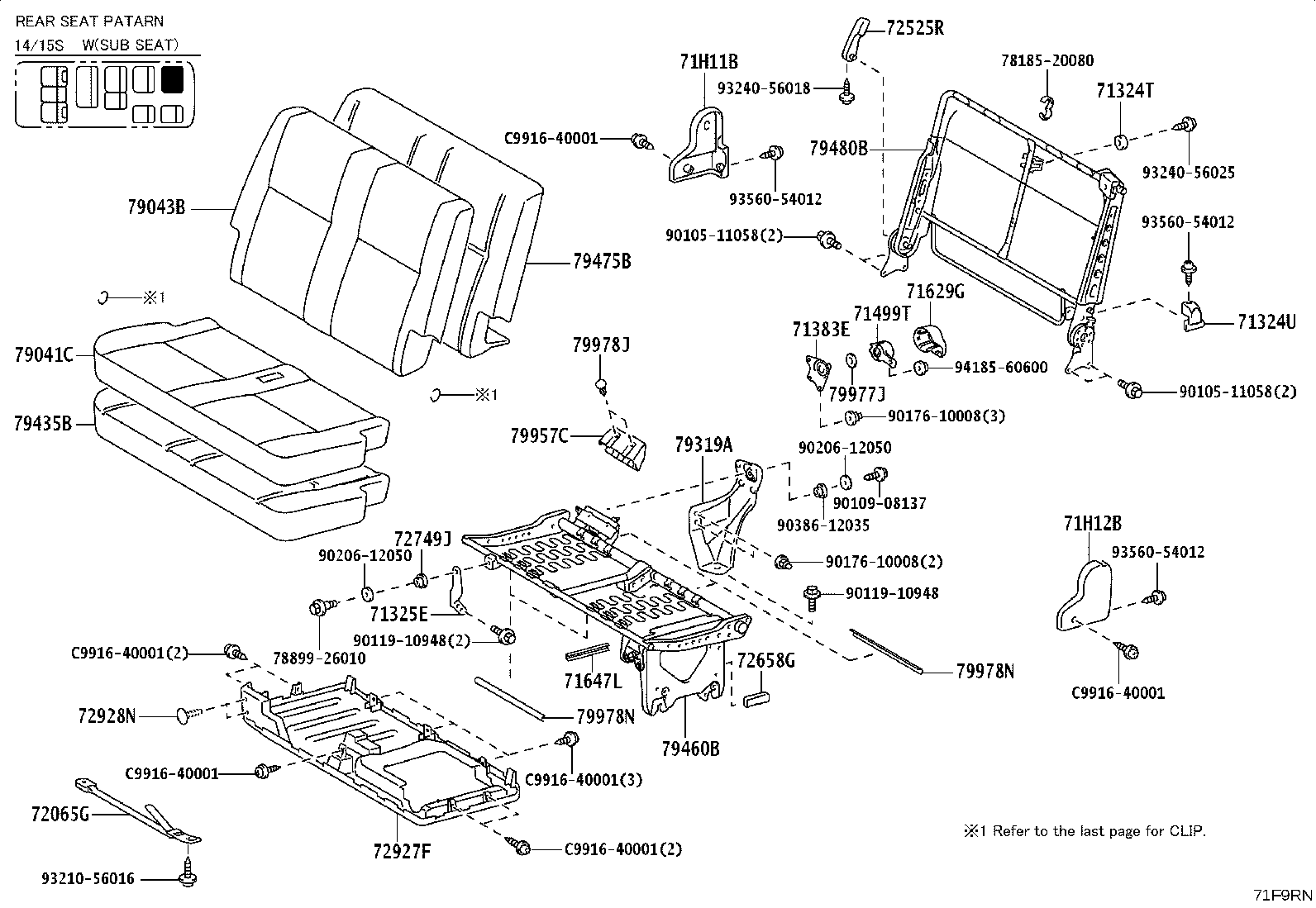

71F9RN
71D684
71D684
71D684

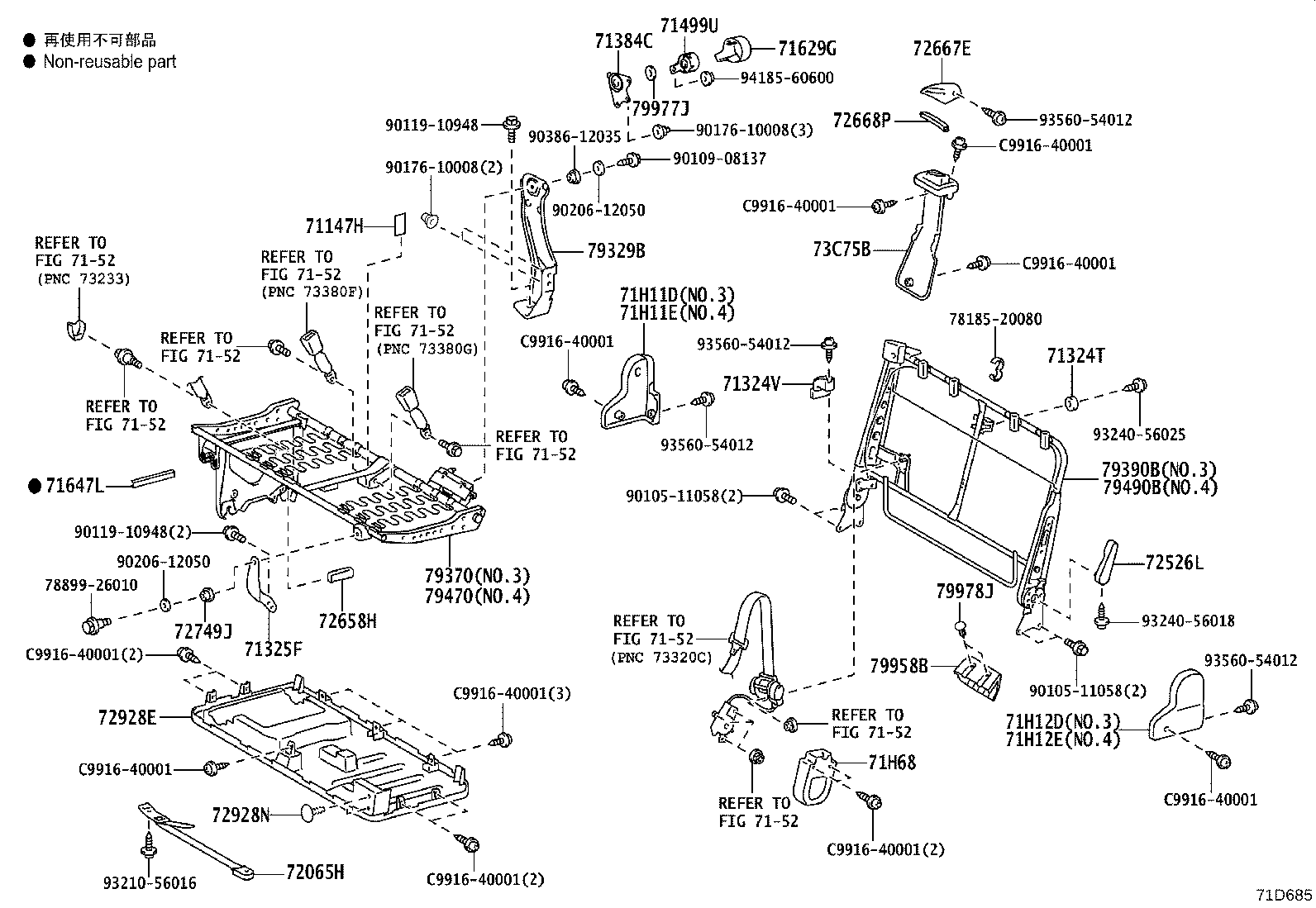

71D685
71D685
71D685

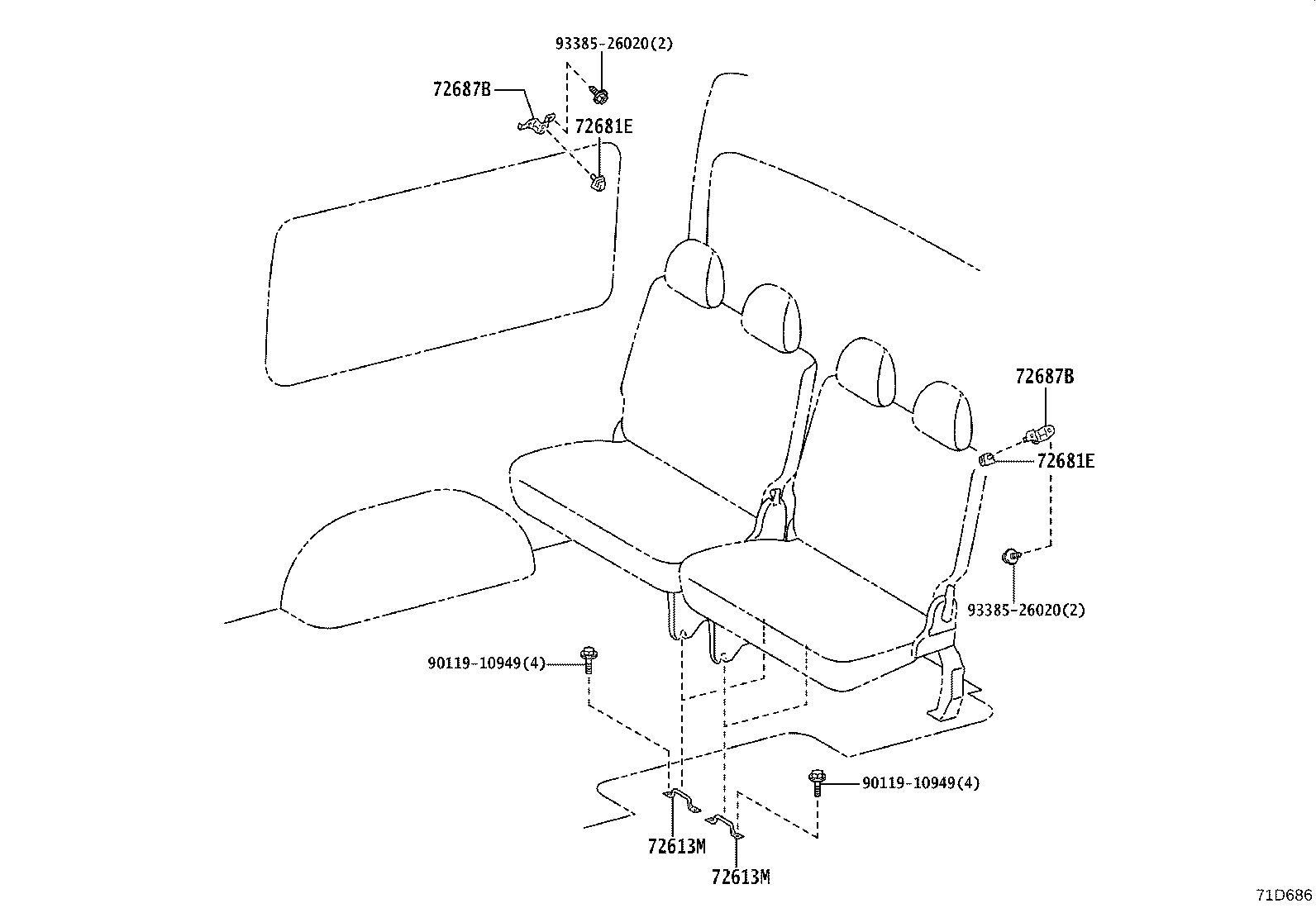

71D686
71D686
71D733A
71D734A
71D735A
71A897A
Part groups
| PNC | Description |
|---|---|
| 71147H | Silencer, Seat Spring |
| 71315F | Plate, Front Seat Hinge |
| 71324T | Cushion, Rear Seat |
| 71324U | Cushion, Rear Seat, RH |
| 71324V | Cushion, Rear Seat, LH |
| 71325E | Hinge, Rear Seat Cushion Leg, RH |
| 71325F | Hinge, Rear Seat Cushion Leg, LH |
| 71331D | Pin, Rear Seat Hinge |
| 71334J | Stopper, Rear Seat Leg |
| 71337C | Plate, Rear Seat Leg |
| 71383E | Bracket, Rear Seat Cushion Set, Rear RH |
| 71384C | Bracket, Rear Seat Cushion Set, Rear LH |
| 71398K | Cup Holder, Rear Seatback |
| 71461H | Spring, Rear Seat Cushion |
| 71485E | Cover, Rear Seat Hinge |
| 71499T | Damper, Seat Cushion Spring, RH |
| 71499U | Damper, Seat Cushion Spring, LH |
| 71628K | Spacer, Rear Seat Cushion |
| 71629G | Cover, Rear Seat Cushion Hinge |
| 71647L | Protector, Rear Seat Cushion Edge |
| 71693N | Cover, Rear Seat Cushion Hinge, Lower |
| 71701D | Board Sub-assy, Rear Seatback |
| 71702D | Board Sub-assy, Rear Seatback, LH |
| 71769Q | Clip, Rear Seatback Board |
| 71811Y | Cover, Reclining Adjuster, RH |
| 71812Z | Cover, Reclining Adjuster, LH |
| 71813G | Shield, Rear Seatback, RH |
| 71813H | Shield, Rear Seatback, RH |
| 71813J | Shield, Rear Seatback, RH |
| 71813K | Shield, Rear Seatback, RH |
| 71813L | Shield, Rear Seatback, RH |
| 71813M | Shield, Rear Seatback, RH |
| 71814G | Shield, Rear Seatback, LH |
| 71814H | Shield, Rear Seatback, LH |
| 71814J | Shield, Rear Seatback, LH |
| 71814K | Shield, Rear Seatback, LH |
| 71814L | Shield, Rear Seatback, LH |
| 71833S | Cover, Rear Seat Reclining, NO.1 RH |
| 71834S | Cover, Rear Seat Reclining, NO.1 LH |
| 71843J | Cover, Rear NO.1 Seat Reclining, NO.2 RH |
| 71844J | Cover, Rear NO.1 Seat Reclining, NO.2 LH |
| 71845F | Cap, Rear Seat Cover |
| 71868S | Shield, NO.3 Seat Cushion, Inner NO.1 LH |
| 71868T | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868V | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868W | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868X | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71868Y | Shield, Rear Seat Cushion, Inner NO.1 LH (FOR RH SEAT) |
| 71868Z | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 71931G | Support Assy, Rear Seat Headrest |
| 71940M | Headrest Assy, Rear Seat |
| 71H11 | Cover, Reclining Adjuster, RH |
| 71H11A | Cover, Reclining Adjuster, RH |
| 71H11B | Cover, Reclining Adjuster, RH |
| 71H11C | Cover, Reclining Adjuster, RH |
| 71H11D | Cover, Reclining Adjuster, RH |
| 71H11E | Cover, Reclining Adjuster, RH |
| 71H12 | Cover, Reclining Adjuster, LH |
| 71H12A | Cover, Reclining Adjuster, LH |
| 71H12B | Cover, Reclining Adjuster, LH |
| 71H12C | Cover, Reclining Adjuster, LH |
| 71H12D | Cover, Reclining Adjuster, LH |
| 71H12E | Cover, Reclining Adjuster, LH |
| 71H67 | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67B | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67C | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67D | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67E | Shield,Rear Seat Cushion, Inner NO.1 RH |
| 71H67F | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67G | Shield, Rear Seat Cushion, Inner NO.1 RH |
| 71H67H | Shield, Rear Seat Cushion, Inner NO.1 RH(FOR RH SEAT) |
| 71H68 | Shield, Rear Seat Cushion, Inner NO.1 LH |
| 72065G | Hook Sub-assy,Rear Seat Cushion Lock,RH |
| 72065H | Hook Sub-assy,Rear Seat Cushion Lock,LH |
| 72213M | Knob, Seat Track Adjusting Handle |
| 72507G | Handle Sub-assy, Reclining Release, LH |
| 72507H | Handle Sub-assy, Reclining Release, RH |
| 72525N | Handle, NO.1 Seat Reclining Adjuster Release, RH |
| 72525P | Handle, NO.2 Seat Reclining Adjuster Release, RH |
| 72525Q | Handle, NO.3 Seat Reclining Adjuster Release, RH |
| 72525R | Handle, Reclining Adjuster Release, RH |
| 72525S | Handle, NO.1 Seat Reclining Adjuster Release, Center |
| 72525W | Handle, Reclining Adjuster Release, NO.1 |
| 72525Y | Handle, Reclining Adjuster Release, NO.2 RH |
| 72525Z | Handle, Reclining Adjuster Release, NO.3 RH |
| 72526J | Handle, NO.1 Seat Reclining Adjuster Release, LH |
| 72526K | Handle, NO.2 Seat Reclining Adjuster Release, LH |
| 72526L | Handle, Reclining Adjuster Release, LH |
| 72526M | Handle, NO.3 Seat Reclining Adjuster Release, LH |
| 72526R | Handle, Reclining Adjuster Release, NO.2 LH |
| 72526S | Handle, Reclining Adjuster Release, NO.3 LH |
| 72526T | Handle, Reclining Adjuster Release, NO.4 LH |
| 72592D | Ring, Shaft Snap |
| 72592E | Ring, Shaft Snap, NO.2 |
| 72593D | Knob, Reclining Remote Control Lever |
| 72613H | Striker, Rear Seat Lock |
| 72613M | Striker, Rear Seat Lock, NO.3 |
| 72620F | Cable Assy, Rear Seat Lock, RH |
| 72620G | Cable Assy, Rear Seat Lock, LH |
| 72630J | Lock Assy, Rear NO.1 Seat |
| 72640F | Lock Assy, Rear Seatback, LH |
| 72651G | Rod, Rear Seat Lock, NO.1 |
| 72658G | Knob, Rear Seat Lock Handle, RH |
| 72658H | Knob, Rear Seat Lock Handle, LH |
| 72665H | Cover, Rear Seatback Lock |
| 72665L | Cover, Rear Seatback Lock, RH |
| 72666G | Cover, Rear Seatback Lock, LH |
| 72667E | Bezel, Rear Seatback Lock, Upper |
| 72668P | Bezel, Rear Seatback Lock, Lower |
| 72679C | Bezel, Rear Seatback Lock Control |
| 72681E | Hook, Rear Seat |
| 72687B | Bracket, Rear Seat Hook |
| 72699A | Plate, Rear Seat Lock Release, NO.1 |
| 72749J | Spacer, Rear Seat Reclining |
| 72927F | Cover, Rear Seat Cushion Under, RH |
| 72928E | Cover, Rear Seat Cushion Under, LH |
| 72928N | Clip (FOR REAR SEAT CUSHION UNDER COVER) |
| 72996R | Cover, Rear NO.1 Seatback, RH |
| 72996S | Cover, Rear NO.1 Seatback, LH |
| 72C45E | Cap, Seat Stand Frame |
| 72E25 | Handle, Reclining Adjuster Release, NO.4 RH |
| 73C73J | Cover, Rear Seat Shoulder Belt Hole |
| 73C75B | Cover, Rear Seat Shoulder Belt Hole, LH |
| 74610W | Grip Assy, Assist |
| 74790B | Holder Assy, Warning Reflector, NO.1 |
| 74790C | Holder Assy, Warning Reflector, NO.2 |
| 74F17 | Plug, Assist Grip |
| 78071H | Cover Sub-assy, Sub Seat Cushion, RH |
| 78072H | Cover Sub-assy, Sub Seat Cushion, LH |
| 78073G | Cover Sub-assy, Sub Seatback, RH |
| 78074G | Cover Sub-assy, Sub Seatback, LH |
| 78701H | Frame Sub-assy, Sub Seat Cushion, RH |
| 78703Q | Frame Sub-assy, Sub Seatback |
| 78705G | Bracket Sub-assy, Sub Seat Cushion |
| 78722A | Plate, Sub Seat Cushion Board, NO.1 |
| 78726G | Cushion, Sub Seat Cushion Frame |
| 78727A | Board, Sub Seat Cushion |
| 78731E | Arm, Sub Seat Link, NO.1 |
| 78735T | Pad, Sub Seat Cushion |
| 78775T | Pad, Sub Seatback |
| 78791A | Spring, Sub Seat Link, NO.1 |
| 78792A | Spring, Sub Seat Link, NO.2 |
| 78803B | Leg Sub-assy, Sub Seat |
| 78953B | Plate, Rear Seat Under |
| 79011B | Cover Sub-assy, NO.1 Seat Cushion, RH |
| 79011E | Cover Sub-assy, NO.1 Seat Cushion |
| 79012A | Cover Sub-assy, NO.1 Seat Cushion, LH |
| 79013D | Cover Sub-assy, NO.1 Seatback, RH |
| 79013F | Cover Sub-assy, NO.1 Seatback |
| 79014B | Cover Sub-assy, NO.1 Seatback, LH |
| 79017 | Pad Sub-assy, NO.1 Seatback, RH |
| 79018 | Pad Sub-assy, NO.1 Seatback, LH |
| 79021D | Cover Sub-assy, NO.2 Seat Cushion, RH |
| 79022B | Cover Sub-assy, NO.2 Seat Cushion, LH |
| 79023D | Cover Sub-assy, NO.2 Seatback, RH |
| 79023G | Cover Sub-assy, NO.2 Seatback |
| 79024D | Cover Sub-assy, NO.2 Seatback, LH |
| 79027C | Pad Sub-assy, NO.2 Seatback, RH |
| 79028 | Pad Sub-assy, NO.2 Seatback, LH |
| 79031C | Cover, Sub-assy, NO.3 Seat Cushion, RH |
| 79032B | Cover, Sub-assy, NO.3 Seat Cushion, LH |
| 79033B | Cover Sub-assy, NO.3 Seatback, RH |
| 79033D | Cover Sub-assy, NO.3 Seatback |
| 79034A | Cover Sub-assy, NO.3 Seatback, LH |
| 79037 | Pad Sub-assy, NO.3 Seatback, RH |
| 79038 | Pad Sub-assy, NO.3 Seatback, LH |
| 79041C | Cover Sub-assy, NO.4 Seat Cushion, RH |
| 79042A | Cover Sub-assy, NO.4 Seat Cushion, LH |
| 79043B | Cover Sub-assy, NO.4 Seatback, RH(FOR RH SEAT) |
| 79043D | Cover Sub-assy, NO.4 Seatback |
| 79044B | Cover Sub-assy, NO.4 Seatback, LH(FOR LH SEAT) |
| 79105G | Leg Sub-assy, NO.1 Seat, RH |
| 79105J | Leg Sub-assy, NO.1 Seat |
| 79106B | Leg Sub-assy, NO.1 Seat, LH |
| 79107L | Leg Sub-assy, NO.1 Seat, Rear |
| 79127A | Bracket, NO.1 Seat Leg, Lower RH |
| 79127B | Bracket, NO.1 Seat Leg, Lower LH |
| 79135C | Pad, NO.1 Seat Cushion, RH |
| 79135D | Pad, NO.1 Seat Cushion |
| 79136C | Pad, NO.1 Seat Cushion, LH |
| 79160C | Spring Assy, NO.1 Seat Cushion |
| 79175F | Pad, NO.1 Seatback, RH |
| 79175H | Pad, NO.1 Seatback |
| 79180B | Spring Assy, NO.1 Seatback, RH |
| 79180C | Spring Assy, NO.1 Seatback |
| 79184A | Plate, NO.1 Seat Leg |
| 79185A | Pad, NO.1 Seatback, LH |
| 79190 | Spring Assy, NO.1 Seatback, LH |
| 79199D | Holder, NO.1 Seat Leg Stopper |
| 79205C | Leg Sub-assy, NO.2 Seat, RH |
| 79206D | Leg Sub-assy, NO.2 Seat, LH |
| 79216C | Plate, NO.2 Seat Leg |
| 79235F | Pad, NO.2 Seat Cushion, RH |
| 79236G | Cover, NO.2 Seat Leg, RH |
| 79236K | Cover, NO.1 Seat Leg, NO.1 |
| 79245A | Pad, NO.2 Seat Cushion, LH |
| 79275F | Pad, NO.2 Seatback, RH |
| 79275H | Pad, NO.2 Seatback |
| 79280E | Spring Assy, NO.2 Seatback RH |
| 79280F | Spring Assy, NO.2 Seatback RH |
| 79285C | Pad, NO.2 Seatback, LH |
| 79290E | Spring Assy, NO.2 Seatback LH |
| 79305E | Leg Sub-assy, NO.3 Seat, RH |
| 79306A | Leg Sub-assy, NO.3 Seat, LH |
| 79319A | Bracket, Rear Seat Leg, Rear RH |
| 79329B | Bracket, Rear Seat Leg, Rear LH |
| 79335B | Pad, NO.3 Seat Cushion, RH |
| 79345B | Pad, NO.3 Seat Cushion, LH |
| 79360B | Spring Assy, NO.3 Seat Cushion, RH |
| 79370 | Spring Assy, NO.3 Seat Cushion, LH |
| 79375C | Pad, NO.3 Seatback, RH |
| 79375E | Pad, NO.3 Seatback |
| 79380B | Spring Assy, Rear Seatback, RH |
| 79380E | Spring Assy, NO.3 Seatback |
| 79385 | Pad, NO.3 Seatback, LH |
| 79390B | Spring Assy, NO.3 Seatback, LH |
| 79391B | Spring, Rear Seat Cushion |
| 79397A | Plate, NO.3 Seat Leg |
| 79405C | Leg Sub-assy, NO.4 Seat, RH |
| 79406C | Leg Sub-assy, NO.4 Seat, LH |
| 79435B | Pad, NO.4 Seat Cushion, RH |
| 79445A | Pad, NO.4 Seat Cushion, LH |
| 79460B | Spring Assy, NO.4 Seat Cushion, RH |
| 79470 | Spring Assy, NO.4 Seat Cushion, LH |
| 79475B | Pad, NO.4 Seatback, RH(FOR RH SEAT) |
| 79475D | Pad, NO.4 Seatback |
| 79480B | Spring Assy, NO.4 Seatback, RH(FOR RH SEAT) |
| 79480C | Spring Assy, NO.4 Seatback, RH(FOR LH SEAT) |
| 79485B | Pad, NO.4 Seatback, LH(FOR LH SEAT) |
| 79490B | Spring Assy, NO.4 Seatback, LH(FOR LH SEAT) |
| 79956V | Cover, Rear Seat Leg Side, RH |
| 79957C | Cover, Rear Seat Rear Bracket, RH |
| 79958B | Cover, Rear Seat Rear Bracket, LH |
| 79967T | Cover, Rear NO.1 Seat Leg Side, NO.1 |
| 79967U | Cover, Rear NO.1 Seat Leg Side, NO.2 |
| 79967Y | Cover, Rear NO.2 Seat Leg Side, NO.1 |
| 79967Z | Cover, Rear NO.2 Seat Leg Side, NO.2 |
| 79977J | Felt, Seatback |
| 79978J | Clip, Rear Seat Leg Garnish Cover |
| 79978K | Cover, Rear Seat Leg Side, NO.1 |
| 79978L | Cover, Rear Seat Leg Side, NO.2 |
| 79978M | Cover, Rear Seat Leg Side, NO.3 |
| 79978N | Cover, Rear Seat Leg Side, NO.4 RH |
| 79978P | Cover, Rear Seat Leg Side, NO.4 LH |
| 79J67 | Cover, Rear NO.2 Seat Leg Side, NO.3 |
| 79J67A | Cover, Rear NO.2 Seat Leg Side, NO.4 |
| 79J67C | Cover, Rear NO.3 Seat Leg Side, NO.1 |
| 79J67D | Cover, Rear NO.3 Seat Leg Side, NO.2 |
| 79J67E | Cover, Rear NO.3 Seat Leg Side, NO.3 |
| 79J67F | Cover, Rear NO.3 Seat Leg Side, NO.4 |
| 79J67H | Cover, Rear NO.4 Seat Leg Side, NO.1 |
| 79J67J | Cover, Rear NO.4 Seat Leg Side, NO.2 |
| 79J67K | Cover, Rear NO.4 Seat Leg Side, NO.3 |
| 79J67L | Cover, Rear NO.4 Seat Leg Side, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
