Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

17 part groups · 3 illustrations

Illustrations

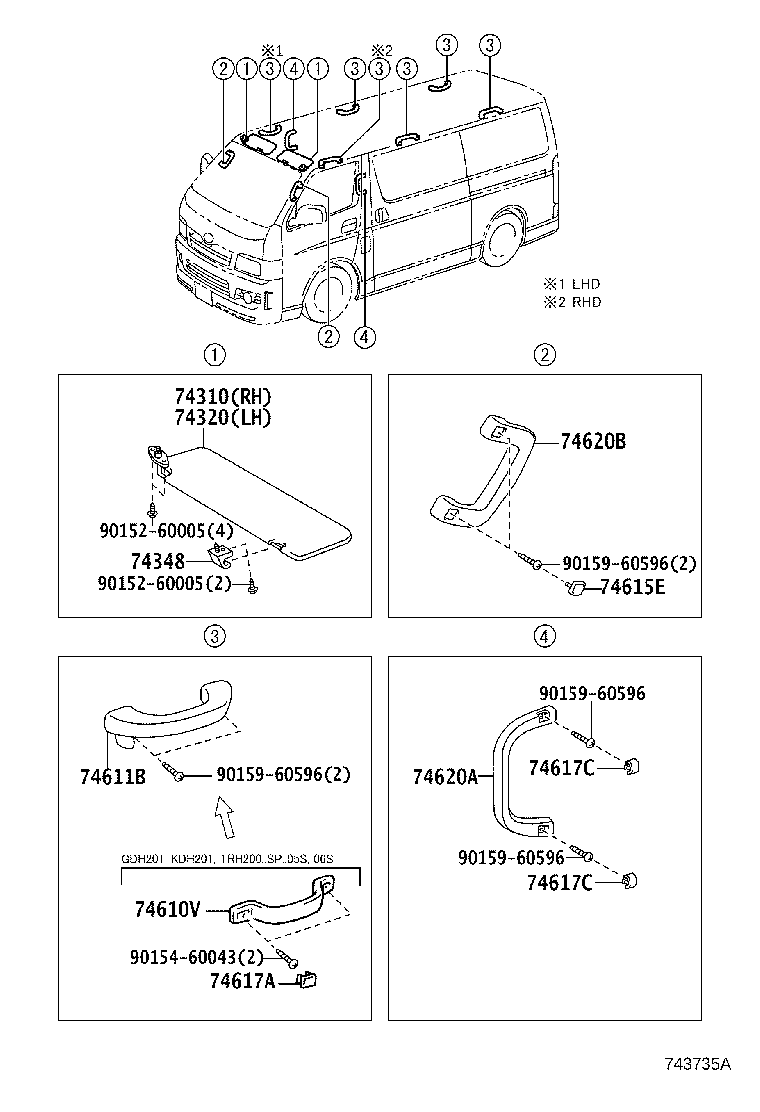

Figure 741569A 741569A 2013-12 → — Figure 743735A 743735A 2013-12 → — Figure 743733 743733 2013-12 → —

Part groups

PNCDescription
58780B Band Assy, Tool Box
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610V Grip Assy, Assist
74611B Grip, Assist
74615E Plug, Front Assist Grip, NO.1 RH
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74620A Grip Assy, Assist, Rear
74620B Grip Assy, Assist, Rear
74710 Extinguisher Assy
74710A Bracket, Extinguisher
74813B Handle, Front Door Pull, RH
74814C Handle, Front Door Pull, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
