Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

4 part groups · 8 illustrations

Illustrations

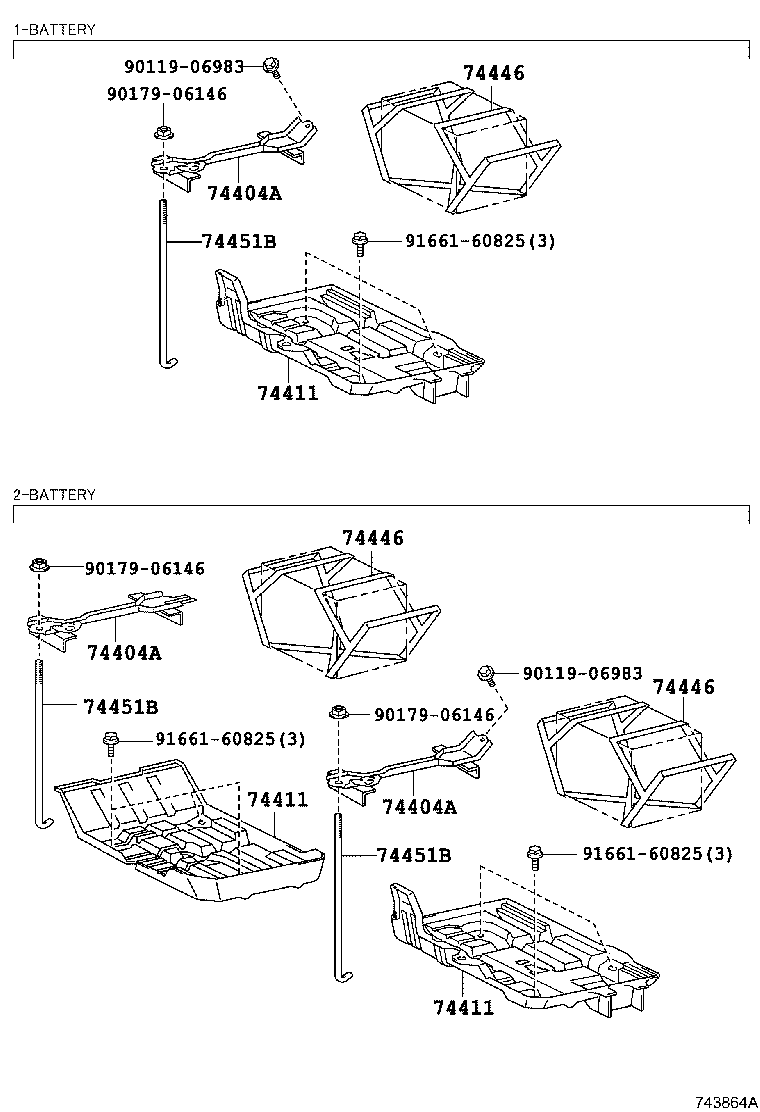

Figure 743756A 743756A 2013-12 → 2015-01 Figure 743756A 743756A 2013-12 → 2015-01 Figure 743756A 743756A 2013-12 → 2015-02 Figure 743756A 743756A 2013-12 → 2015-03 Figure 743864A 743864A 2015-01 → — Figure 743864A 743864A 2015-01 → — Figure 743864A 743864A 2015-02 → — Figure 743864A 743864A 2015-03 → —

Part groups

PNCDescription
74404A Clamp Sub-assy, Battery
74411 Carrier, Battery
74446 Band, Battery
74451B Bolt, Battery Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
