Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

32 part groups · 5 illustrations

Illustrations

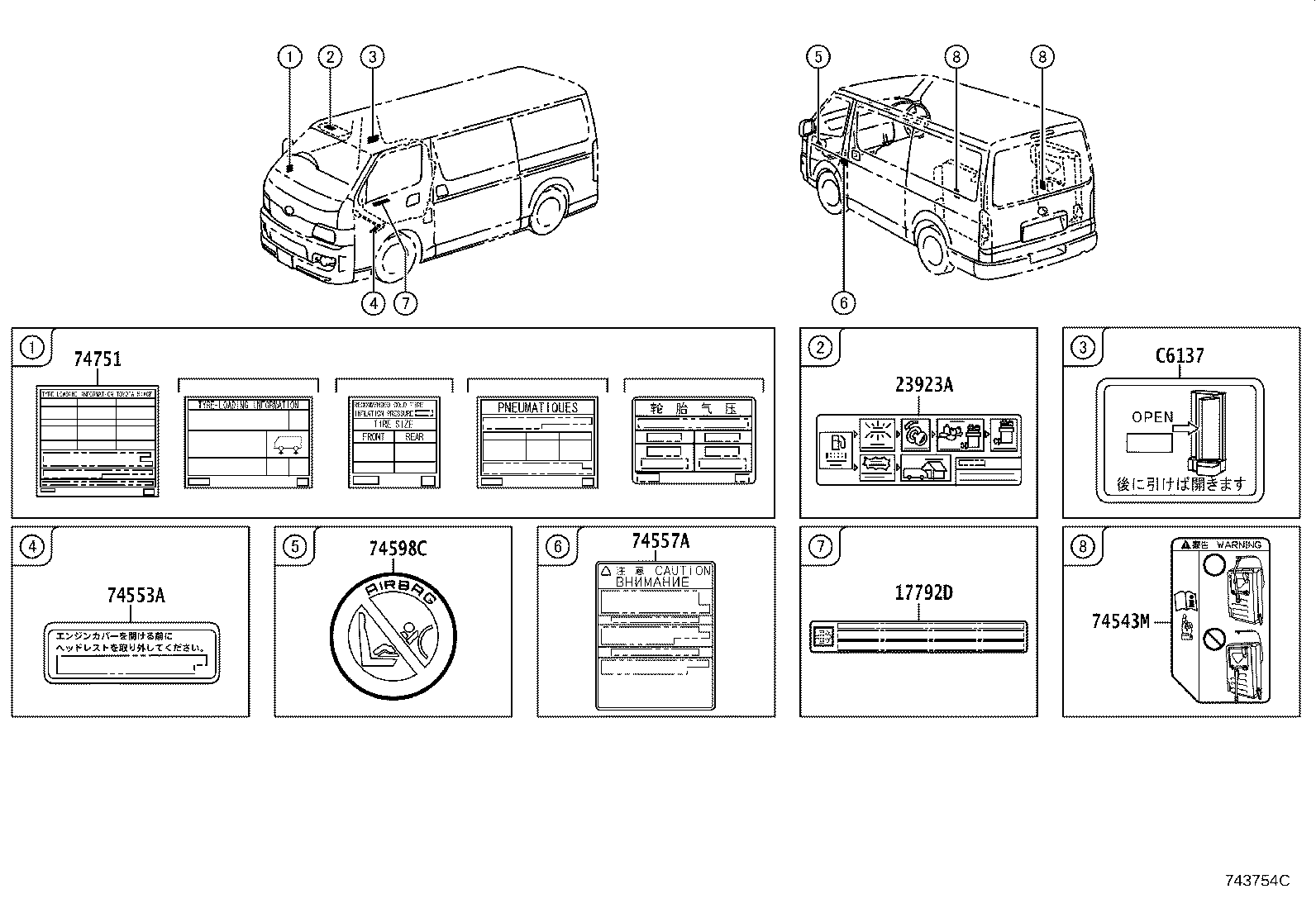

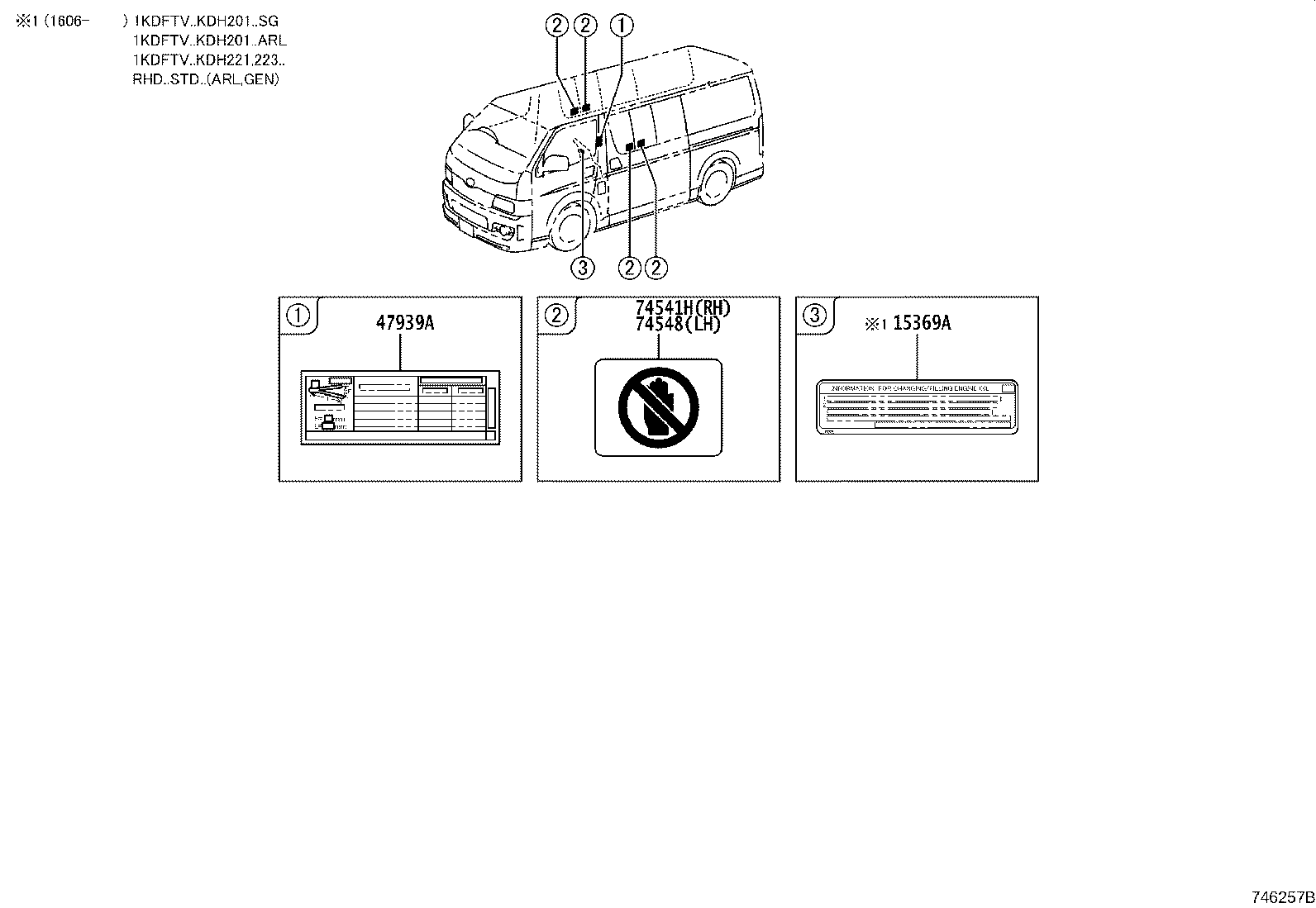

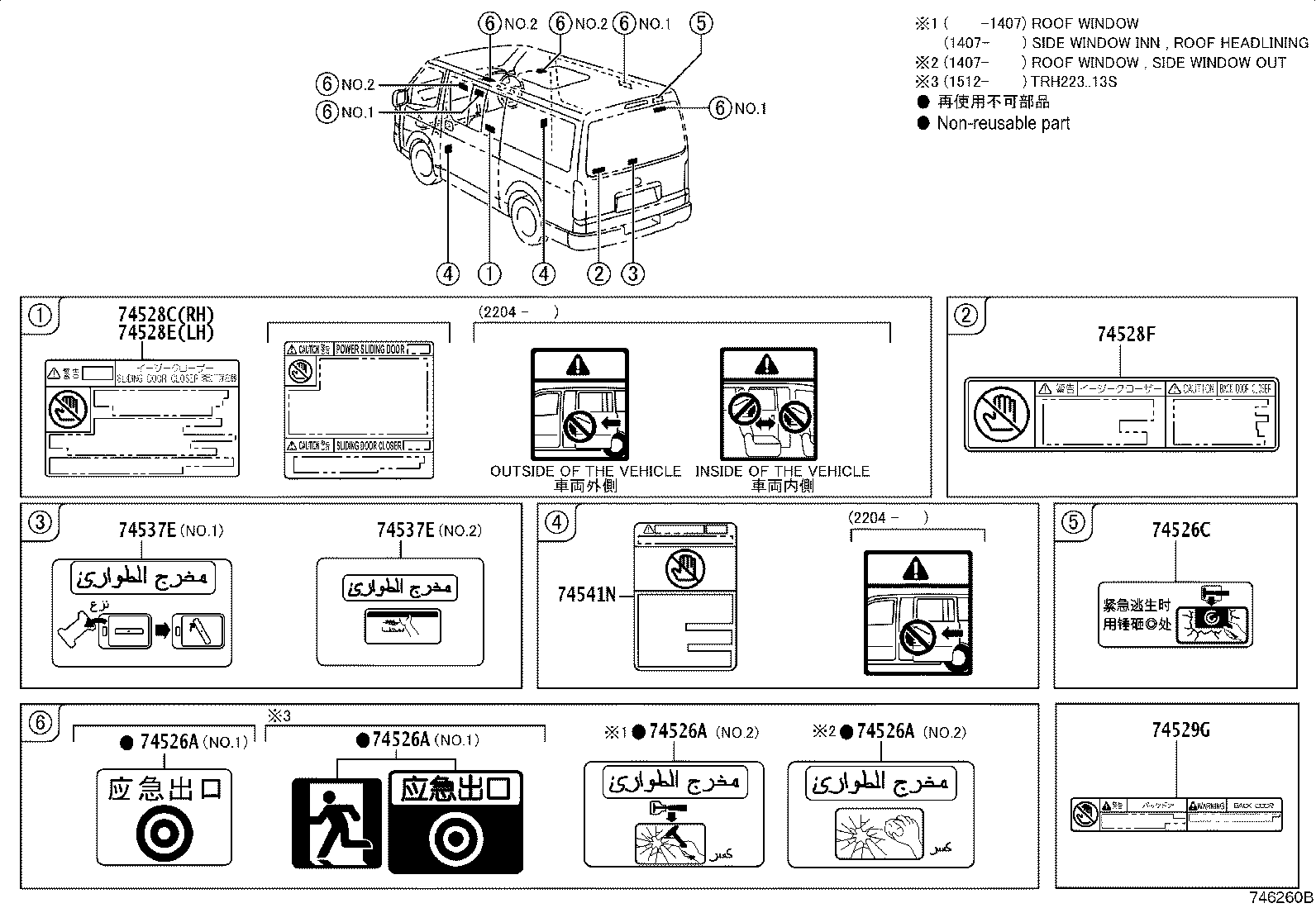

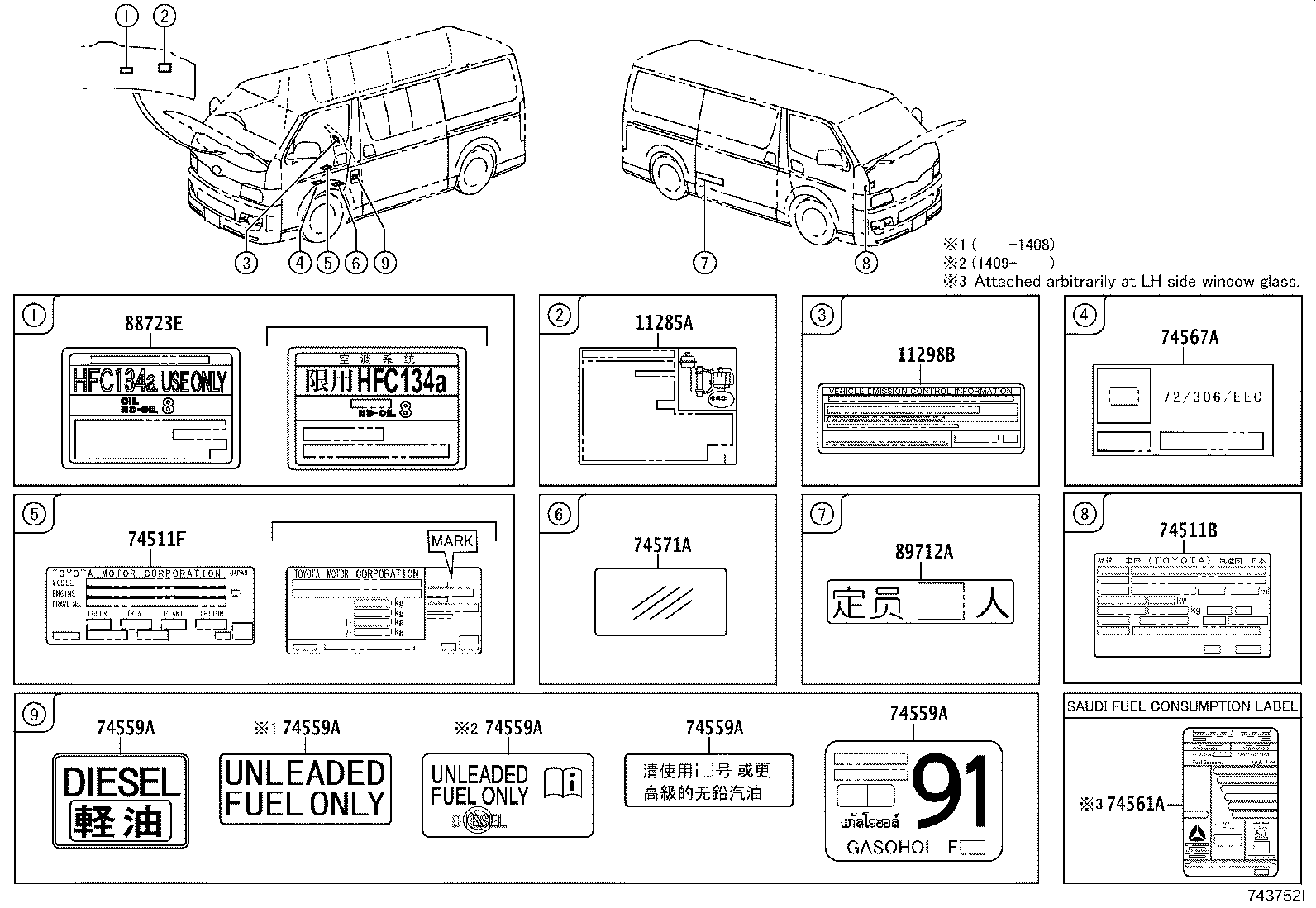

Figure 745398A 745398A 2013-12 → — Figure 743752I 743752I 2013-12 → — Figure 746257B 746257B 2013-12 → — Figure 746260B 746260B 2013-12 → — Figure 743754C 743754C 2013-12 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11289B Label, Spark Plug Notice
11298B Label, Emission Control Information
15369A Label, Engine Oil Information
16793B Label, Cooling Fan Information
17700R Label, Air Cleaner Information
17792D Label, Emission Control Device Information
23923A Label, Fuel Sedimenter Notice
47939A Plate, Load Sensing Valve Marking
74511B Plate, Name
74511F Label, Name (IDENTIFICATION LASER LABEL)
74526A Plate, Emergency Hammer Caution
74526C Label, Emergency Hammer Caution
74528C Label, Power Slide Door Notice
74528E Label, Power Slide Door Notice
74528F Label, Door Closer Caution, RH
74537E Label, Emergency Back Door Caution
74541H Plate, Body Caution
74541N Label, Body Caution
74543M Label, Rear Seat Caution, NO.2
74548 Plate, Body Caution
74553A Plate, Front Seat Caution
74557A Plate, Engine Service Hole Cover Balance Caution
74559A Plate, Fuel Caution
74561A Label, Fuel Consumption Information
74567A Plate, E.C.E Approved Number
74571A Film, Label Cover
74598C Label, Passenger Airbag Caution
74751 Label, Tire Pressure Information
88723E Label, Cooler Service Caution
89712A Label, Seat Control Information
C6137 Label, Slide Door Handle Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
