Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

8 part groups · 8 illustrations

Illustrations

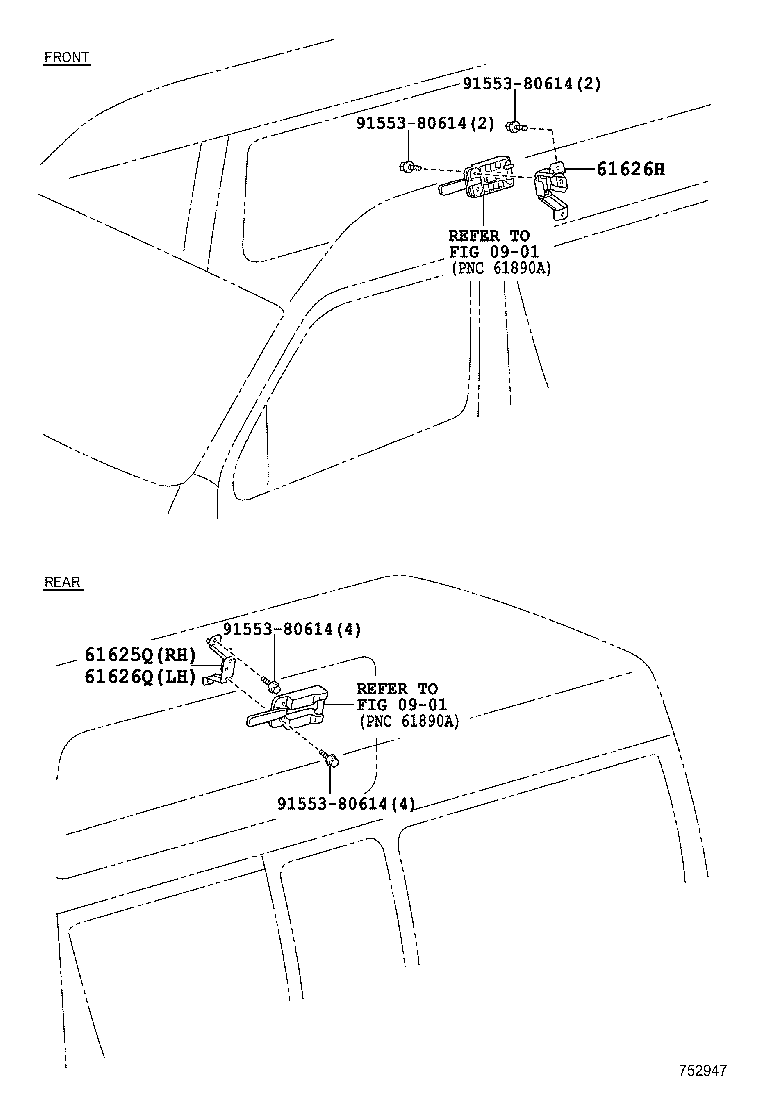

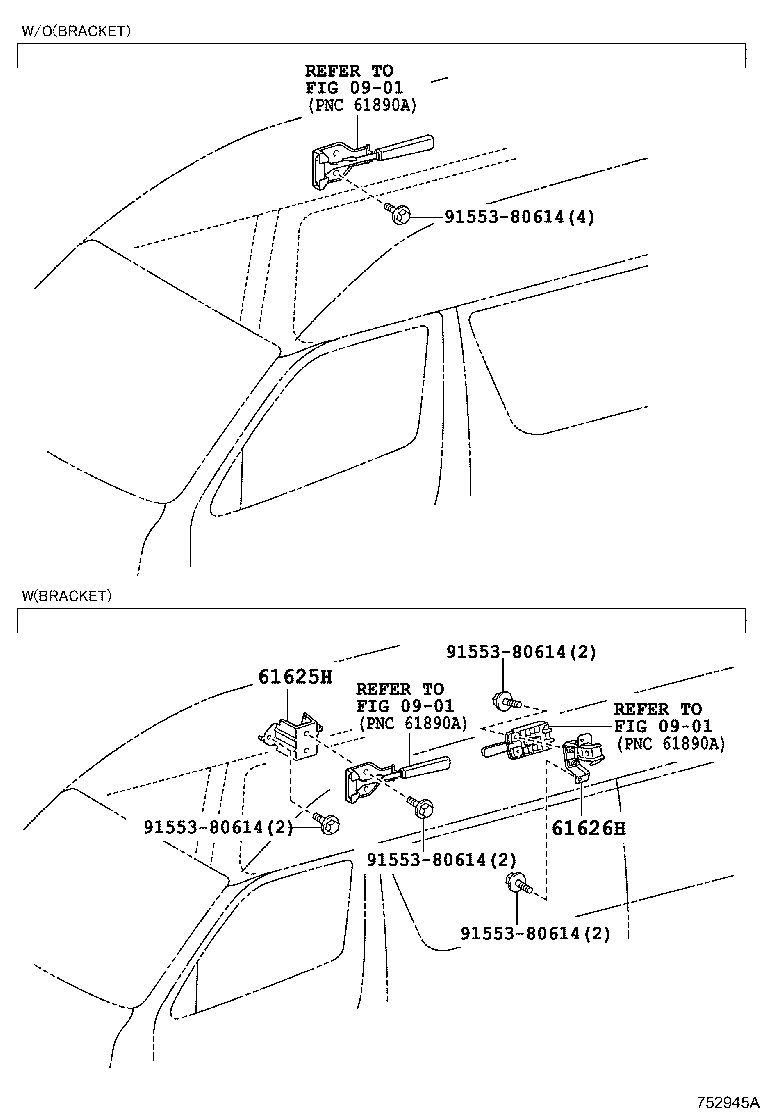

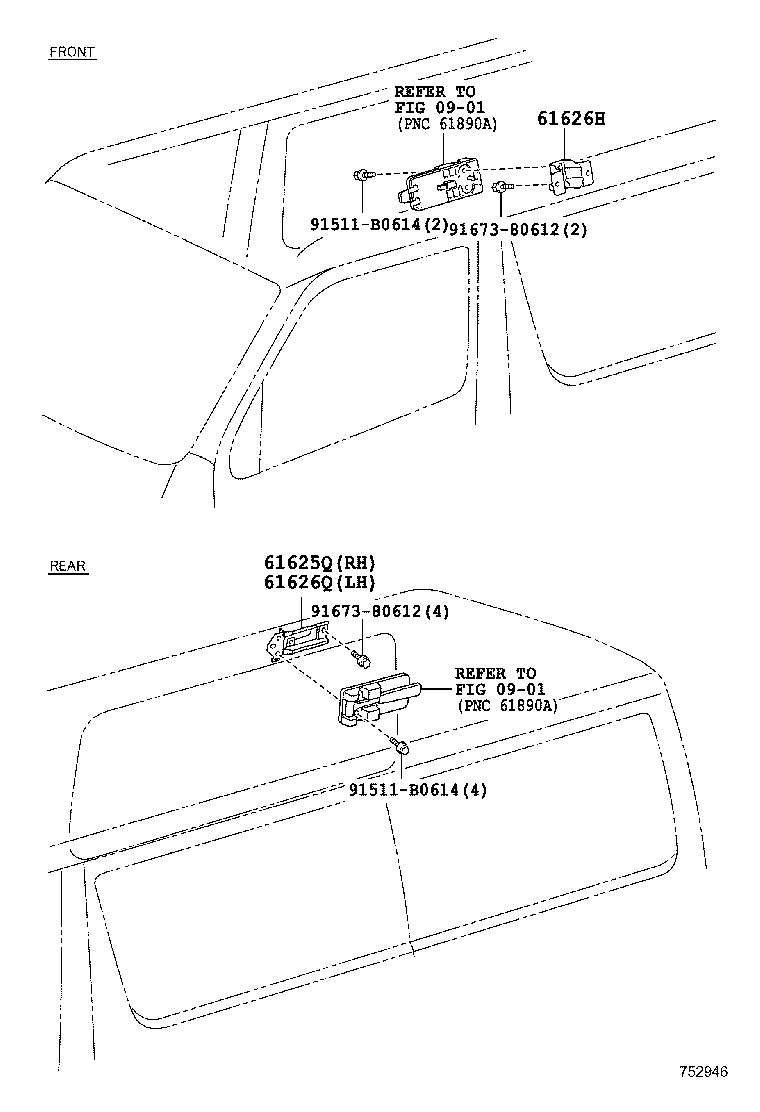

Figure 752943A 752943A 2013-12 → — Figure 752945A 752945A 2013-12 → — Figure 752945A 752945A 2017-10 → — Figure 752946 752946 2013-12 → — Figure 752947 752947 2013-12 → — Figure 752947 752947 2016-12 → — Figure 752947 752947 2017-01 → — Figure 753309 753309 2016-06 → —

Part groups

PNCDescription
58777A Holder, Tool Bag
58780 Band Assy, Tool Box
58789A Hook, Tool Box Band, NO.2
61625H Bracket, Quarter Panel Reinforcement, RH
61625Q Bracket, Quarter Panel Reinforcement, RH
61625R Bracket, Back Door Panel
61626H Bracket, Quarter Panel Reinforcement, LH
61626Q Bracket, Quarter Panel Reinforcement, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
