Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

26 part groups · 12 illustrations

Illustrations

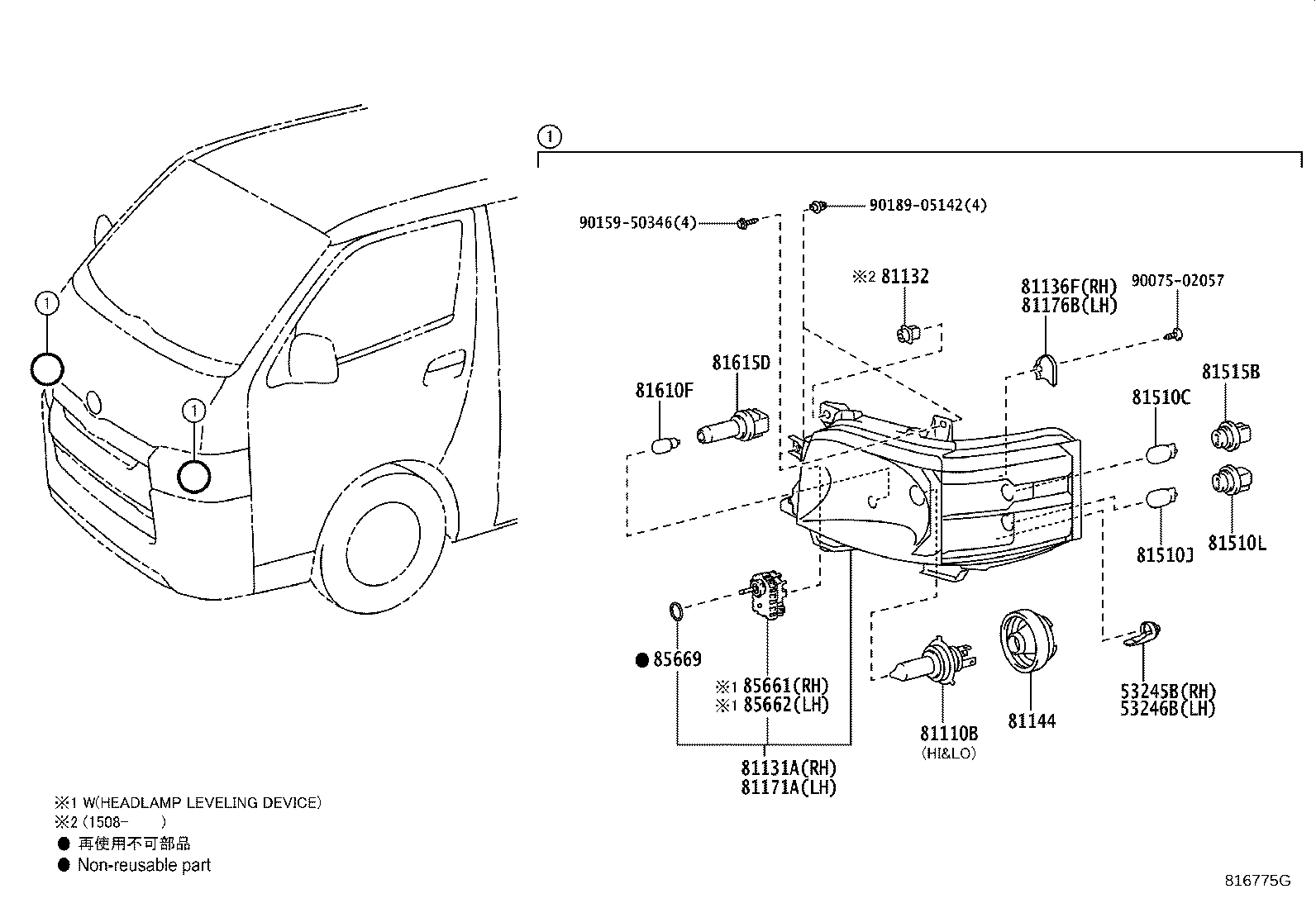

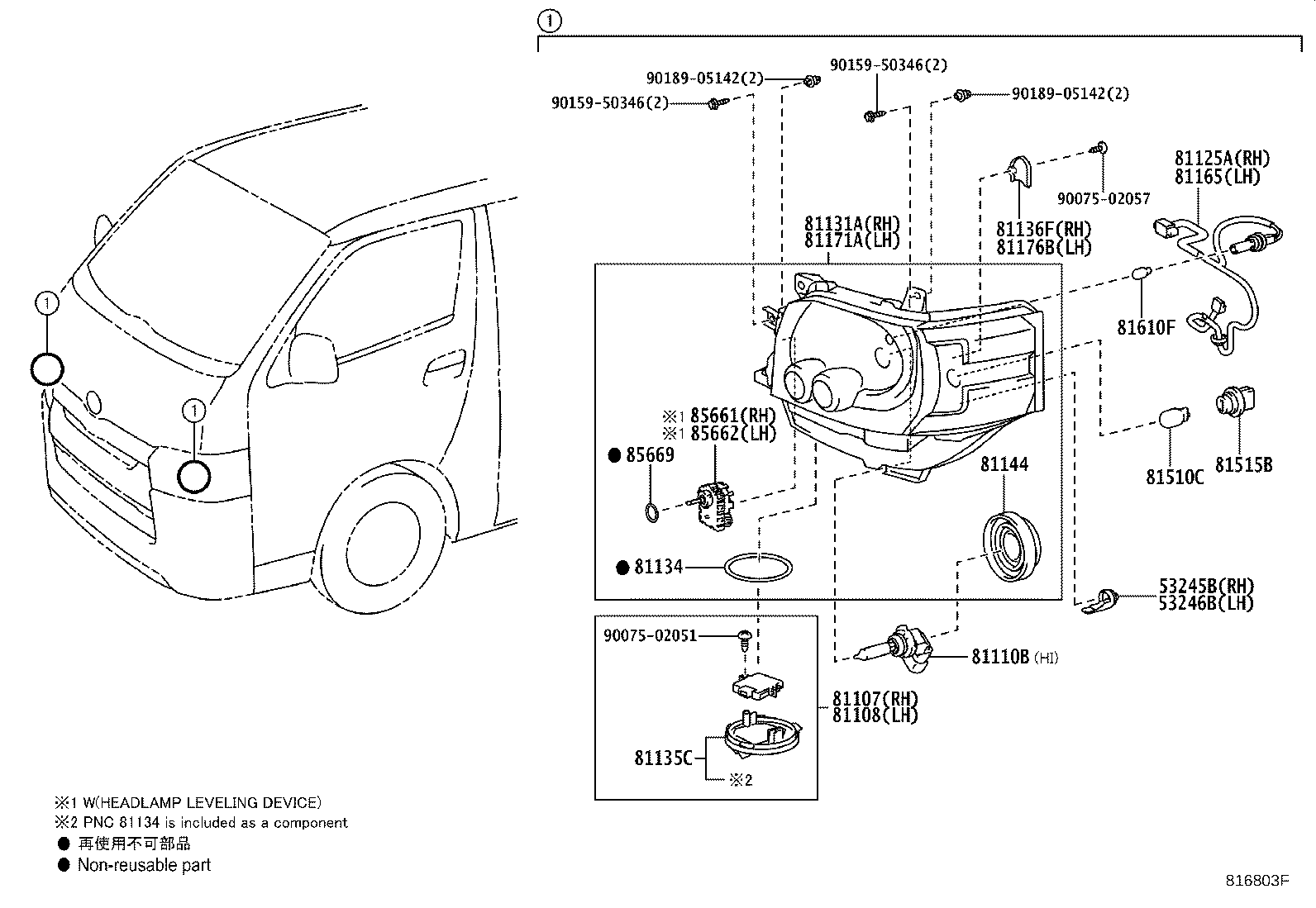

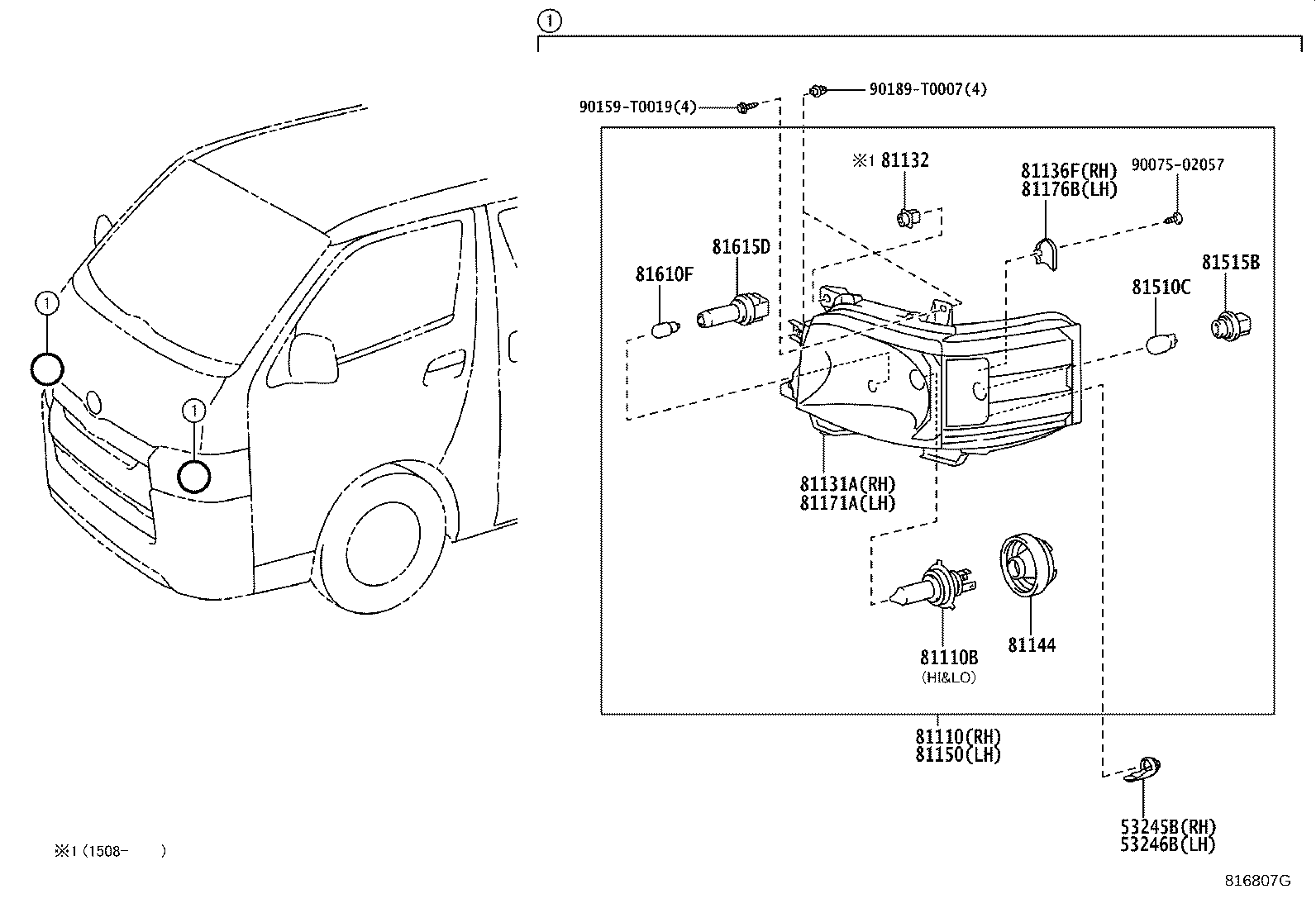

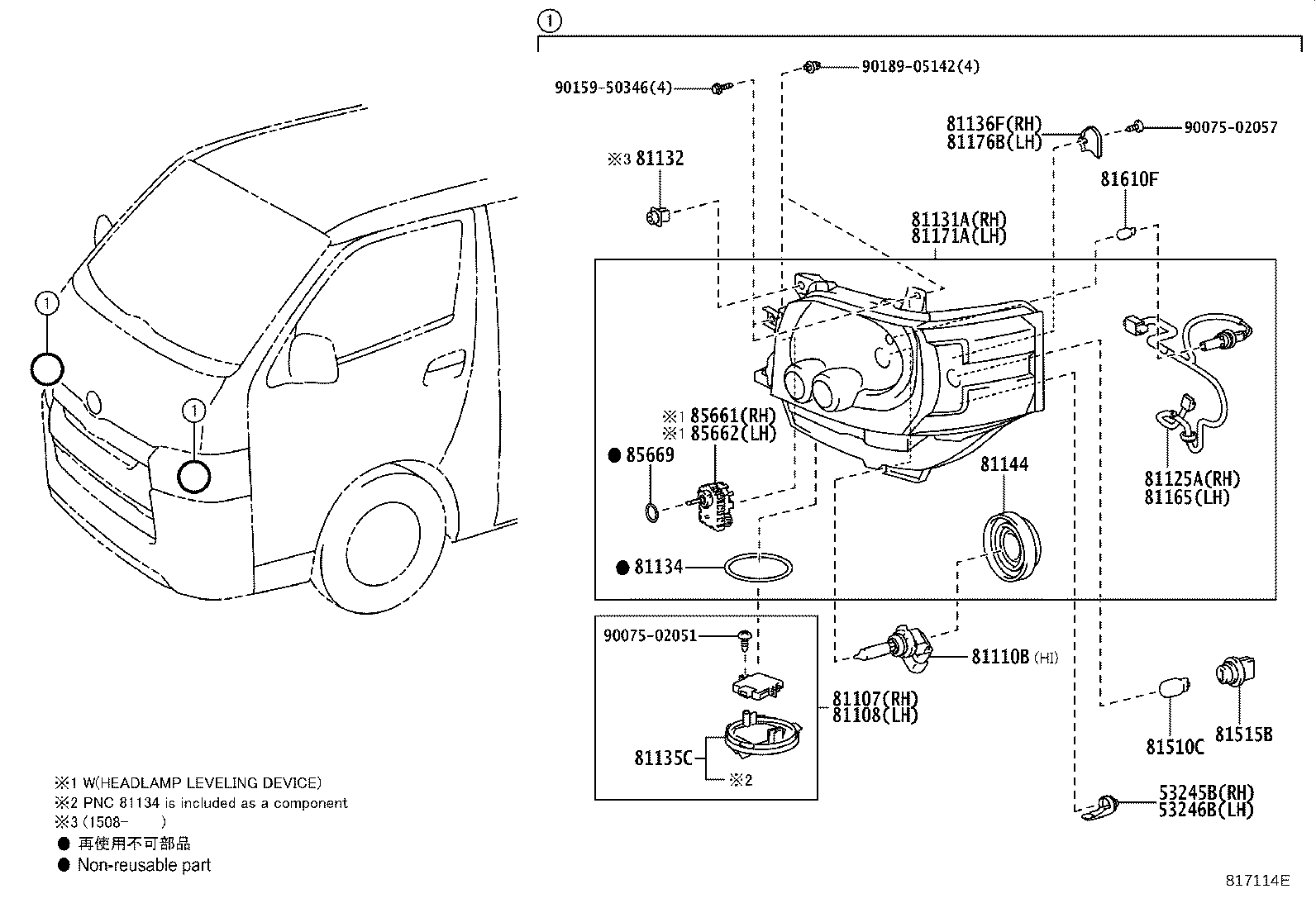

Figure 816802H 816802H 2013-12 → — Figure 816802H 816802H 2013-12 → — Figure 816802H 816802H 2013-12 → — Figure 816775G 816775G 2013-12 → — Figure 816775G 816775G 2013-12 → — Figure 816807G 816807G 2014-01 → — Figure 816807G 816807G 2015-05 → — Figure 816807G 816807G 2015-06 → — Figure 816803F 816803F 2013-12 → 2014-05 Figure 816803F 816803F 2013-12 → 2014-06 Figure 817114E 817114E 2014-05 → — Figure 817114E 817114E 2014-06 → —

Part groups

PNCDescription
53245B Bracket, Headlamp, RH
53246B Bracket, Headlamp, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81125A Cord, Headlamp, RH
81131A Unit, Headlamp, RH
81132 Nut, Headlamp Self Locking
81134 Gasket, Headlamp
81135C Cover, Headlamp Back, NO.1
81136F Cover, Headlamp, NO.2 RH
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81165 Cord, Headlamp, LH
81171A Unit, Headlamp, LH
81176B Cover, Headlamp, NO.2 LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81510J Bulb(FOR DAYTIME RUNNING LAMP)
81510L Socket, Daytime Running Lamp
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
