Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

160 part groups · 22 illustrations

Illustrations

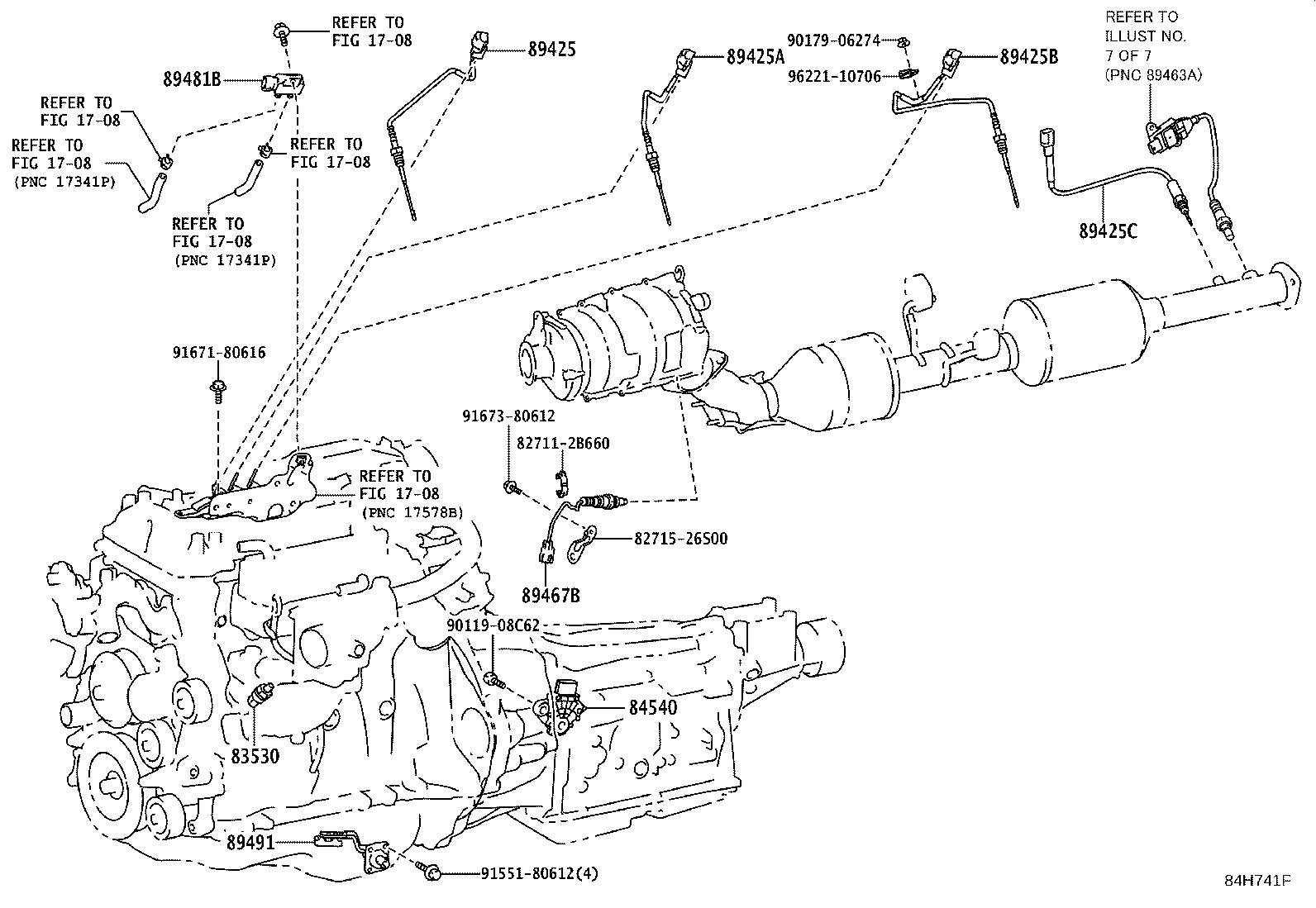

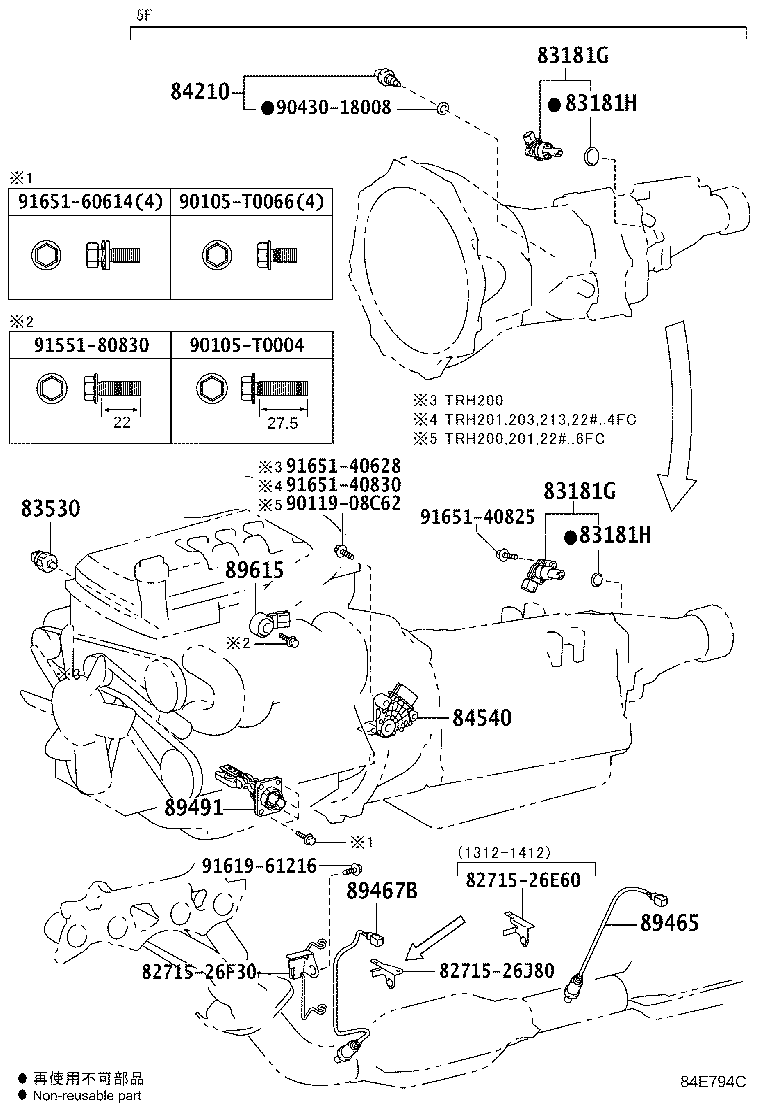

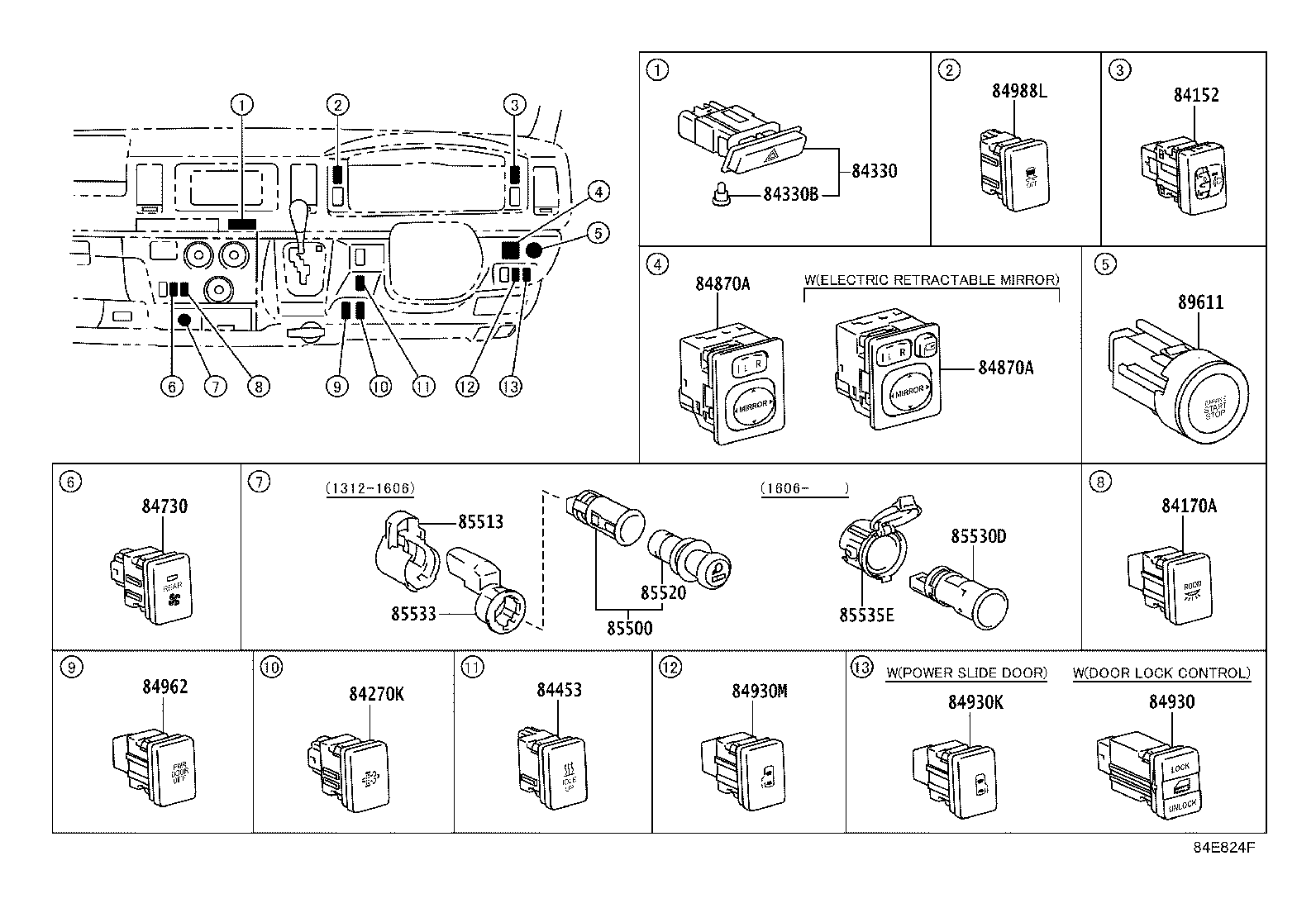

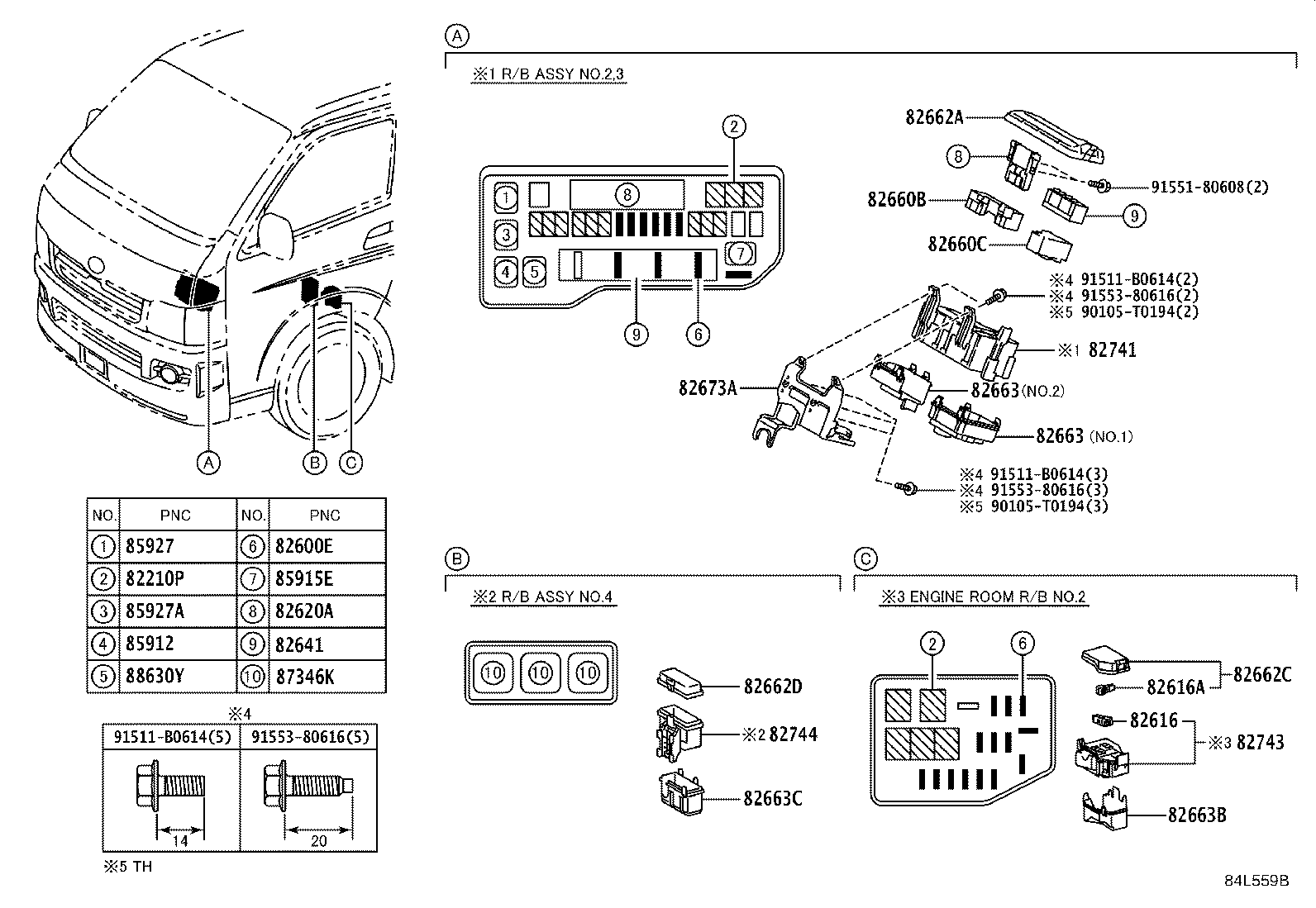

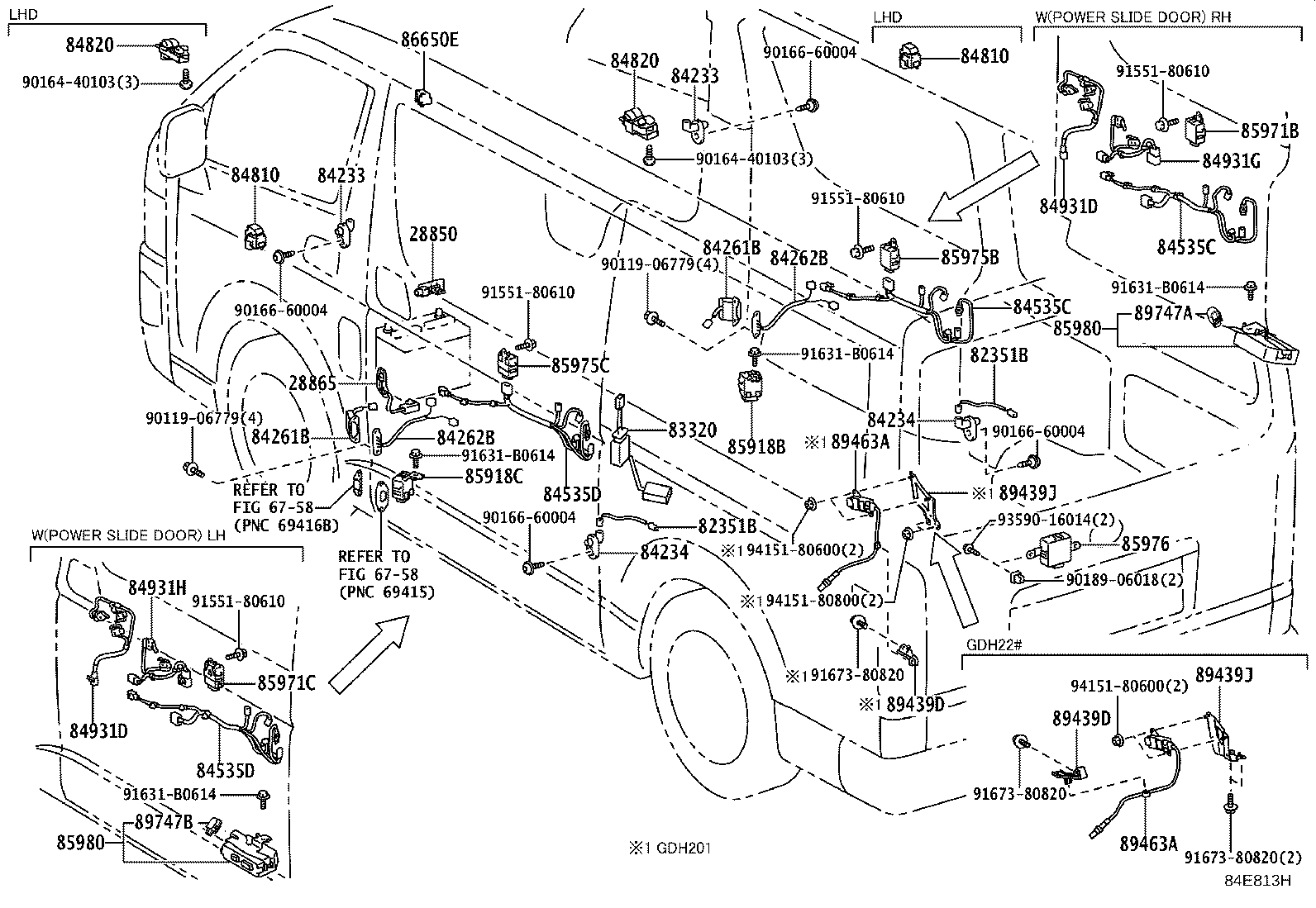

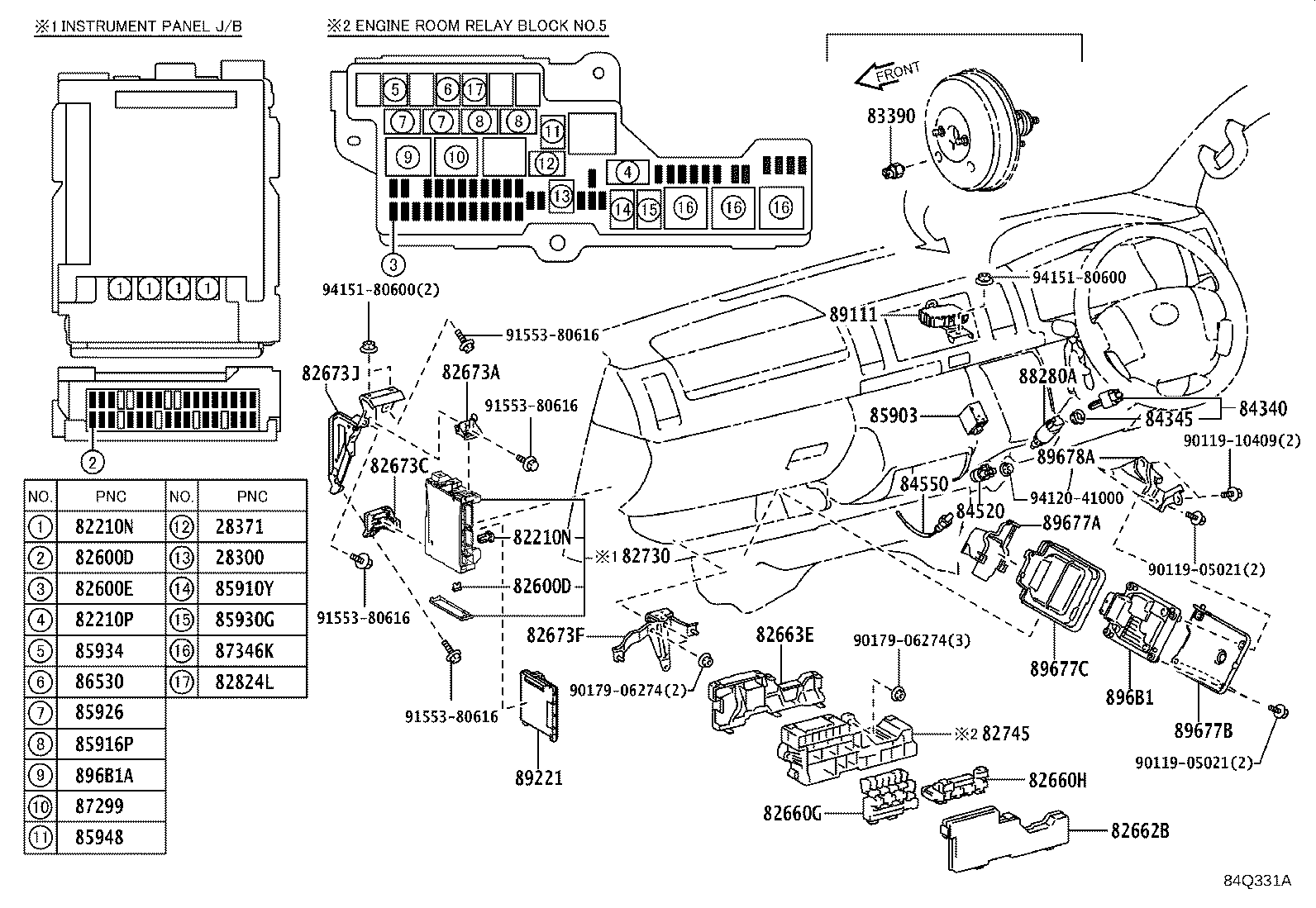

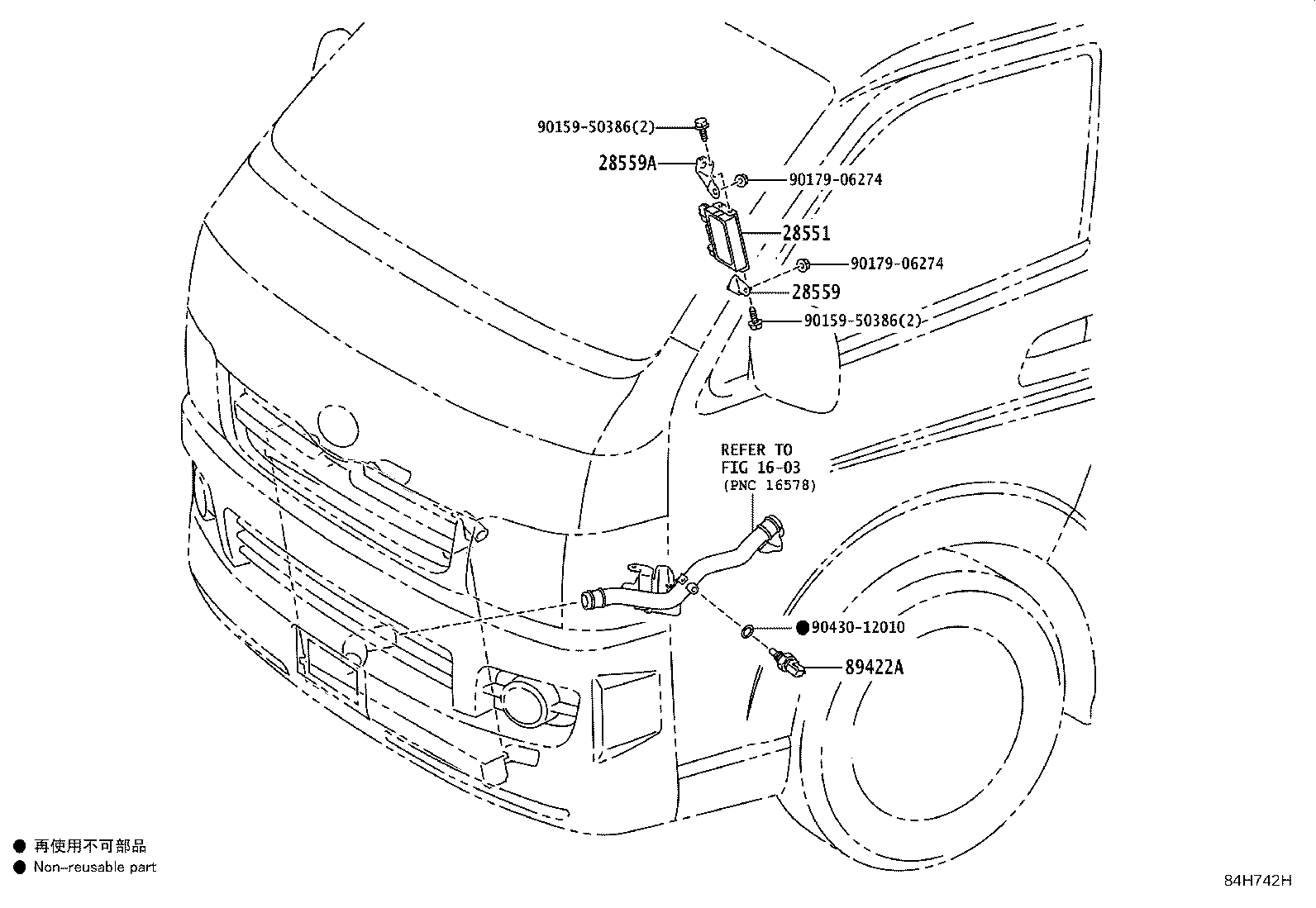

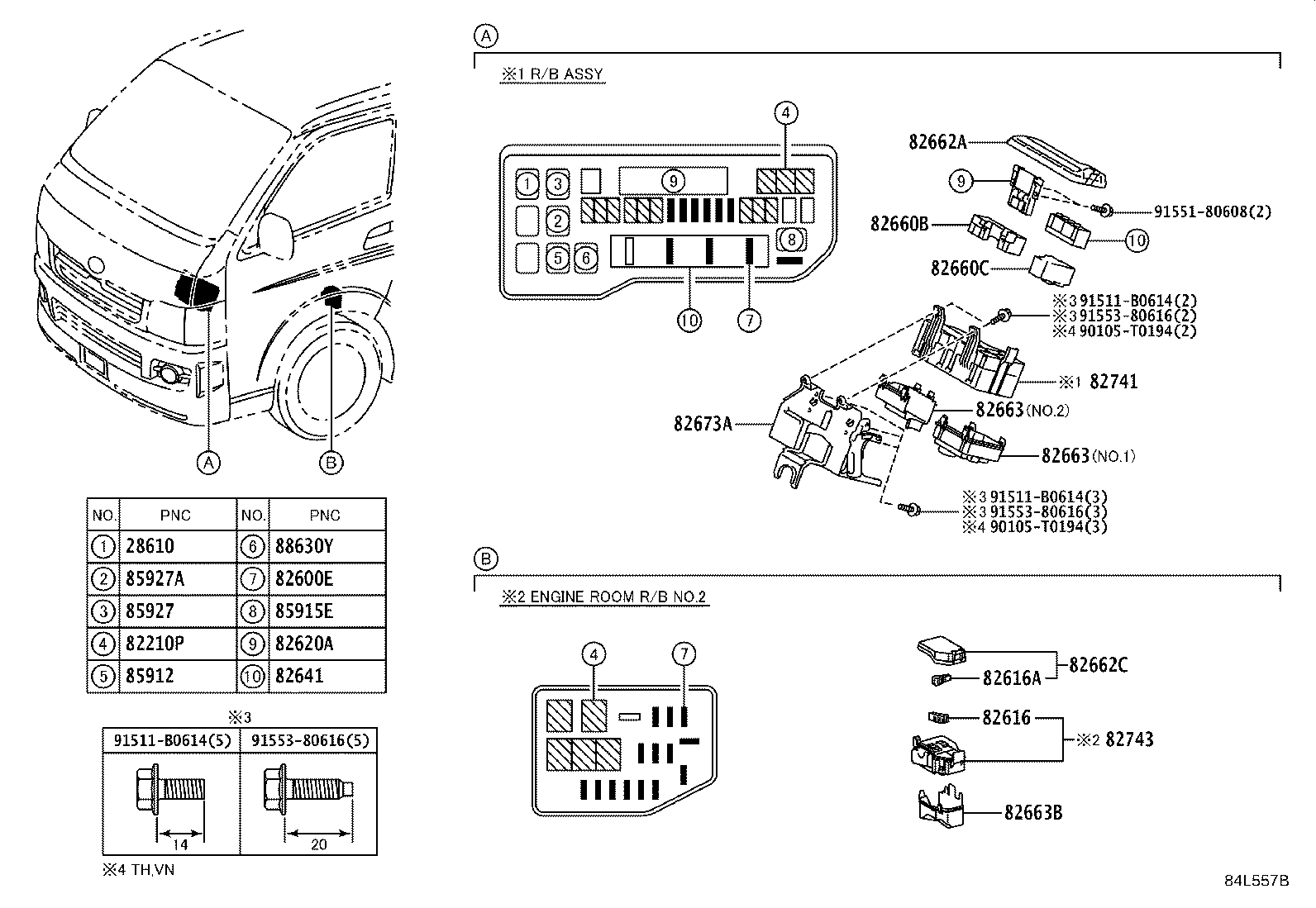

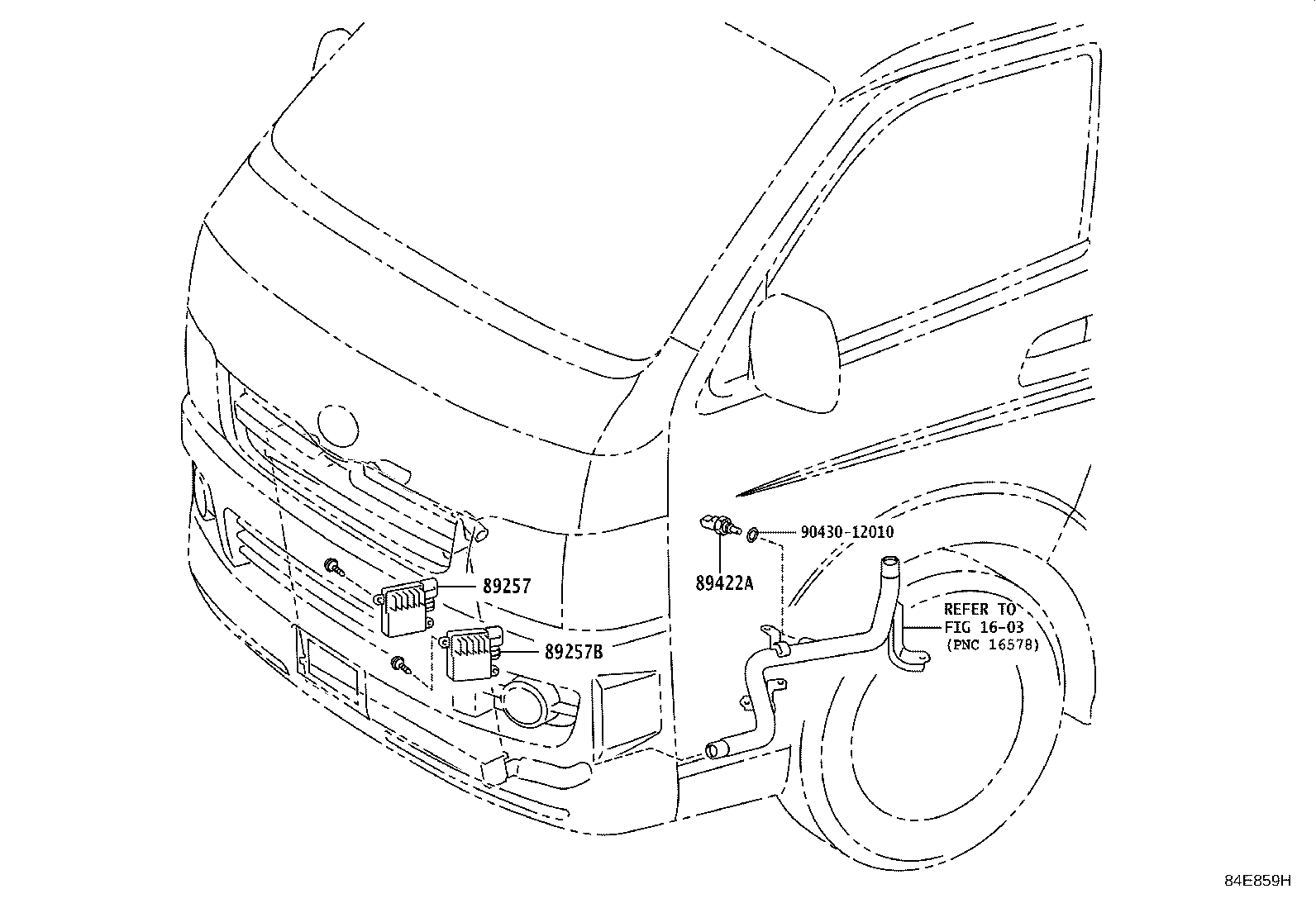

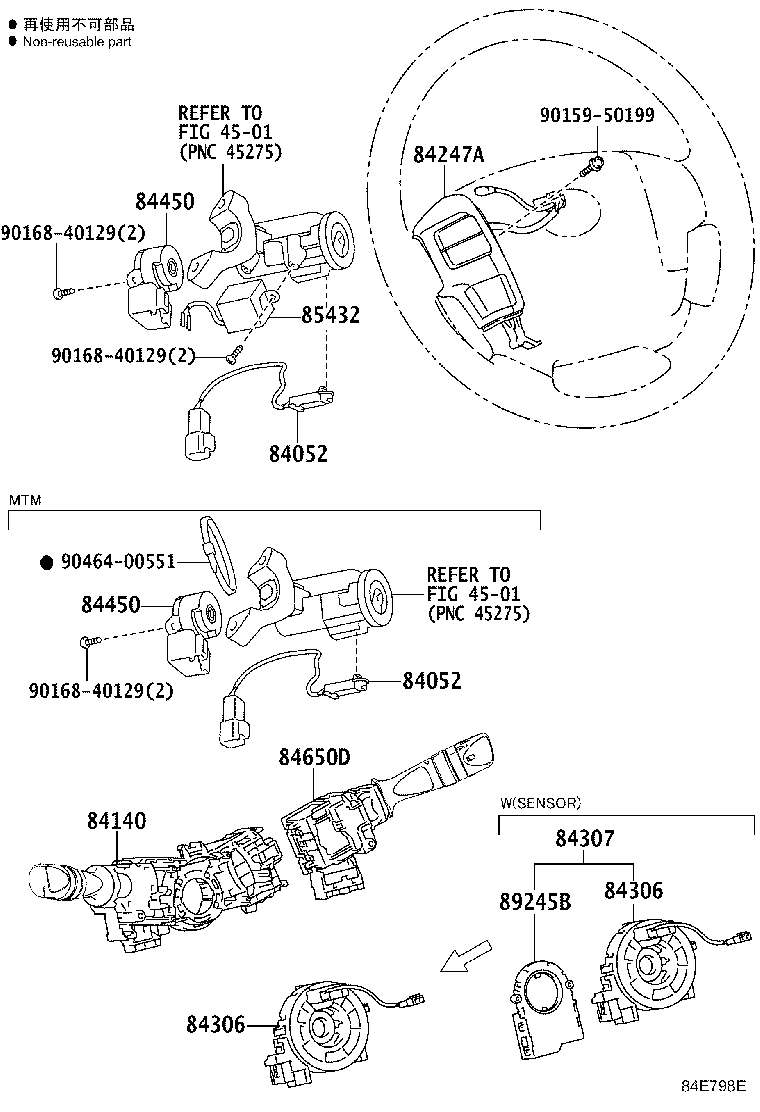

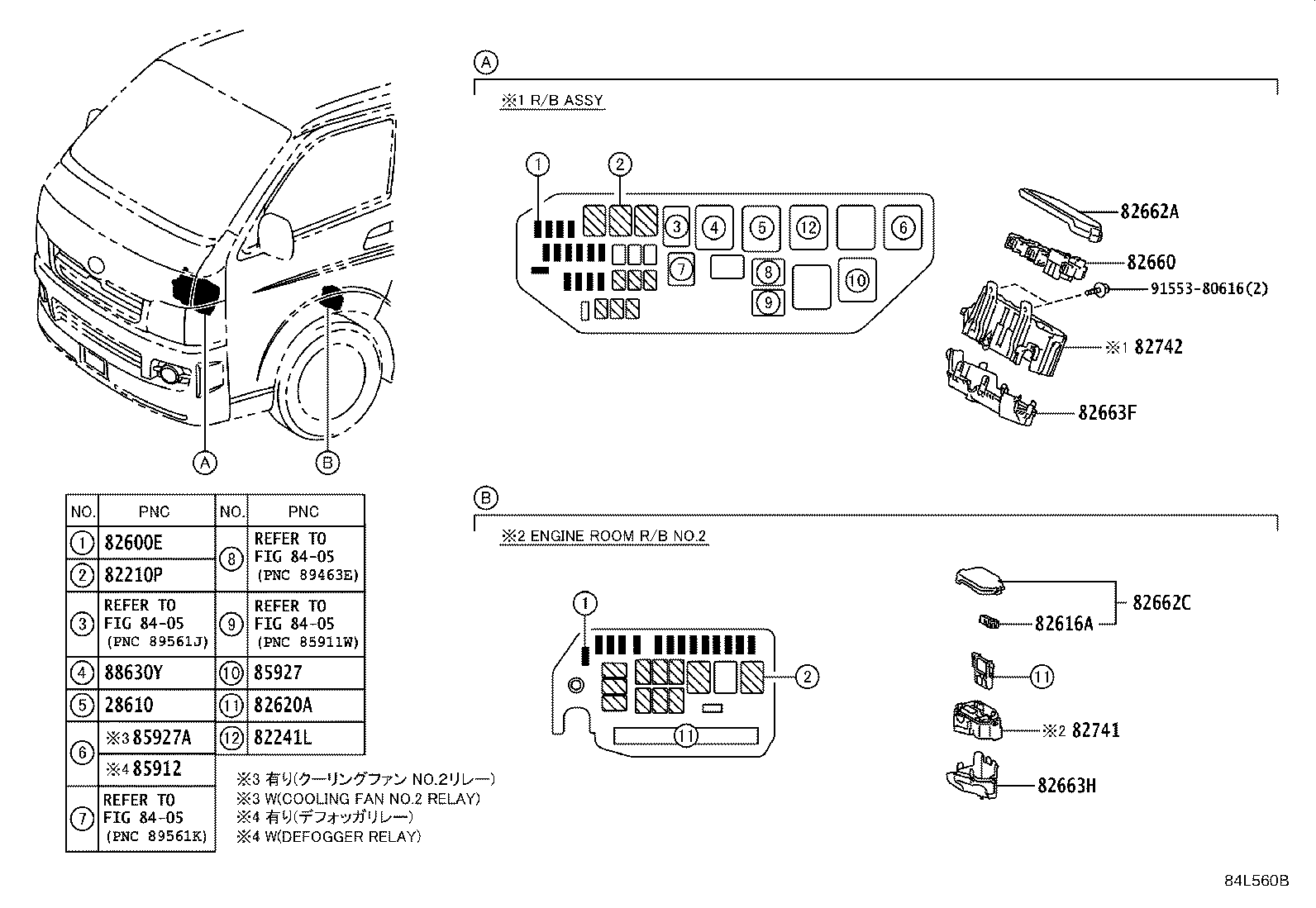

Figure 84E792C 84E792C 2013-12 → — Figure 84E793A 84E793A 2013-12 → — Figure 84E794C 84E794C 2013-12 → — Figure 84H741F 84H741F 2017-01 → — Figure 84E814K 84E814K 2013-12 → — Figure 84E859H 84E859H 2013-12 → — Figure 84E815I 84E815I 2013-12 → — Figure 84H742H 84H742H 2017-01 → — Figure 84L557B 84L557B 2013-12 → — Figure 84L558B 84L558B 2013-12 → — Figure 84L559B 84L559B 2013-12 → — Figure 84L560B 84L560B 2017-01 → — Figure 84Q333A 84Q333A 2023-02 → — Figure 84E816H 84E816H 2013-12 → — Figure 84E817G 84E817G 2013-12 → — Figure 84H743C 84H743C 2017-01 → — Figure 84Q331A 84Q331A 2023-02 → — Figure 84E823E 84E823E 2013-12 → — Figure 84E824F 84E824F 2013-12 → — Figure 84E798E 84E798E 2013-12 → — Figure 84E799F 84E799F 2013-12 → — Figure 84E813H 84E813H 2013-12 → —

Part groups

PNCDescription
17616A Relay, Air Pump
28300 Relay Assy, Starter
28371 Relay, Ignition, NO.1

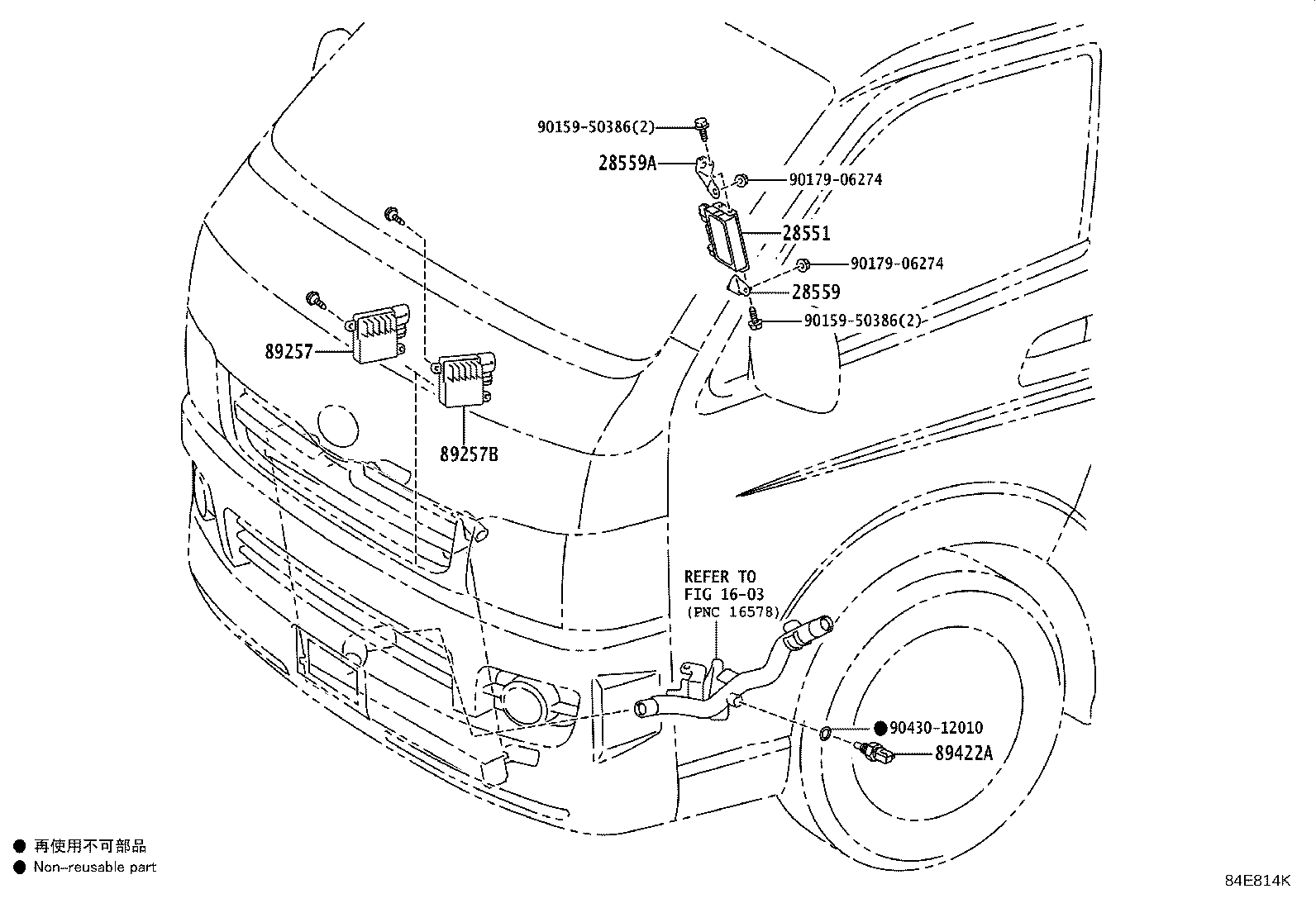

28551 Controller, Glow Plug
28559 Bracket, Glow Plug Controller, NO.1
28559A Bracket, Glow Plug Controller, NO.2
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
28865 Sensor, Battery Thermometer
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82241L Wire, Relay
82351B Wire,Courtesy Lamp
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82616A Puller, Fuse, NO.2
82620A Block Assy, Fusible Link
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2

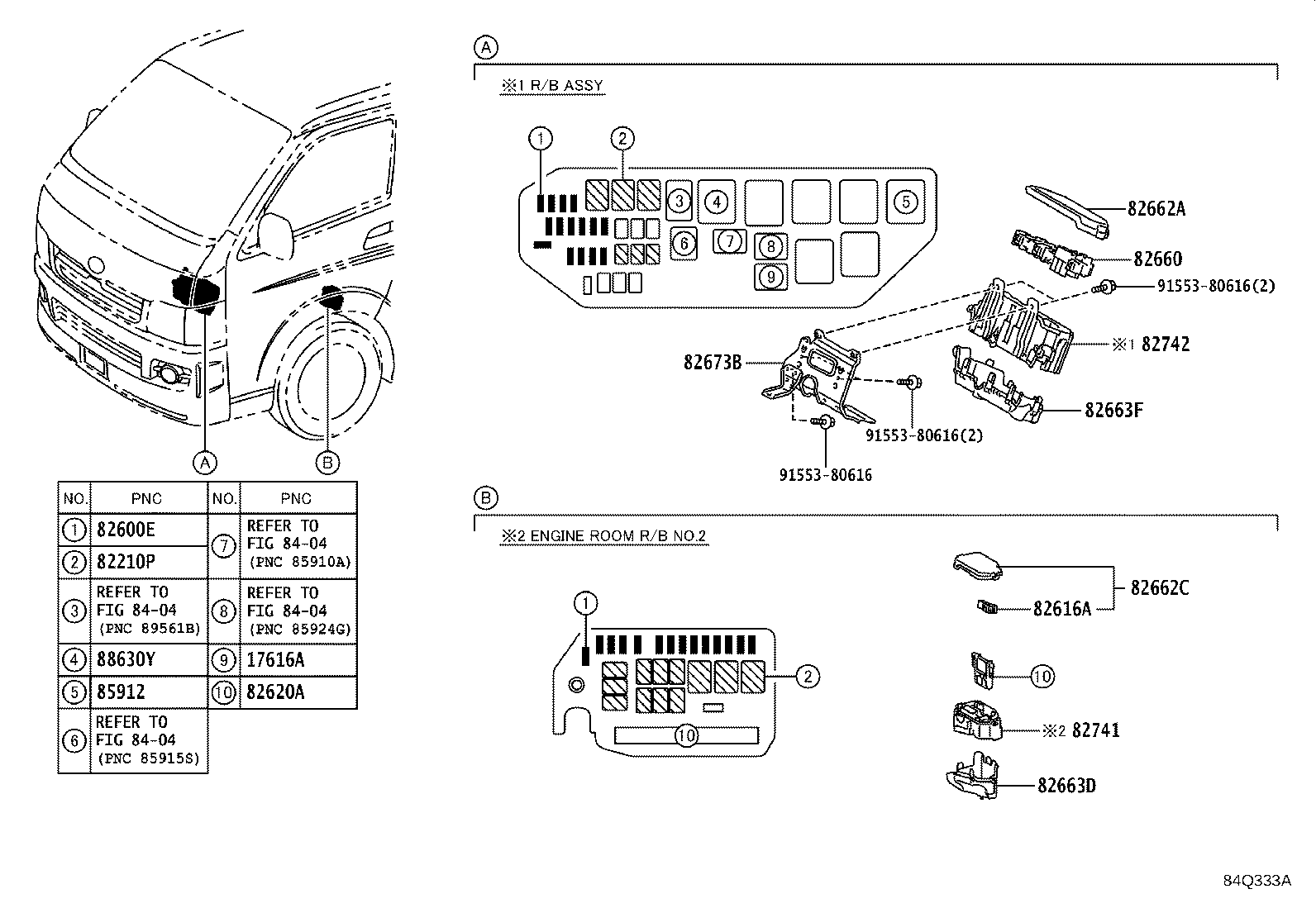

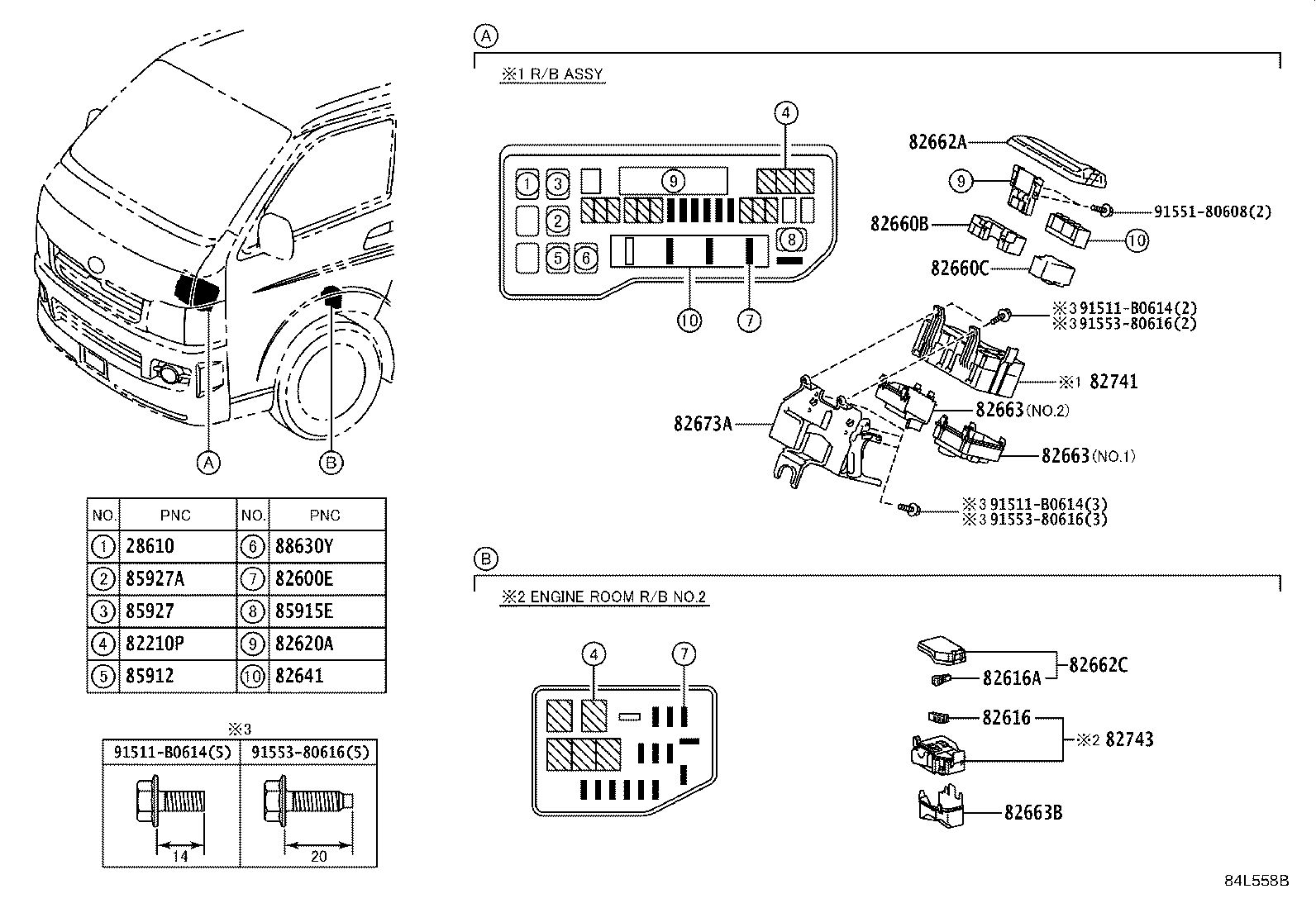

82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660G Block Assy, Relay
82660H Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82663D Cover, Relay Block, Lower, NO.5
82663E Cover, Relay Block, Lower, NO.7
82663F Cover, Relay Block, Lower, NO.8
82663H Cover, Relay Block, Lower, NO.9
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82673F Bracket, Junction Block
82673J Bracket, Junction Block

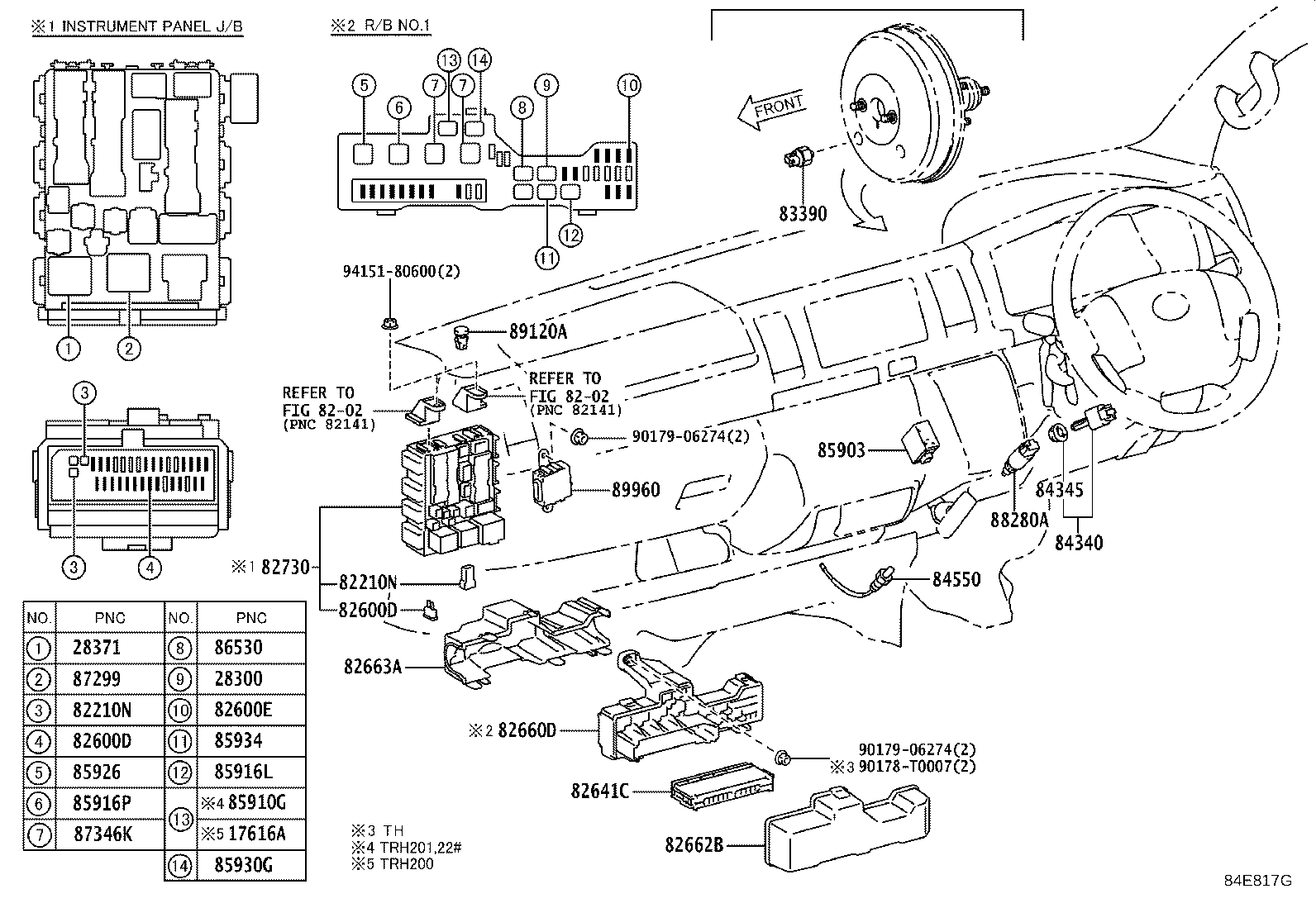

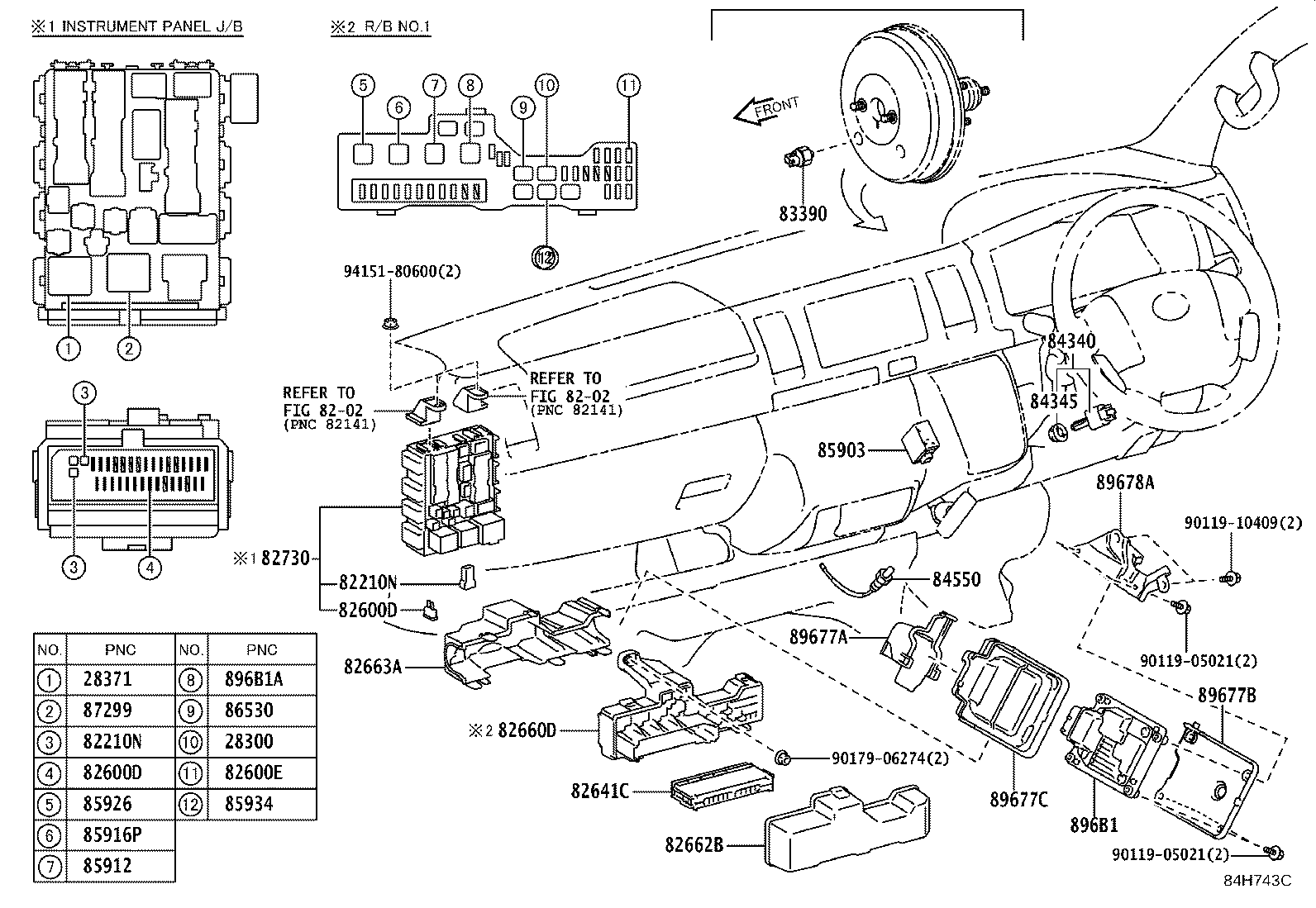

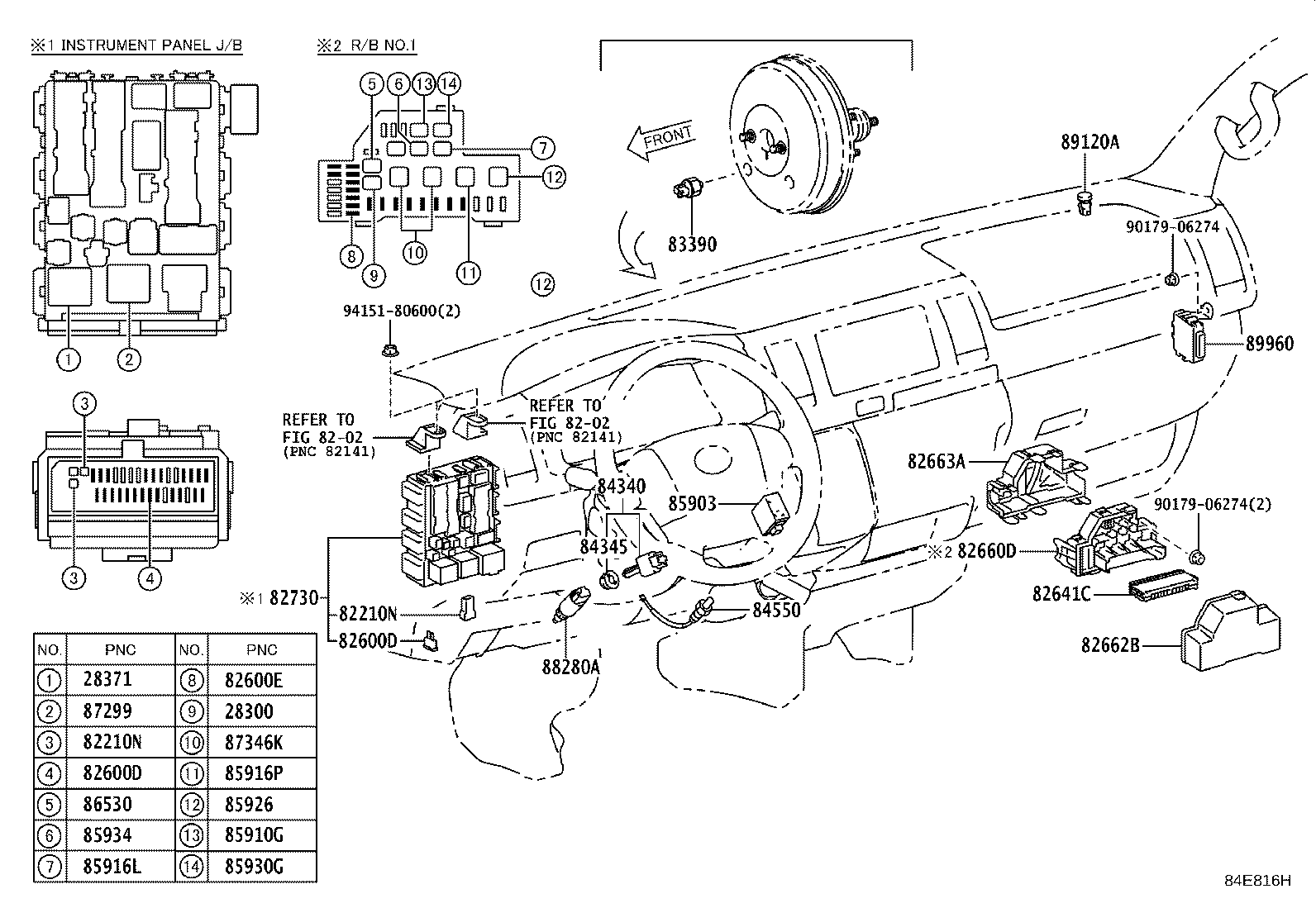

82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82743 Block, Engine Room Relay, NO.3
82744 Block, Engine Room Relay, NO.4
82745 Block, Engine Room Relay, NO.5
82824L Pin, Short
83181G Sensor, Speedometer
83181H Ring, O (FOR SPEEDOMETER SENSOR)
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning

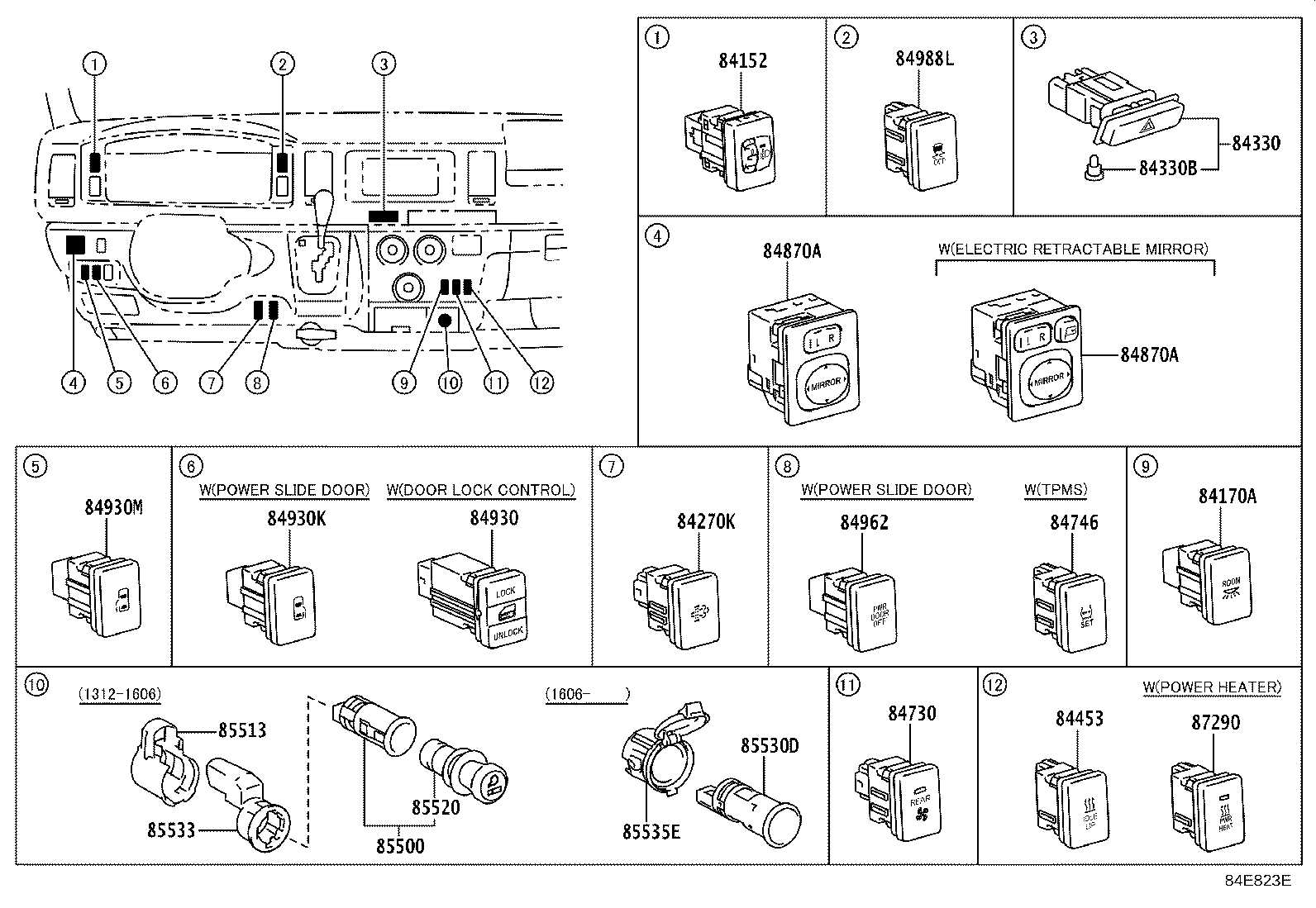

84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84170A Switch Assy, Room Lamp NO.1
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84261B Junction, Slide Door Control,Male
84262B Junction, Slide Door Control, Female
84270K Switch Assy, Dpr
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84330B Bulb, Hazard Warning Signal Switch
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting

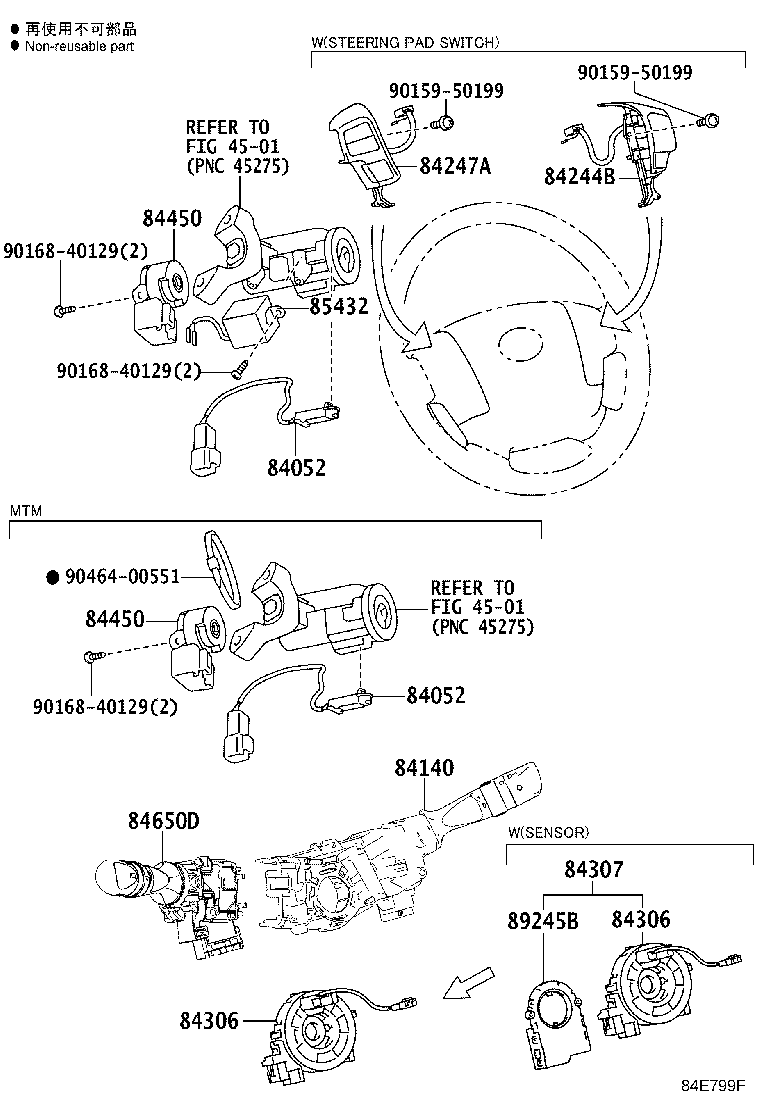

84450 Switch Assy, Ignition OR Starter
84453 Switch, Idle UP
84520 Switch Assy, Clutch Start
84535C Switch, Door Lock, RH
84535D Switch, Door Lock, LH
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84730 Switch Assy, Heater Blower
84746 Switch, Tire Pressure Warning
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84930K Switch Assy, Auto Slide Door Control
84930M Switch Assy, Auto Slide Door Control
84931D Switch, Slide Door Control
84931G Switch, Slide Door Control, RH
84931H Switch, Slide Door Control, LH
84962 Switch, Power Slide Door Main
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85513 Cover, Cigarette Lighter
85520 Knob And Element Assy, Cigarette Lighter
85530D Socket Assy, Power Outlet, NO.2
85533 Lens, Cigarette Lighter Indicator
85535E Cover, Power Outlet Socket, NO.2
85903 Computer Sub-assy, Shift Lock Control
85910G Relay, Heater Pump
85910Y Relay, Rear Heater
85912 Relay, Defogger
85915E Relay
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85918B Relay, Door Control, RH
85918C Relay, Door Control, LH
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85930G Relay, Acc
85934 Relay, Magnet-clutch
85948 Relay, Windshield Wiper
85971B Relay, Door Opening, RH
85971C Relay, Door Opening, LH
85975B Relay, Slide Door Closer, RH
85975C Relay, Slide Door Closer, LH
85976 Relay, Back Door Closer
85980 Relay Assy, Door Control
86530 Relay Assy, Horn
86650E Buzzer Assy
87290 Switch Assy, Heater
87299 Relay, Heater
87346K Relay, Ptc Heater
88280A Switch Assy, Clutch
88630Y Relay, Rear Cooler
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89257B Computer, Cooling Fan, NO.2
89422A Sensor, Water Temperature
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89425B Sensor, Exhaust Gas Temperature, NO.3
89425C Sensor, Exhaust Gas Temperature, NO.4
89439 Bracket, Sensor
89439D Bracket, Sensor, NO.1
89439J Bracket, Sensor, NO.2
89463A Sensor, Nitrogen Oxides
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89611 Switch, Push Start
89615 Sensor, Knock Control
89677A Bracket, Urea Pump Control, NO.1
89677B Bracket, Urea Pump Control, NO.3
89677C Bracket, Urea Pump Control, NO.4
89678A Bracket, Urea Pump Control, NO.2
896B1 Computer, Urea Pump Control
896B1A Relay, Dcu Main
89747A Buzzer, Power Slide Door Warning, RH
89747B Buzzer, Power Slide Door Warning, LH
89960 Computer Assy, Headlamp Leveling
