Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

15 part groups · 3 illustrations

Illustrations

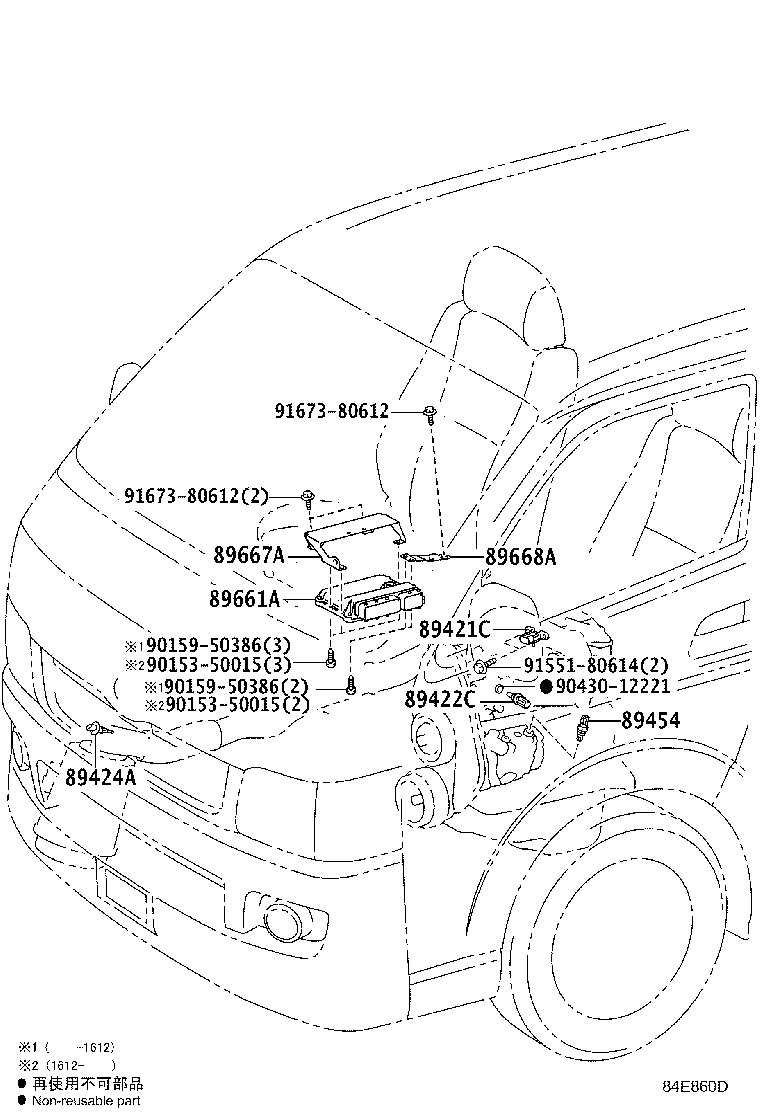

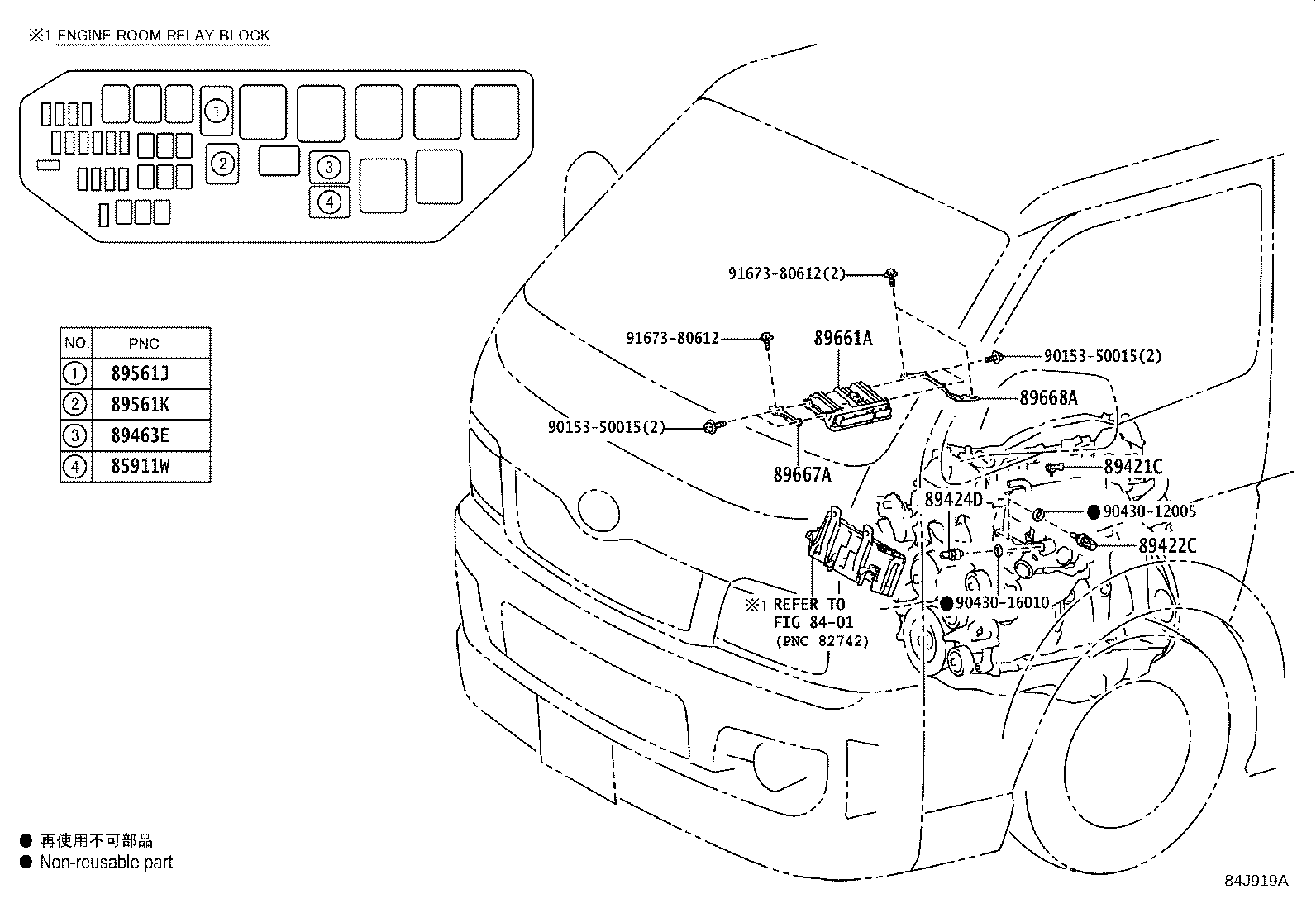

Figure 84E834E 84E834E 2013-12 → — Figure 84E860D 84E860D 2013-12 → — Figure 84J919A 84J919A 2016-12 → —

Part groups

PNCDescription
85911W Relay, Electronic Driver Unit
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89424D Sensor, Inlet Air Temperature
89454 Sensor, Fuel Temperature
89455A Sensor, Egr Valve Position
89463E Relay, Nitrogen Oxides
89561J Relay, Electronic Fuel Injection Main, NO.1
89561K Relay, Electronic Fuel Injection Main, NO.2
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
