Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

9 part groups · 6 illustrations

Illustrations

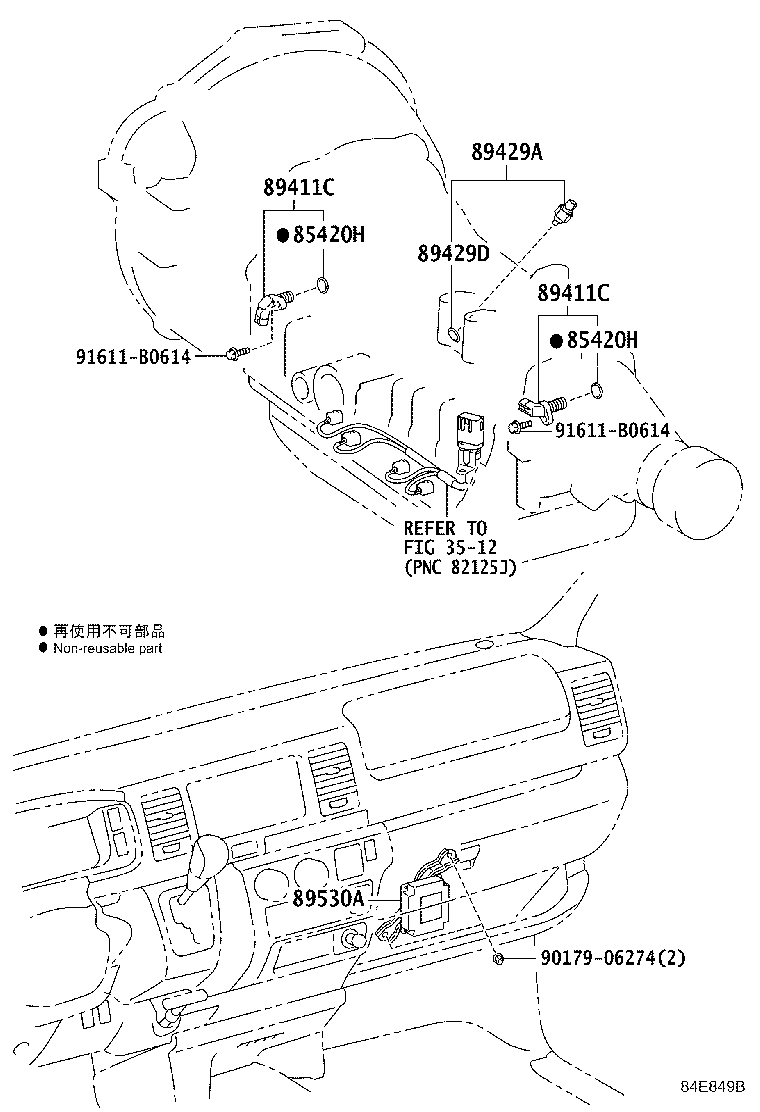

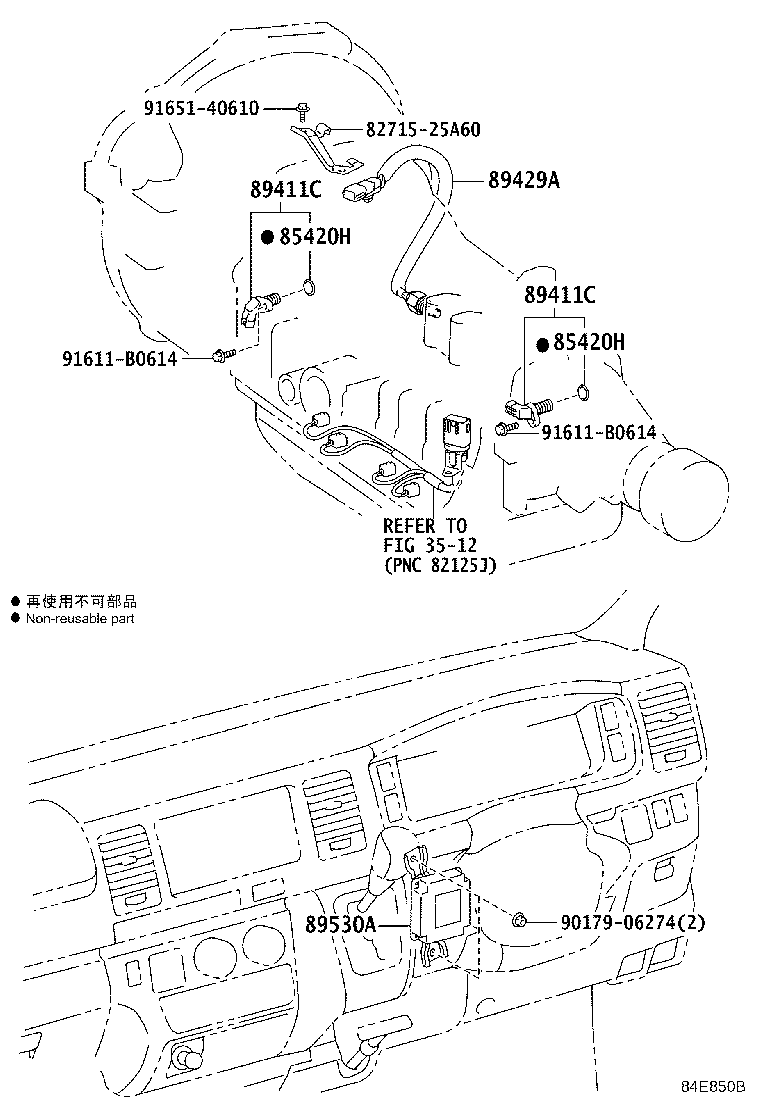

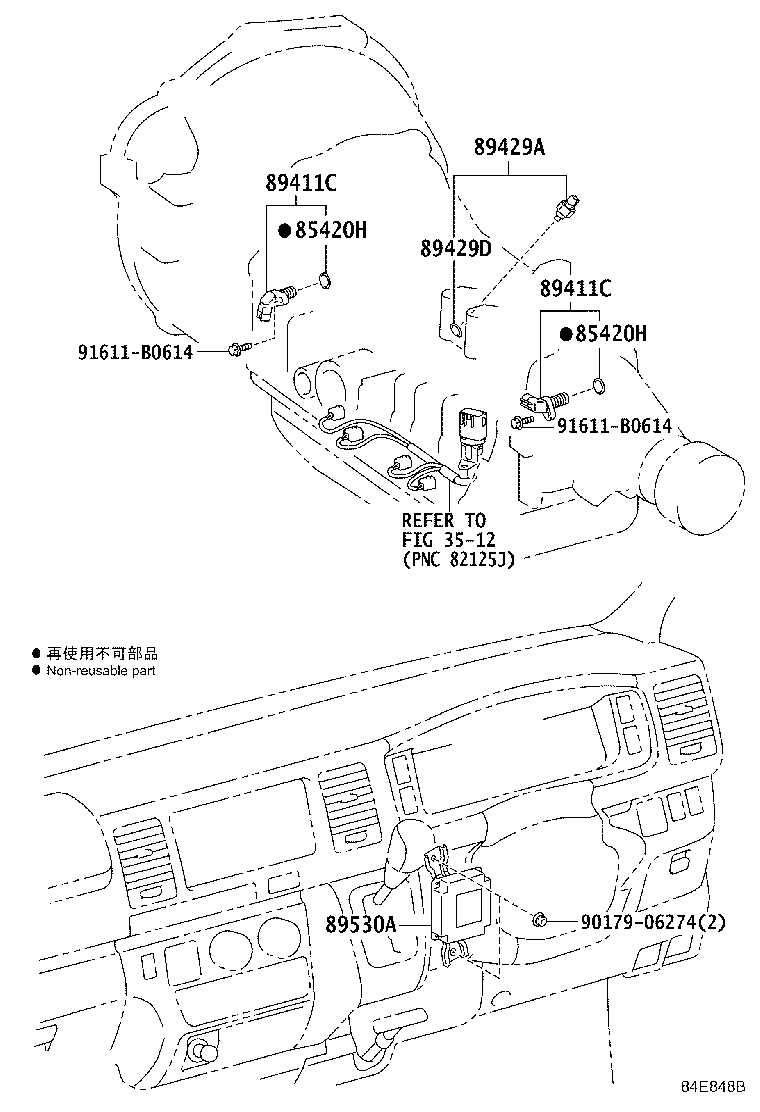

Figure 84E847B 84E847B 2013-12 → — Figure 84F853E 84F853E 2015-01 → — Figure 84E849B 84E849B 2013-12 → — Figure 84E850B 84E850B 2013-12 → — Figure 84E848B 84E848B 2013-12 → — Figure 84H701A 84H701A 2016-12 → —

Part groups

PNCDescription
85420H Ring, O(FOR SPEED SENSOR)
89411C Sensor, Speed
89413B Sensor, Transmission Revolution
89413D Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
89413N Sensor, Transmission Revolution, (NT)
89413R Sensor, Transmission Revolution (SP2)
89429A Sensor, Temperature
89429D Ring, O(FOR TEMPERATURE SENSOR)
89530A Computer Assy, Transmission Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
