Toyota Hiace
2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General
Supported model
Data version 2024-01
Mirror
13 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

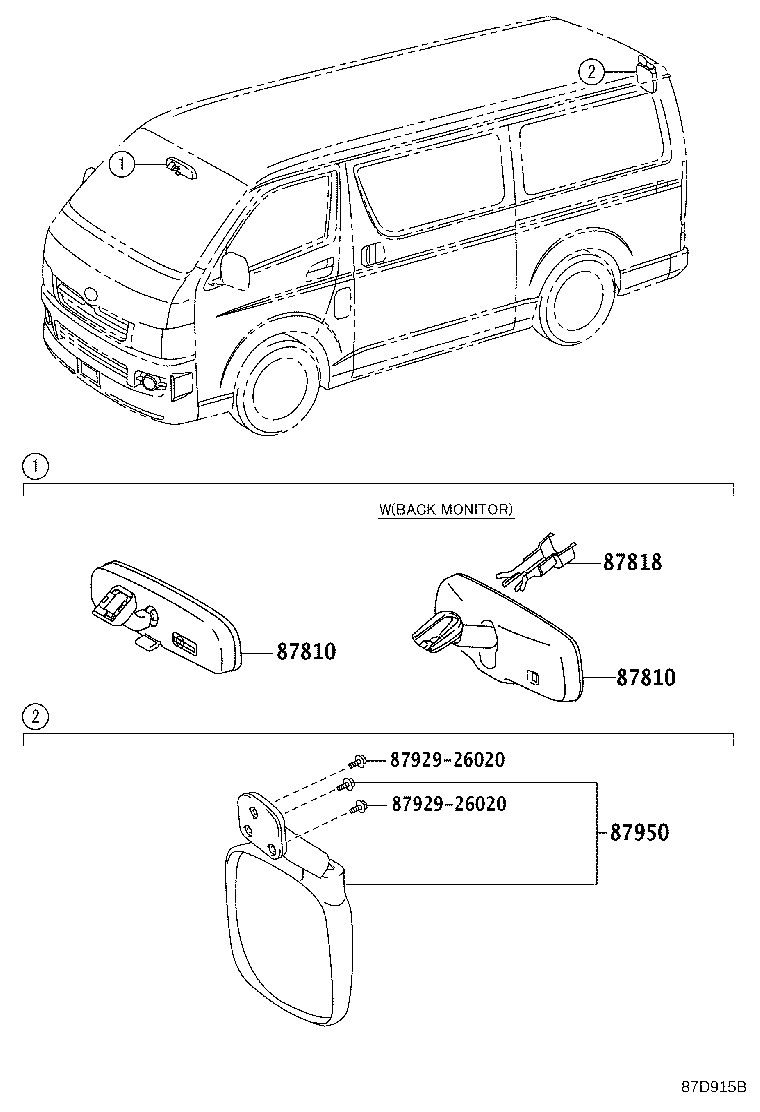

| 87810 | Mirror Assy, Inner Rear View |
| 87818 | Cover, Inner RR View Mirror |

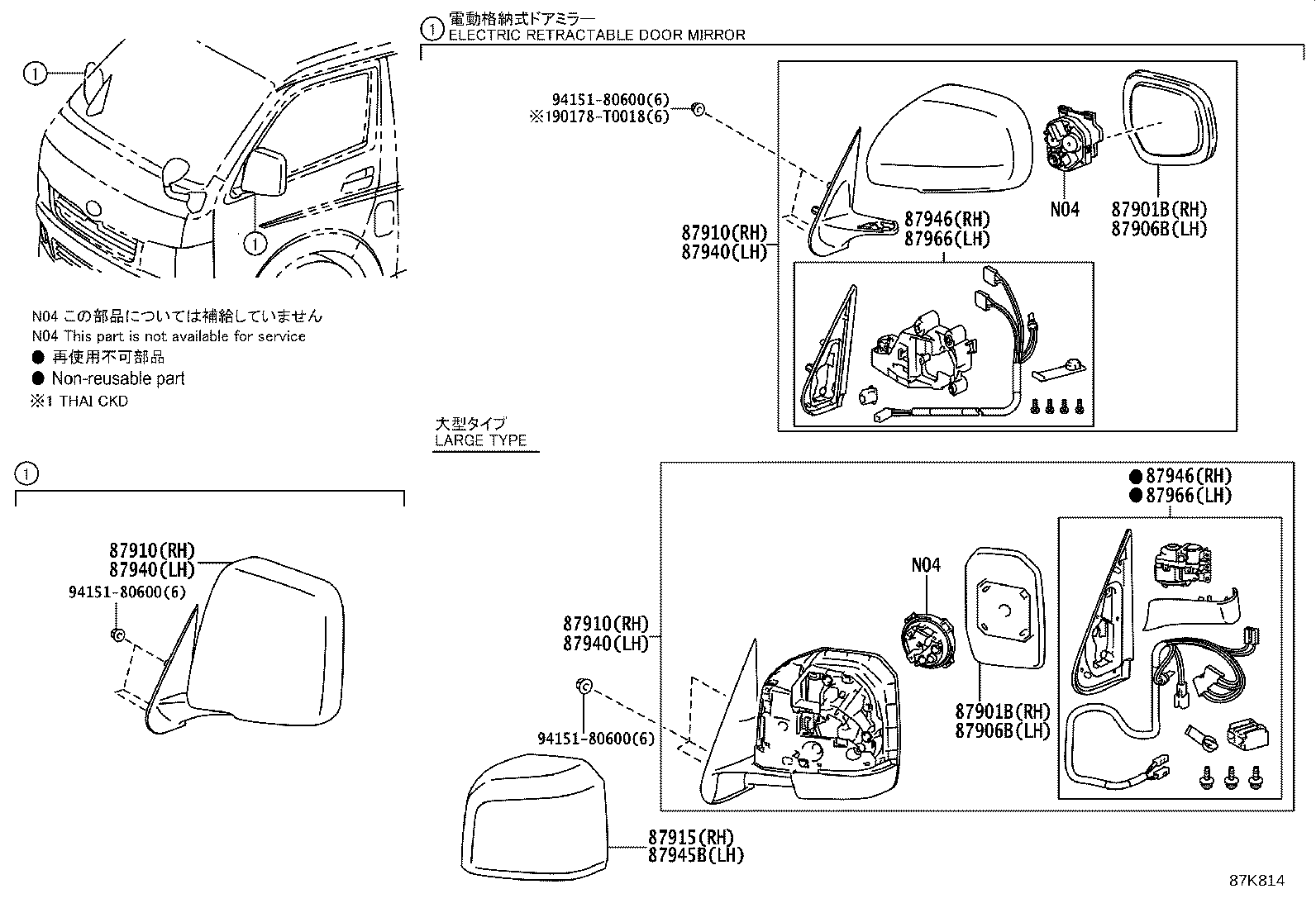

| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87930A | Mirror Assy, Outer Under View |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87945B | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87966 | Retractor, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
