Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

9 part groups · 5 illustrations

Illustrations

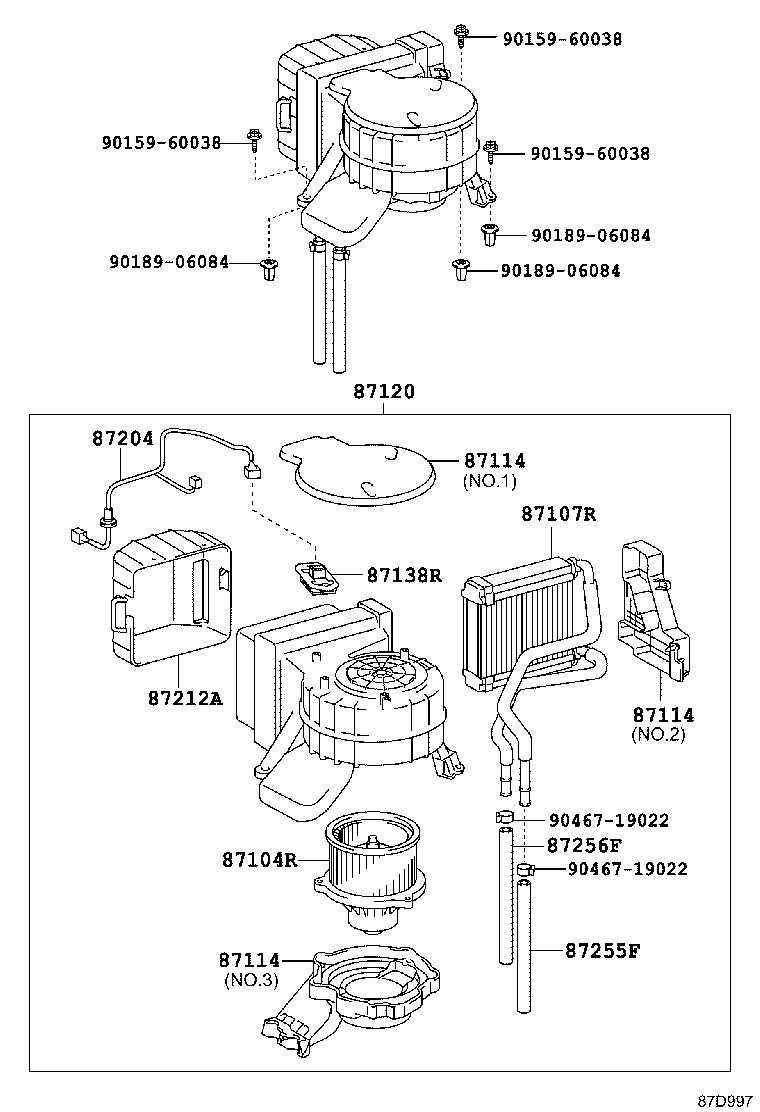

Figure 87D908 87D908 2013-12 → — Figure 87D997 87D997 2013-12 → — Figure 87D997 87D997 2013-12 → — Figure 87D997 87D997 2015-01 → — Figure 87D997 87D997 2017-12 → —

Part groups

PNCDescription
87104R Motor Sub-assy, Rear Heater Blower
87107R Unit Sub-assy, Rear Heater
87114 Cover, Heater
87120 Heater Assy, Rear
87138R Resistor, Rear Heater Blower
87204 Wire & Piping Sub-assy, Heater Parts
87212A Duct, Air, Rear NO.1
87255F Hose, Rear Heater Water Inlet, F(FOR HEATER UNIT)
87256F Hose, Rear Heater Water Outlet, F (FOR HEATER UNIT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
