Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

31 part groups · 22 illustrations

Illustrations

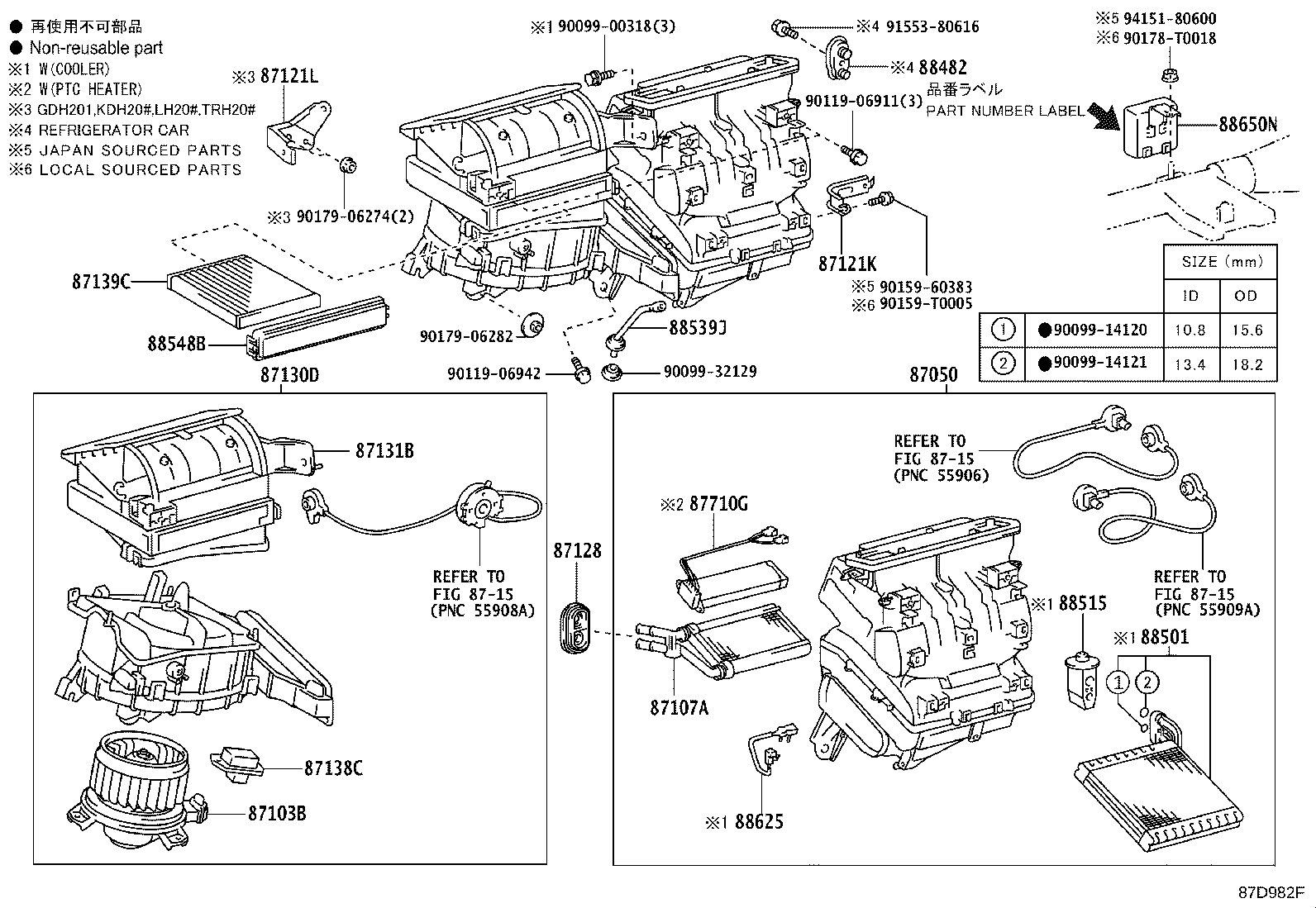

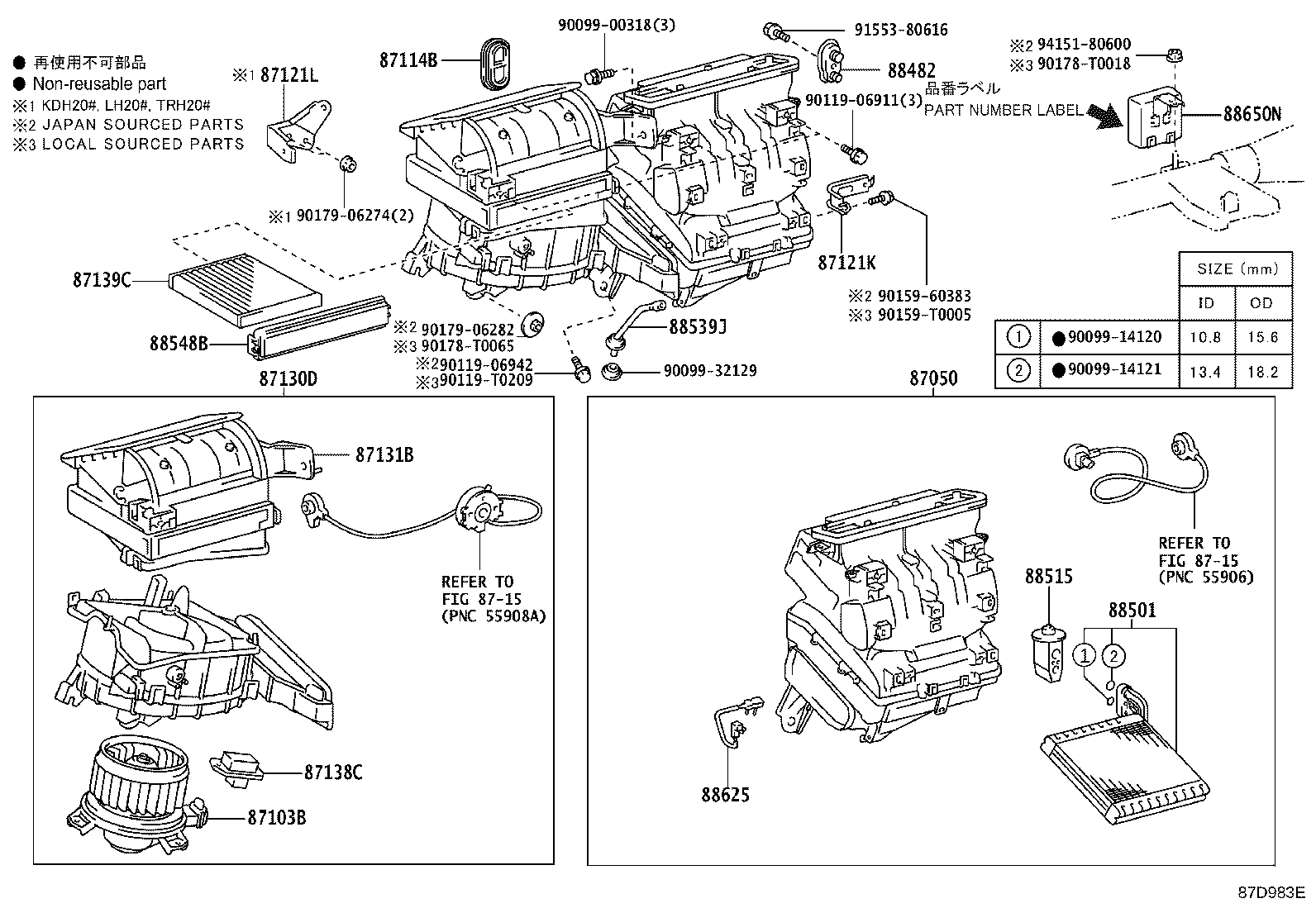

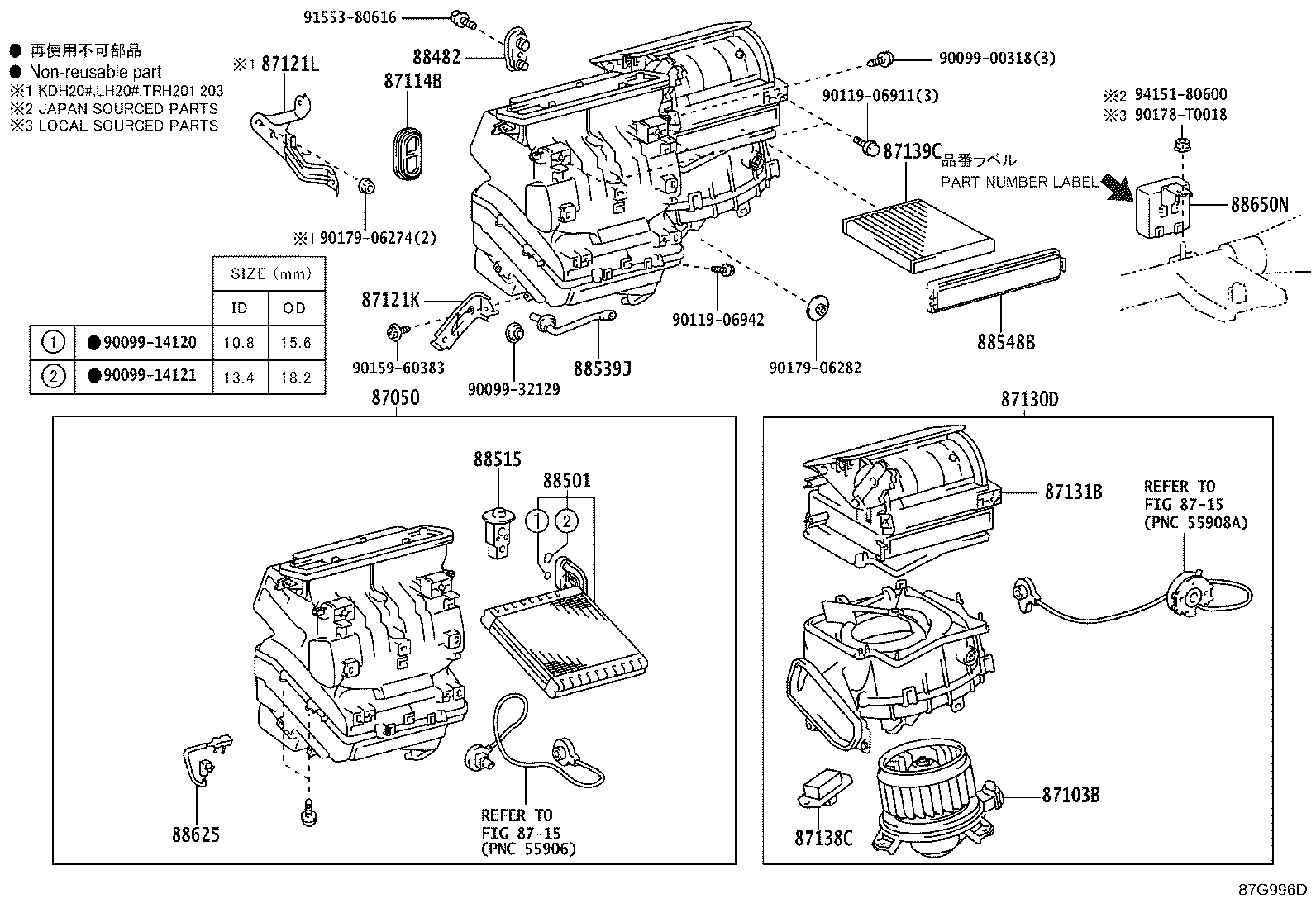

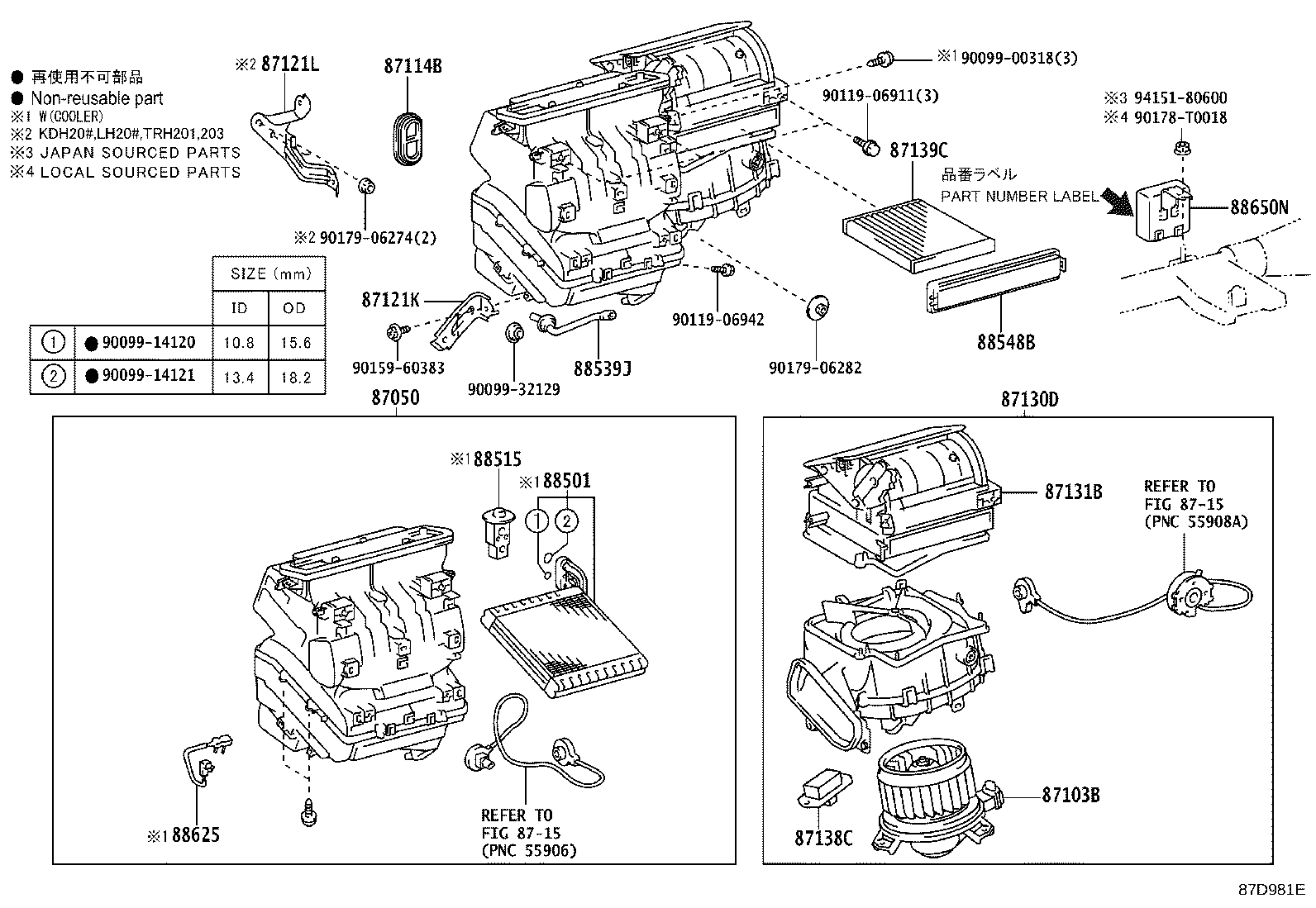

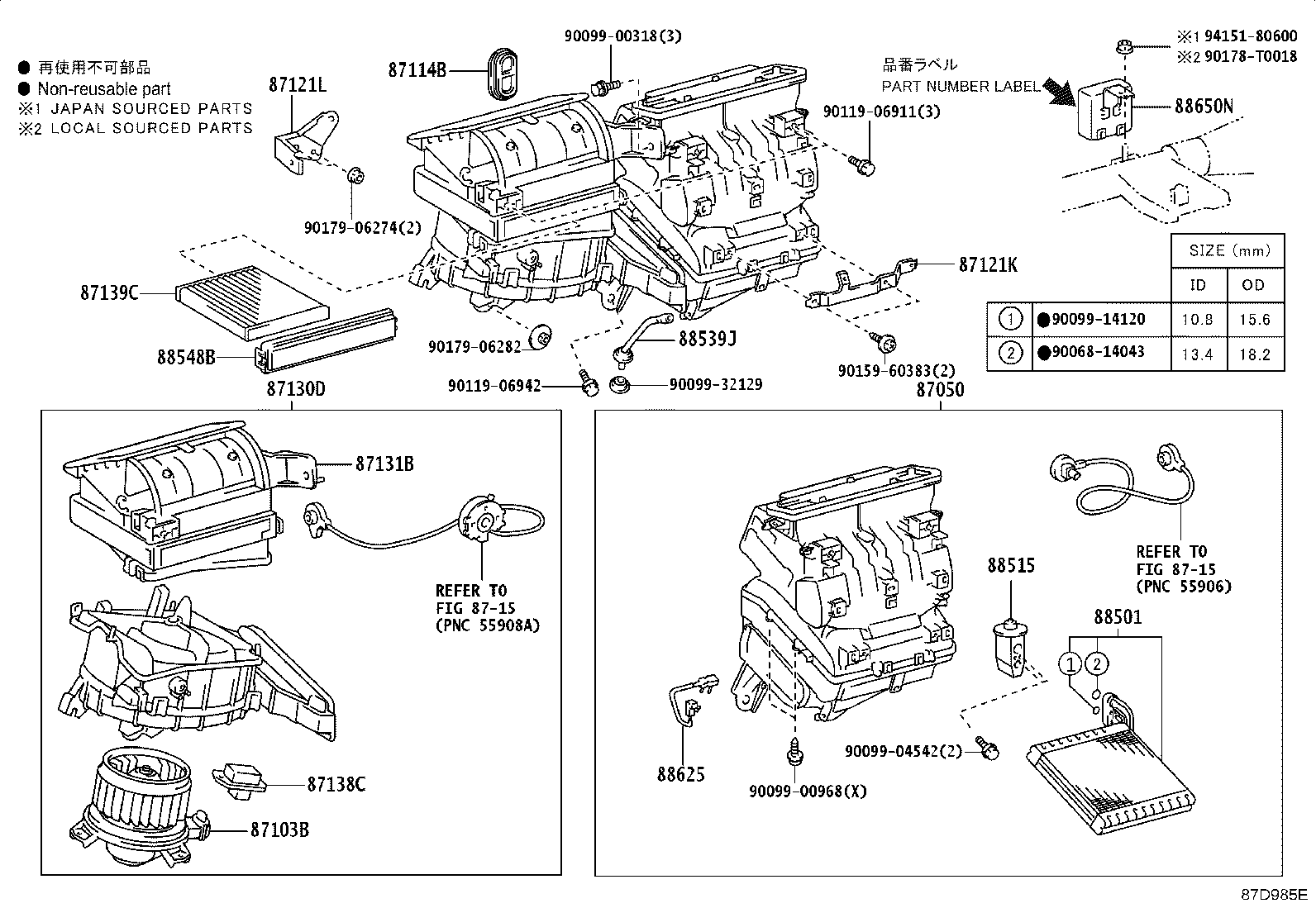

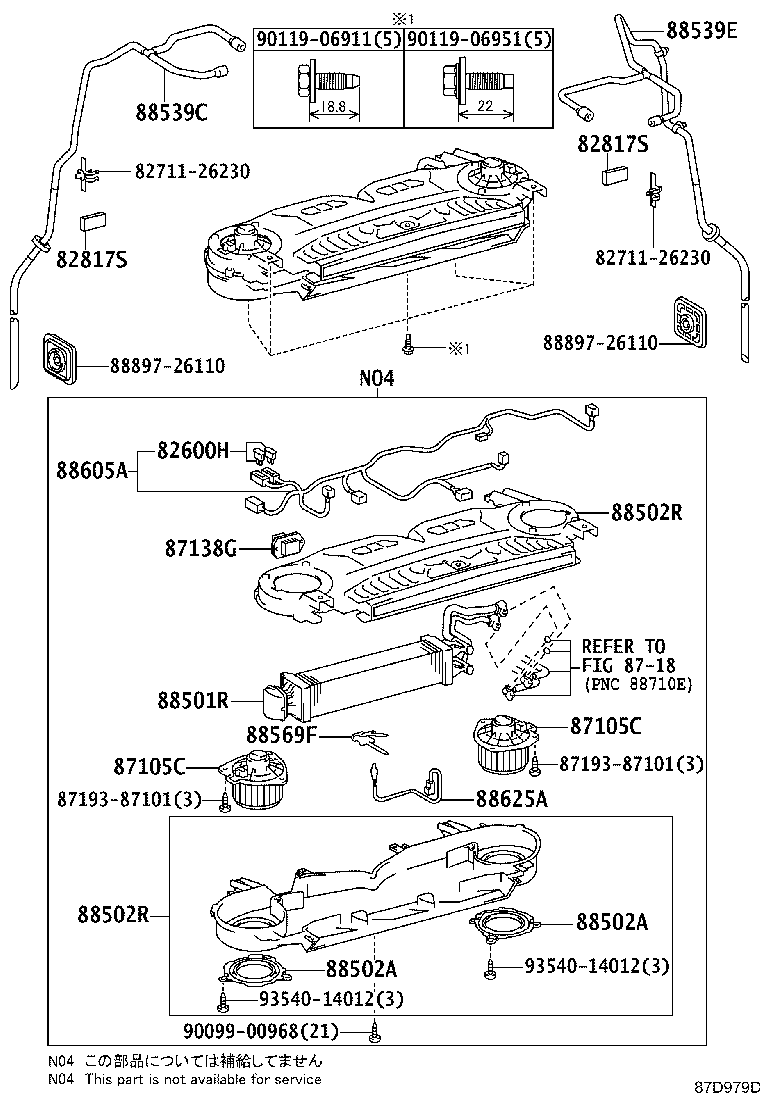

Figure 87D980D 87D980D 2013-12 → — Figure 87D980D 87D980D 2013-12 → — Figure 87D981E 87D981E 2013-12 → 2017-12 Figure 87D981E 87D981E 2013-12 → 2017-12 Figure 87D981E 87D981E 2015-12 → 2017-12 Figure 87G996D 87G996D 2017-12 → — Figure 87D982F 87D982F 2013-12 → — Figure 87D982F 87D982F 2013-12 → — Figure 87D982F 87D982F 2015-01 → — Figure 87D982F 87D982F 2015-01 → — Figure 87D982F 87D982F 2017-01 → — Figure 87D982F 87D982F 2020-07 → — Figure 87D982F 87D982F 2023-01 → — Figure 87D983E 87D983E 2013-12 → — Figure 87D983E 87D983E 2013-12 → — Figure 87D985E 87D985E 2013-12 → — Figure 87D979D 87D979D 2013-12 → — Figure 87D979D 87D979D 2013-12 → — Figure 87D979D 87D979D 2013-12 → — Figure 87D979D 87D979D 2013-12 → — Figure 87D979D 87D979D 2020-07 → — Figure 87D979D 87D979D 2023-01 → —

Part groups

PNCDescription
82600H Fuse, Fuse Block
82817S Protector, Wiring Harness
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87105C Fan Sub-assy, Blower, Rear
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87121K Bracket, Heater
87121L Bracket, Heater
87128 Grommet, Heater
87130D Blower Assy
87131B Case, Heater Blower
87138C Resistor, Blower
87138G Resistor, Rear Cooler Blower
87139C Filter, Clean Air
87710G Quick Heater Assy
88482 Cap, Cooler
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88502A Case Sub-assy, Cooling Unit
88502R Case Sub-assy, Cooling Unit
88515 Valve, Cooler Expansion
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88548B Case, Air Filter
88569F Clamp
88605A Harness Sub-assy, Cooler Wiring
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88650N Amplifier Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
