Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

27 part groups · 40 illustrations

Illustrations

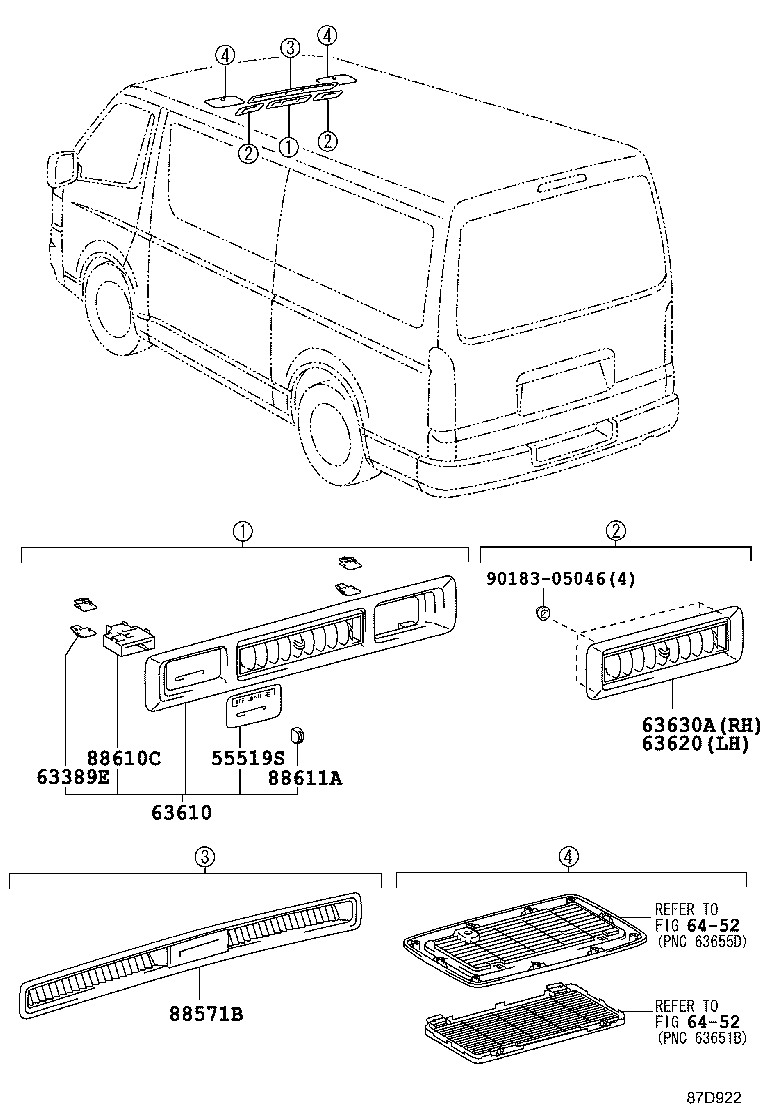

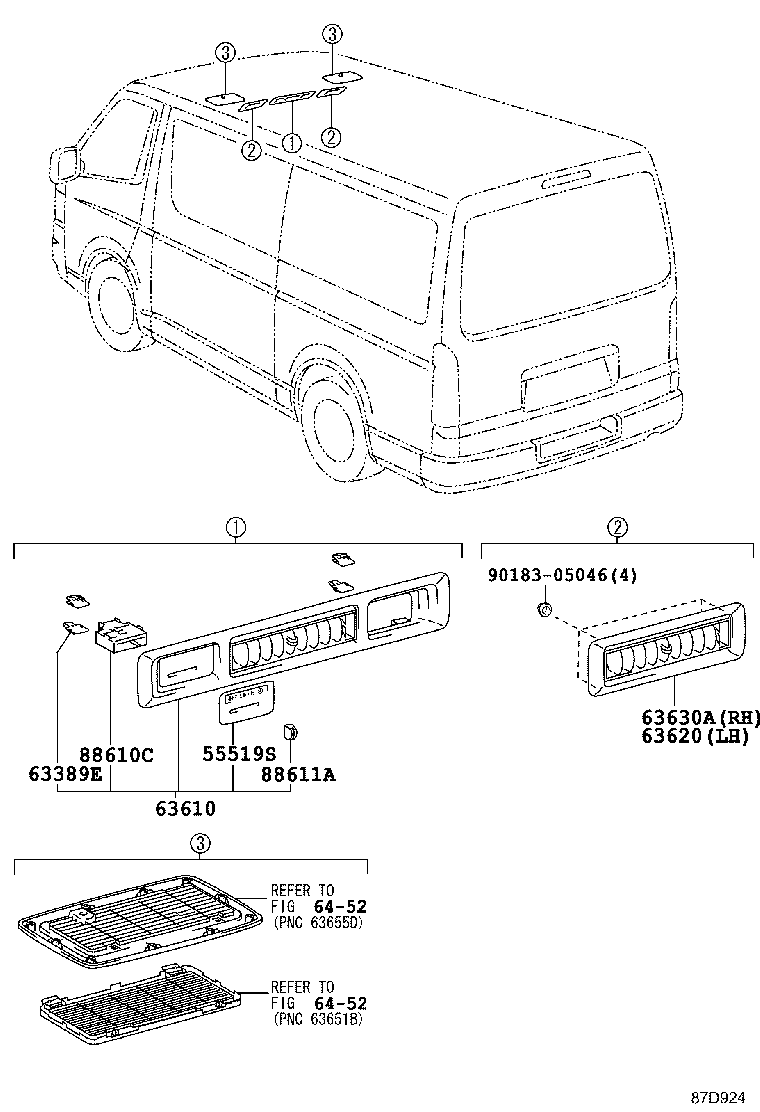

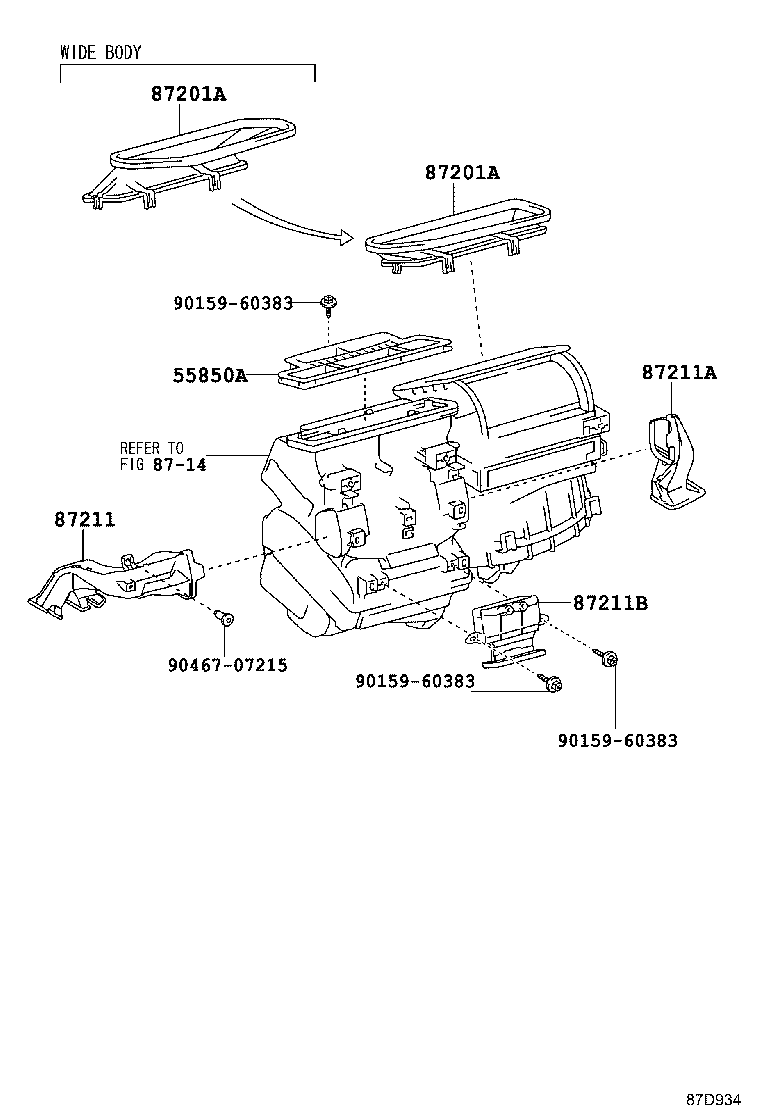

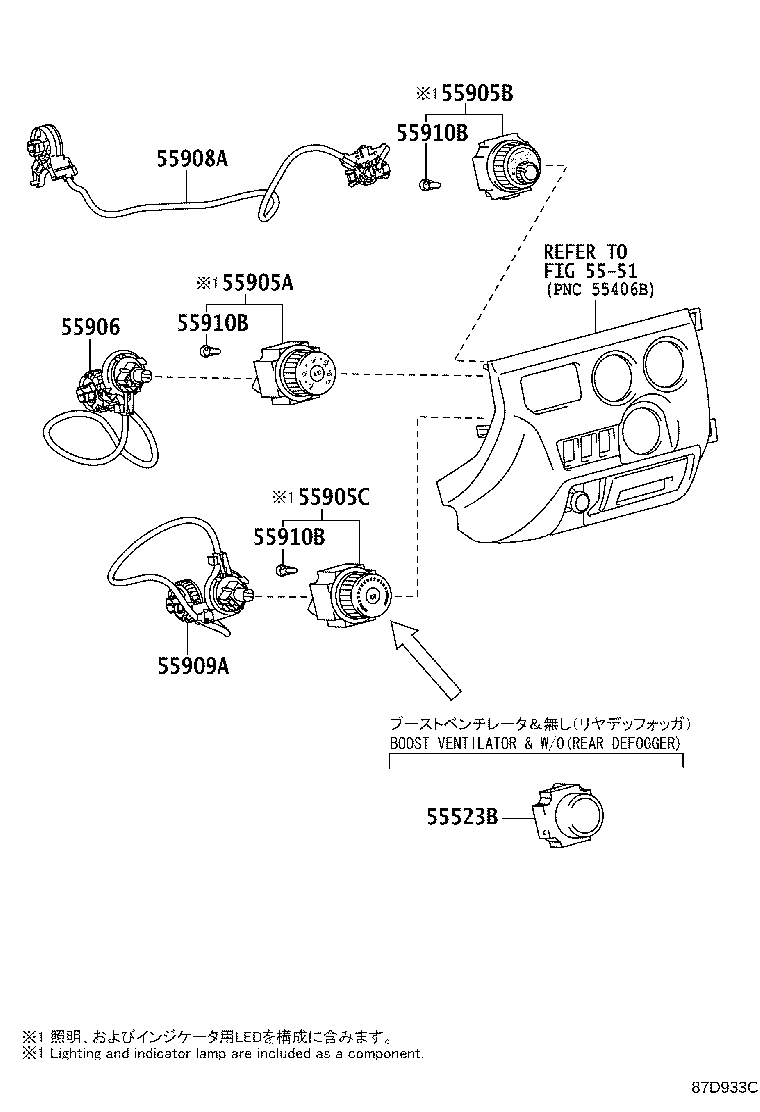

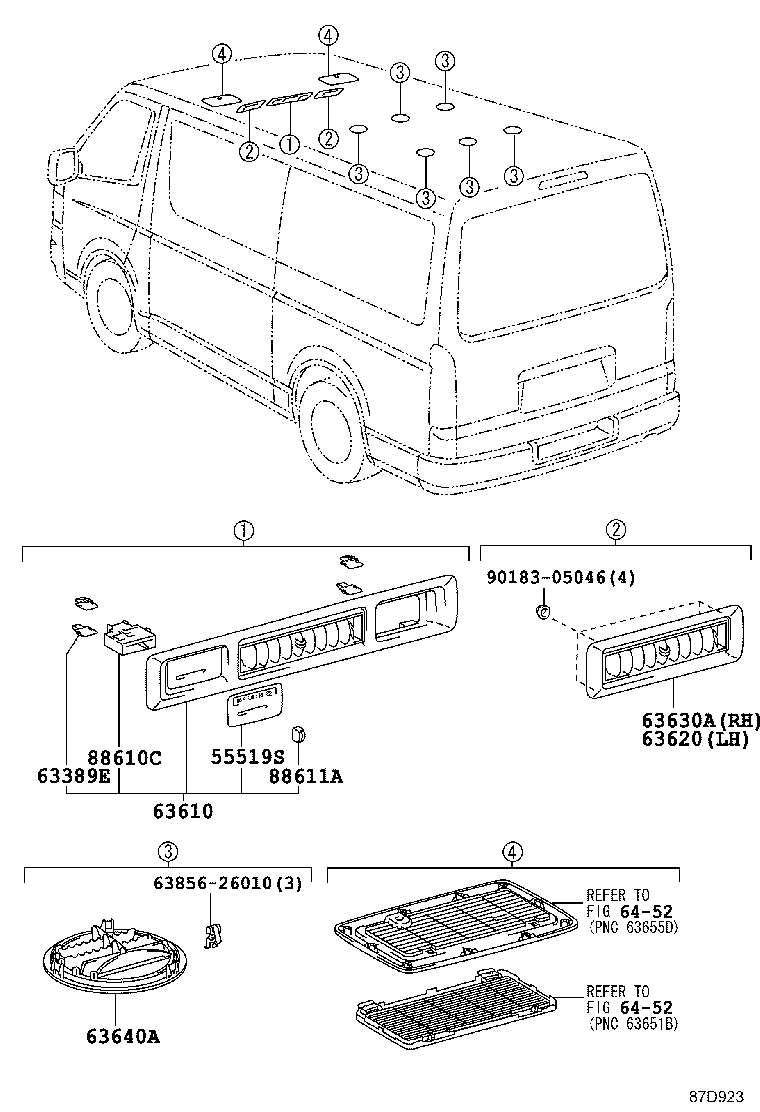

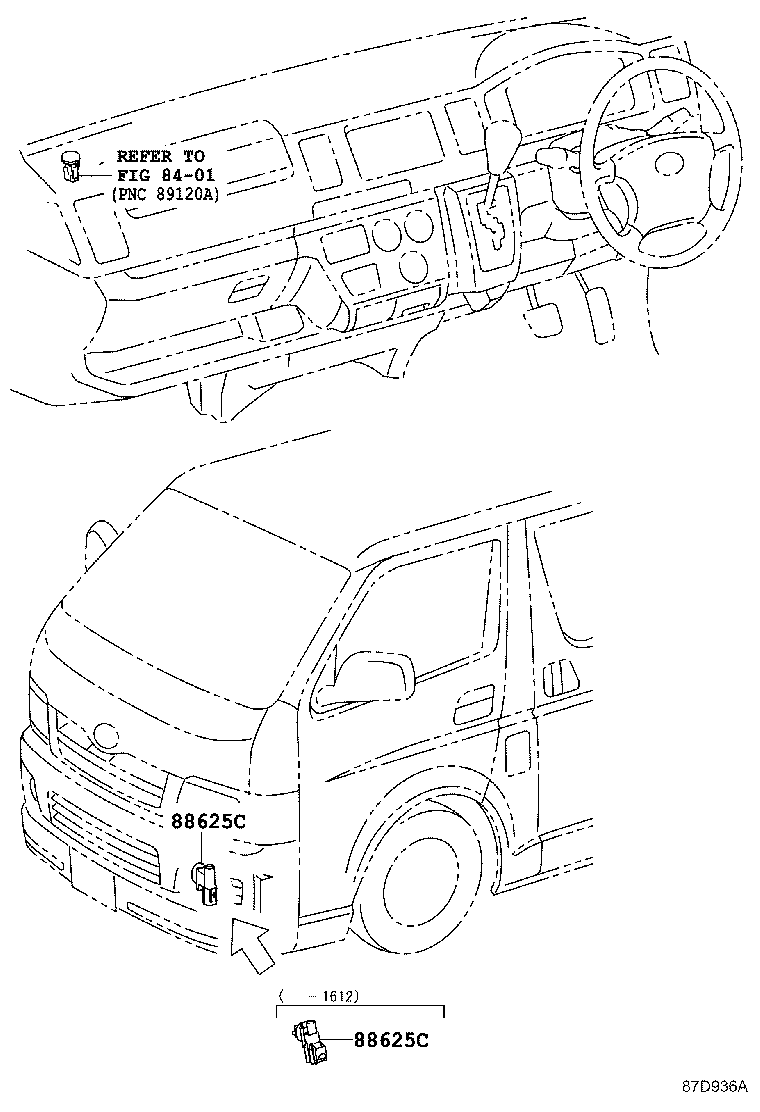

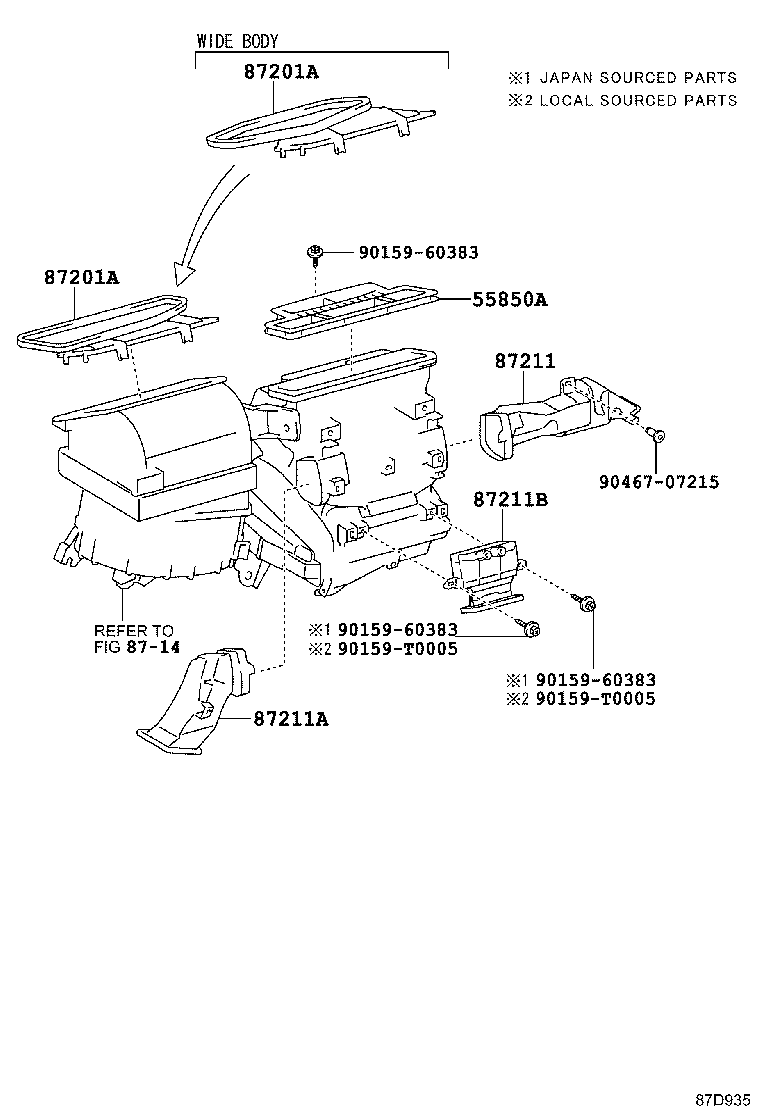

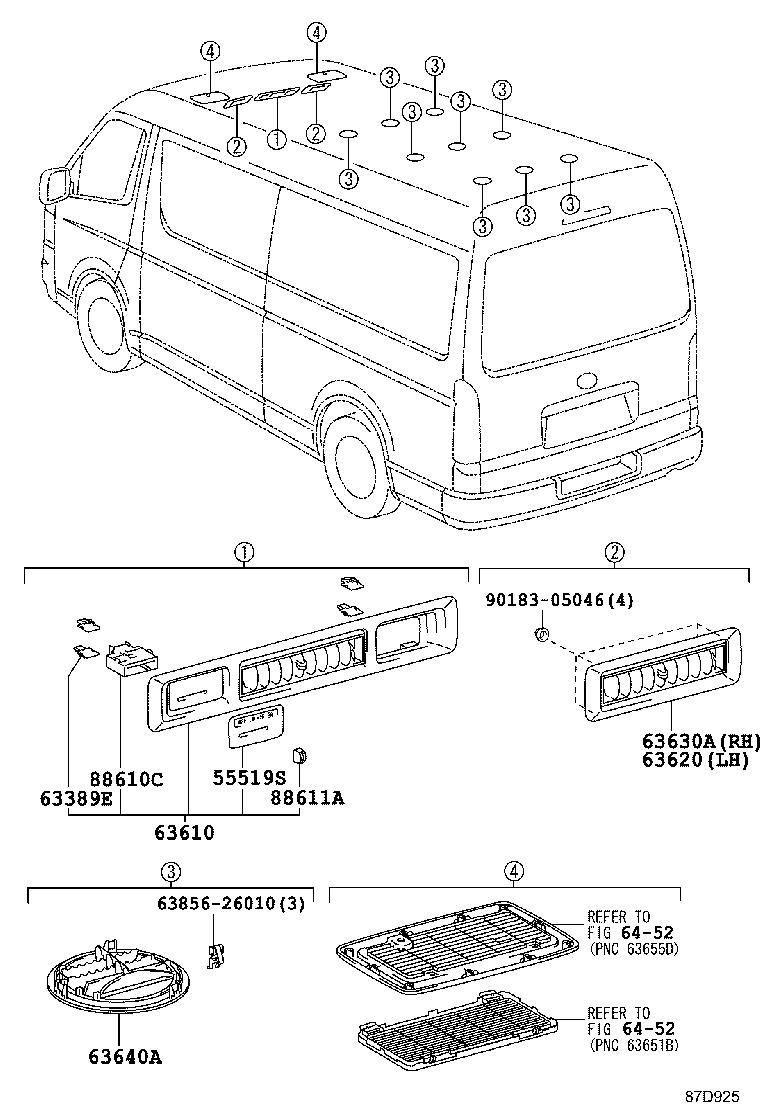

Figure 87D932C 87D932C 2013-12 → — Figure 87D932C 87D932C 2013-12 → — Figure 87D932C 87D932C 2015-12 → — Figure 87D932C 87D932C 2018-01 → — Figure 87D933C 87D933C 2013-12 → — Figure 87D934 87D934 2013-12 → — Figure 87D934 87D934 2013-12 → — Figure 87D934 87D934 2015-12 → — Figure 87D934 87D934 2018-01 → — Figure 87D935 87D935 2013-12 → — Figure 87D928 87D928 2013-12 → — Figure 87D928 87D928 2013-12 → — Figure 87D928 87D928 2013-12 → — Figure 87D928 87D928 2018-01 → — Figure 87D924 87D924 2013-12 → — Figure 87D924 87D924 2013-12 → — Figure 87D924 87D924 2013-12 → — Figure 87D924 87D924 2015-01 → — Figure 87D924 87D924 2015-01 → — Figure 87D924 87D924 2016-12 → — Figure 87D924 87D924 2023-02 → — Figure 87D922 87D922 2013-12 → — Figure 87D922 87D922 2015-12 → — Figure 87D923 87D923 2013-12 → — Figure 87D923 87D923 2015-01 → — Figure 87D923 87D923 2015-12 → — Figure 87D925 87D925 2013-12 → — Figure 87D925 87D925 2013-12 → — Figure 87D925 87D925 2015-01 → — Figure 87D925 87D925 2015-12 → — Figure 87D925 87D925 2018-01 → — Figure 87D925 87D925 2020-07 → — Figure 87D925 87D925 2023-01 → — Figure 87D936A 87D936A 2013-12 → — Figure 87D936A 87D936A 2013-12 → — Figure 87D936A 87D936A 2013-12 → — Figure 87D936A 87D936A 2015-12 → — Figure 87D936A 87D936A 2018-01 → — Figure 87D936A 87D936A 2020-07 → — Figure 87D936A 87D936A 2023-01 → —

Part groups

PNCDescription
55519S Label, Rear Cooler Control Information
55523B Cover, Heater Control Opening
55850A Connector Assy, Instrument Panel Register, Center
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910B Bulb, Heater Control
63389E Retainer, Air Outlet Register
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
63630A Register Assy, Air Duct, NO.3
63640A Register Assy, Air Outlet, NO.4
81942B Sheet, Heater Control Name, NO.2
87123A Knob, Heater Control
87201A Duct Sub-assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87290E Switch Assy, Heater
88571B Grille, Air Outlet
88601A Switch Sub-assy, Cooler Control
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88625C Thermistor, Cooler
