Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

26 part groups · 47 illustrations

Illustrations

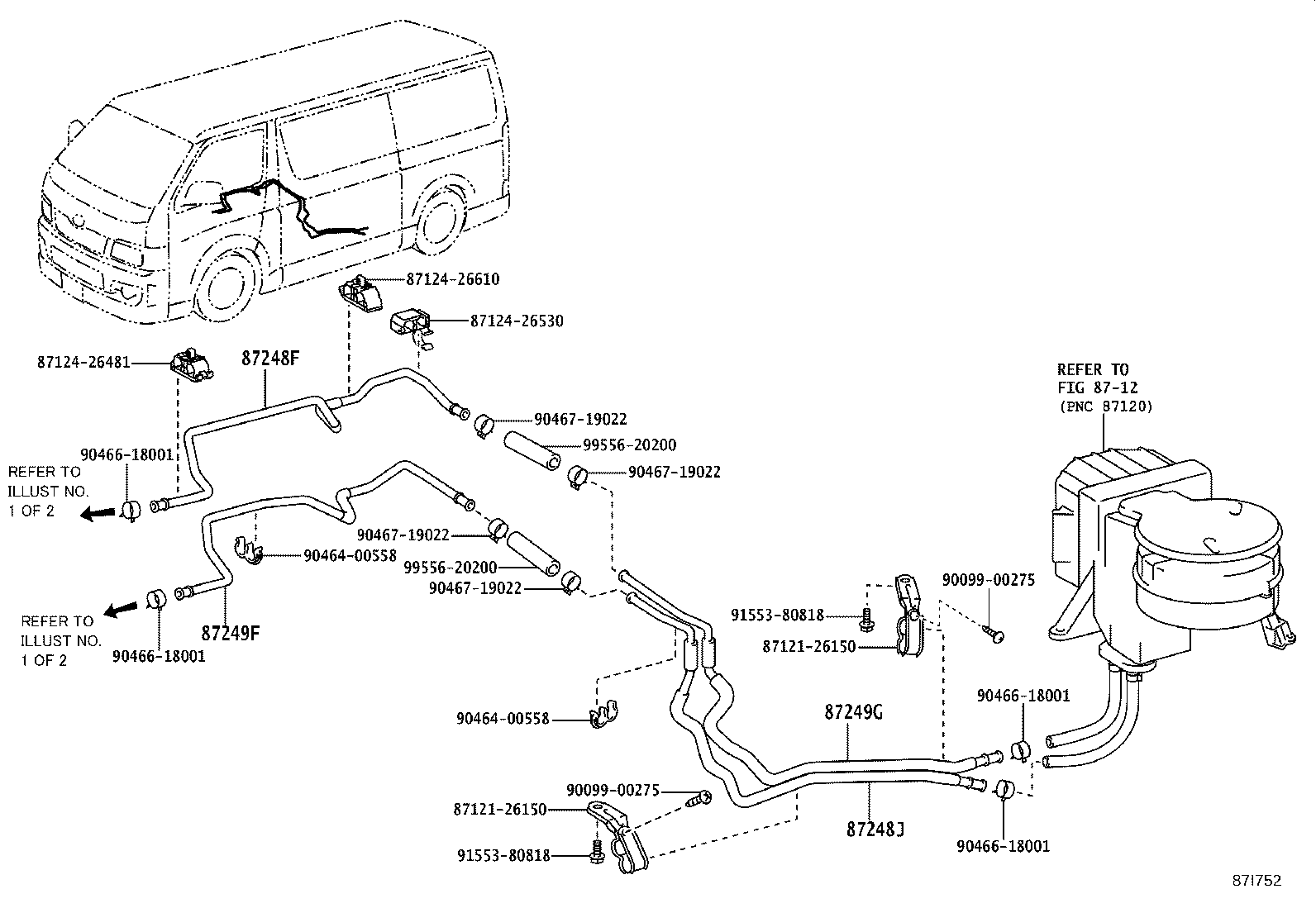

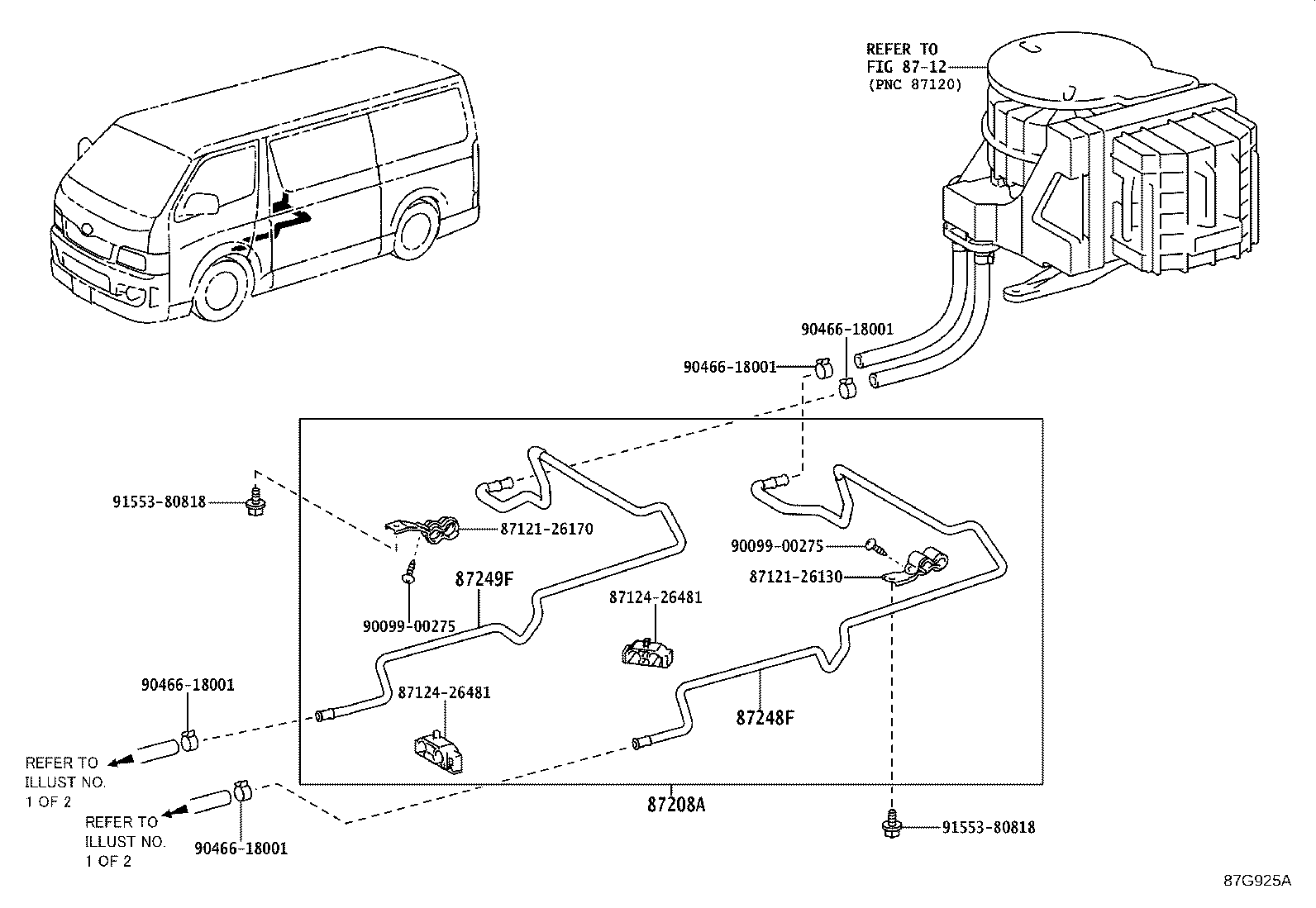

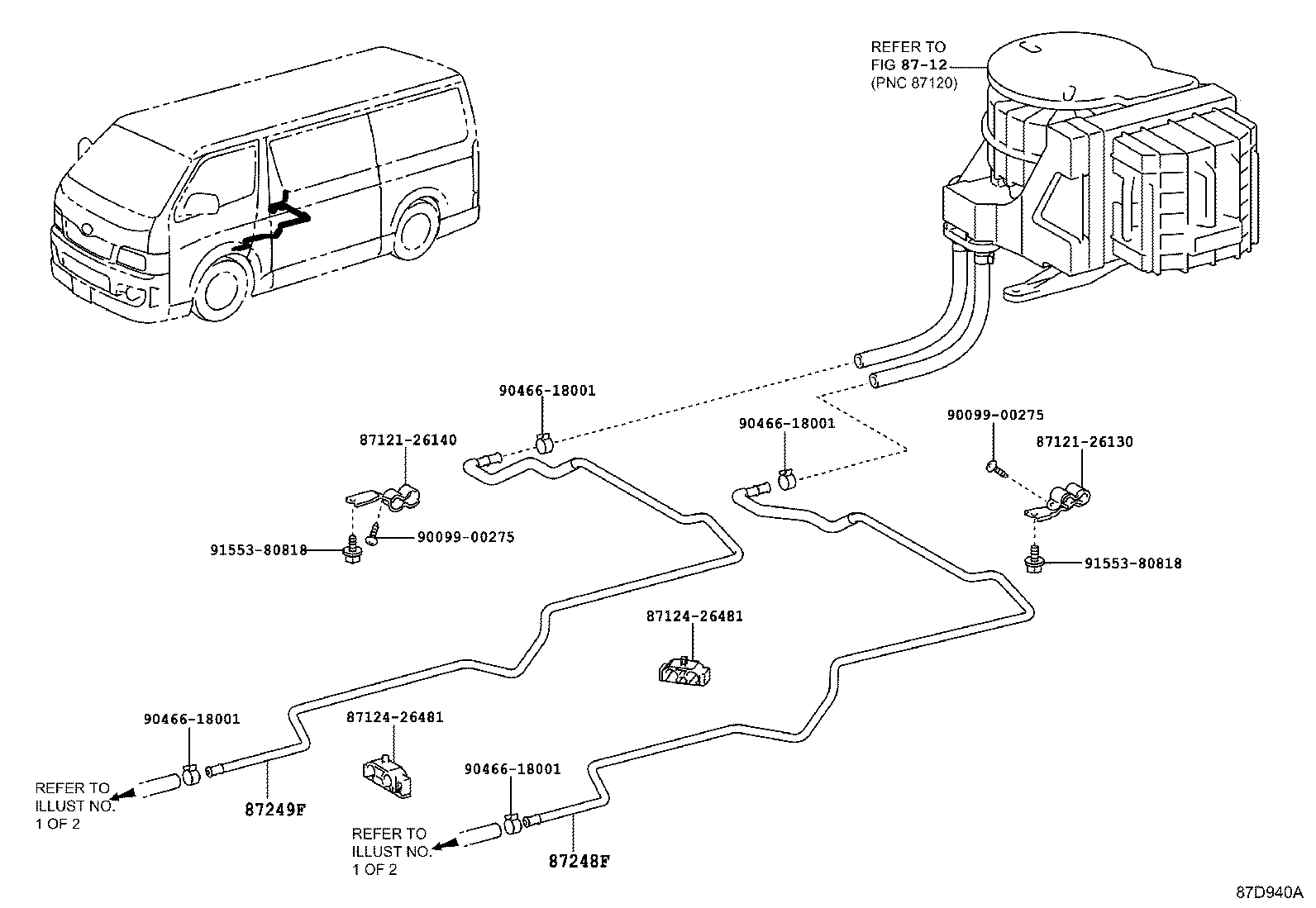

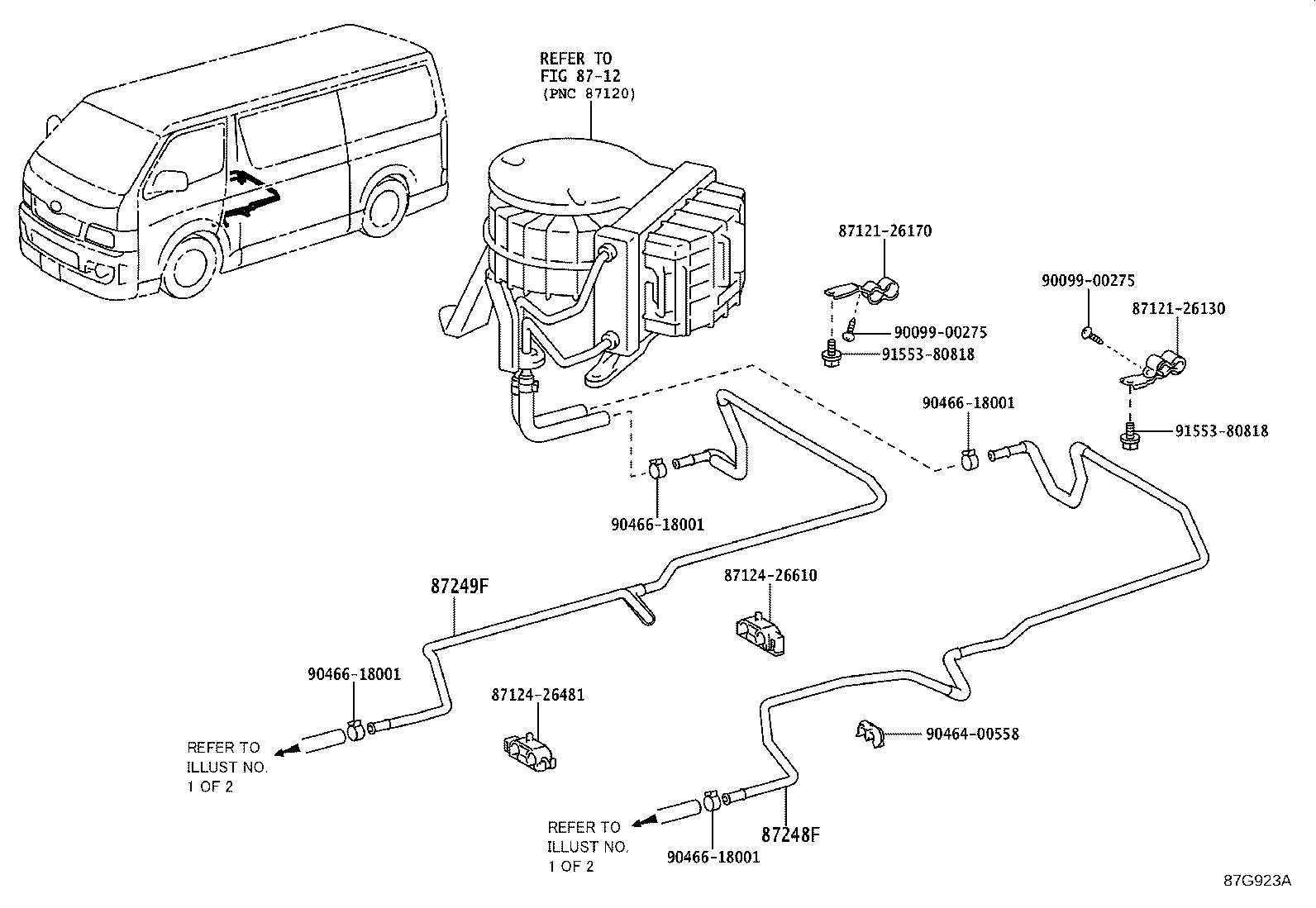

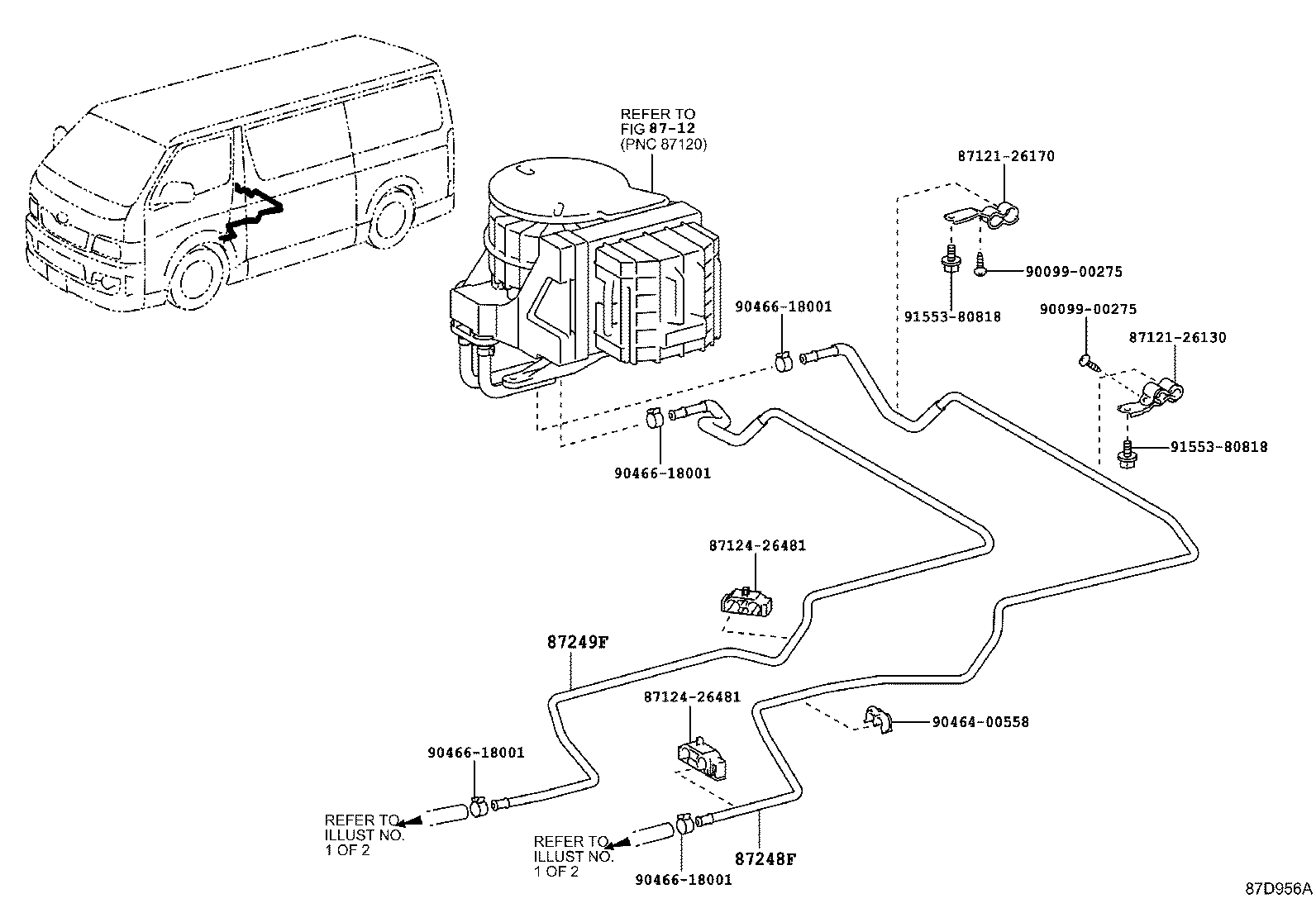

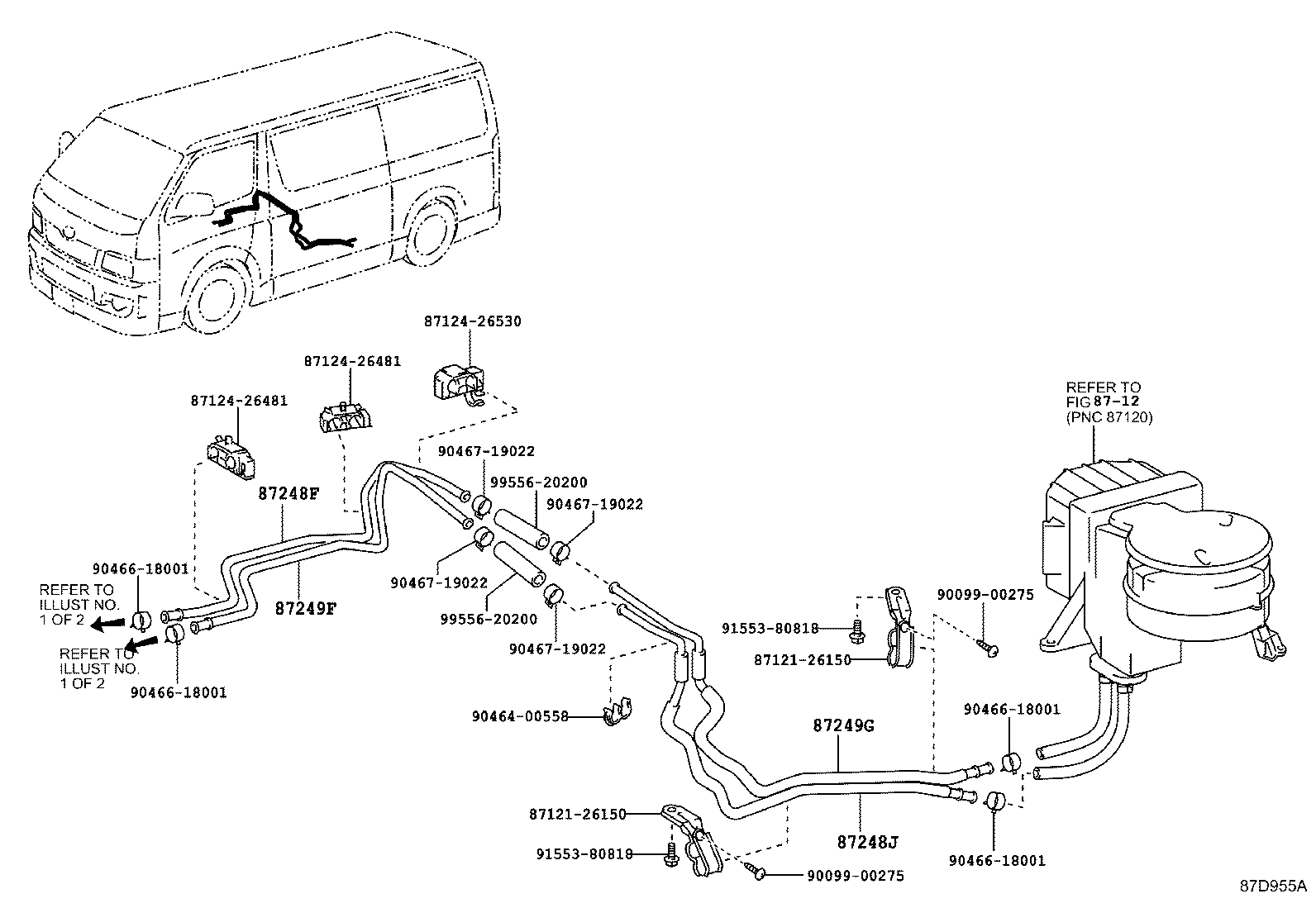

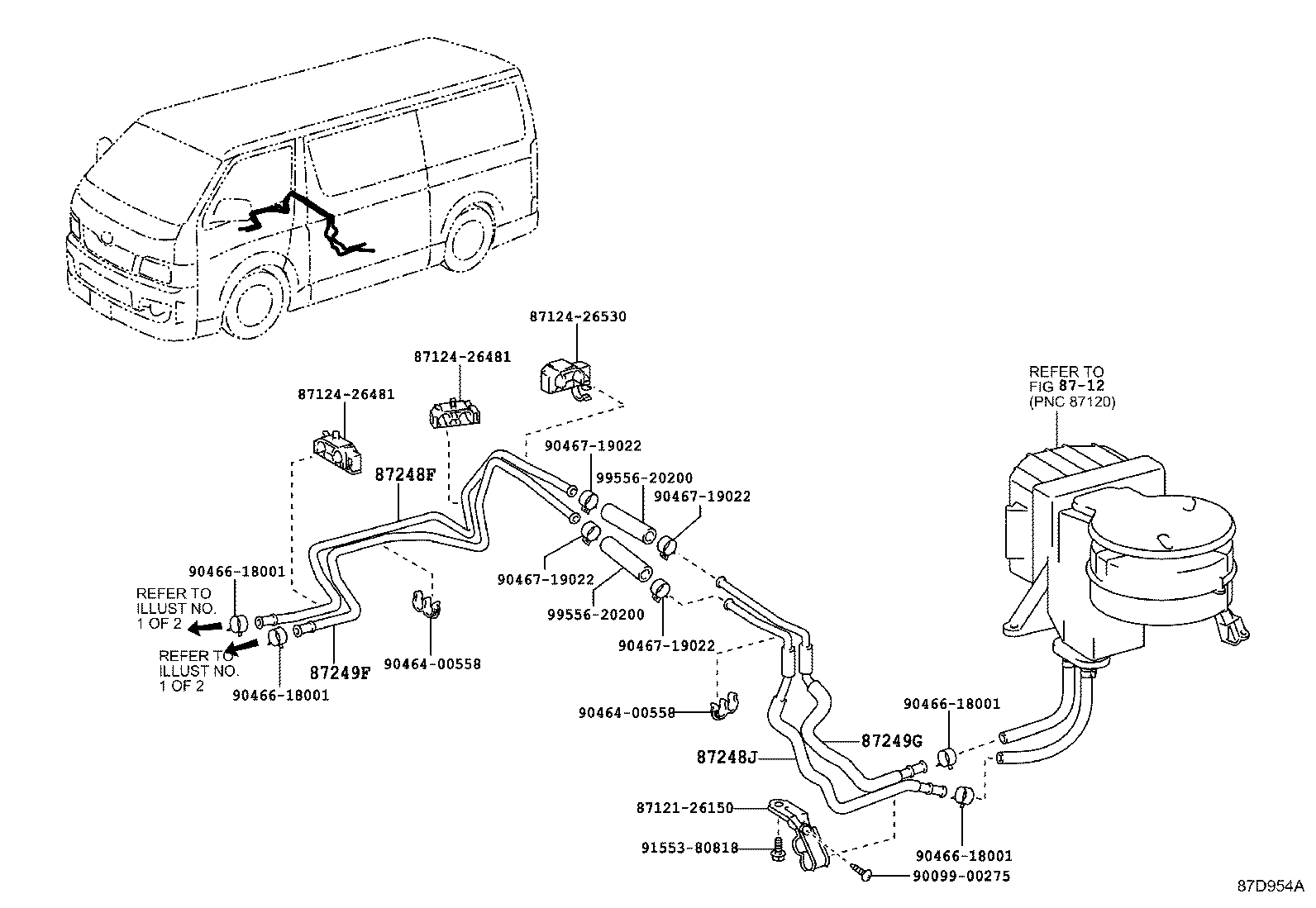

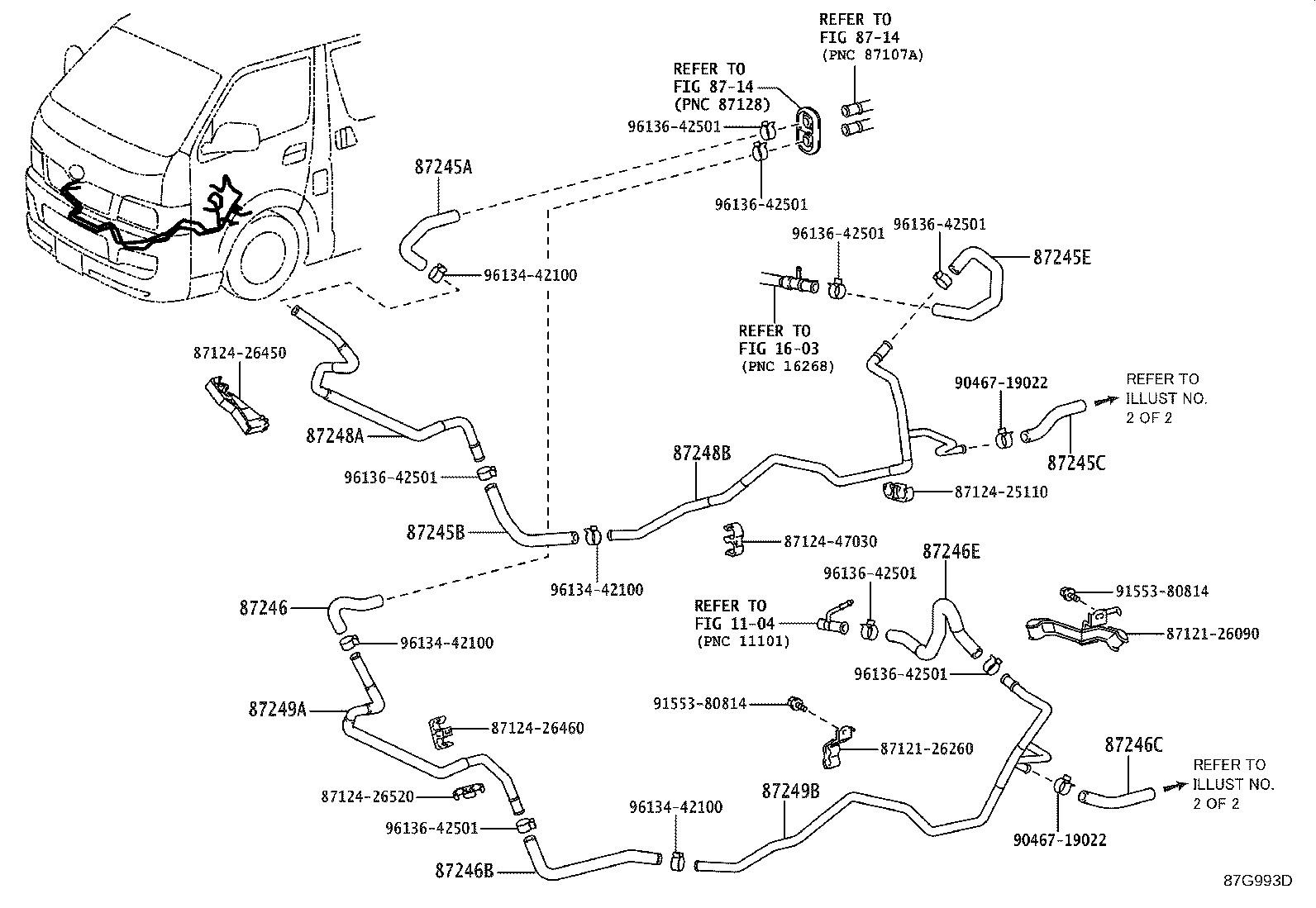

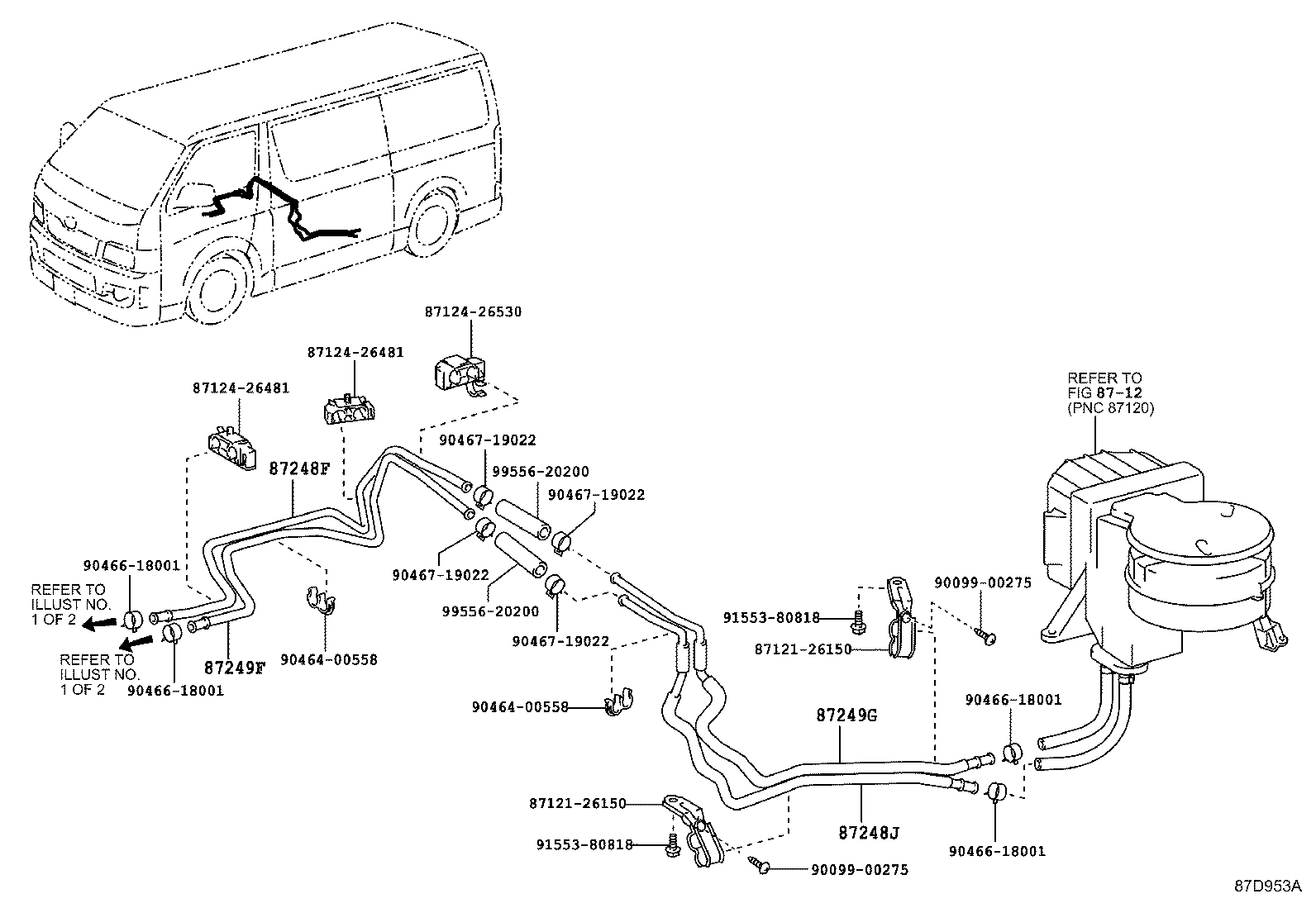

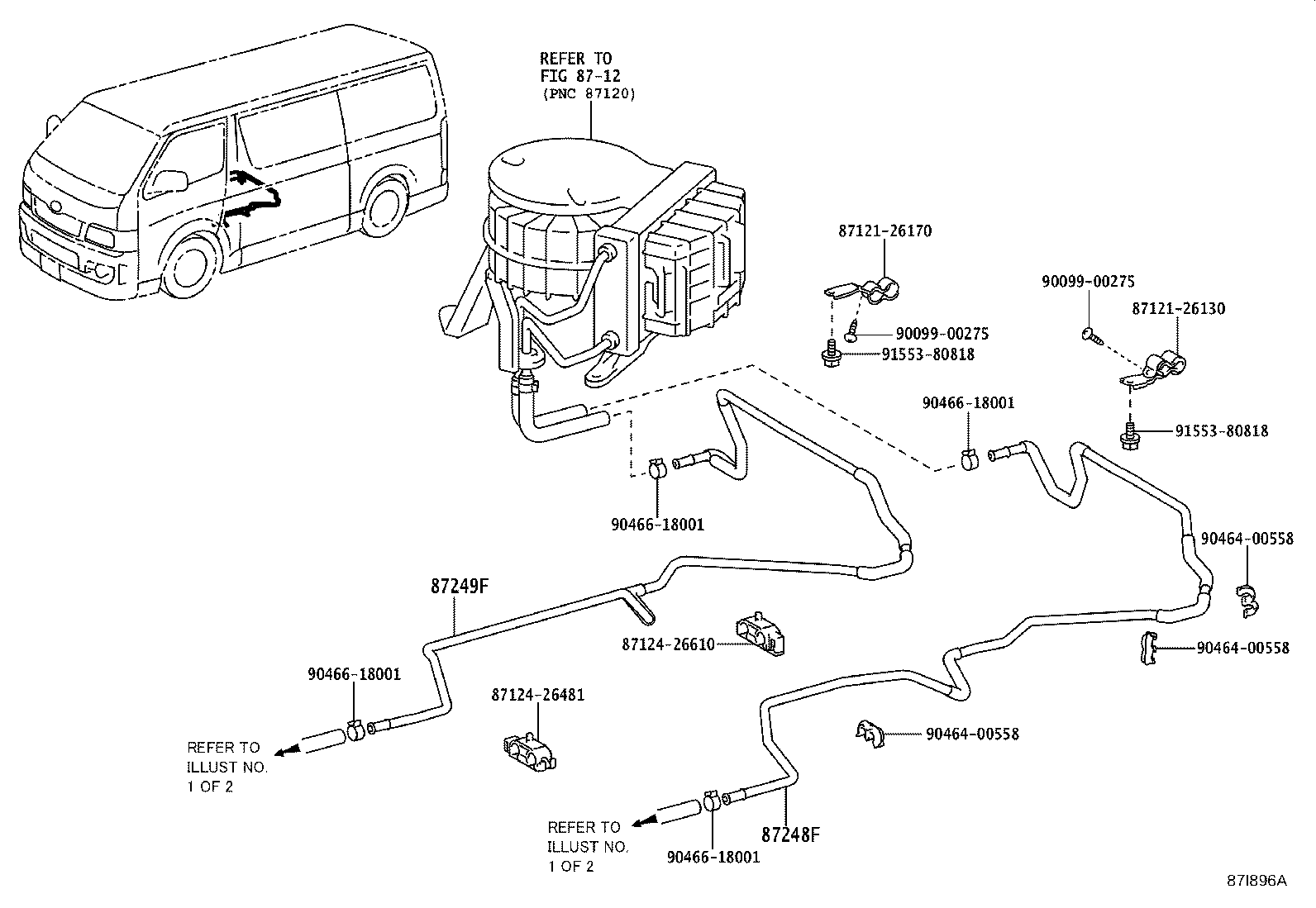

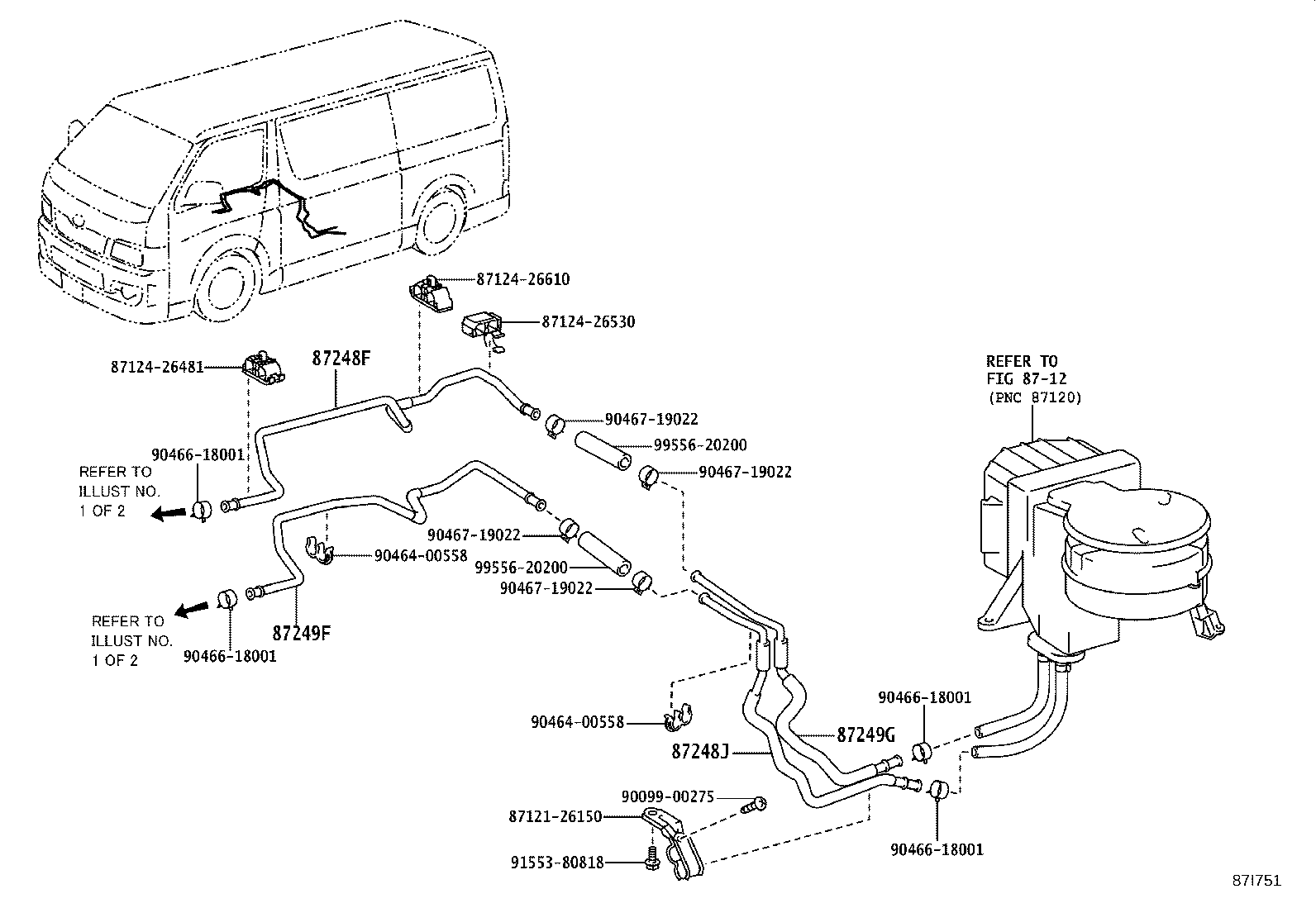

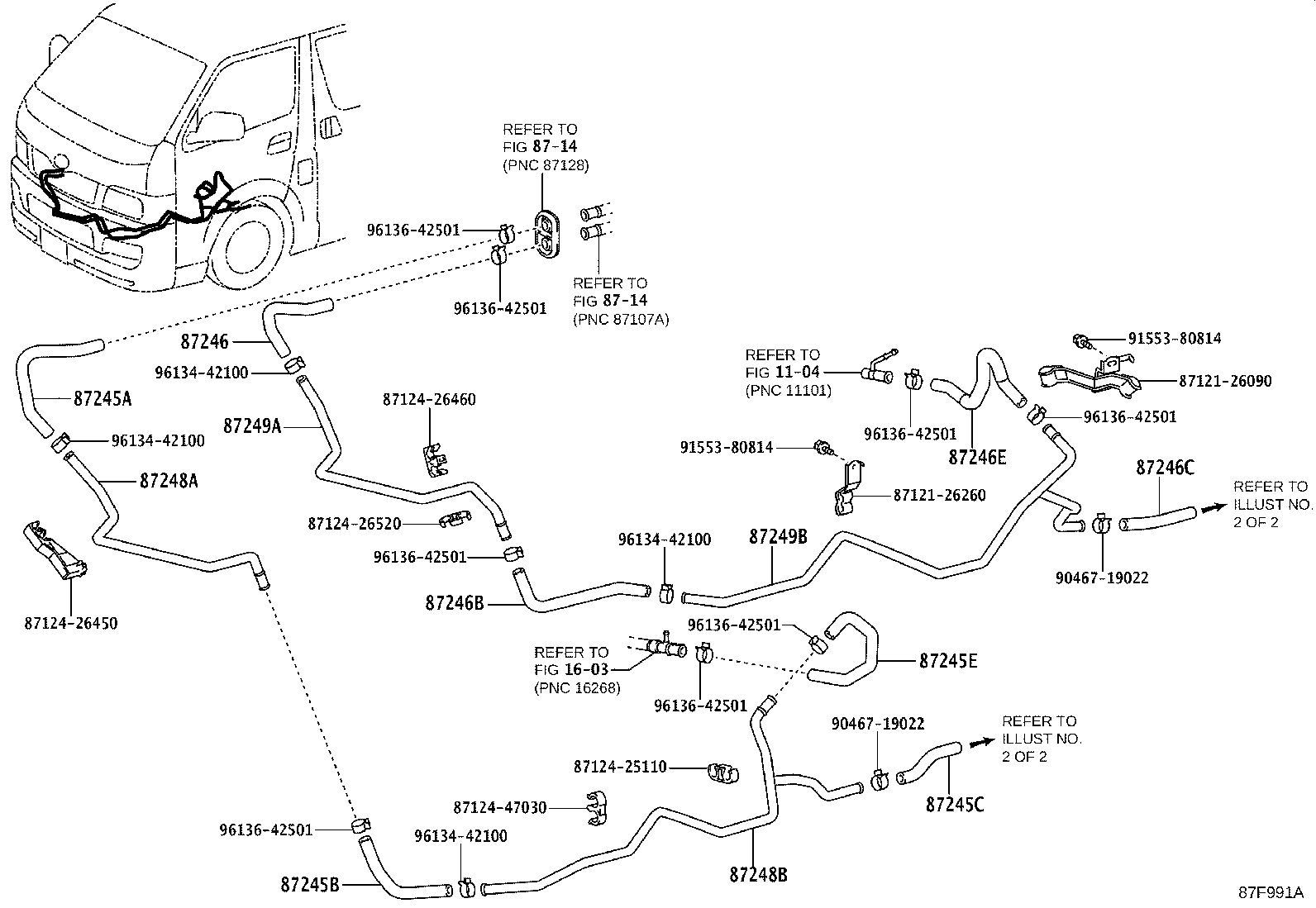

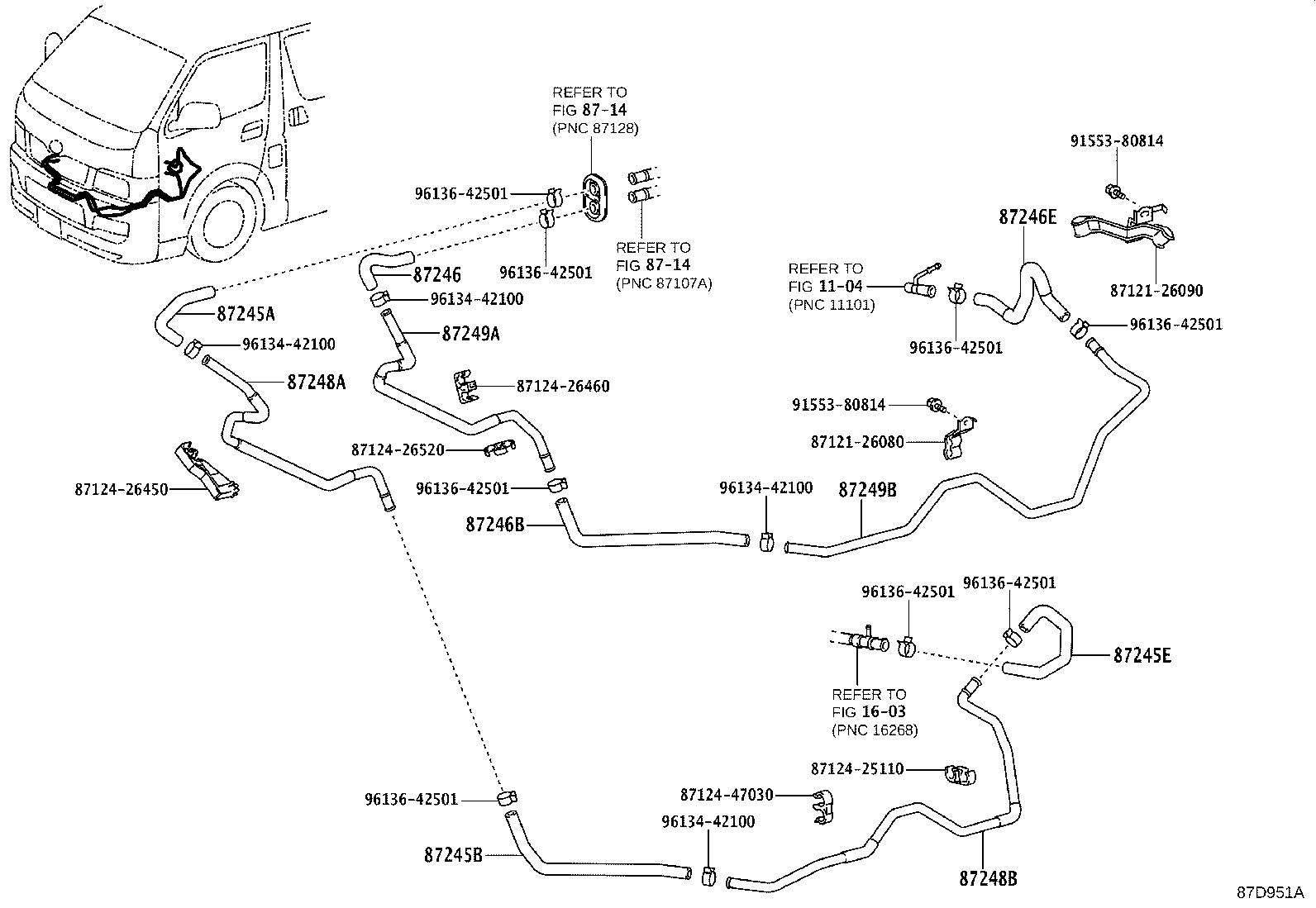

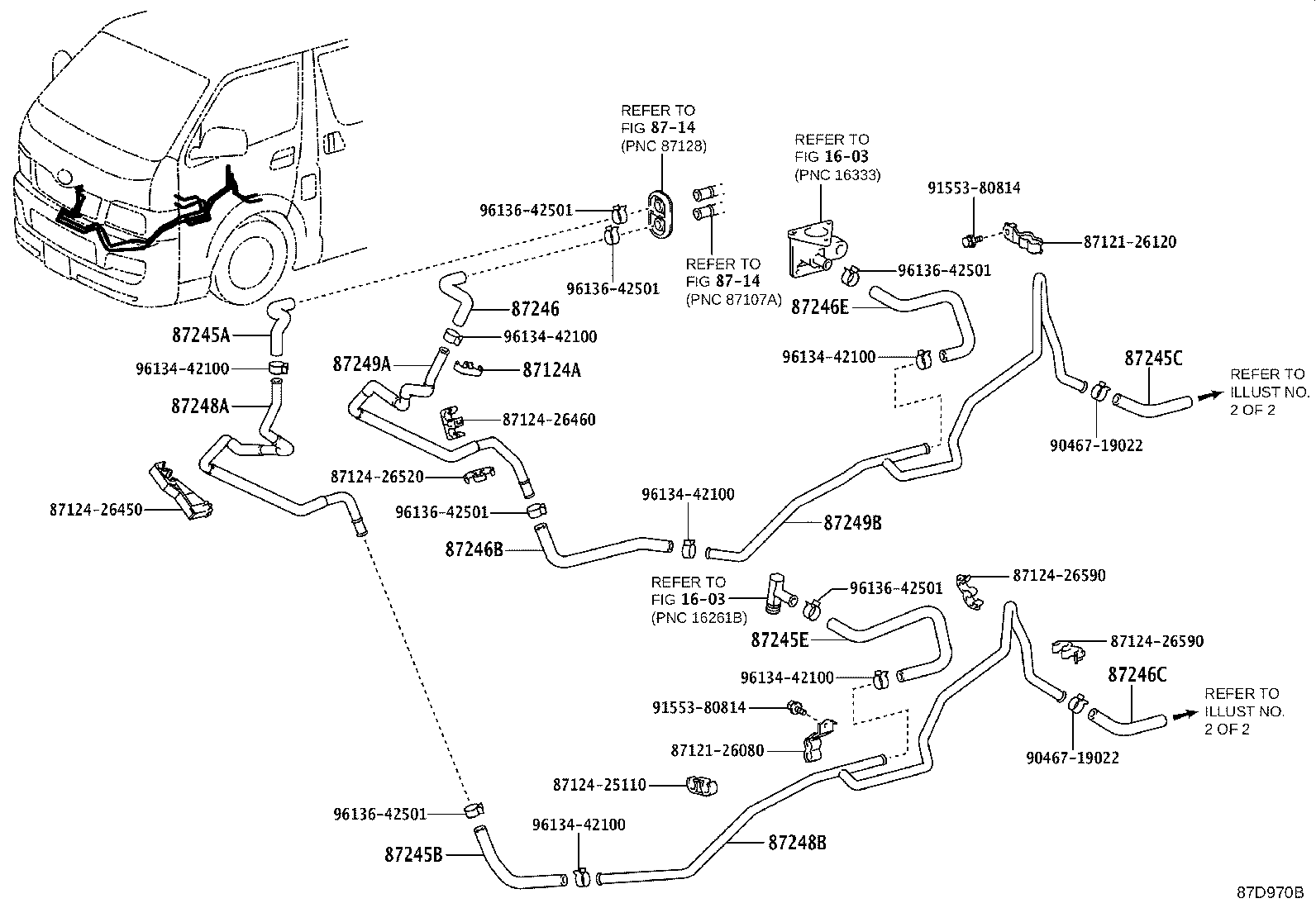

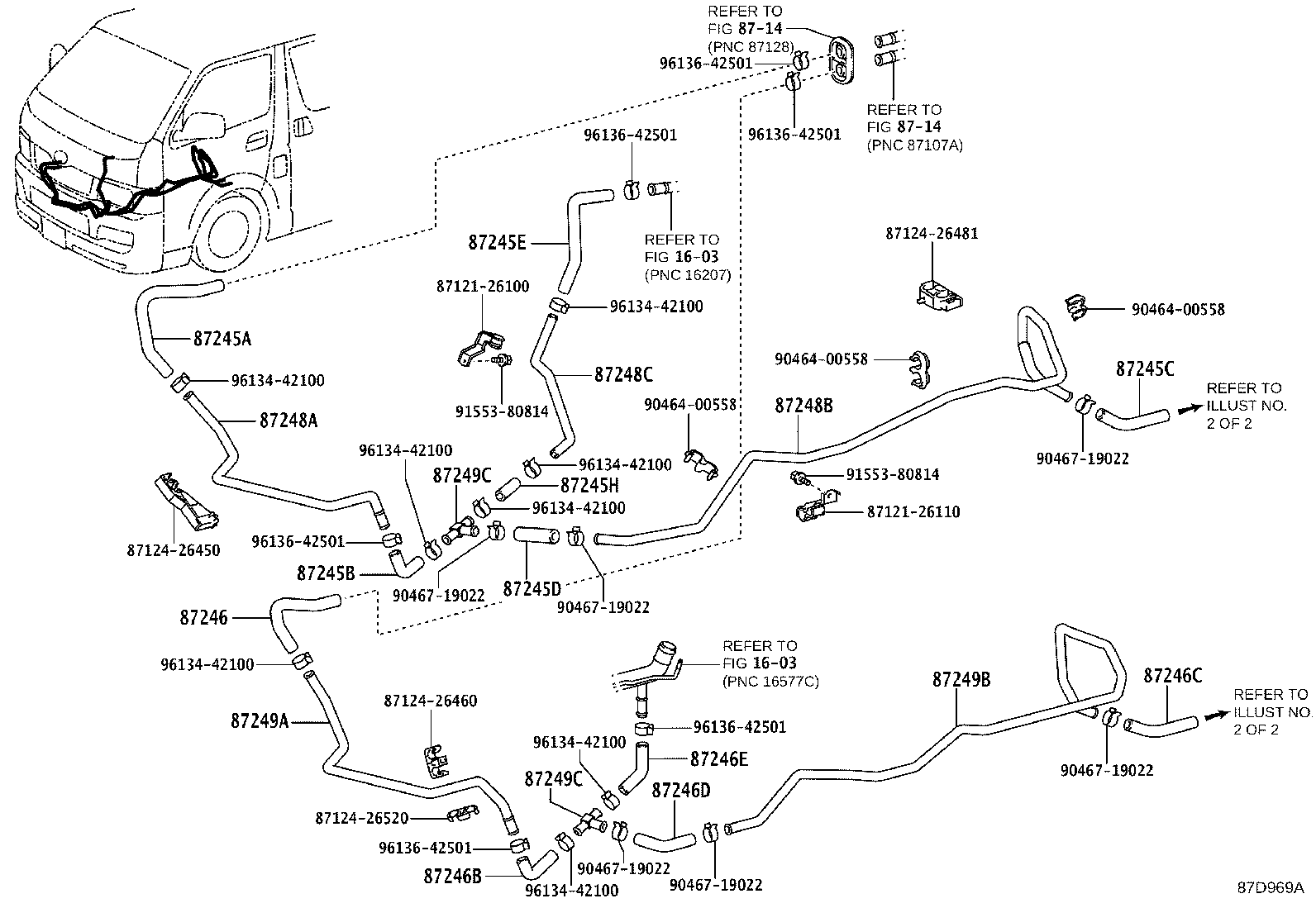

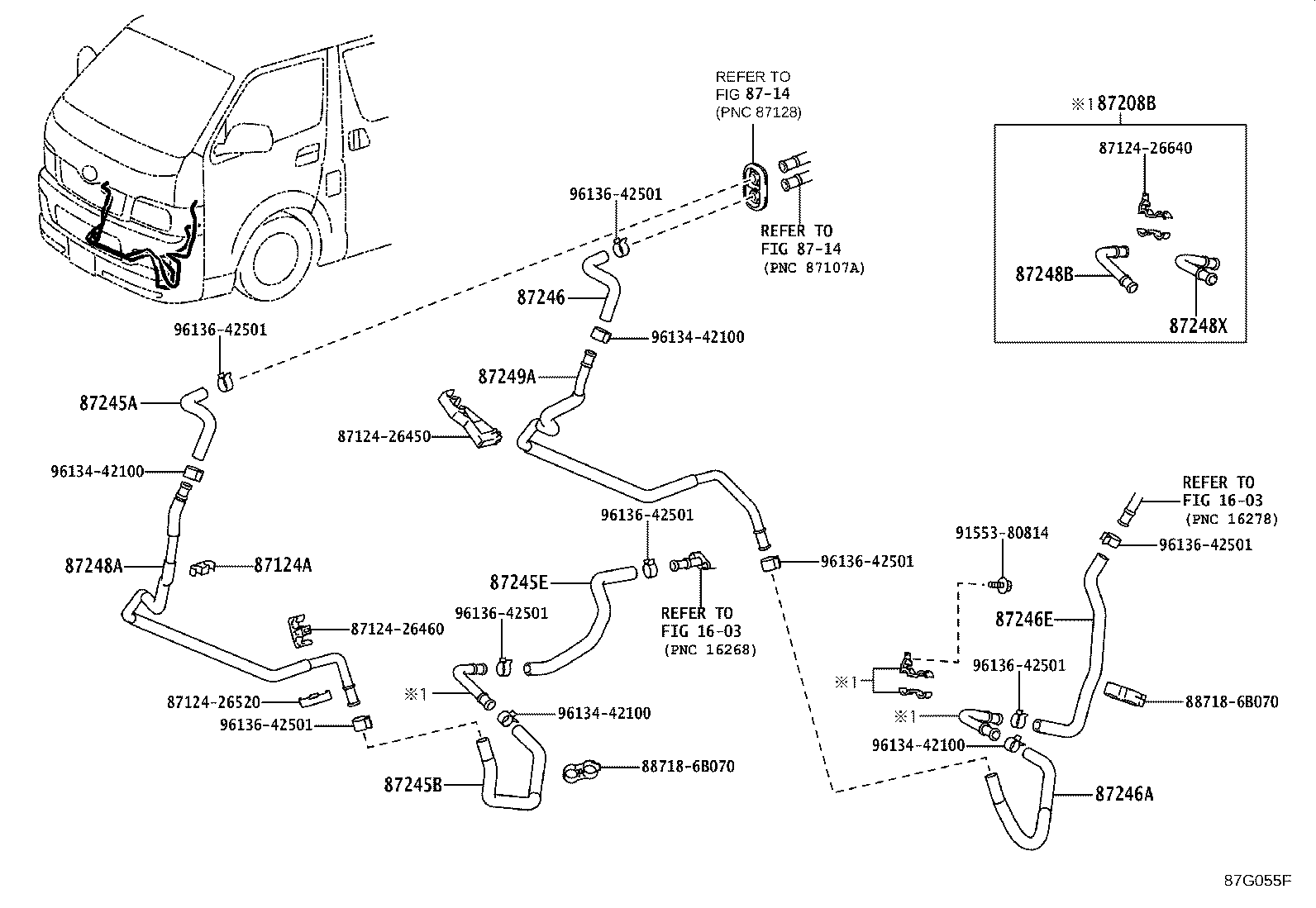

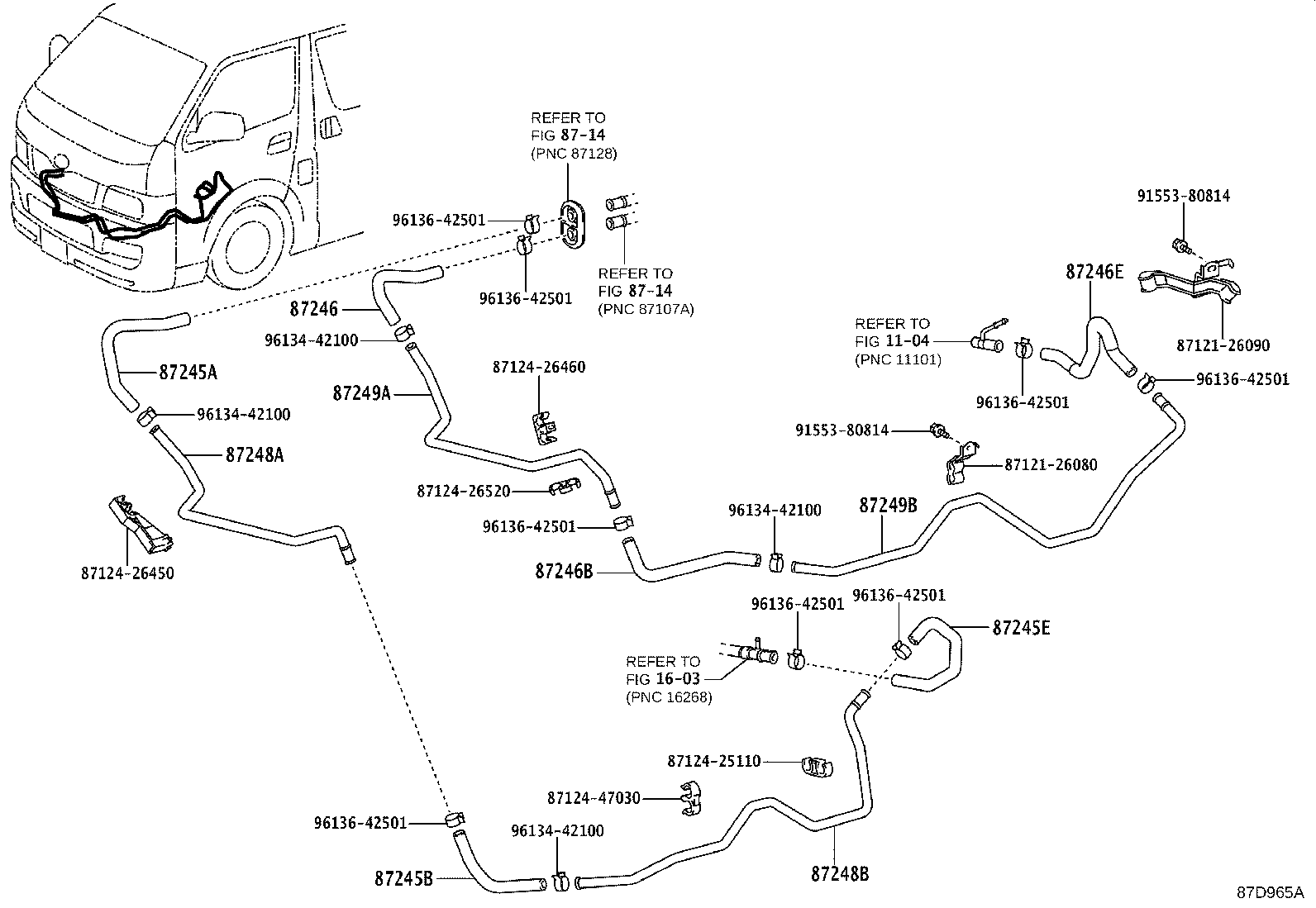

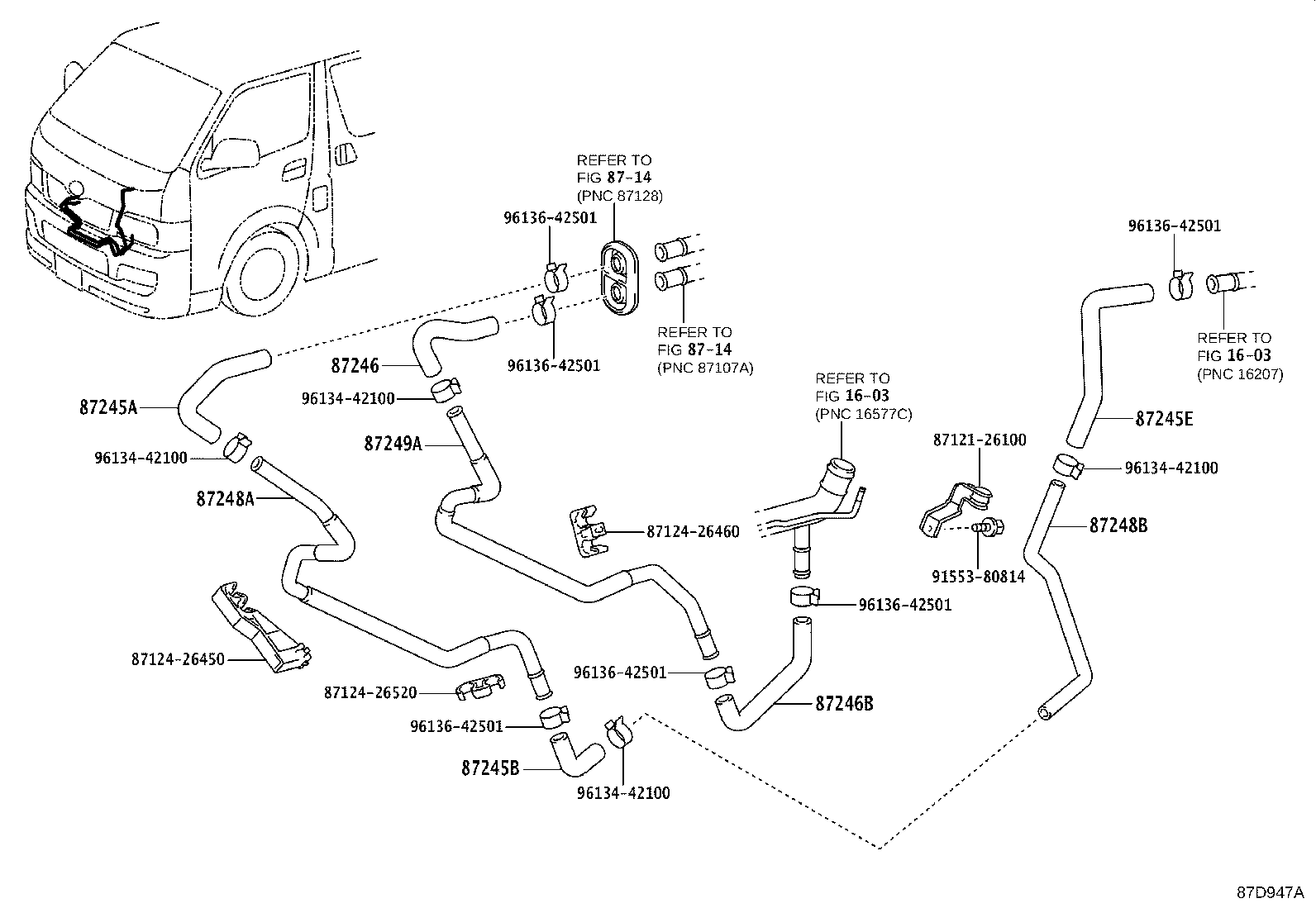

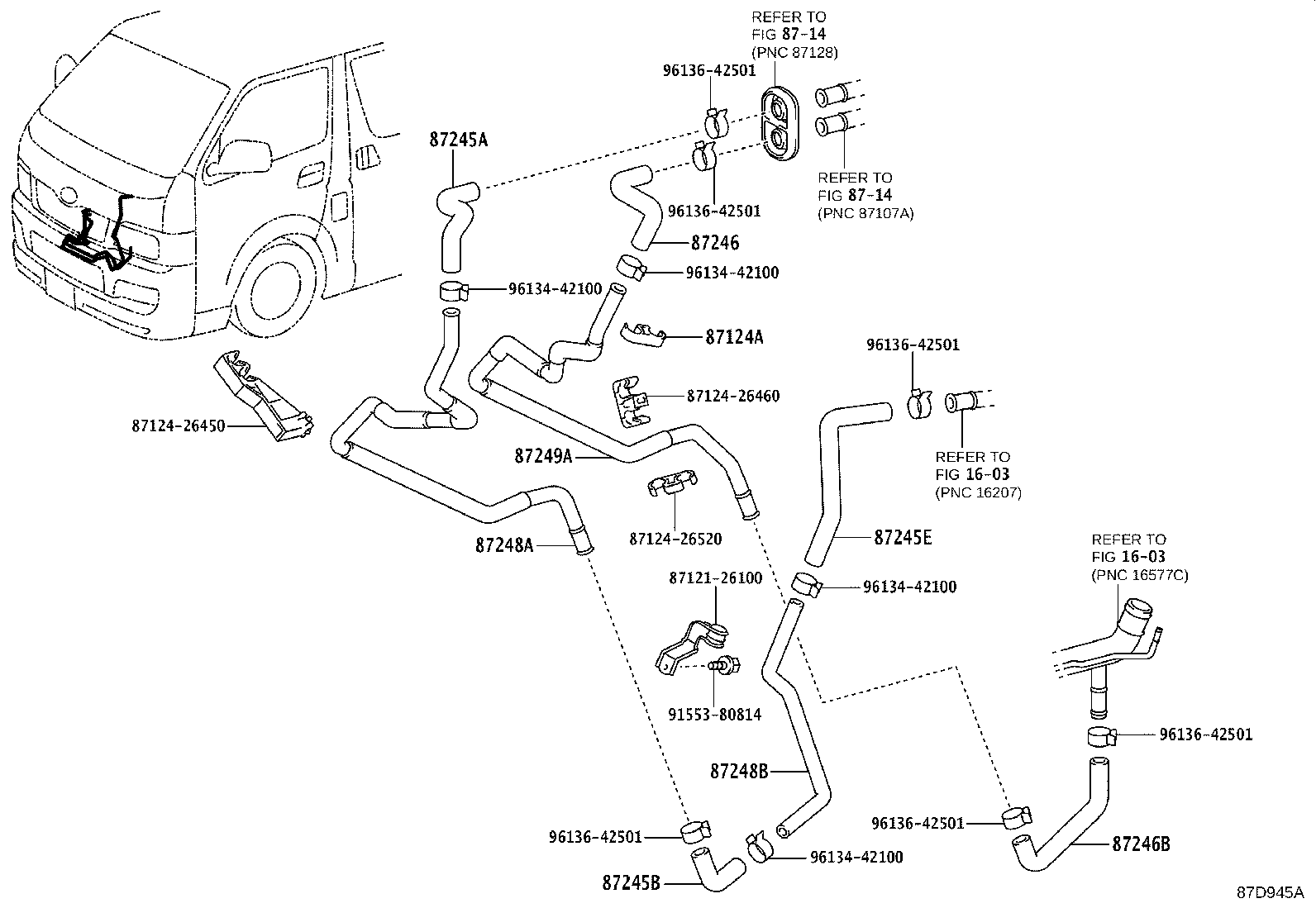

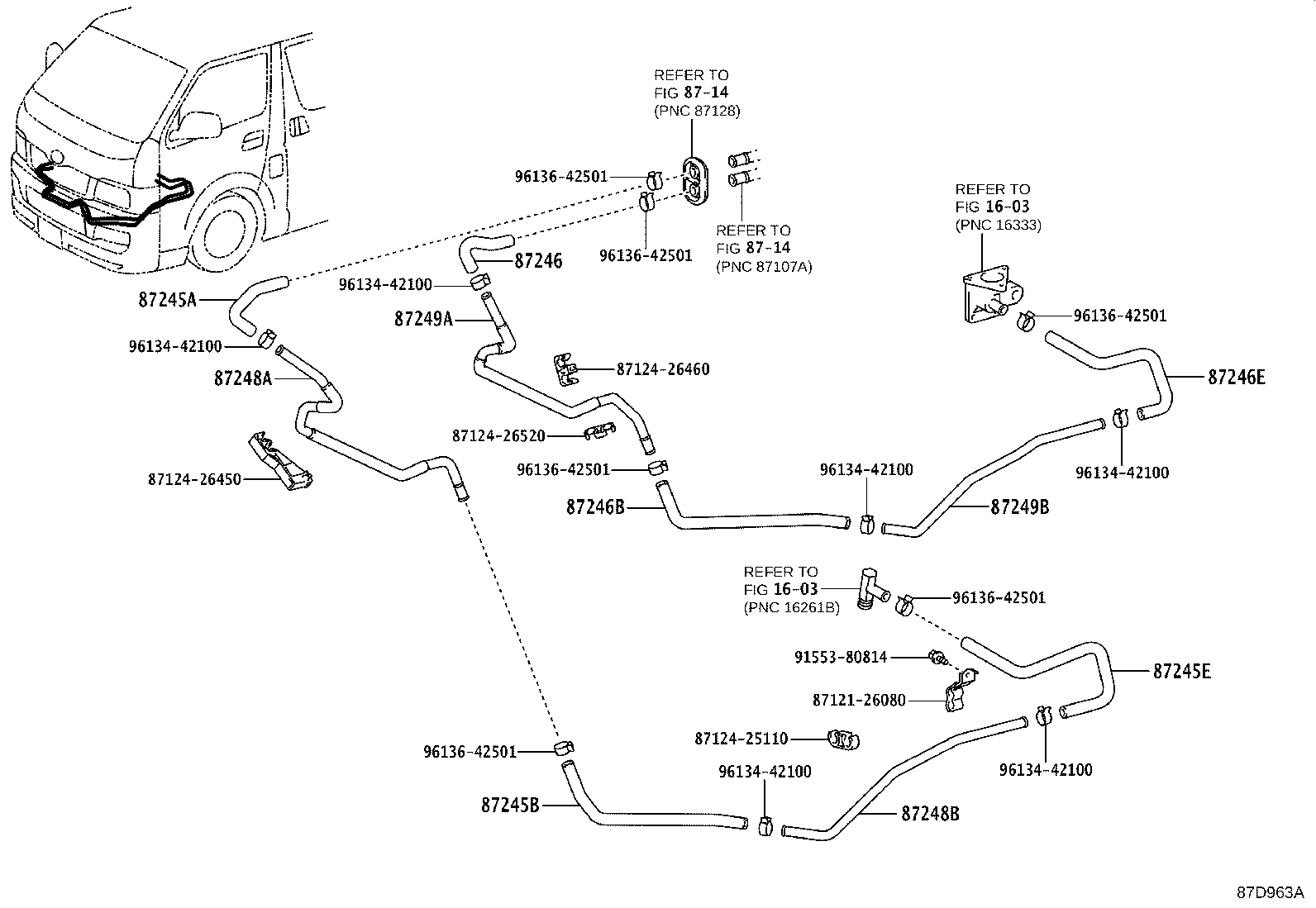

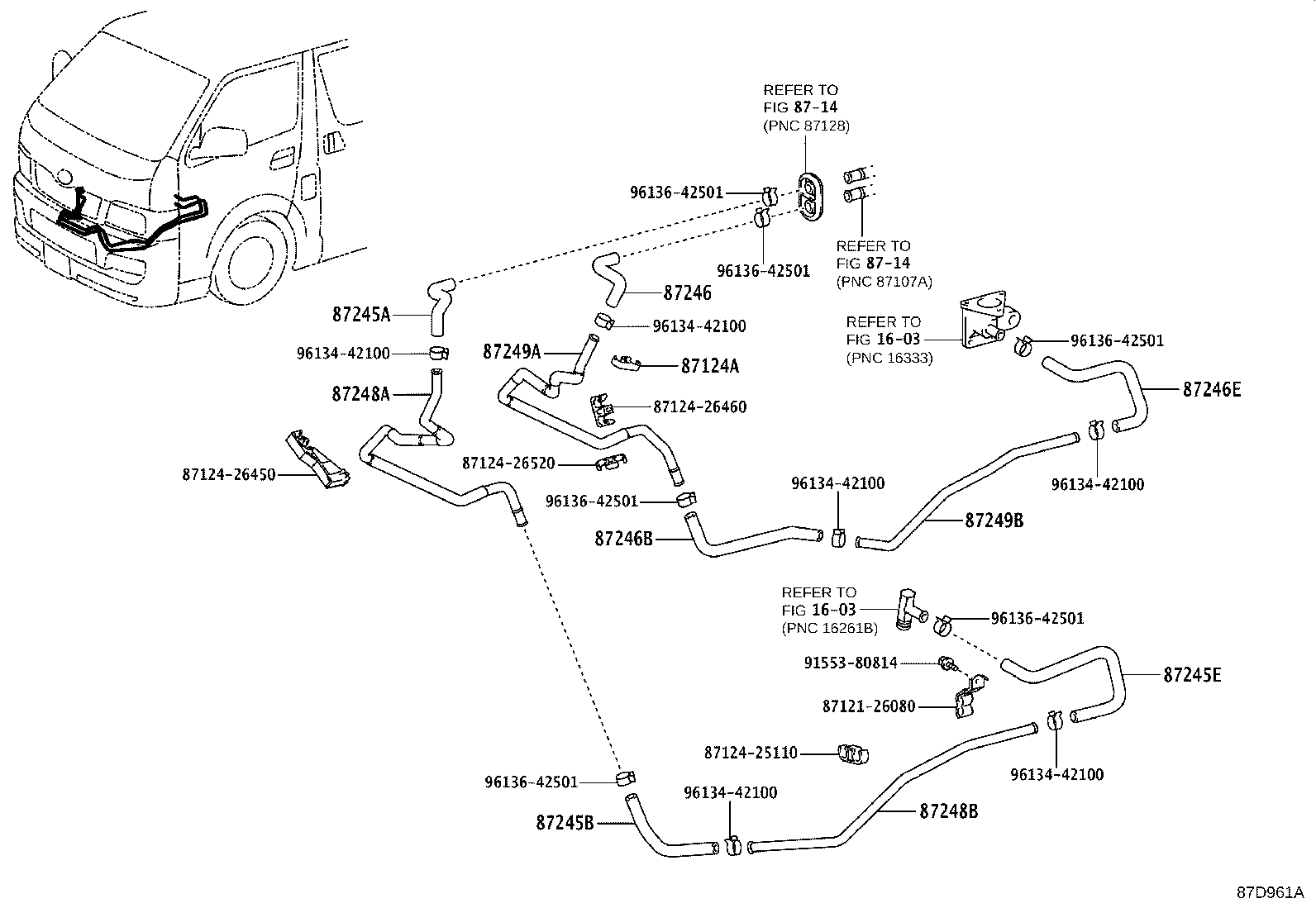

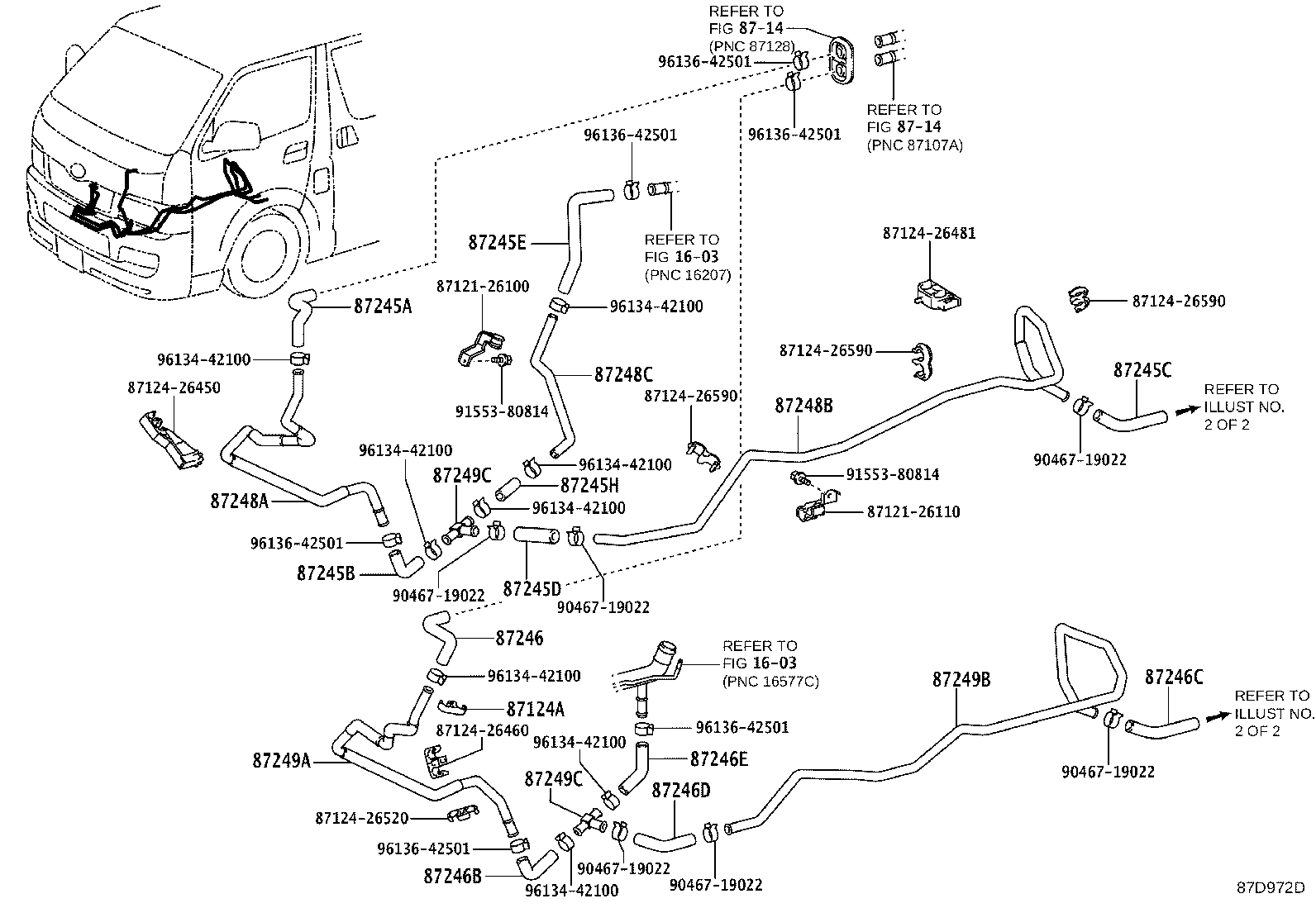

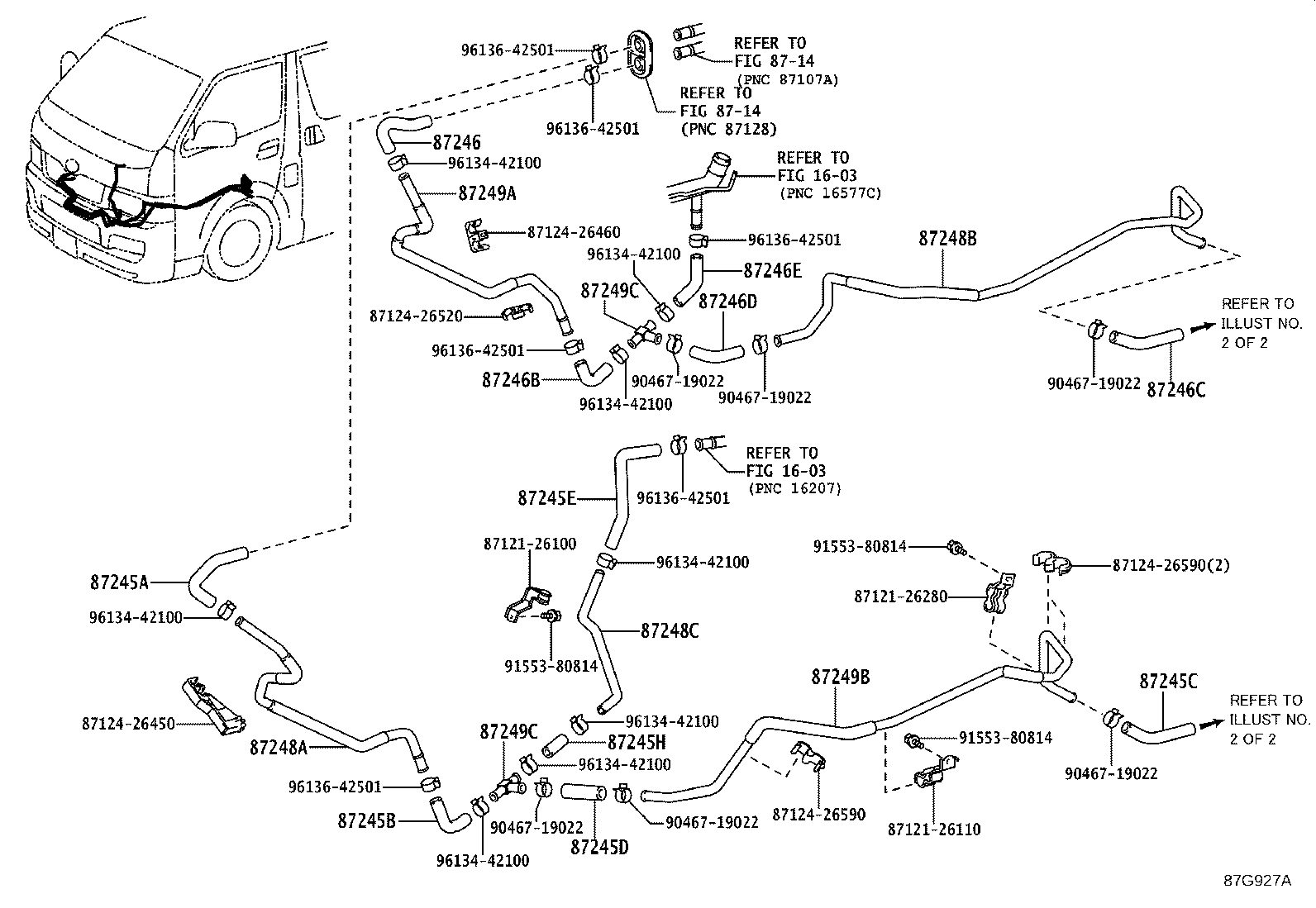

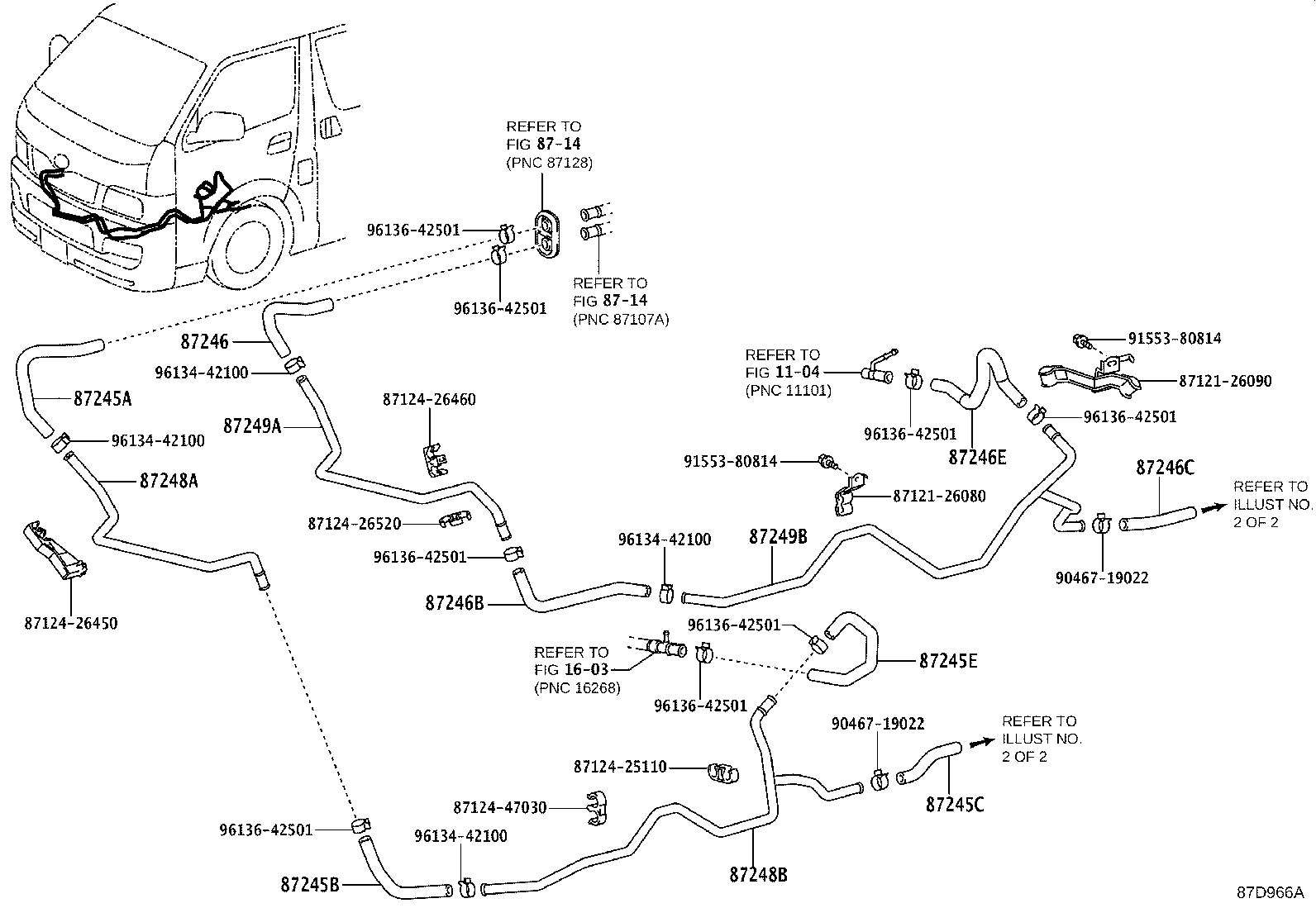

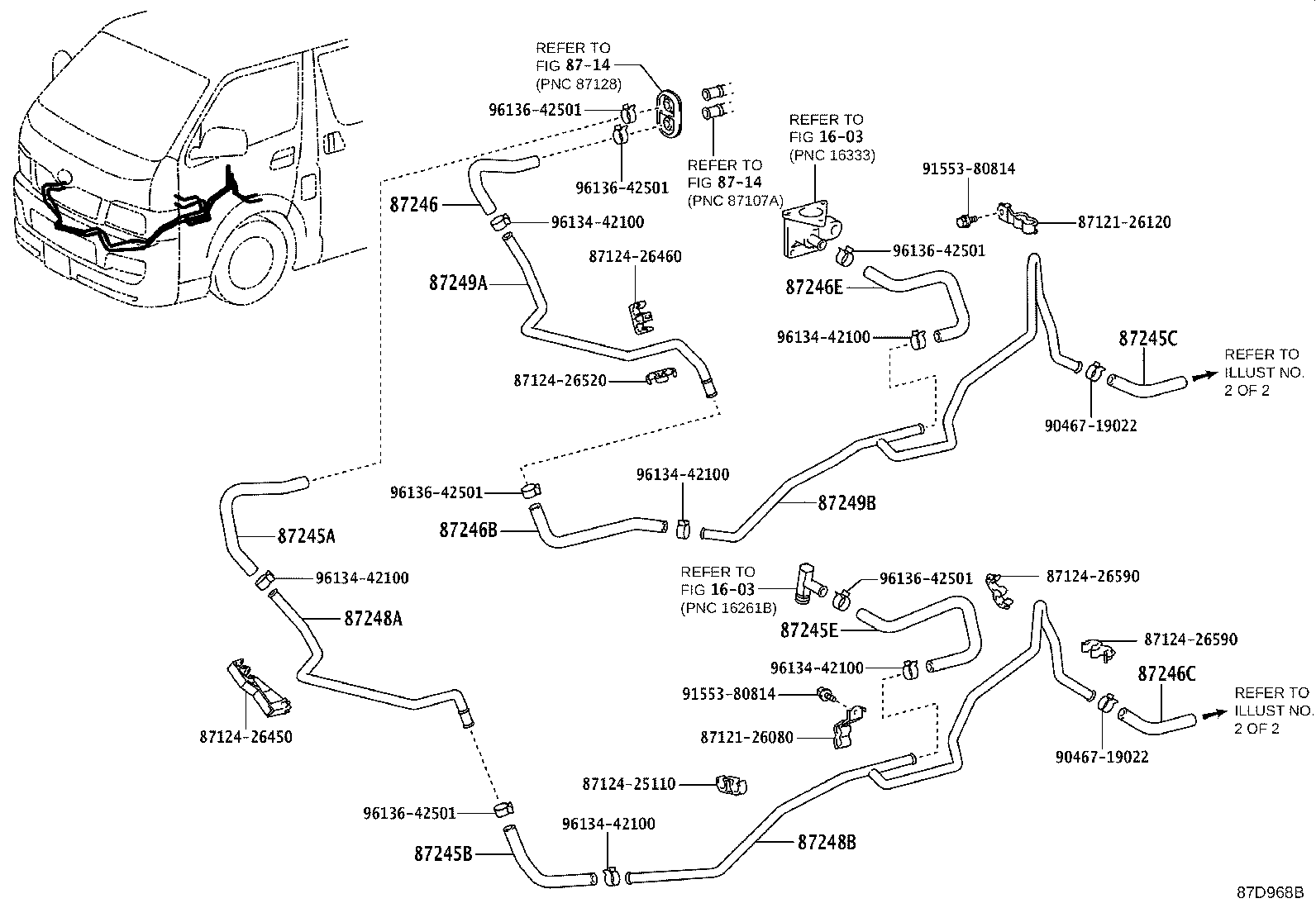

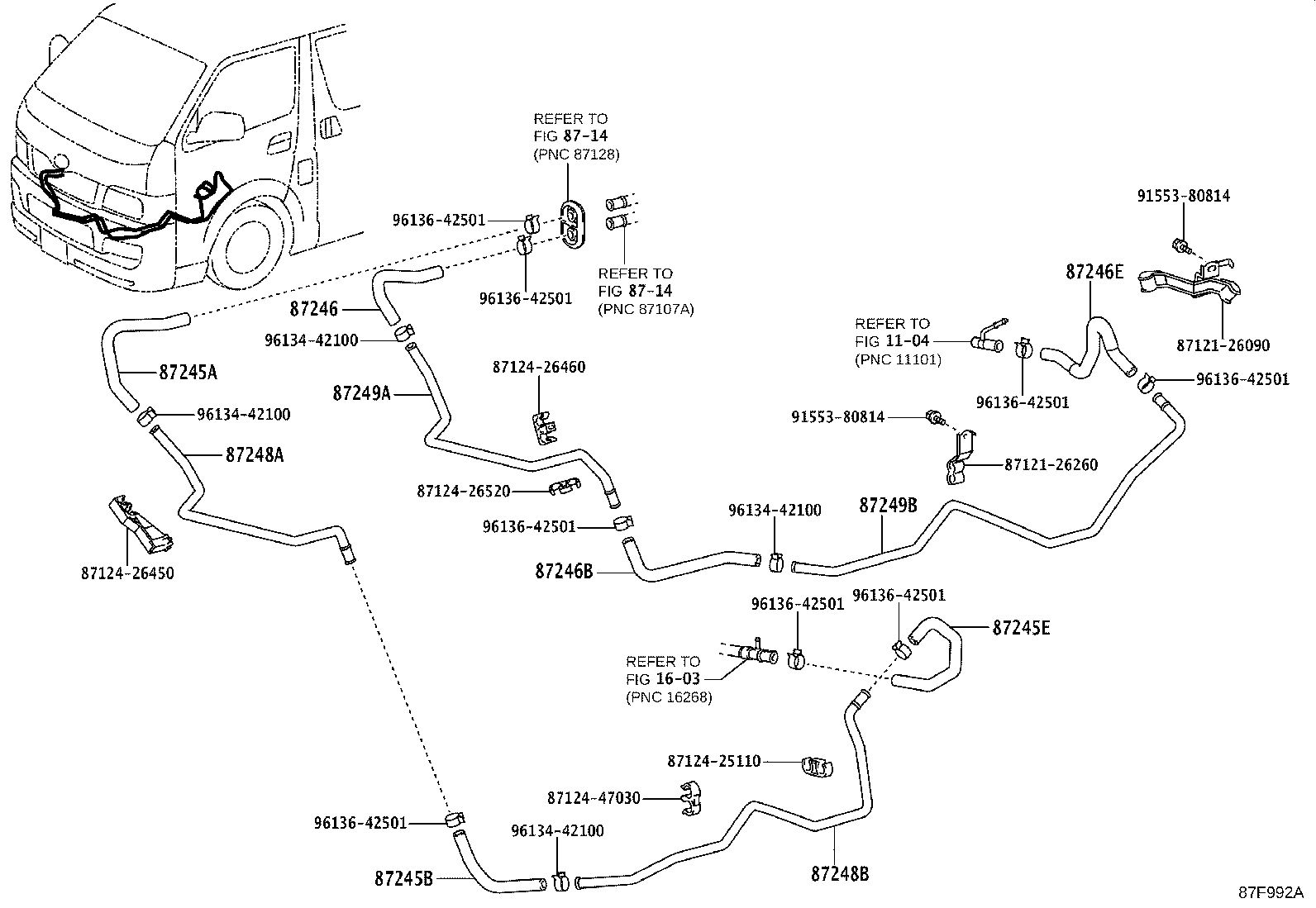

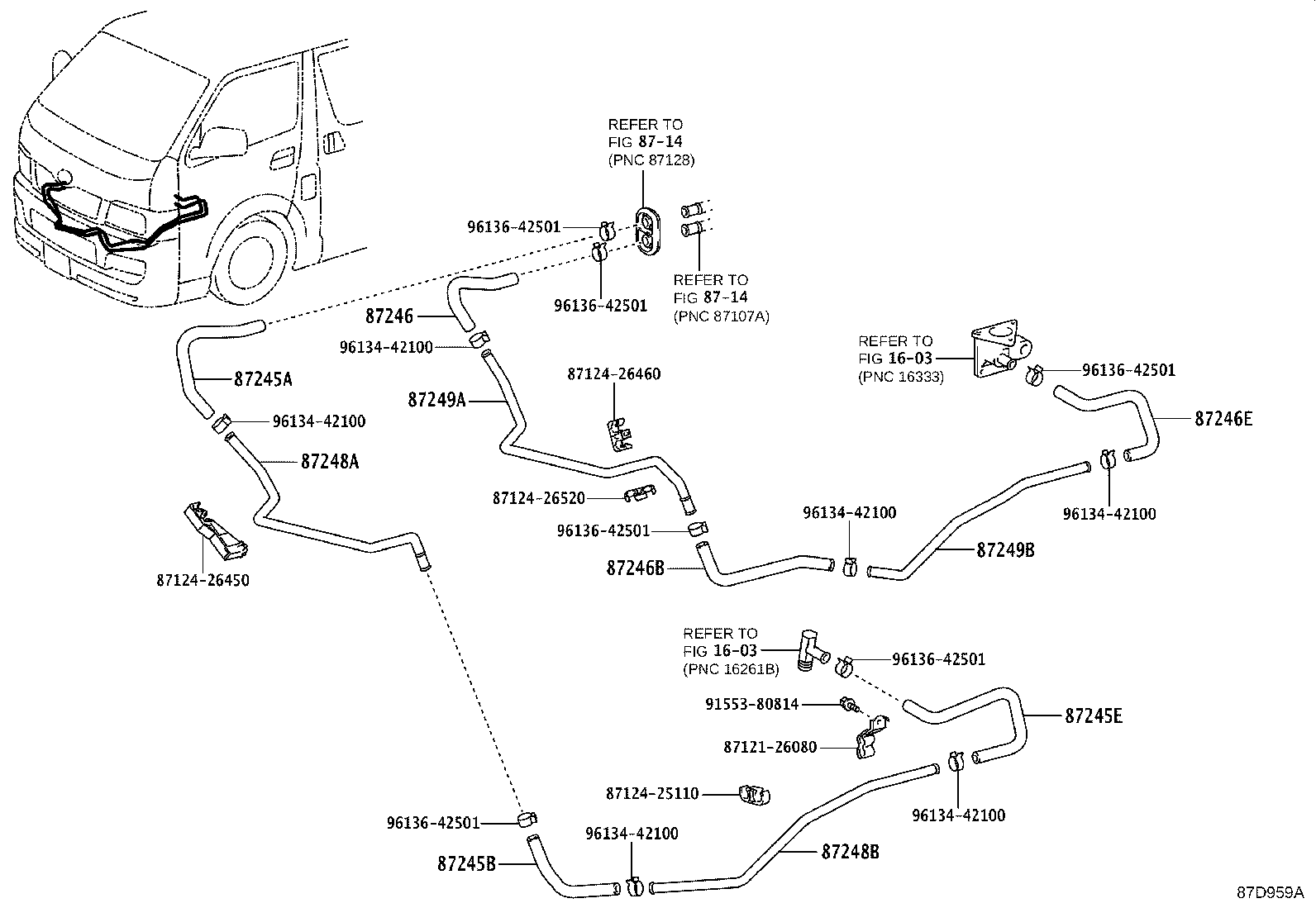

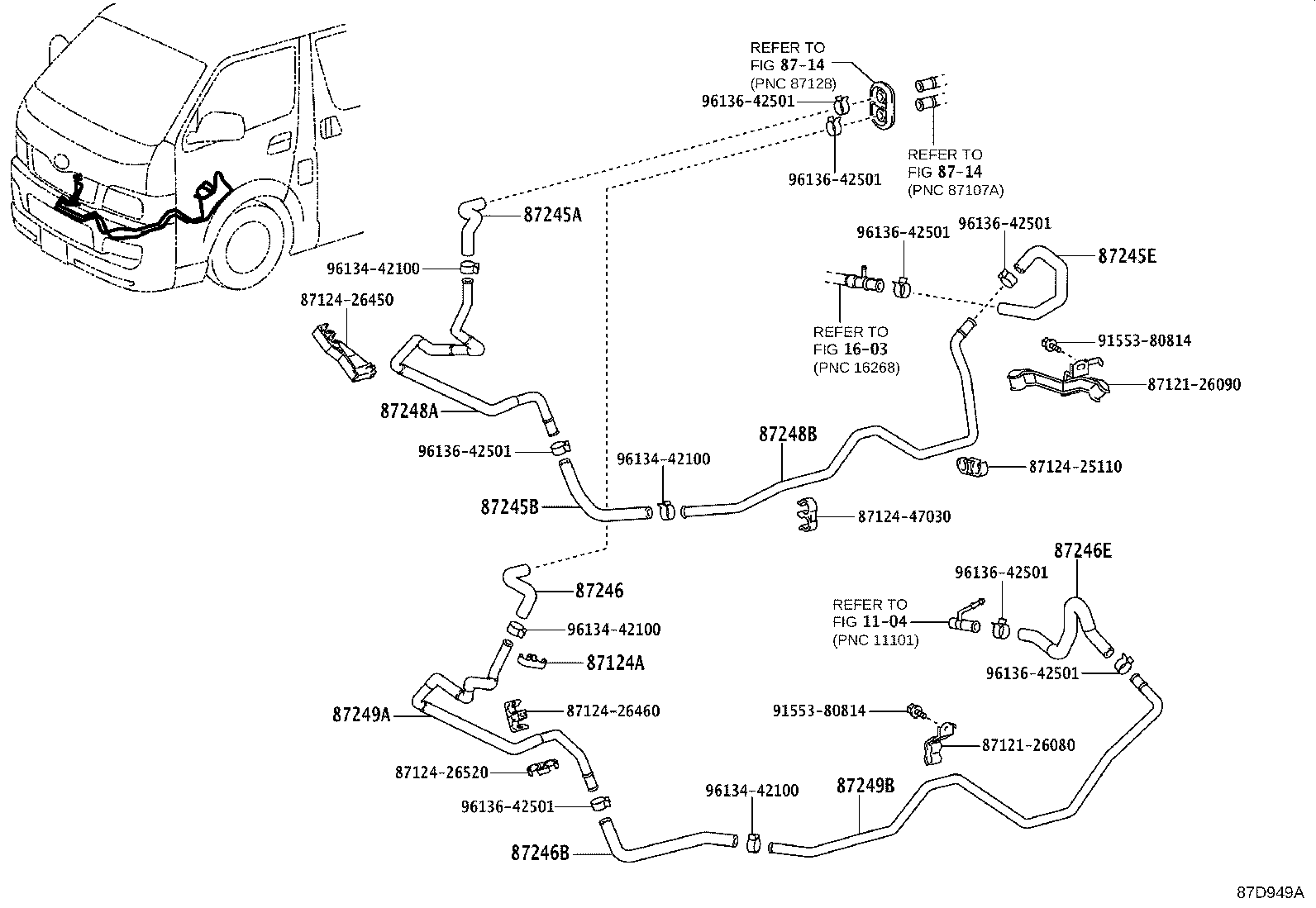

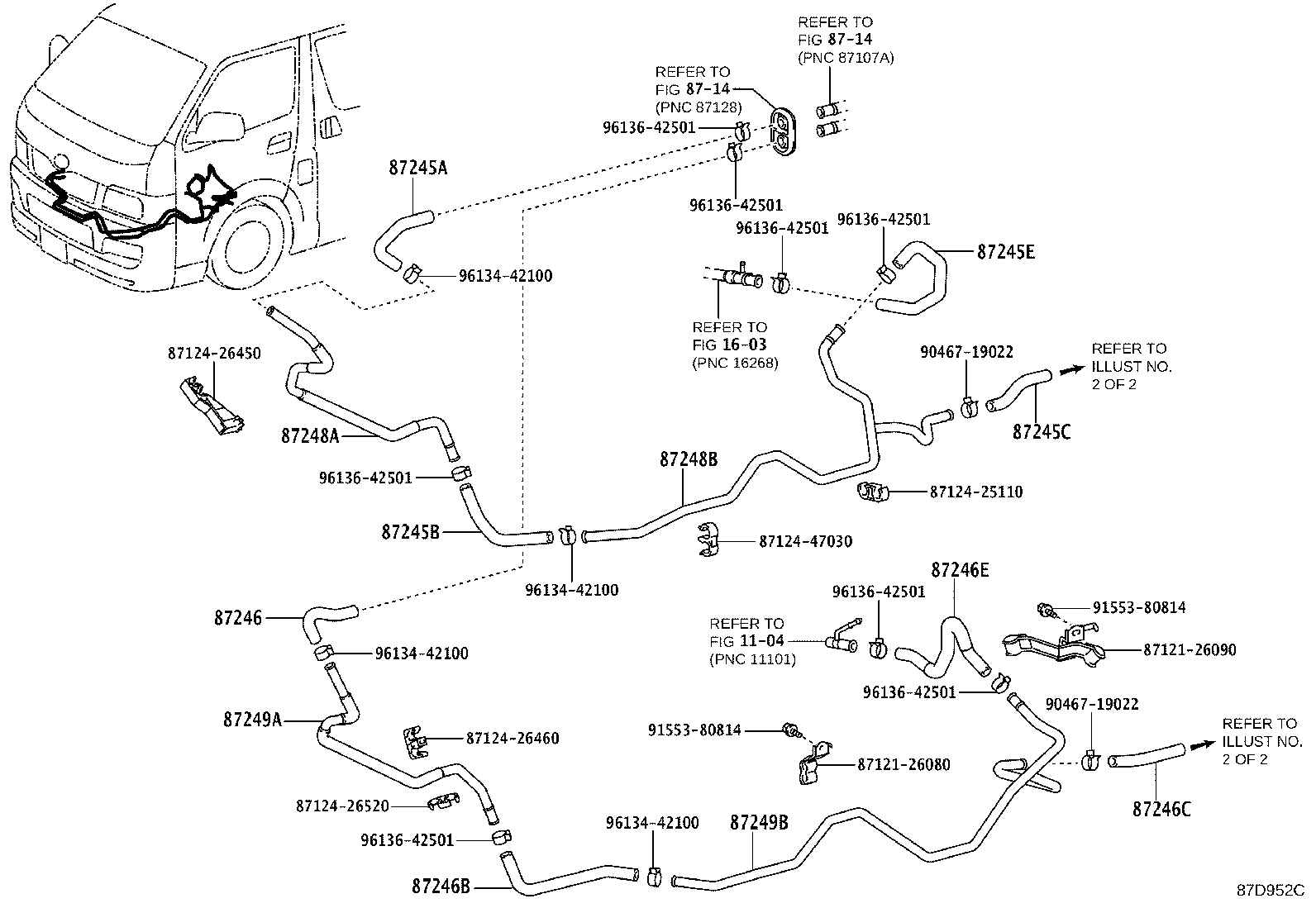

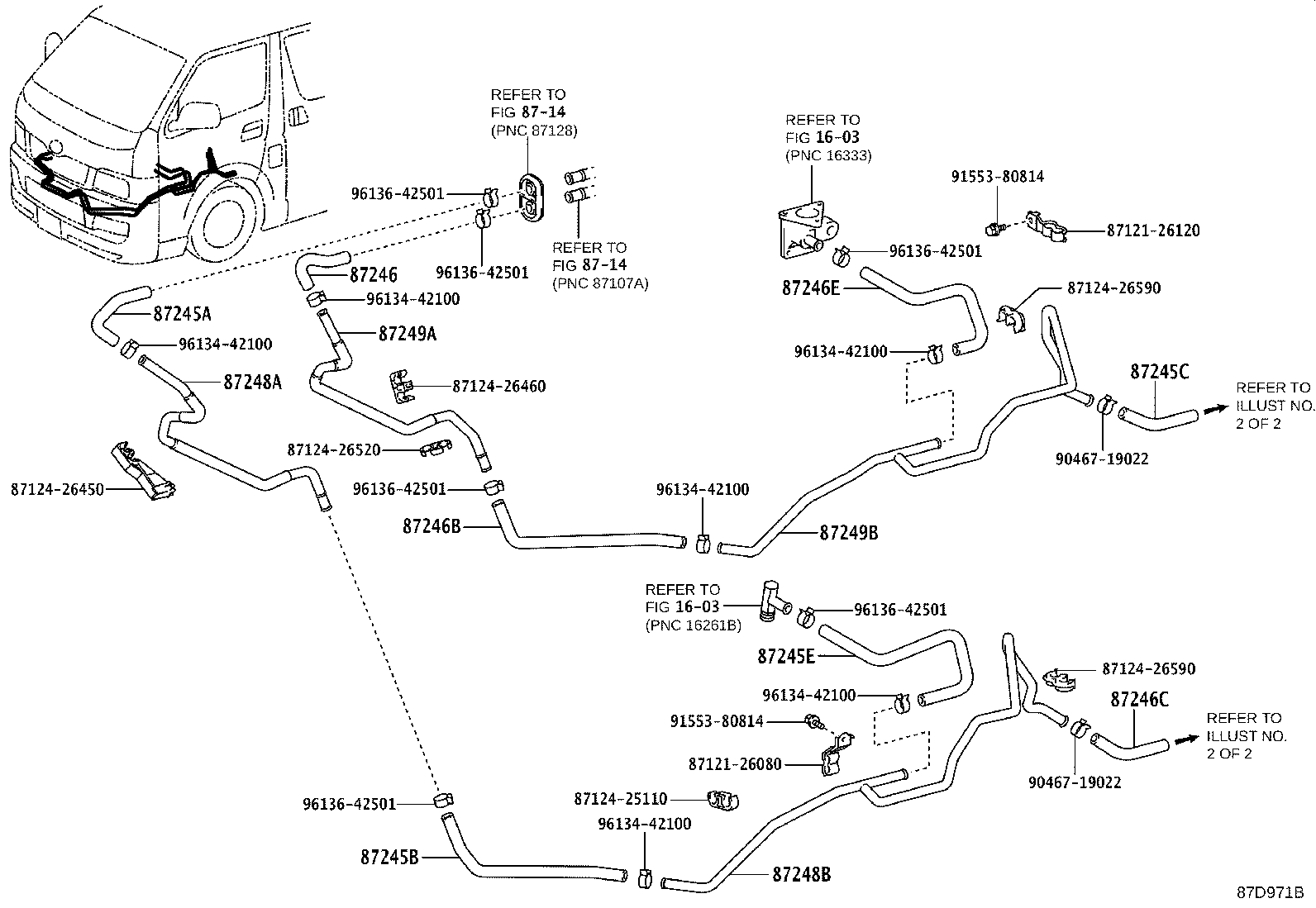

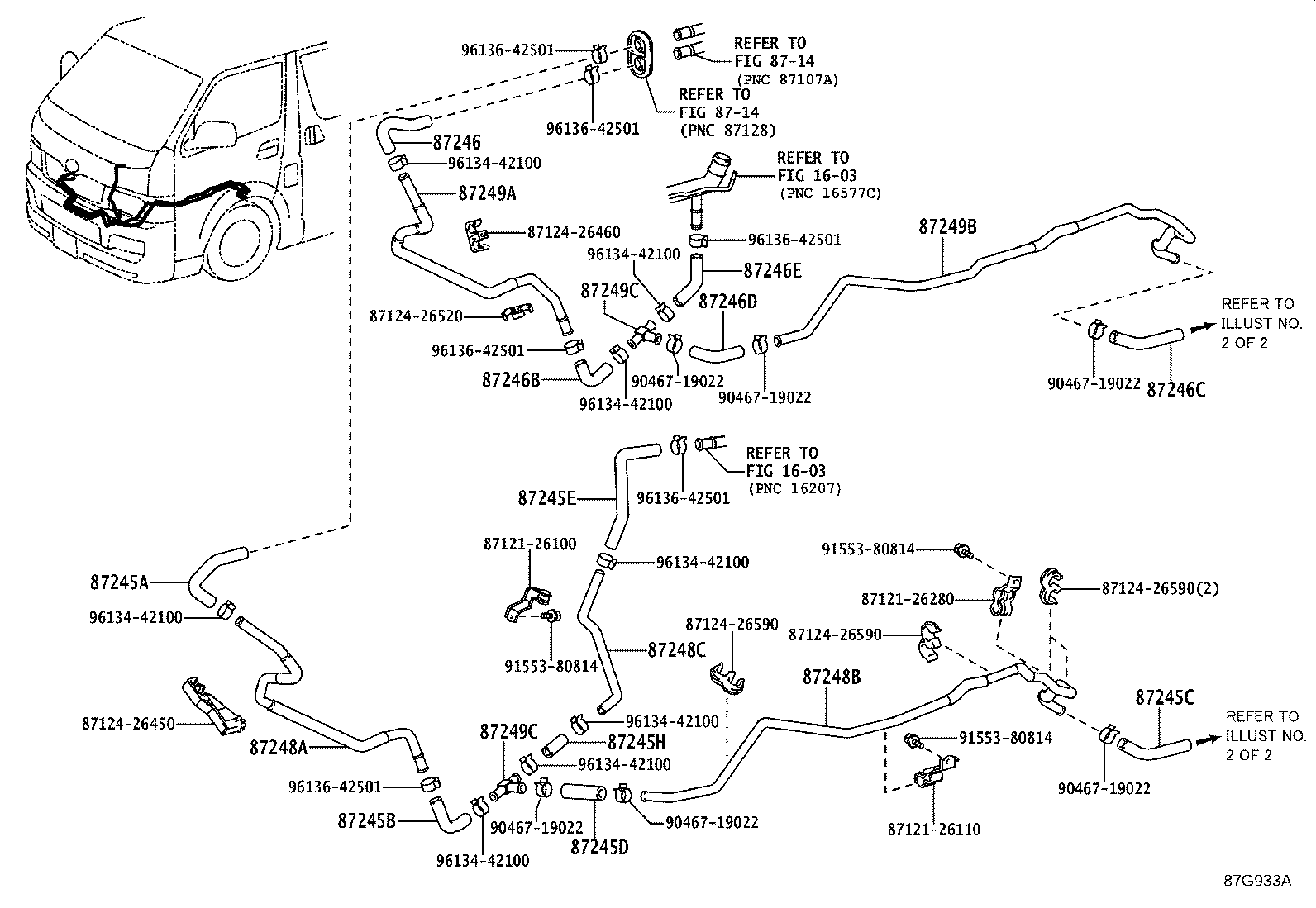

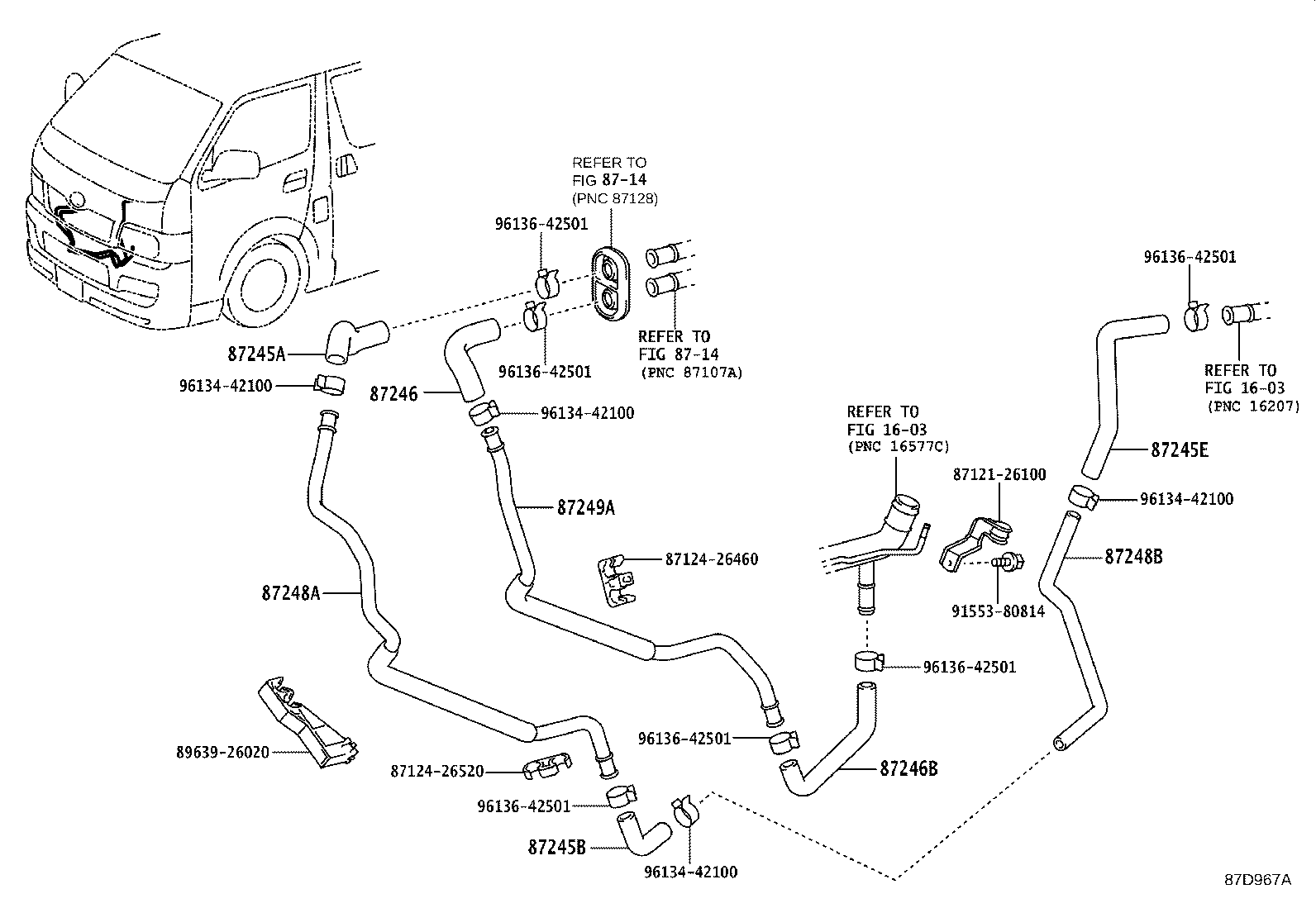

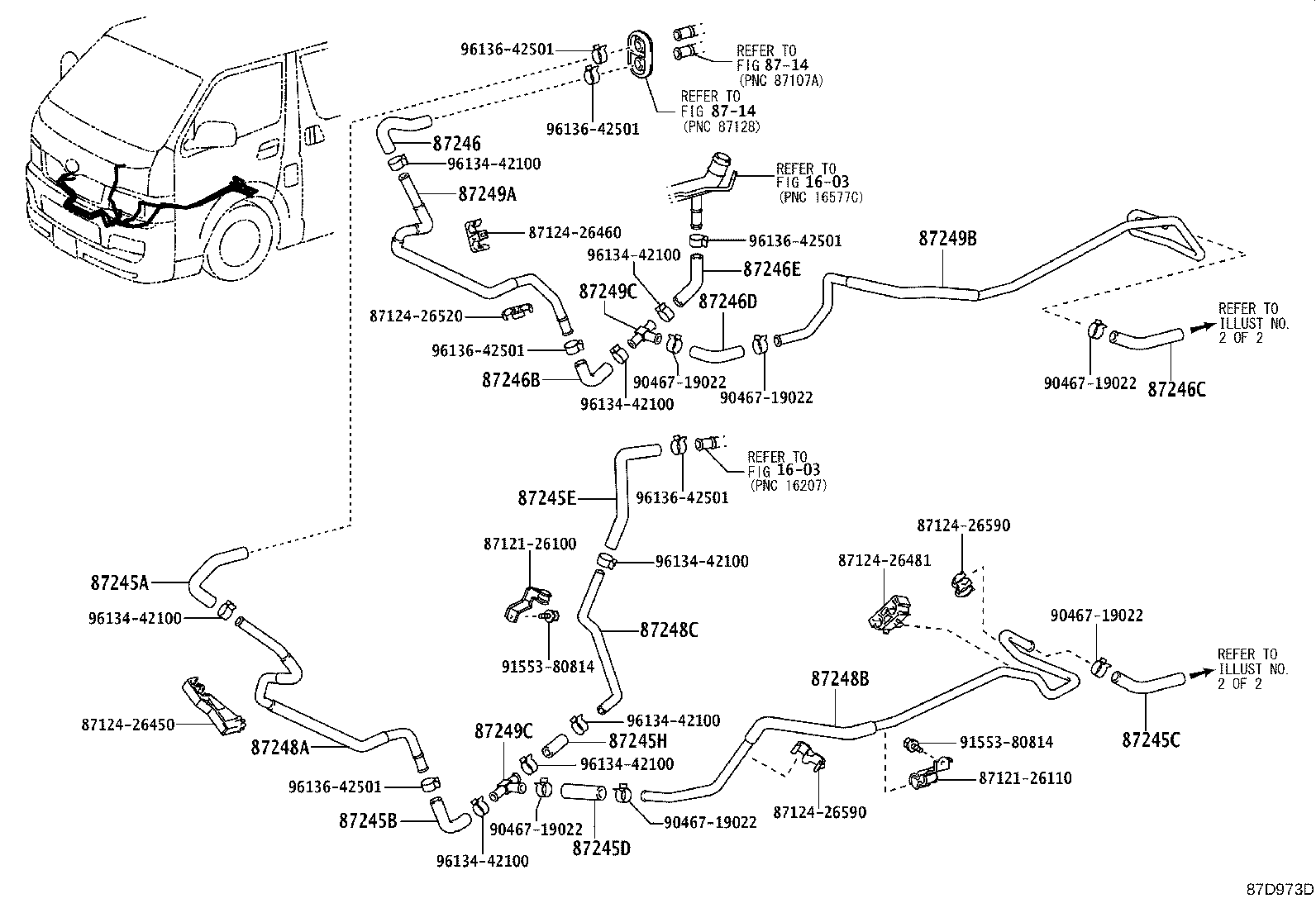

Figure 87D957A 87D957A 2013-12 → — Figure 87D969A 87D969A 2013-12 → 2017-12 Figure 87D945A 87D945A 2013-12 → — Figure 87D945A 87D945A 2015-01 → — Figure 87D945A 87D945A 2020-07 → — Figure 87D945A 87D945A 2020-07 → — Figure 87D945A 87D945A 2023-01 → — Figure 87D972D 87D972D 2013-12 → 2017-12 Figure 87D947A 87D947A 2013-12 → — Figure 87D973D 87D973D 2013-12 → 2017-12 Figure 87D973D 87D973D 2015-01 → 2017-12 Figure 87D959A 87D959A 2013-12 → — Figure 87D968B 87D968B 2013-12 → — Figure 87D961A 87D961A 2013-12 → — Figure 87D970B 87D970B 2013-12 → — Figure 87D963A 87D963A 2013-12 → — Figure 87D971B 87D971B 2013-12 → — Figure 87D965A 87D965A 2013-12 → 2016-12 Figure 87F992A 87F992A 2016-12 → — Figure 87D966A 87D966A 2013-12 → 2016-12 Figure 87F991A 87F991A 2016-12 → — Figure 87D949A 87D949A 2013-12 → 2016-12 Figure 87D949A 87D949A 2015-01 → 2016-12 Figure 87F993A 87F993A 2016-12 → — Figure 87F993A 87F993A 2023-02 → — Figure 87D951A 87D951A 2013-12 → — Figure 87D951A 87D951A 2015-01 → — Figure 87D952C 87D952C 2013-12 → 2017-12 Figure 87D967A 87D967A 2013-12 → — Figure 87G055F 87G055F 2016-12 → — Figure 87G055F 87G055F 2023-02 → — Figure 87G927A 87G927A 2017-12 → — Figure 87G933A 87G933A 2017-12 → — Figure 87G993D 87G993D 2017-12 → — Figure 87D953A 87D953A 2013-12 → 2020-05 Figure 87I752 87I752 2020-05 → — Figure 87D954A 87D954A 2013-12 → 2020-05 Figure 87I751 87I751 2020-05 → — Figure 87D955A 87D955A 2013-12 → — Figure 87D955A 87D955A 2013-12 → — Figure 87D955A 87D955A 2015-01 → — Figure 87D955A 87D955A 2018-01 → — Figure 87D956A 87D956A 2013-12 → 2017-12 Figure 87D940A 87D940A 2013-12 → 2017-12 Figure 87G923A 87G923A 2017-12 → 2020-05 Figure 87I896A 87I896A 2020-05 → — Figure 87G925A 87G925A 2017-12 → —

Part groups

PNCDescription
87124A Clamp, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248F Pipe, Heater Water Inlet, F
87248J Pipe, Heater Water Inlet, J
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249F Pipe, Heater Water Outlet, F
87249G Pipe, Heater Water Outlet, G
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
