Toyota Hiace

2013-12 → present · chassis GDH2##,KDH2##,LH2##,TRH2## · catalogue 711360 · General

Supported model Data version 2024-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

34 part groups · 110 illustrations

Illustrations

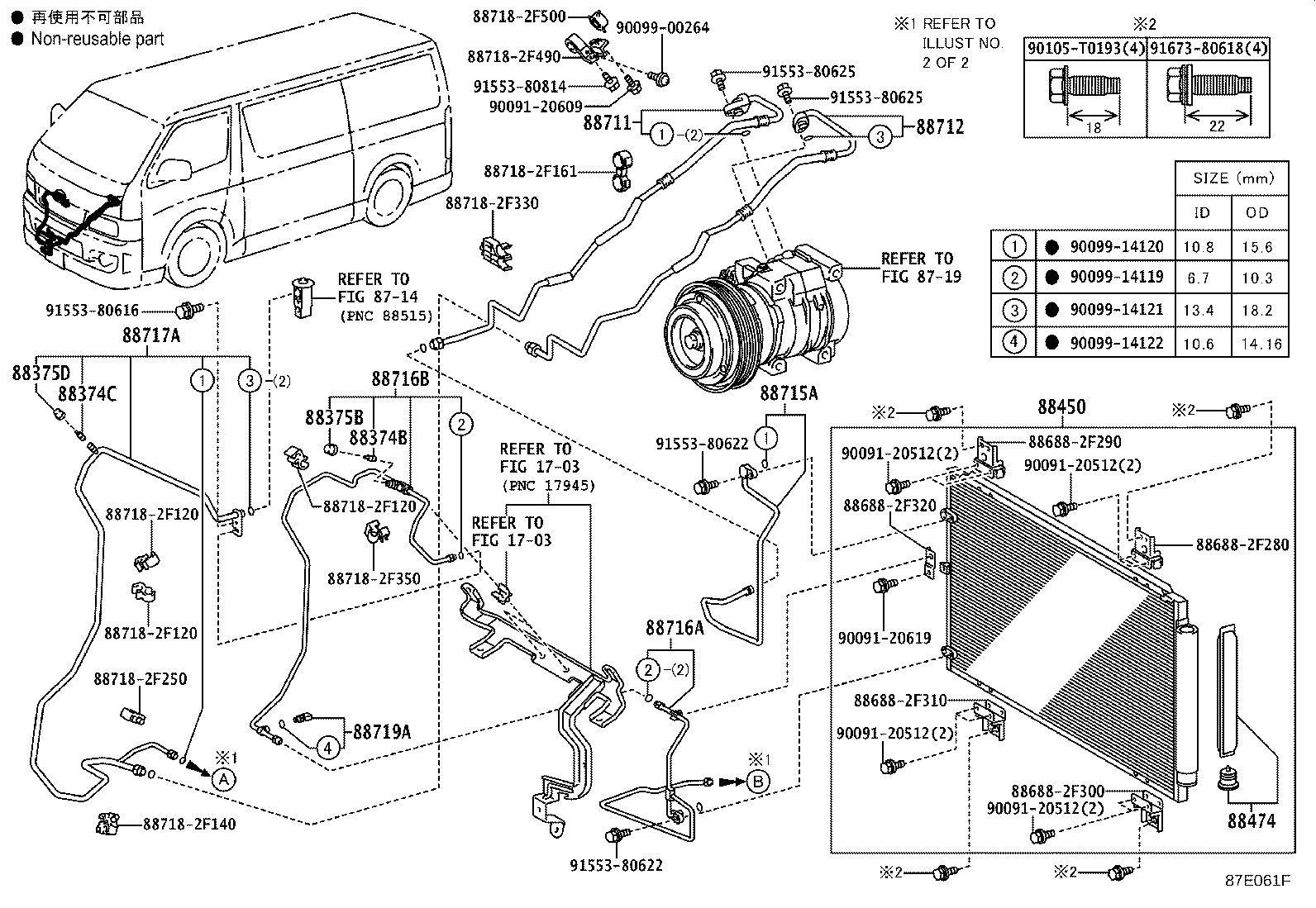

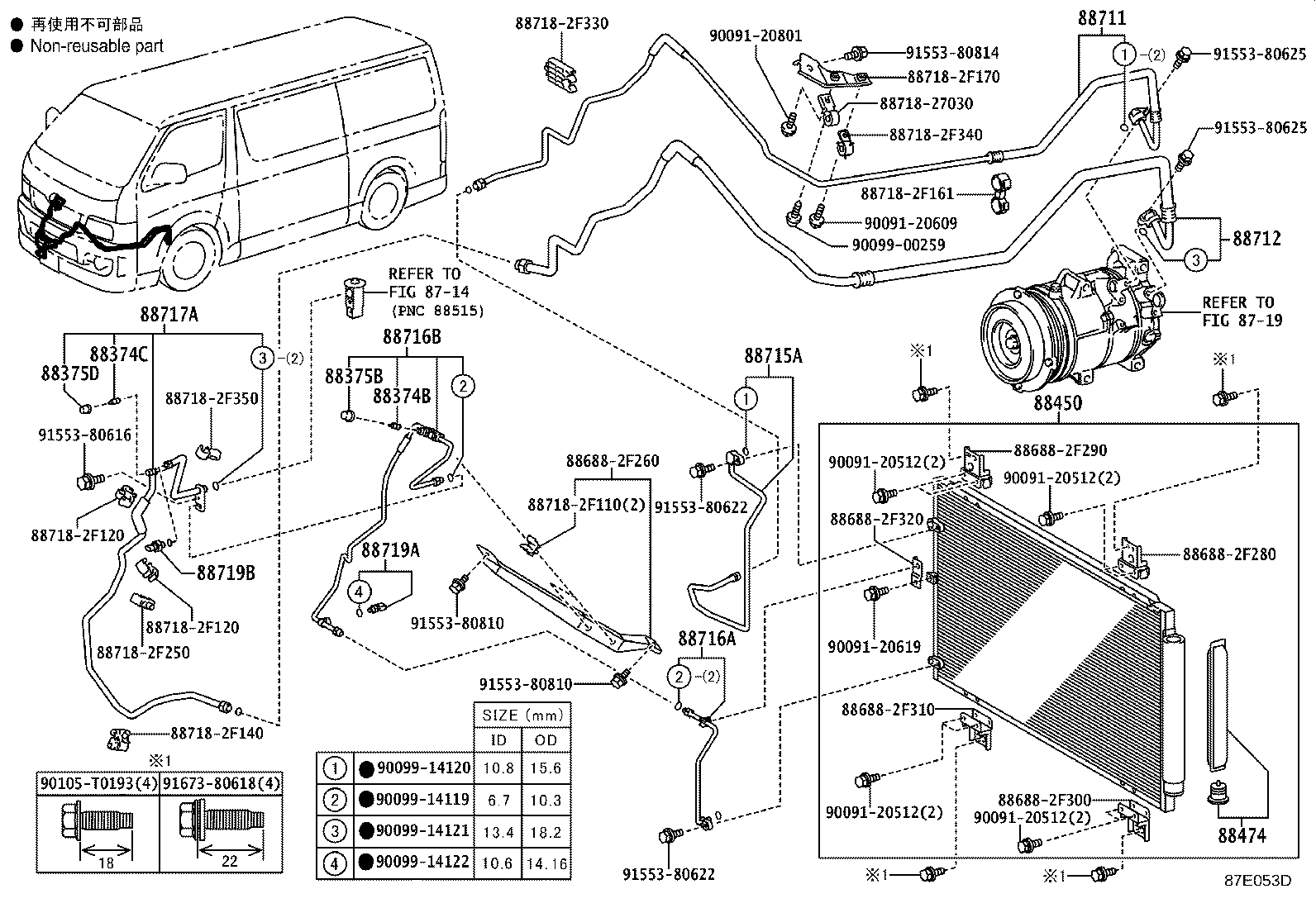

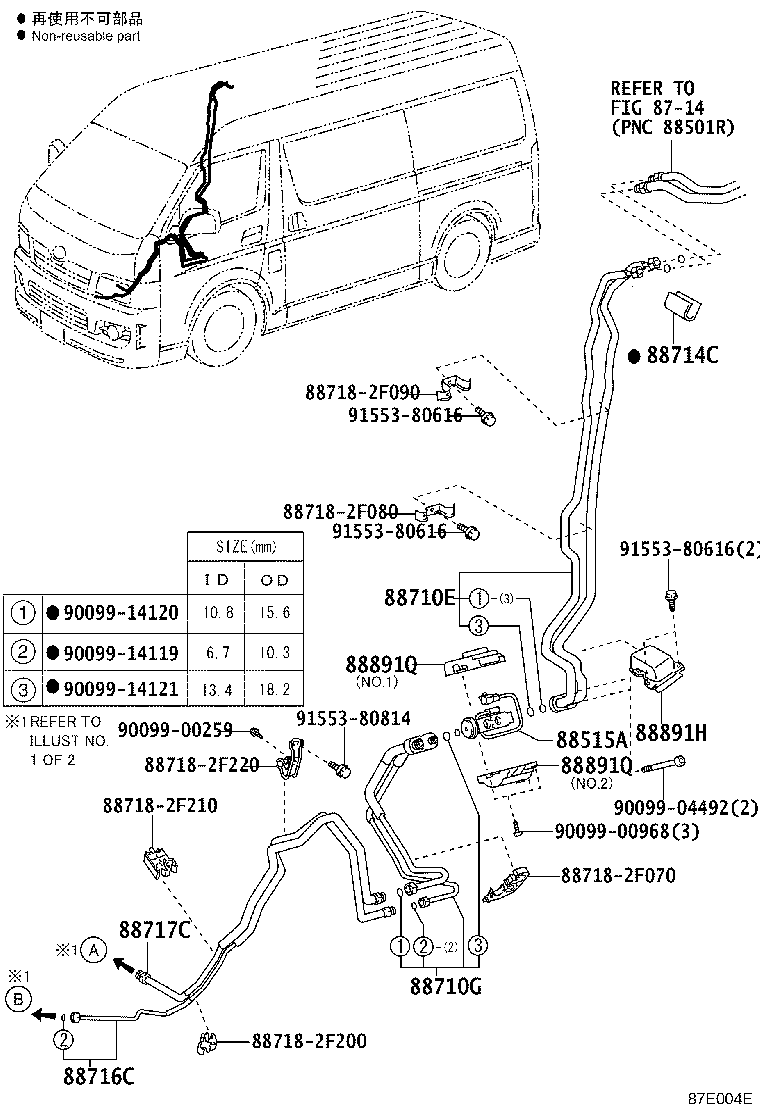

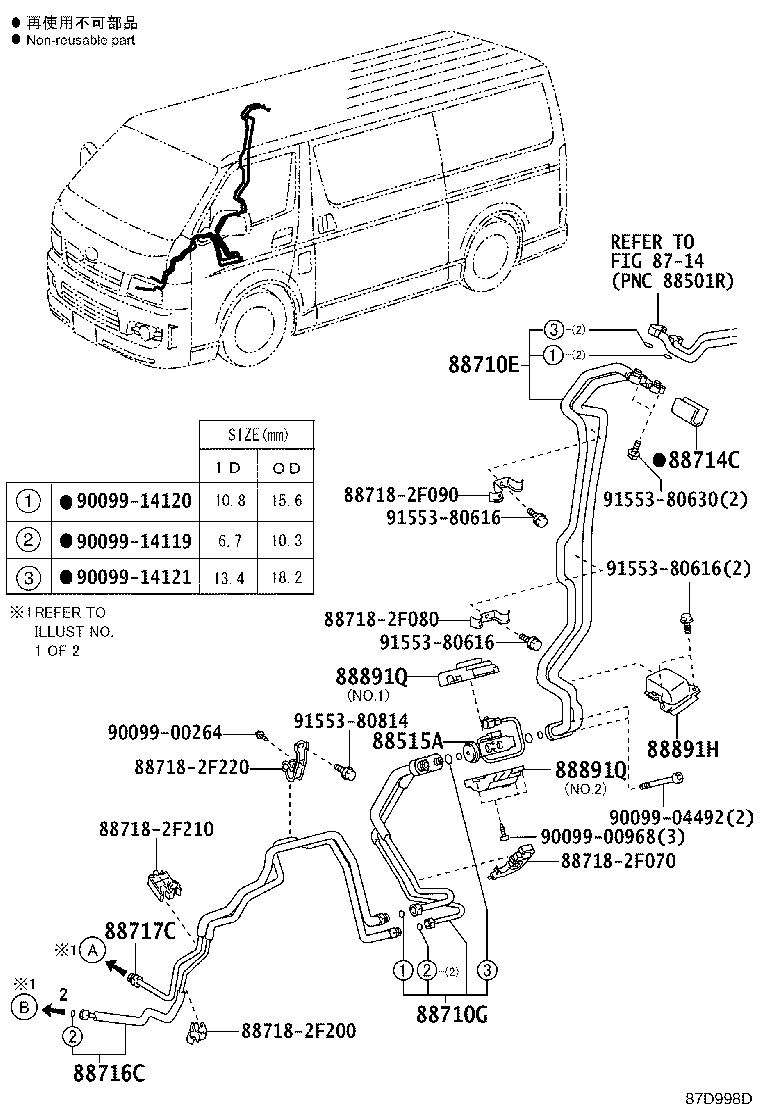

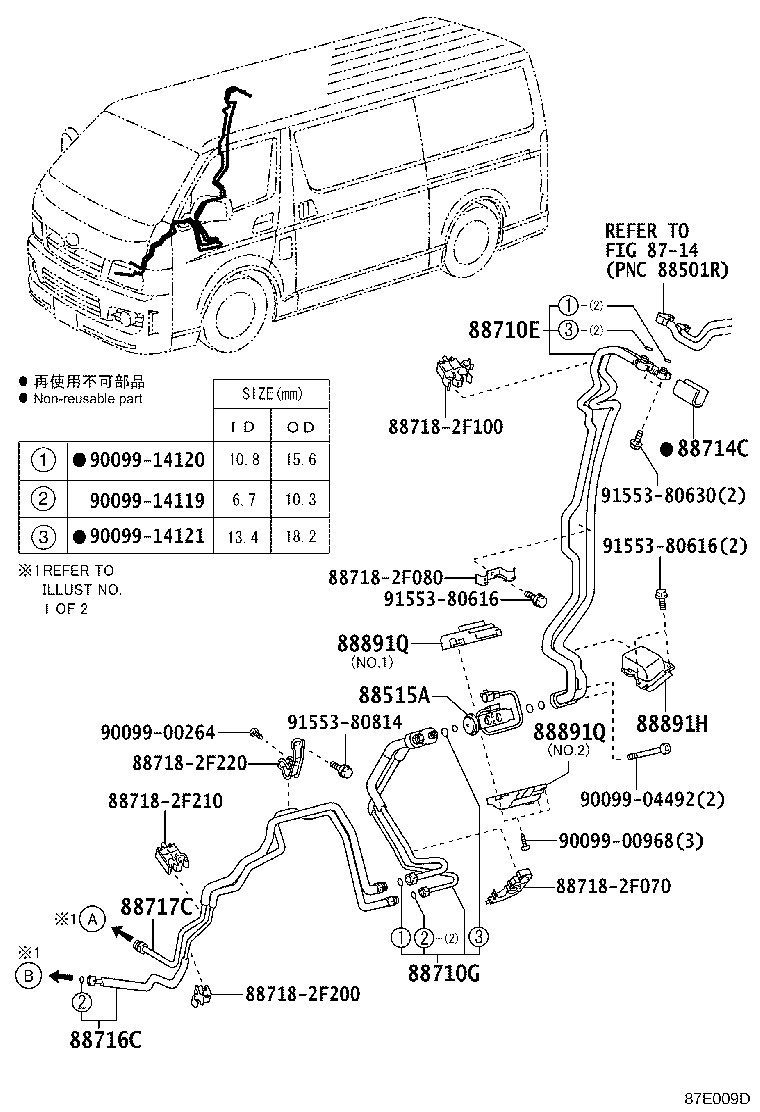

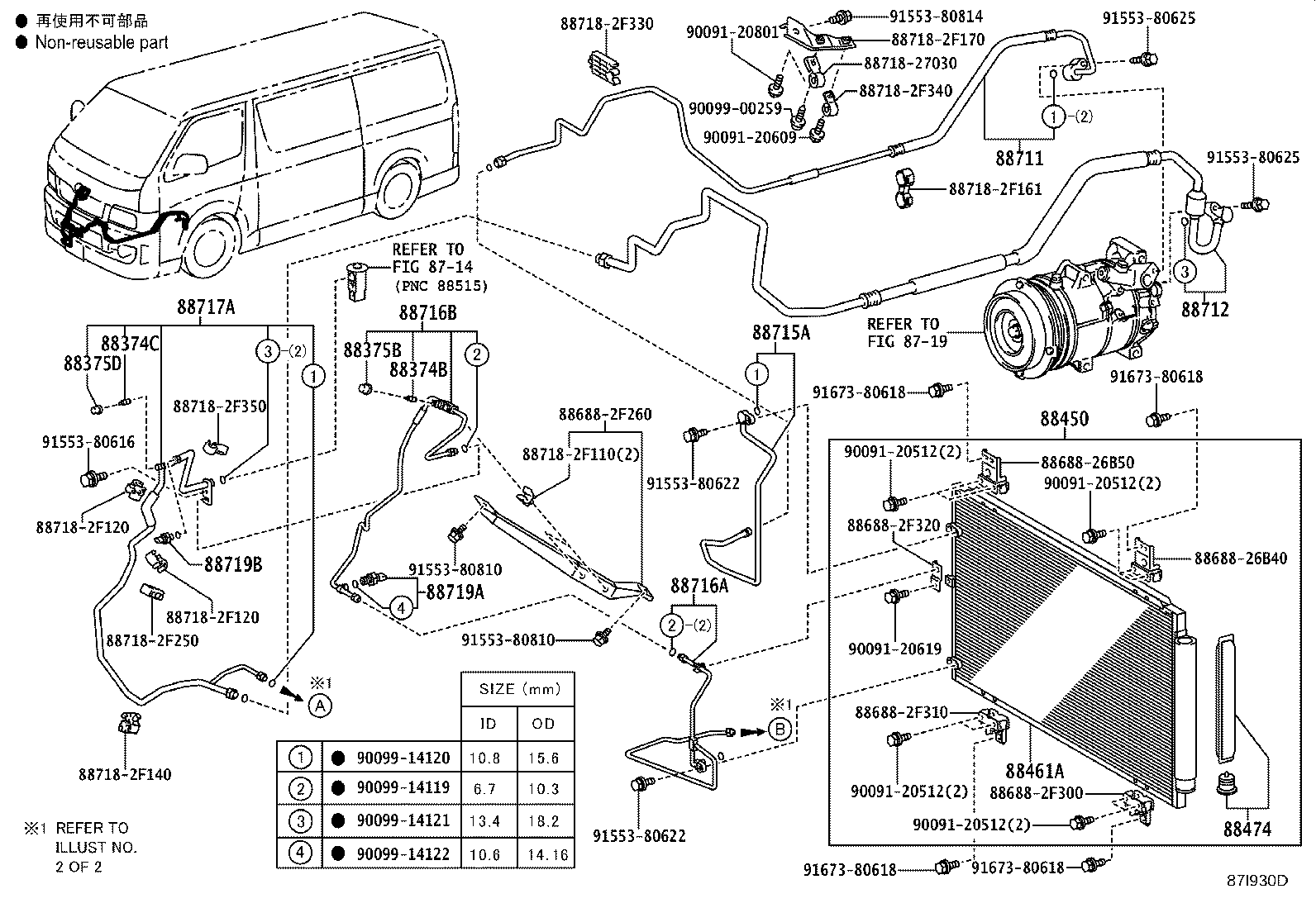

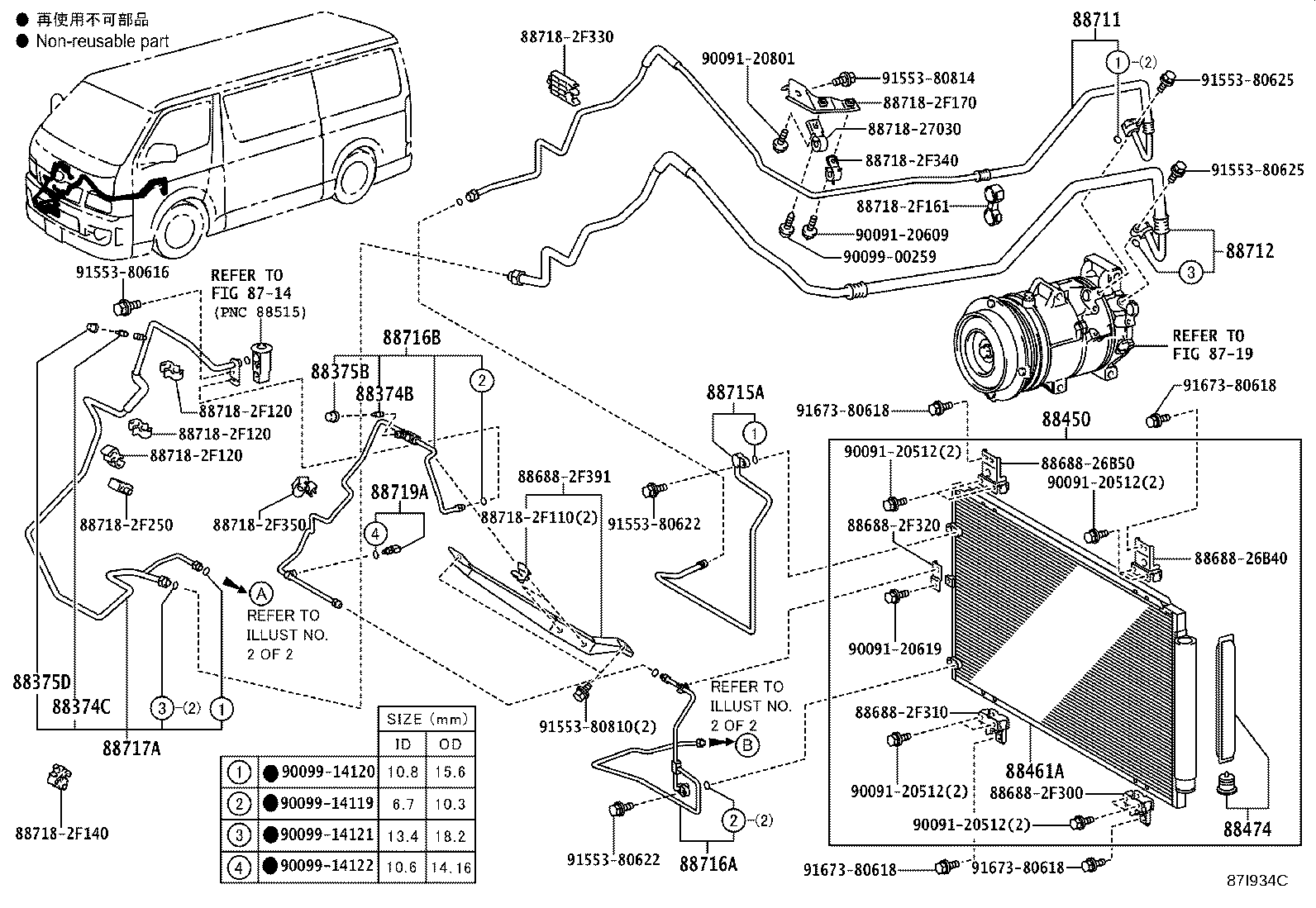

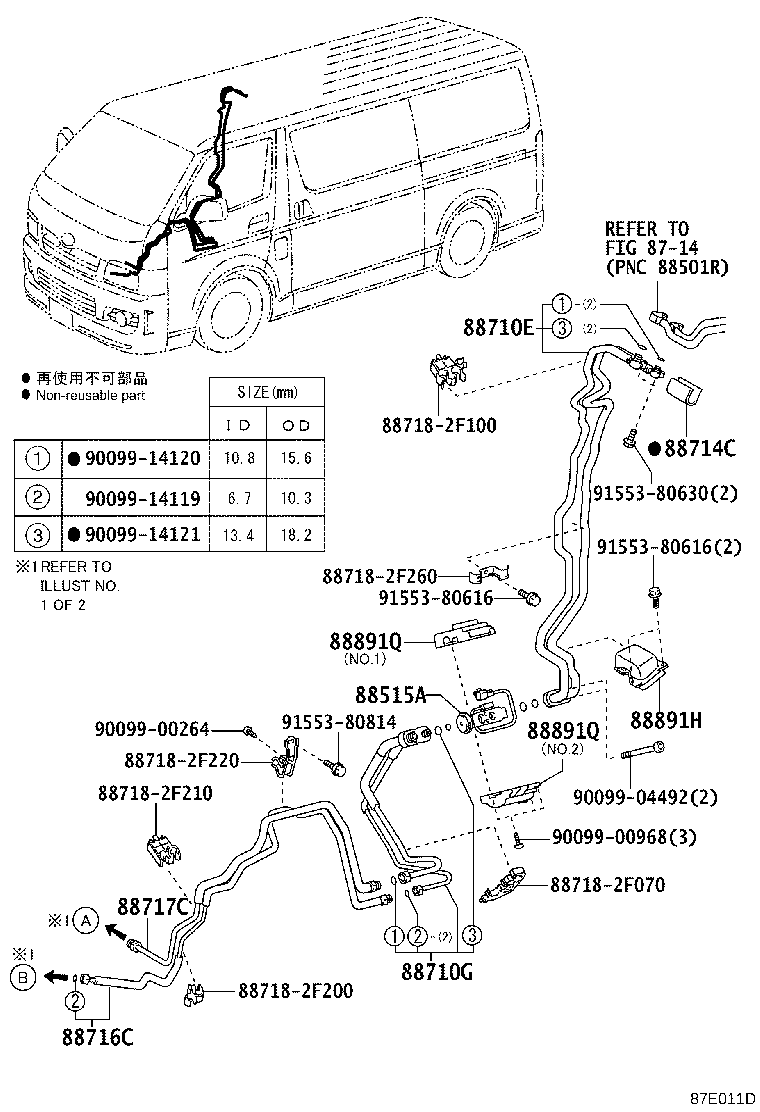

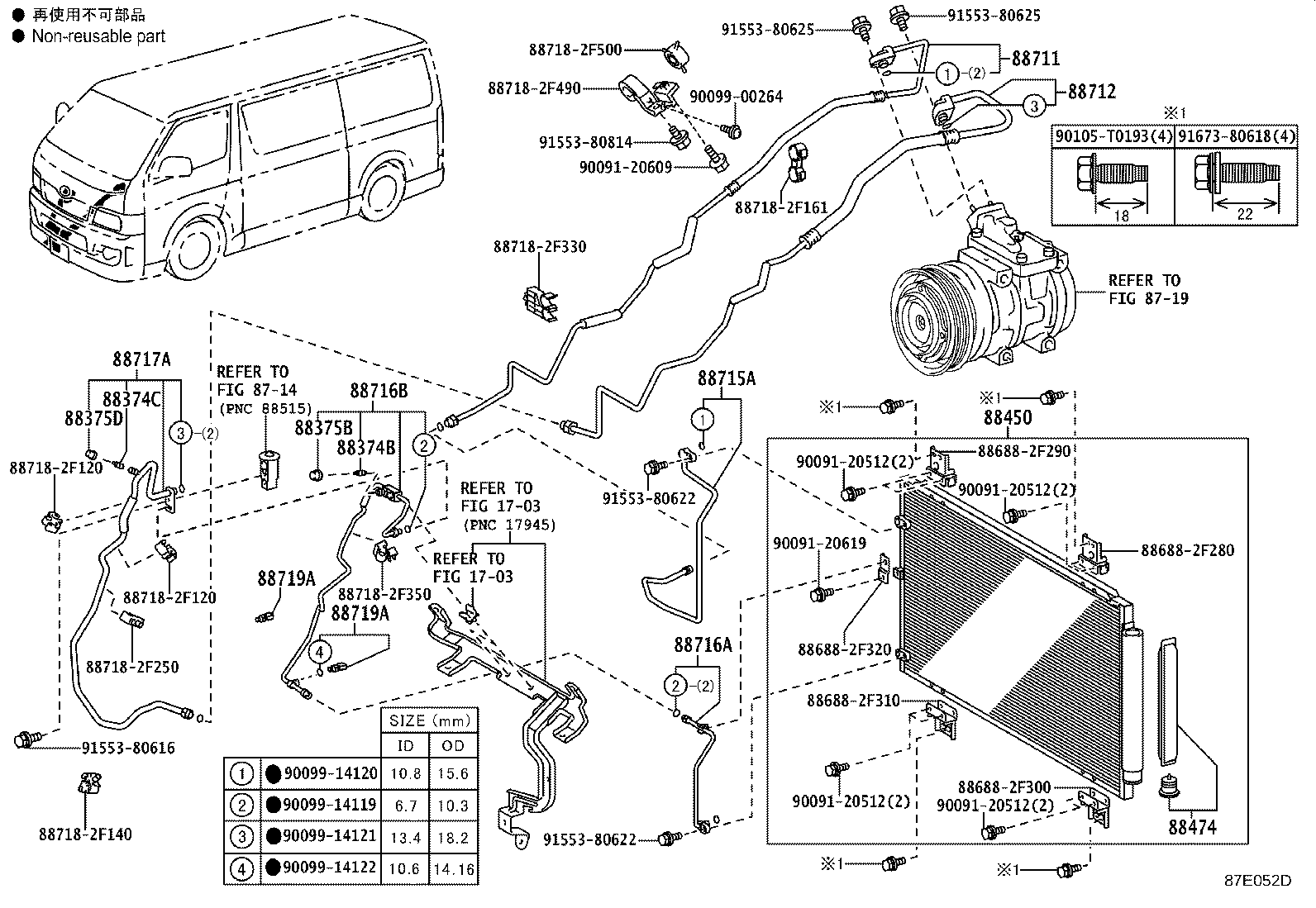

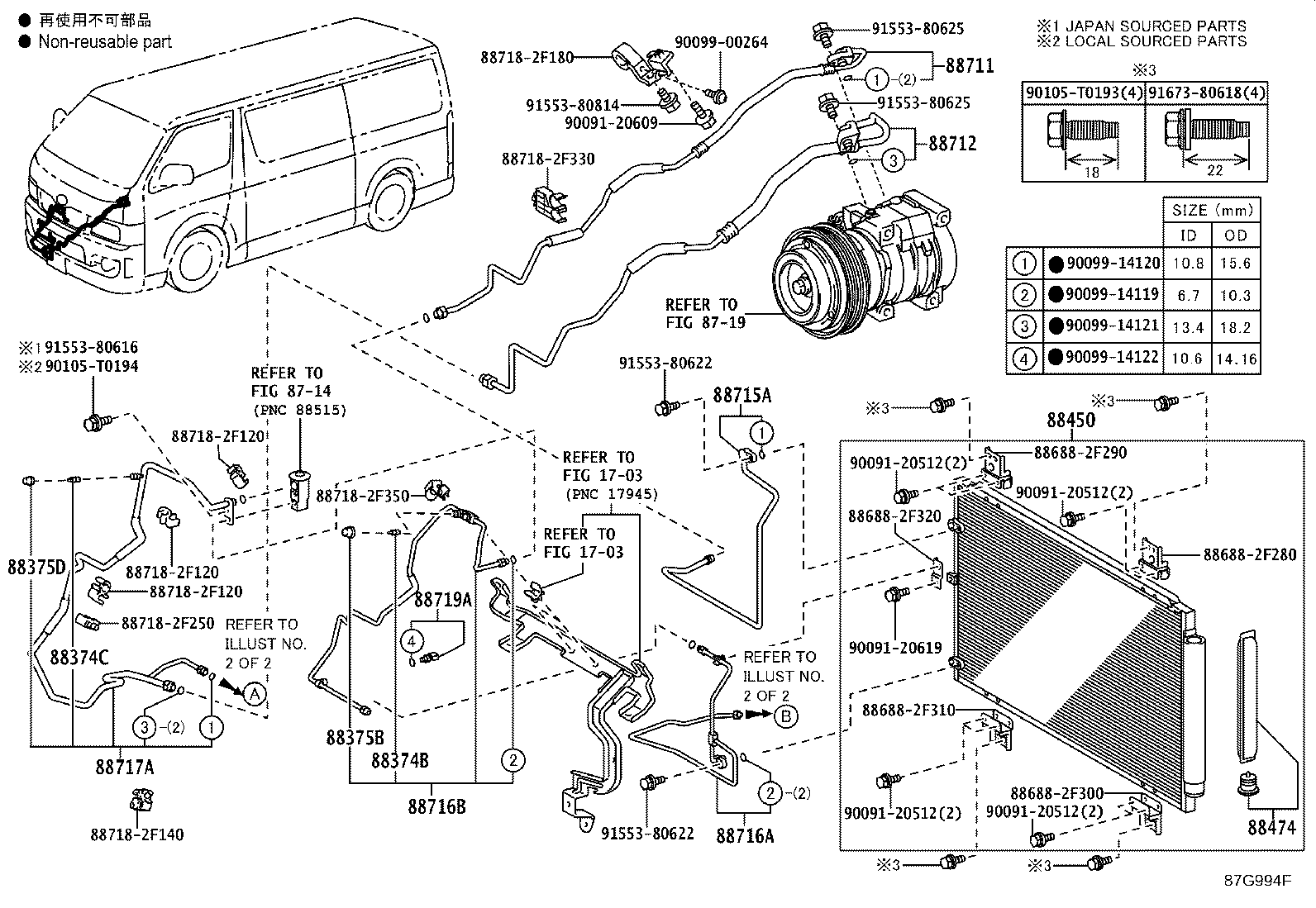

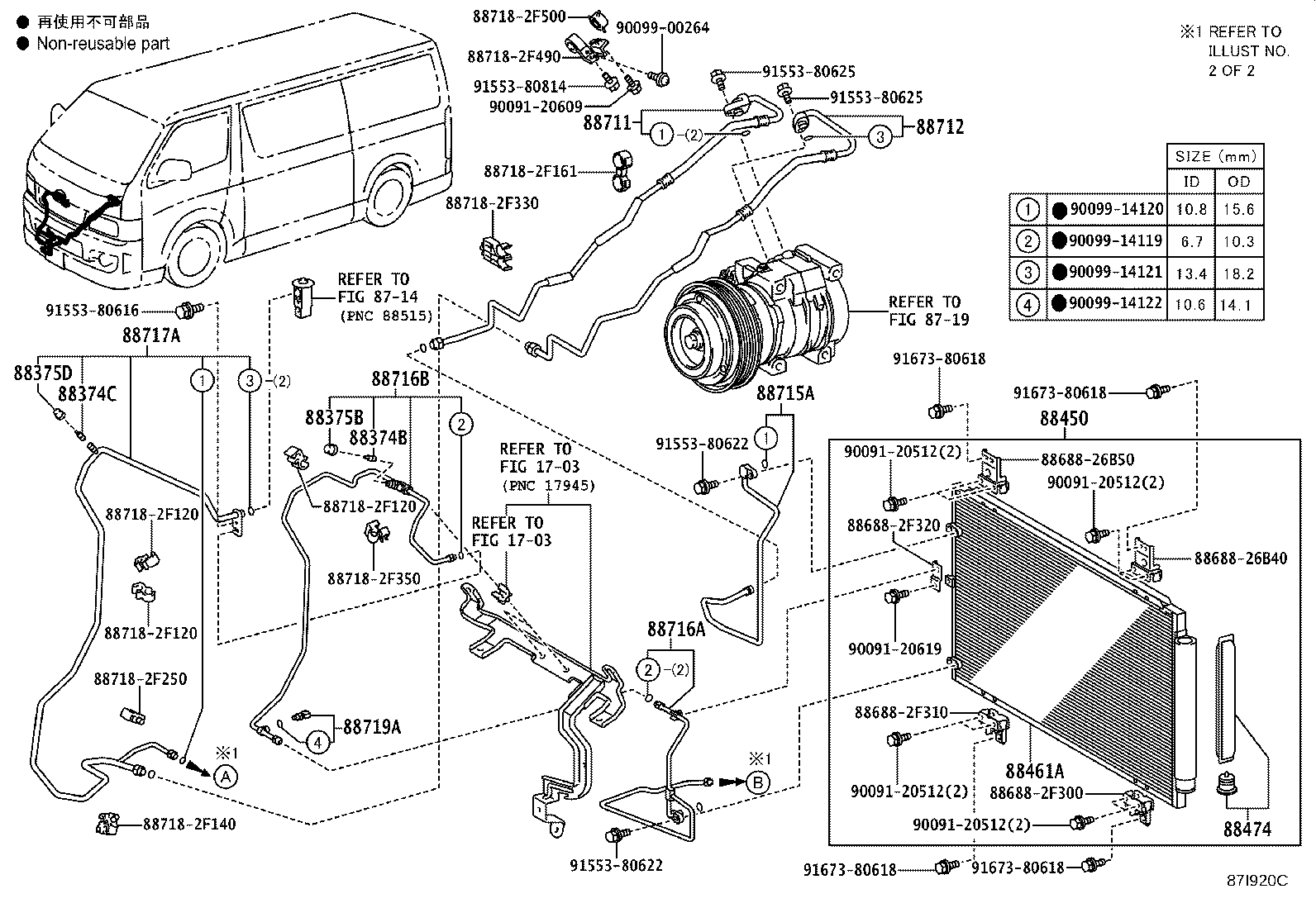

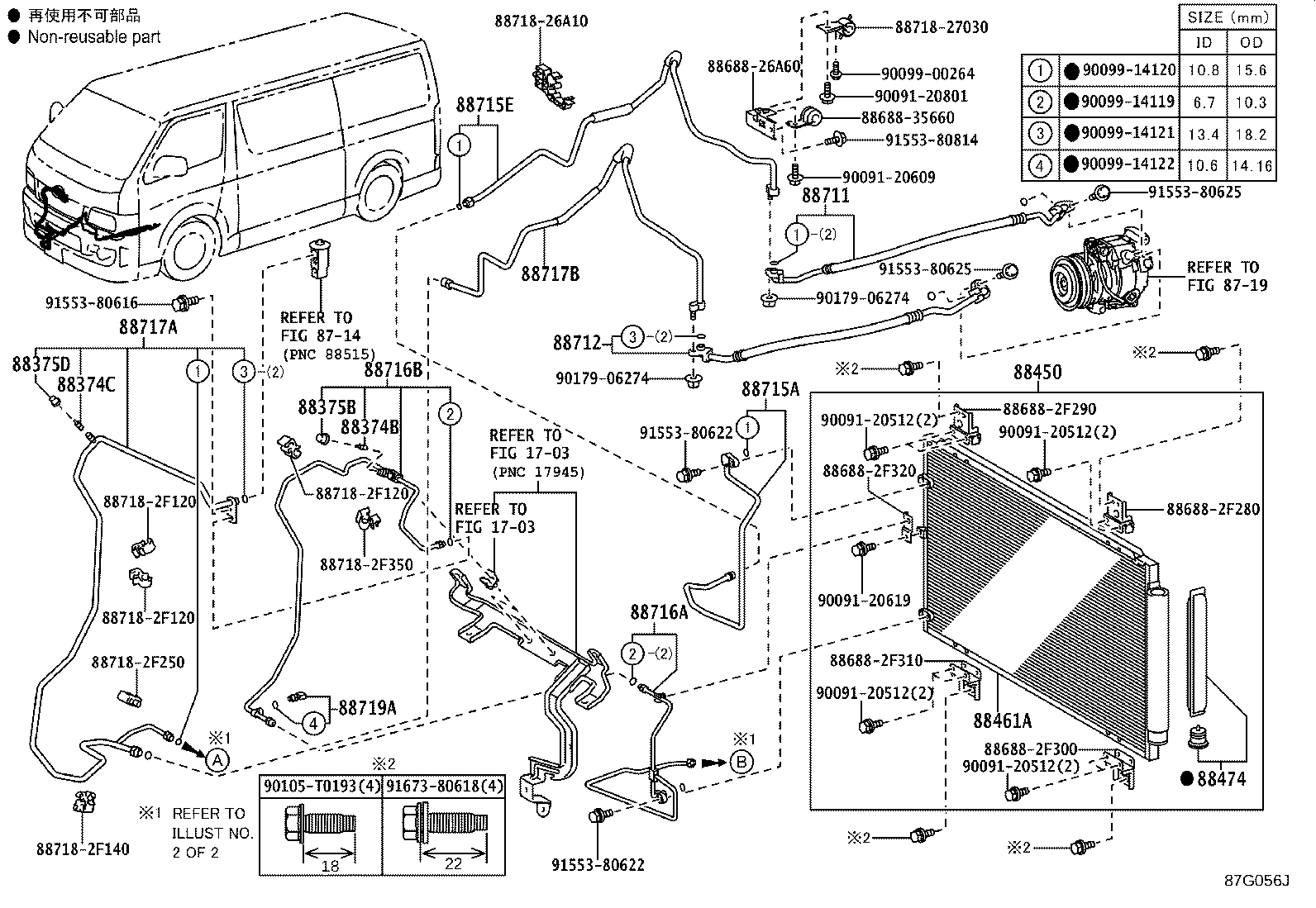

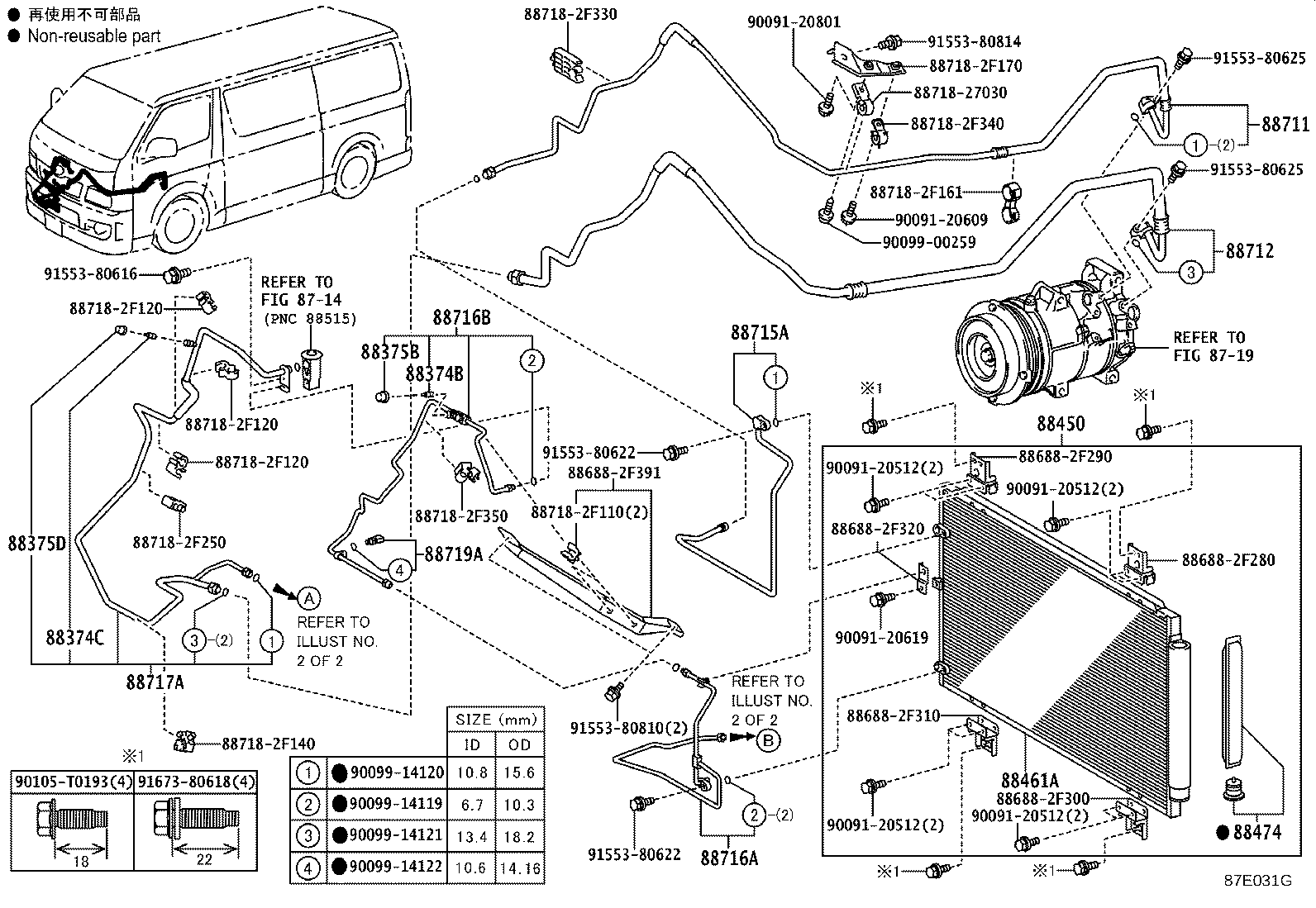

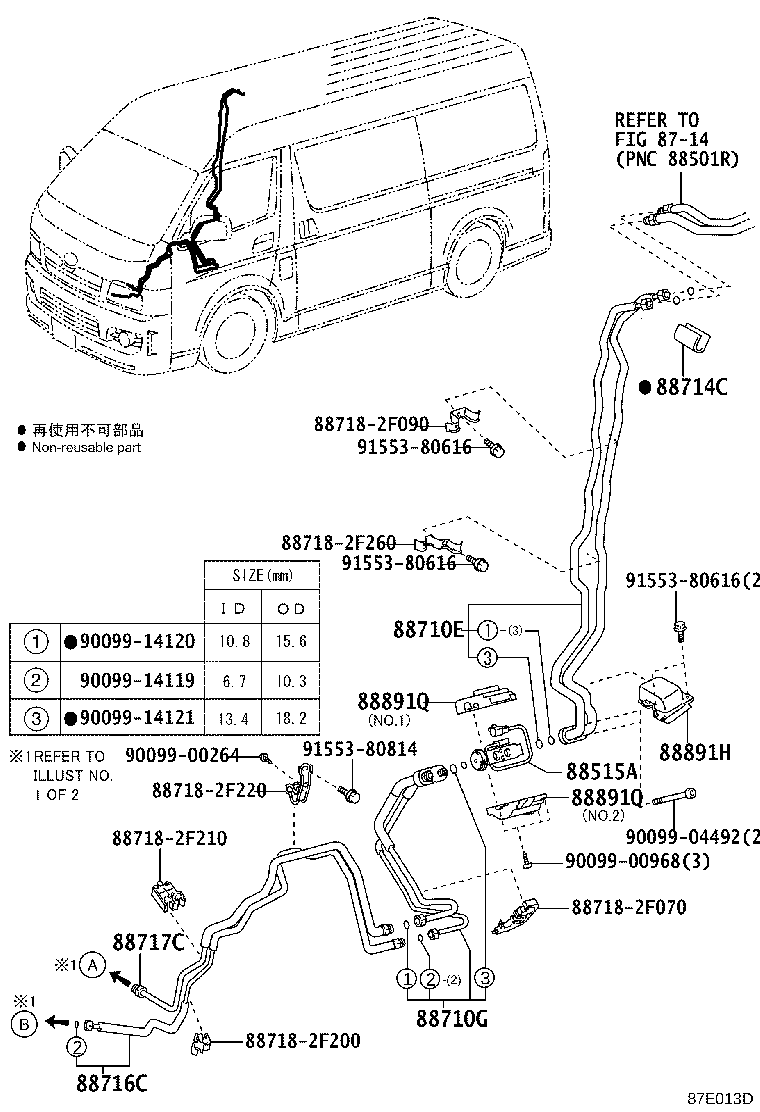

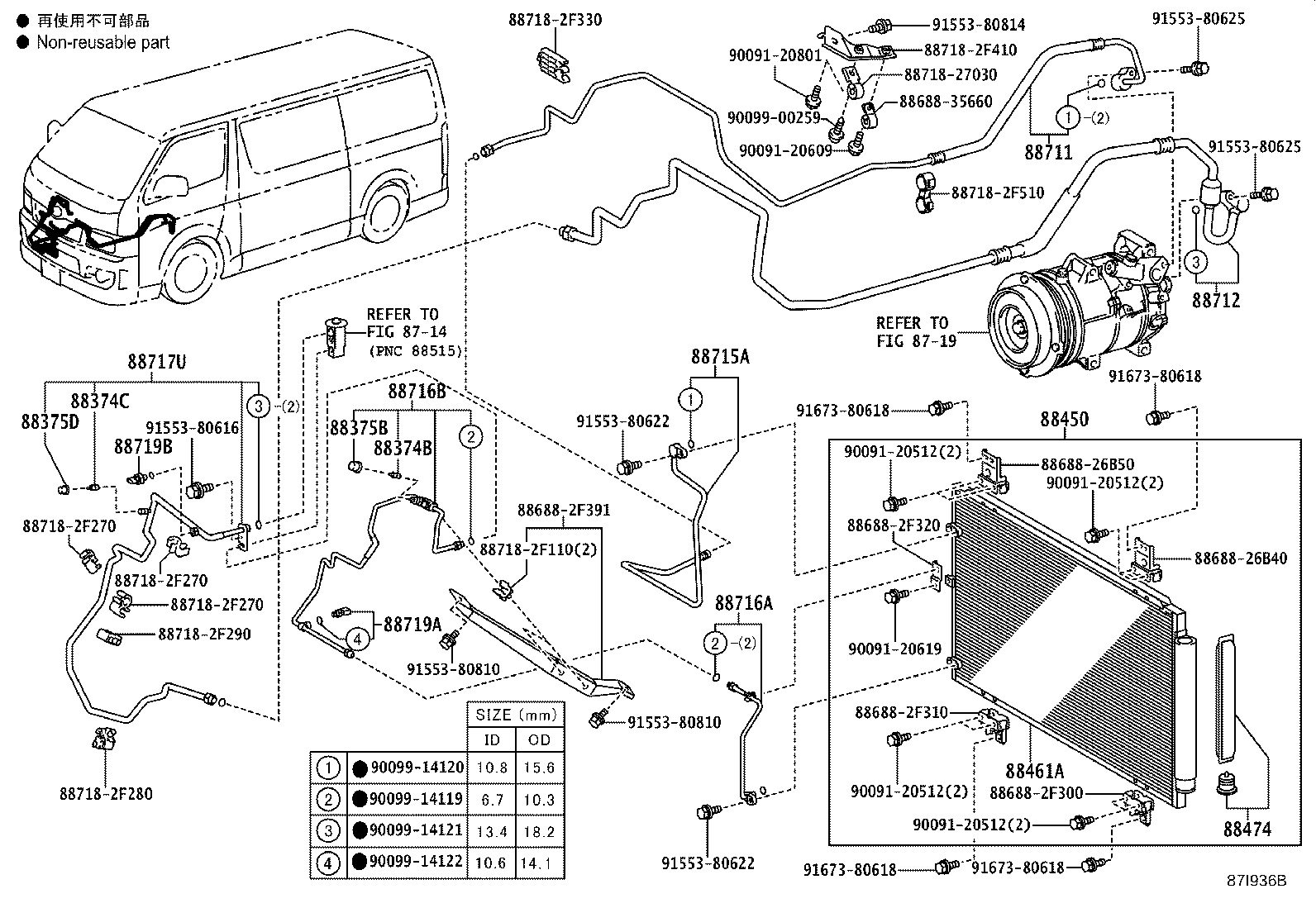

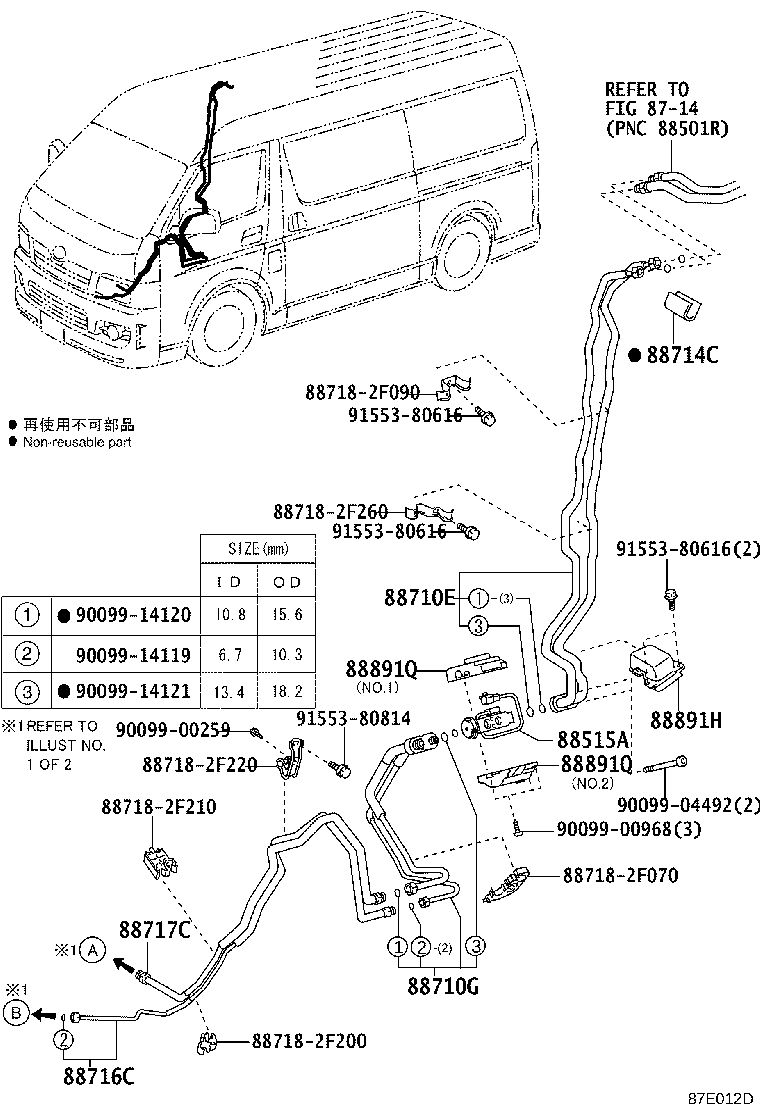

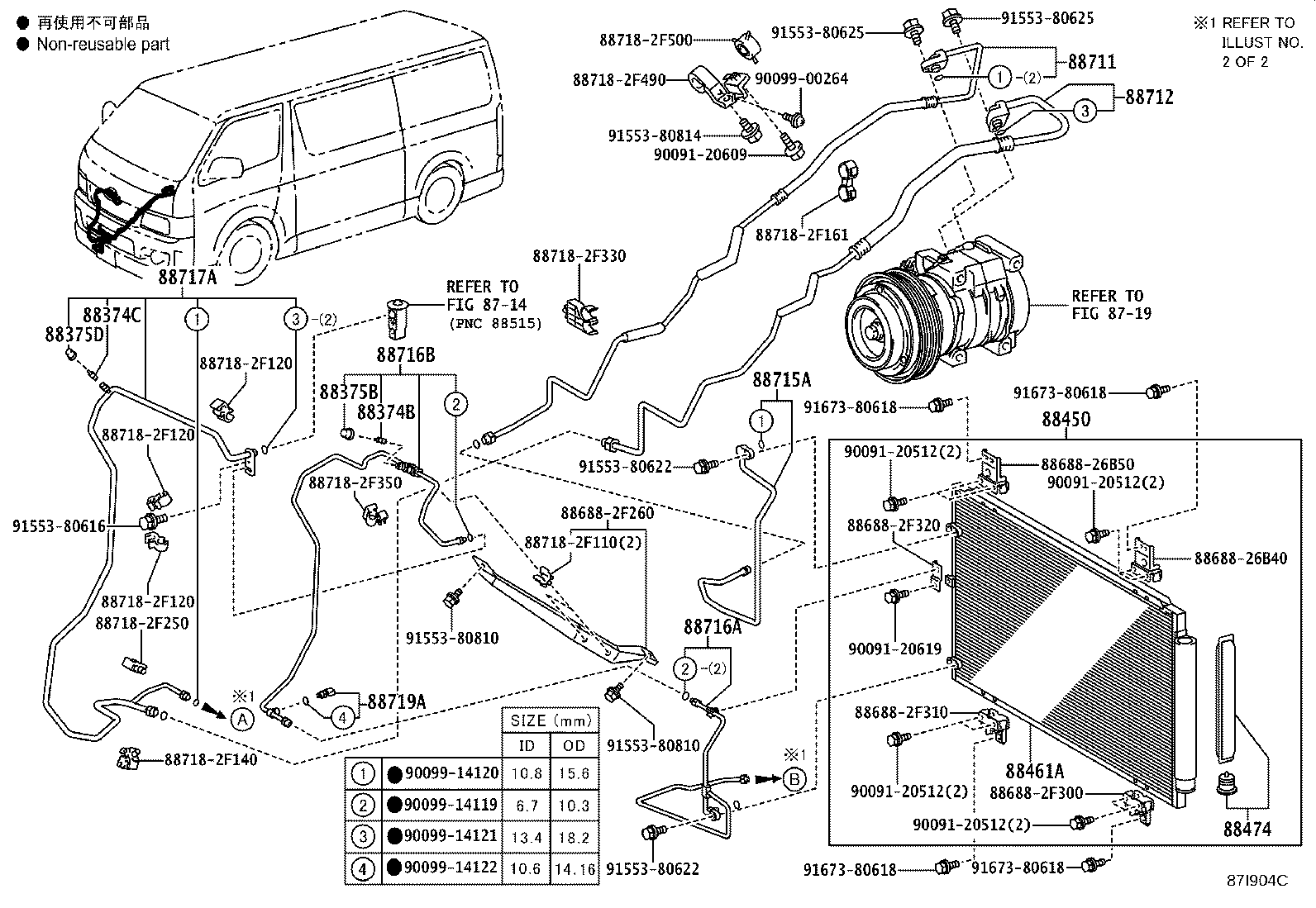

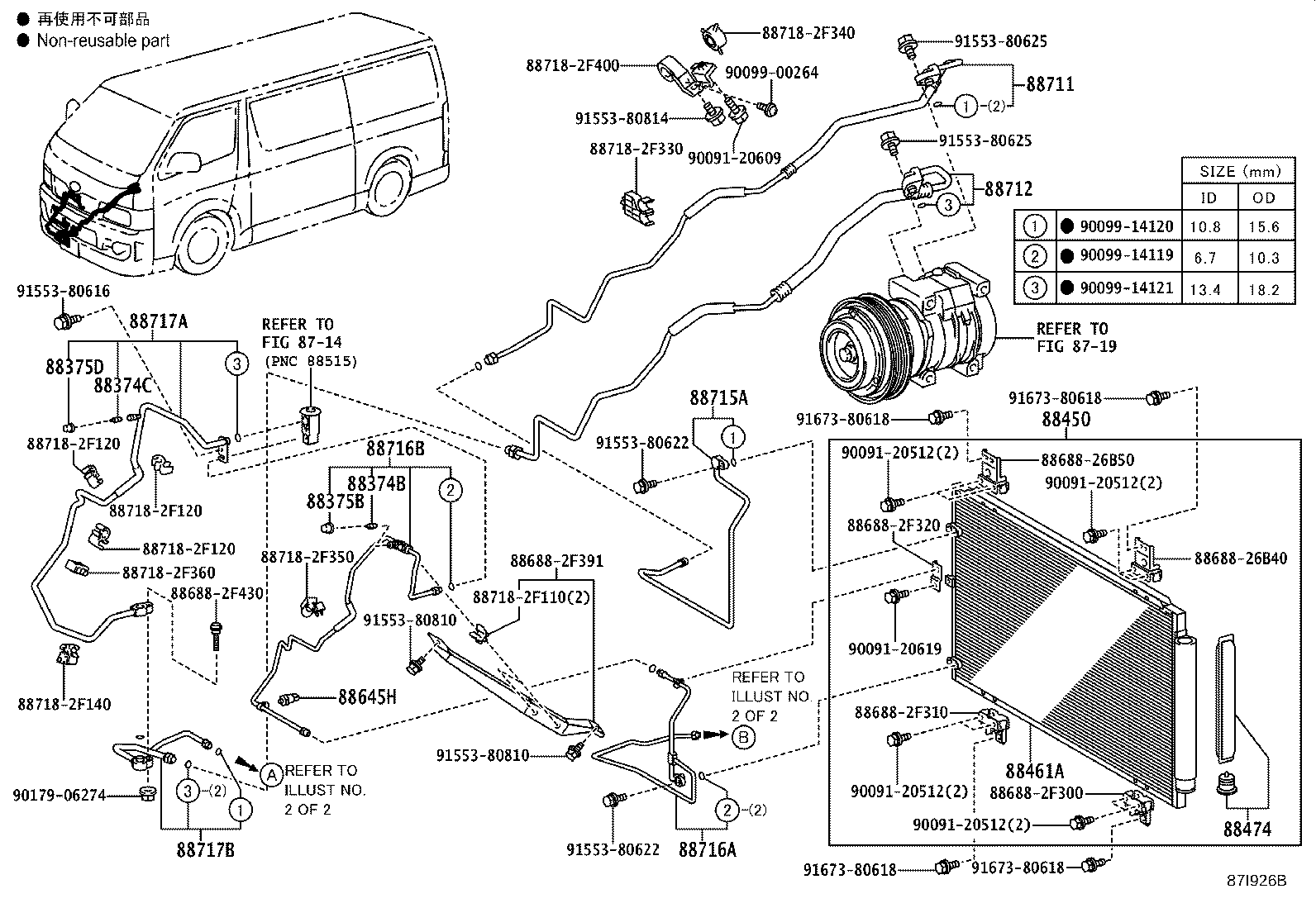

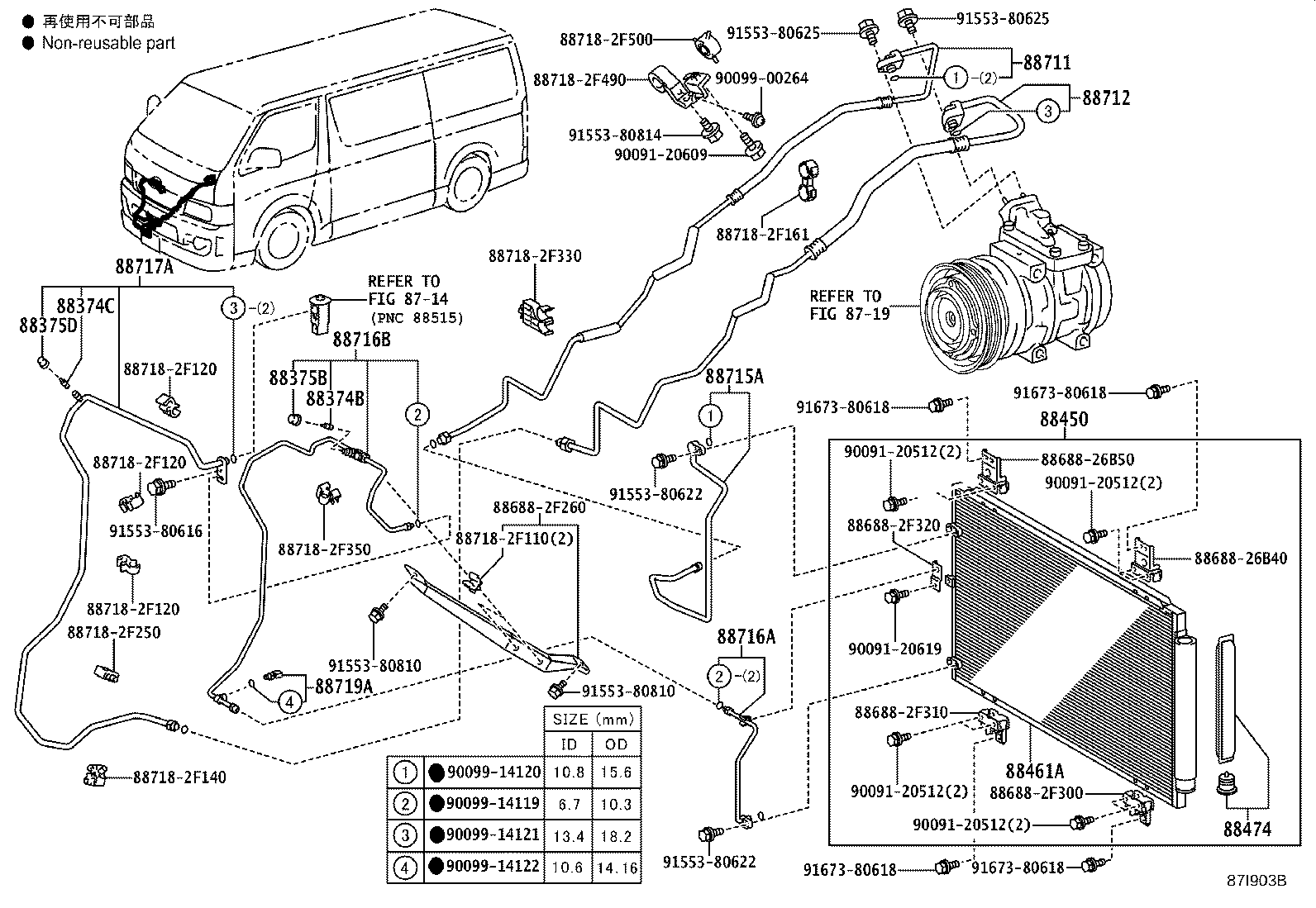

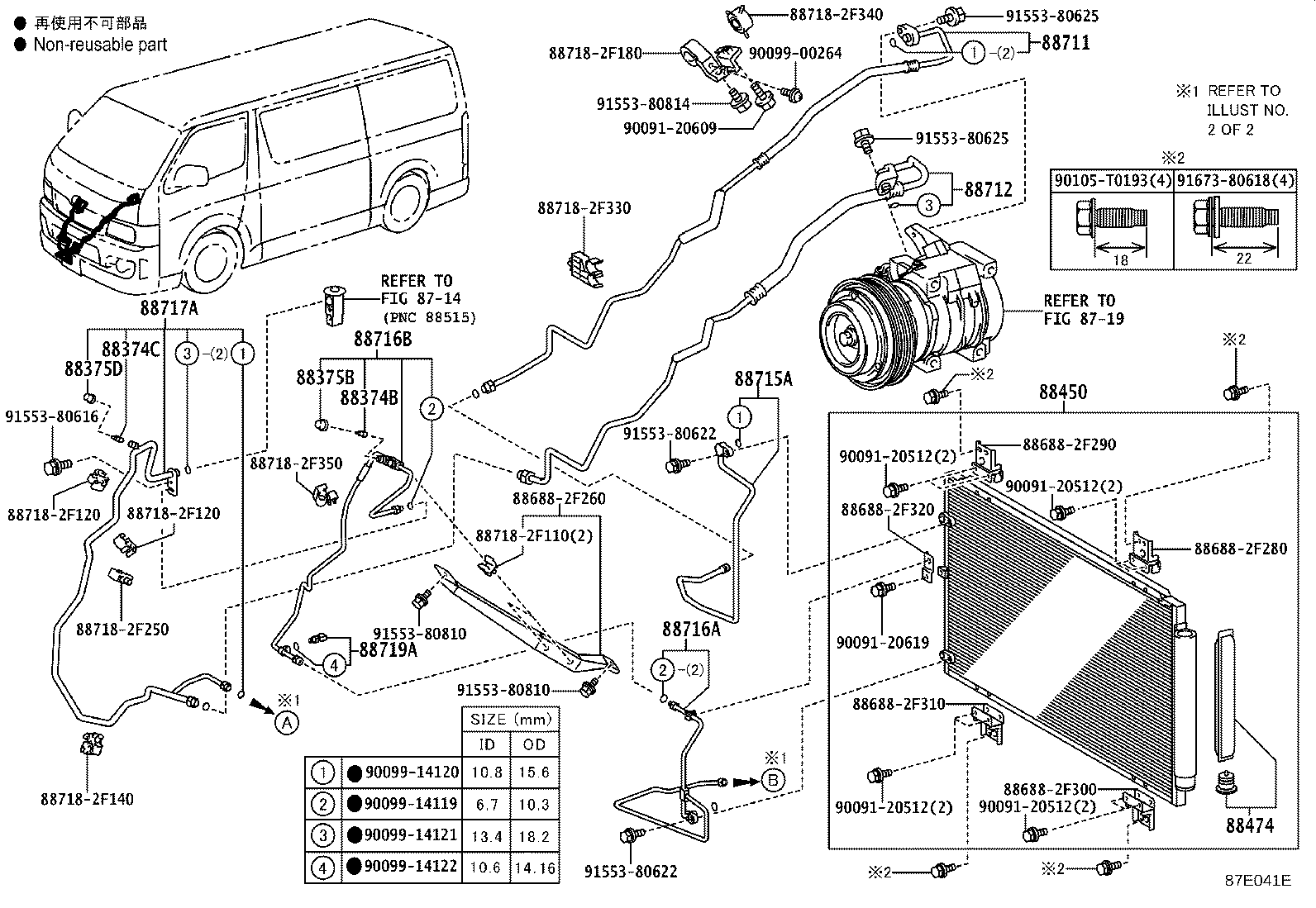

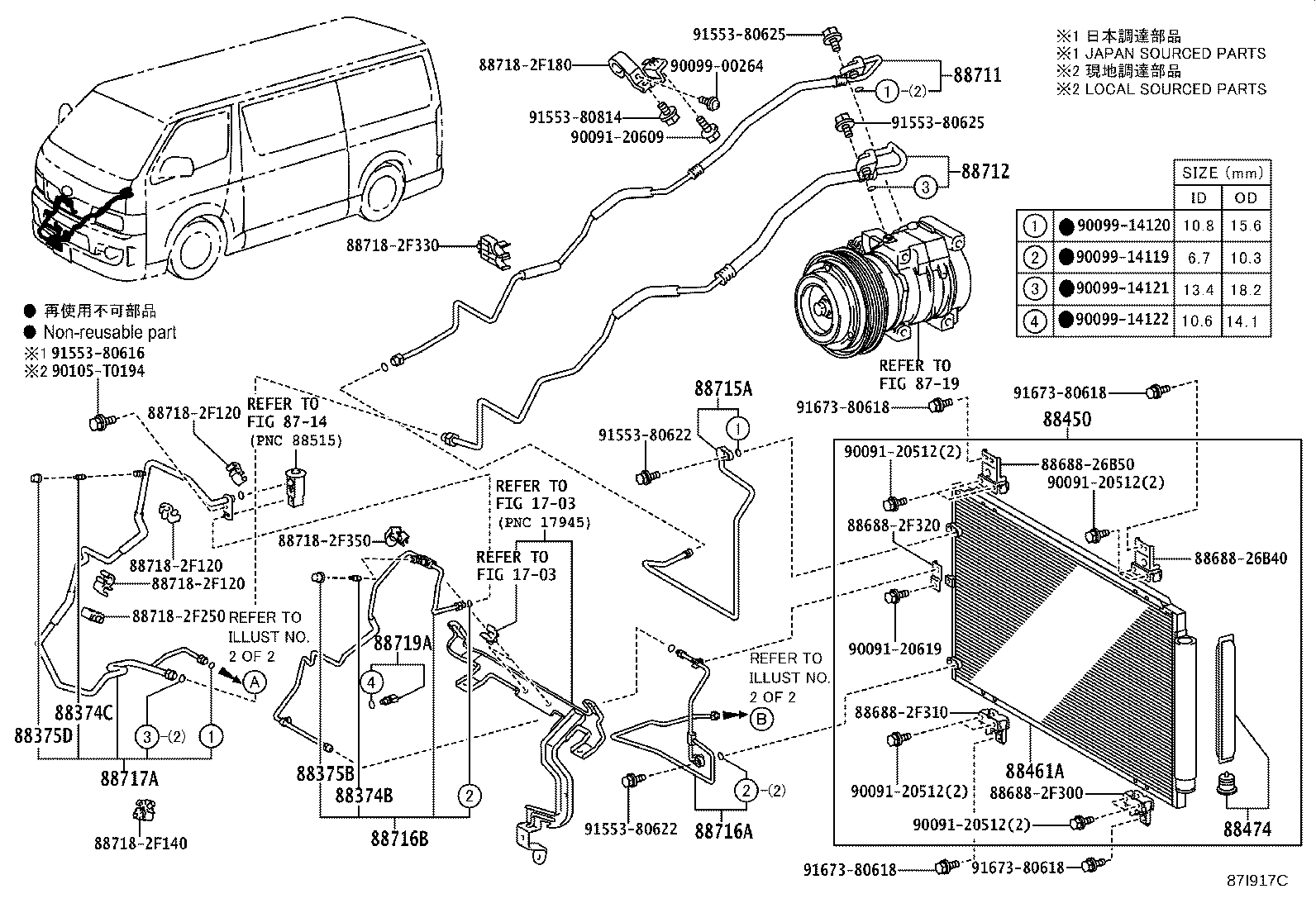

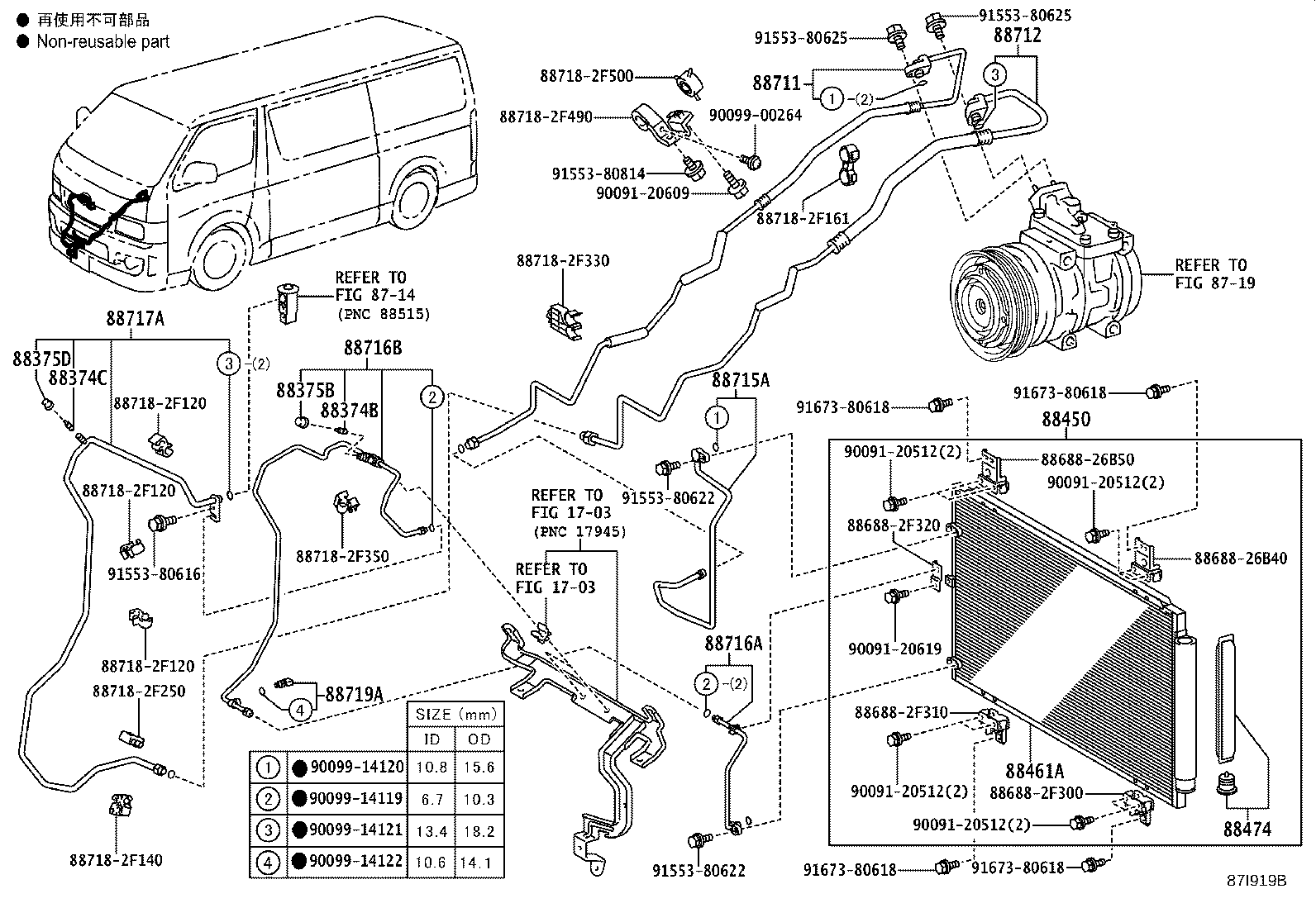

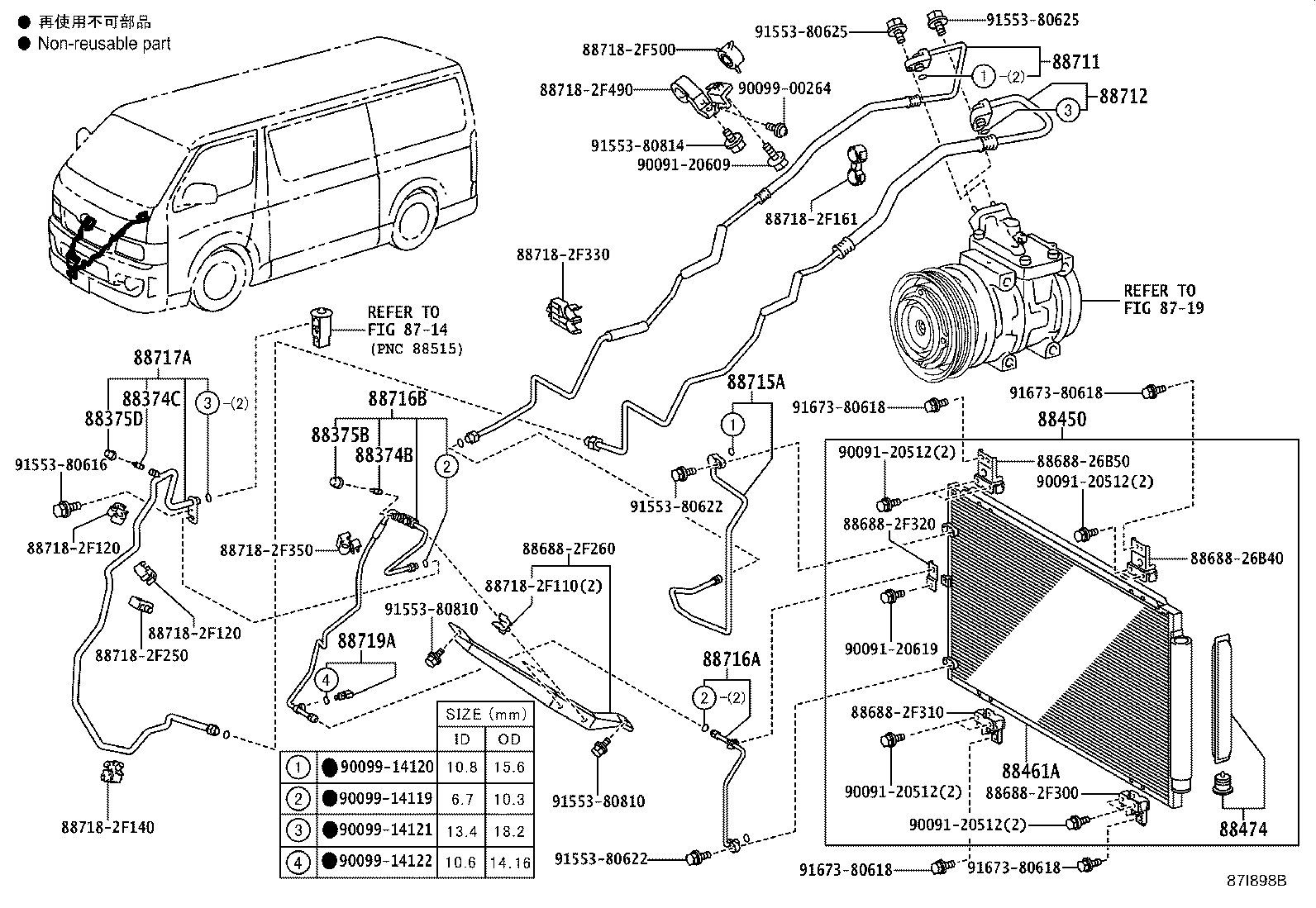

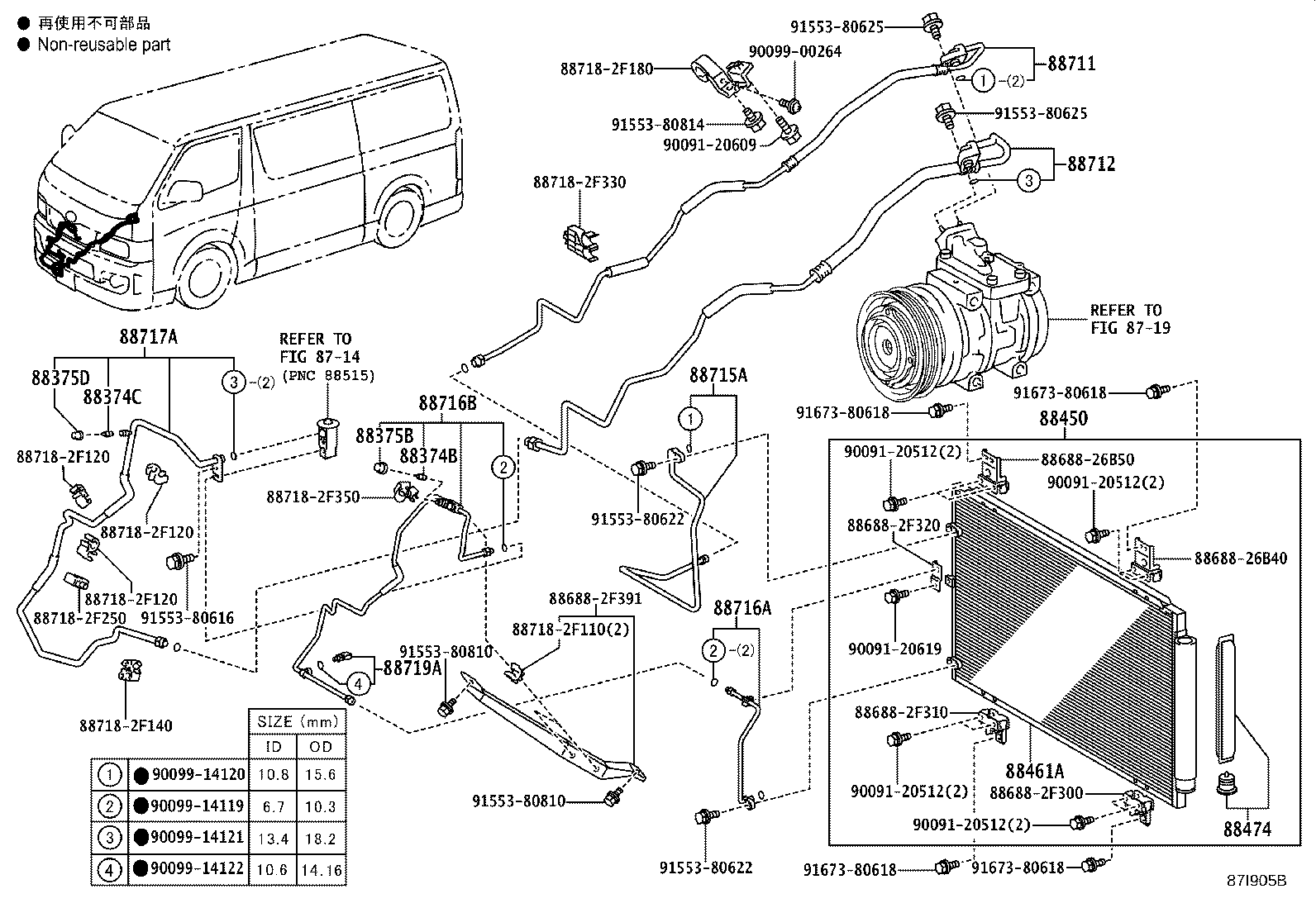

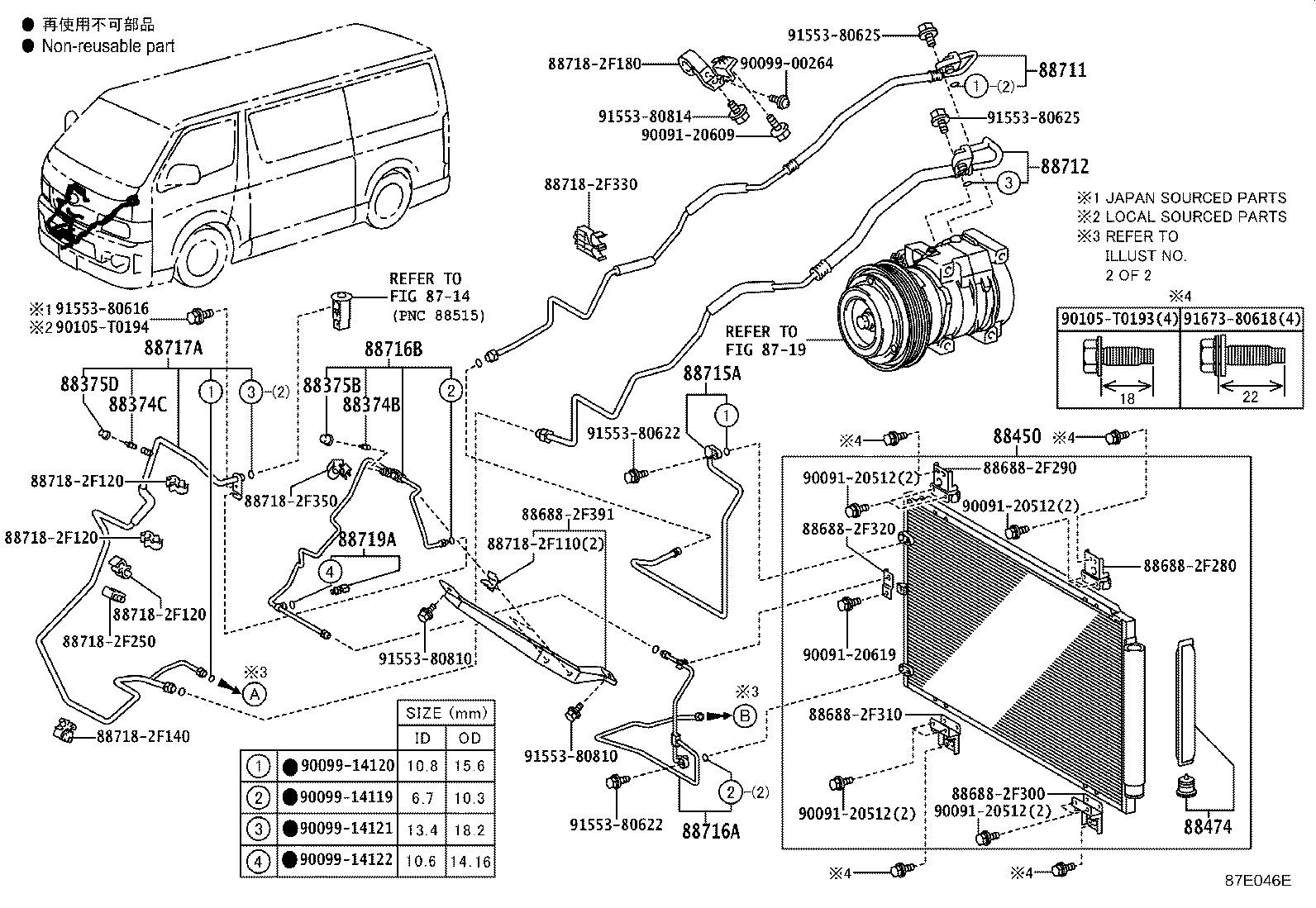

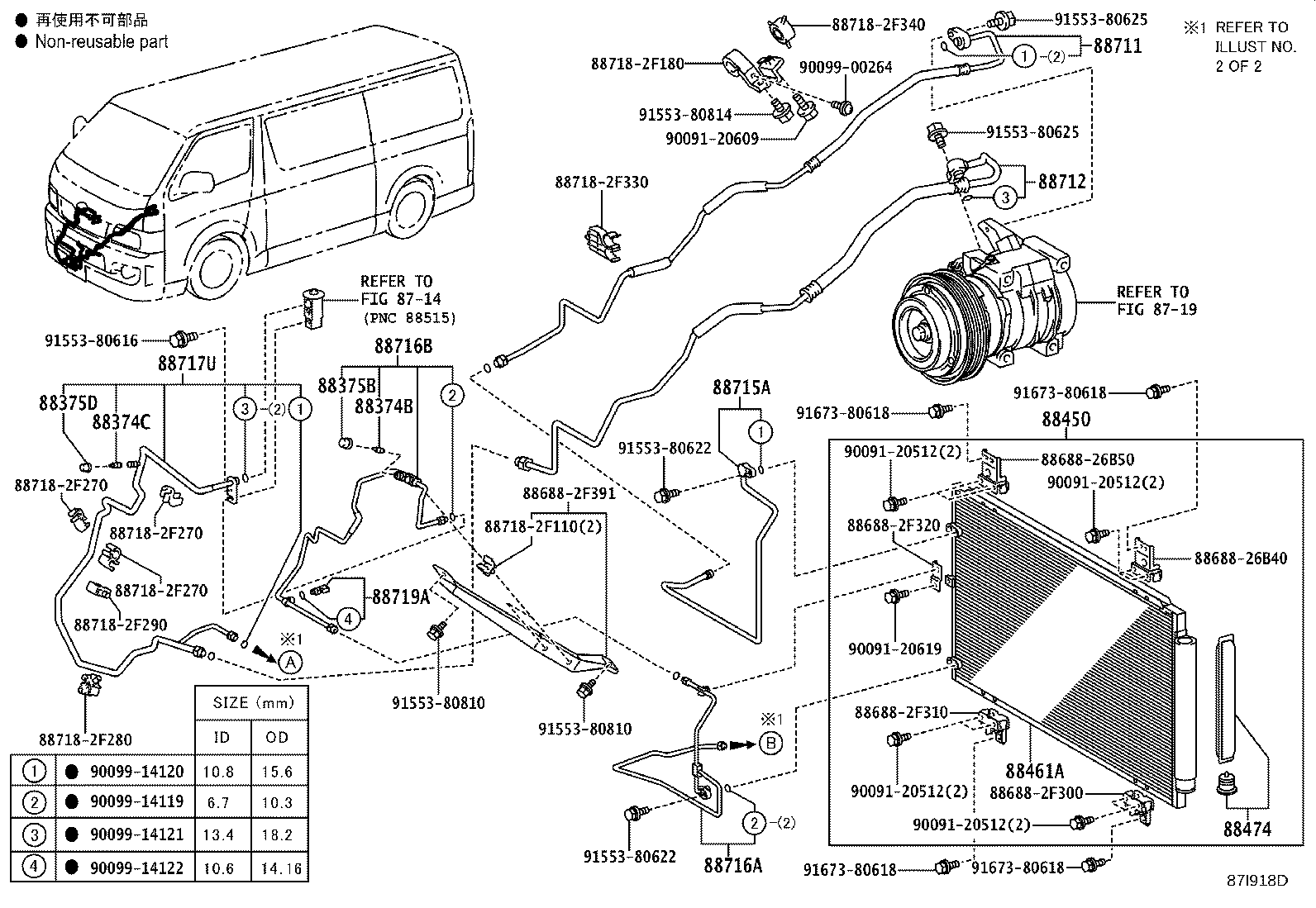

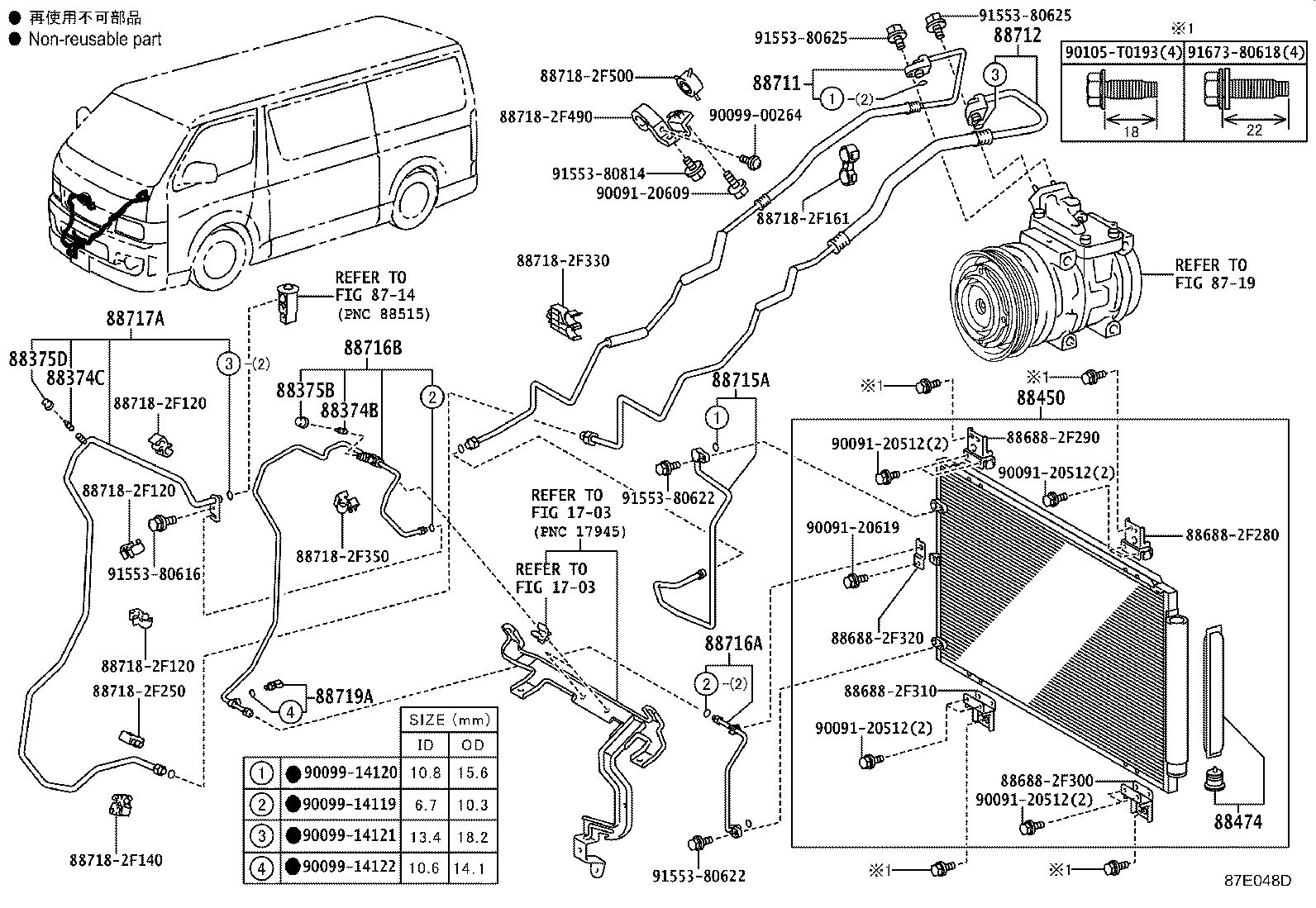

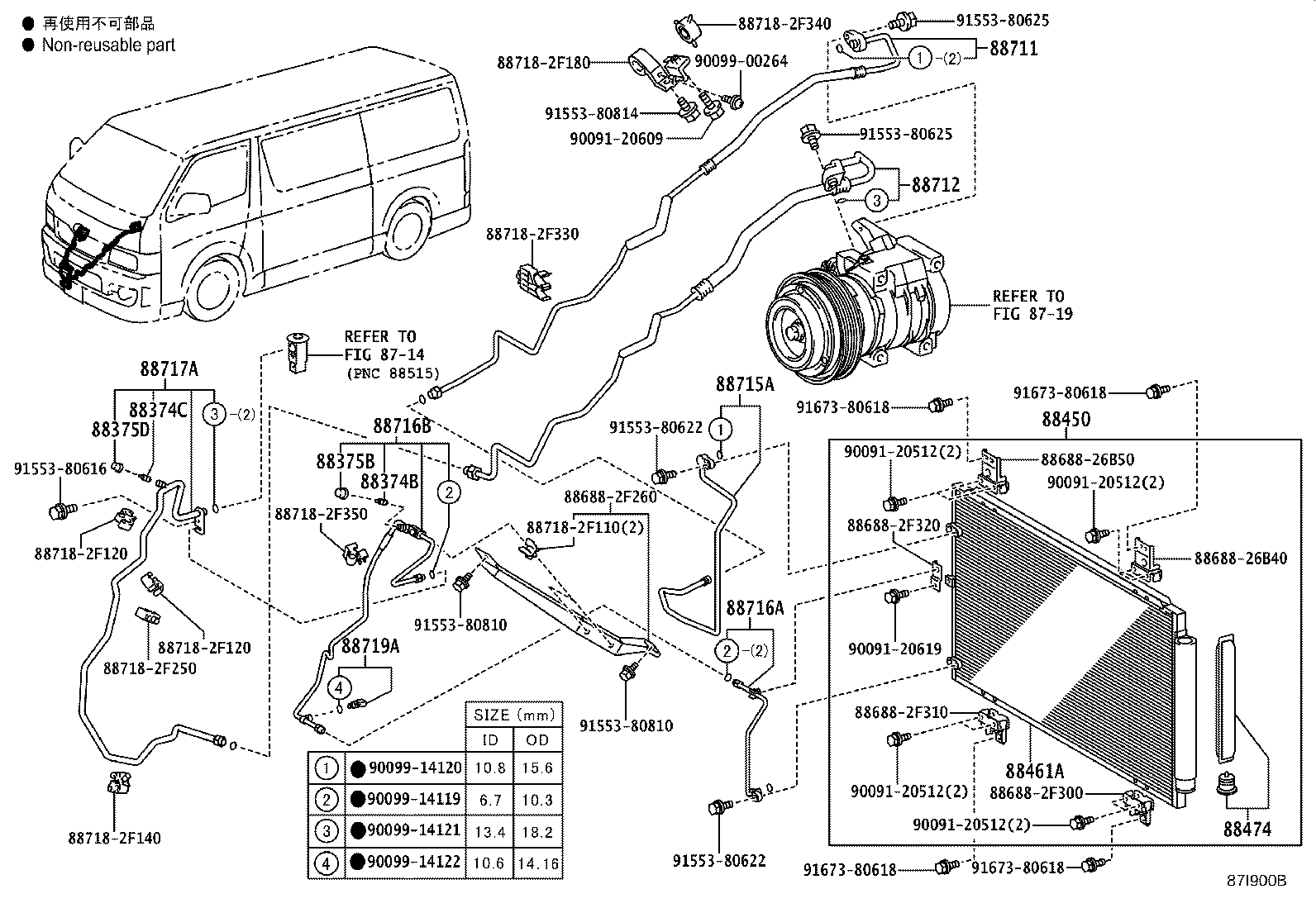

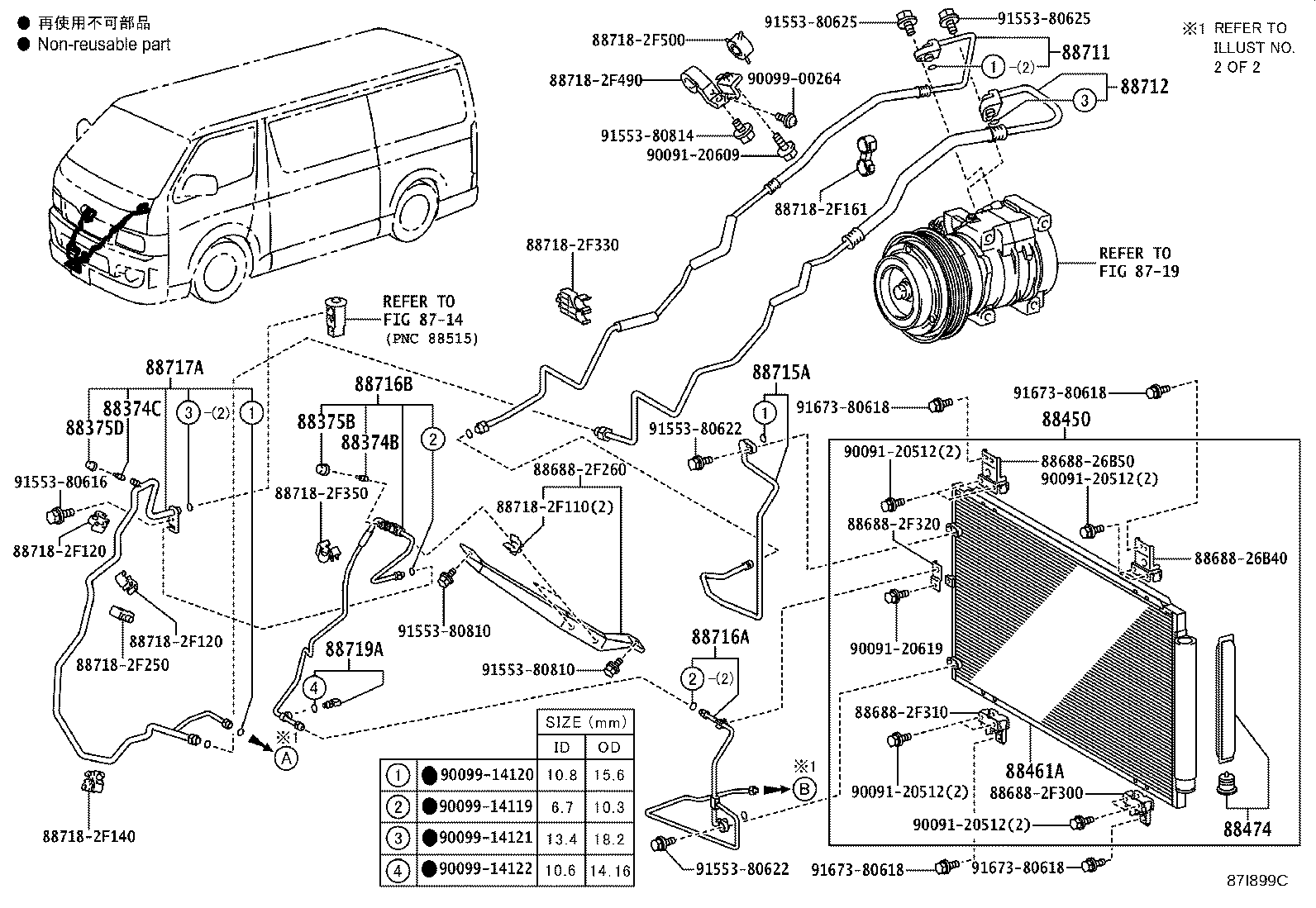

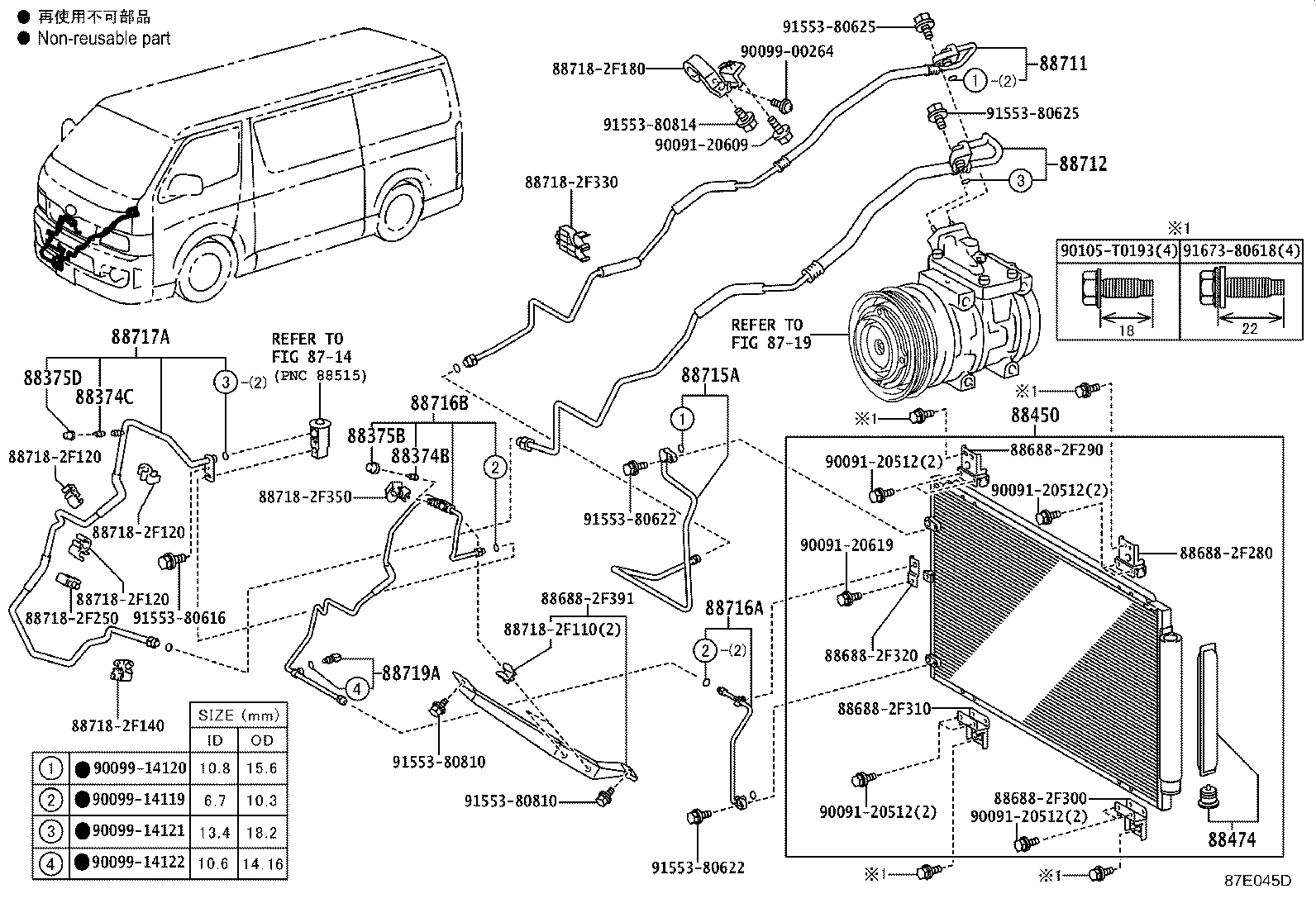

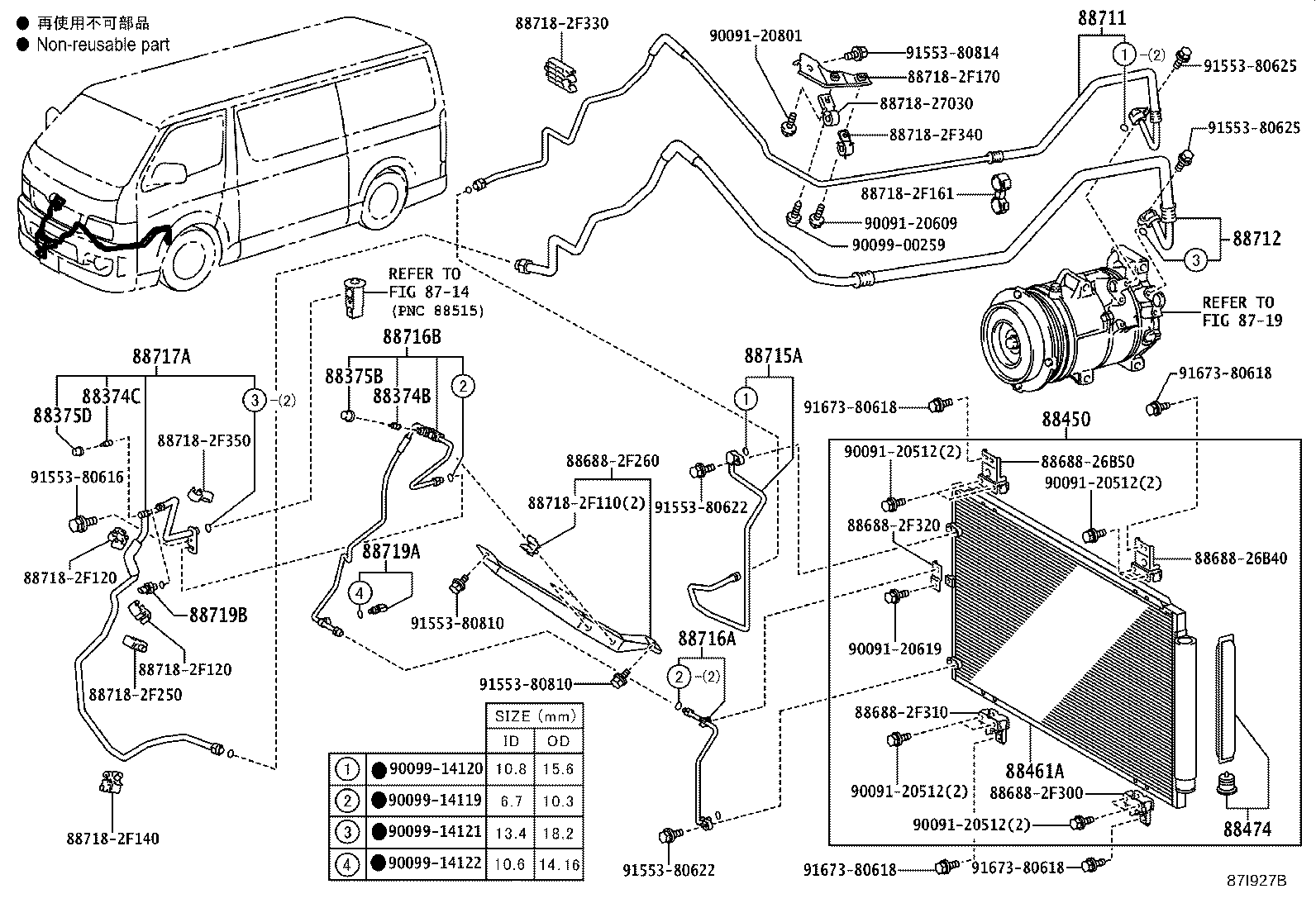

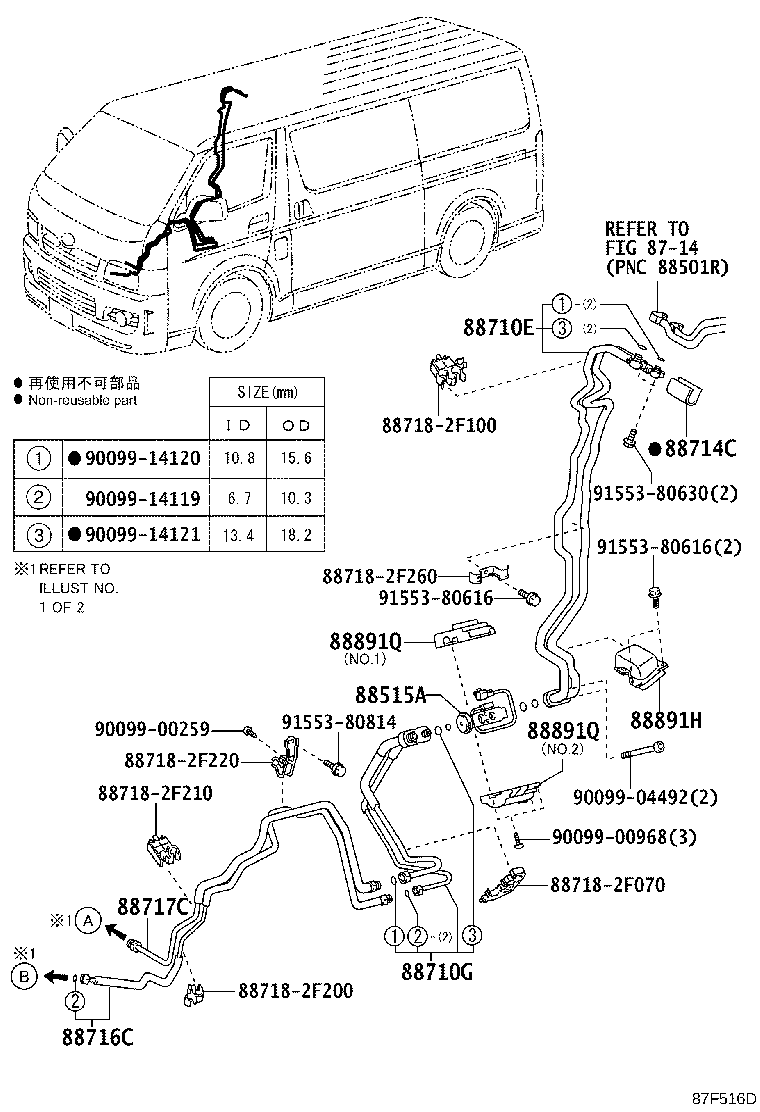

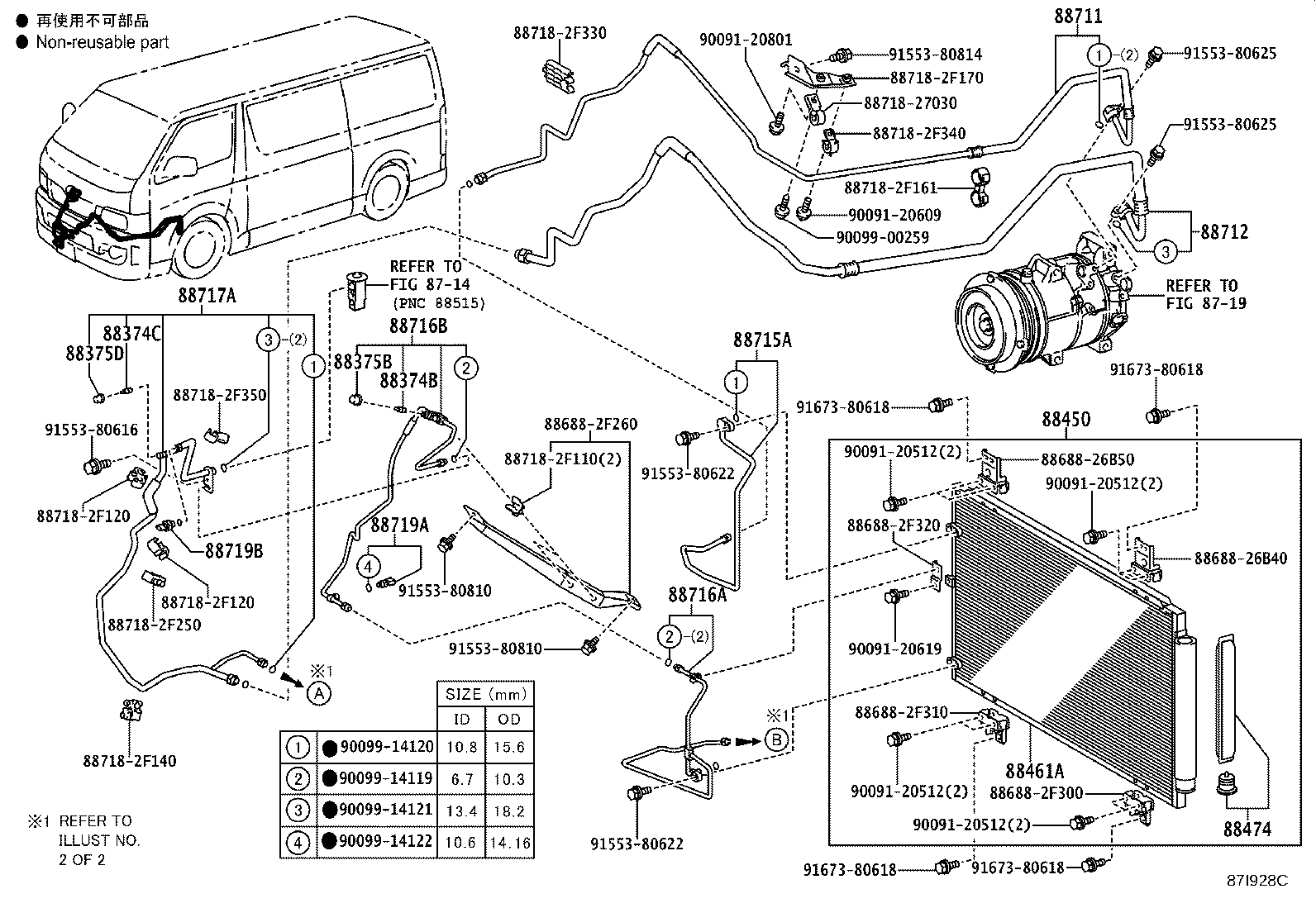

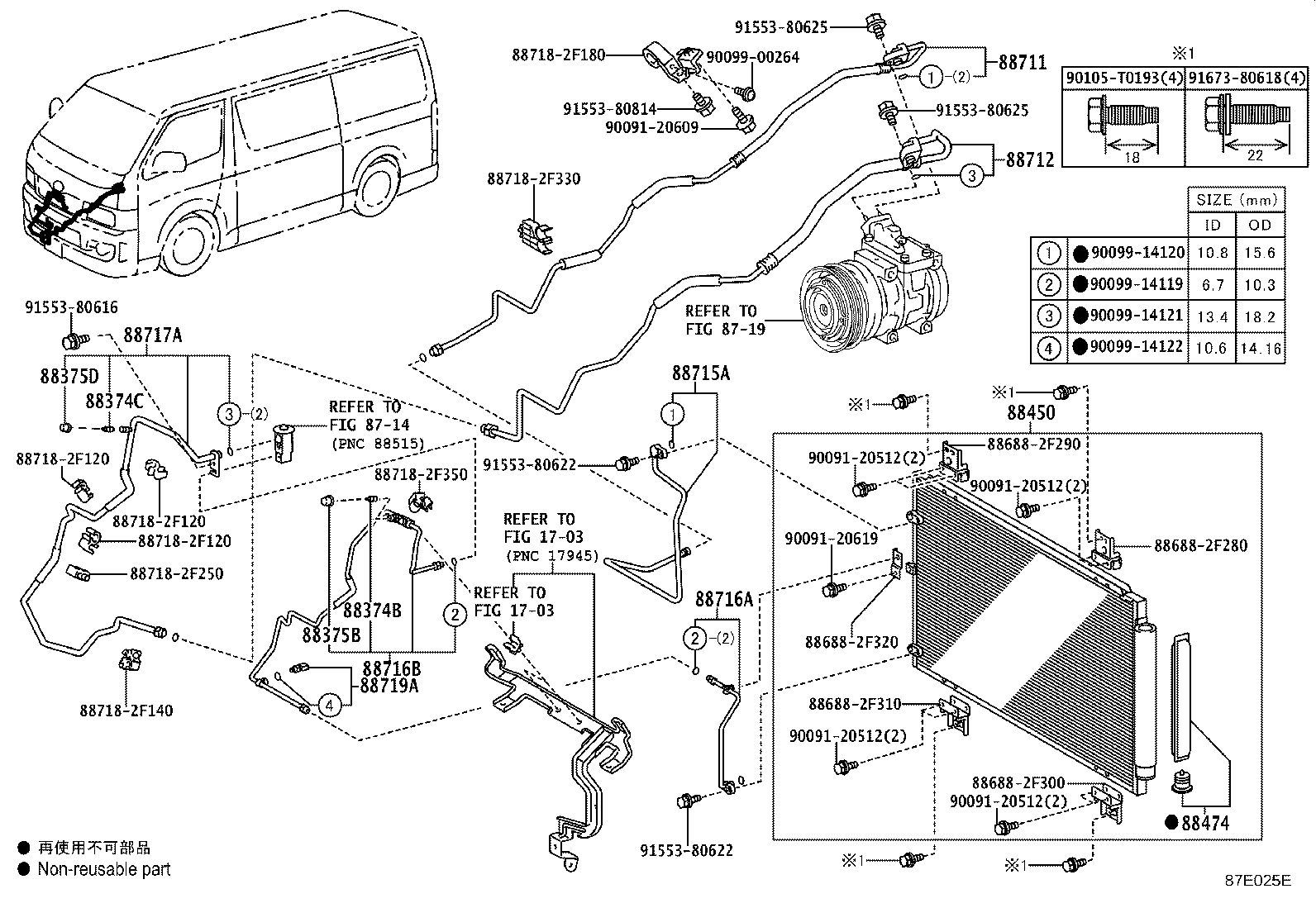

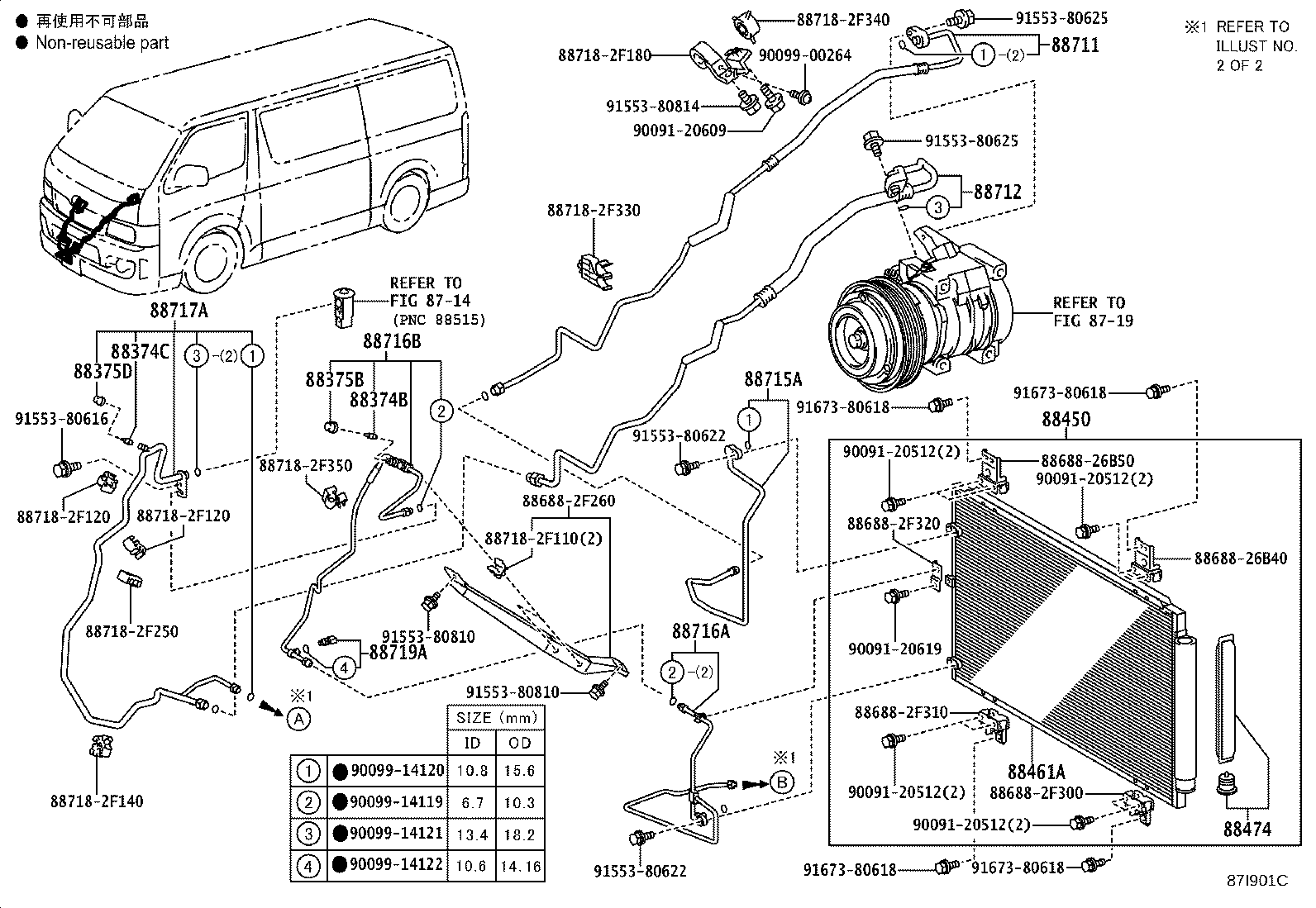

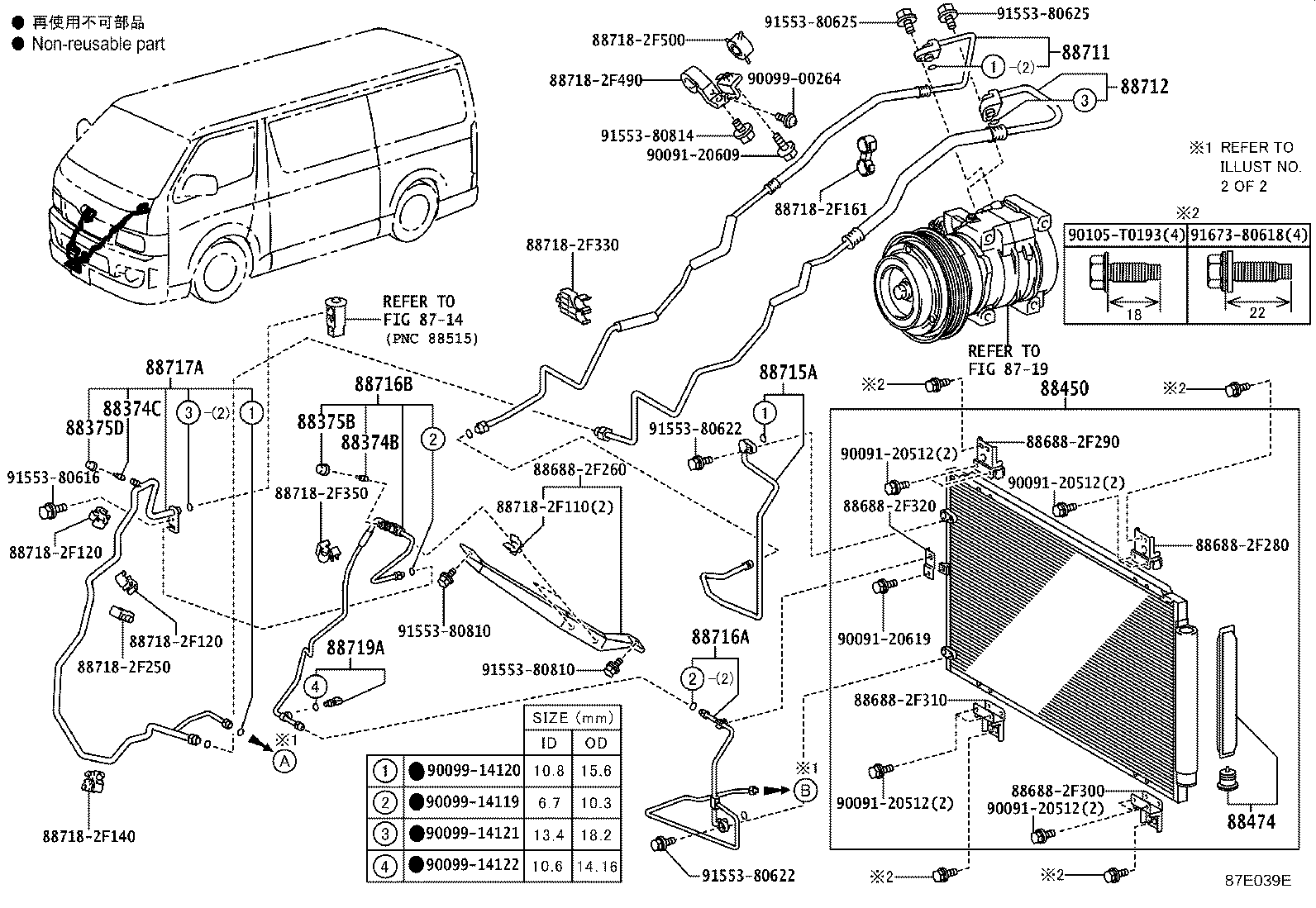

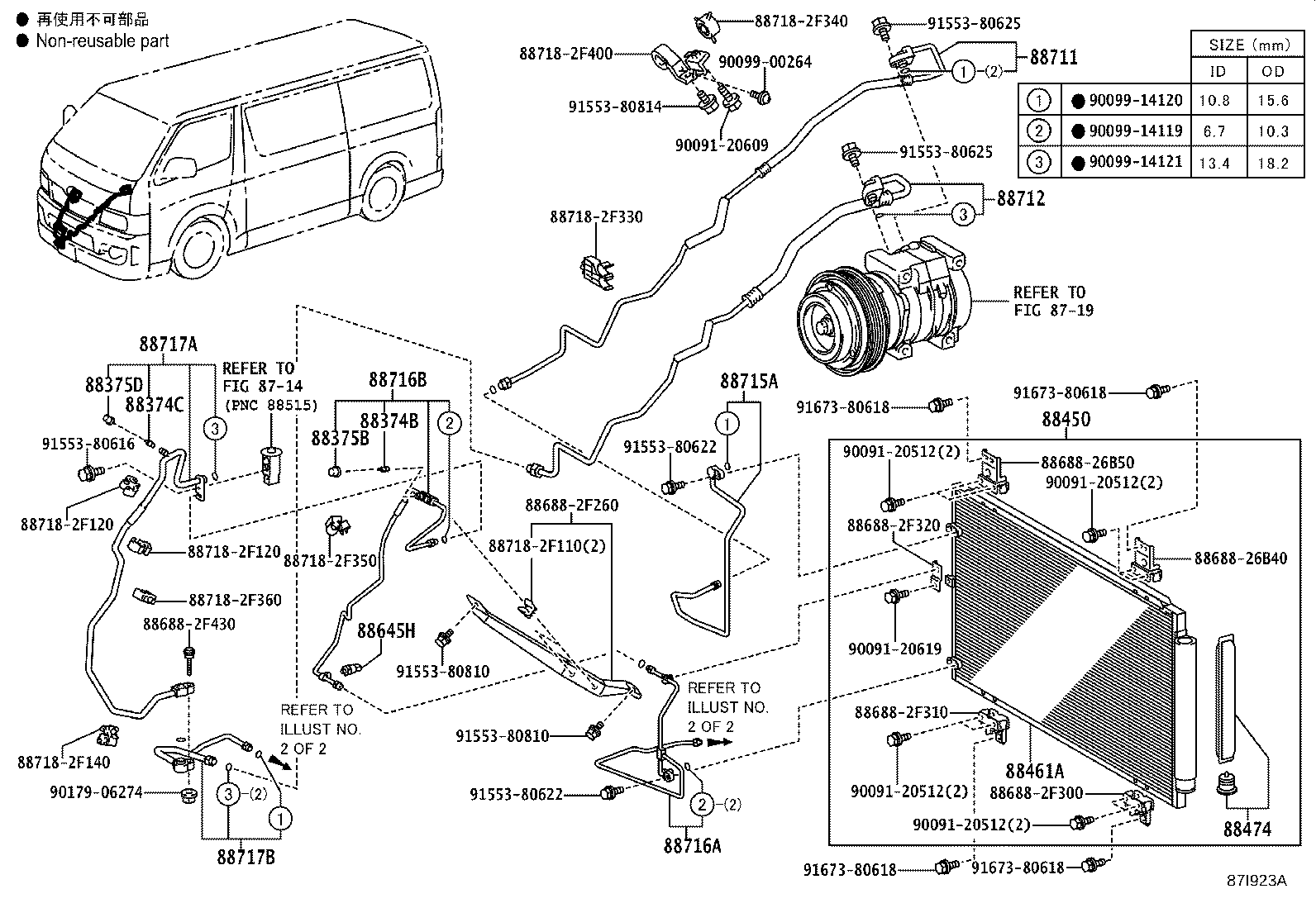

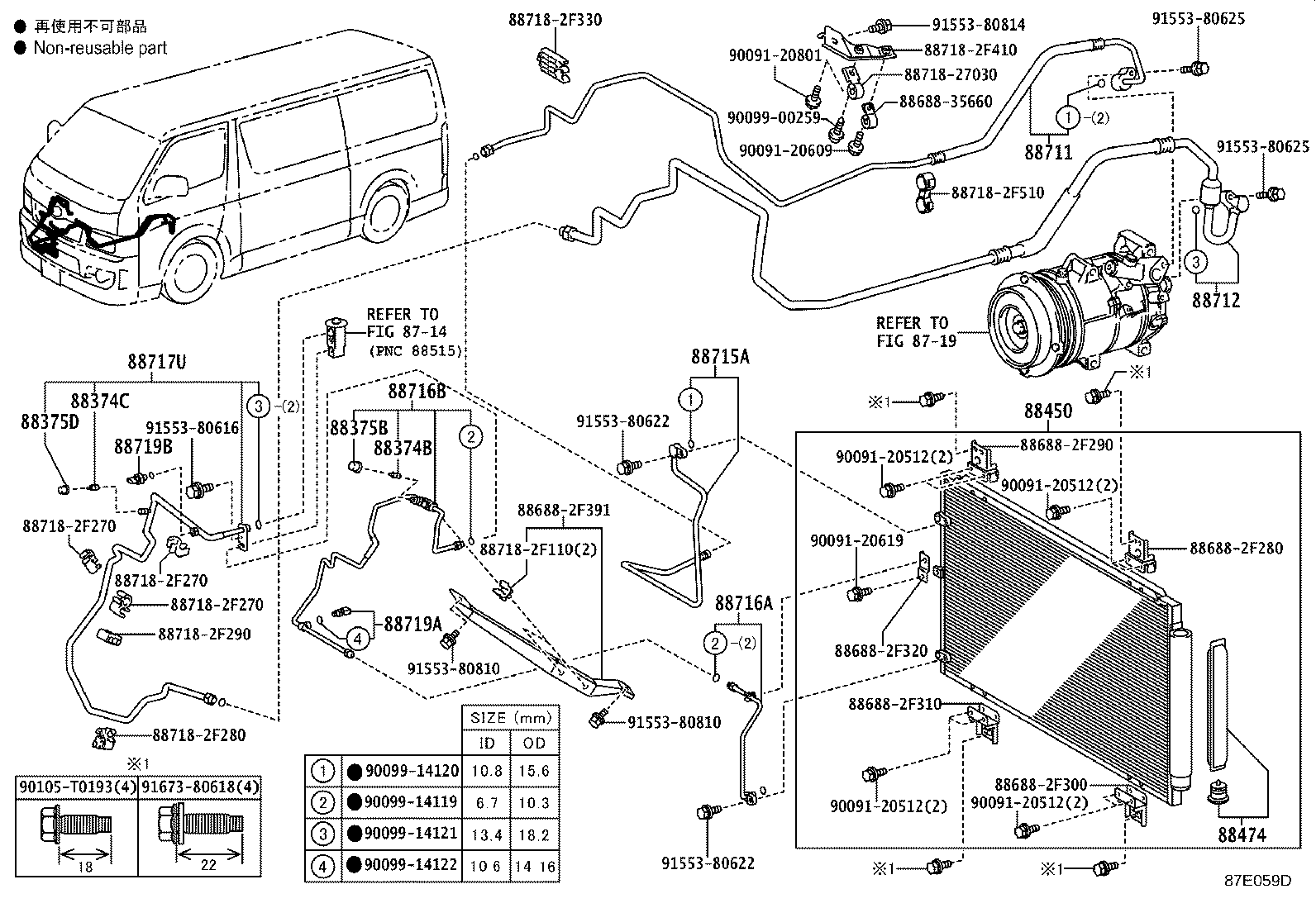

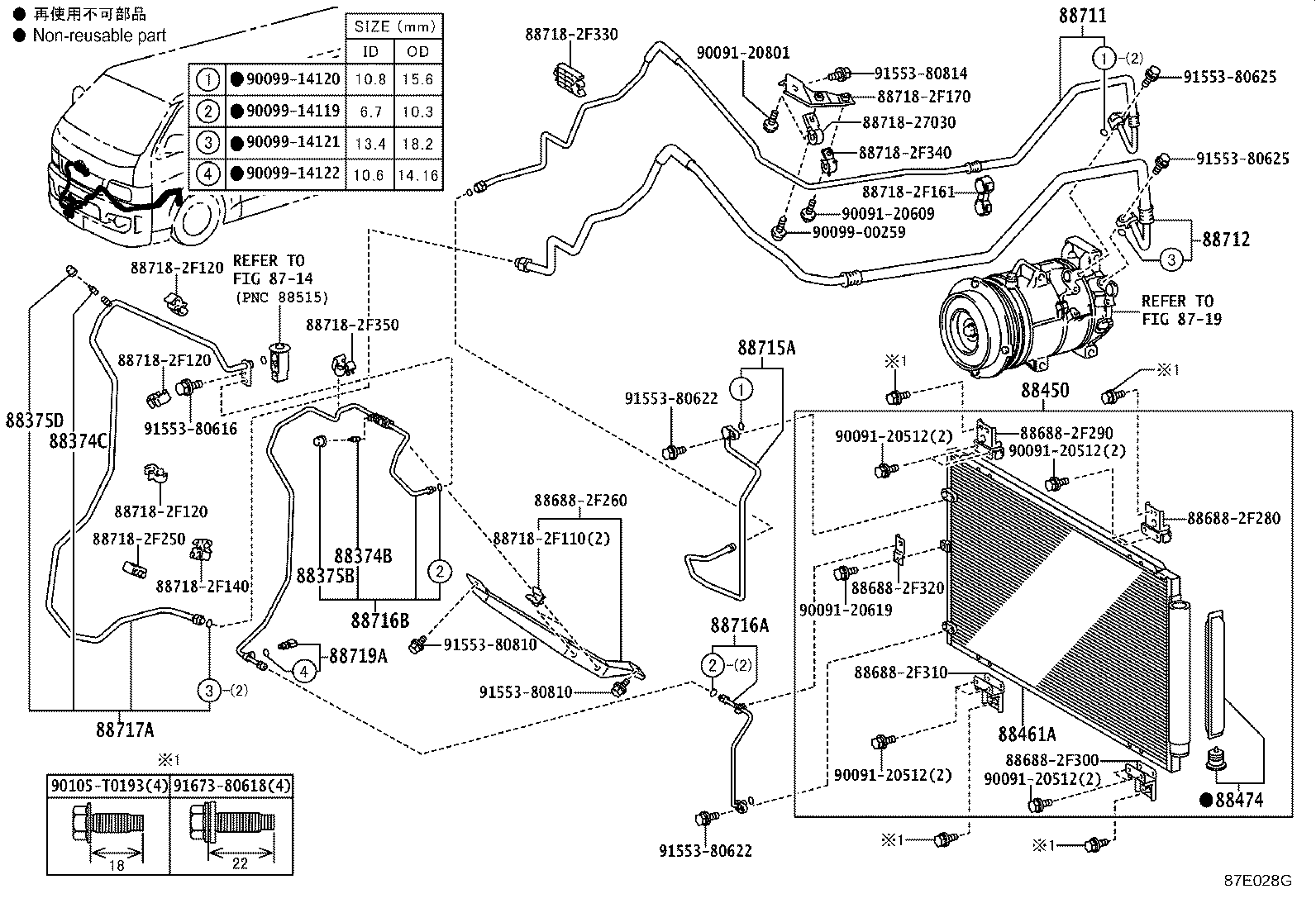

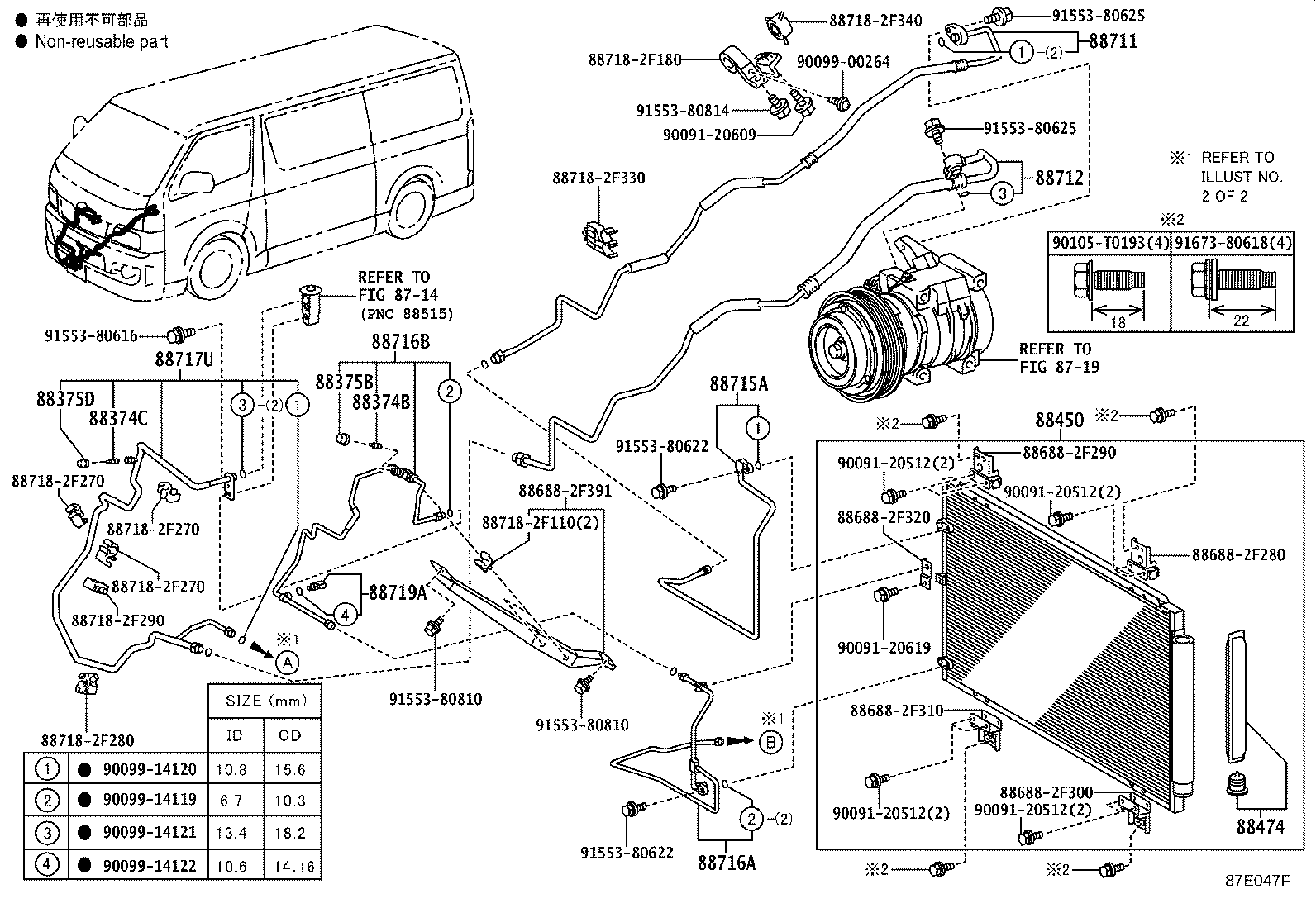

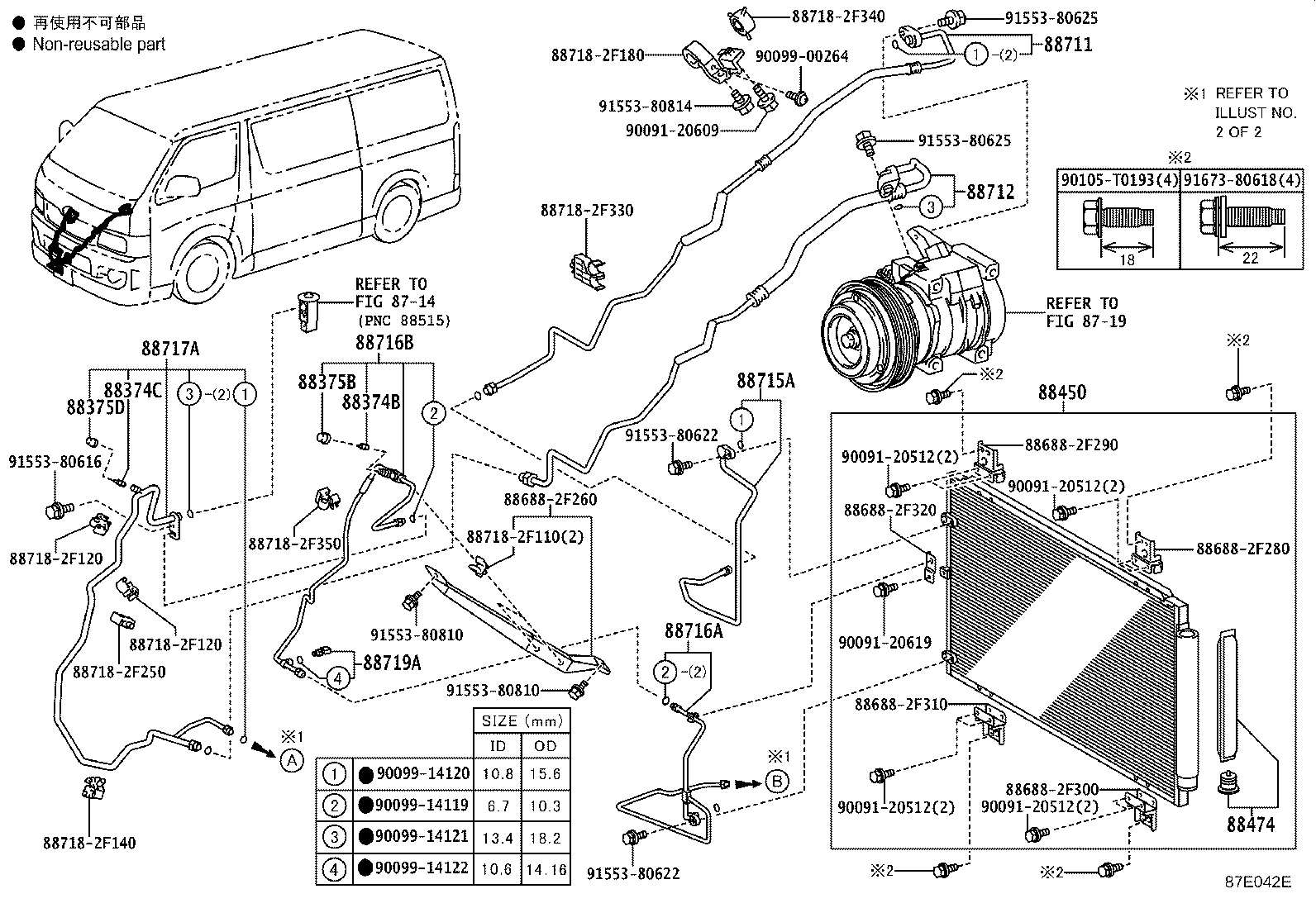

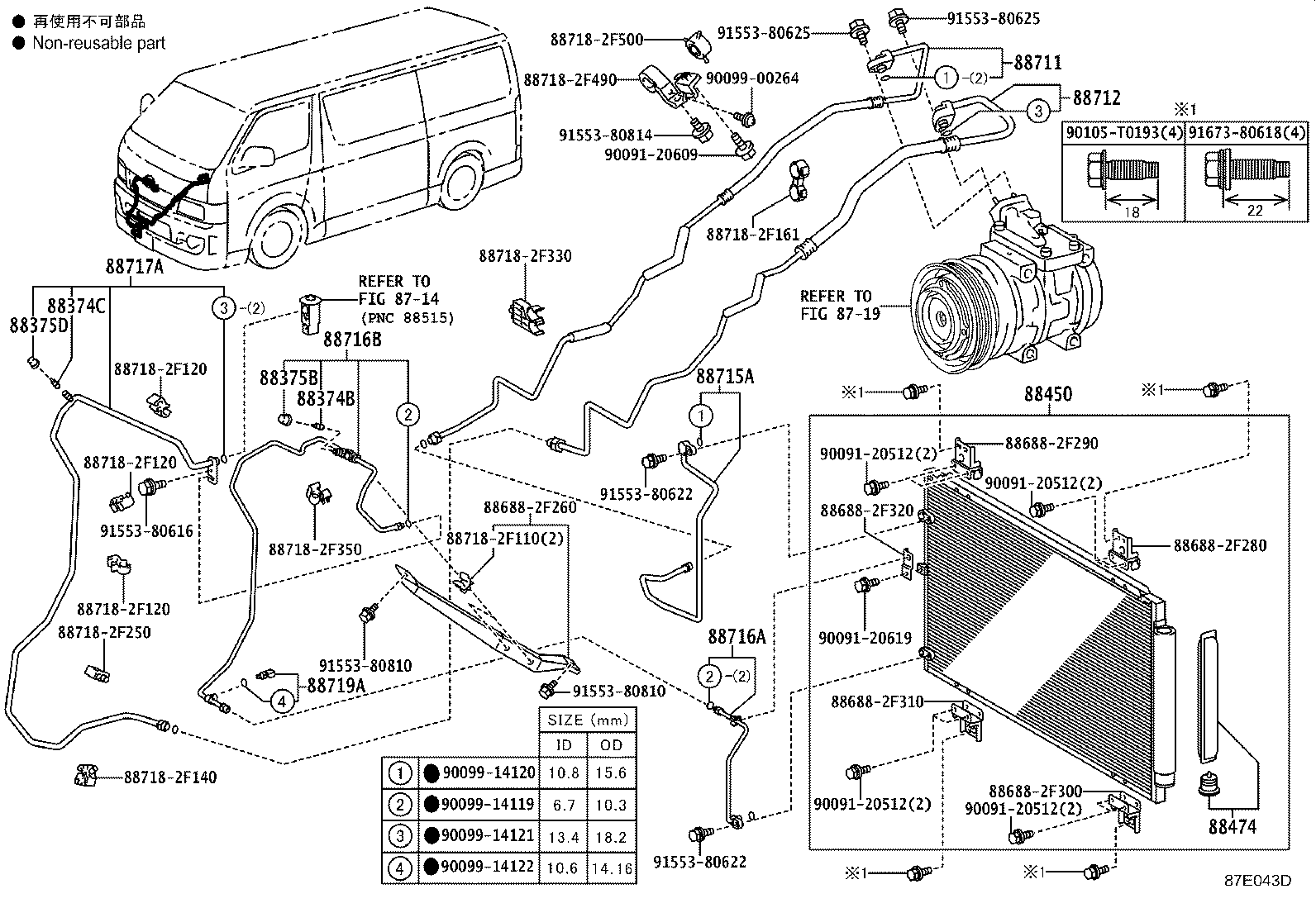

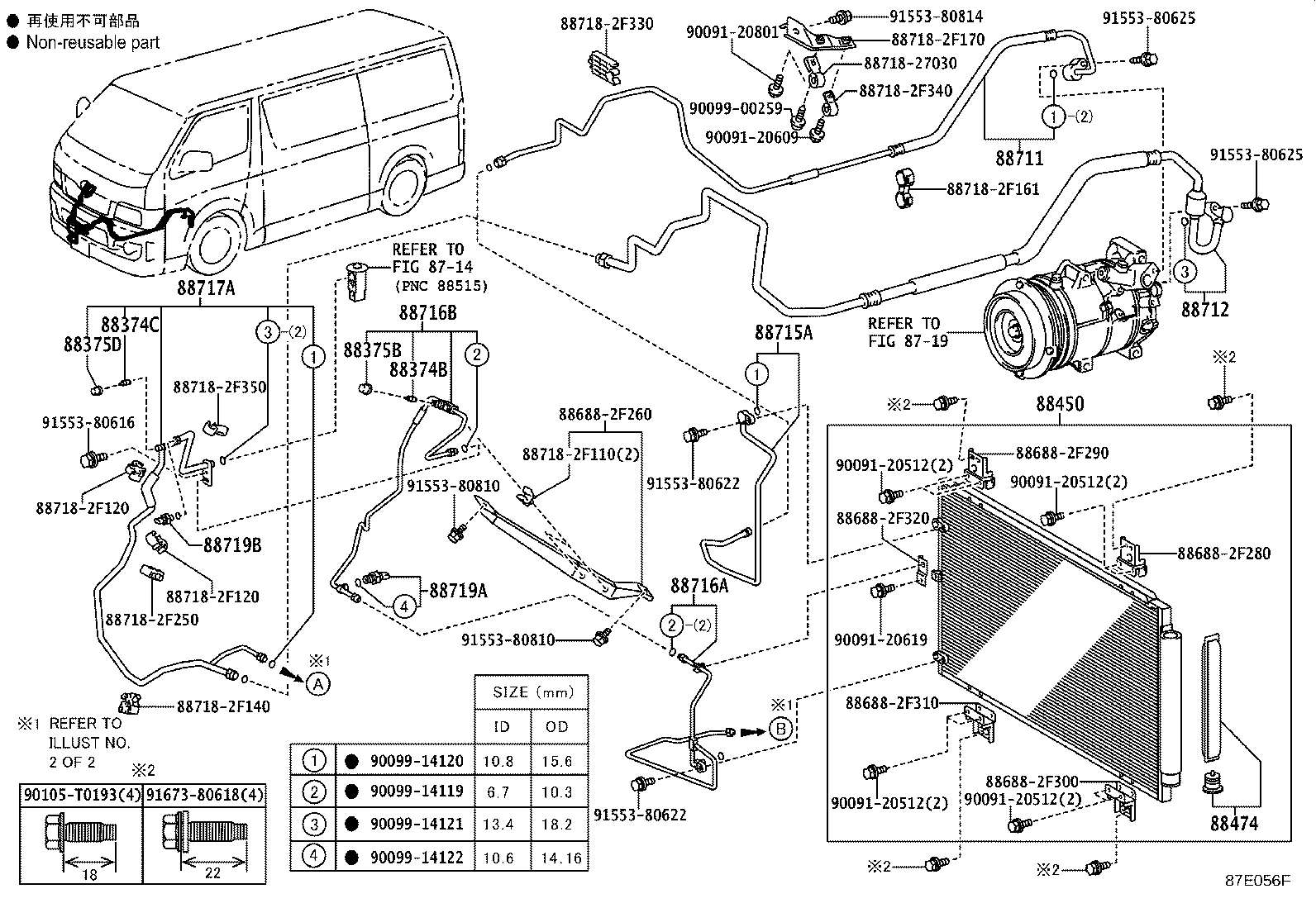

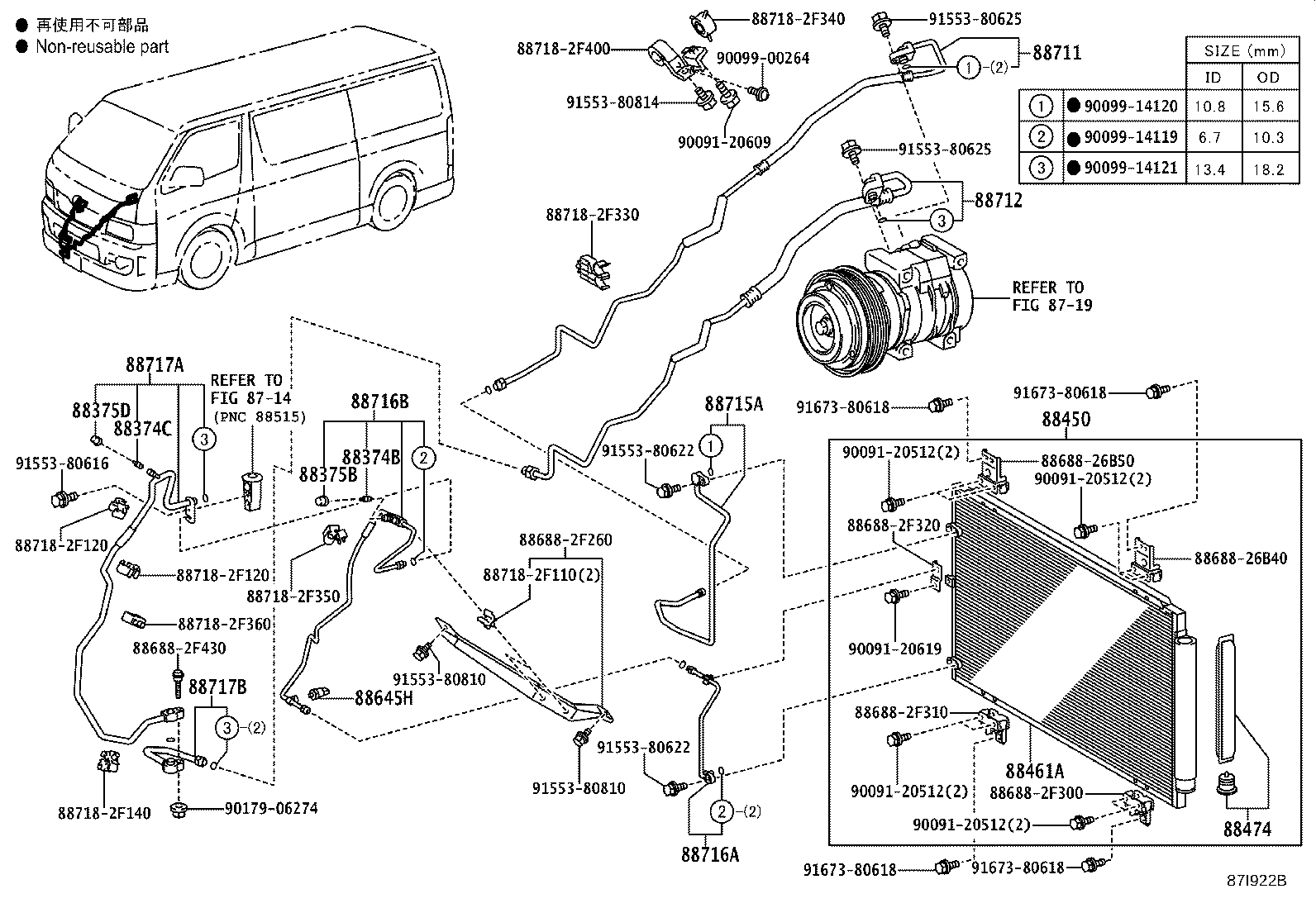

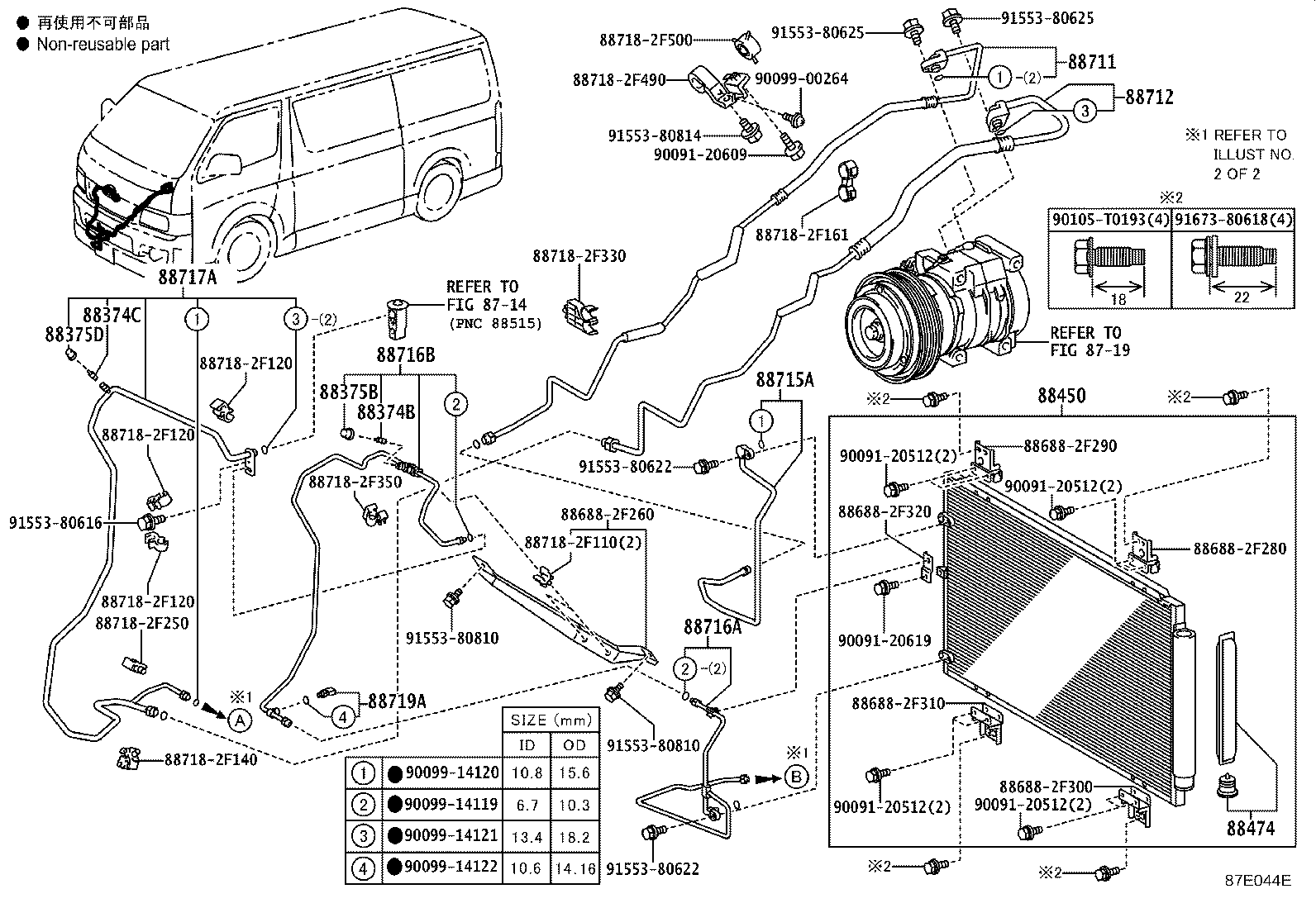

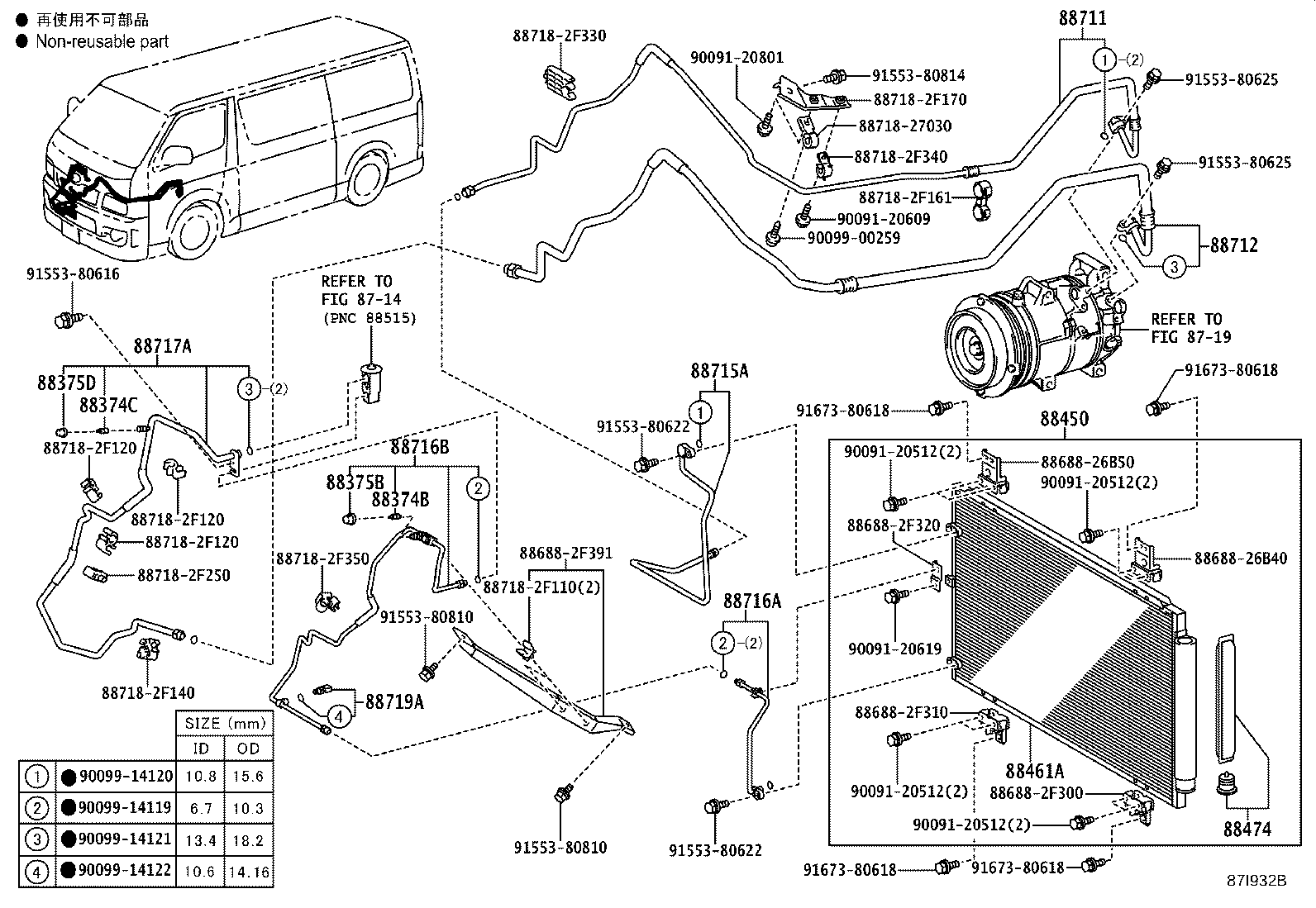

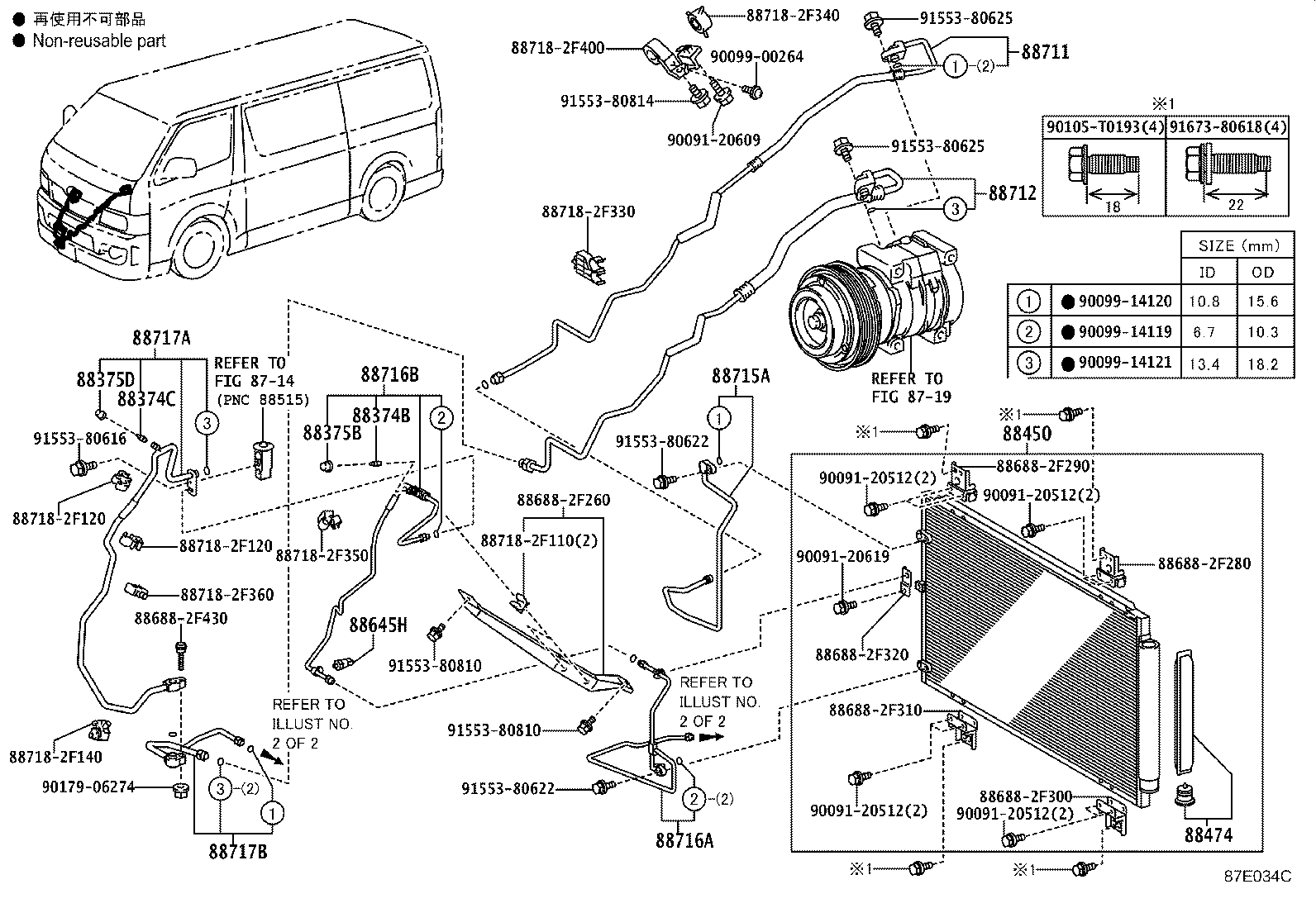

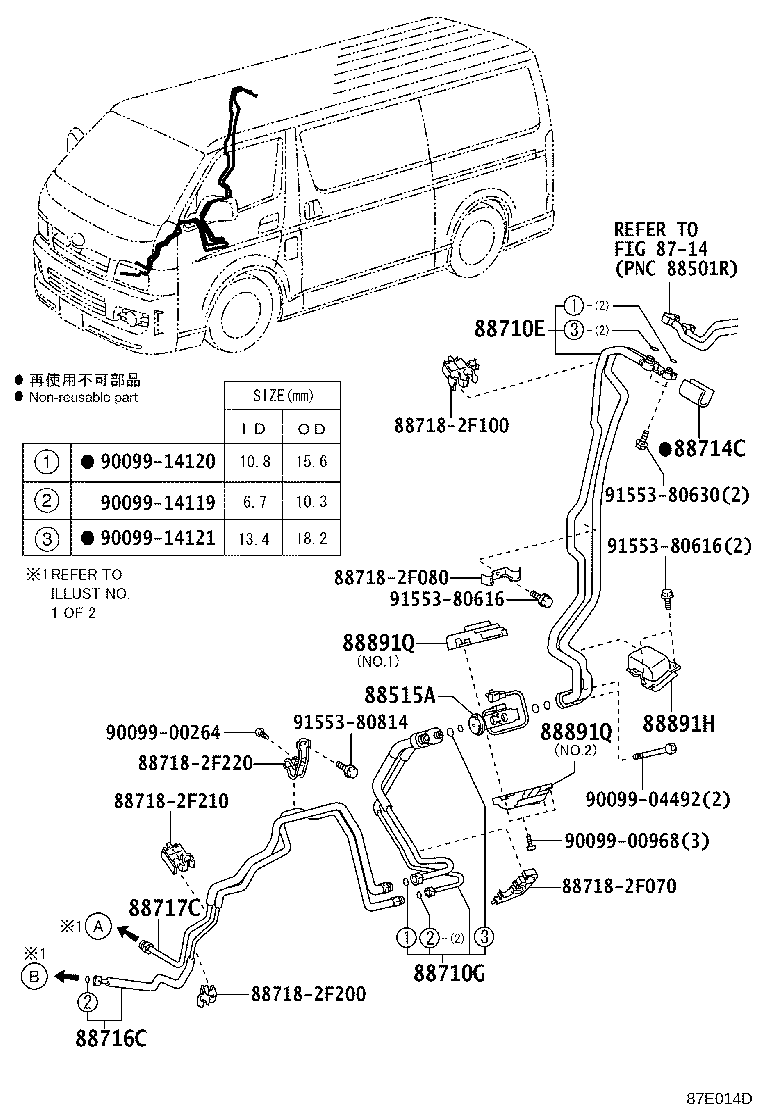

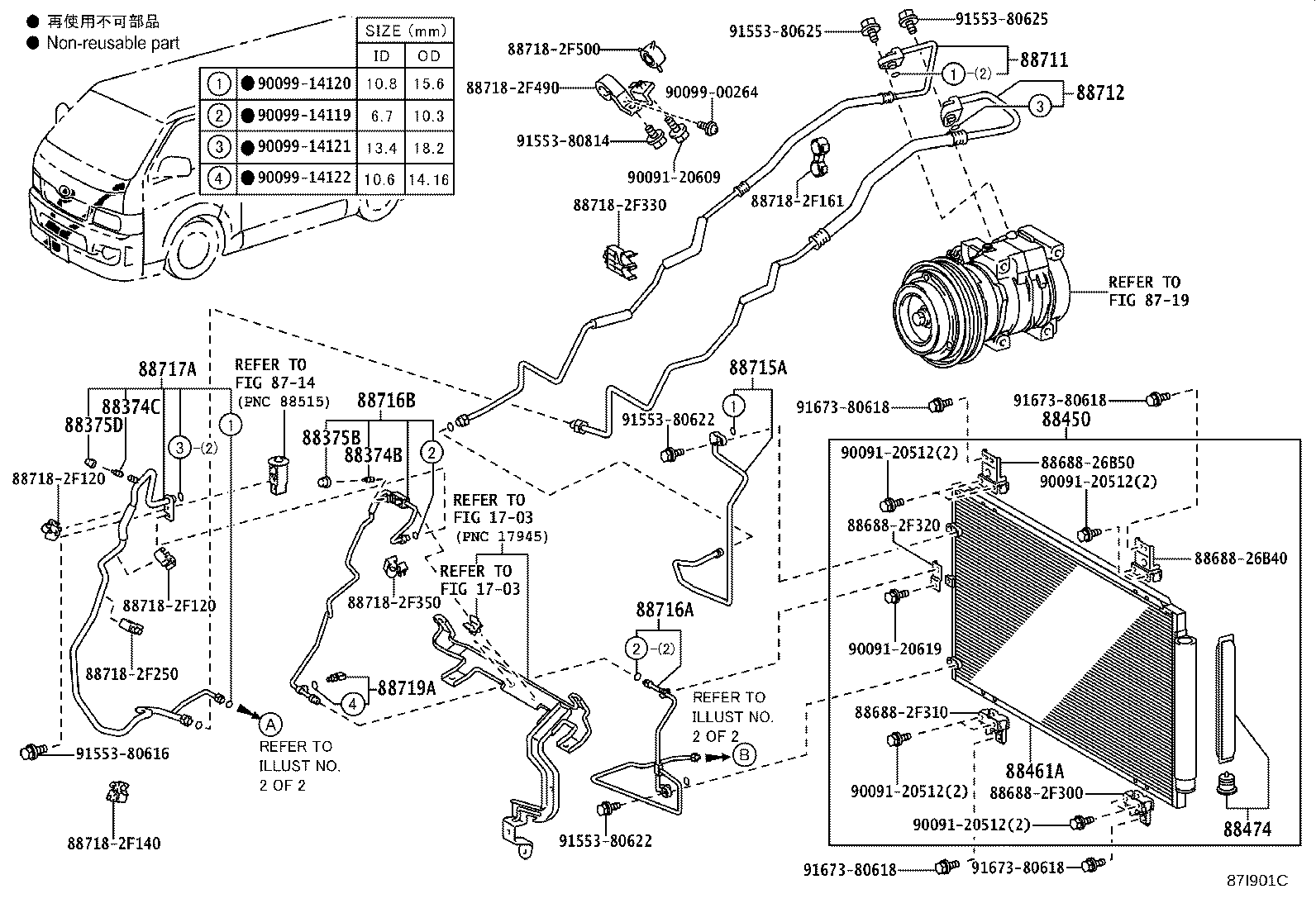

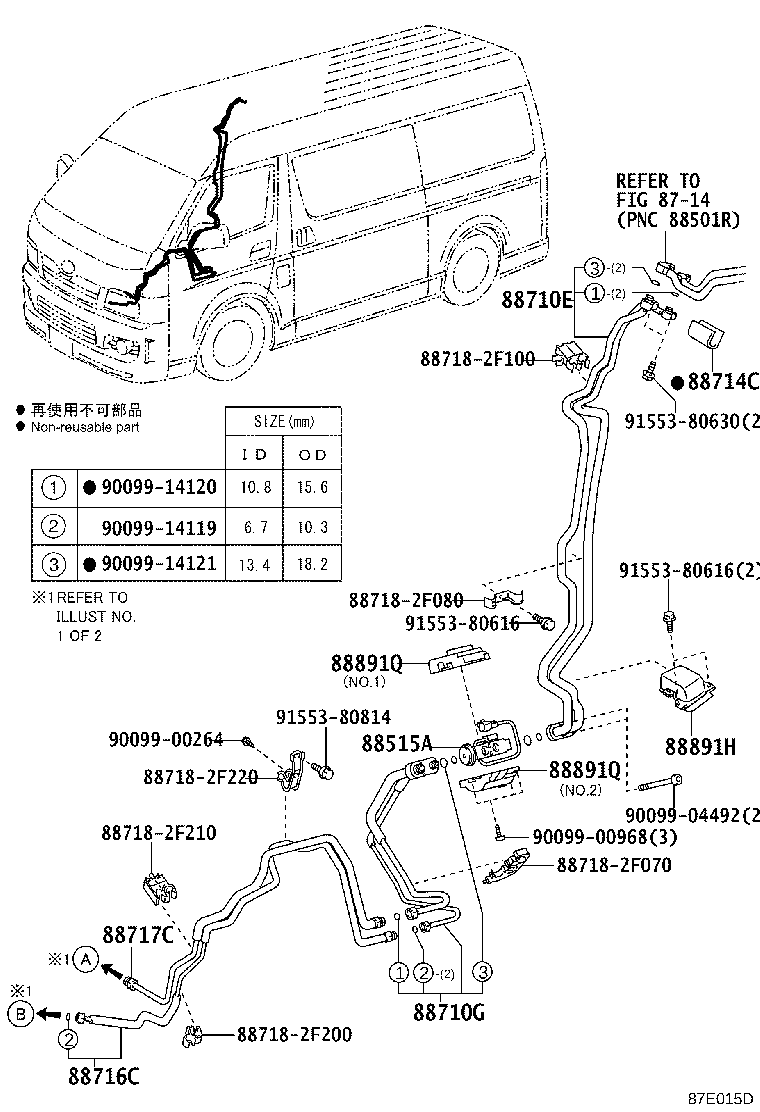

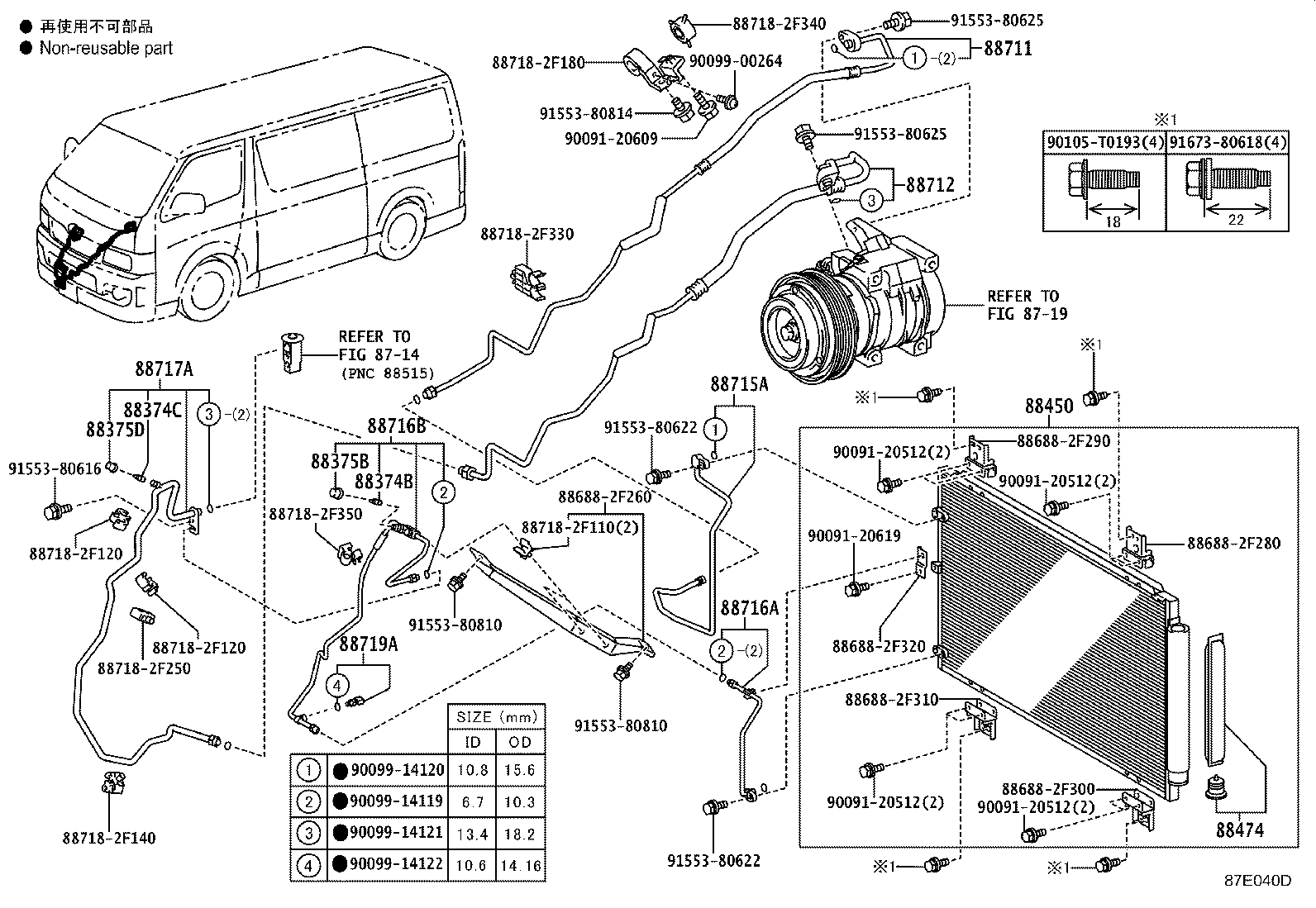

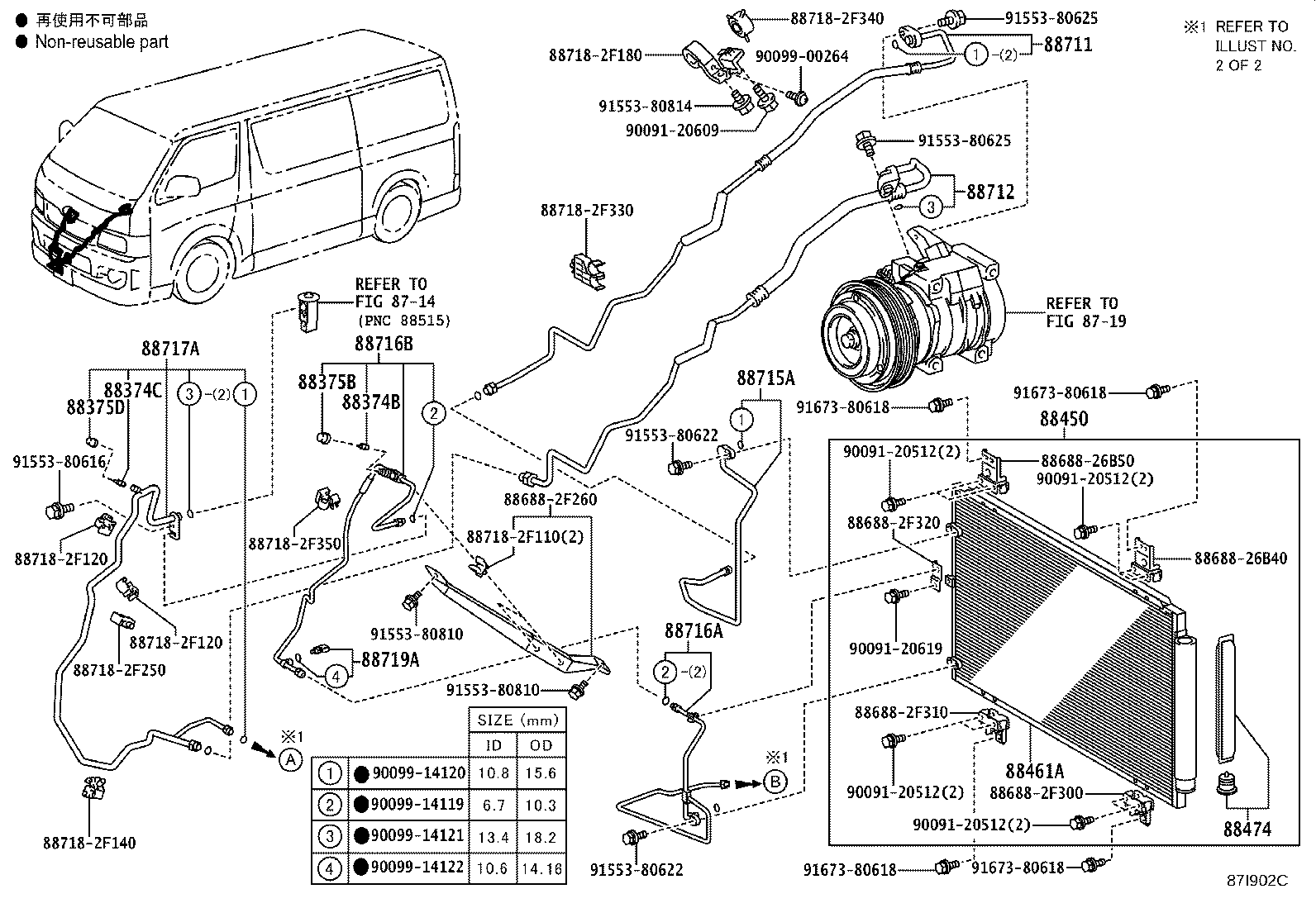

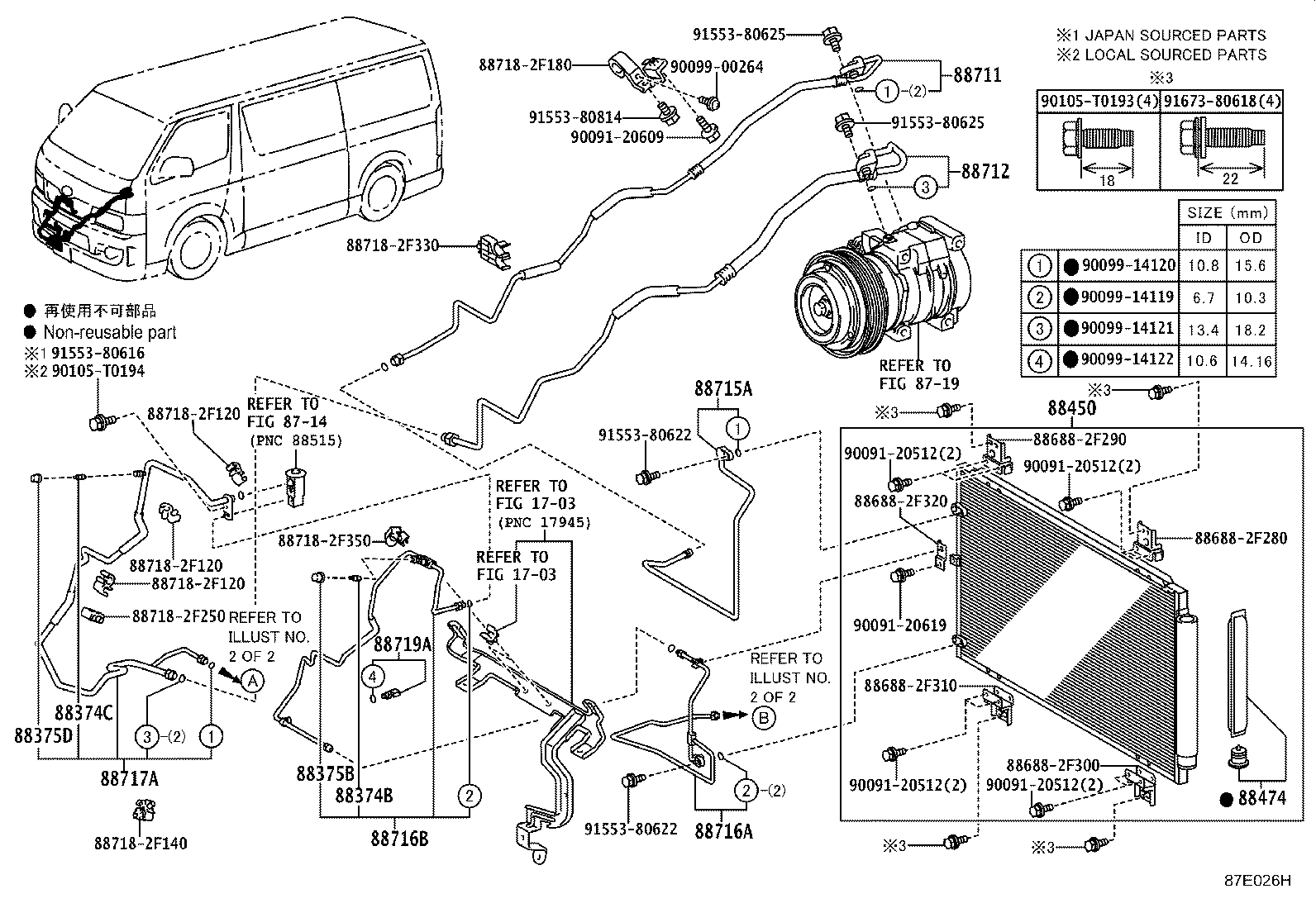

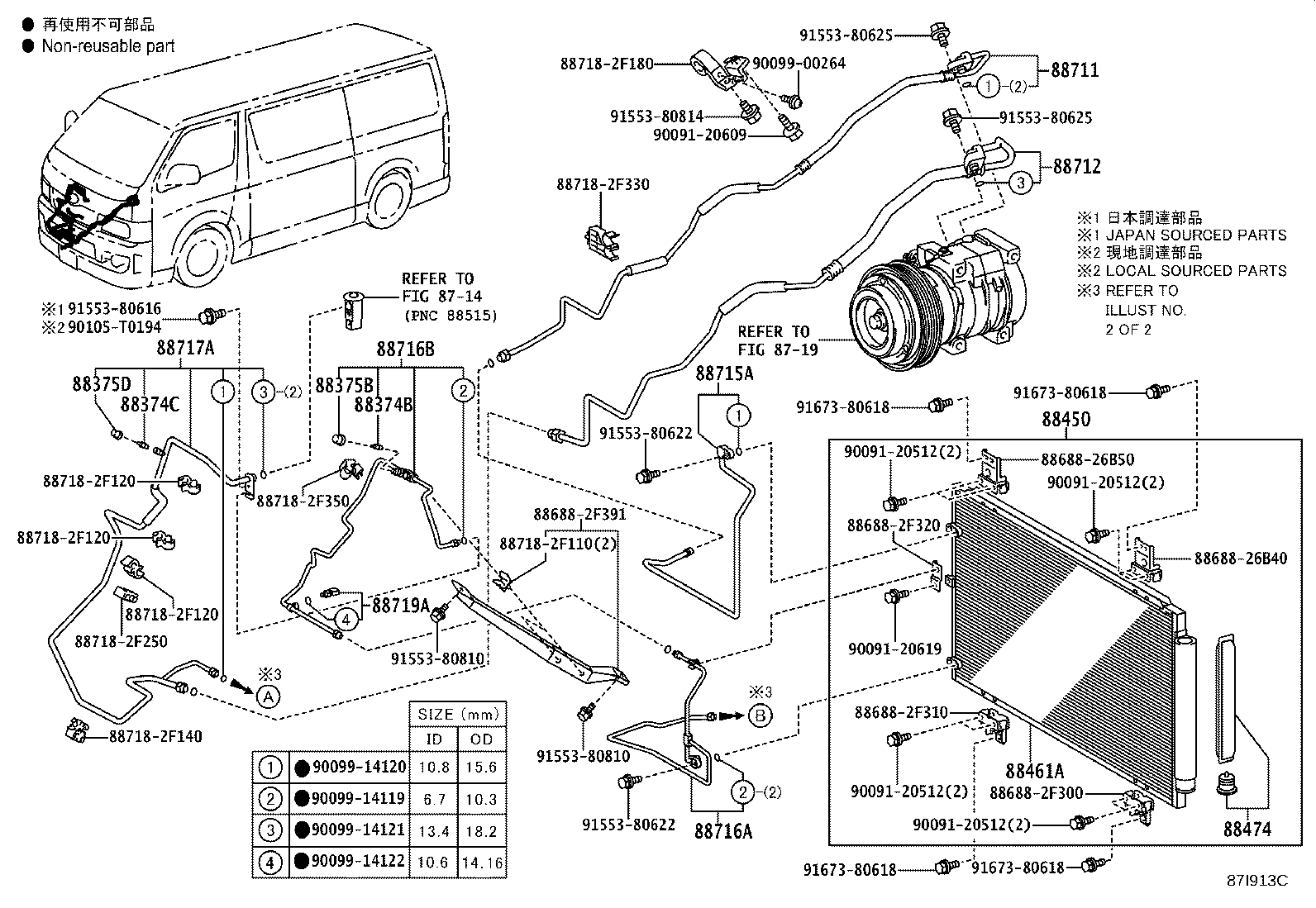

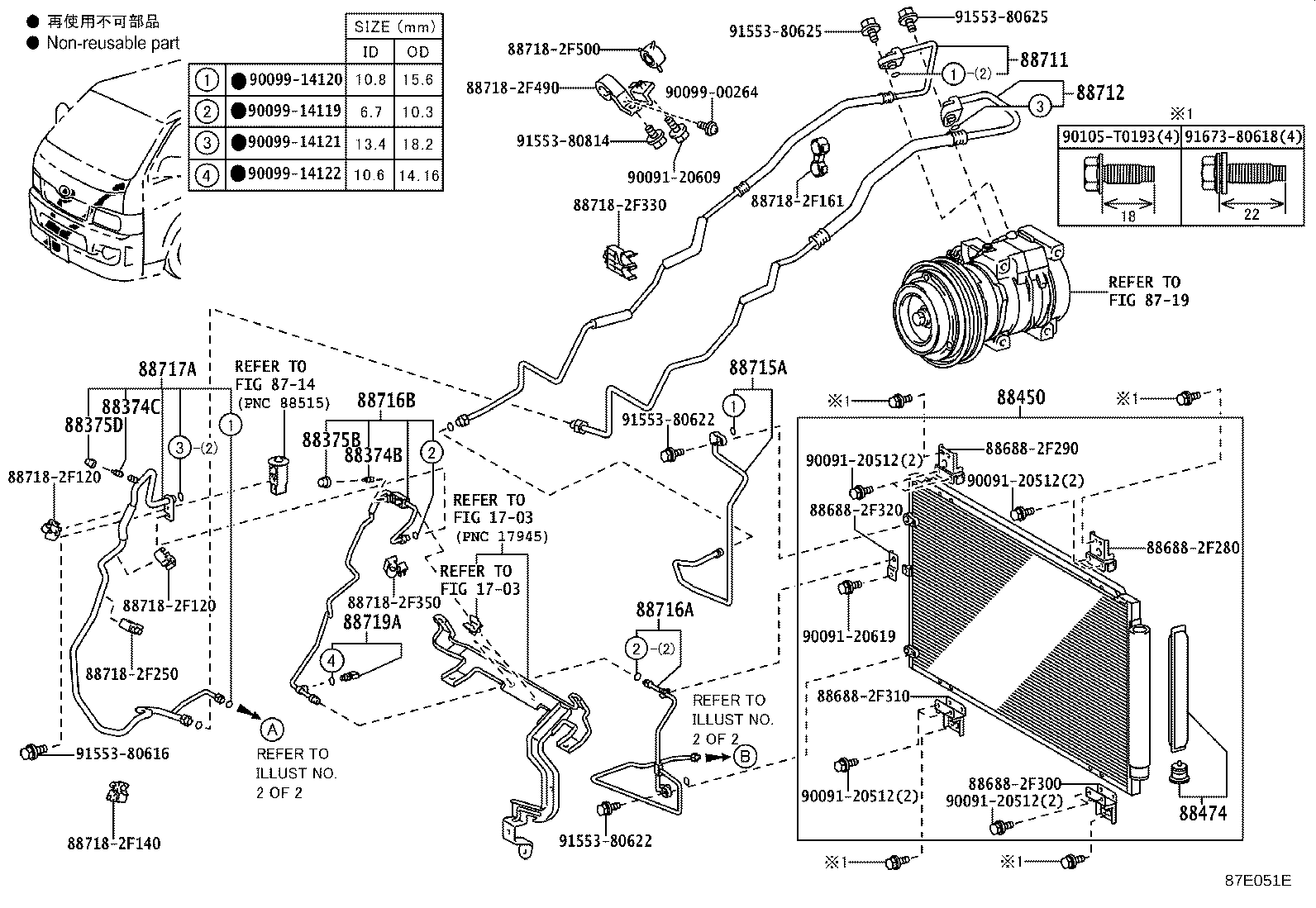

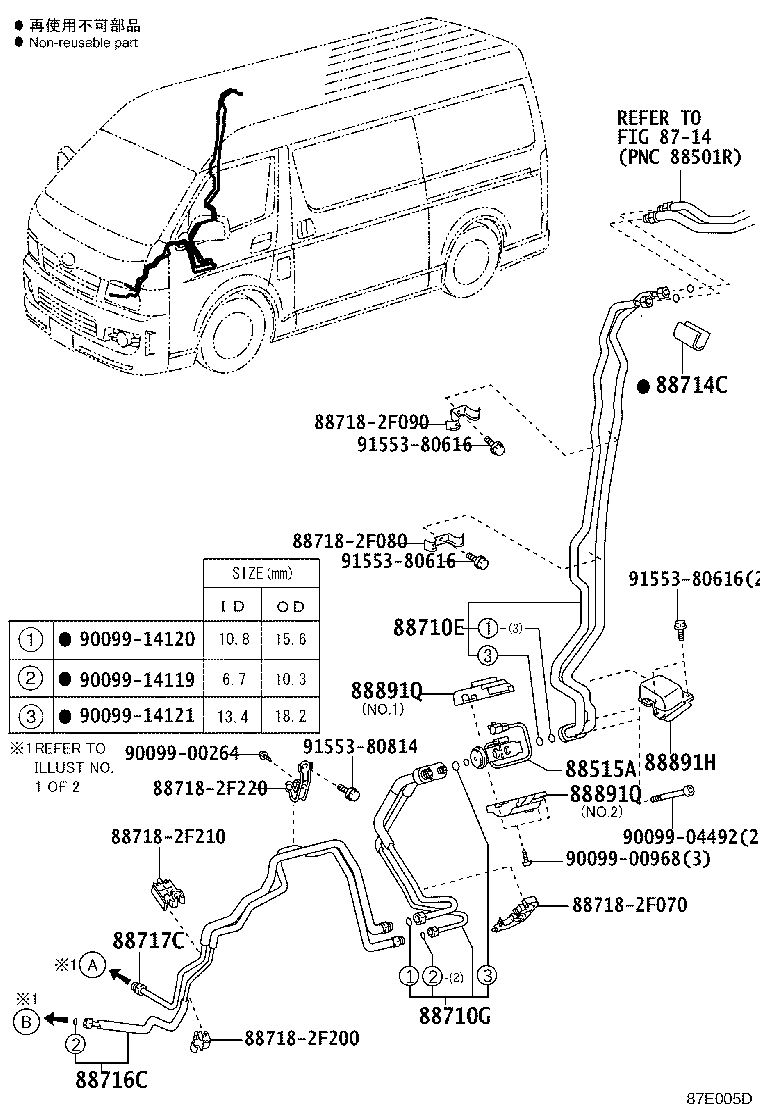

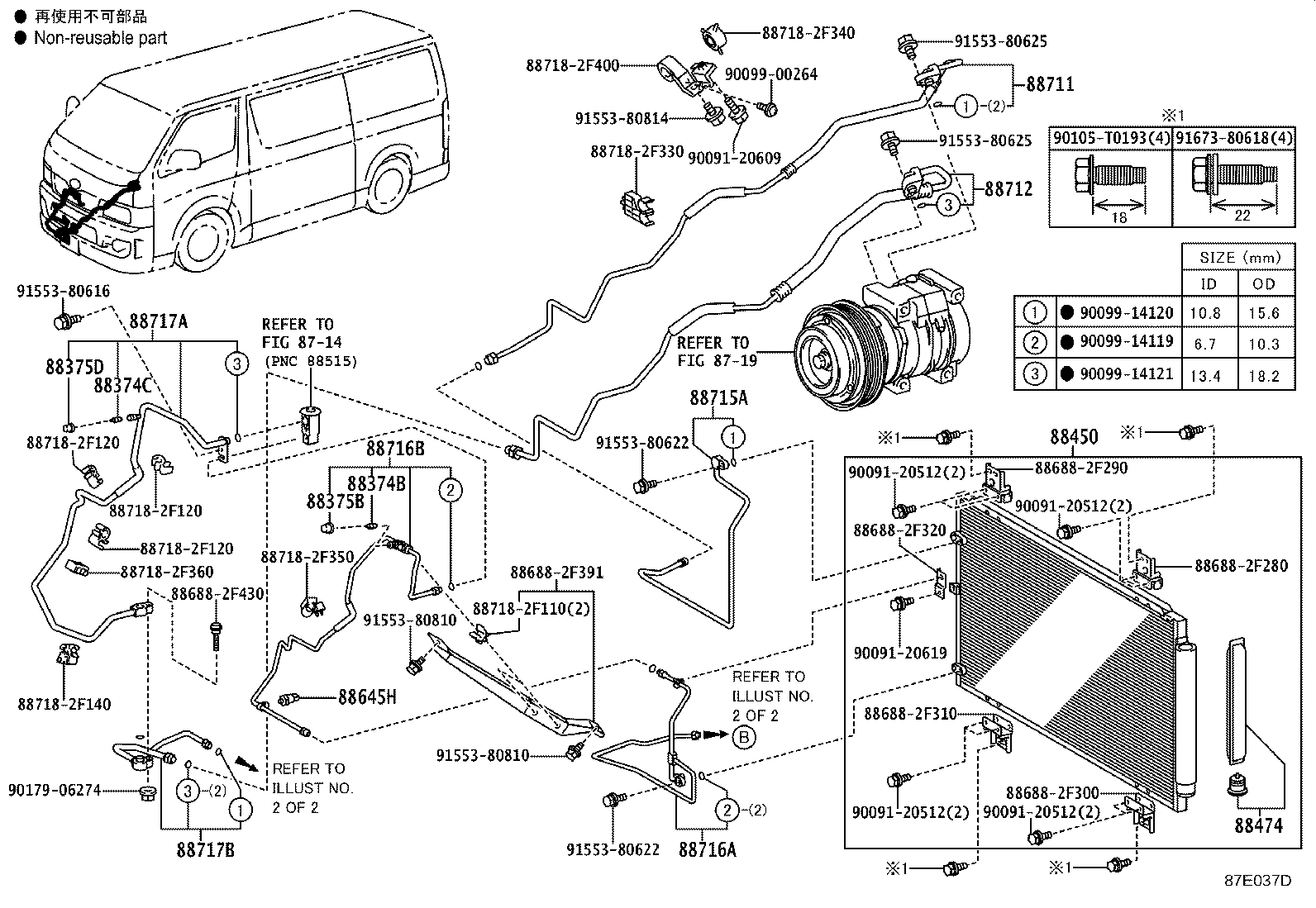

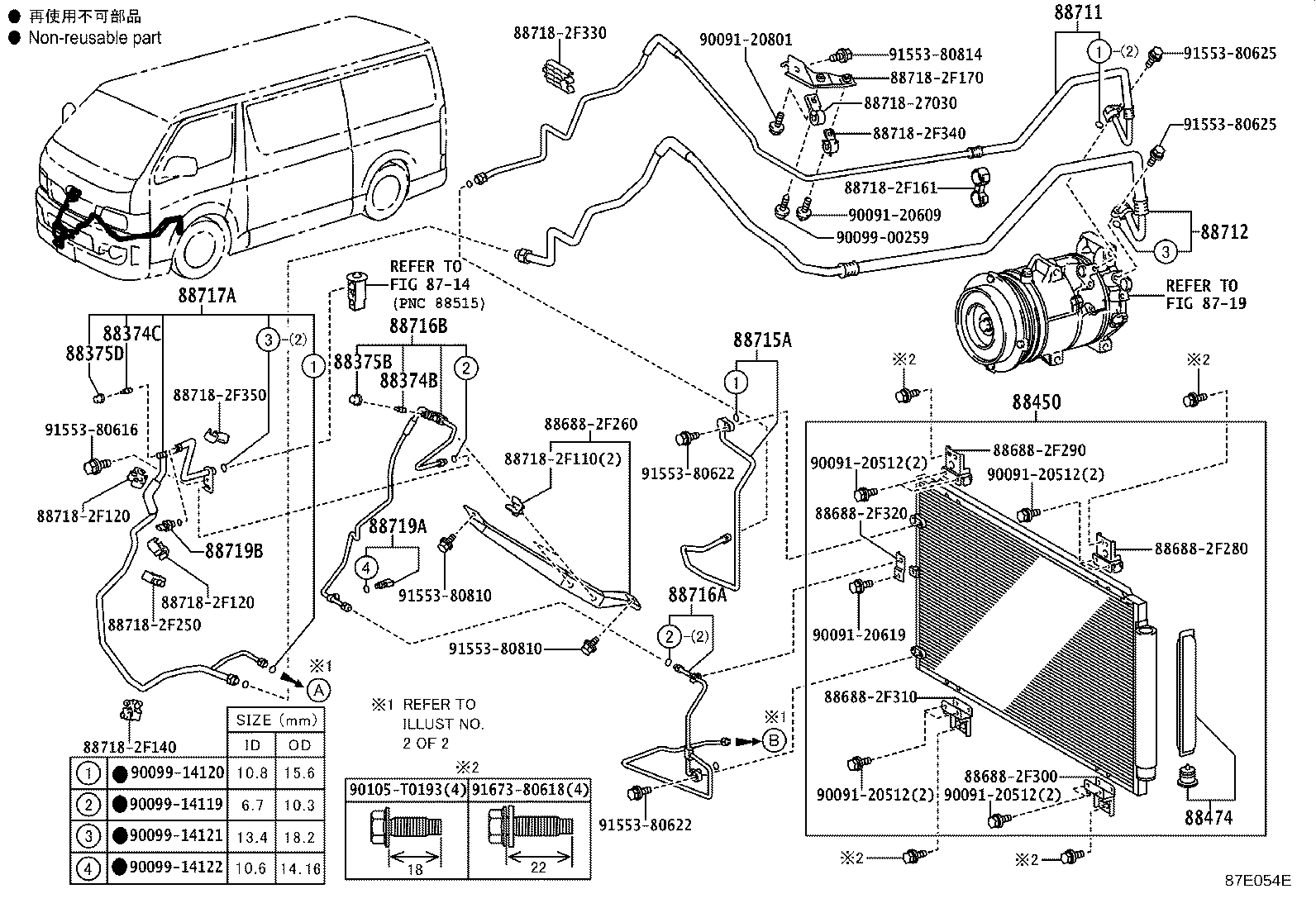

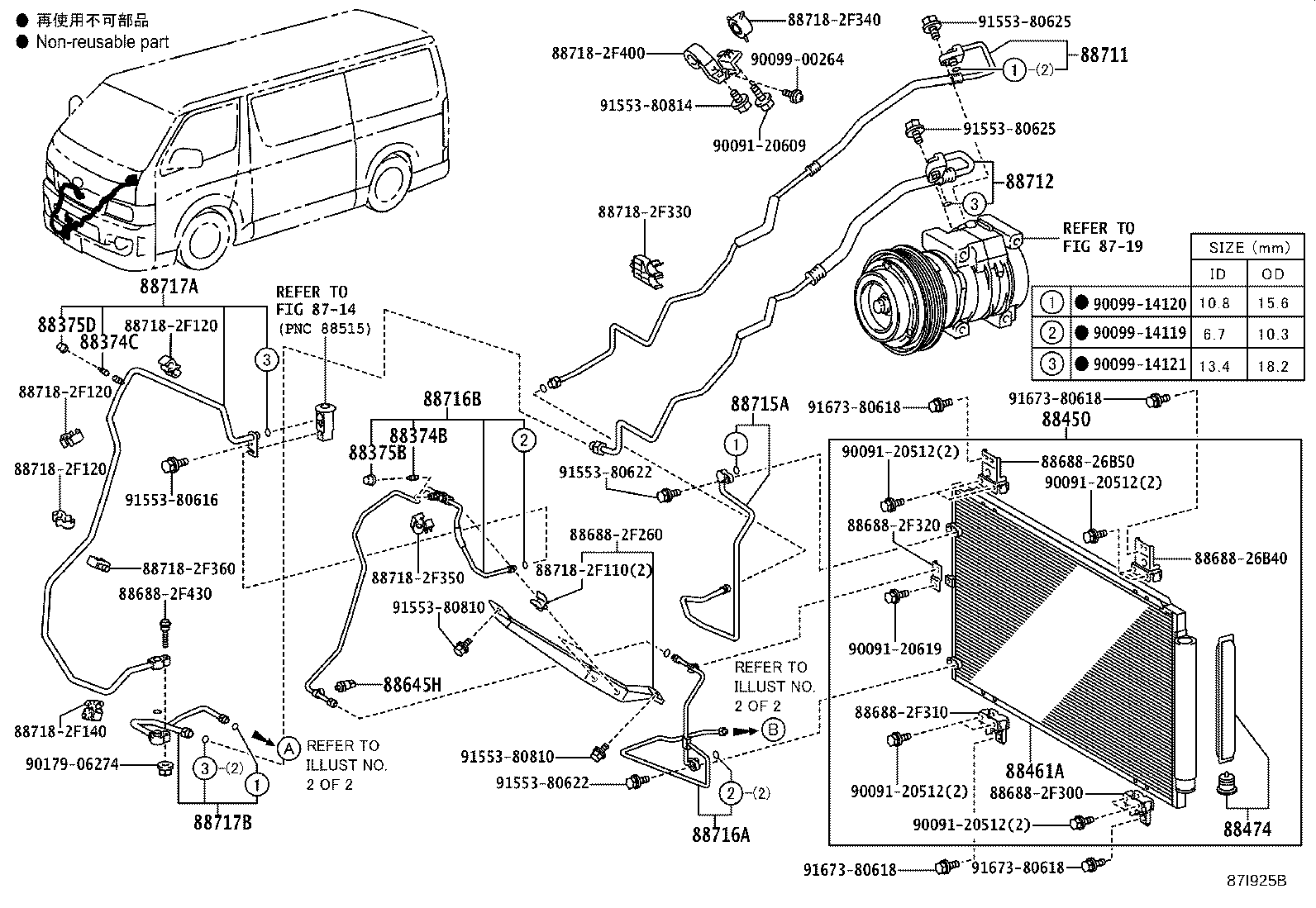

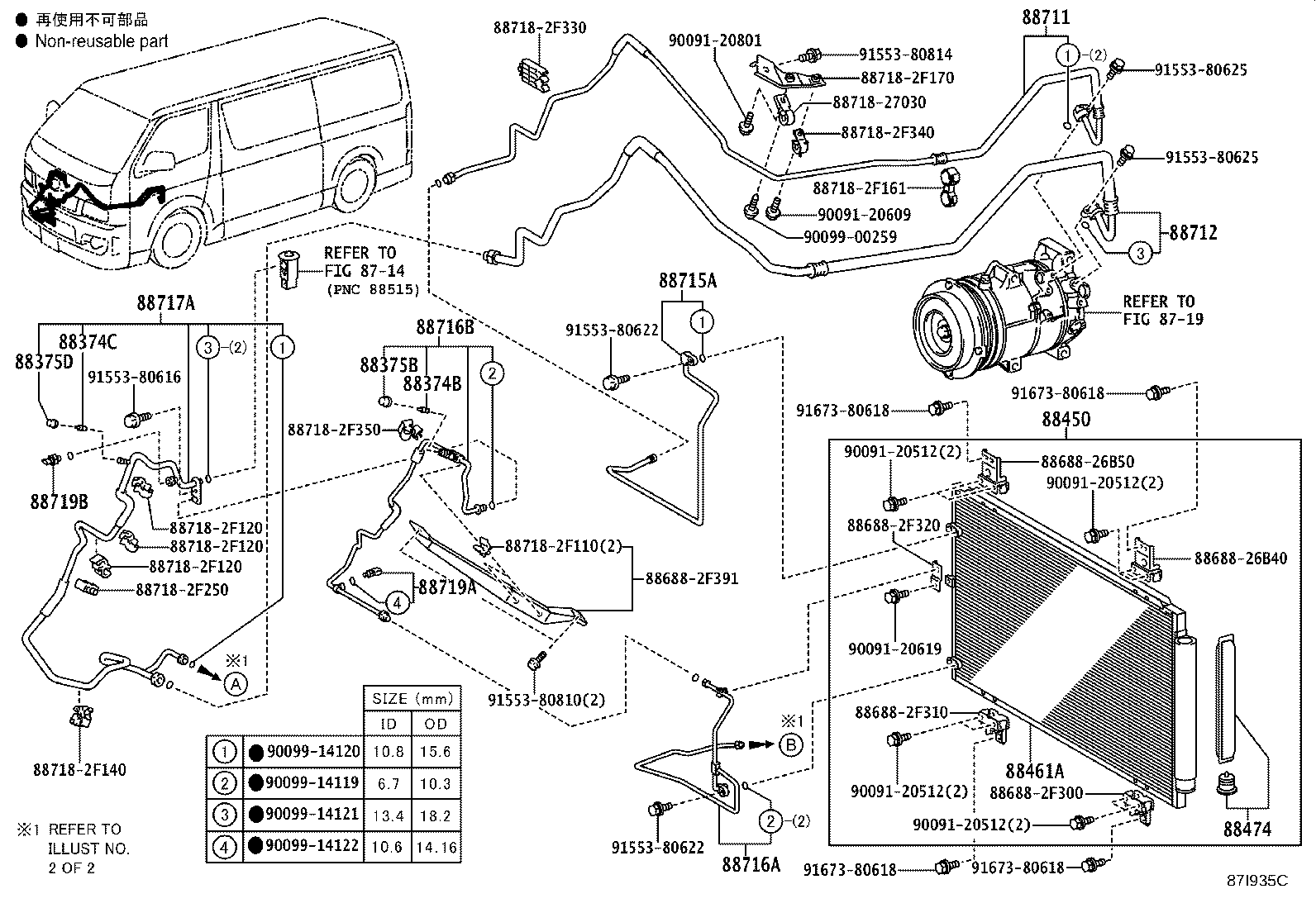

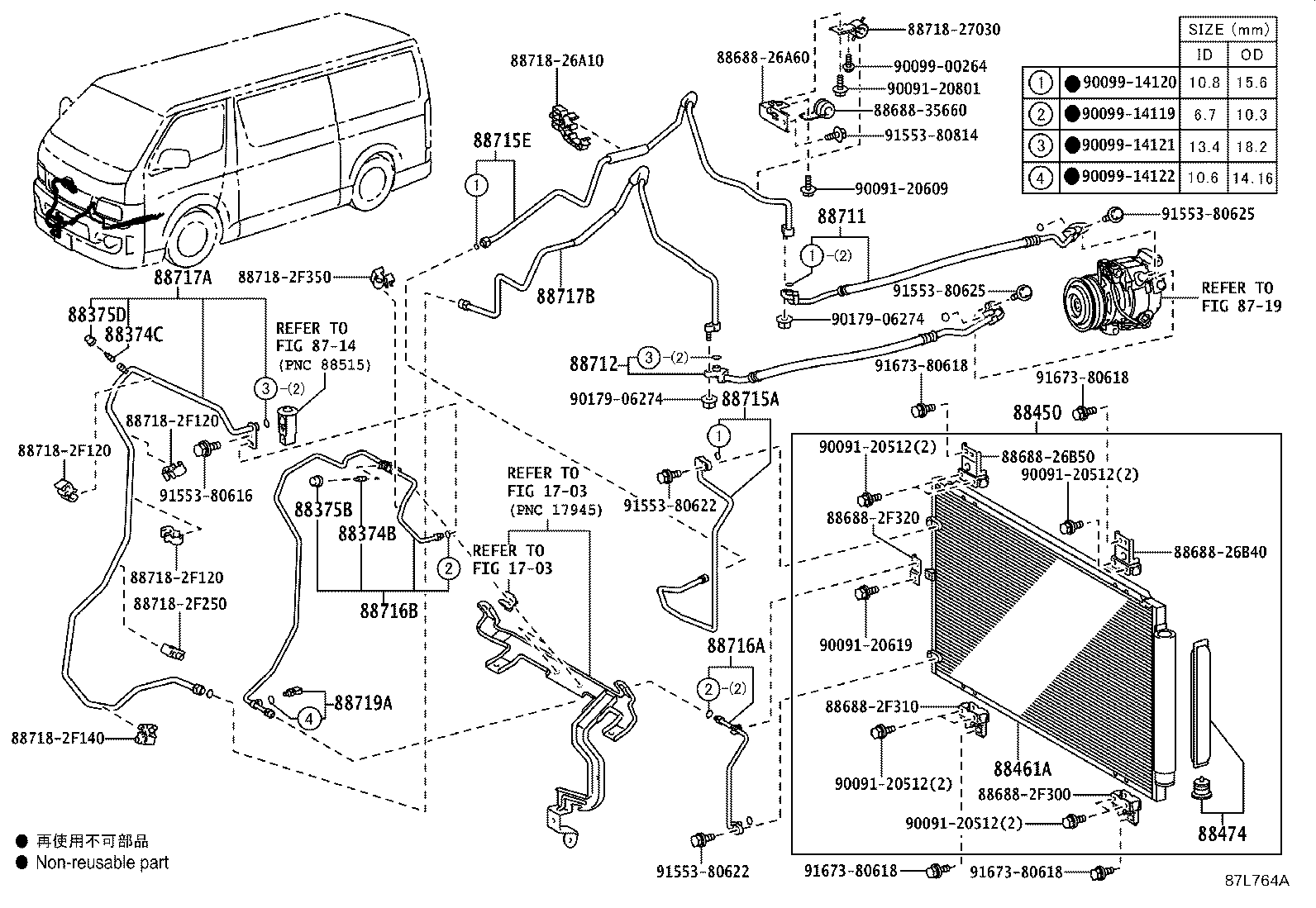

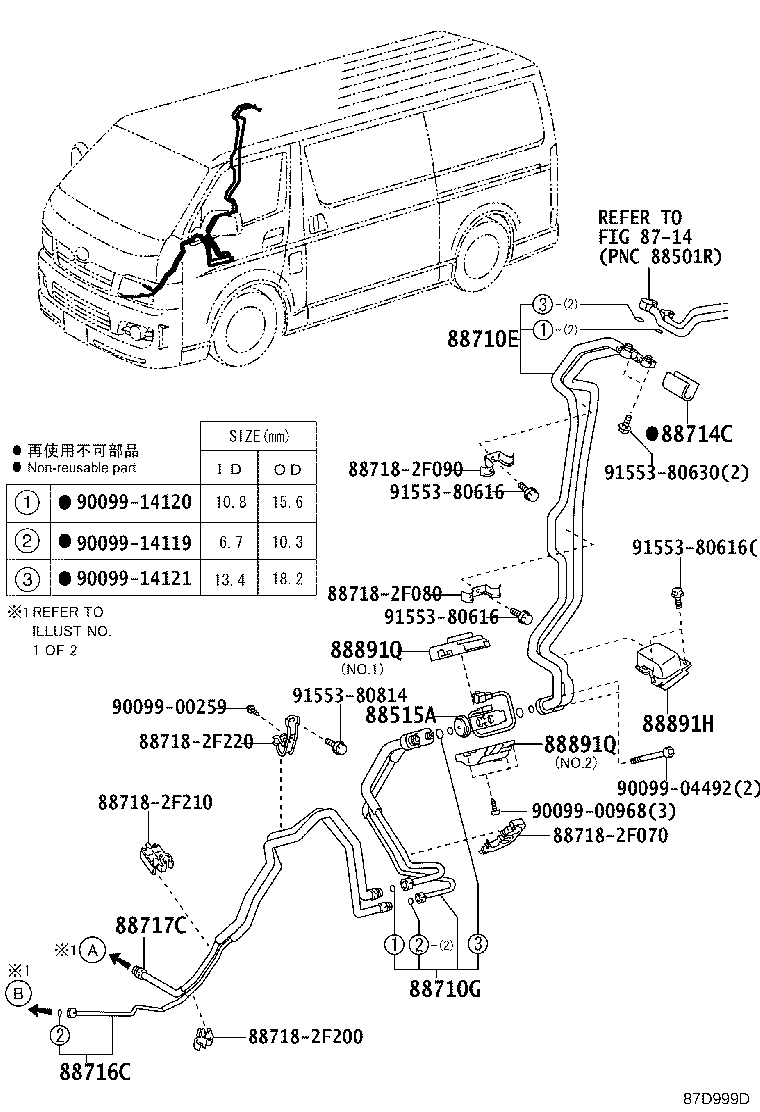

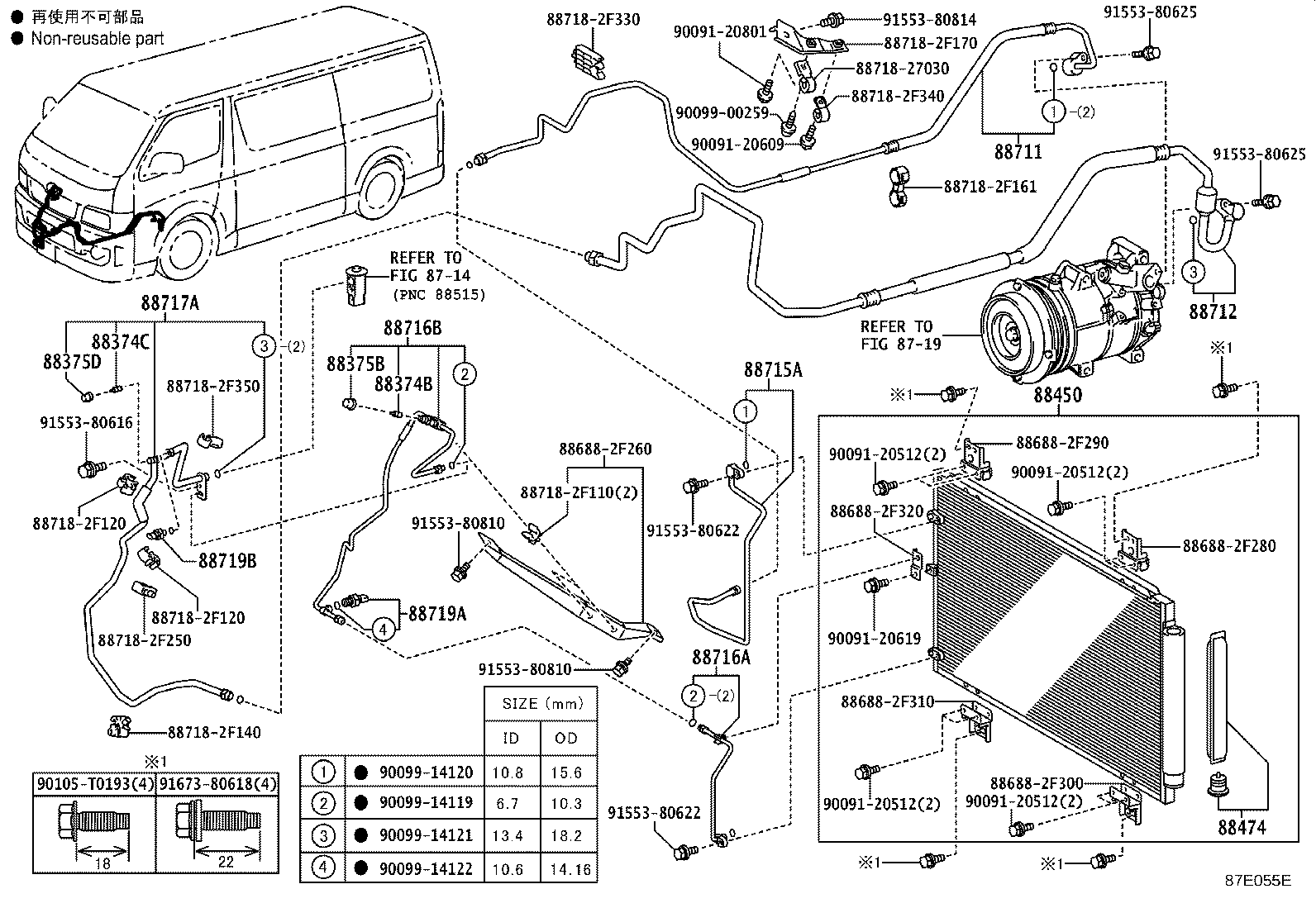

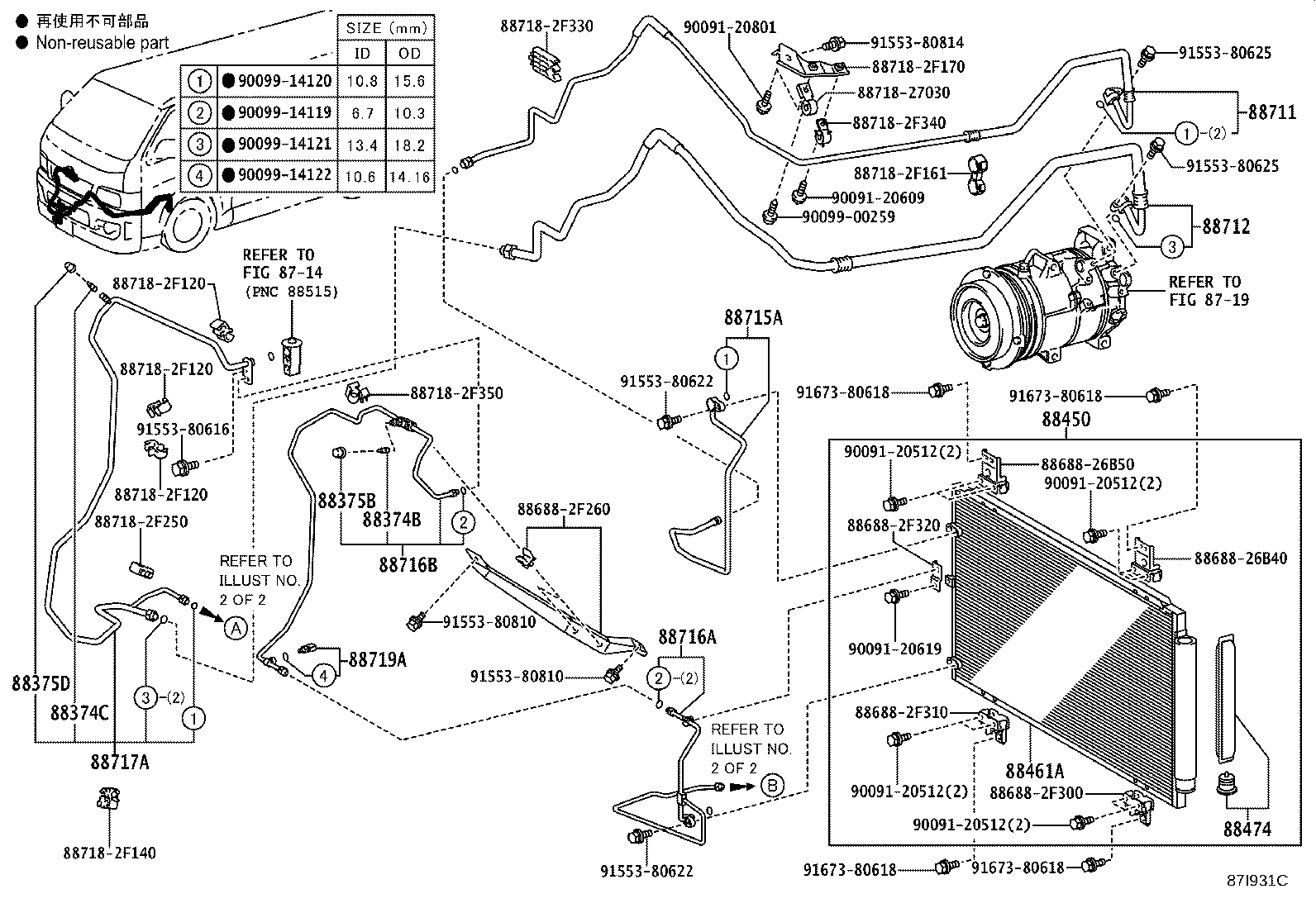

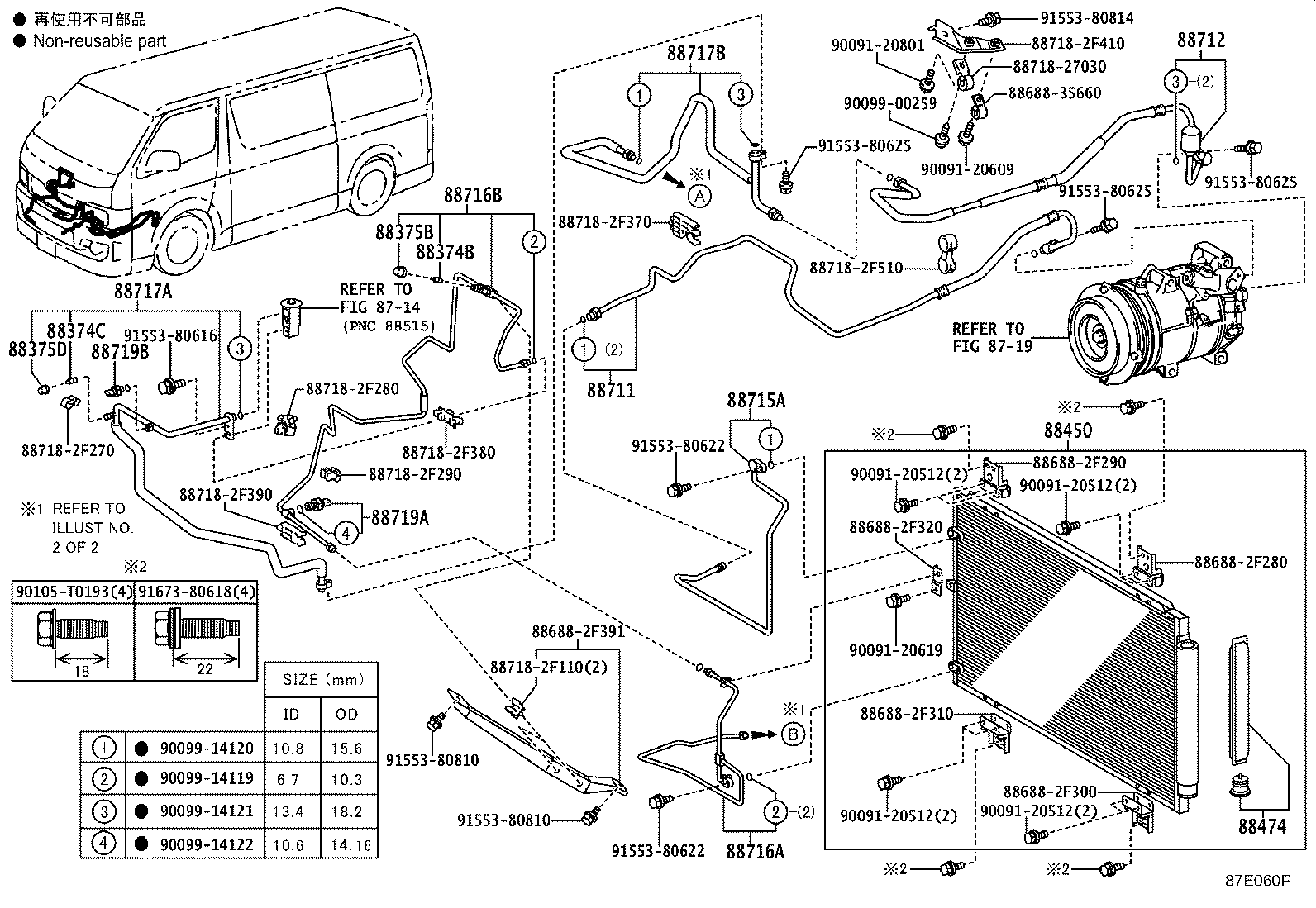

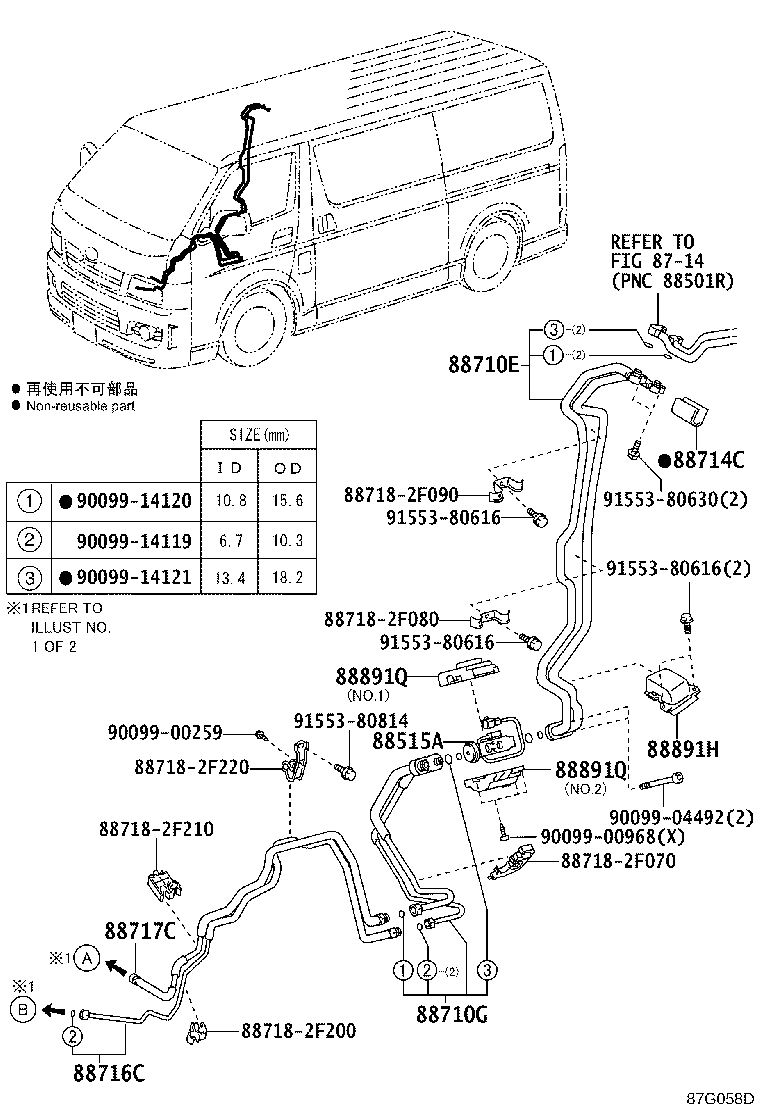

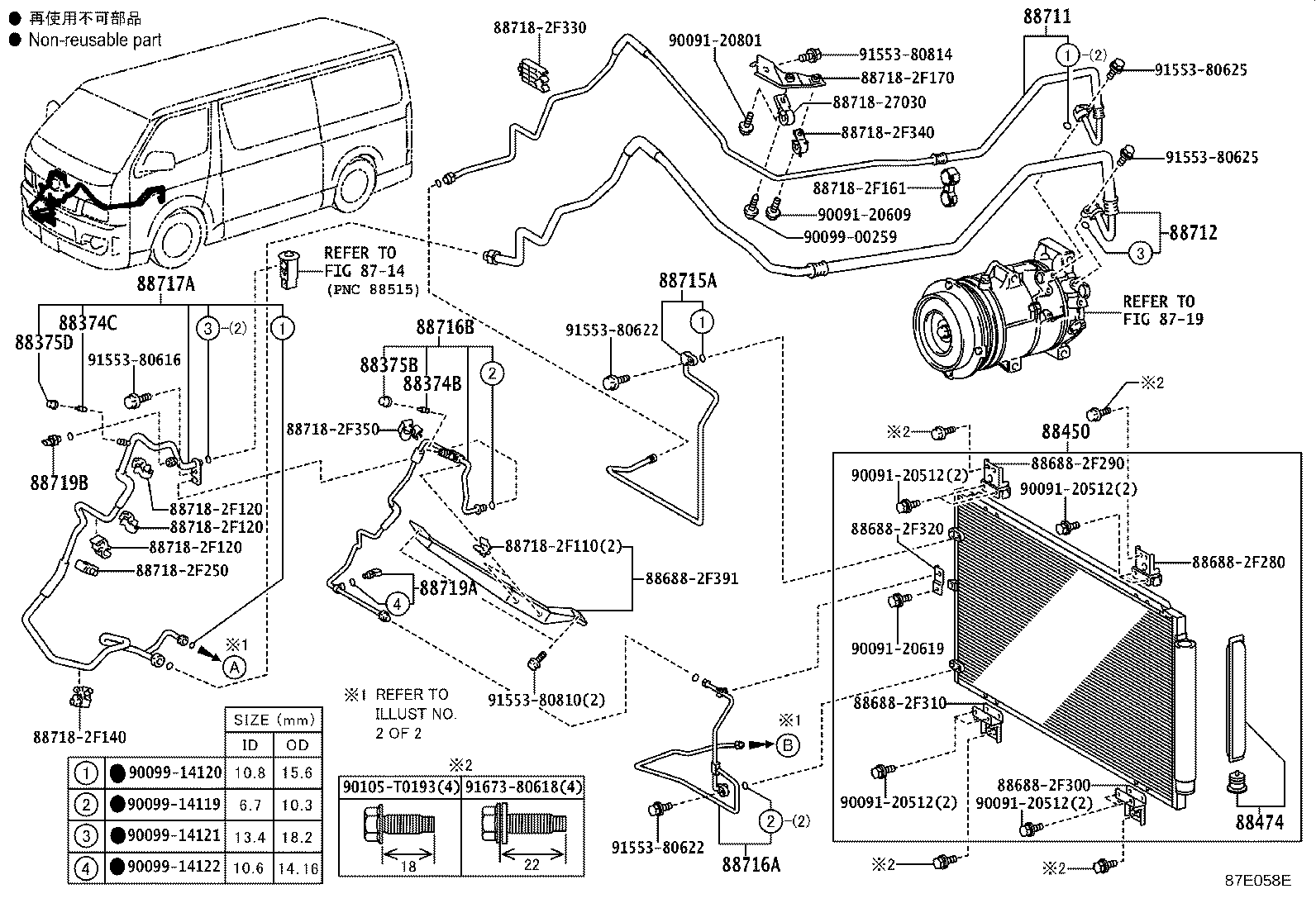

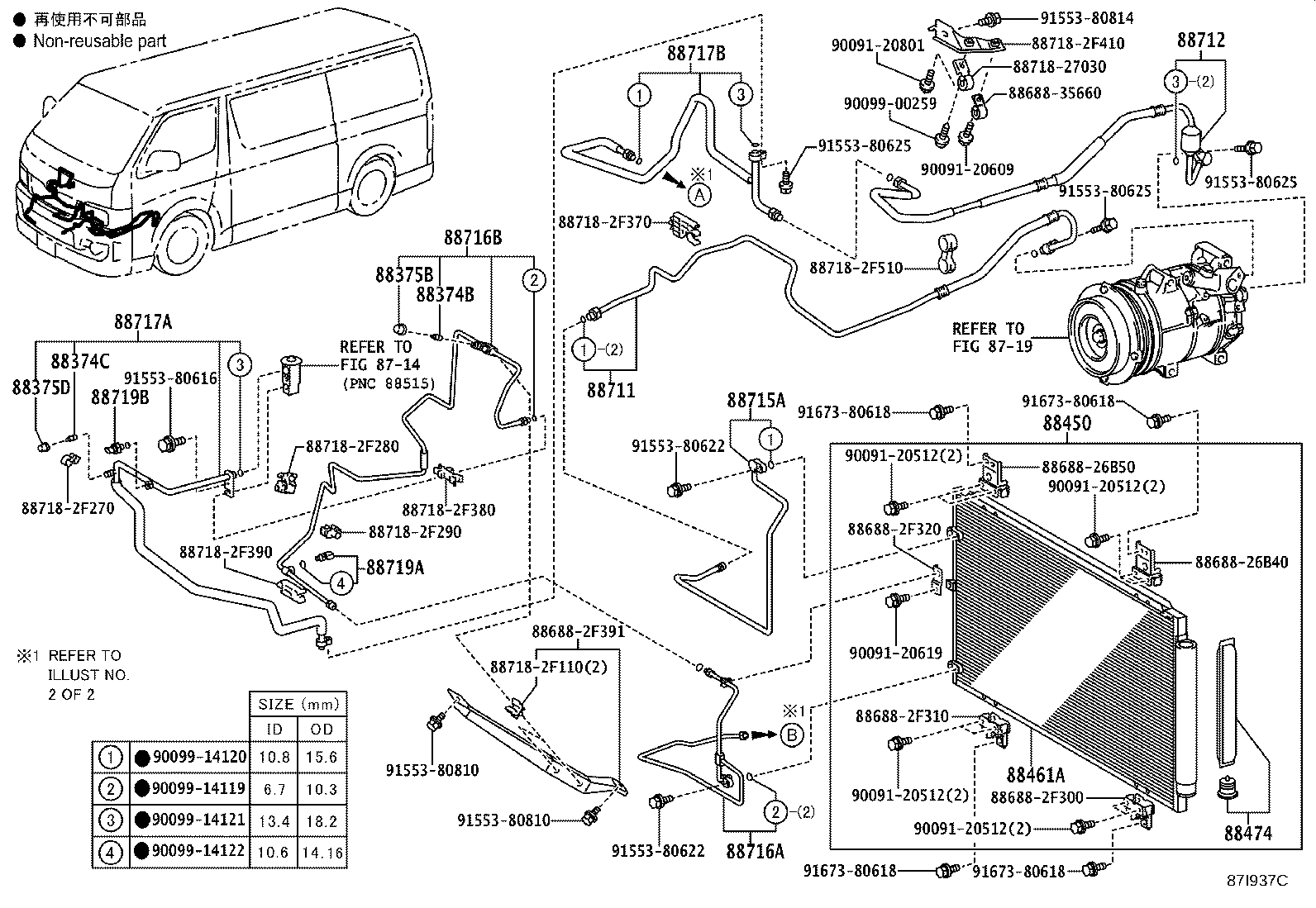

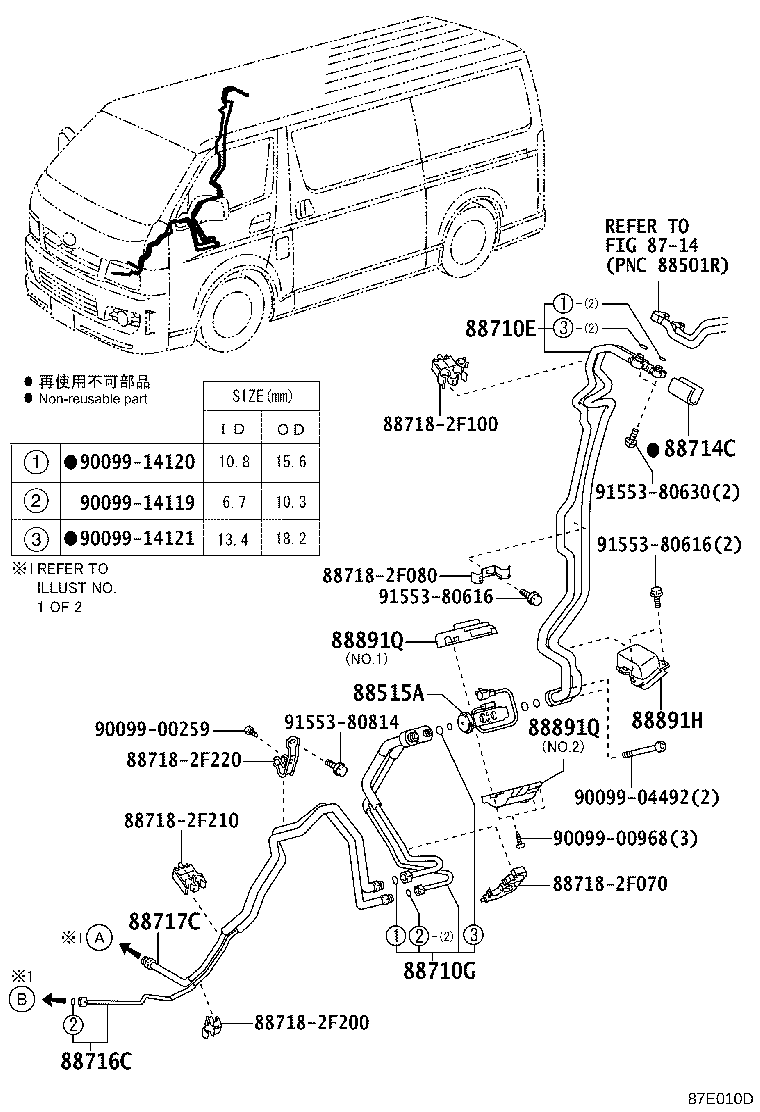

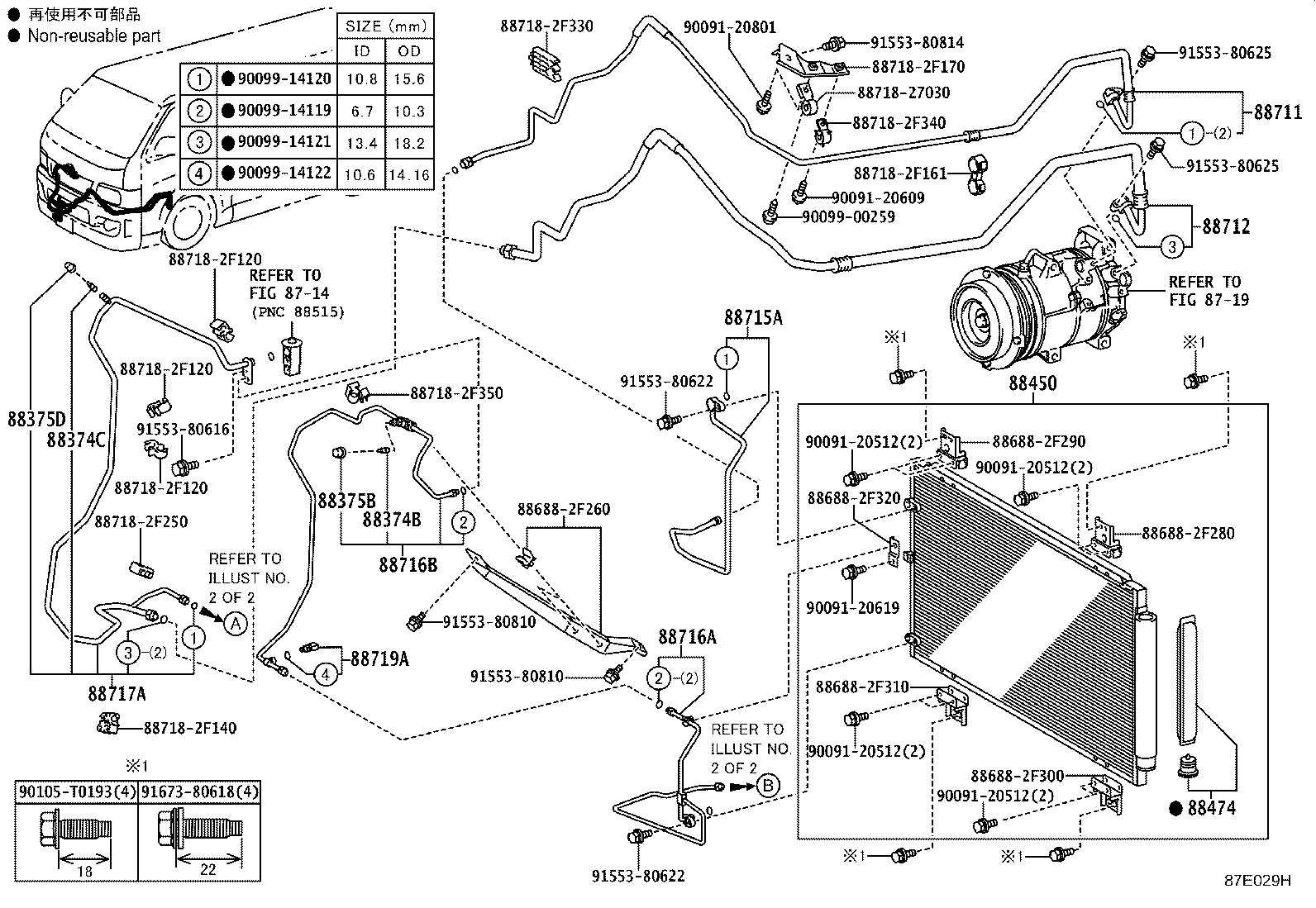

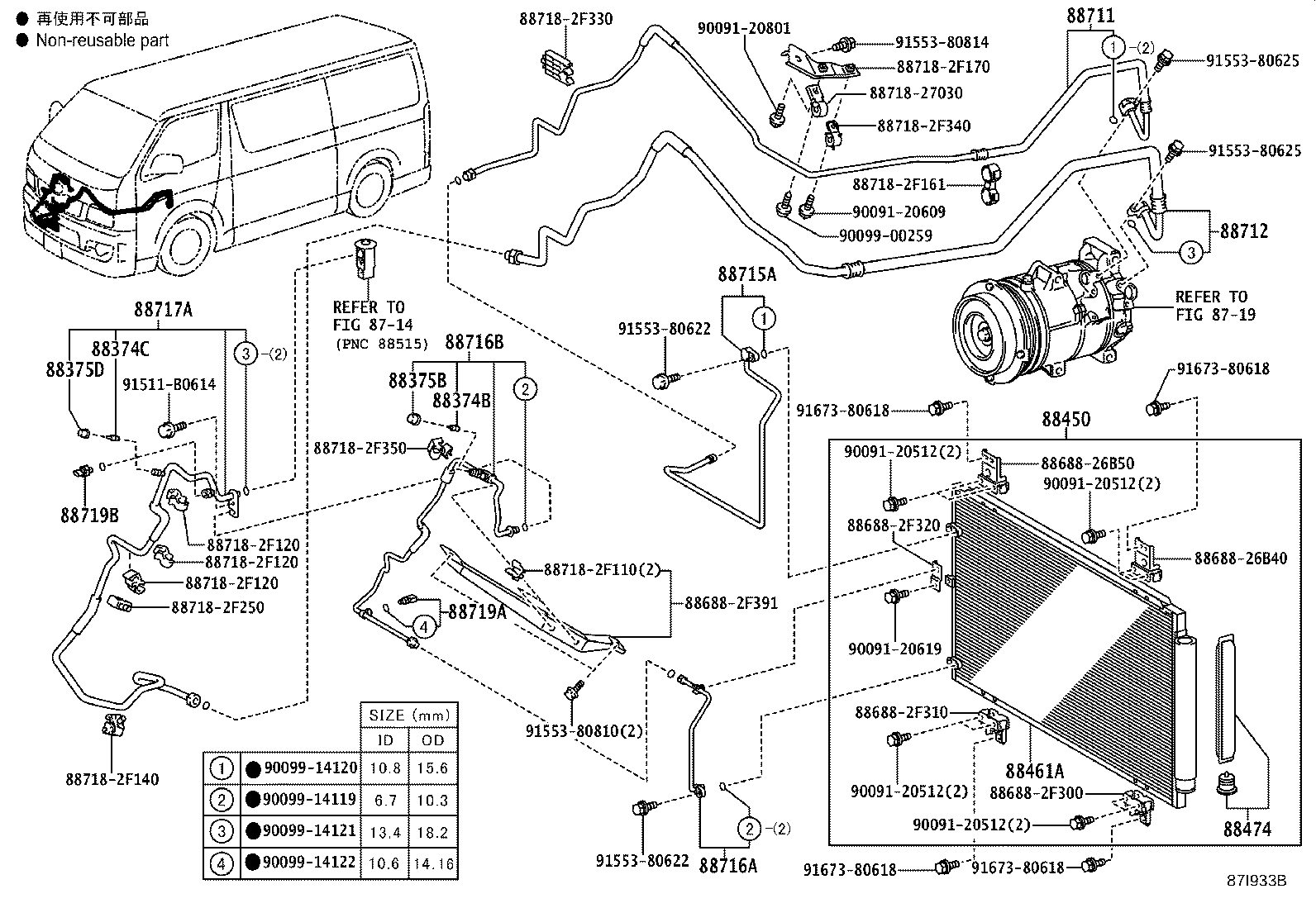

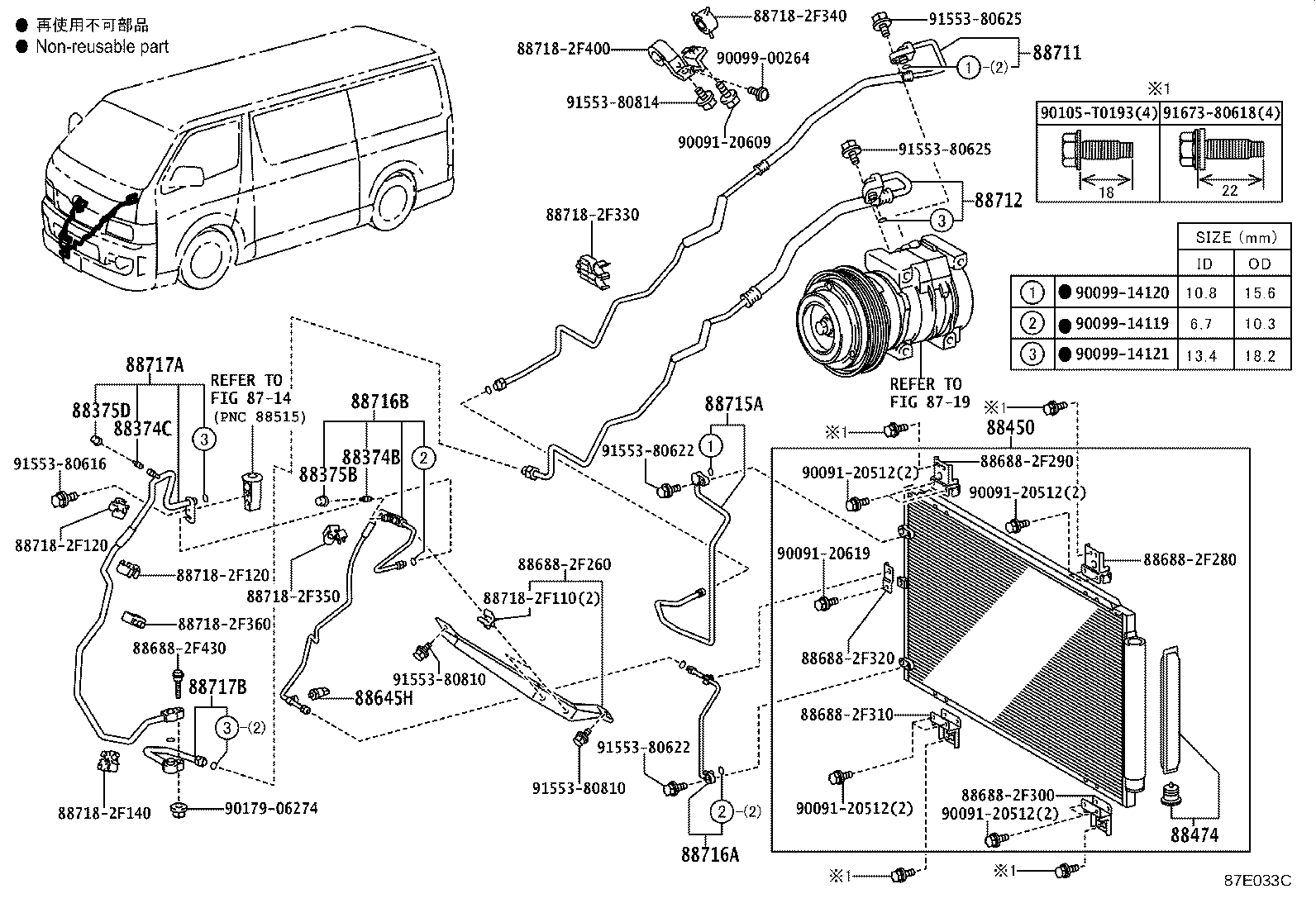

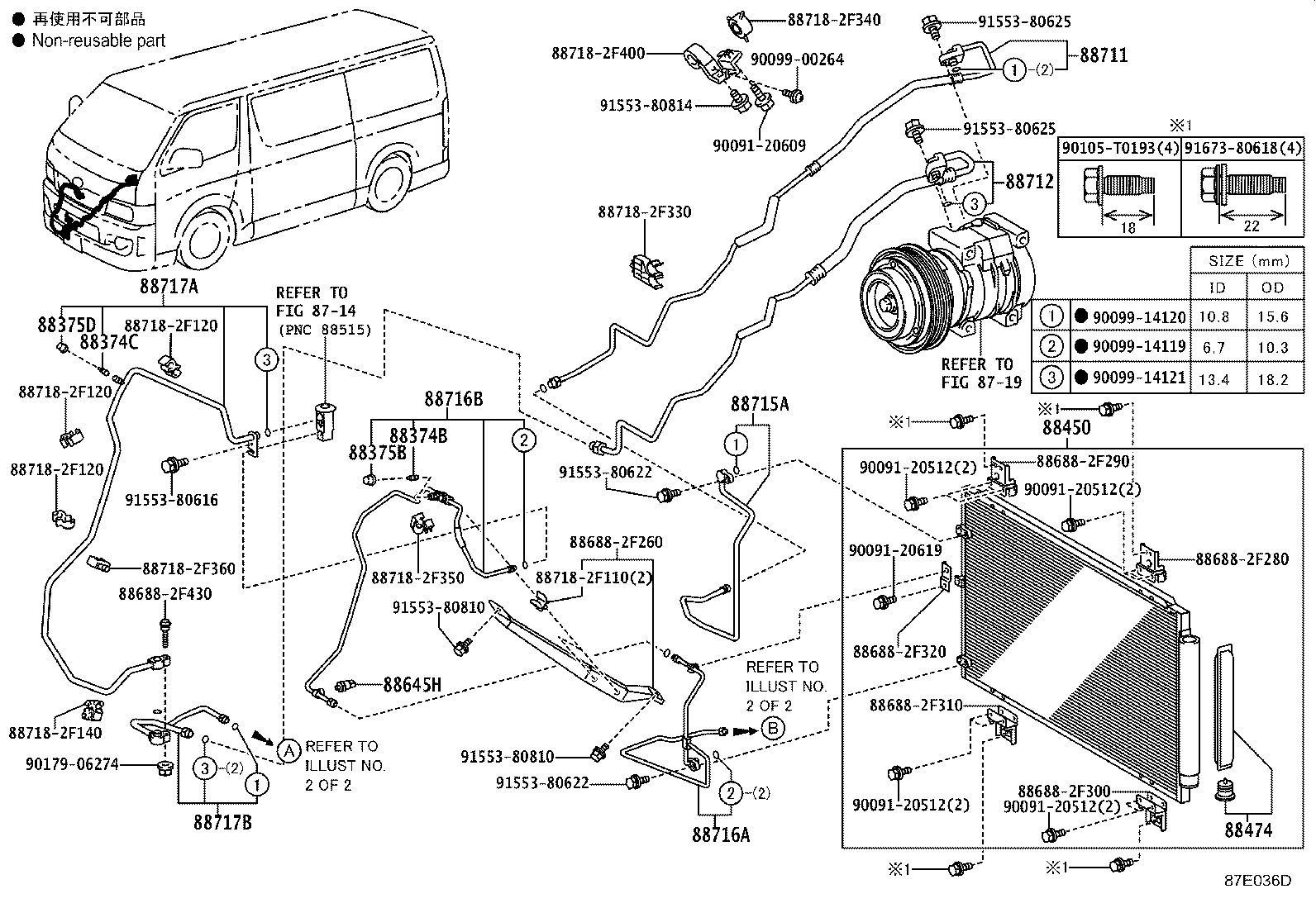

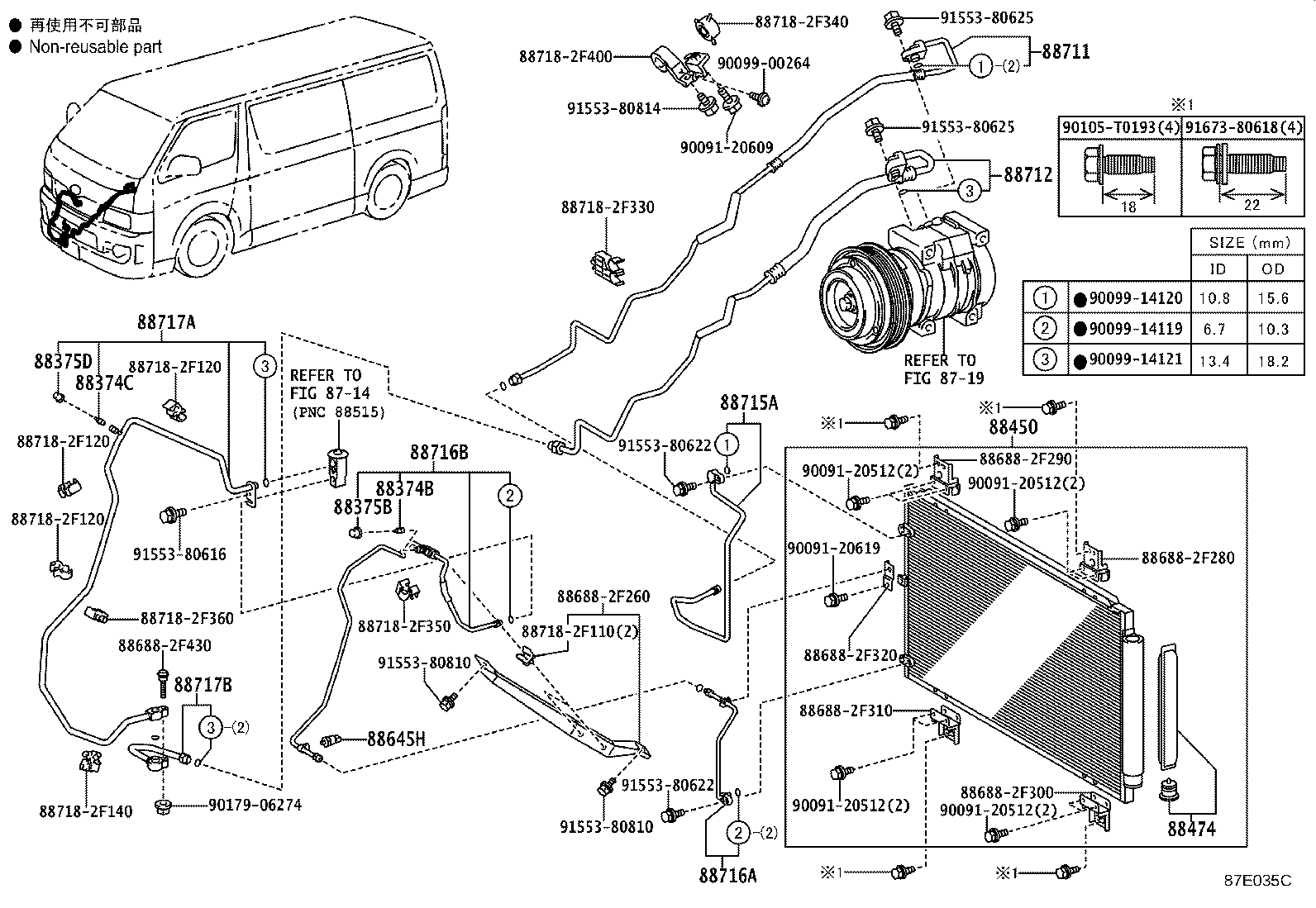

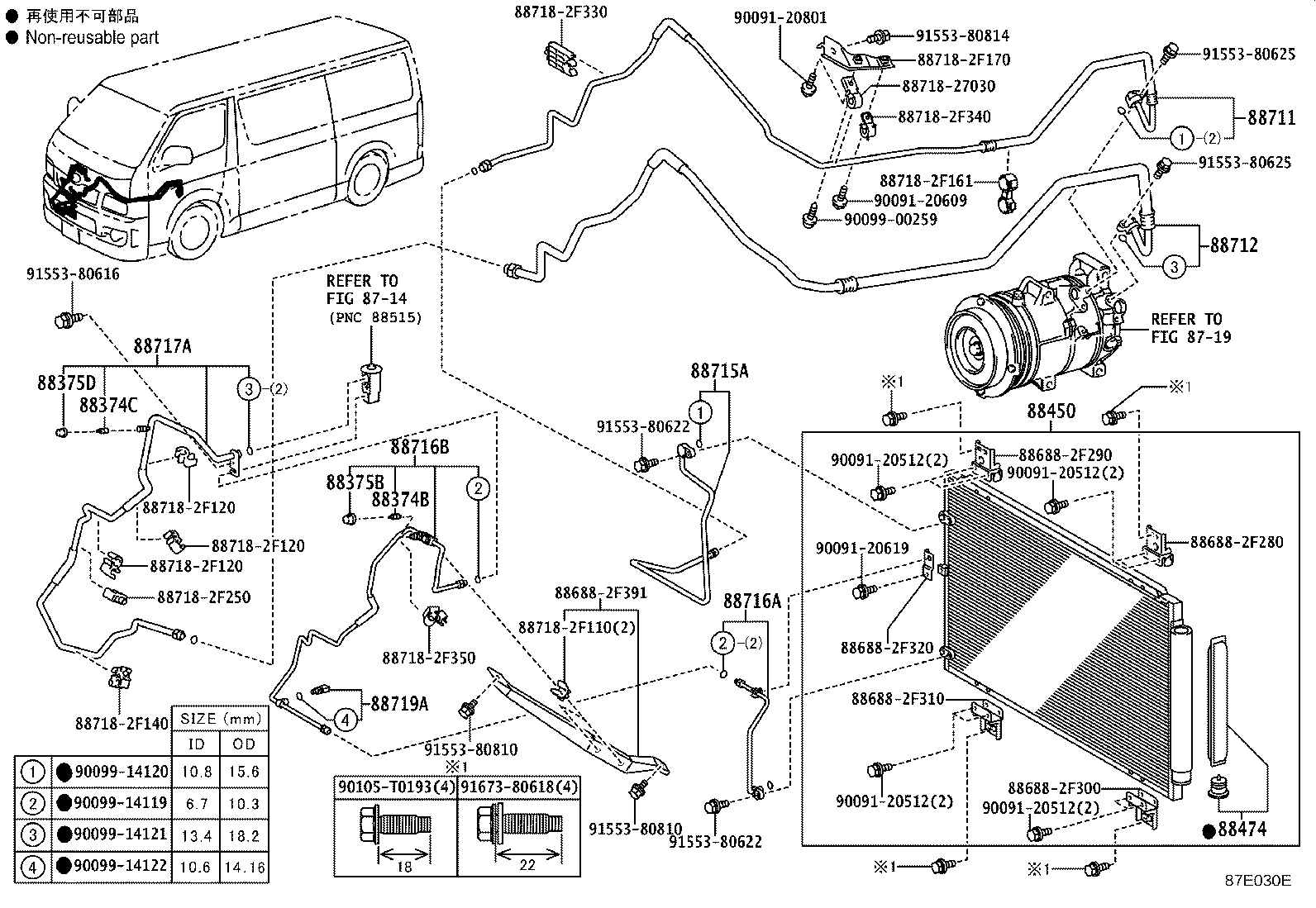

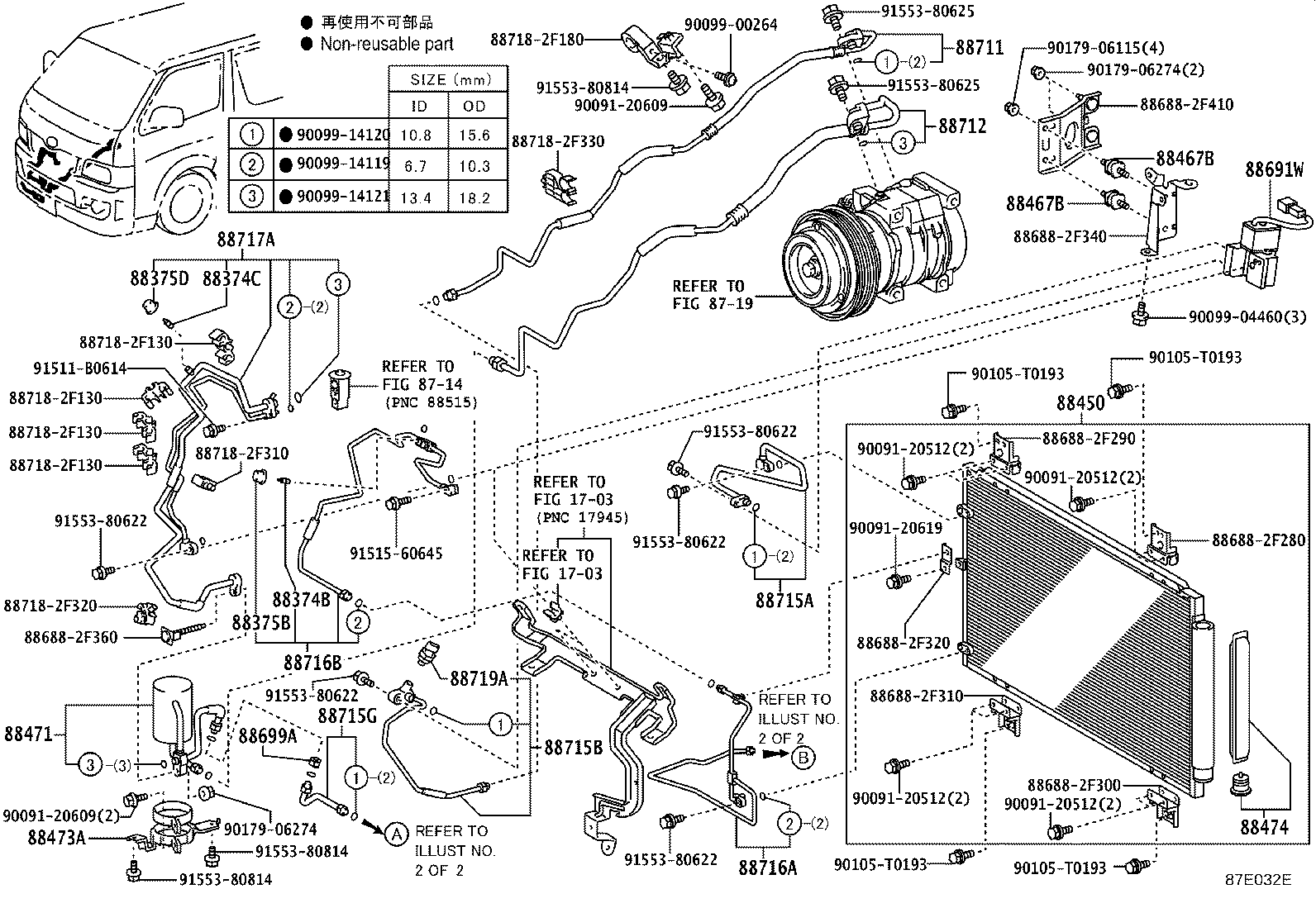

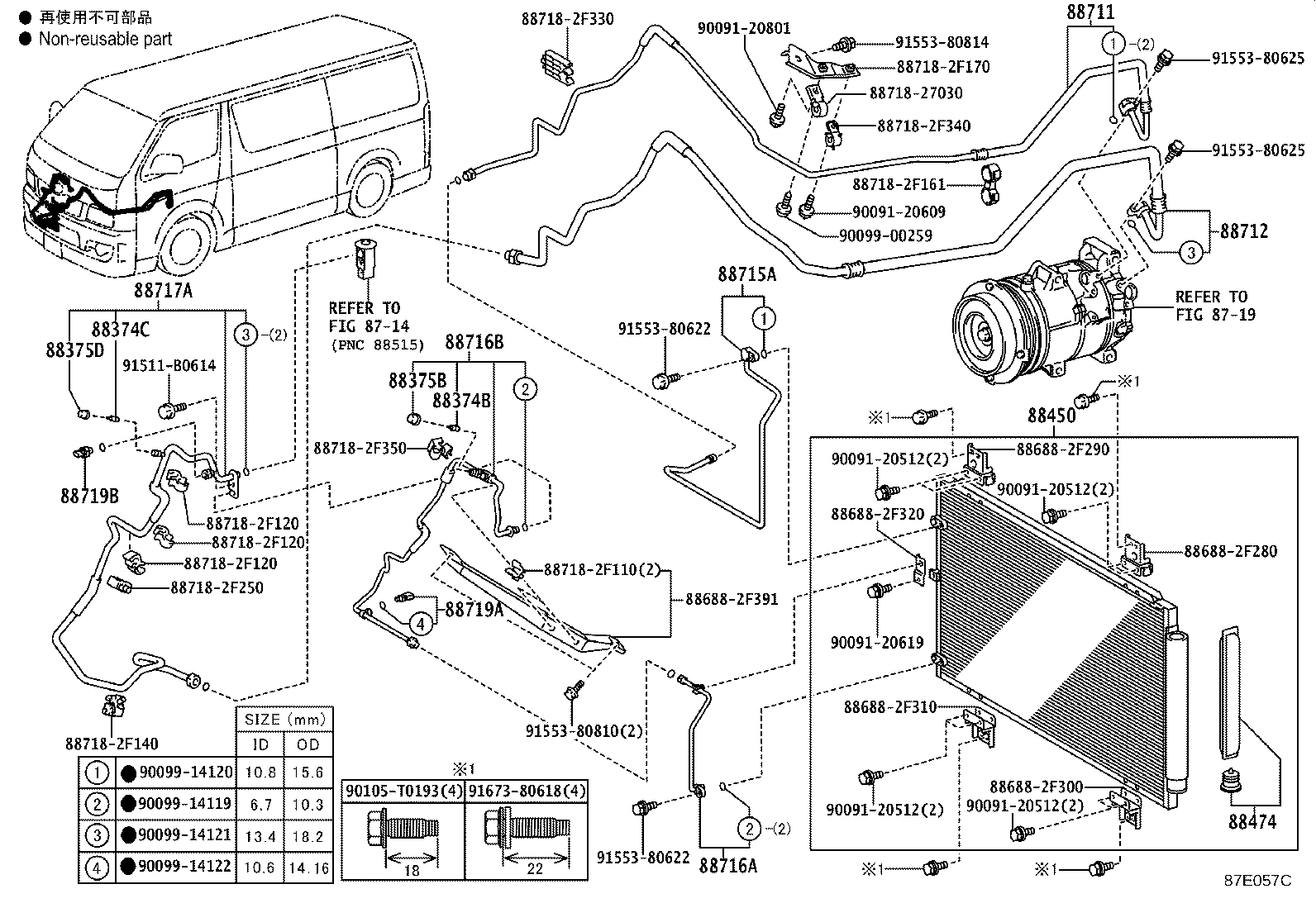

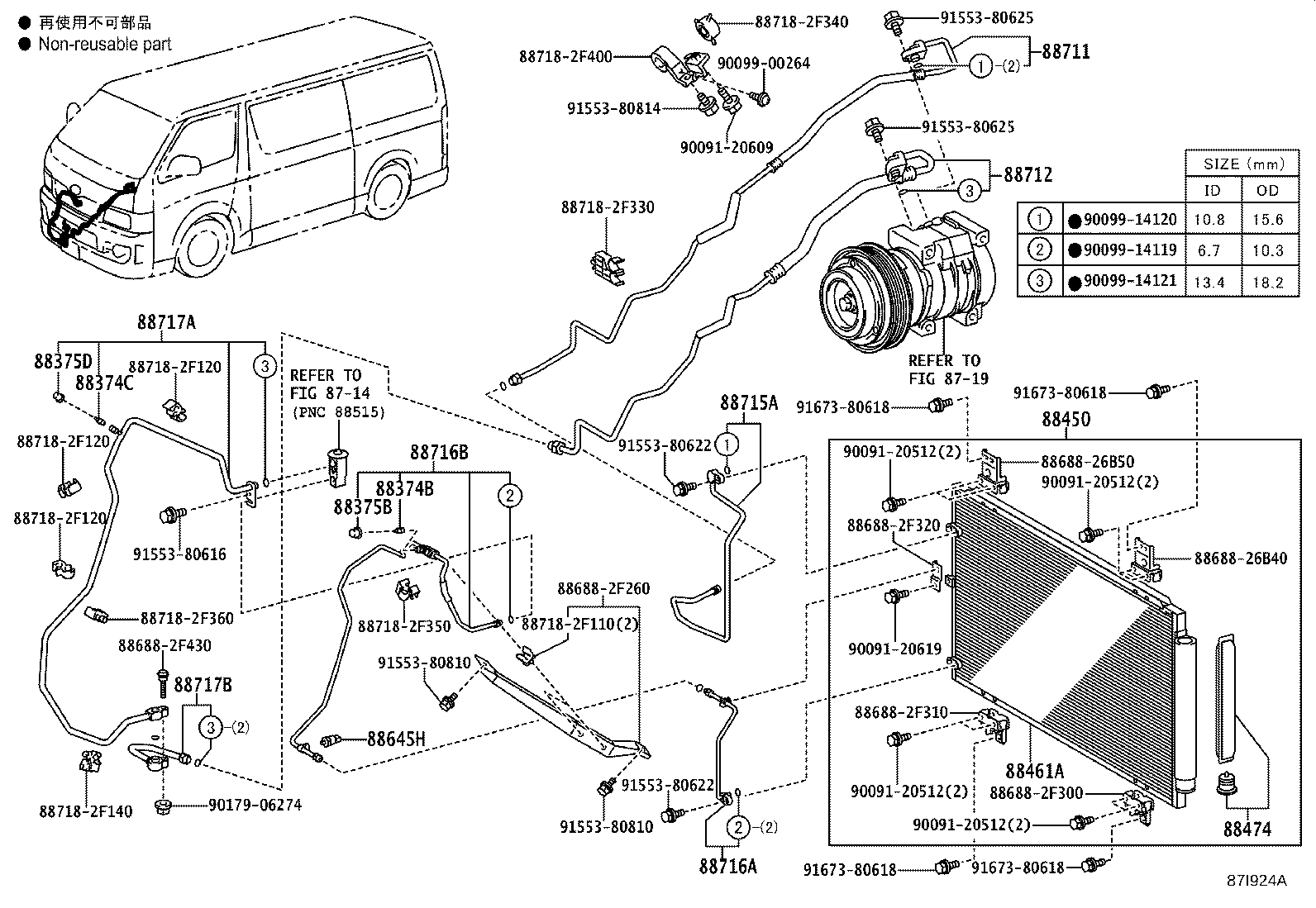

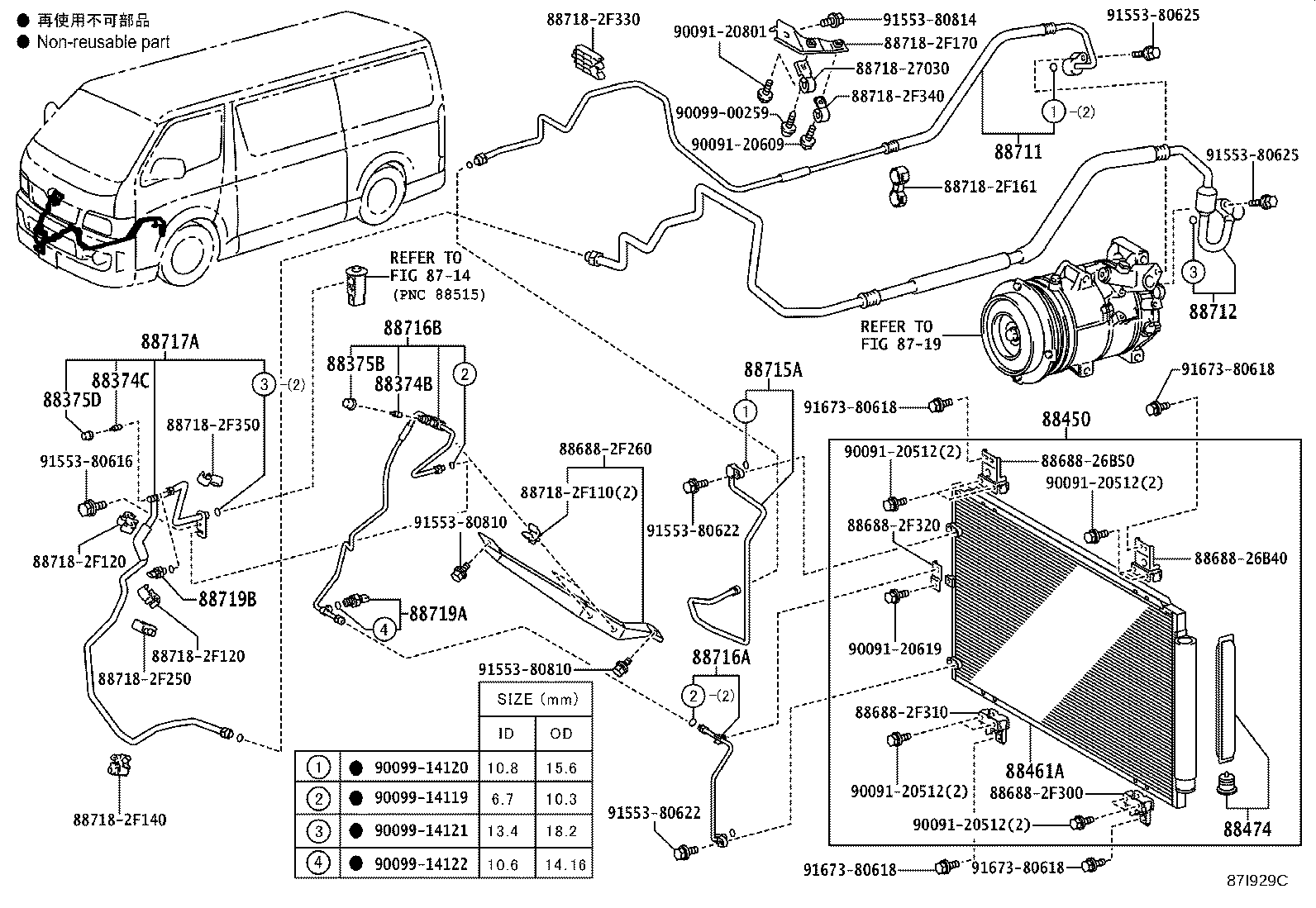

Figure 87E038D 87E038D 2013-12 → 2020-05 Figure 87I898B 87I898B 2020-05 → — Figure 87E039E 87E039E 2013-12 → 2020-05 Figure 87I899C 87I899C 2020-05 → — Figure 87E040D 87E040D 2013-12 → 2020-05 Figure 87I900B 87I900B 2020-05 → — Figure 87E041E 87E041E 2013-12 → 2020-05 Figure 87I901C 87I901C 2020-05 → — Figure 87E042E 87E042E 2013-12 → 2020-05 Figure 87I902C 87I902C 2020-05 → — Figure 87E043D 87E043D 2013-12 → 2020-05 Figure 87E043D 87E043D 2020-05 → — Figure 87I903B 87I903B 2020-08 → — Figure 87E044E 87E044E 2013-12 → 2020-05 Figure 87I904C 87I904C 2020-05 → — Figure 87E045D 87E045D 2013-12 → 2020-05 Figure 87E045D 87E045D 2016-12 → 2020-05 Figure 87I905B 87I905B 2020-05 → — Figure 87E025E 87E025E 2013-12 → — Figure 87E046E 87E046E 2013-12 → 2020-05 Figure 87I913C 87I913C 2020-05 → — Figure 87E026H 87E026H 2013-12 → 2020-05 Figure 87E026H 87E026H 2015-06 → 2020-05 Figure 87E026H 87E026H 2015-12 → 2020-05 Figure 87E026H 87E026H 2018-01 → 2020-05 Figure 87I917C 87I917C 2020-05 → — Figure 87I917C 87I917C 2023-01 → — Figure 87E047F 87E047F 2013-12 → 2020-05 Figure 87I918D 87I918D 2020-05 → — Figure 87E048D 87E048D 2013-12 → 2020-05 Figure 87E048D 87E048D 2015-01 → 2020-05 Figure 87I919B 87I919B 2020-05 → — Figure 87I919B 87I919B 2023-02 → — Figure 87E061F 87E061F 2013-12 → 2020-05 Figure 87E061F 87E061F 2015-01 → 2020-05 Figure 87I920C 87I920C 2020-05 → — Figure 87I920C 87I920C 2023-02 → — Figure 87E052D 87E052D 2013-12 → — Figure 87E051E 87E051E 2013-12 → 2020-05 Figure 87E051E 87E051E 2015-12 → 2020-05 Figure 87I921C 87I921C 2020-05 → — Figure 87E032E 87E032E 2013-12 → 2017-12 Figure 87G994F 87G994F 2017-12 → — Figure 87E033C 87E033C 2013-12 → 2020-05 Figure 87I922B 87I922B 2020-05 → — Figure 87E034C 87E034C 2013-12 → 2020-05 Figure 87I923A 87I923A 2020-05 → — Figure 87E035C 87E035C 2013-12 → 2020-05 Figure 87I924A 87I924A 2020-05 → — Figure 87E036D 87E036D 2013-12 → 2020-05 Figure 87I925B 87I925B 2020-05 → — Figure 87E037D 87E037D 2013-12 → 2020-05 Figure 87I926B 87I926B 2020-05 → — Figure 87E053D 87E053D 2013-12 → 2020-05 Figure 87I927B 87I927B 2020-05 → — Figure 87E054E 87E054E 2013-12 → 2020-05 Figure 87I928C 87I928C 2020-05 → — Figure 87E055E 87E055E 2013-12 → 2020-05 Figure 87I929C 87I929C 2020-05 → — Figure 87E056F 87E056F 2013-12 → 2020-05 Figure 87I930D 87I930D 2020-05 → — Figure 87E028G 87E028G 2013-12 → — Figure 87E028G 87E028G 2015-01 → — Figure 87E028G 87E028G 2023-02 → — Figure 87E029H 87E029H 2013-12 → 2020-05 Figure 87E029H 87E029H 2015-01 → 2020-05 Figure 87I931C 87I931C 2020-05 → — Figure 87E030E 87E030E 2013-12 → 2020-05 Figure 87E030E 87E030E 2015-01 → 2020-05 Figure 87I932B 87I932B 2020-05 → — Figure 87E057C 87E057C 2013-12 → 2020-05 Figure 87I933B 87I933B 2020-05 → — Figure 87E031G 87E031G 2013-12 → 2020-05 Figure 87E031G 87E031G 2015-01 → 2020-05 Figure 87I934C 87I934C 2020-05 → — Figure 87E058E 87E058E 2013-12 → 2020-05 Figure 87I935C 87I935C 2020-05 → — Figure 87E059D 87E059D 2013-12 → 2020-05 Figure 87E059D 87E059D 2016-12 → 2020-05 Figure 87I936B 87I936B 2020-05 → — Figure 87E060F 87E060F 2013-12 → 2020-05 Figure 87I937C 87I937C 2020-05 → — Figure 87L764A 87L764A 2023-02 → — Figure 87G056J 87G056J 2016-12 → — Figure 87G056J 87G056J 2023-02 → — Figure 87D998D 87D998D 2013-12 → — Figure 87D998D 87D998D 2015-01 → — Figure 87D999D 87D999D 2013-12 → — Figure 87D999D 87D999D 2015-01 → — Figure 87D999D 87D999D 2015-12 → — Figure 87E009D 87E009D 2013-12 → — Figure 87E010D 87E010D 2013-12 → — Figure 87E010D 87E010D 2015-12 → — Figure 87E011D 87E011D 2013-12 → — Figure 87F516D 87F516D 2015-06 → — Figure 87F516D 87F516D 2015-12 → — Figure 87E004E 87E004E 2013-12 → — Figure 87E004E 87E004E 2018-01 → — Figure 87E012D 87E012D 2013-12 → — Figure 87E012D 87E012D 2015-12 → — Figure 87E005D 87E005D 2013-12 → — Figure 87E005D 87E005D 2013-12 → — Figure 87E005D 87E005D 2015-01 → — Figure 87E005D 87E005D 2020-05 → — Figure 87E005D 87E005D 2023-01 → — Figure 87E013D 87E013D 2013-12 → — Figure 87E014D 87E014D 2013-12 → — Figure 87E015D 87E015D 2013-12 → — Figure 87G058D 87G058D 2016-12 → — Figure 87G058D 87G058D 2023-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88461A Core, Cooler Condenser
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88645H Switch, Pressure NO.1
88691W Valve, Magnet
88699A Valve, Air
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715E Pipe, Cooler Refrigerant Discharge, E
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88717U Tube, Suction, NO.1
88719A Sensor, Air Conditioner Pressure
88719B Sensor, Air Conditioner Pressure, NO.2
88891H Cover, Cooler, NO.1
88891Q Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
