Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General
Supported model
Data version 2024-09
Fuel Filter
13 part groups · 13 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|

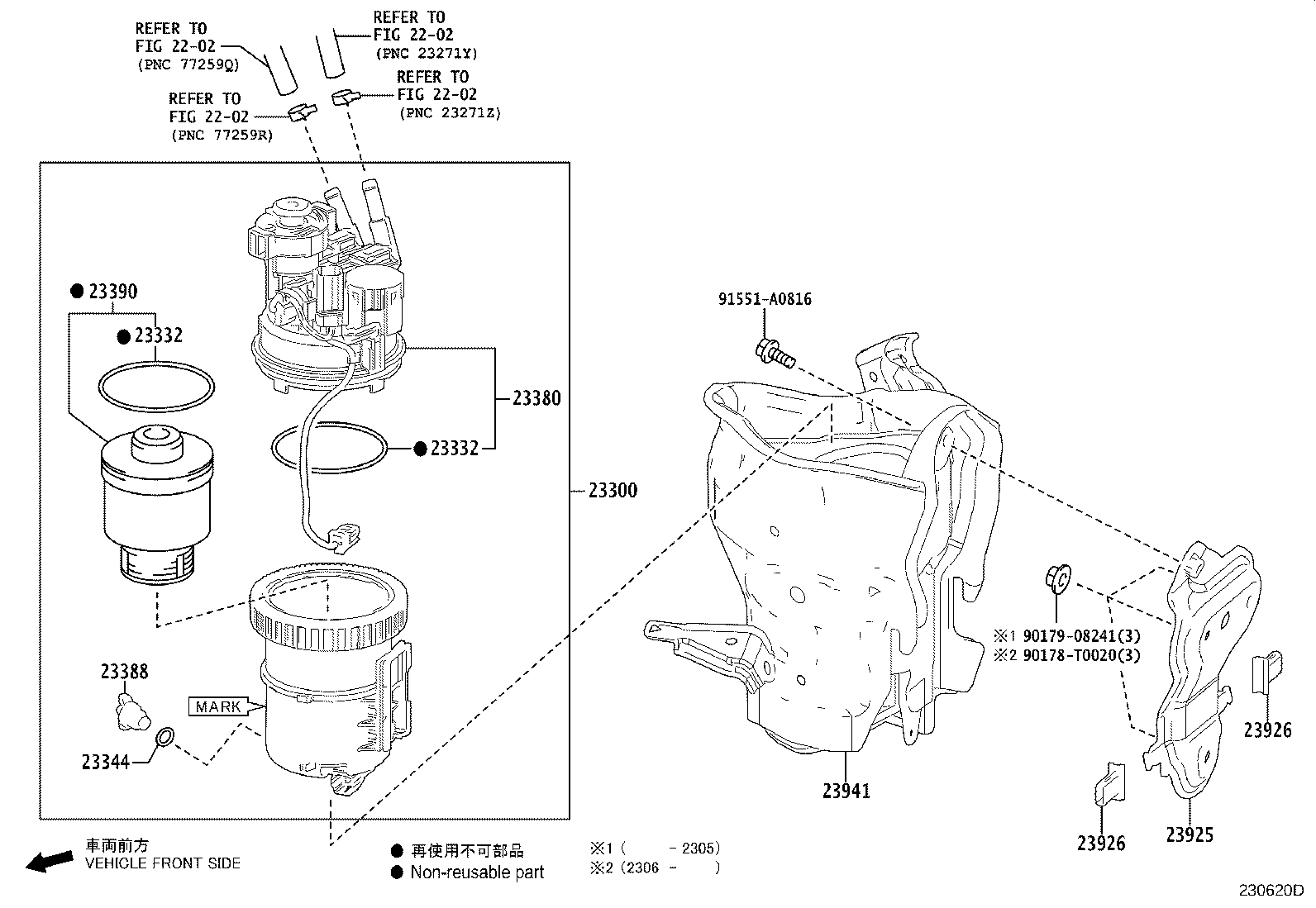

| 23300 | Filter Assy, Fuel |

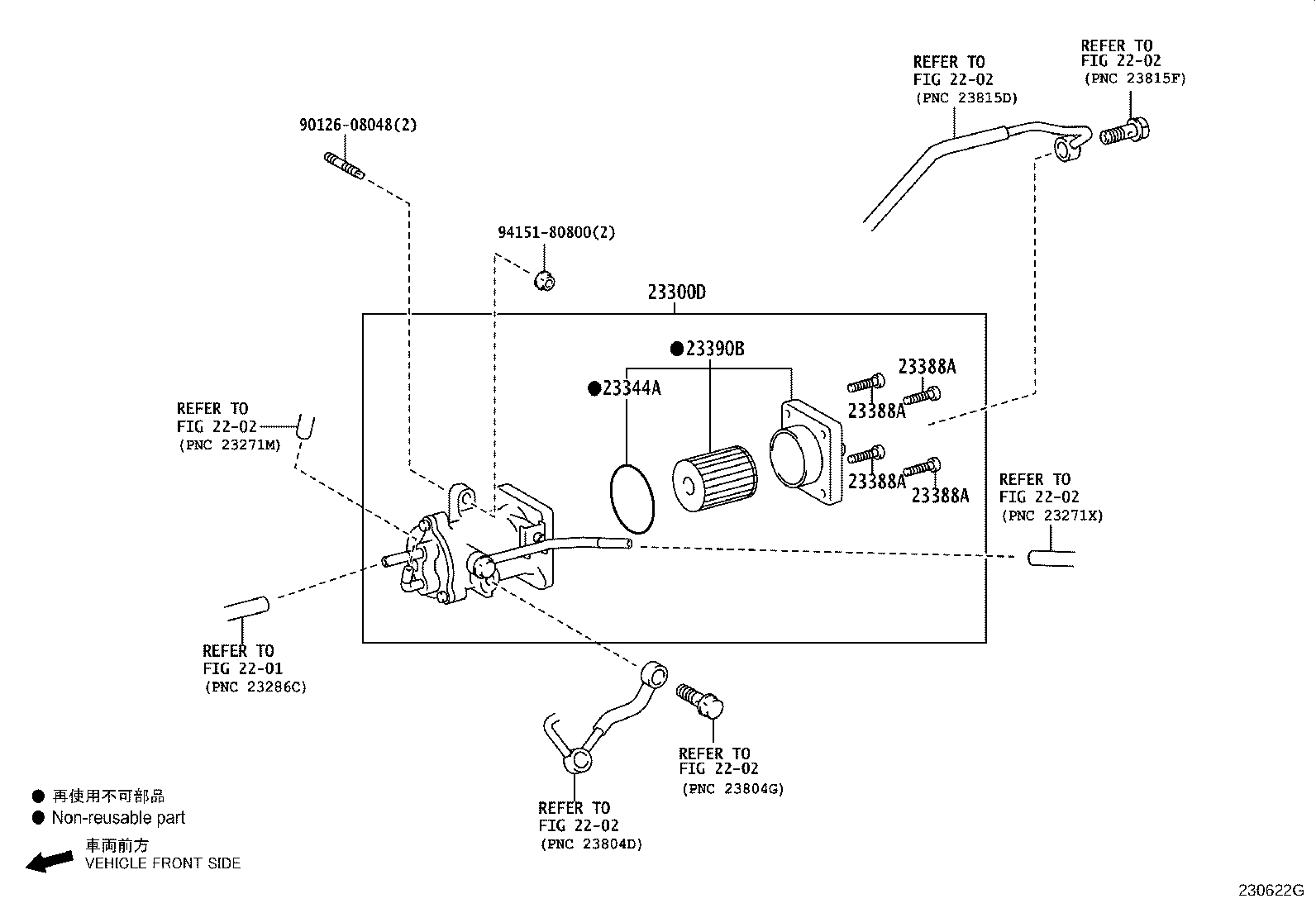

| 23300D | Filter Assy, Fuel(FOR DIESEL) |
| 23332 | Gasket, Element(FOR FUEL FILTER) |
| 23344 | Gasket, Clamping Nut(FOR FUEL FILTER) |
| 23344A | Gasket, Fuel Filter Element |
| 23380 | Cap Assy, Fuel Filter |
| 23388 | Plug, Fuel Filter Drain |
| 23388A | Plug, Fuel Filter Drain |
| 23390 | Element Assy, Fuel Filter |
| 23390B | Element Assy, Fuel Filter, NO.2 |
| 23925 | Stay, Fuel Filter Support |
| 23926 | Stay, Fuel Filter Support, NO.2 |
| 23941 | Protector, Fuel Filter, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
