Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

8 part groups · 5 illustrations

Illustrations

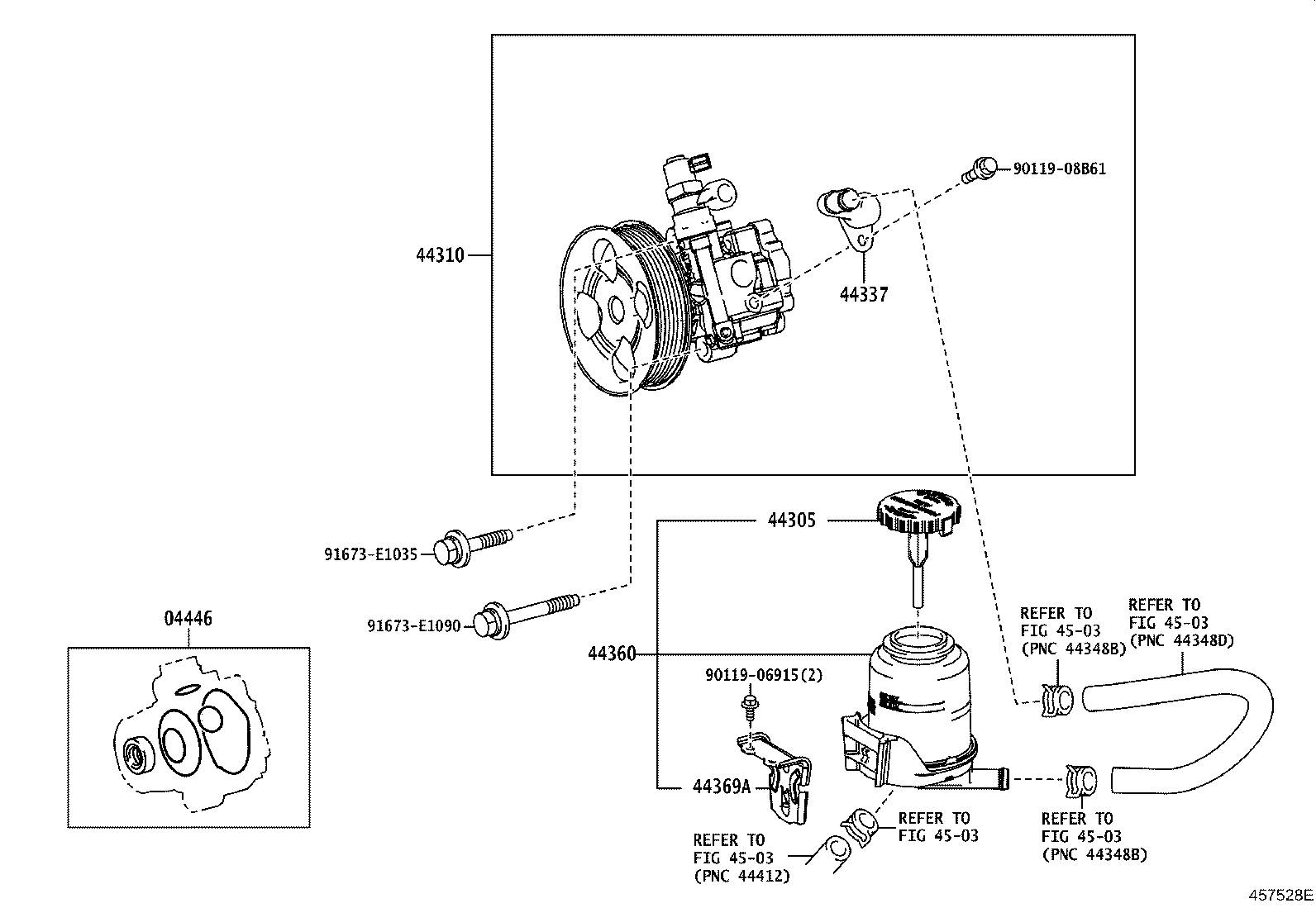

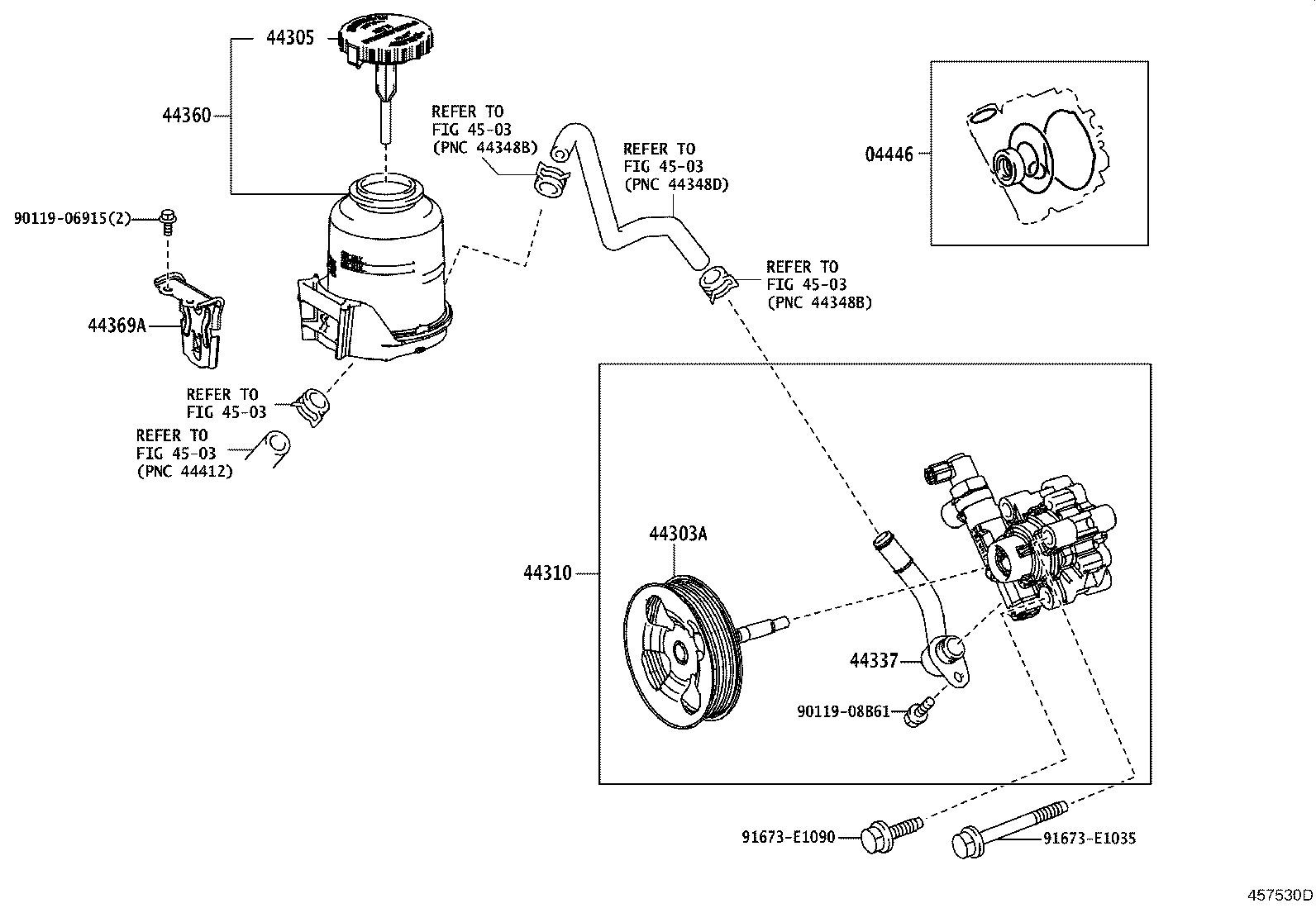

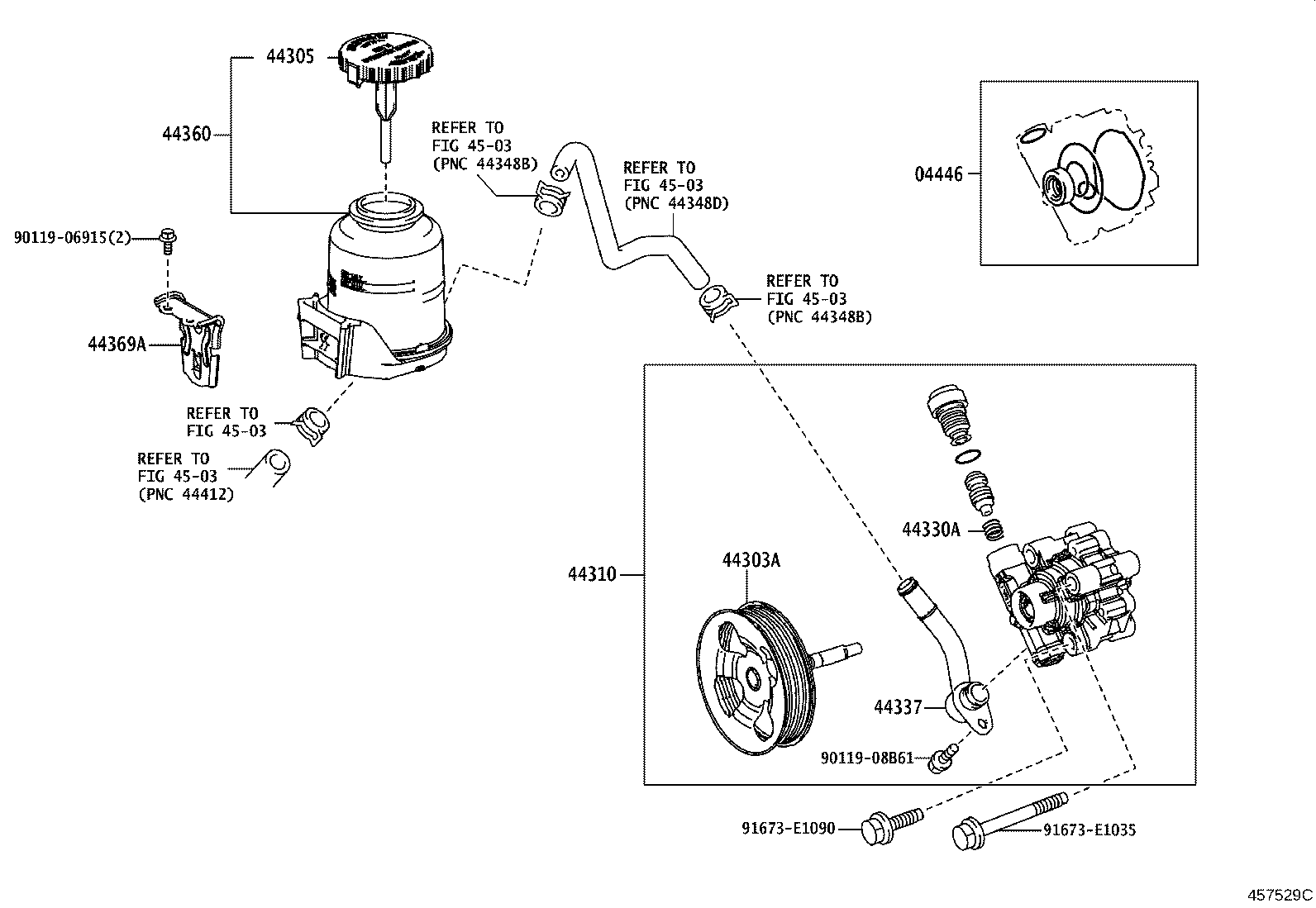

Figure 457526D 457526D 2019-02 → — Figure 457526D 457526D 2019-02 → — Figure 457528E 457528E 2019-02 → — Figure 457529C 457529C 2019-02 → — Figure 457530D 457530D 2019-02 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44310 Pump Assy, Vane
44330A Spring, Compression(FOR FLOW CONTROL VALVE)
44337 Union, Power Steering Suction Port
44360 Reservoir Assy, Vane Pump Oil
44369A Bracket, Oil Reservoir, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
