Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

108 part groups · 63 illustrations

Illustrations

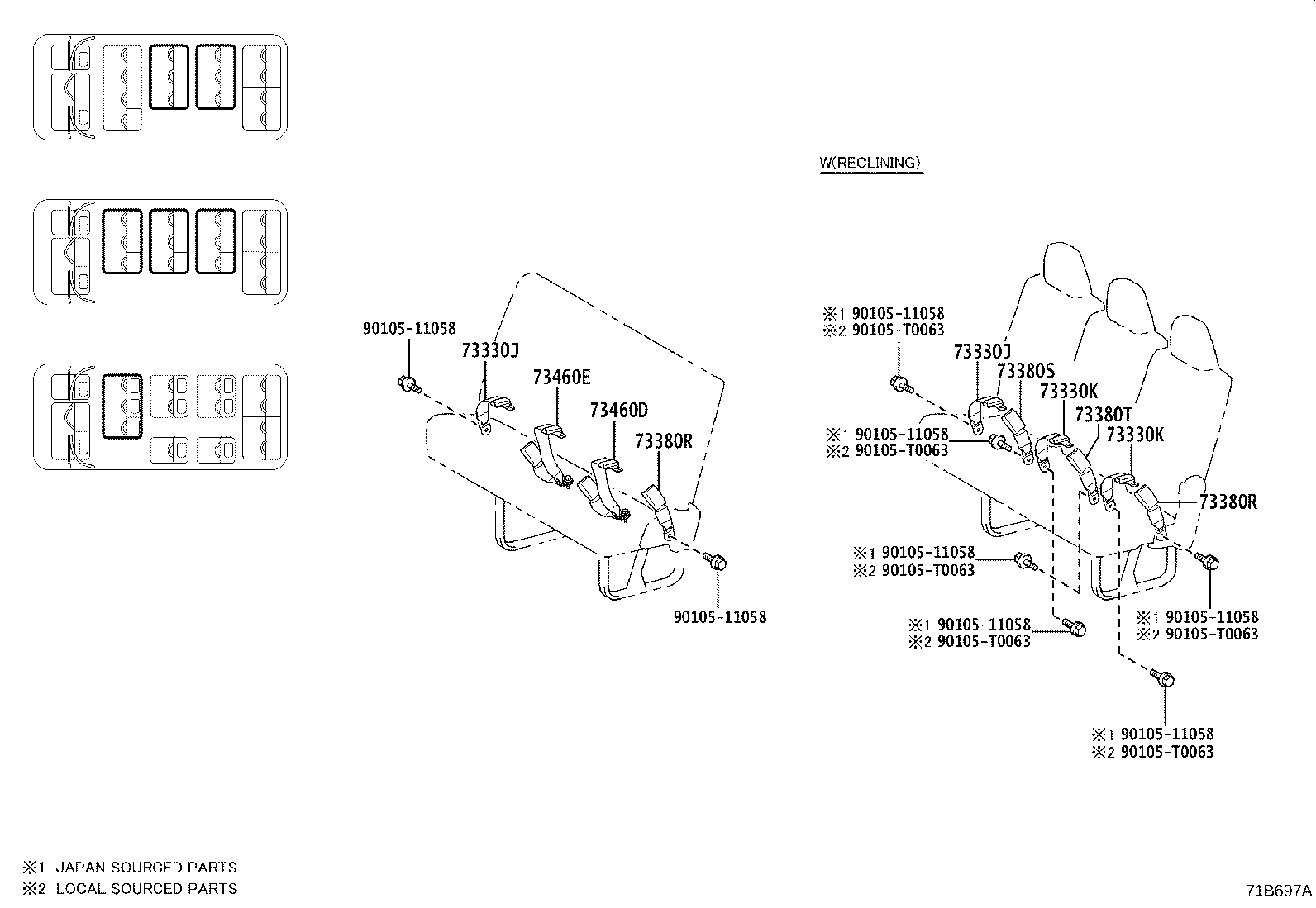

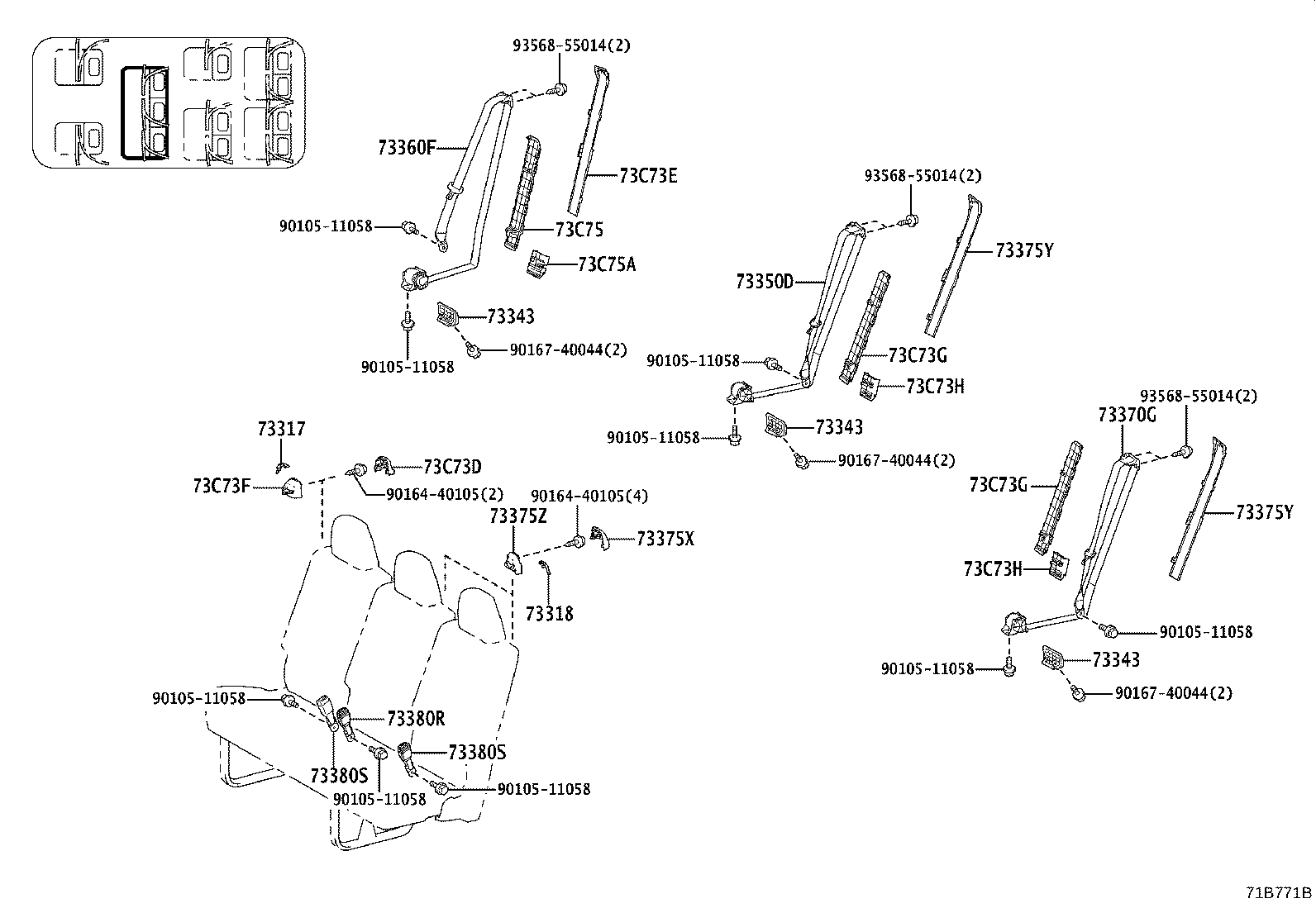

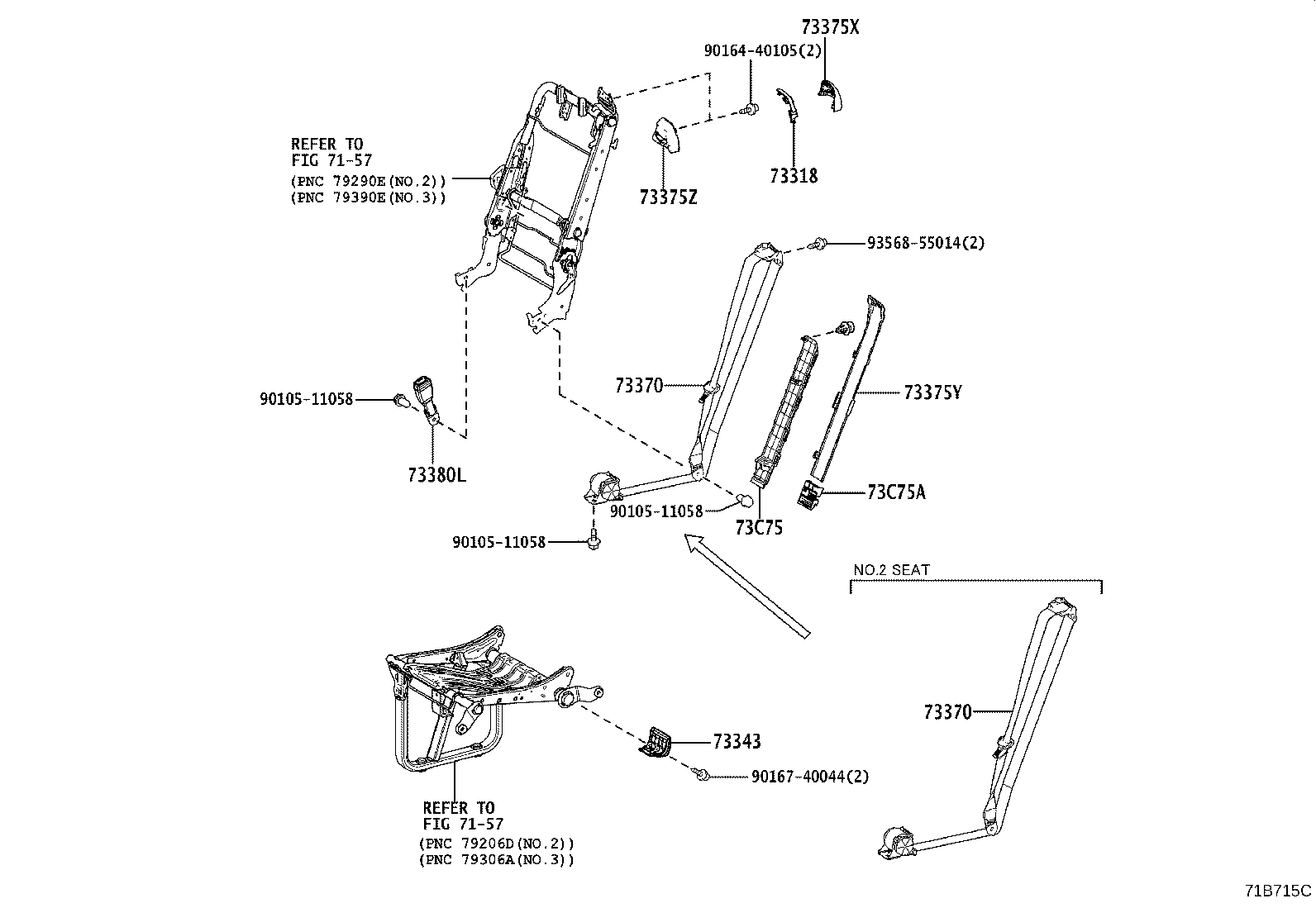

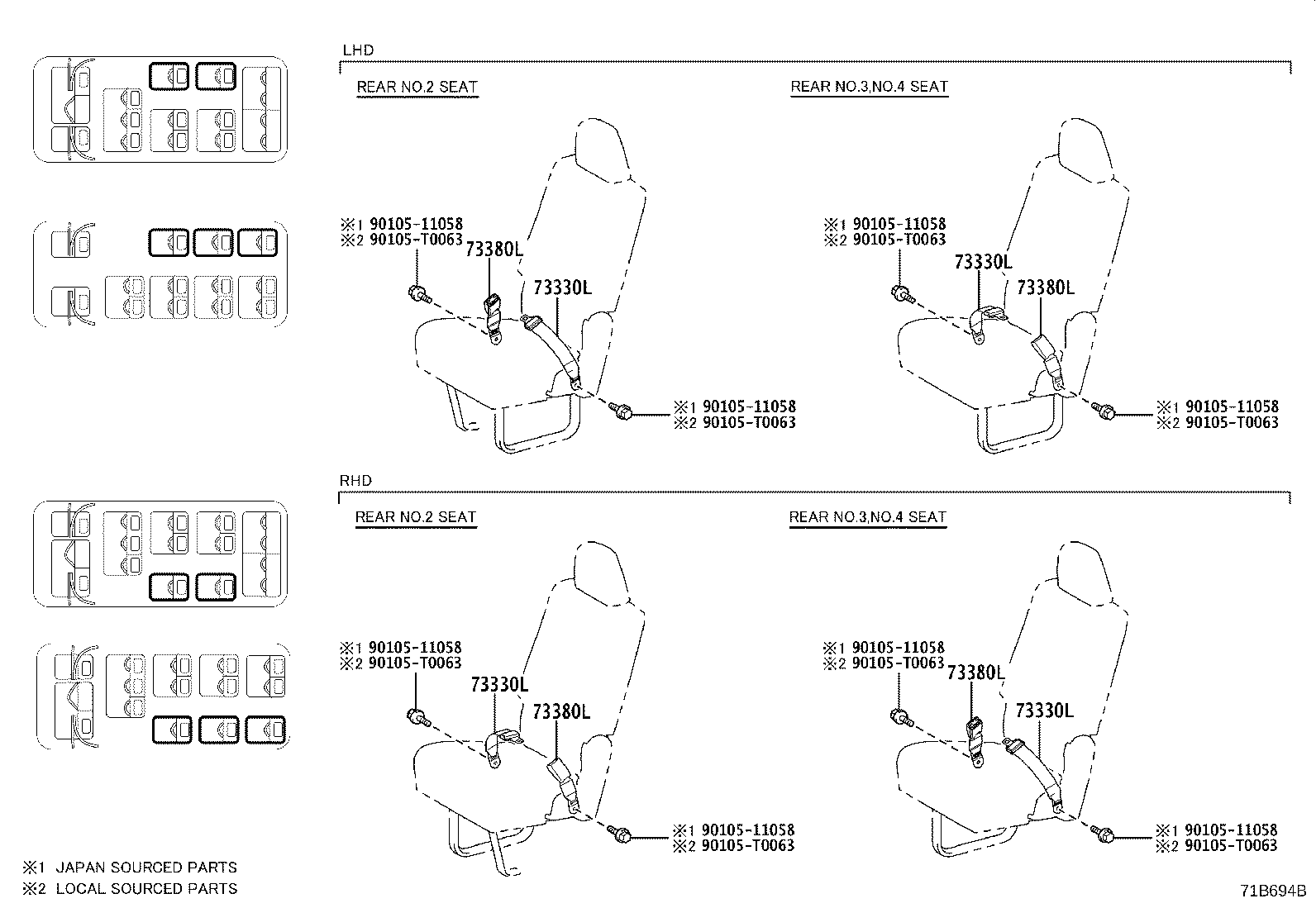

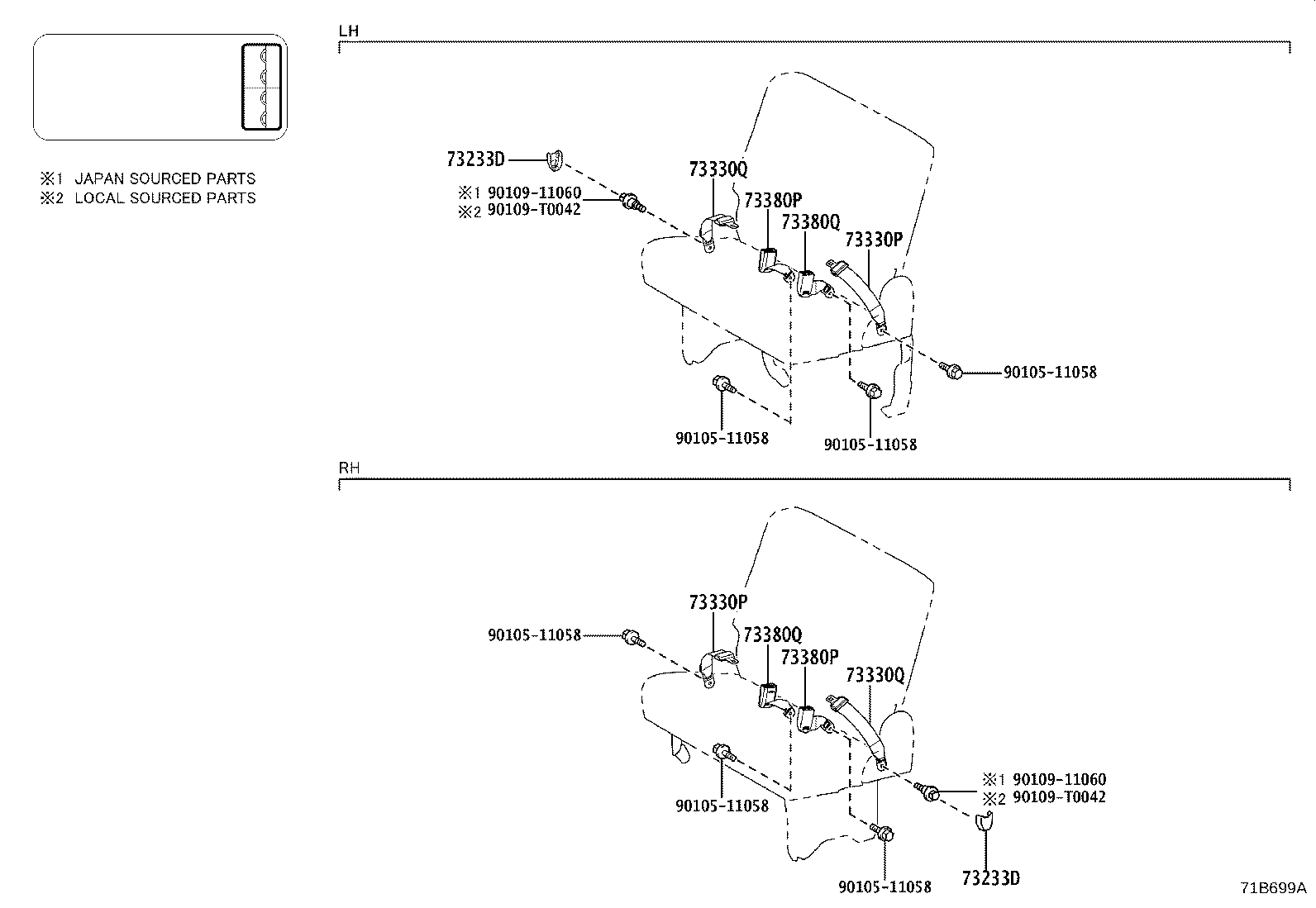

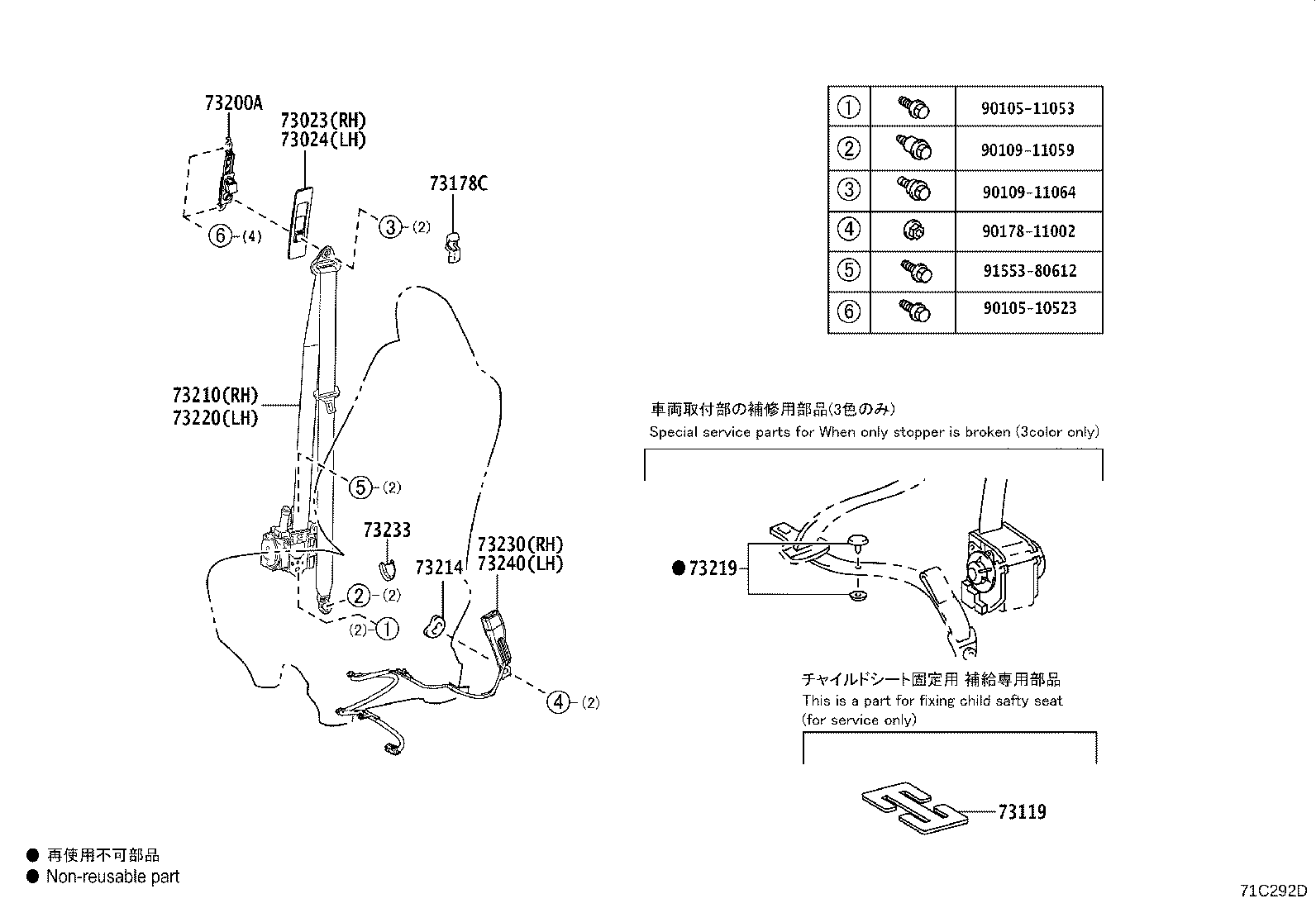

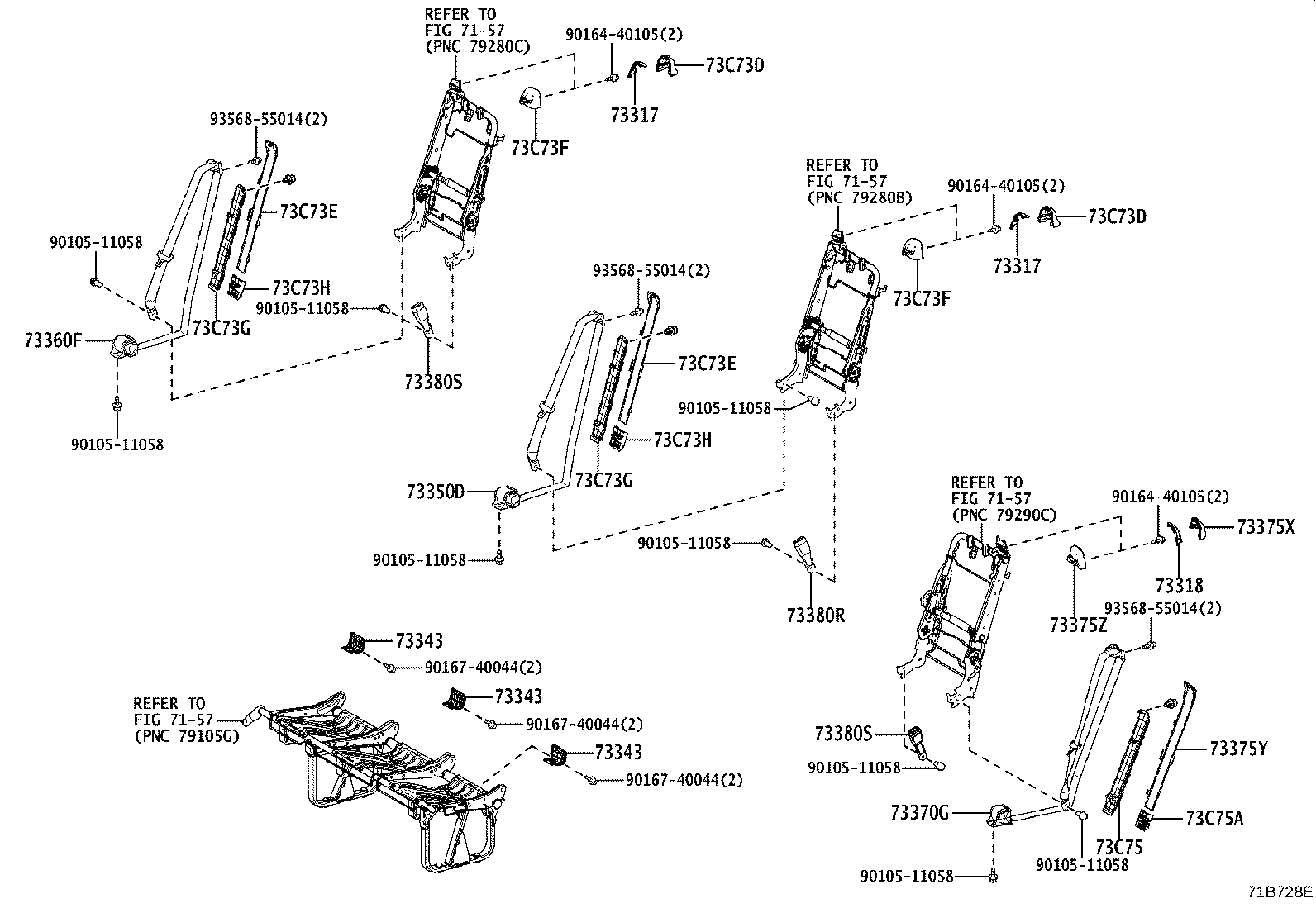

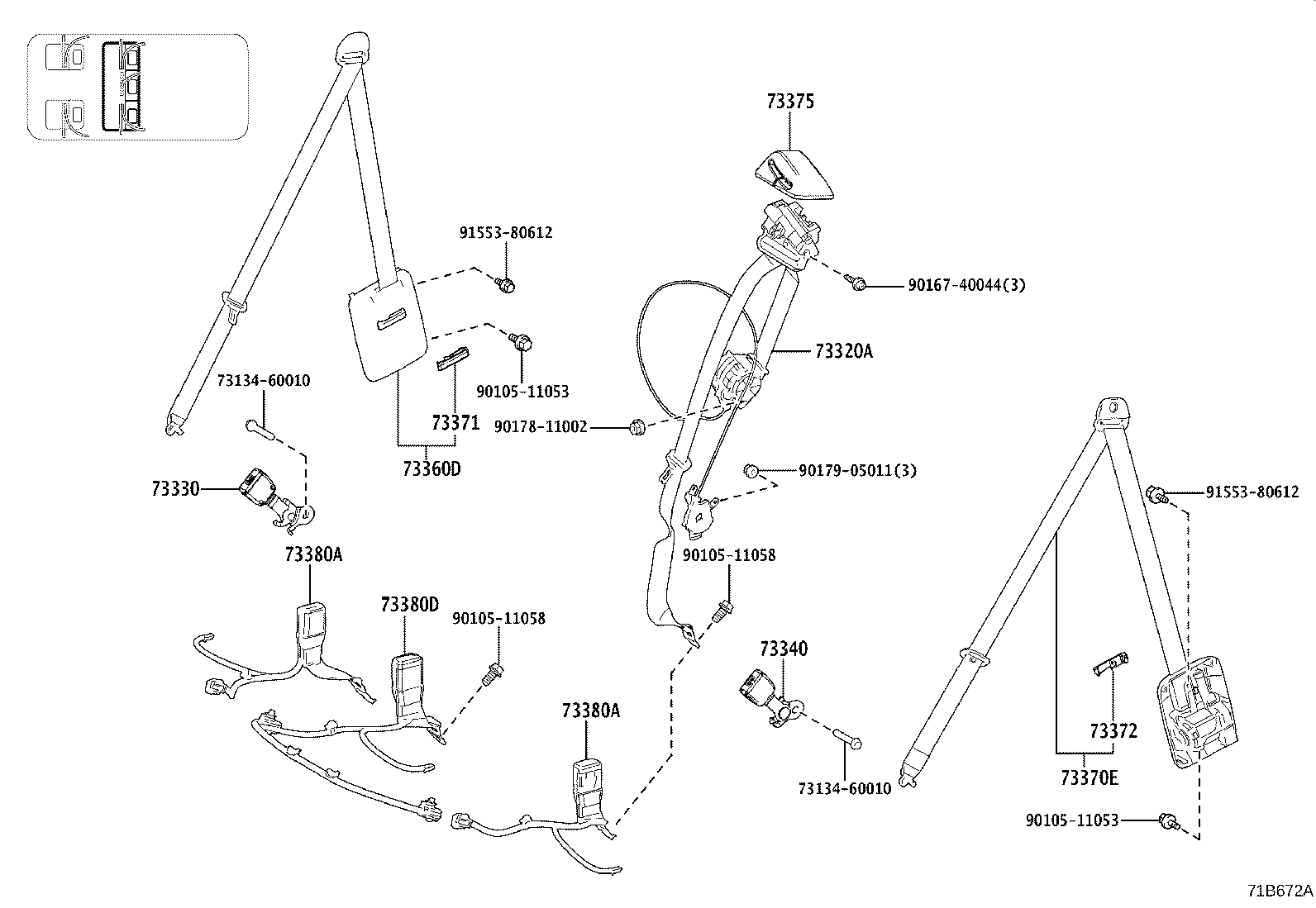

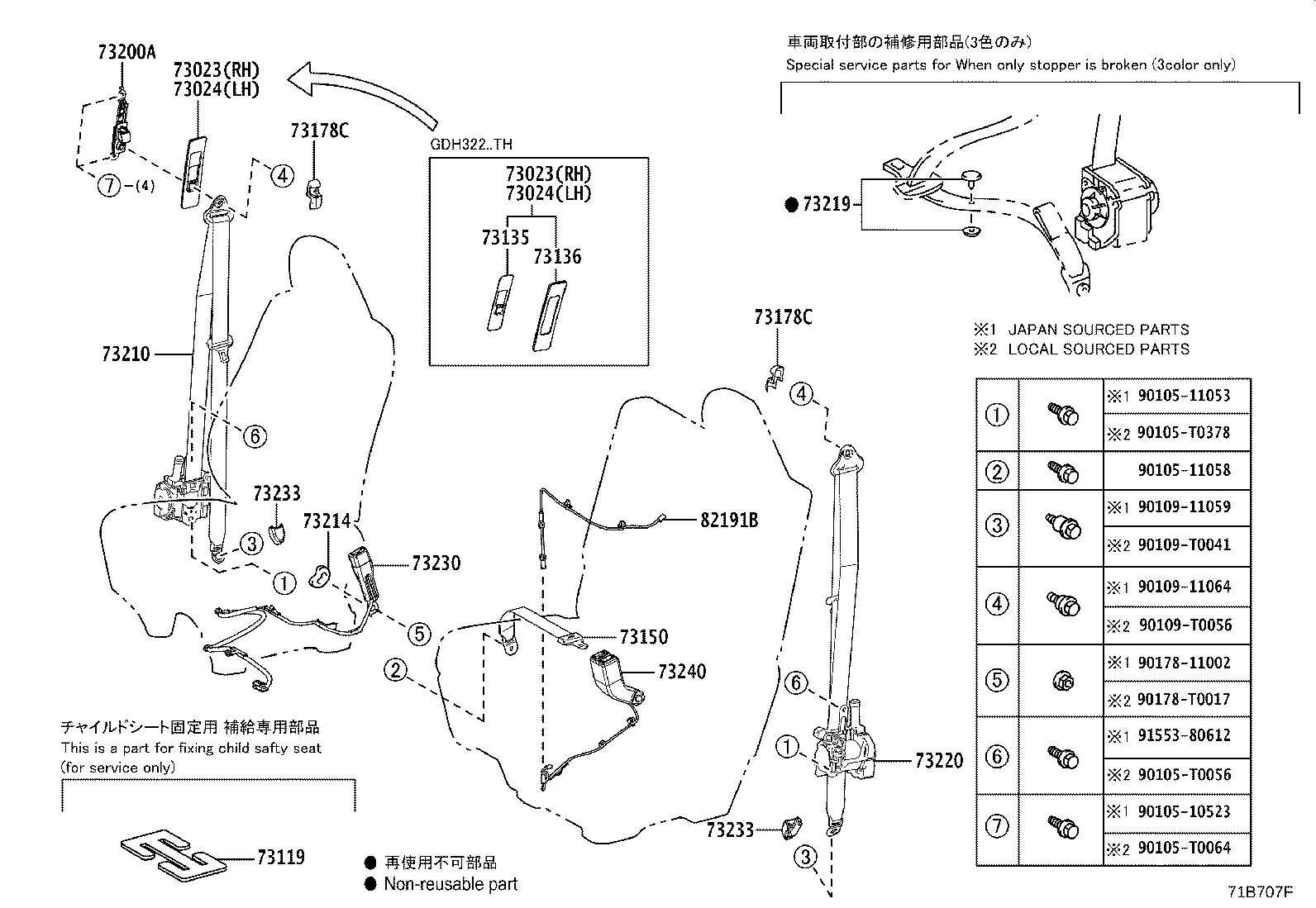

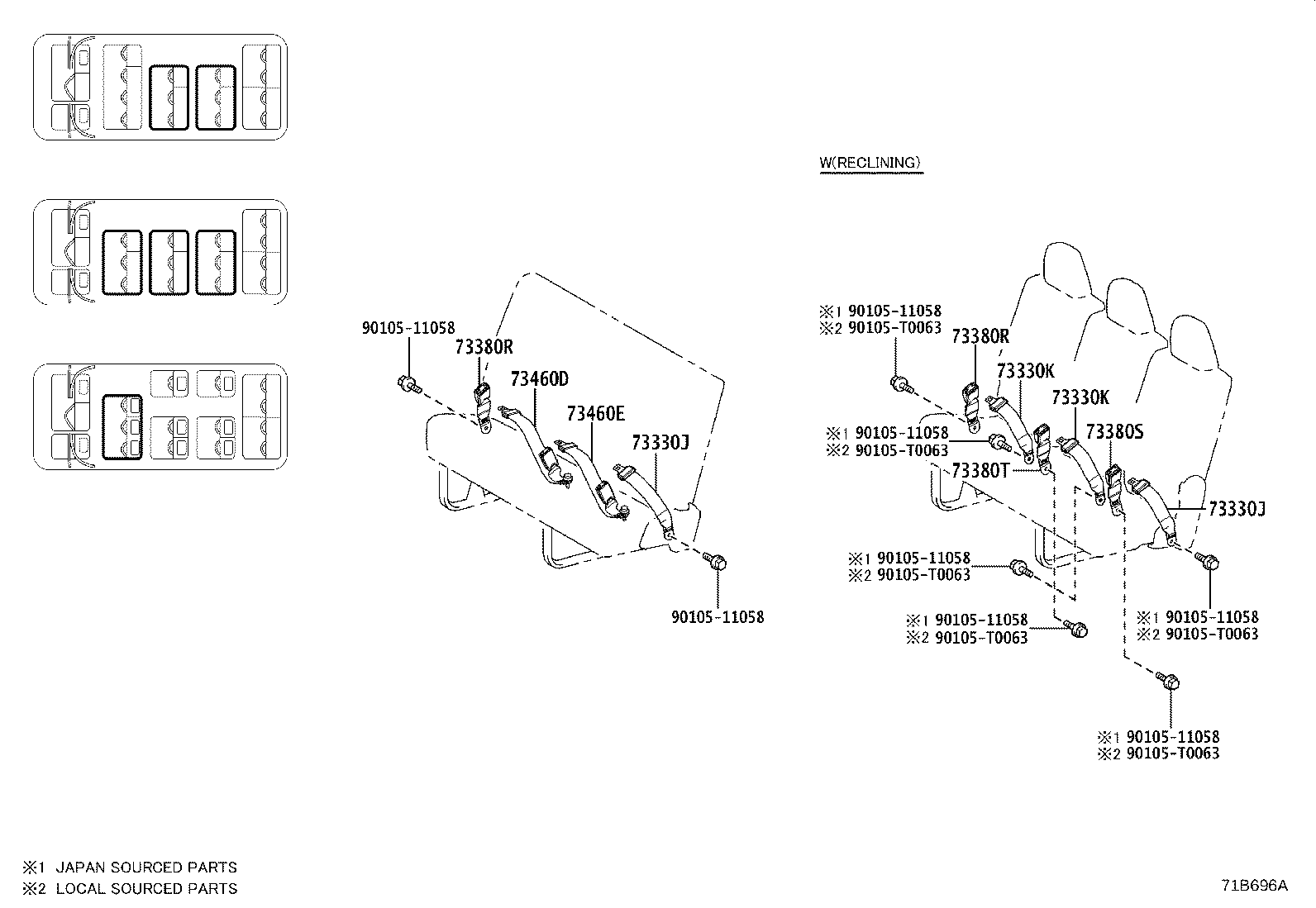

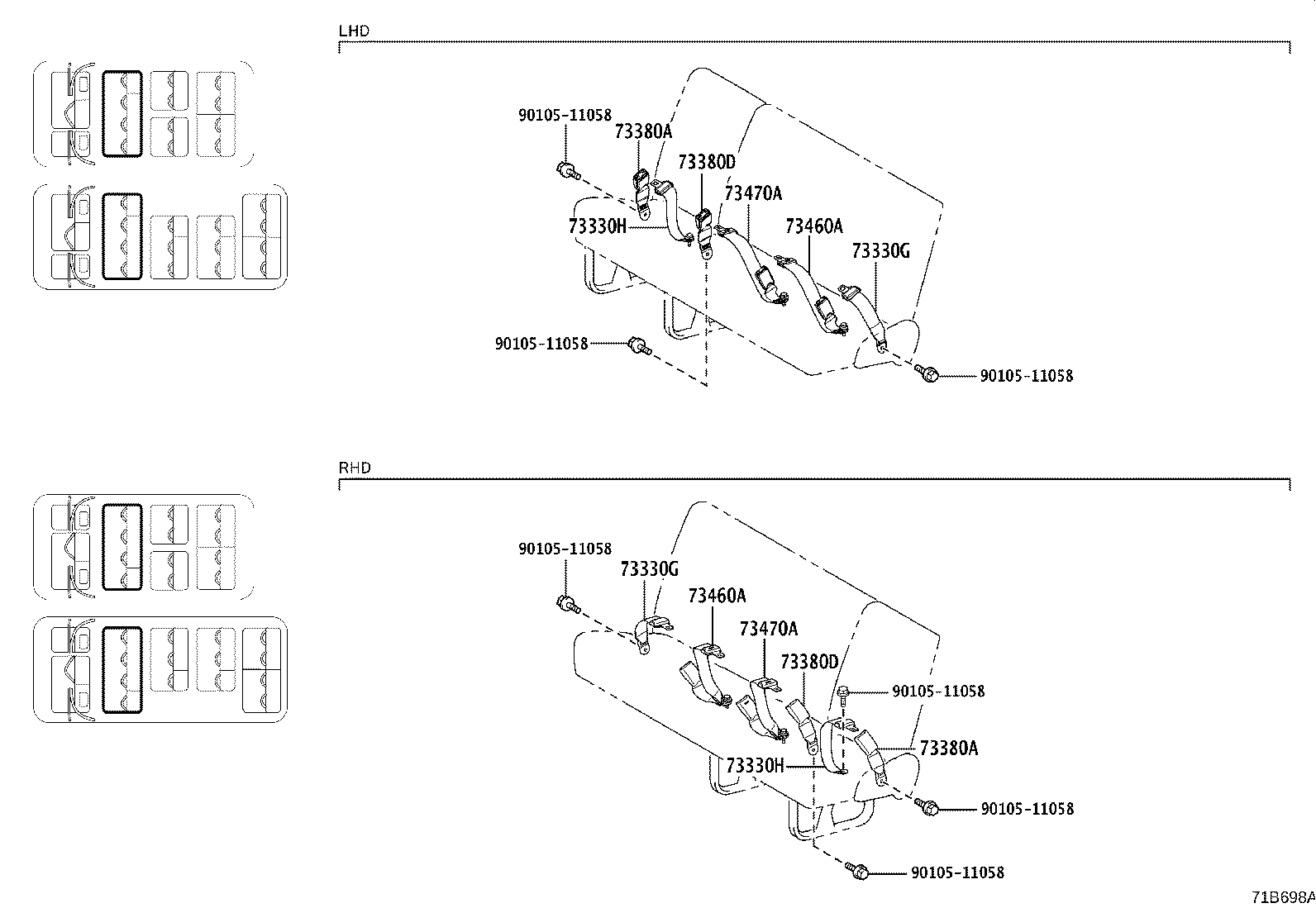

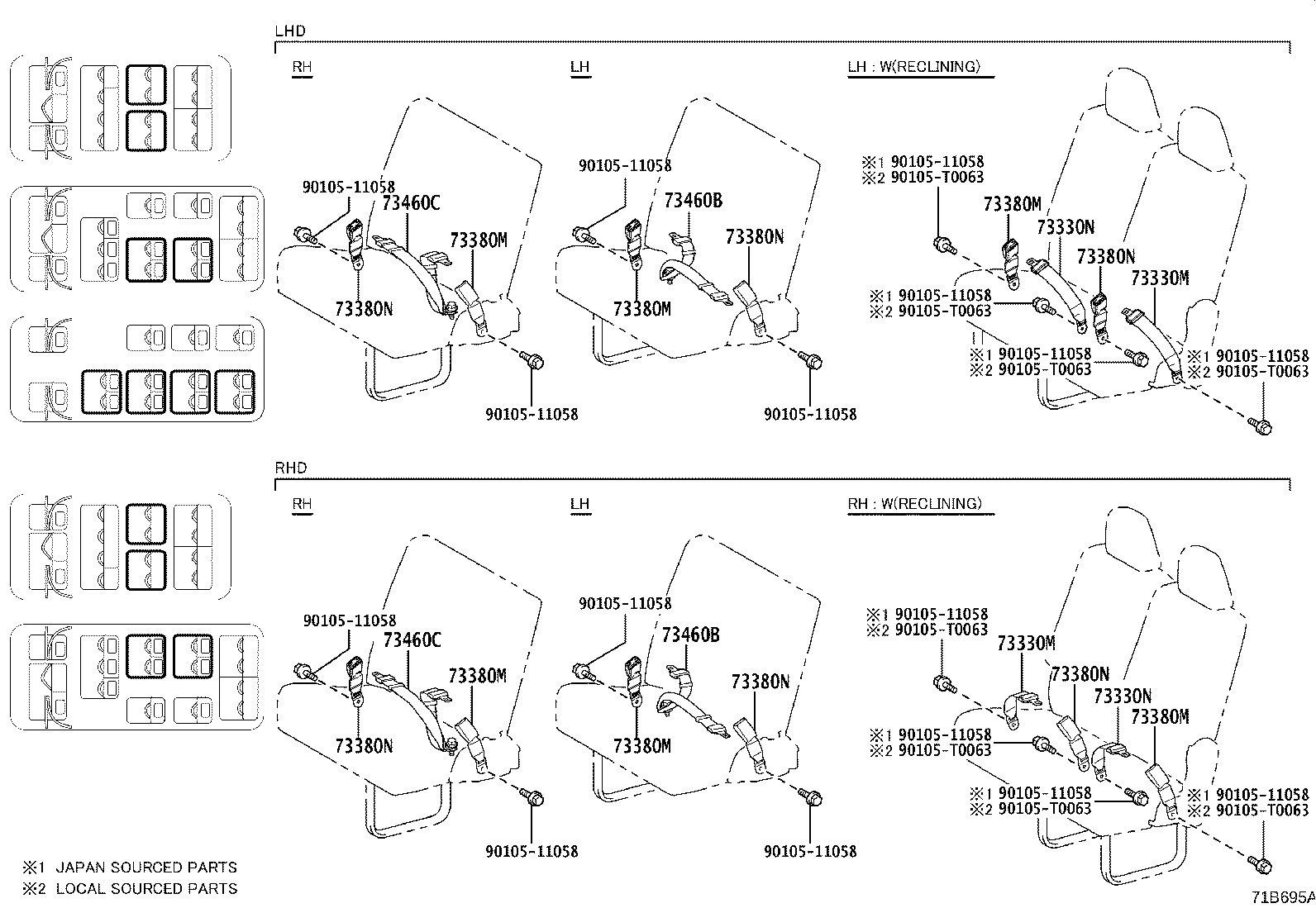

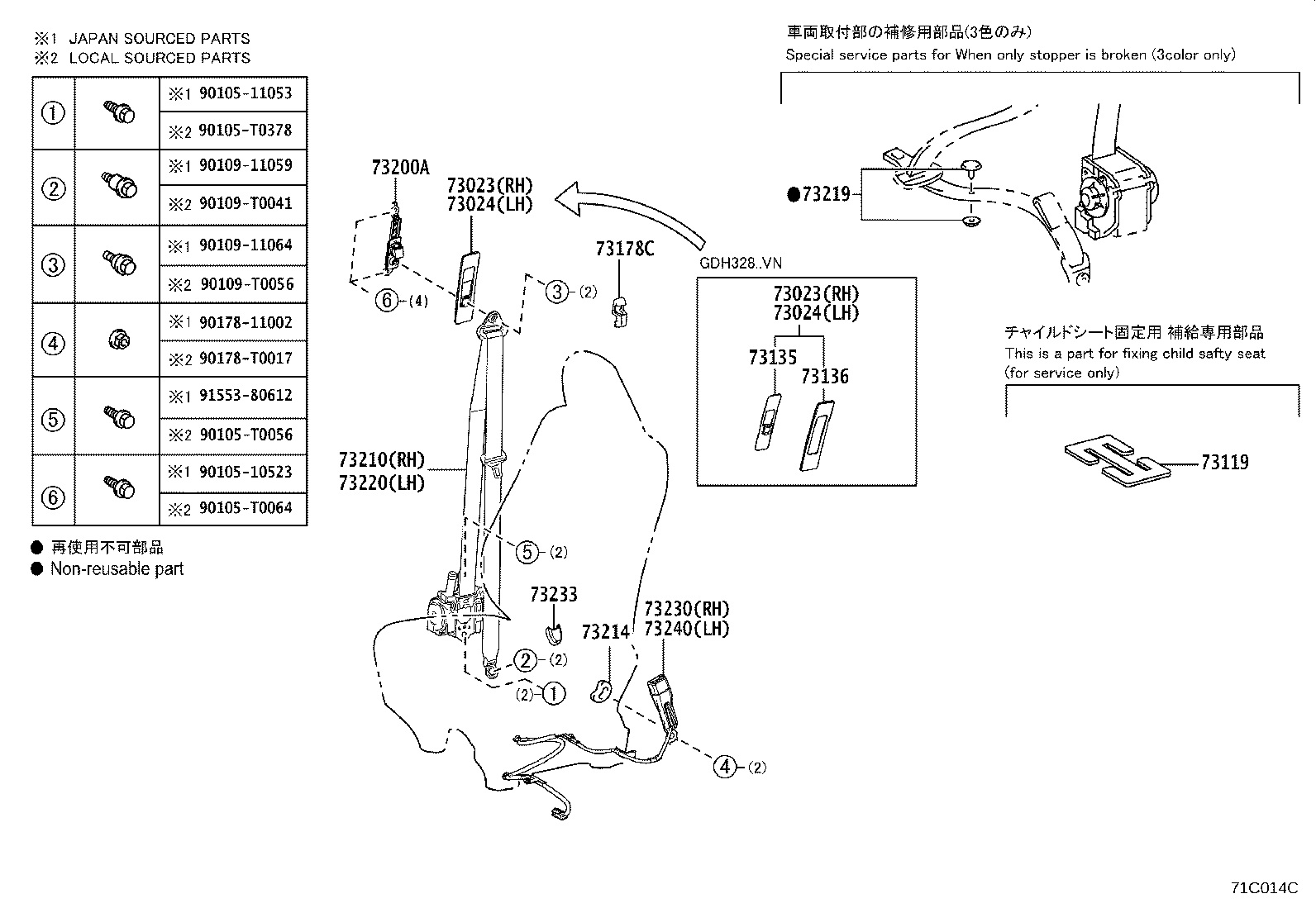

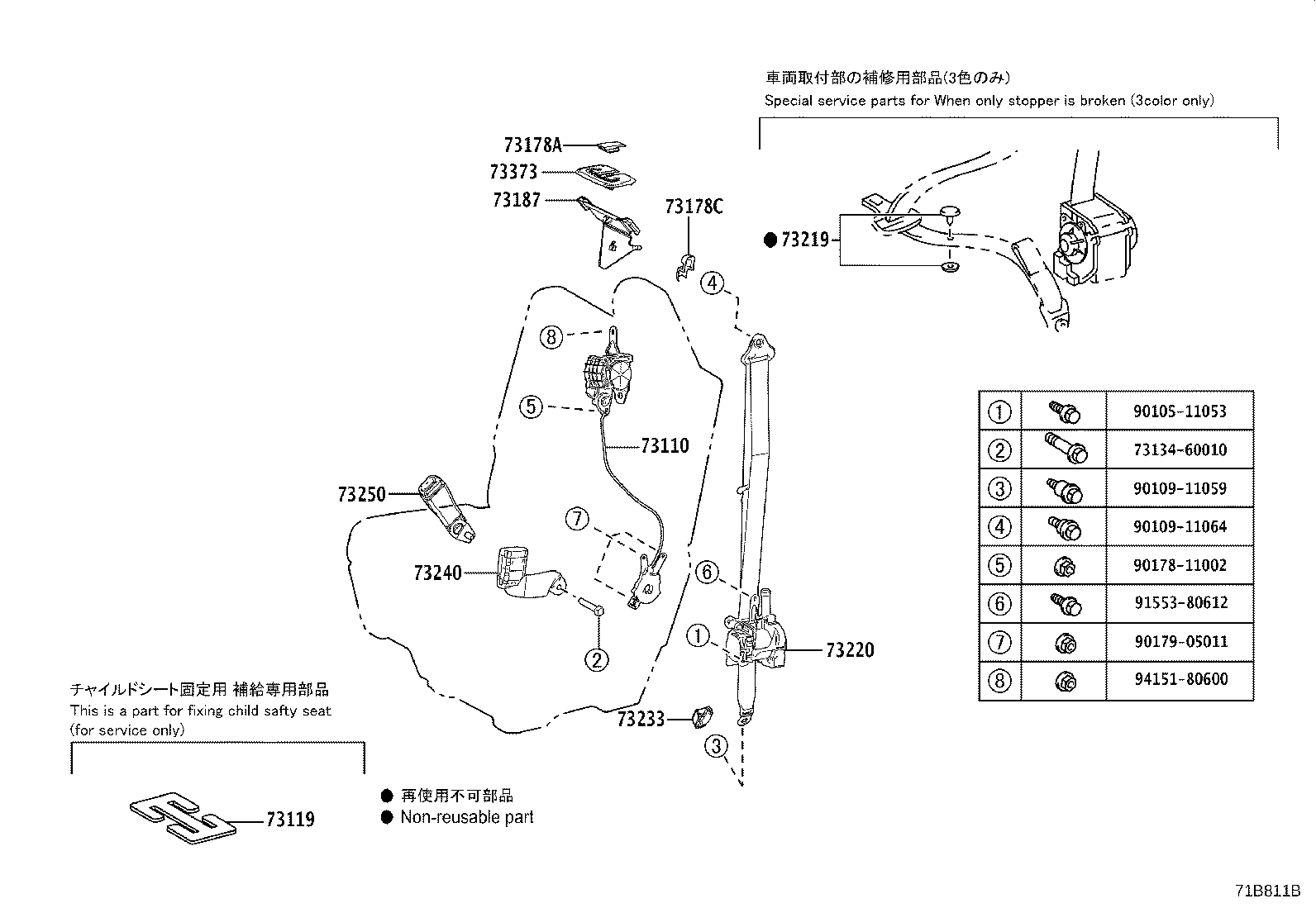

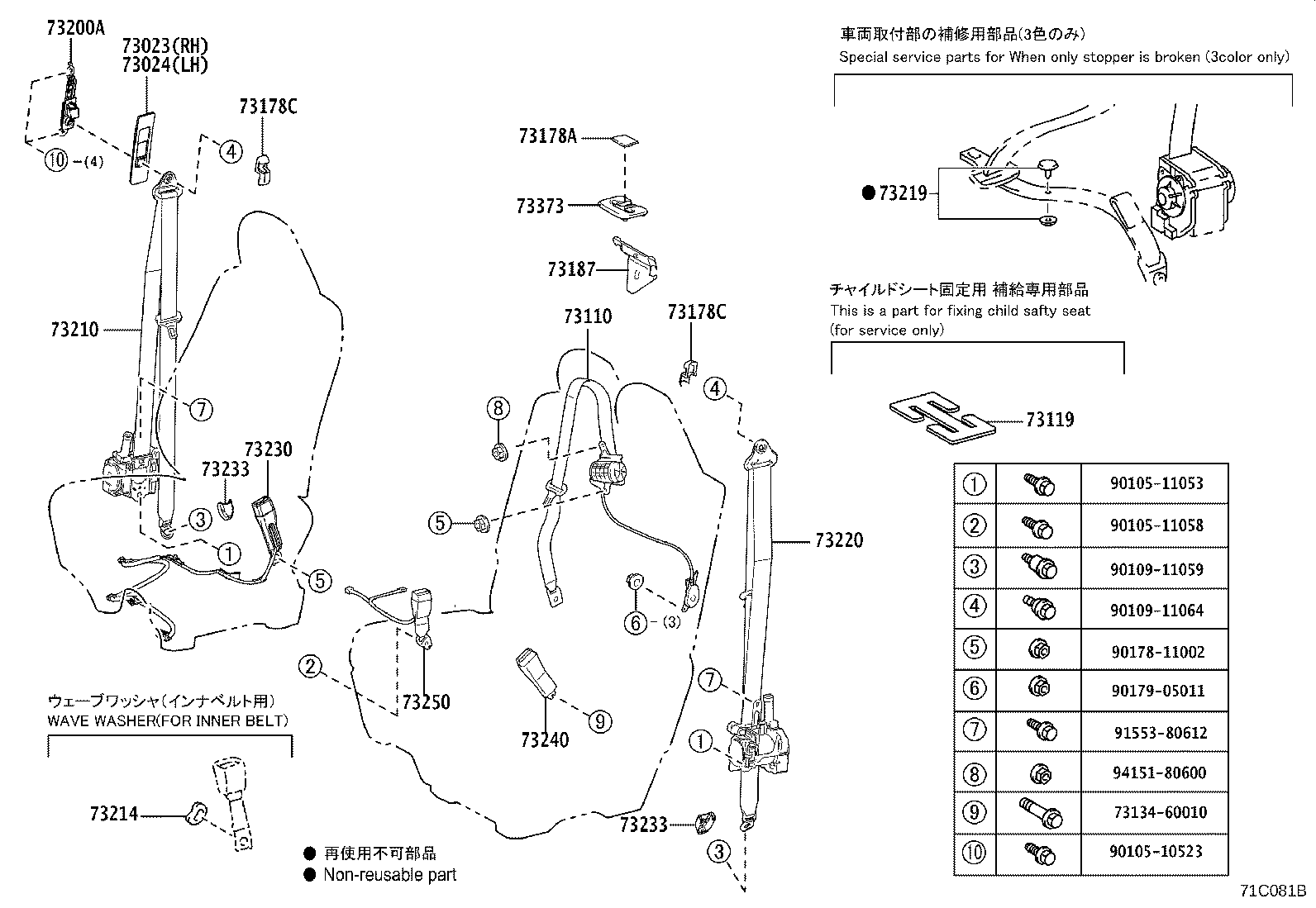

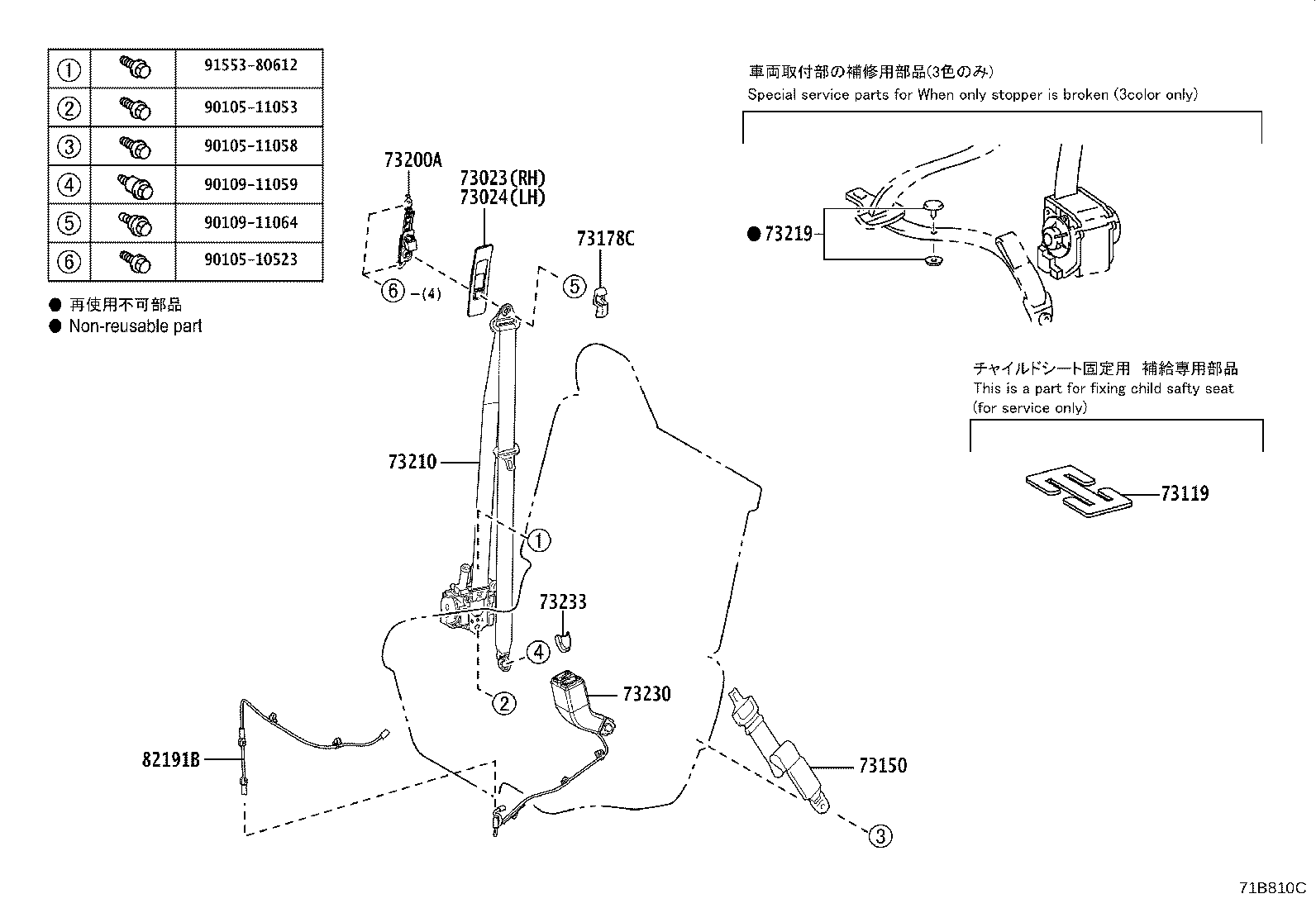

Figure 71B631D 71B631D 2019-02 → — Figure 71B631D 71B631D 2019-02 → — Figure 71B810C 71B810C 2019-02 → — Figure 71C014C 71C014C 2019-02 → — Figure 71C292D 71C292D 2019-02 → — Figure 71B707F 71B707F 2019-02 → — Figure 71C081B 71C081B 2019-07 → — Figure 71B811B 71B811B 2019-02 → — Figure 71B811B 71B811B 2022-08 → — Figure 71B672A 71B672A 2019-02 → — Figure 71B694B 71B694B 2019-02 → — Figure 71B694B 71B694B 2019-02 → — Figure 71B694B 71B694B 2019-02 → — Figure 71B695A 71B695A 2019-02 → — Figure 71B695A 71B695A 2019-02 → — Figure 71B695A 71B695A 2019-02 → — Figure 71B696A 71B696A 2019-02 → — Figure 71B696A 71B696A 2019-02 → — Figure 71B696A 71B696A 2019-02 → — Figure 71B697A 71B697A 2019-02 → — Figure 71B697A 71B697A 2019-02 → — Figure 71B698A 71B698A 2019-02 → — Figure 71B698A 71B698A 2019-02 → — Figure 71B698A 71B698A 2019-02 → — Figure 71B699A 71B699A 2019-02 → — Figure 71B699A 71B699A 2019-02 → — Figure 71B699A 71B699A 2019-02 → — Figure 71B771B 71B771B 2019-02 → 2022-07 Figure 71B771B 71B771B 2019-02 → — Figure 71B771B 71B771B 2020-06 → 2021-07 Figure 71B728E 71B728E 2019-02 → — Figure 71B728E 71B728E 2020-06 → 2021-07 Figure 71B715C 71B715C 2019-03 → — Figure 71B715C 71B715C 2019-03 → — Figure 71B926C 71B926C 2019-02 → — Figure 71B926C 71B926C 2019-02 → — Figure 71B926C 71B926C 2019-11 → — Figure 71B926C 71B926C 2020-06 → 2021-07 Figure 71B926C 71B926C 2020-06 → — Figure 71B926C 71B926C 2023-10 → — Figure 71B726E 71B726E 2019-03 → — Figure 71B927D 71B927D 2019-02 → 2022-07 Figure 71B927D 71B927D 2019-02 → — Figure 71B927D 71B927D 2019-02 → — Figure 71B927D 71B927D 2019-02 → — Figure 71B927D 71B927D 2020-06 → 2021-07 Figure 71B927D 71B927D 2023-10 → — Figure 71B716B 71B716B 2019-03 → — Figure 71B809A 71B809A 2019-02 → — Figure 71B809A 71B809A 2019-02 → — Figure 71B808B 71B808B 2019-02 → — Figure 71B808B 71B808B 2019-02 → — Figure 71B727D 71B727D 2019-02 → — Figure 71B759B 71B759B 2019-02 → — Figure 71B759B 71B759B 2019-02 → — Figure 71B759B 71B759B 2019-02 → — Figure 71B759B 71B759B 2023-10 → — Figure 71B948D 71B948D 2019-07 → 2023-10 Figure 71B948D 71B948D 2019-07 → — Figure 71F9H6A 71F9H6A 2023-10 → — Figure 71B949D 71B949D 2019-07 → — Figure 71B950B 71B950B 2019-07 → 2023-10 Figure 71B950B 71B950B 2019-07 → —

Part groups

PNCDescription
72667C Bezel, Rear Seatback Lock, Upper RH
72667D Bezel, Rear Seatback Lock, Upper LH
73015A Bracket Sub-assy, Belt Outer Anchor, RH
73023 Plate Sub-assy, Front Shoulder Belt Anchor, RH
73024 Plate Sub-assy, Front Shoulder Belt Anchor, LH
73110 Belt Assy, Front Seat 3 Point Type, RH
73119 Plate, Seat Belt Webbing Clip
73120 Belt Assy, Front Seat 3 Point Type, LH
73135 Cover, Shoulder Belt Anchorage Plate
73136 Cover, Shoulder Belt Anchorage Plate, Inner
73150 Belt Assy, Front Seat Lap Type, Center
73178A Cap, Seat Belt Anchor Cover
73178C Cap, Seat Belt Anchor Cover
73187 Guide, Front Seat Shoulder Belt
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73214 Plate, Front Seat Belt Anchor
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73233 Cover, Lap Belt Outer Anchor
73233D Cover, Lap Belt Outer Anchor
73233E Cover, Rear Outer Seat Belt
73240 Belt Assy, Front Seat Inner, LH
73250 Belt Assy, Front Seat, Center
73310A Belt Assy, NO.1 Seat 3 Point Type, RH
73310E Belt Assy, NO.2 Seat 3 Point Type, RH
73310F Belt Assy, NO.3 Seat 3 Point Type, RH
73317 Cap, Rear Seat Belt, RH
73318 Cap, Rear Seat Belt, LH
73320A Belt Assy, NO.1 Seat 3 Point Type, LH
73320D Belt Assy, NO.2 Seat 3 Point Type, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73330D Belt Assy, Rear NO.1 Seat Lap Type, Center RH
73330G Belt Assy, RR Seat Lap Type
73330H Belt Assy, RR Seat Lap Type
73330J Belt Assy, Rear Seat Lap Type(FOR 3 PERSONS)
73330K Belt Assy, Rear Seat Lap Type, Center(FOR 3 PERSONS)
73330L Belt Assy, Rear Seat Lap Type(FOR 1 PERSON)
73330M Belt Assy, Rear Seat Lap Type(FOR 2 PERSONS)
73330N Belt Assy, Rear Seat Lap Type, Center(FOR 2 PERSONS)
73330P Belt Assy, Rear Seat Lap Type(FOR SPACE UP SEAT)
73330Q Belt Assy, Rear Seat Lap Type, Center(FOR SPACE UP SEAT)
73340 Belt Assy, Rear Seat Lap Type, LH
73343 Guide, Rear Seat Shoulder Belt, RH
73350 Belt Assy, Rear Seat Lap Type, Center
73350C Belt Assy, Rear Seat, Outer Center
73350D Belt Assy, Rear Seat, Center(FOR 3 PERSONS)
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73360D Belt Assy, Rear Seat, Outer RH
73360E Belt Assy, Rear Seat, Outer RH(FOR 2 PERSONS)
73360F Belt Assy, Rear Seat, Outer RH(FOR 3 PERSONS)
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73370E Belt Assy, Rear Seat, Outer LH
73370F Belt Assy, Rear Seat, Outer LH(FOR 2 PERSONS)
73370G Belt Assy, Rear Seat, Outer LH(FOR 3 PERSONS)
73371 Hanger, Rear Seat Shoulder Belt, RH
73372 Hanger, Rear Seat Shoulder Belt, LH
73373 Cover, Rear Seat Shoulder Belt
73373A Cover, Rear Seat Shoulder Belt, RH
73373B Cover, Rear NO.1 Seat Shoulder Belt
73373C Cover, Rear NO.2 Seat Shoulder Belt
73375 Cover, Rear Seat Shoulder Belt, LH
73375W Cover, Rear Seat Shoulder Belt, RH
73375X Cover, Rear Seat Shoulder Belt, LH NO.1
73375Y Cover, Rear Seat Shoulder Belt, LH NO.2
73375Z Cover, Rear Seat Shoulder Belt, LH NO.3
73380 Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380A Belt Assy, Rear Seat, Inner
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73380D Belt Assy, Rear Seat, Inner
73380L Belt Assy, Rear Seat, Inner(FOR 1 PERSON)
73380M Belt Assy, Rear Seat, Inner Center(FOR 2 PERSONS)
73380N Belt Assy, Rear Seat, Inner(FOR 2 PERSONS)
73380P Belt Assy, Rear Seat, Inner(FOR SPACE UP SEAT)
73380Q Belt Assy, Rear Seat, Inner Center(FOR SPACE UP SEAT)
73380R Belt Assy, Rear Seat, Inner Center(FOR 3 PERSONS)
73380S Belt Assy, Rear Seat, Inner(FOR 3 PERSONS)
73380T Belt Assy, Rear Seat, Inner Center NO.2(FOR 3 PERSONS)
73380U Belt Assy, Rear NO.1 Seat, Inner LH
73380V Belt Assy, Rear NO.2 Seat, Inner RH
73380W Belt Assy, Rear NO.2 Seat, Inner LH
73390 Belt Assy, Rear Seat 3 Point Type, Inner, LH
73390A Belt Assy, Rear Seat, Inner
73460A Belt Assy, Rear Seat Center, Inner
73460B Belt Assy, Rear Seat Center, Inner LH
73460C Belt Assy, Rear Seat Center, Inner
73460D Belt Assy, Rear Seat Center, Inner Center(FOR 3 PERSONS)
73460E Belt Assy, Rear Seat Center, Inner(FOR 3 PERSONS)
73470A Belt Assy, Rear Seat, Inner Center
73560A Belt Assy, NO.3 Seat, Outer RH
73560C Belt Assy, Rear NO.4 Seat, Outer RH
73560D Belt Assy, Rear Seat, Outer RH(FOR SPACE UP SEAT)
73570A Belt Assy, NO.3 Seat, Outer LH
73570B Belt Assy, Rear Seat, Outer
73570D Belt Assy, Rear Seat, Outer LH(FOR SPACE UP SEAT)
73C73D Cover, Rear Seat Shoulder Belt, RH NO.1
73C73E Cover, Rear Seat Shoulder Belt, RH NO.2
73C73F Cover, Rear Seat Shoulder Belt, RH NO.3
73C73G Cover, Rear Seat Shoulder Belt, RH NO.4
73C73H Cover, Rear Seat Shoulder Belt Hole, RH
73C75 Cover, Rear Seat Shoulder Belt, LH NO.4
73C75A Cover, Rear Seat Shoulder Belt Hole, LH
82191B Wire, Front Seat Belt
82193C Wire, Rear NO.1 Seat, RH
82193D Wire, Rear NO.2 Seat, RH
82194A Wire, Rear NO.1 Seat, LH
82194B Wire, Rear NO.2 Seat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
