Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General
Supported model
Data version 2024-09

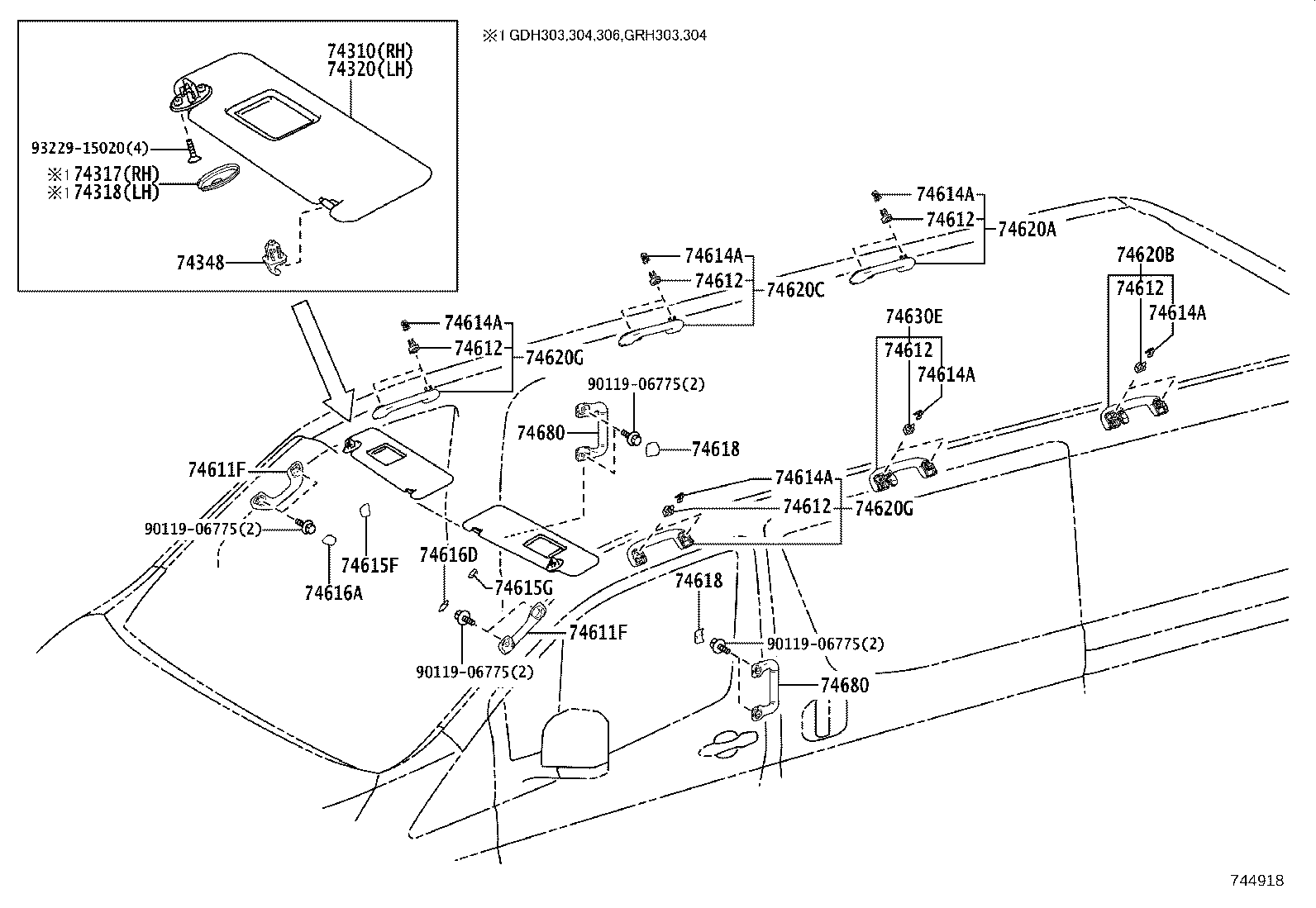

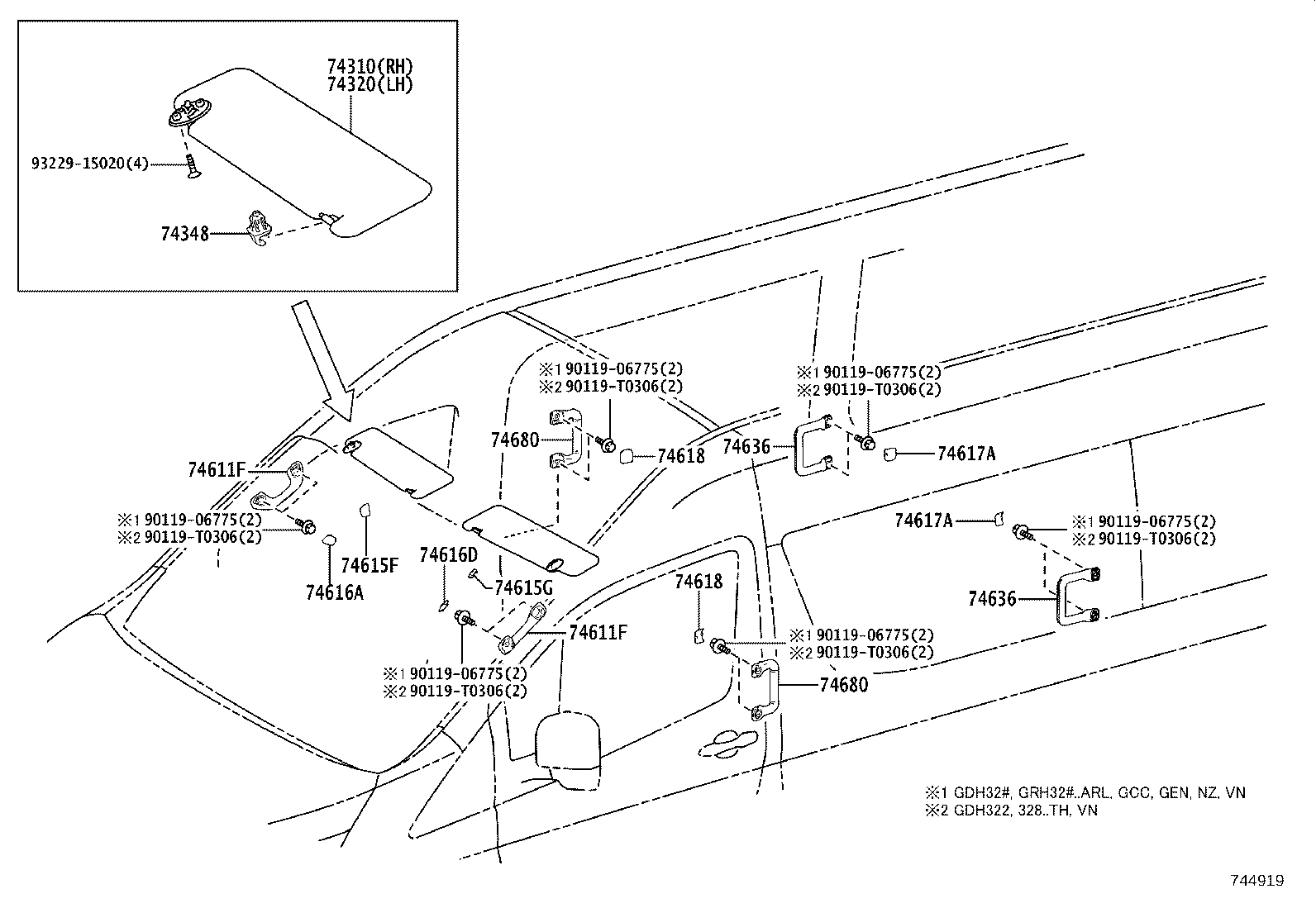

Armrest & Visor
23 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74611F | Grip, Assist, NO.1 |
| 74612 | Cover, Assist Grip |
| 74614A | Plate, Assist Grip Lock |
| 74615F | Plug, Front Assist Grip, Upr RH |
| 74615G | Plug, Front Assist Grip, Upr LH |
| 74616A | Plug, Front Assist Grip, Lower RH |
| 74616D | Plug, Front Assist Grip, Lwr LH |
| 74617A | Plug, Assist Grip |
| 74618 | Plug, Front Assist Grip |
| 74620A | Grip Assy, Assist, Rear |
| 74620B | Grip Assy, Assist, Rear |
| 74620C | Grip Assy, Assist, Rear RH |
| 74620G | Grip Assy, Assist, Front |
| 74630E | Grip Assy, Assist, Rear LH |
| 74636 | Grip, Back Door Assist |
| 74680 | Grip Assy, Pillar Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
