Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

18 part groups · 3 illustrations

Illustrations

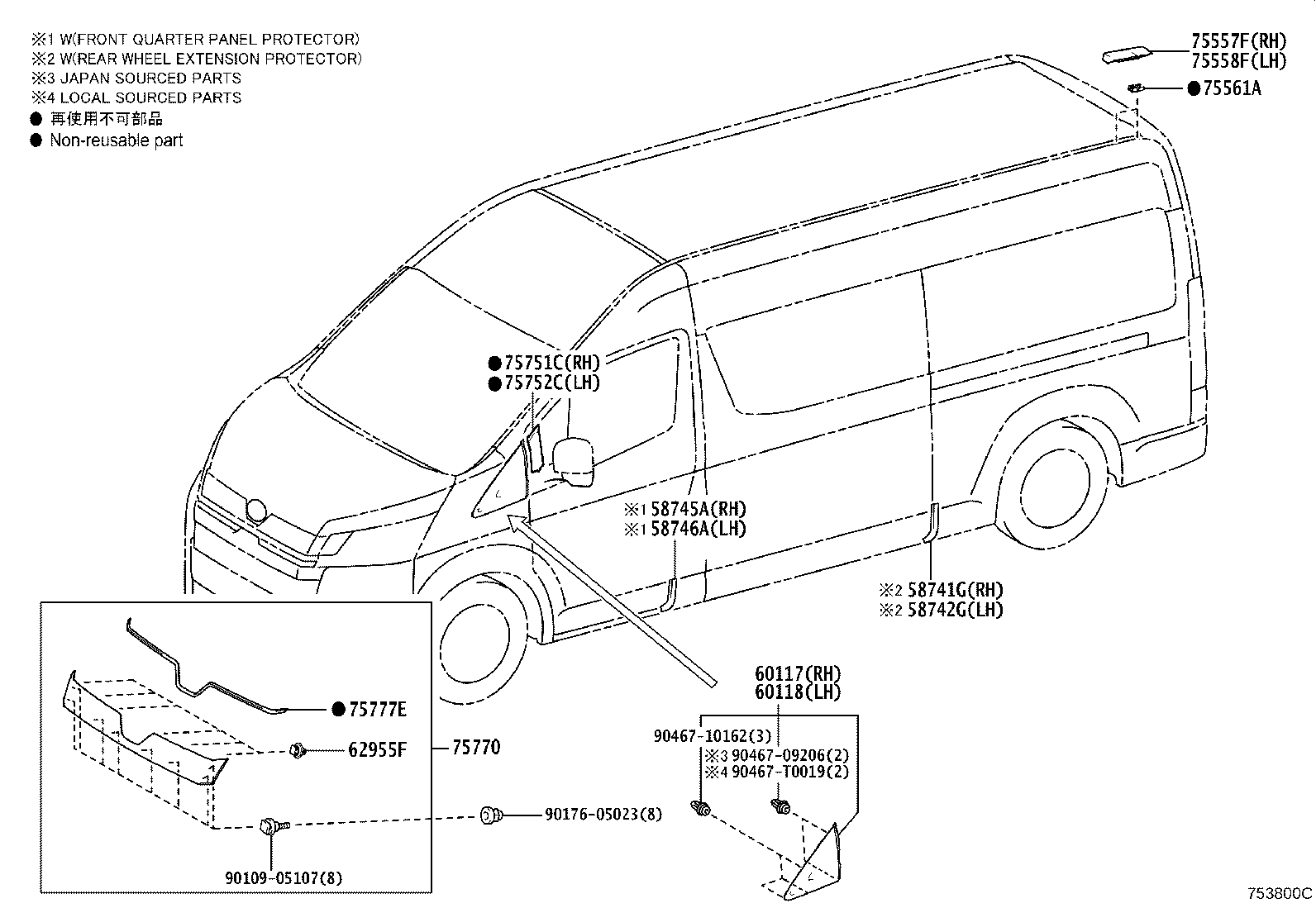

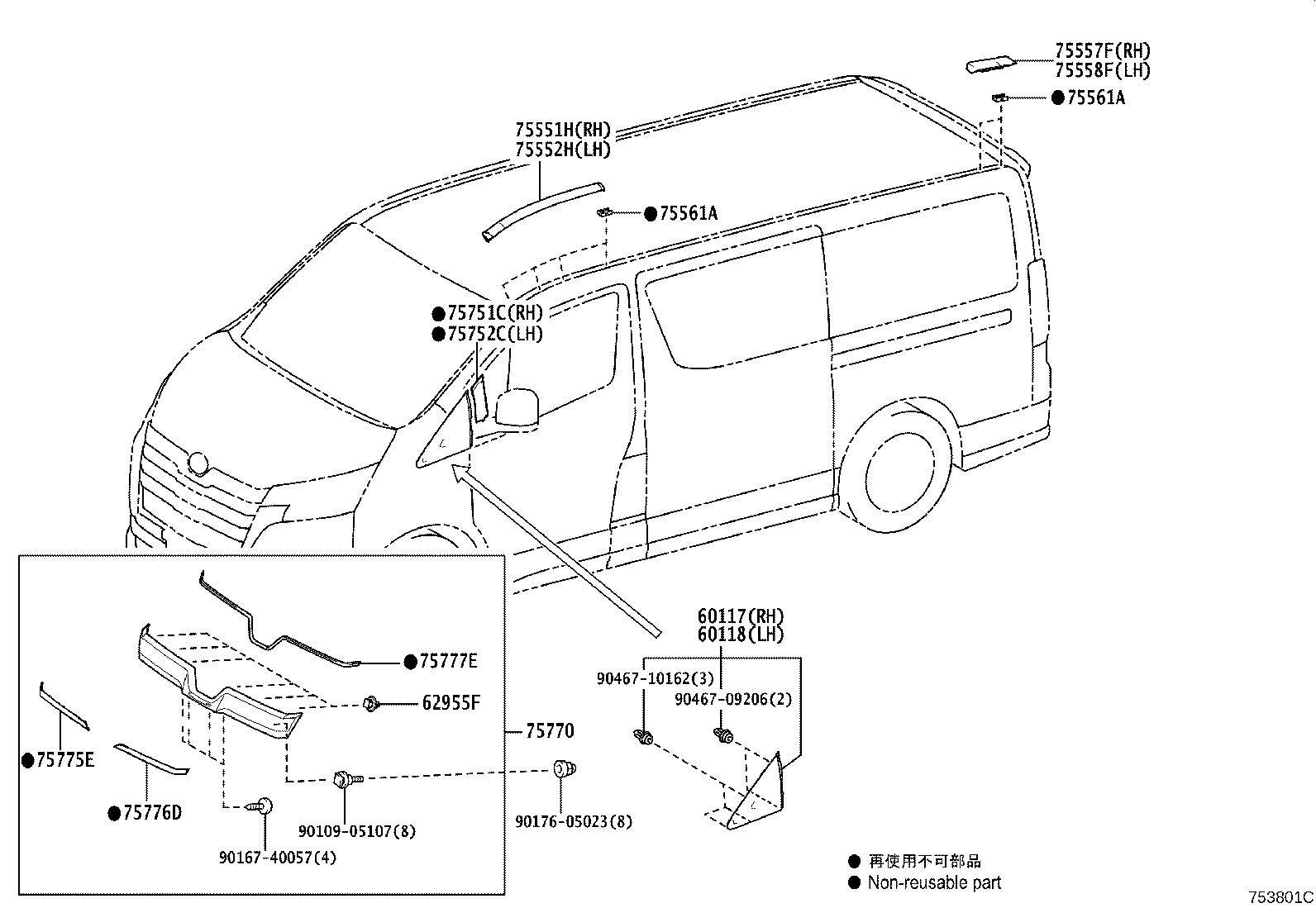

Figure 753799C 753799C 2019-02 → — Figure 753800C 753800C 2019-03 → — Figure 753801C 753801C 2019-07 → —

Part groups

PNCDescription
58741G Protector, Rear Wheel Extension, RH
58742G Protector, Rear Wheel Extension, LH
58745A Protector, Quarter Panel, Front RH
58746A Protector, Quarter Panel, Front LH
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
62955F Retainer, Quarter Vent Louver
75551H Moulding, Roof Drip Side, RH
75552H Moulding, Roof Drip Side, LH
75557F Moulding, Roof Drip Side Finish Quarter, RH
75558F Moulding, Roof Drip Side Finish Quarter, LH
75561A Clip, Roof Drip Side Finish Moulding
75751C Moulding, Front Door Window Frame, Front RH
75752C Moulding, Front Door Window Frame, Front LH
75770 Moulding Assy, Hood, Front
75775E Cover, Hood Front Moulding End, RH
75776D Cover, Hood Front Moulding End, LH
75777E Pad, Hood Front Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
