Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General

Supported model Data version 2024-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spoiler & Side Mudguard

89 part groups · 8 illustrations

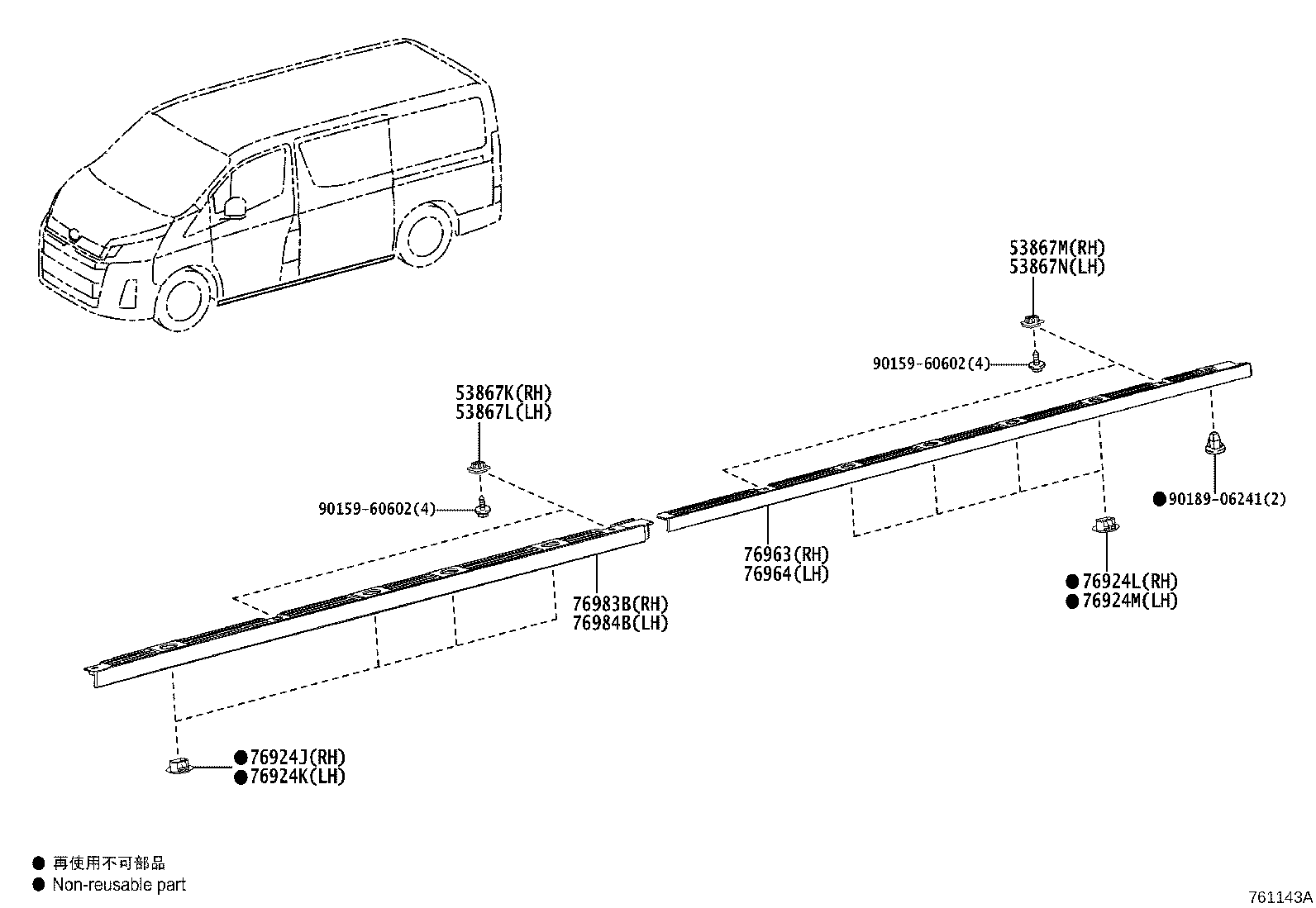

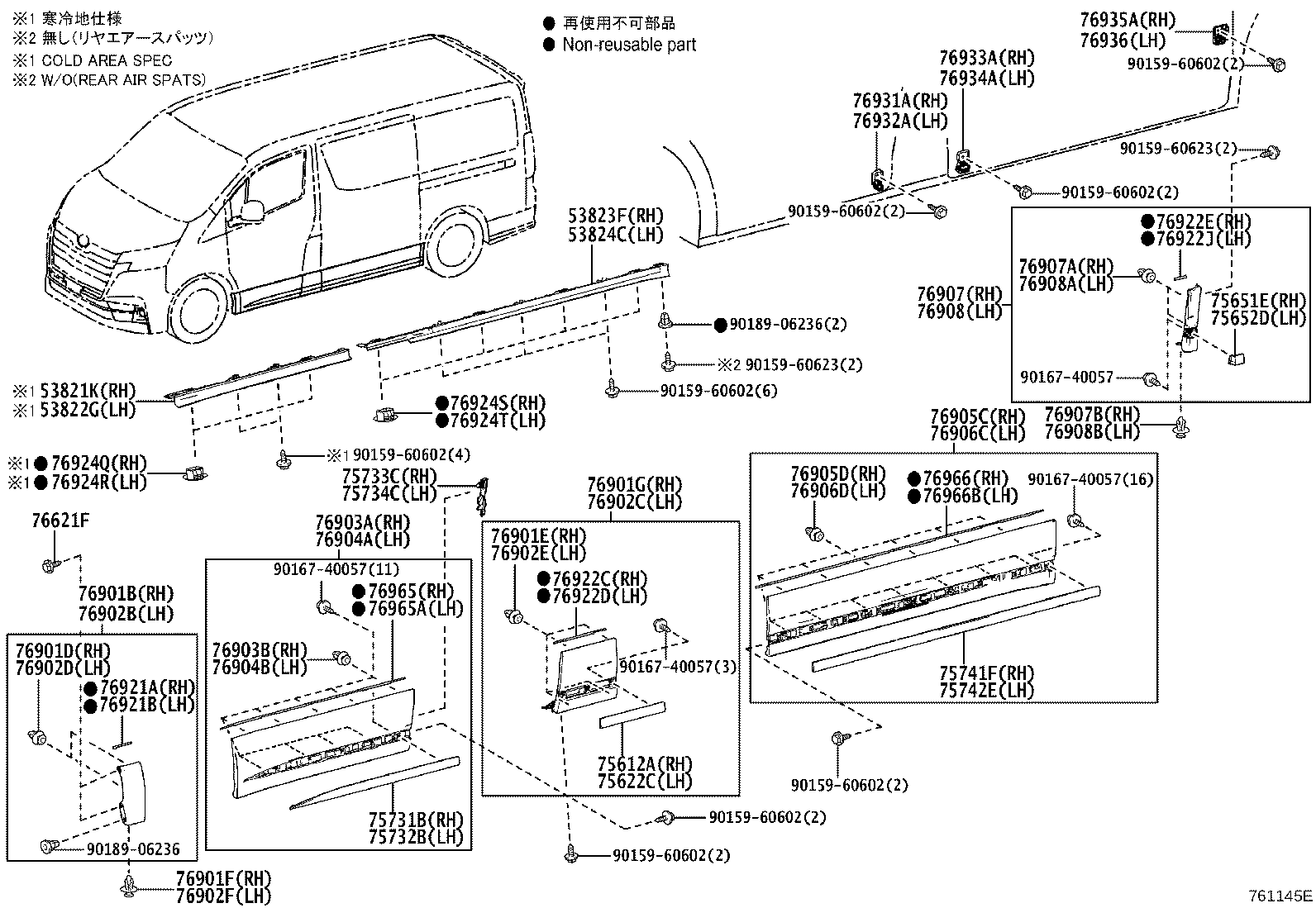

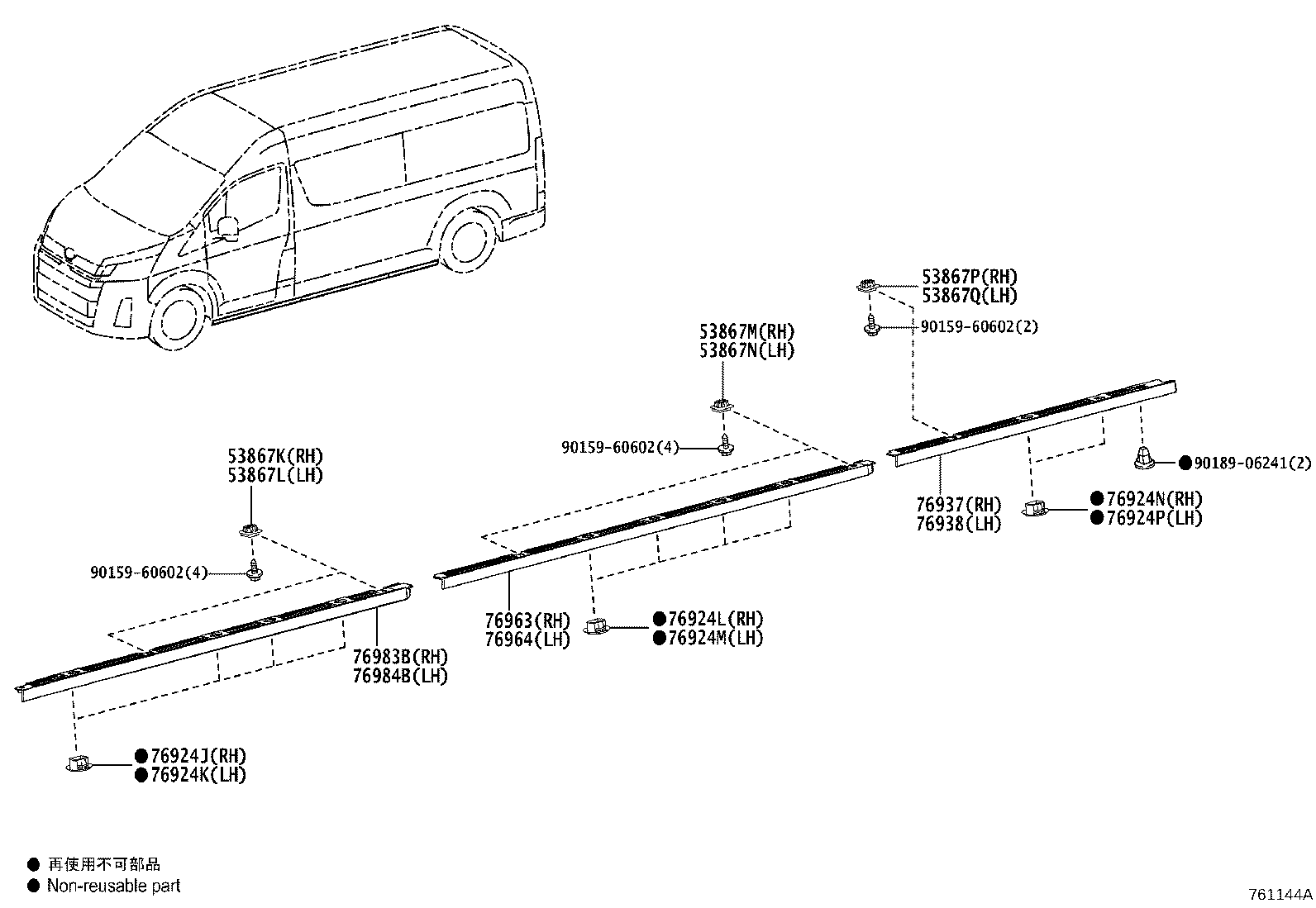

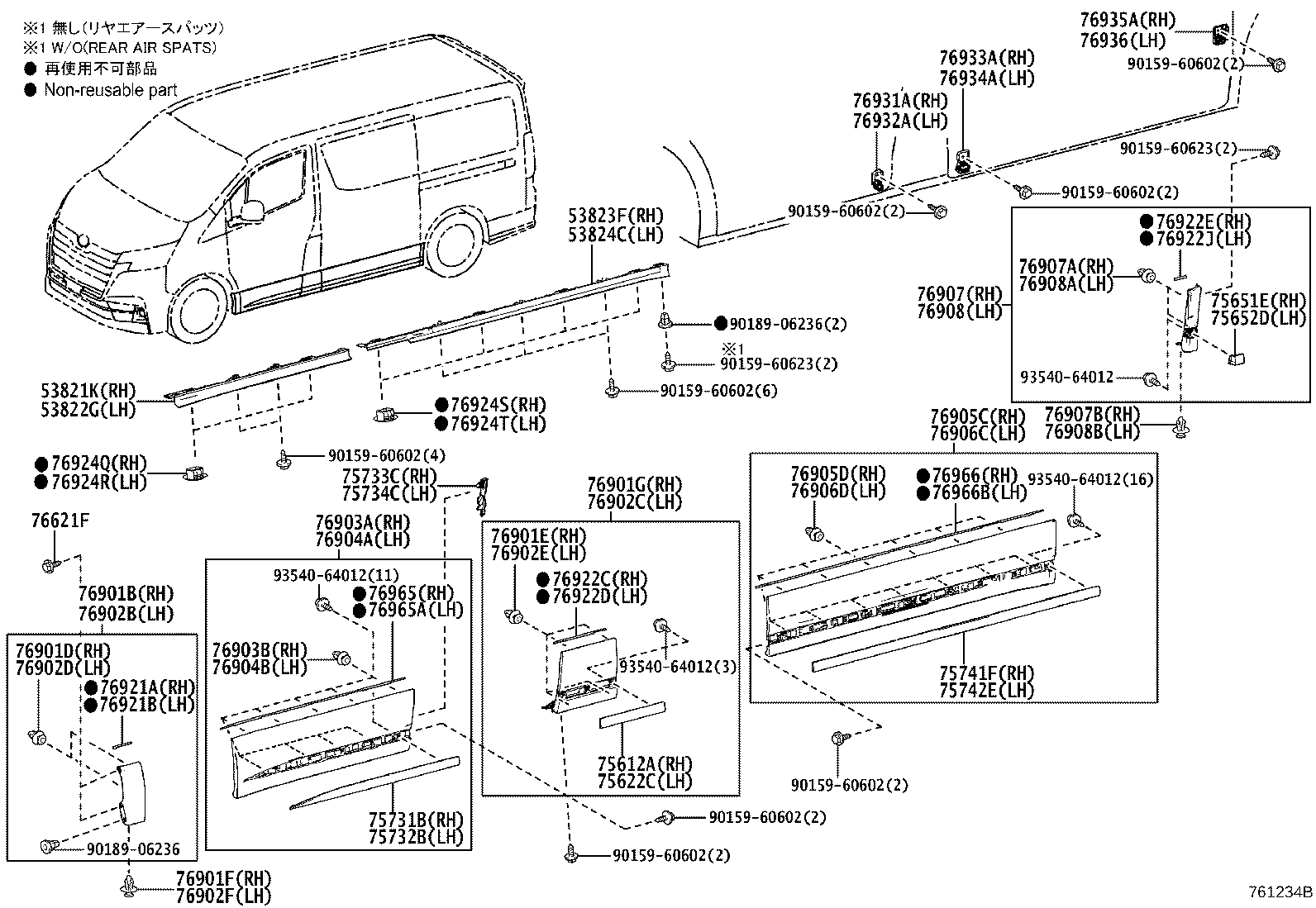

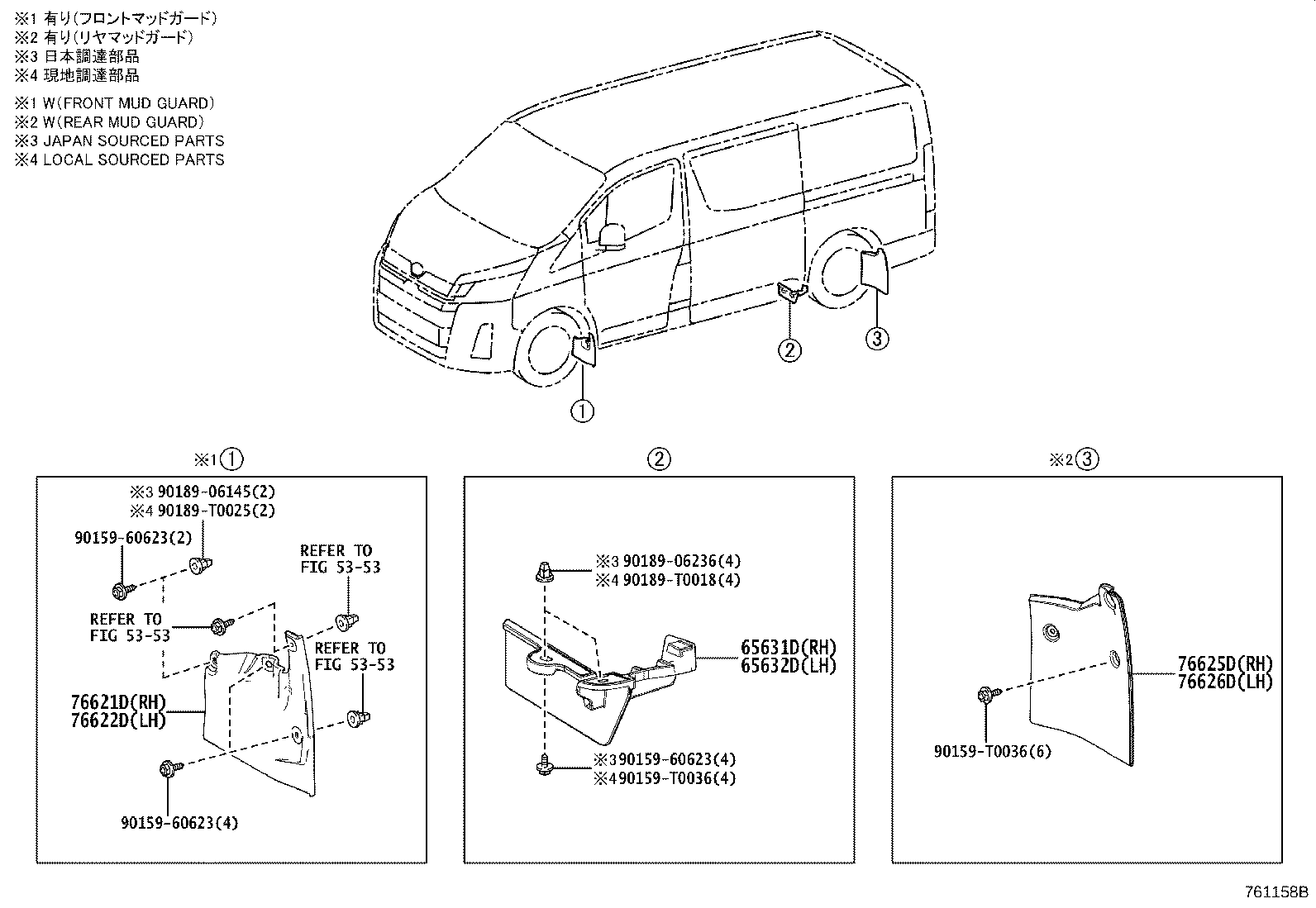

Illustrations

Part groups

PNC	Description
53821K	Protector, Front Side Panel, NO.1 RH
53822G	Protector, Front Side Panel, NO.1 LH
53823F	Protector, Front Side Panel, NO.2 RH
53824C	Protector, Front Side Panel, NO.2 LH
53867K	Retainer, Front Door Side Mudguard
53867L	Retainer, Front Door Side Mudguard
53867M	Retainer, Slide Door Mudguard
53867N	Retainer, Slide Door Mudguard
53867P	Retainer, Quarter Panel Mudguard
53867Q	Retainer, Quarter Panel Mudguard
65631D	Plate, Rear Wheel House, Front RH
65632D	Plate, Rear Wheel House, Front LH
75612A	Moulding, Side Panel, NO.2 RH
75622C	Moulding, Side Panel, NO.2 LH
75651E	Moulding, Quarter, Outside RH
75652D	Moulding, Quarter, Outside LH
75731B	Moulding, Front Door, Outside RH
75732B	Moulding, Front Door, Outside LH
75733C	Moulding, Front Door, Outside Rear RH
75734C	Moulding, Front Door, Outside Rear LH
75741F	Moulding, Rear Door, Outside RH
75742E	Moulding, Rear Door, Outside LH
76085	Spoiler Sub-assy, Rear
76621D	Mudguard, Front Fender, RH
76621F	Screw, NO.1
76622D	Mudguard, Front Fender, LH
76625D	Mudguard, Quarter Panel, Rear RH
76626D	Mudguard, Quarter Panel, Rear LH
76866	Retainer, Rear Spoiler, NO.2
76871	Spoiler, Rear
76874C	Protector, Rear Spoiler, NO.3
76876B	Insert, Rear Spoiler
76889D	Clip, Rear Spoiler, NO.2
76901B	Mudguard Sub-assy, Fender Panel, RH
76901D	Clip, Fender Panel Mudguard
76901E	Clip, Side Mudguard
76901F	Clip, Fender Panel Mudguard
76901G	Mudguard Sub-assy, Side, RH
76902B	Mudguard Sub-assy, Fender Panel, LH
76902C	Mudguard Sub-assy, Side, LH
76902D	Clip, Fender Panel Mudguard
76902E	Clip, Side Mudguard
76902F	Clip, Fender Panel Mudguard
76903A	Mudguard Sub-assy, Front Door, RH
76903B	Clip, Front Door Mudguard
76904A	Mudguard Sub-assy, Front Door, LH
76904B	Clip, Front Door Mudguard
76905C	Mudguard Sub-assy, Slide Door, RH
76905D	Clip, Slide Door Mudguard
76906C	Mudguard Sub-assy, Slide Door, LH
76906D	Clip, Slide Door Mudguard
76907	Mudguard Sub-assy, Quarter Panel, RH
76907A	Clip, Quarter Panel Mudguard
76907B	Clip, Quarter Panel Mudguard
76908	Mudguard Sub-assy, Quarter Panel, LH
76908A	Clip, Quarter Panel Mudguard
76908B	Clip, Quarter Panel Mudguard
76921A	Protector, Side Mudguard, NO.1
76921B	Protector, Side Mudguard, NO.1
76922C	Protector, Side Mudguard, NO.2
76922D	Protector, Side Mudguard, NO.2
76922E	Protector, Side Mudguard, NO.2
76922J	Protector, Side Mudguard, NO.2
76924J	Retainer, Front Door Side Mudguard
76924K	Retainer, Front Door Side Mudguard
76924L	Retainer, Slide Door Mudguard
76924M	Retainer, Slide Door Mudguard
76924N	Retainer, Quarter Panel Mudguard
76924P	Retainer, Quarter Panel Mudguard
76924Q	Retainer, Front Side Panel Protector
76924R	Retainer, Front Side Panel Protector
76924S	Retainer, Front Side Panel Protector
76924T	Retainer, Front Side Panel Protector
76931A	Bracket, Side Mudguard, NO.1 RH
76932A	Bracket, Side Mudguard, NO.1 LH
76933A	Bracket, Side Mudguard, NO.2 RH
76934A	Bracket, Side Mudguard, NO.2 LH
76935A	Bracket, Side Mudguard, NO.3 RH
76936	Bracket, Side Mudguard, NO.3 LH
76937	Mudguard, Quarter Panel, Rear RH
76938	Mudguard, Quarter Panel, Rear LH
76963	Mudguard, Slide Door, Lower RH
76964	Mudguard, Slide Door, Lower LH
76965	Protector, Front Door Lower Mudguard
76965A	Protector, Front Door Lower Mudguard
76966	Protector, Slide Door Lower Mudguard
76966B	Protector, Slide Door Lower Mudguard
76983B	Mudguard, Front Door Side, RH
76984B	Mudguard, Front Door Side, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
