Toyota Grnva/Hiace/Mjsty
2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General
Supported model
Data version 2024-09
Wiring & Clamp
172 part groups · 44 illustrations
Illustrations
82C772

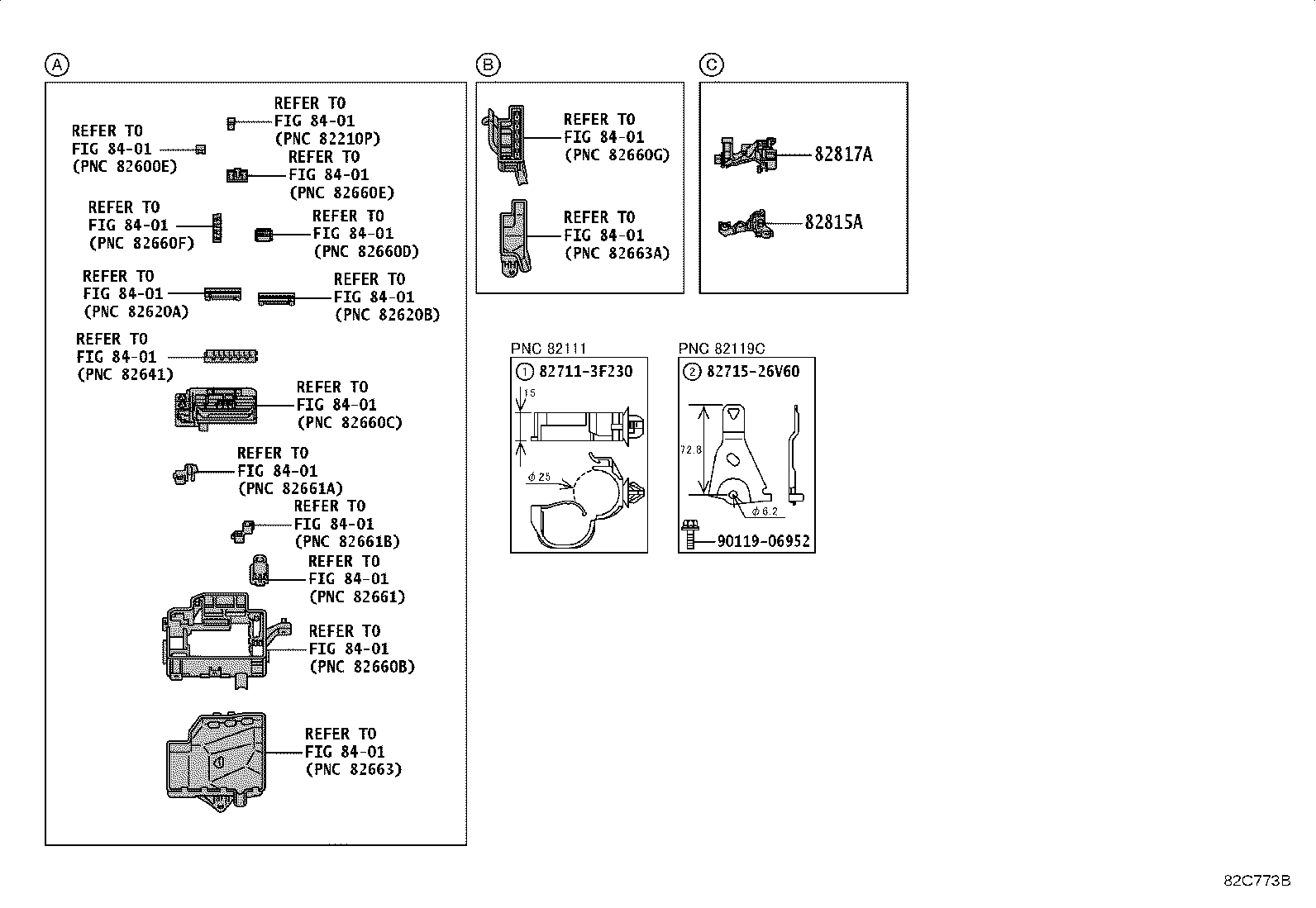

82C773B
82C774A
82C775C

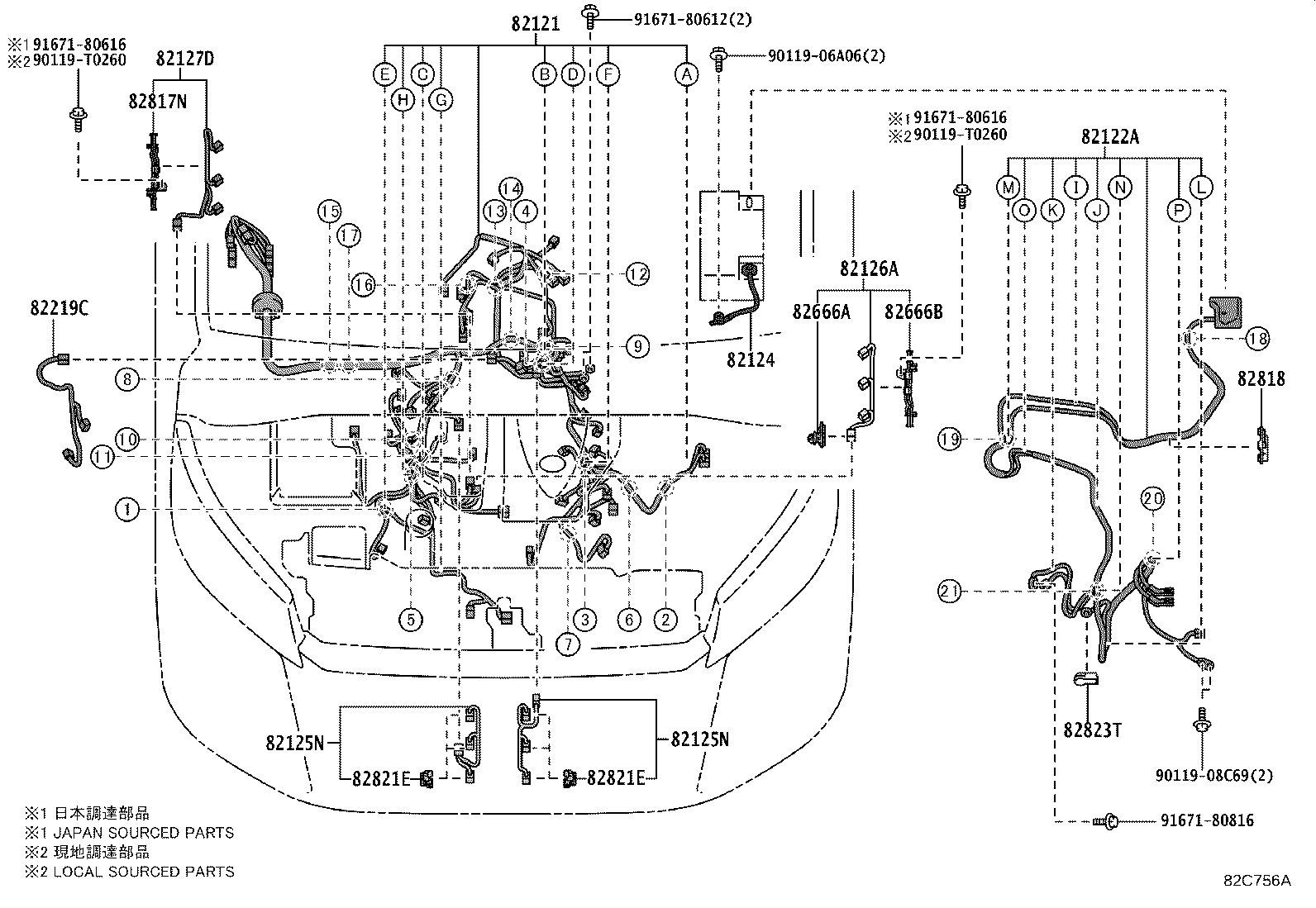

82C756A

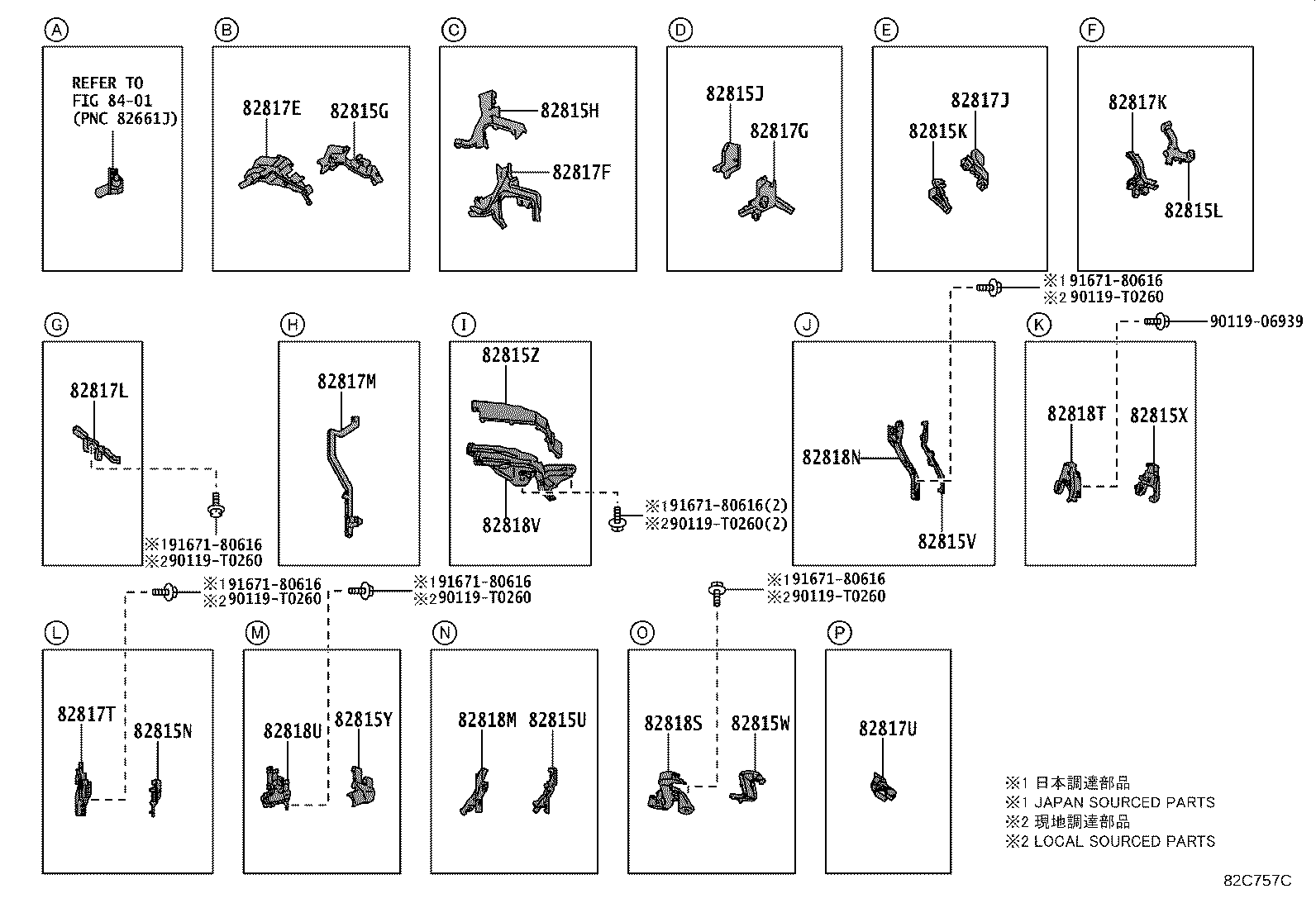

82C757C
82C807A
82C758A

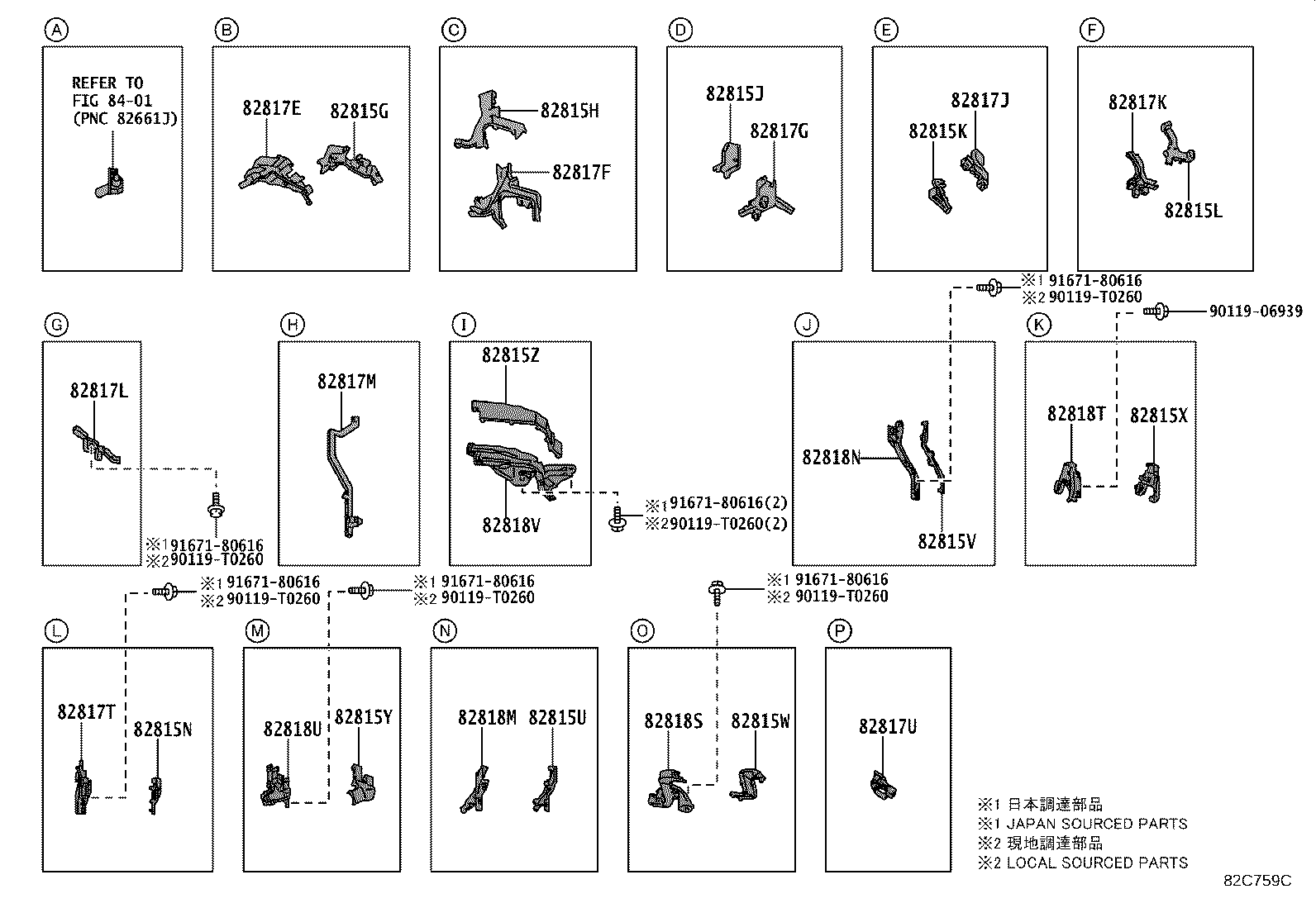

82C759C

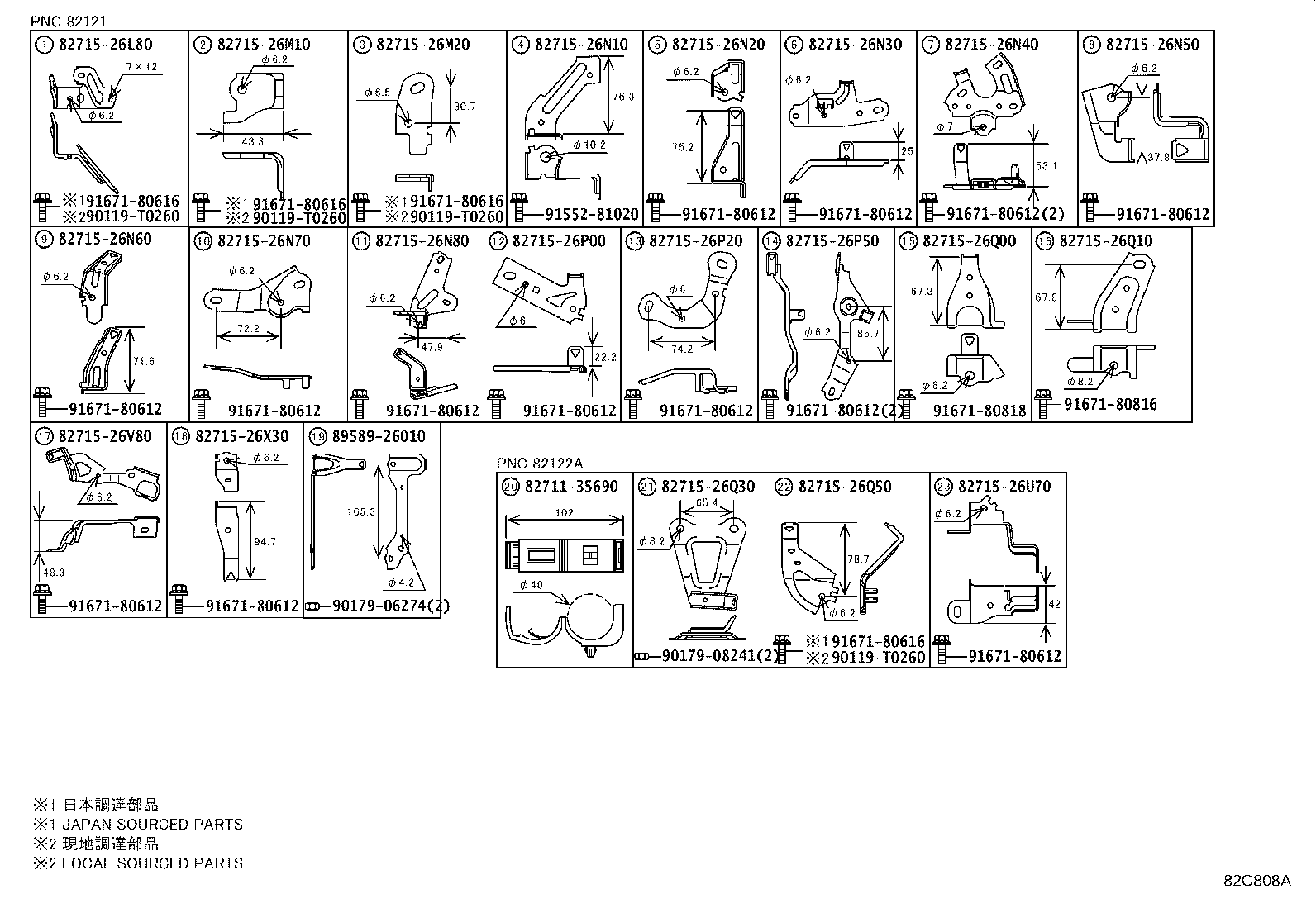

82C808A

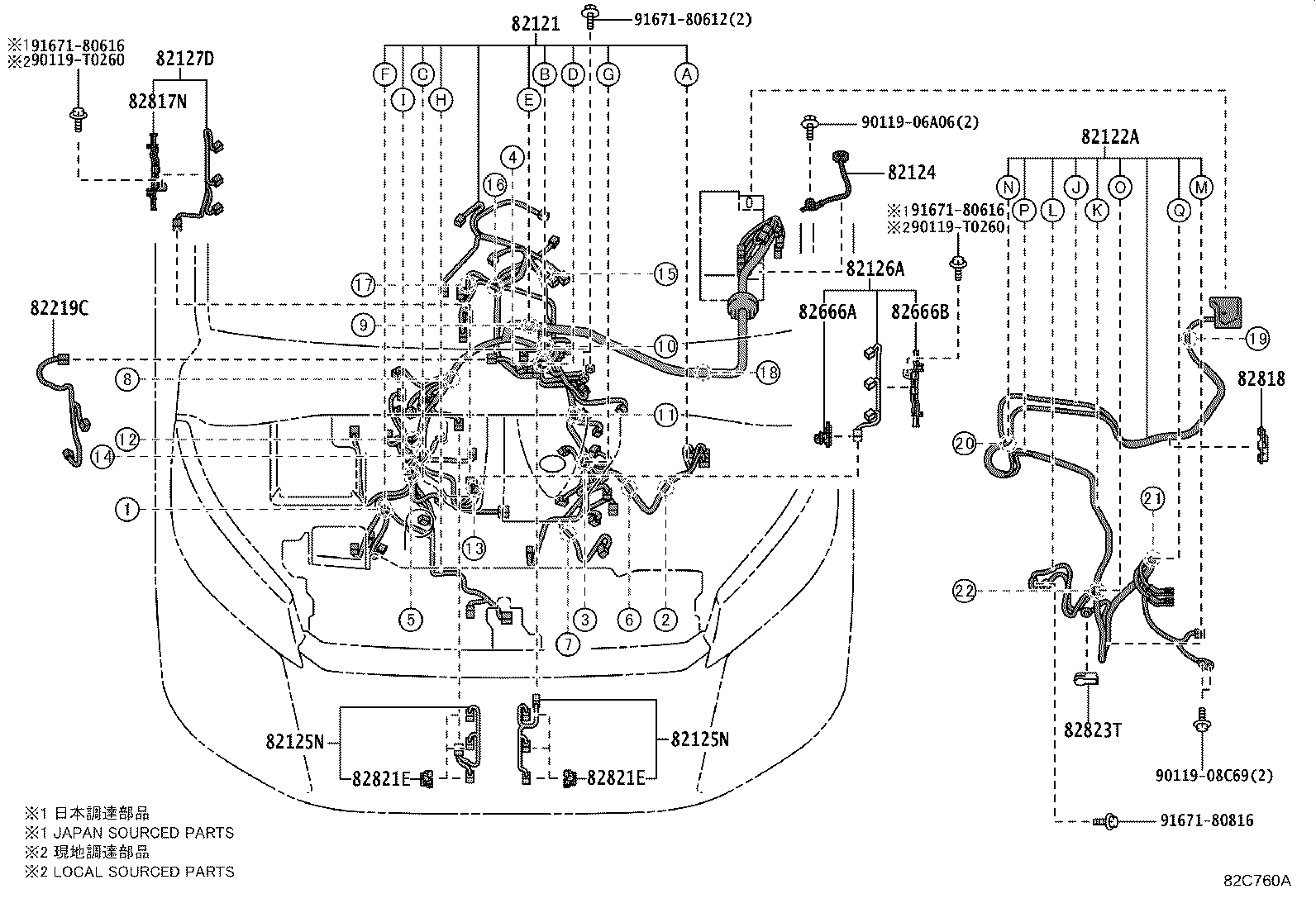

82C760A
82C761C
82C809A
82C762A
82C763C
82C810A

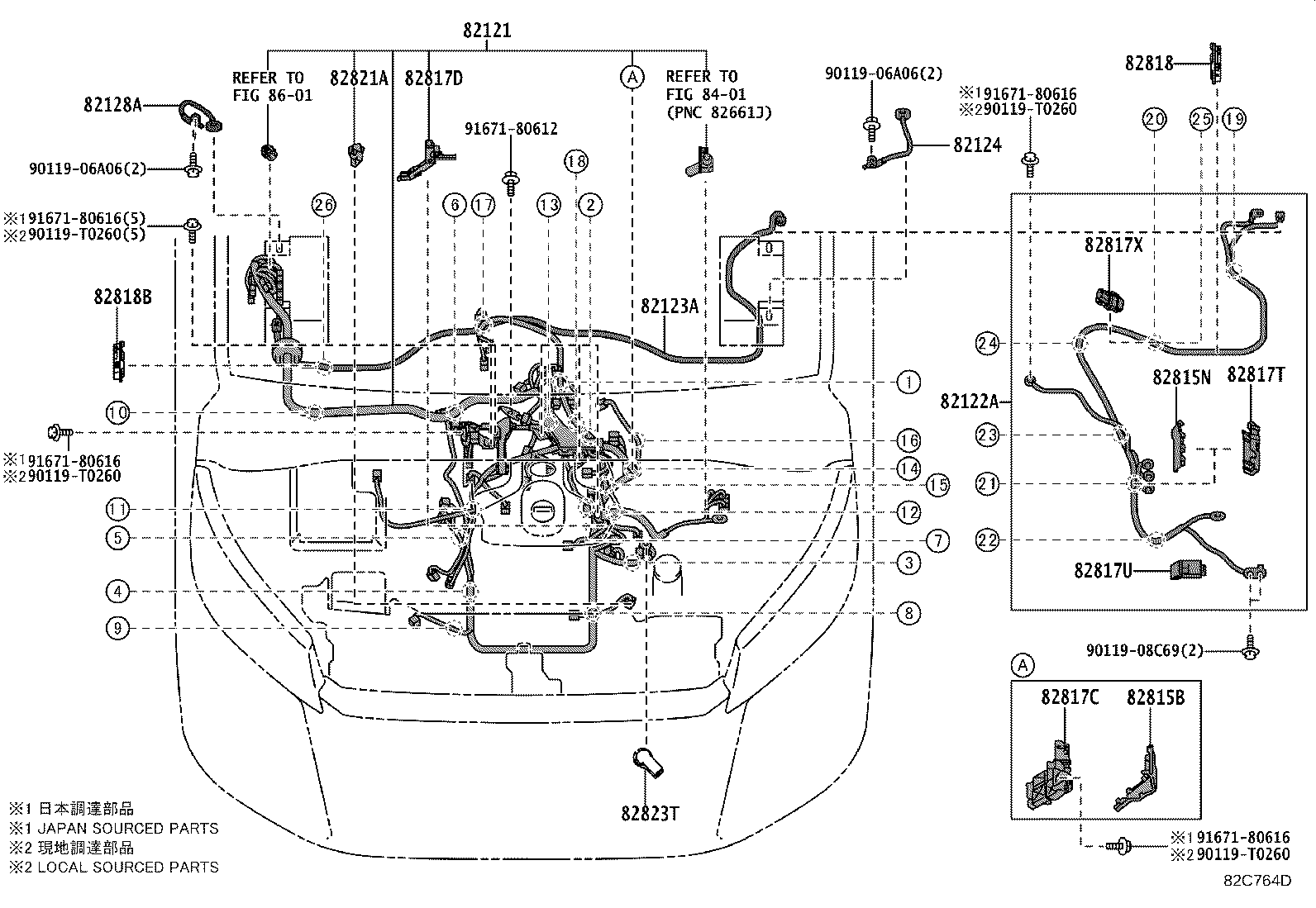

82C764D
82C765A

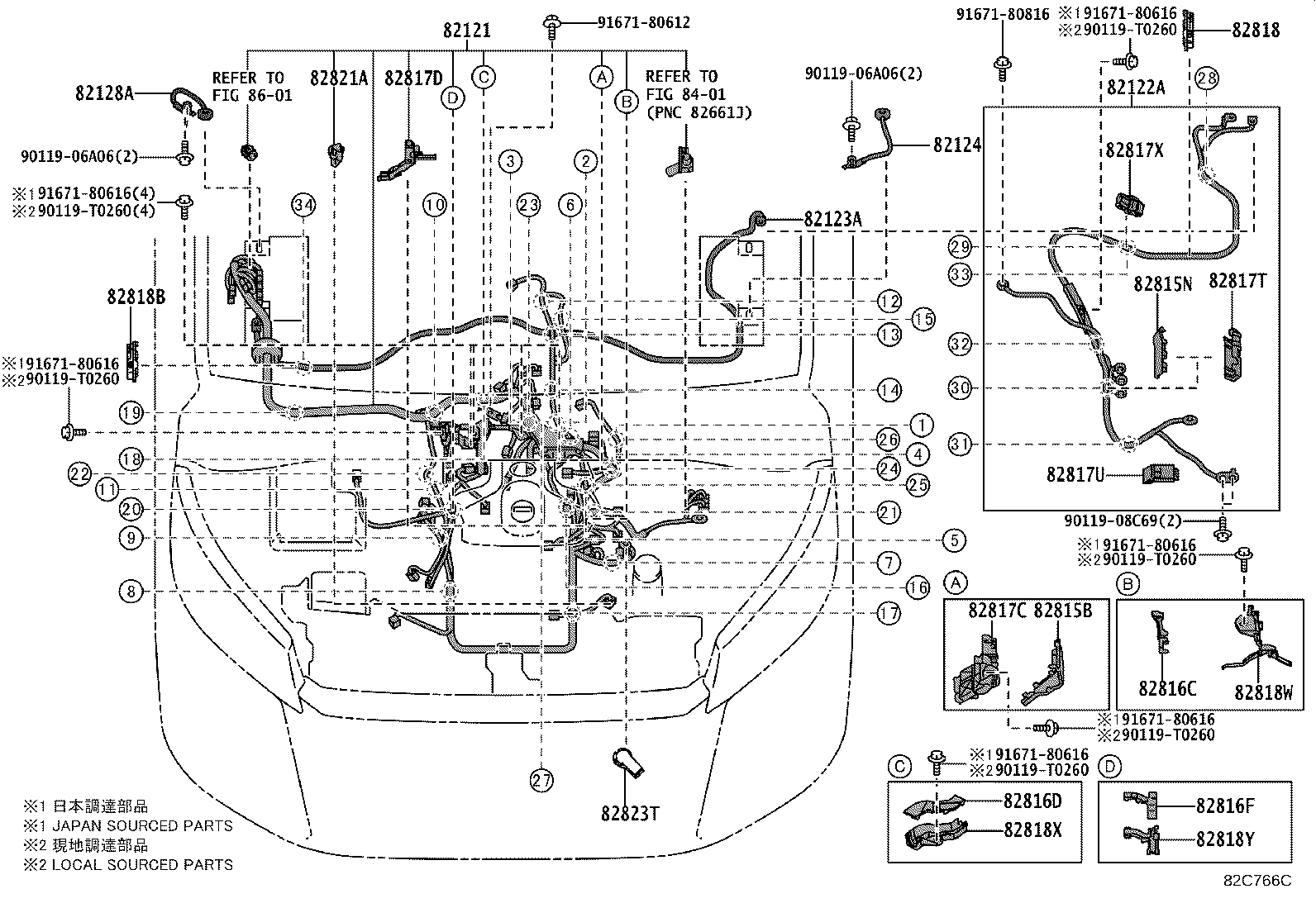

82C766C
82C767B

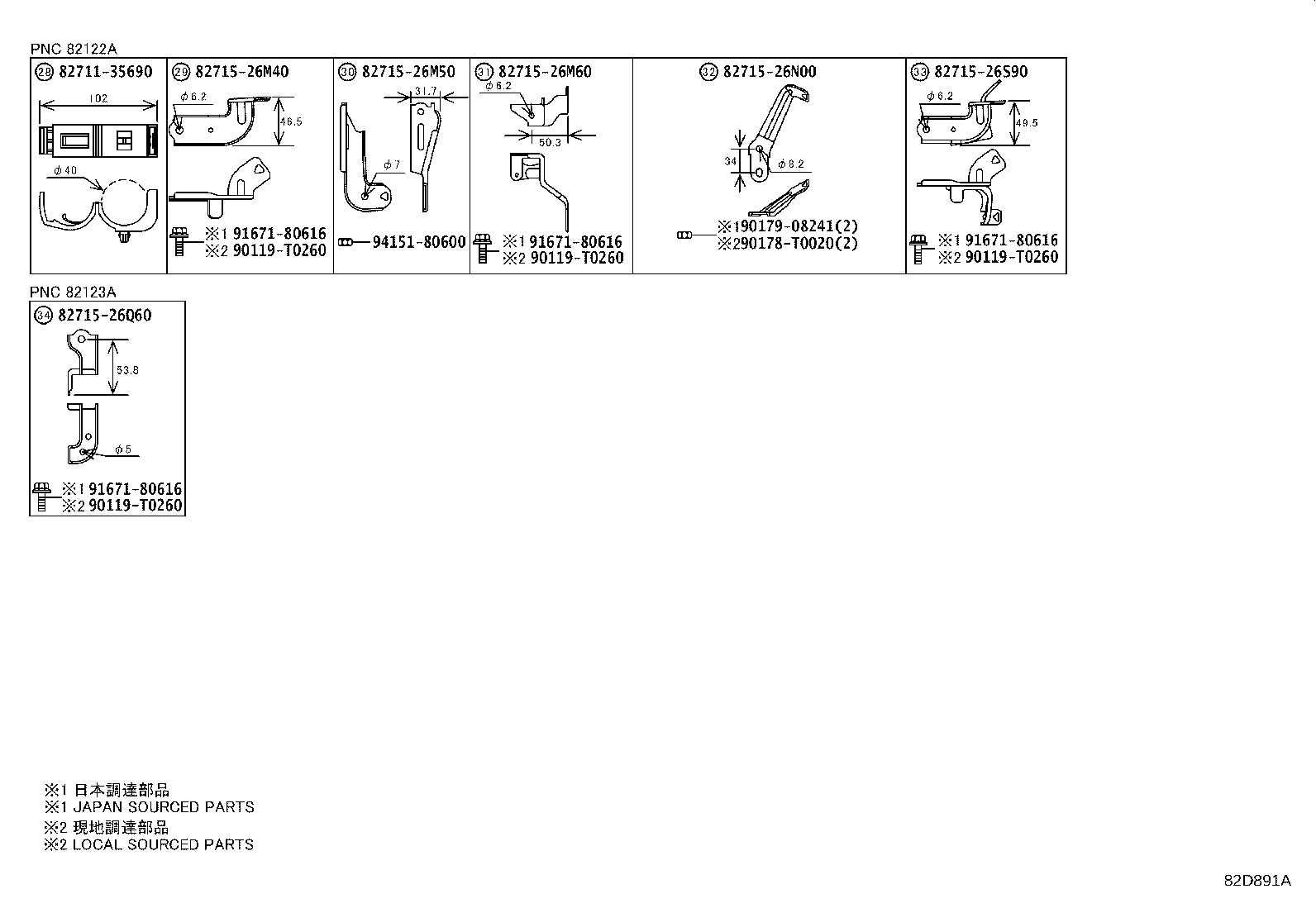

82D891A

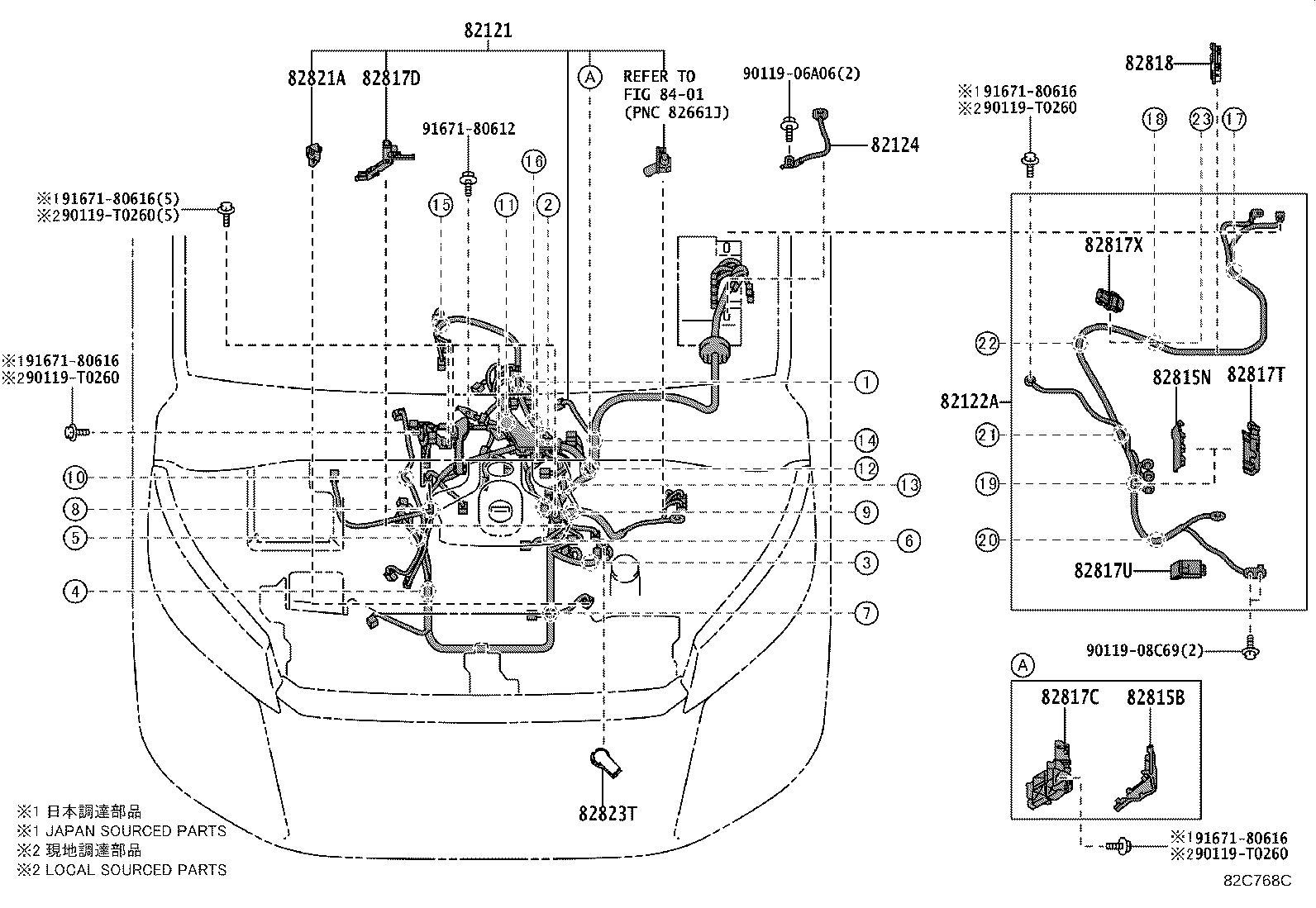

82C768C
82C769C
82C770C

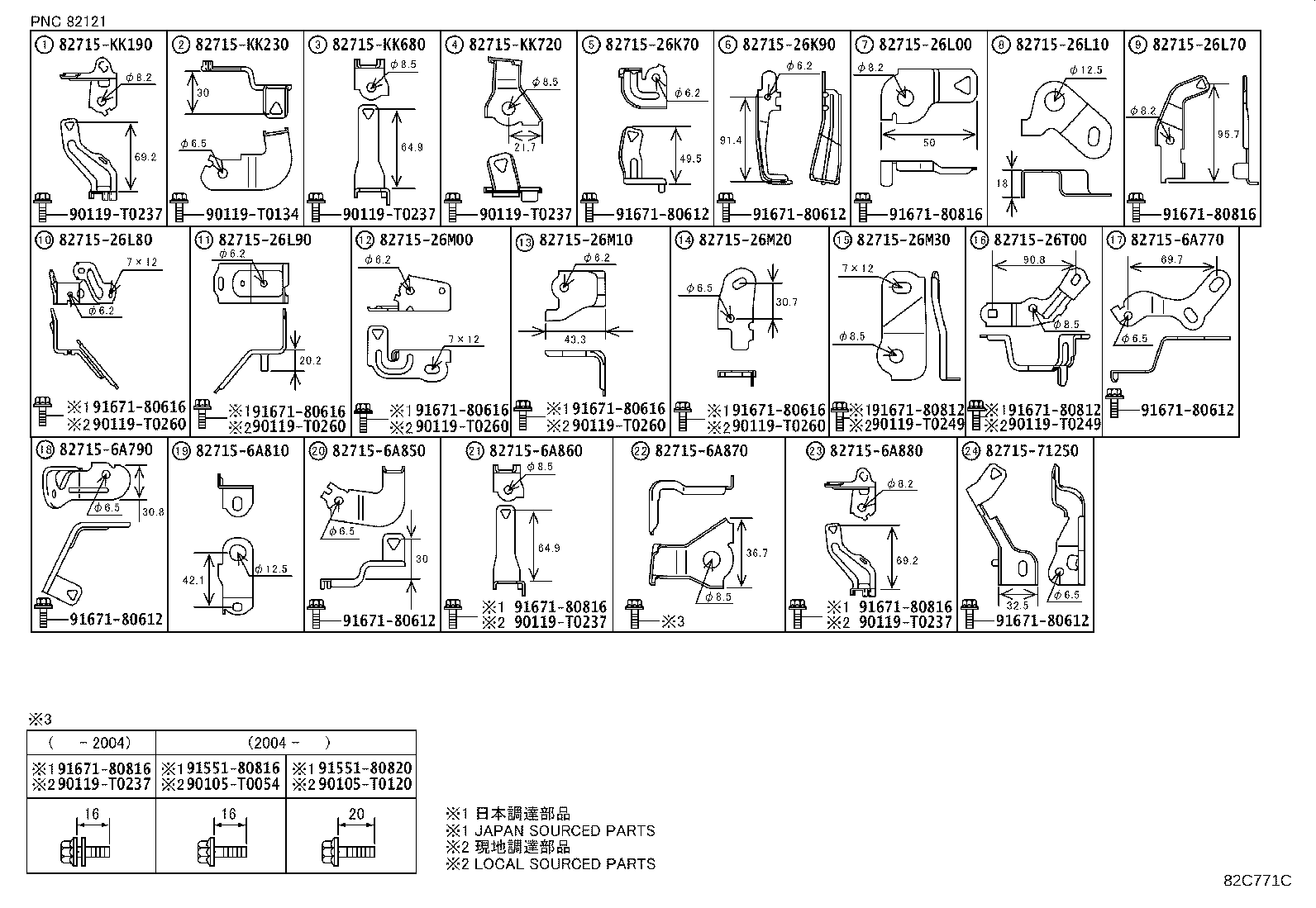

82C771C
82G997
82C776C
82C777B
82C778D
82C779E
82C780D
82C781A

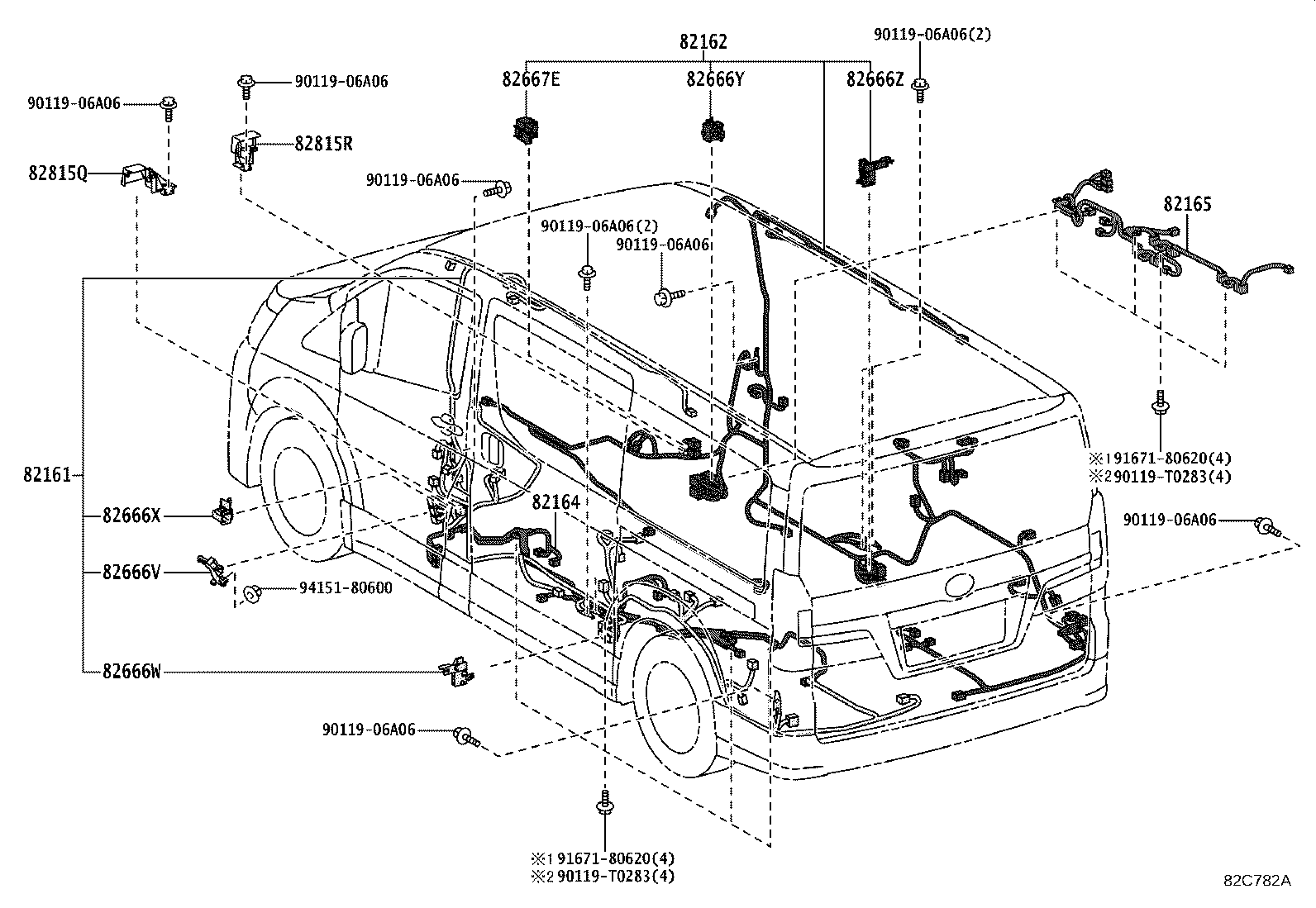

82C782A

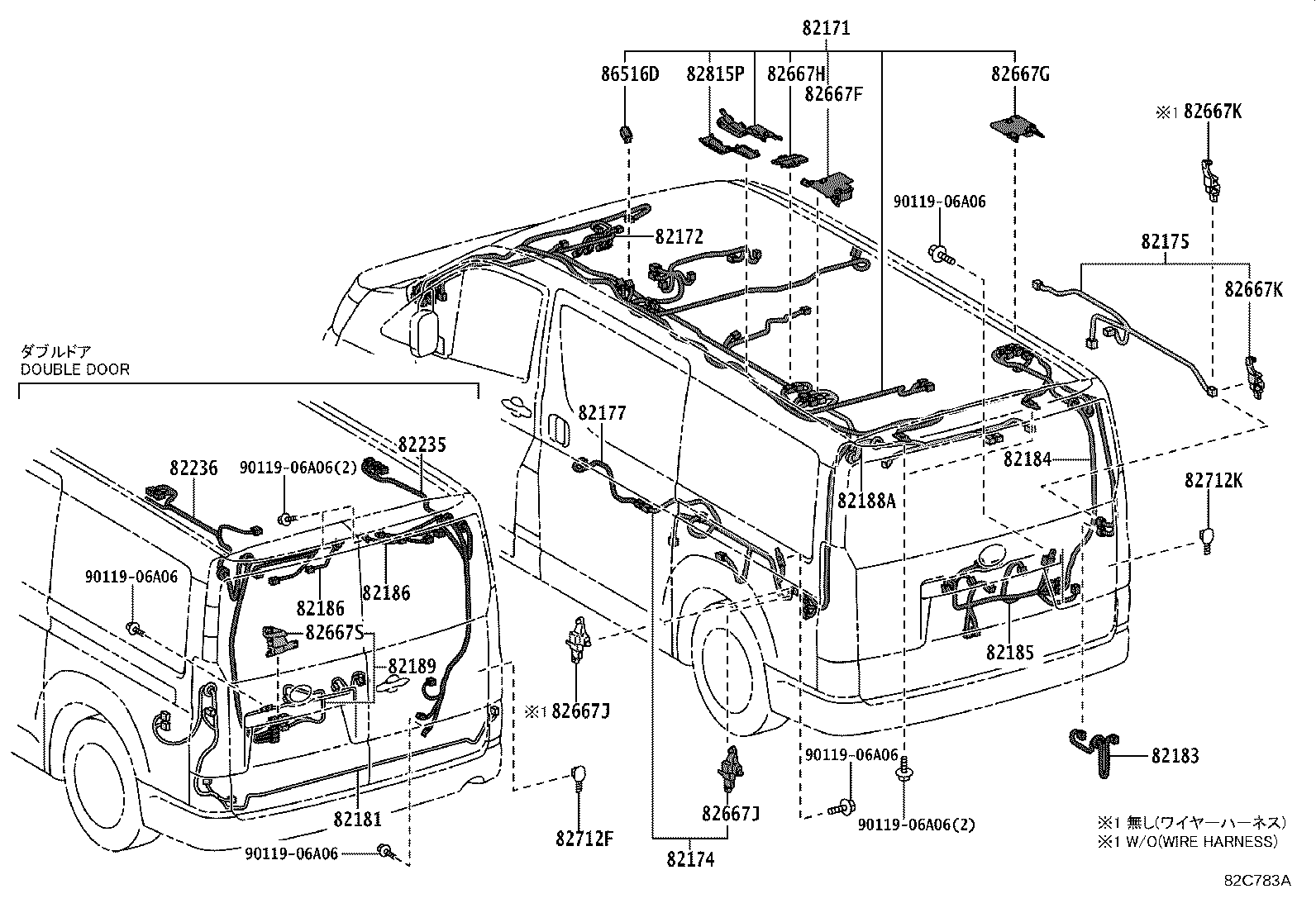

82C783A
82C784D

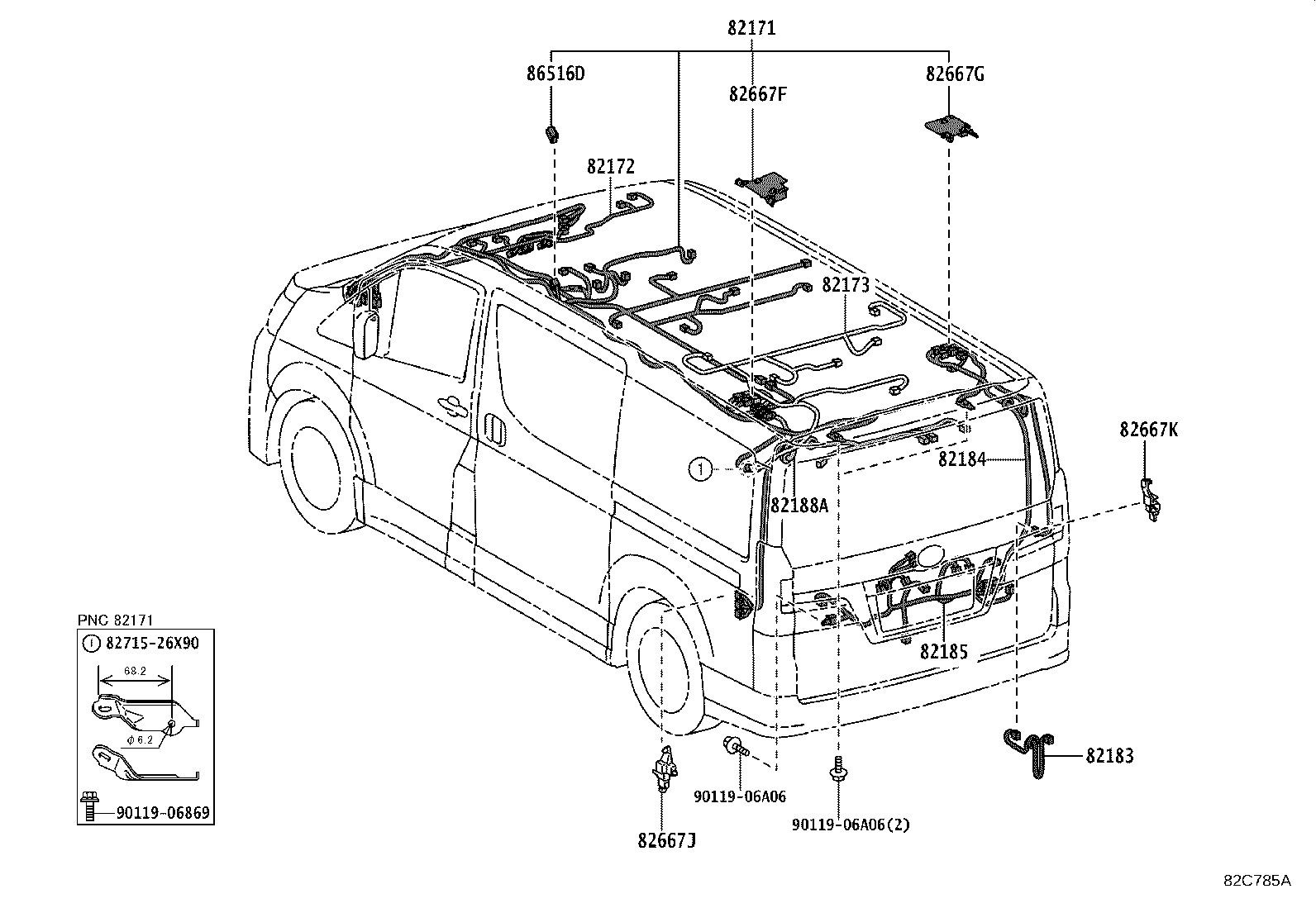

82C785A
82C791B
82C791B
82C791B
82C791B

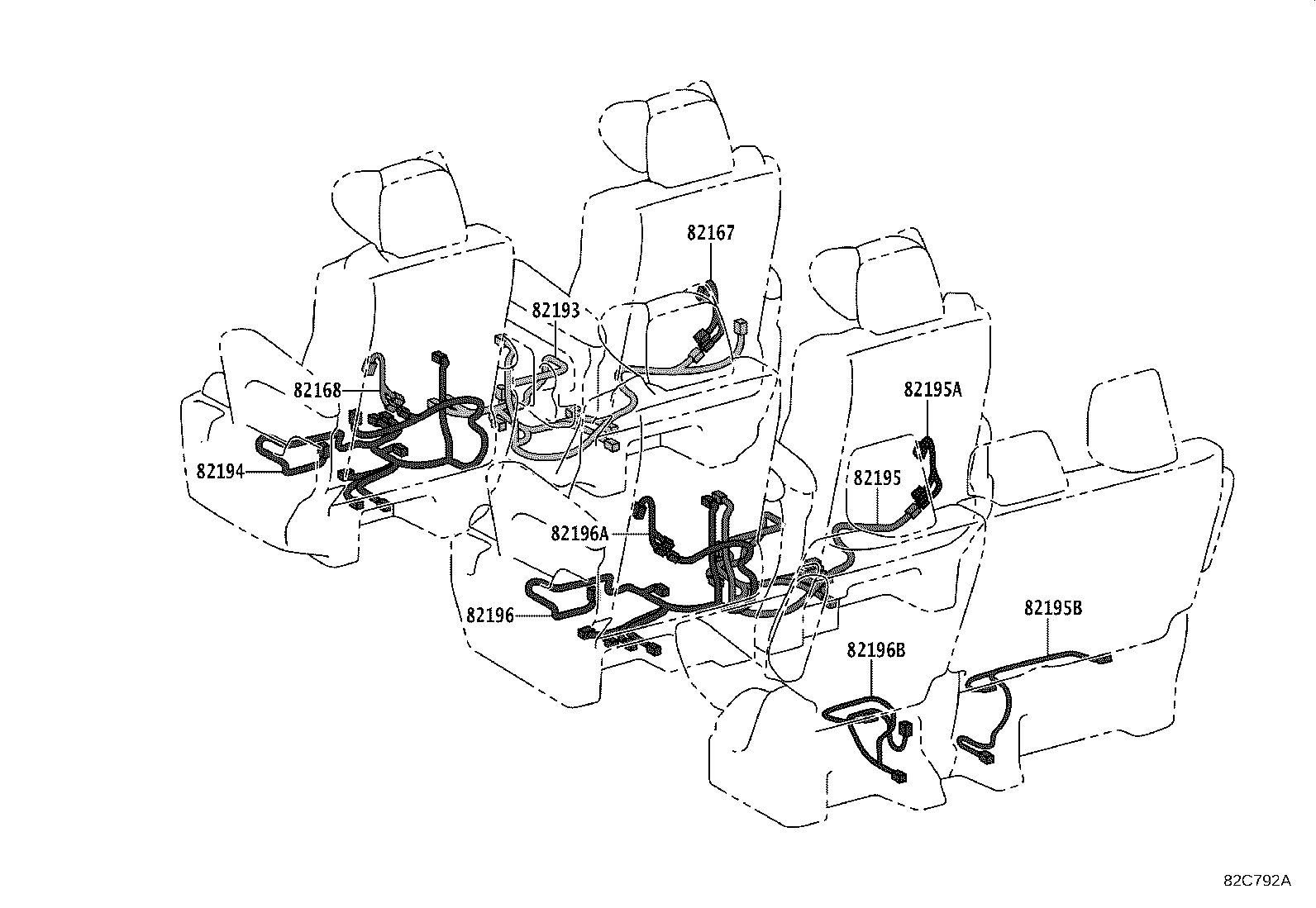

82C792A
82C819E

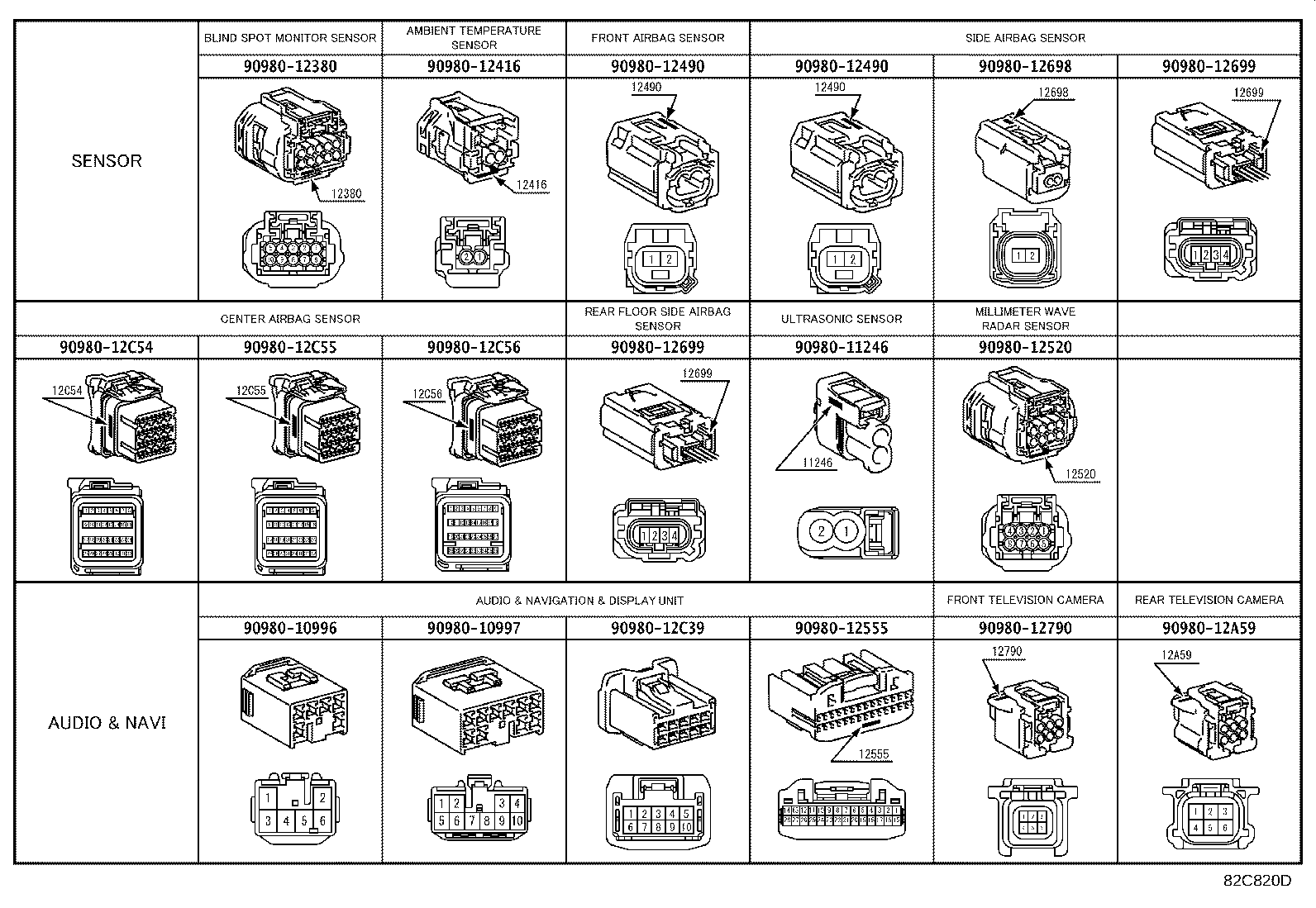

82C820D
82E774
Part groups
| PNC | Description |
|---|---|

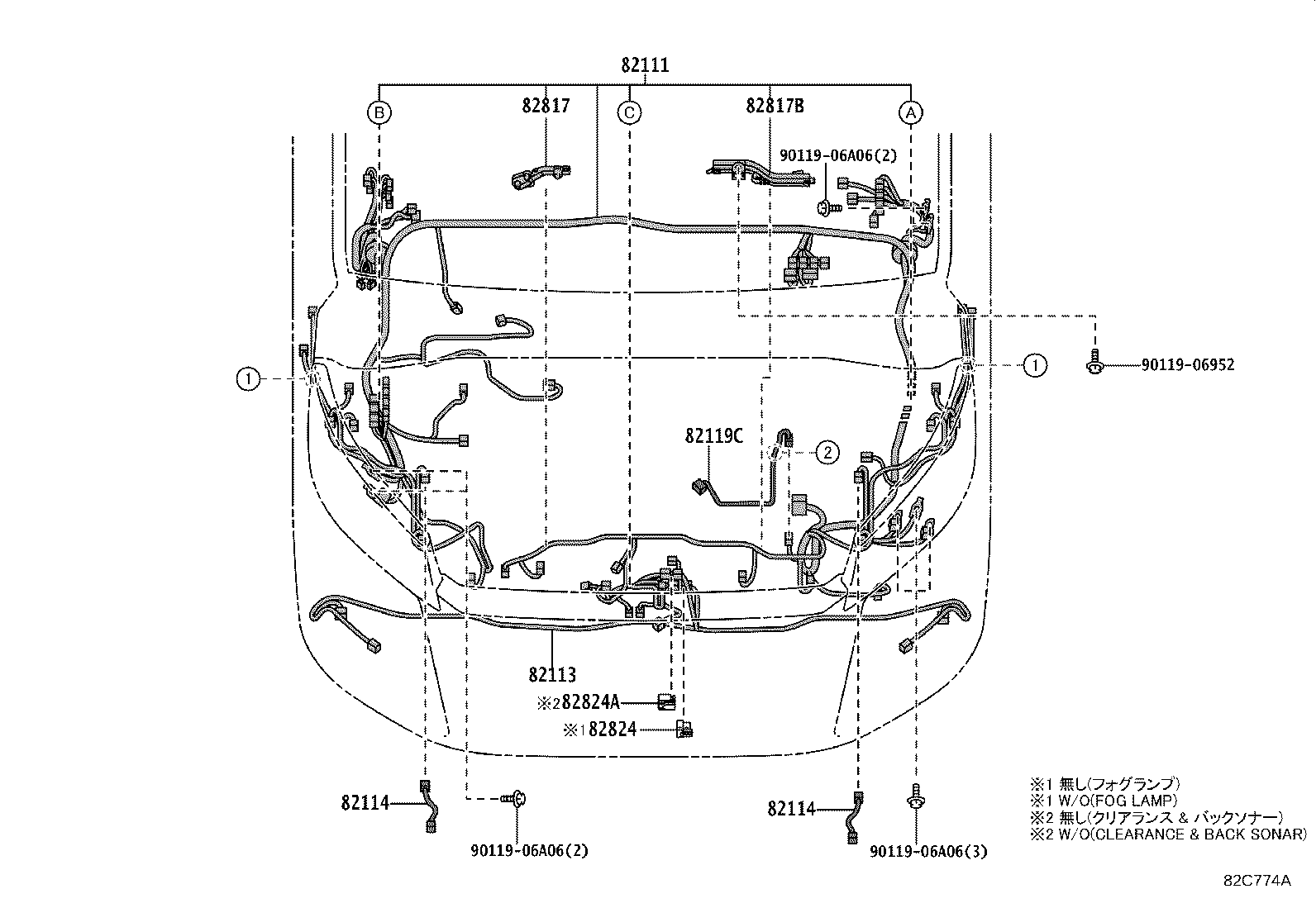

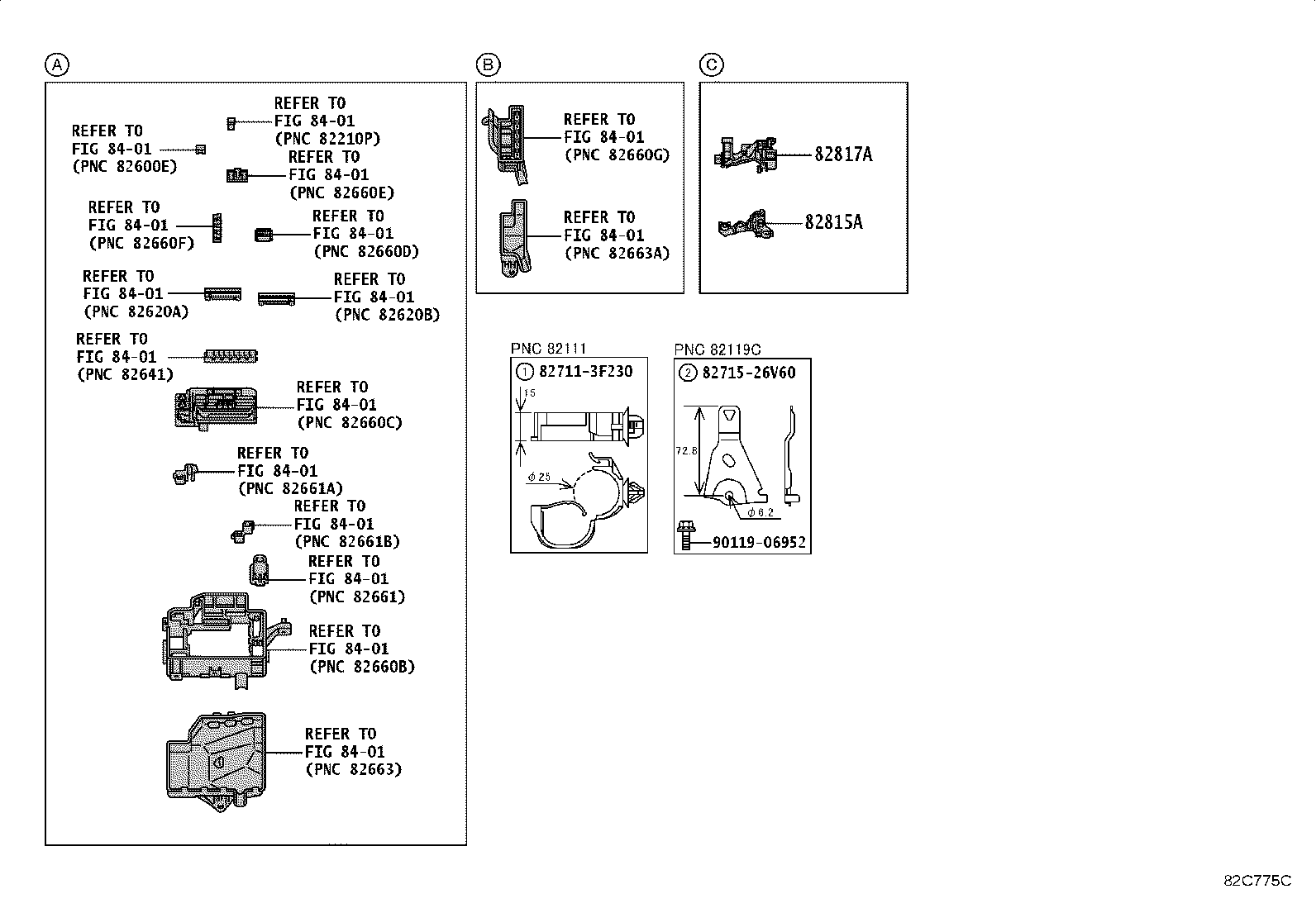

| 82111 | Wire, Engine Room Main |
| 82113 | Wire, Engine Room, NO.3 |
| 82114 | Wire, Engine Room, NO.4 |
| 82119C | Wire, Engine Room, NO.5 |

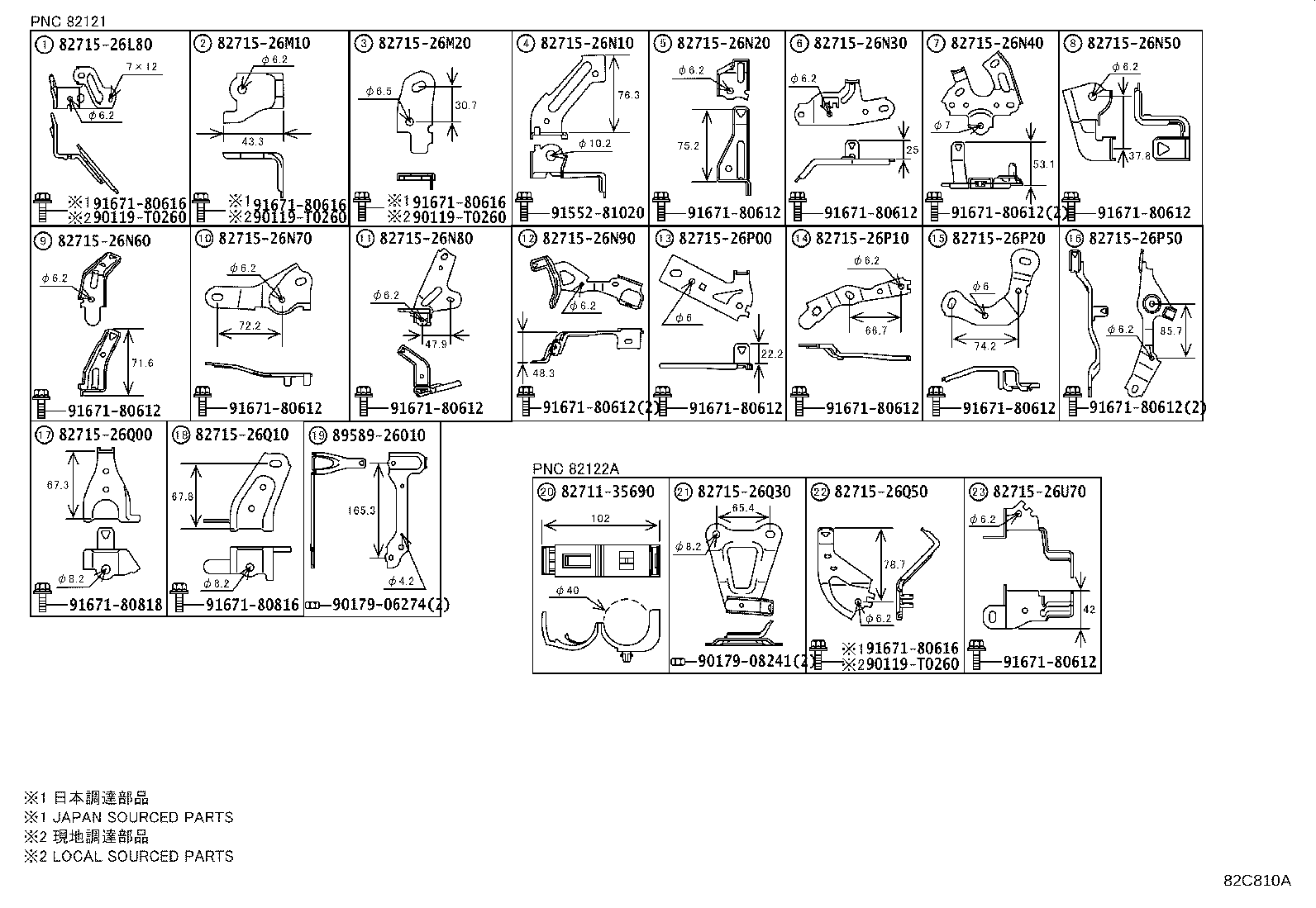

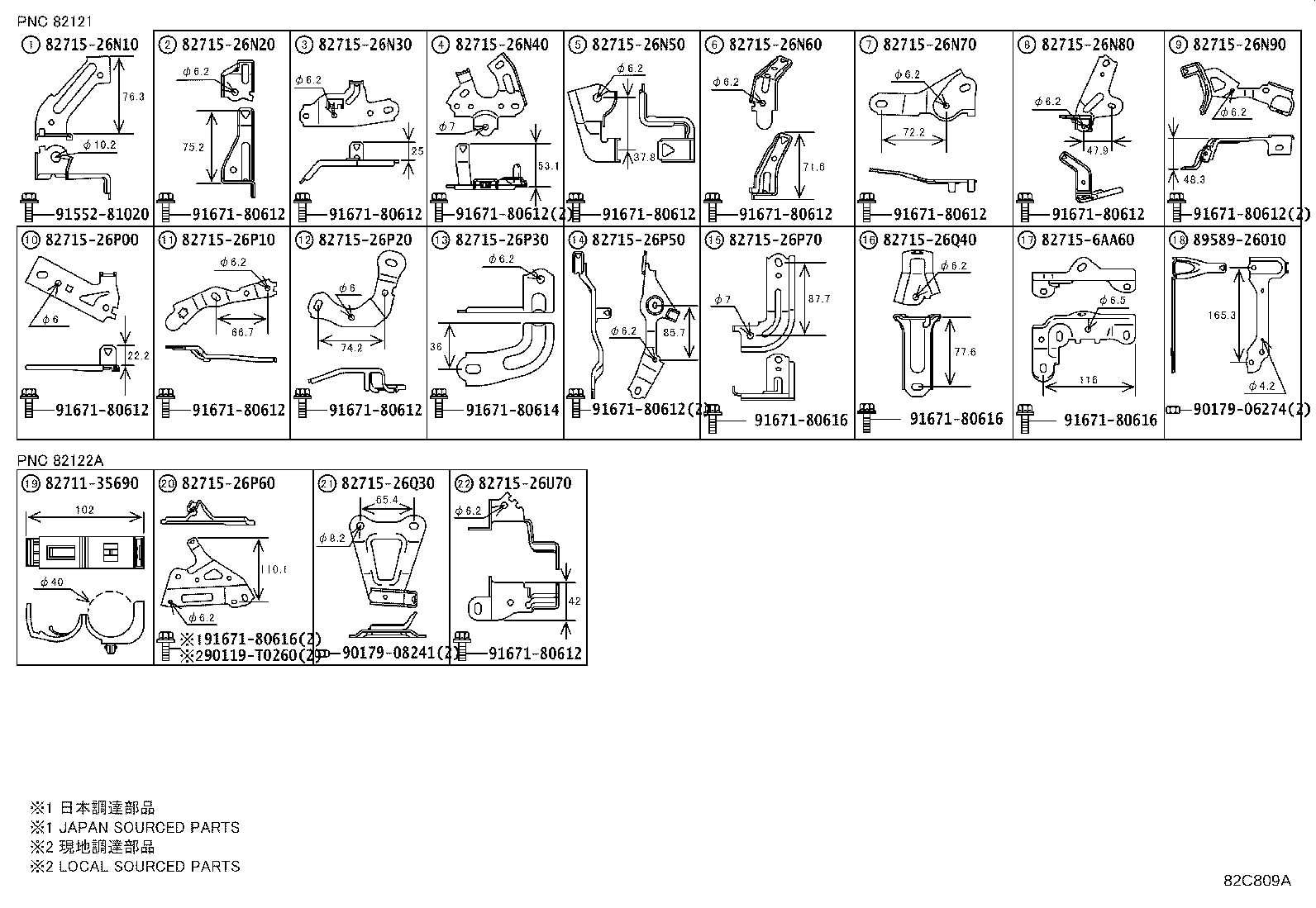

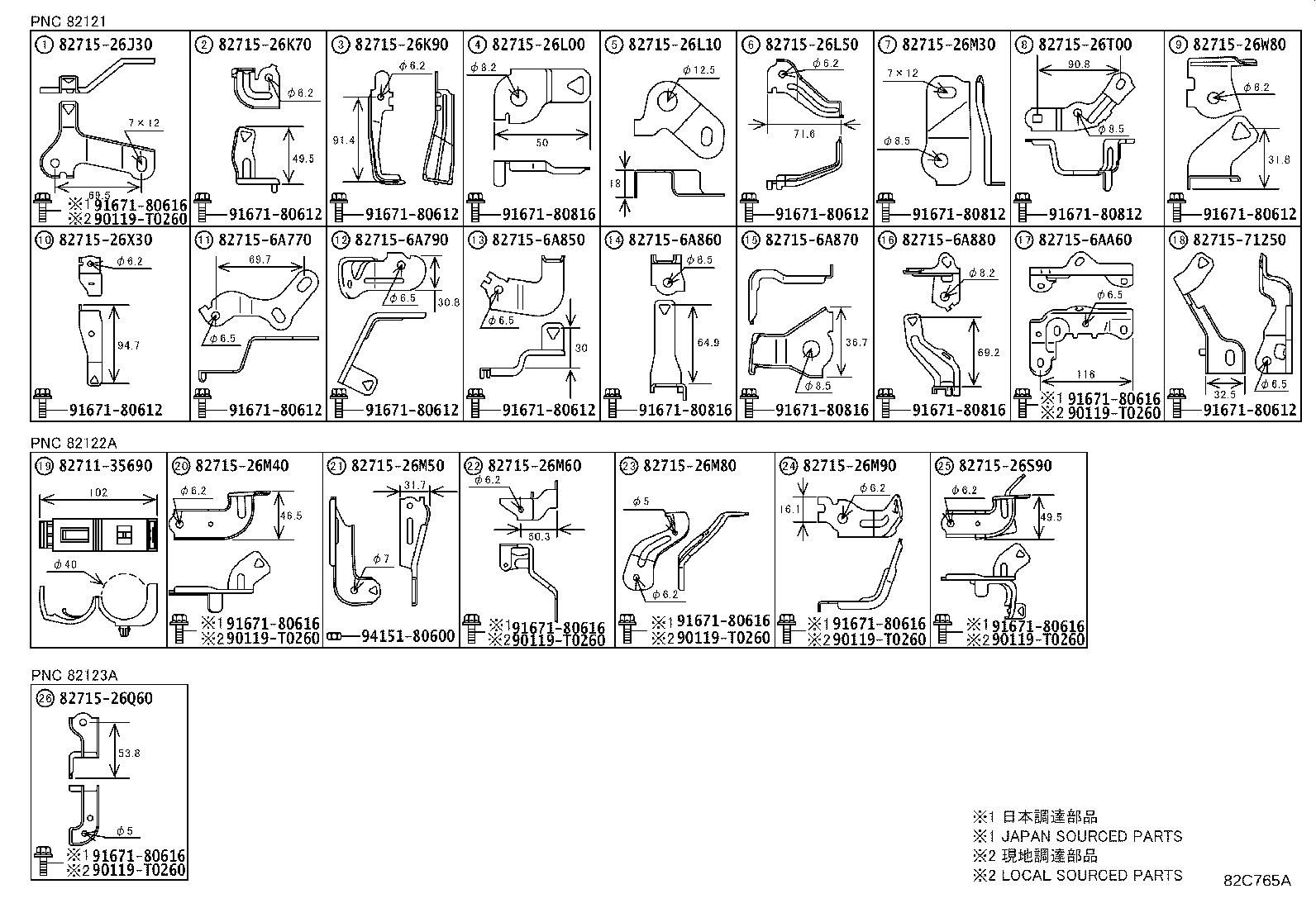

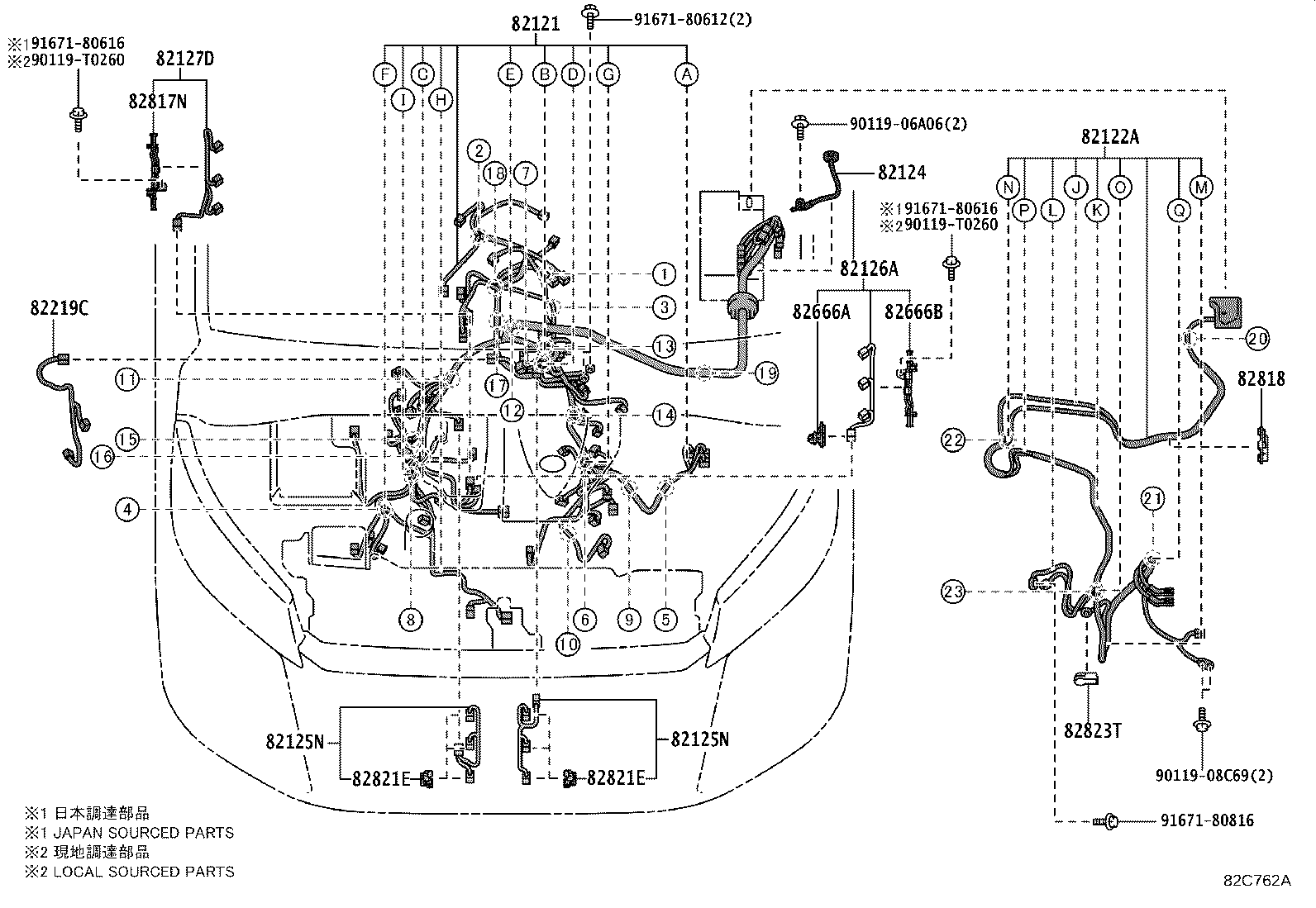

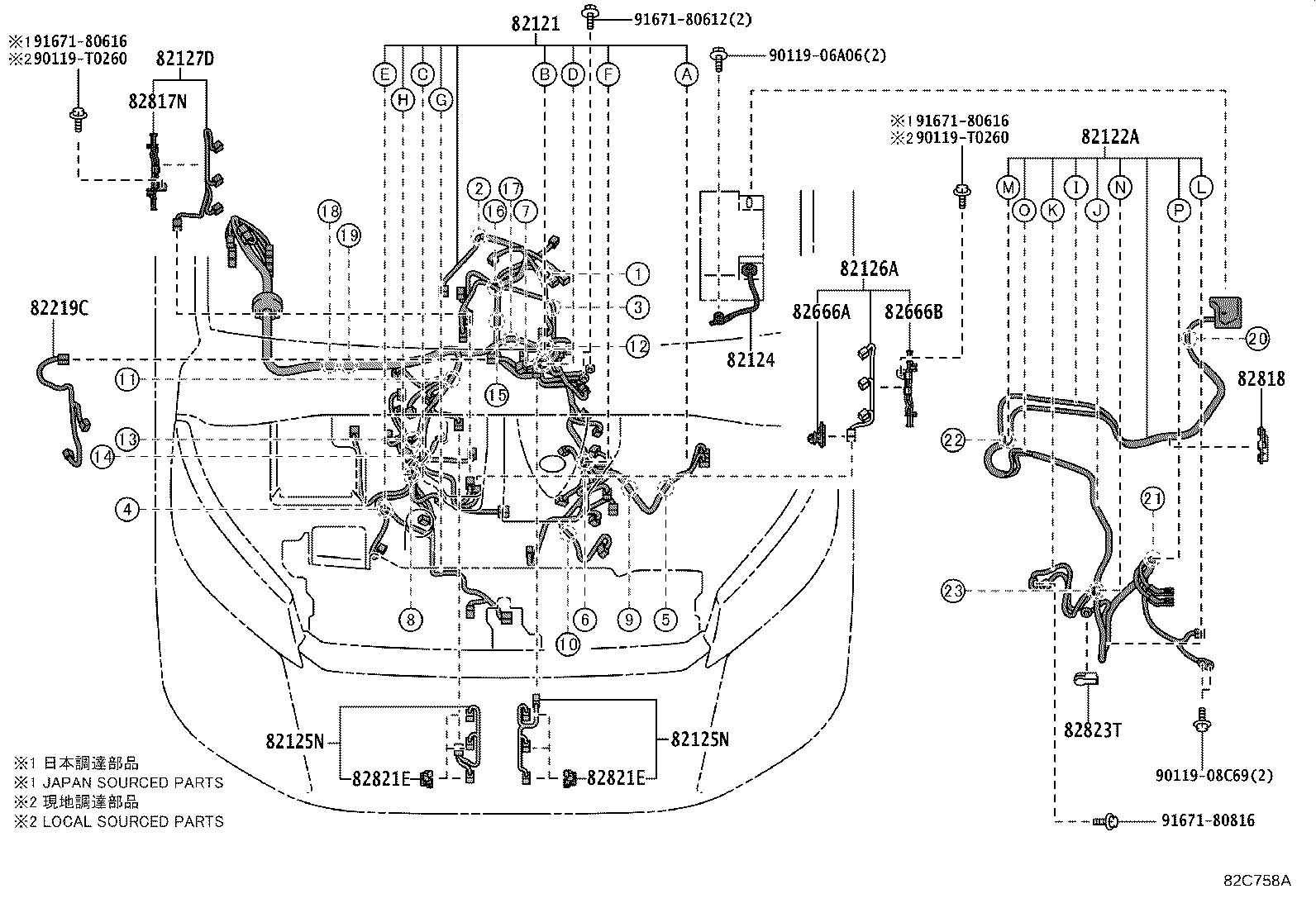

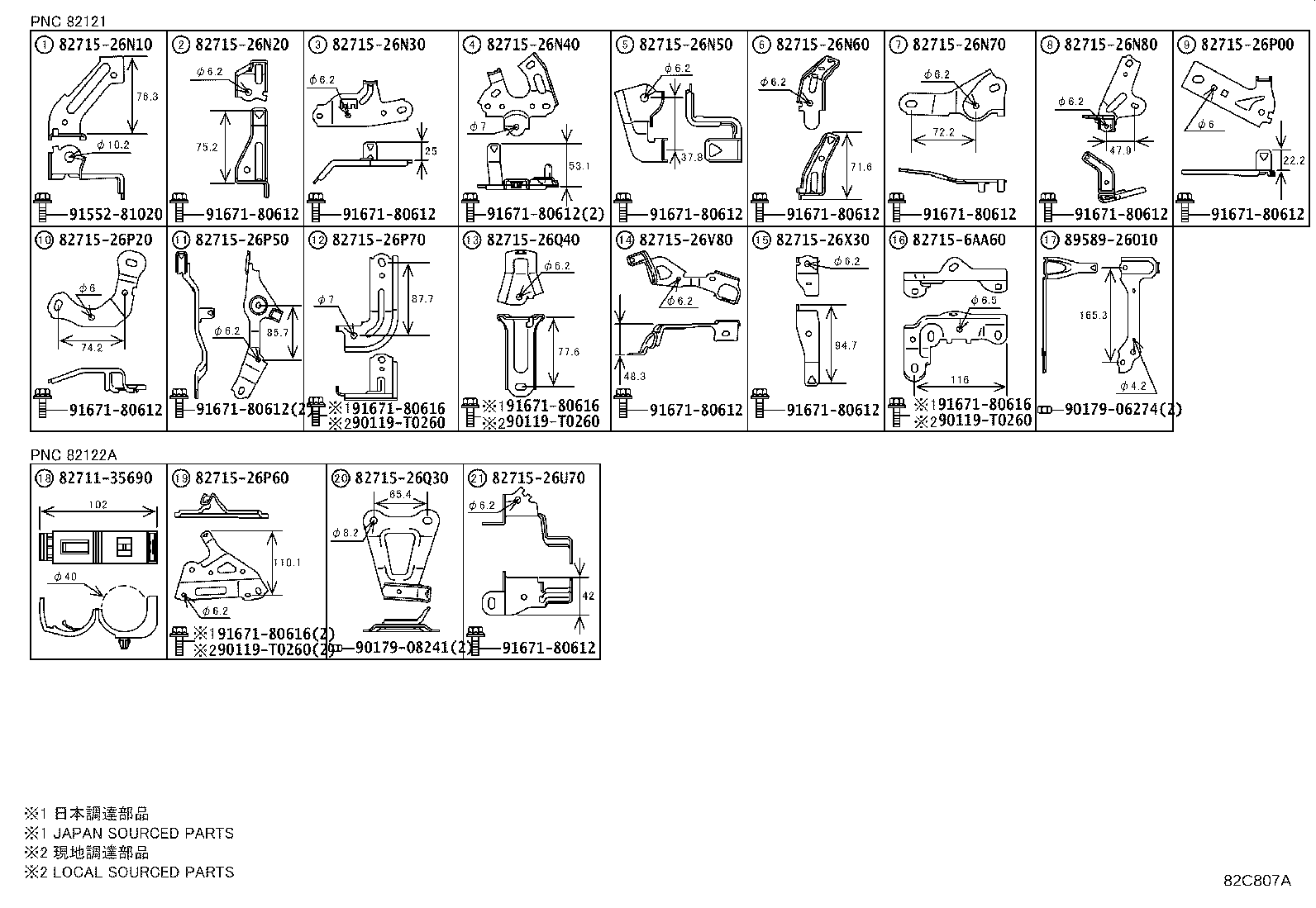

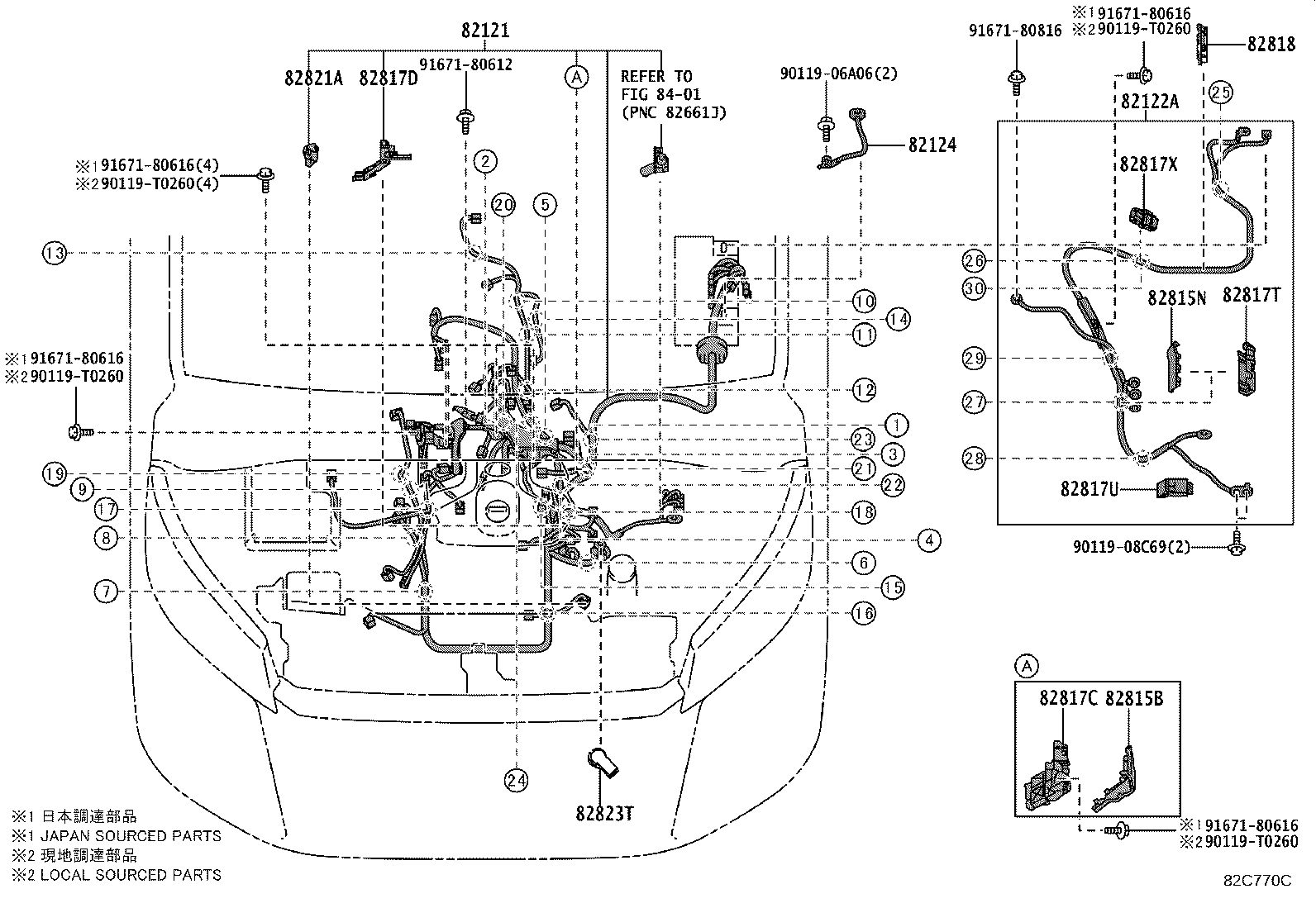

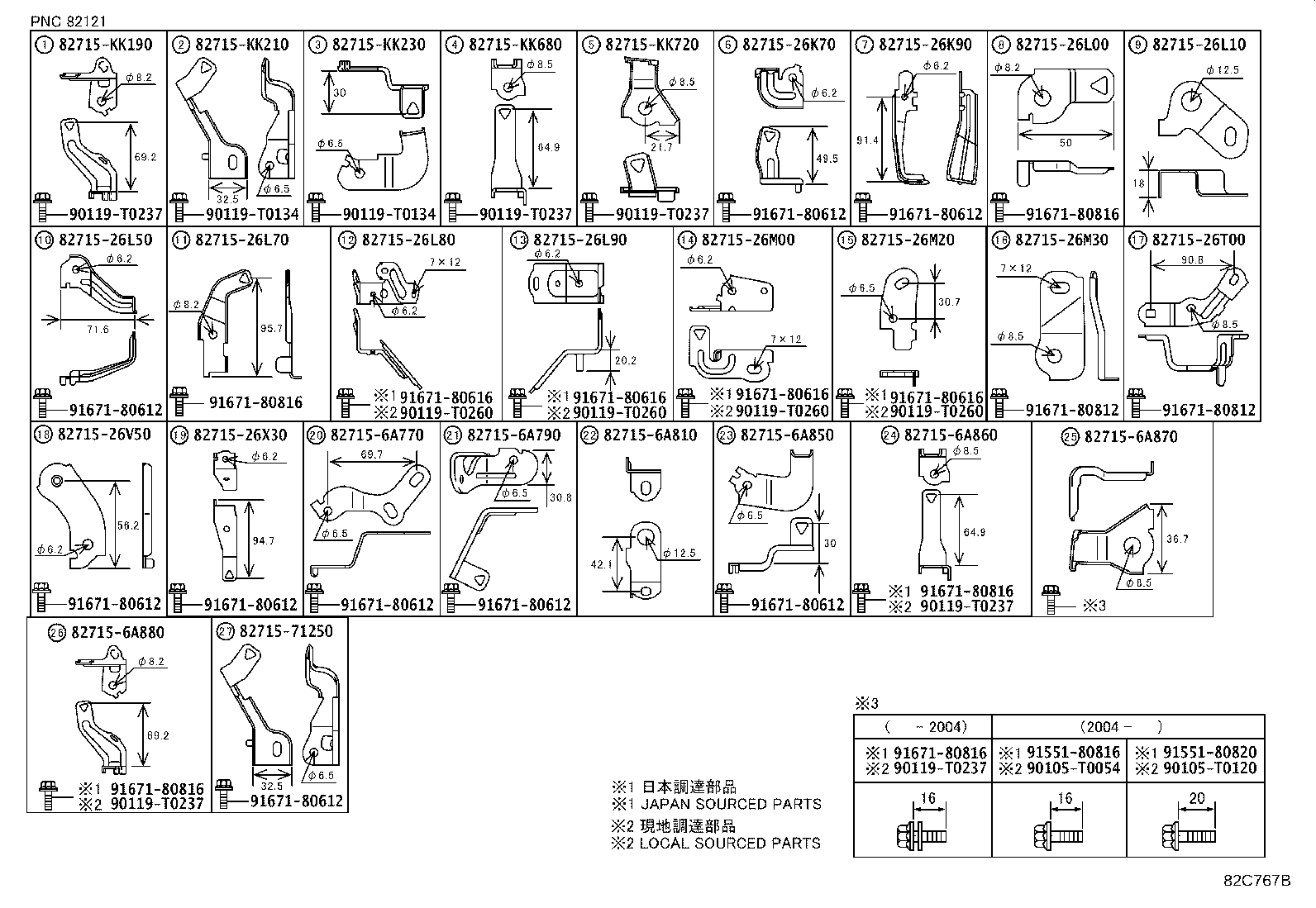

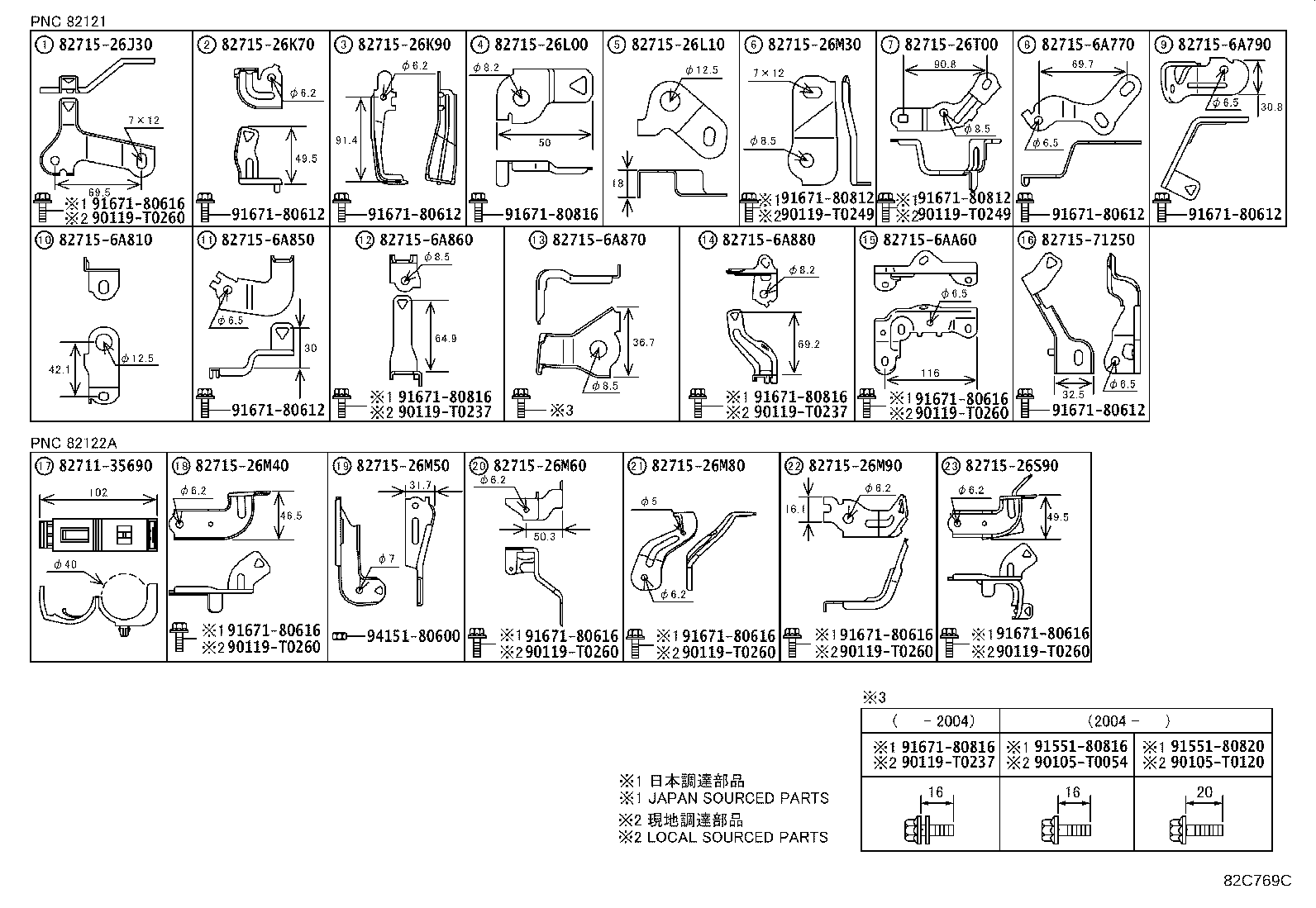

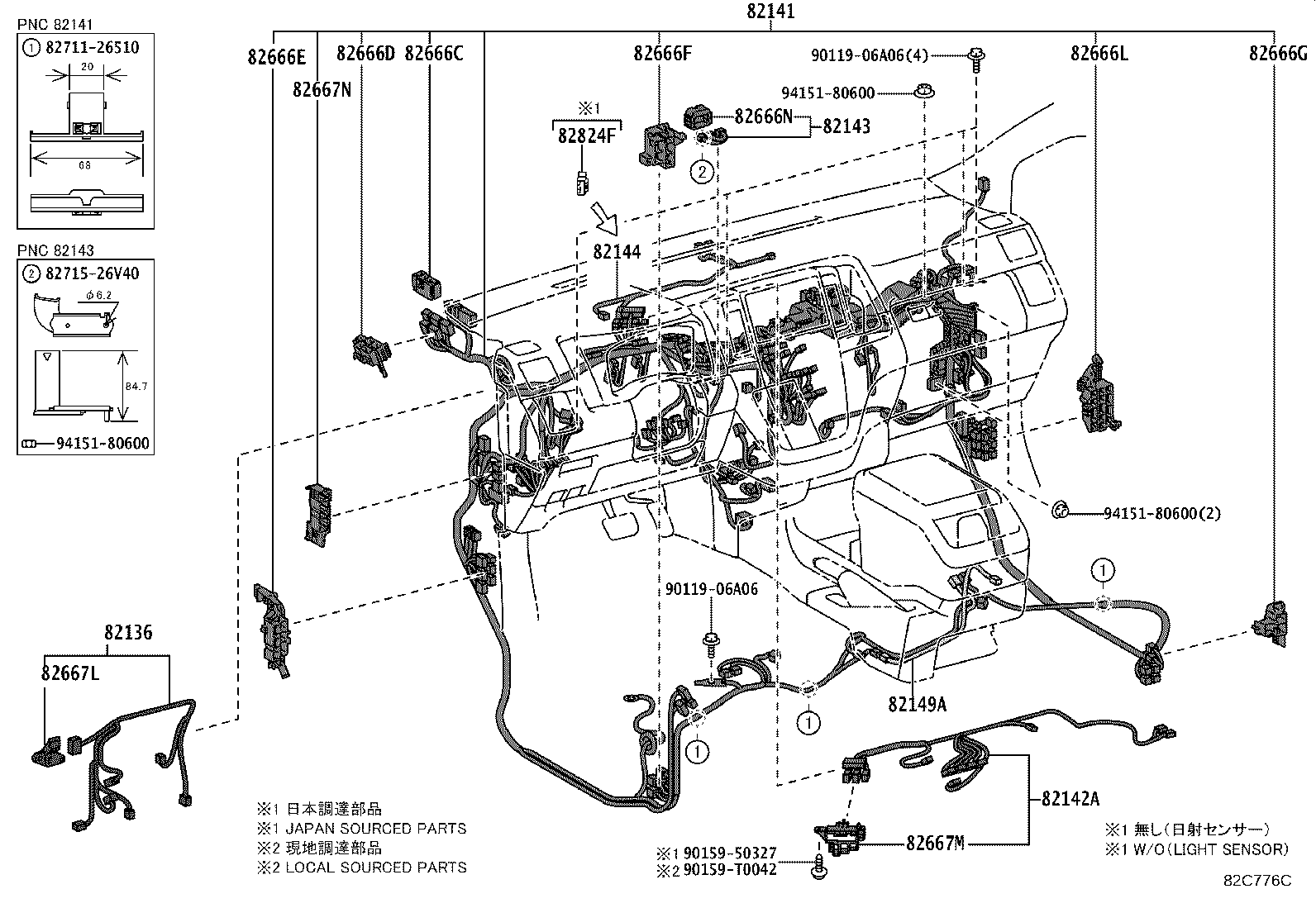

| 82121 | Wire, Engine |
| 82122A | Wire, Engine, NO.2 |
| 82123A | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |
| 82125N | Wire, Engine, NO.5 |
| 82126A | Wire, Engine, NO.6 |
| 82127D | Wire, Engine, NO.7 |
| 82128A | Wire, Engine, NO.8 |
| 82136 | Wire, Dash |

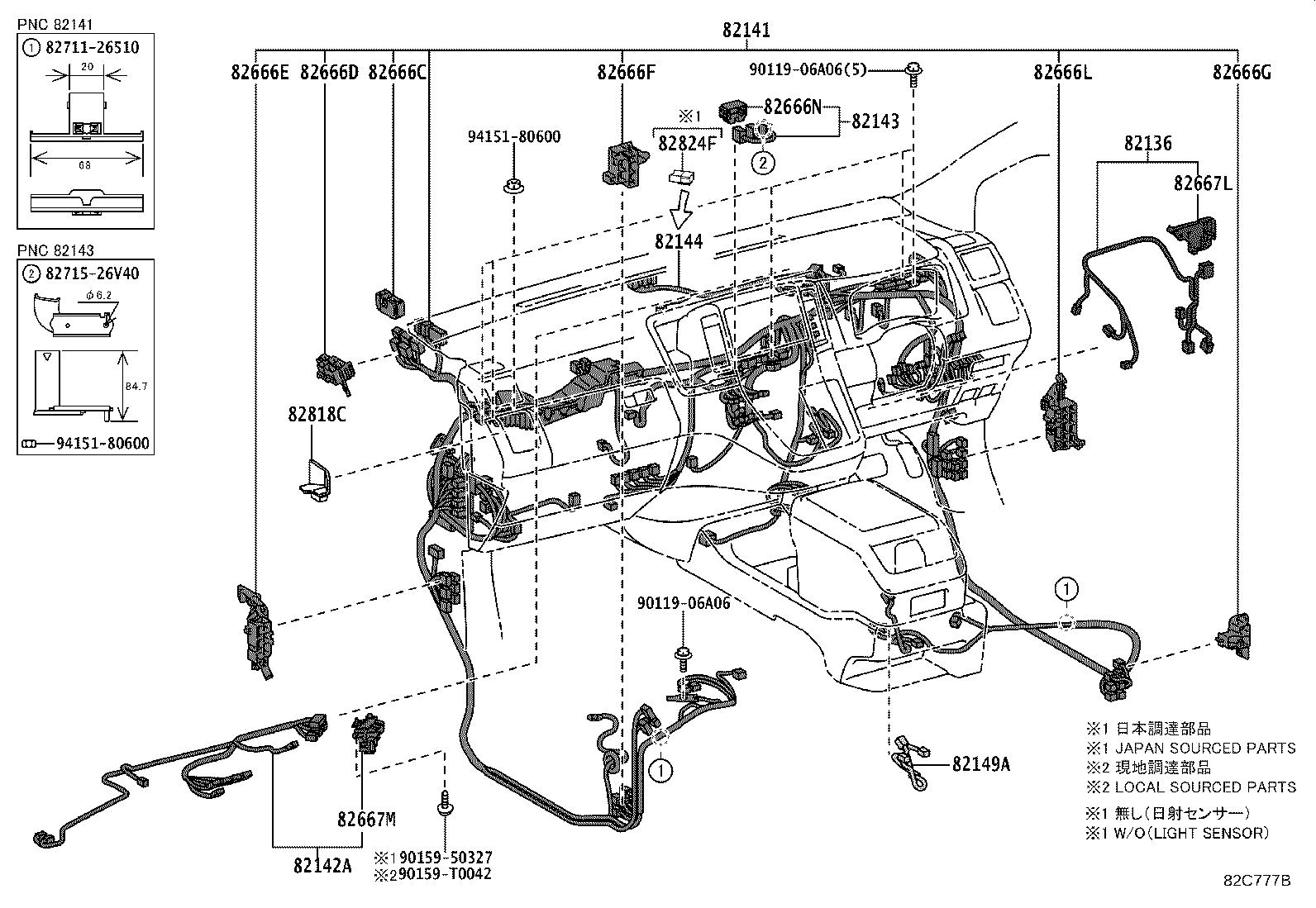

| 82141 | Wire, Instrument Panel |
| 82142A | Wire, Instrument Panel, NO.2 |
| 82143 | Wire, Instrument Panel, NO.3 |
| 82144 | Wire, Instrument Panel, NO.4 |
| 82149A | Wire, Instrument Panel, NO.5 |

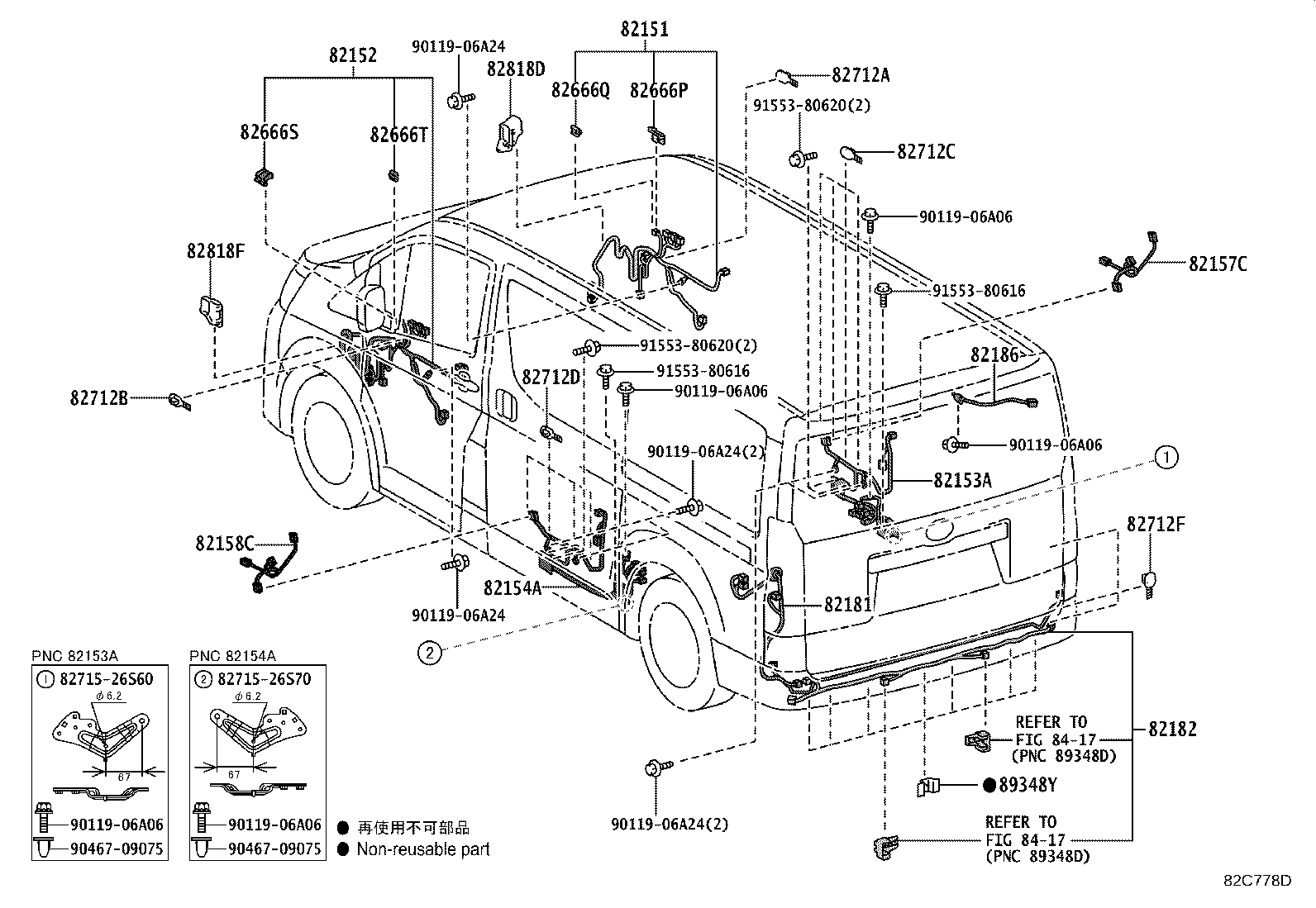

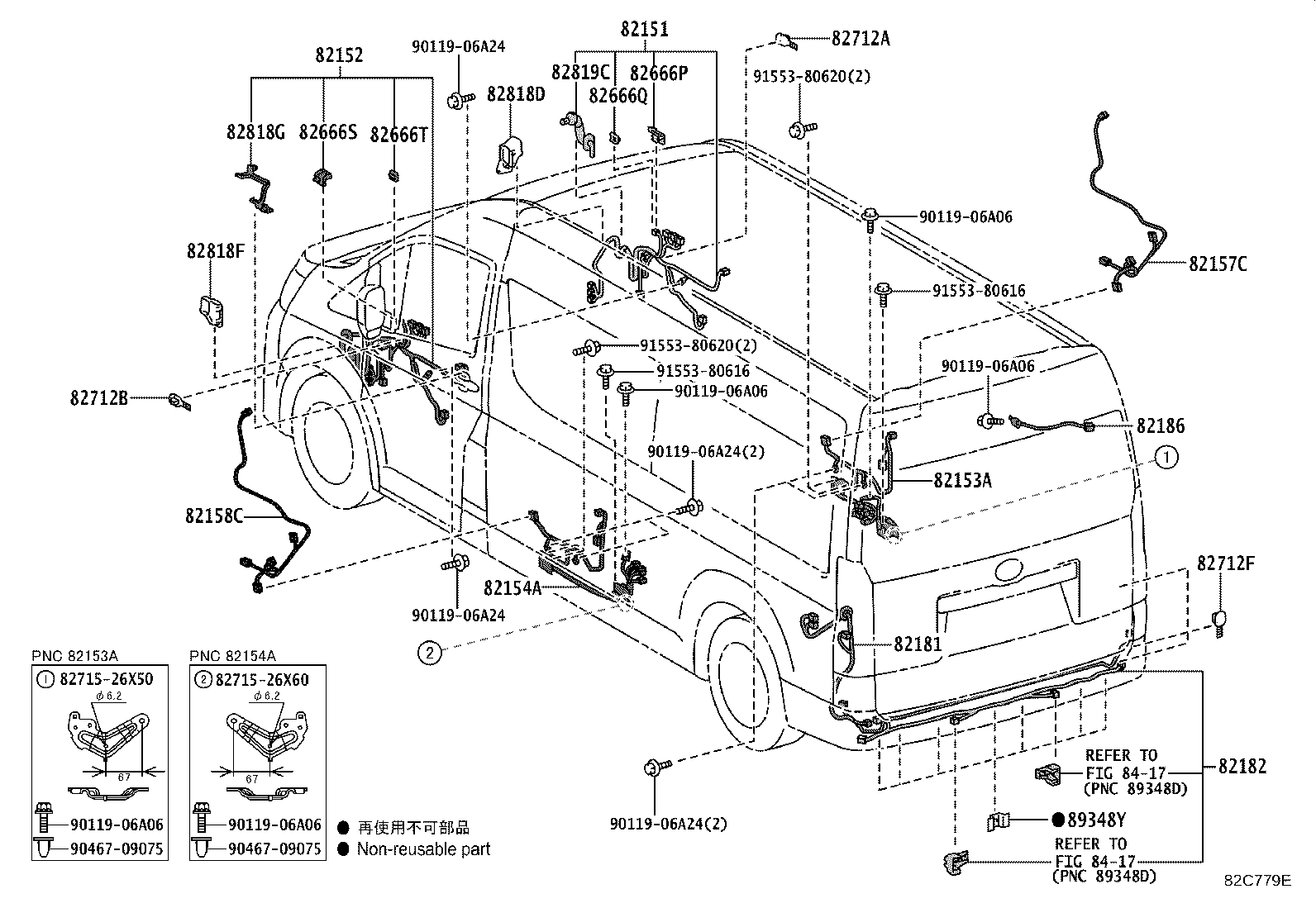

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |
| 82157C | Wire, Rear Door, RH NO.2 |
| 82158C | Wire, Rear Door, LH NO.2 |

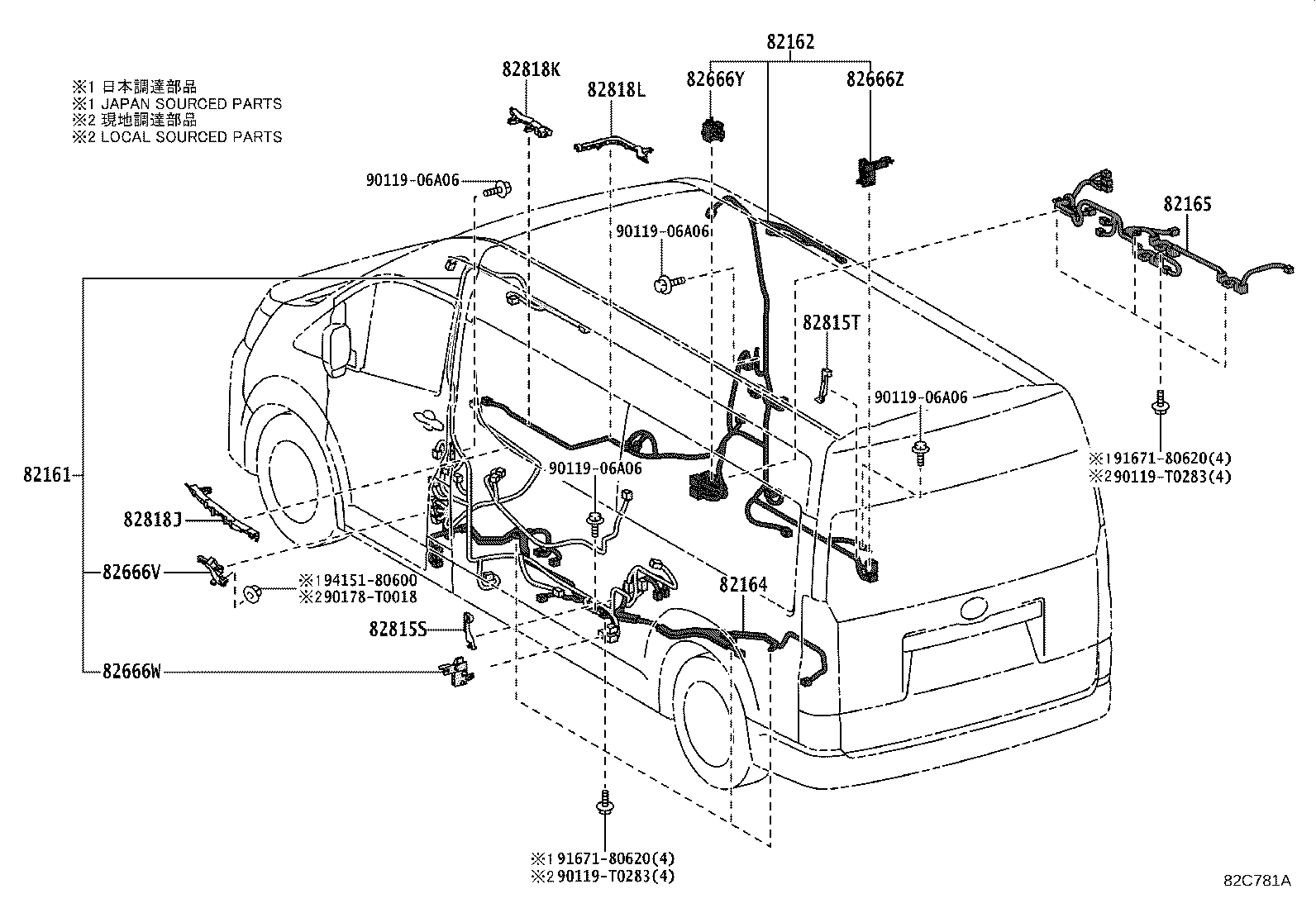

| 82161 | Wire, Floor |
| 82162 | Wire, Floor, NO.2 |
| 82164 | Wire, Frame |
| 82165 | Wire, Frame, NO.2 |
| 82167 | Wire, Seat, NO.1 |
| 82168 | Wire, Seat, NO.2 |

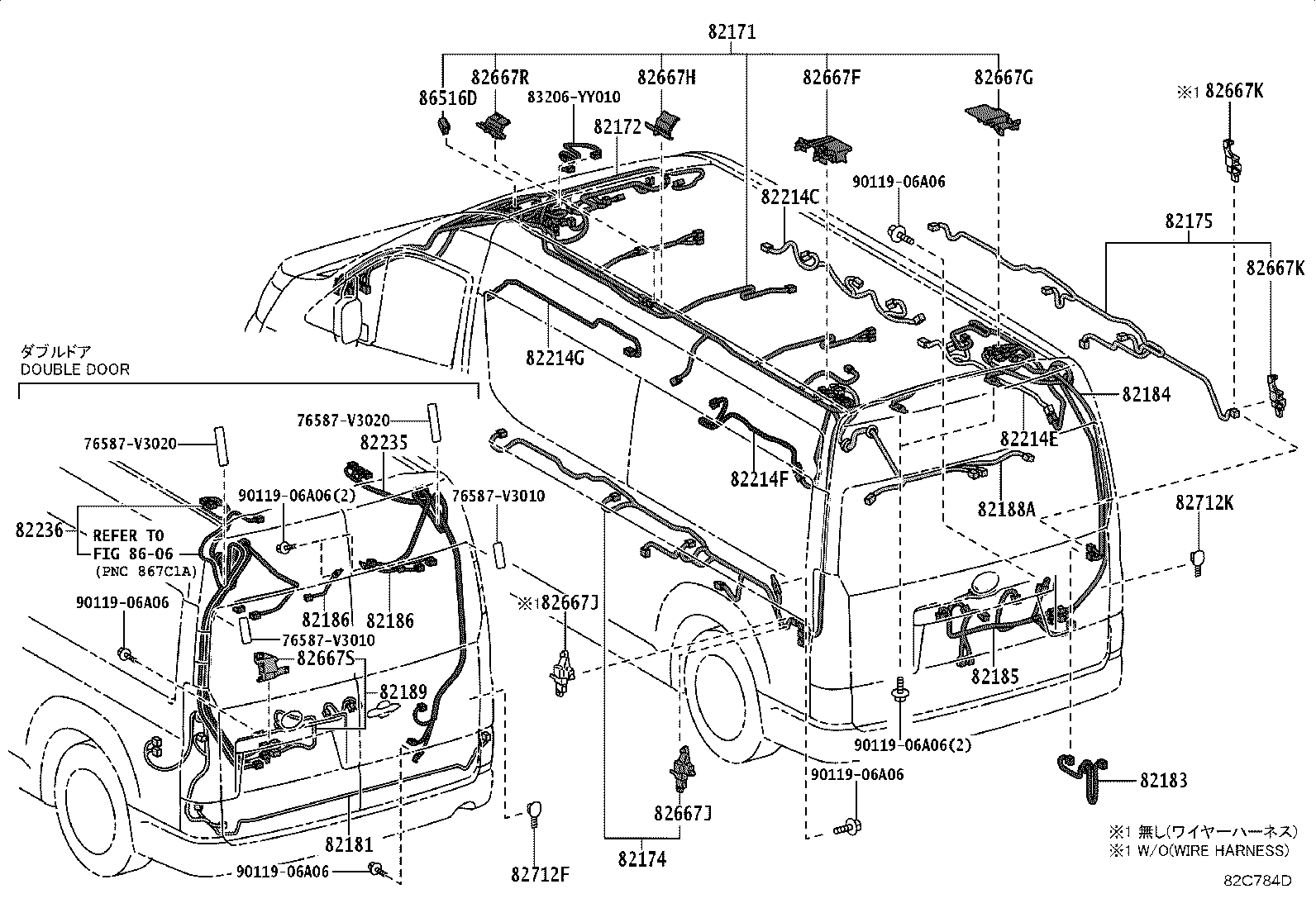

| 82171 | Wire, Roof, NO.1 |
| 82172 | Wire, Roof, NO.2 |
| 82173 | Wire, Roof, NO.3 |
| 82174 | Wire, Roof, NO.4 |
| 82175 | Wire, Roof, NO.5 |
| 82177 | Wire, Rear Body |
| 82181 | Wire, Luggage Room, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82183 | Wire, Luggage Room, NO.3 |

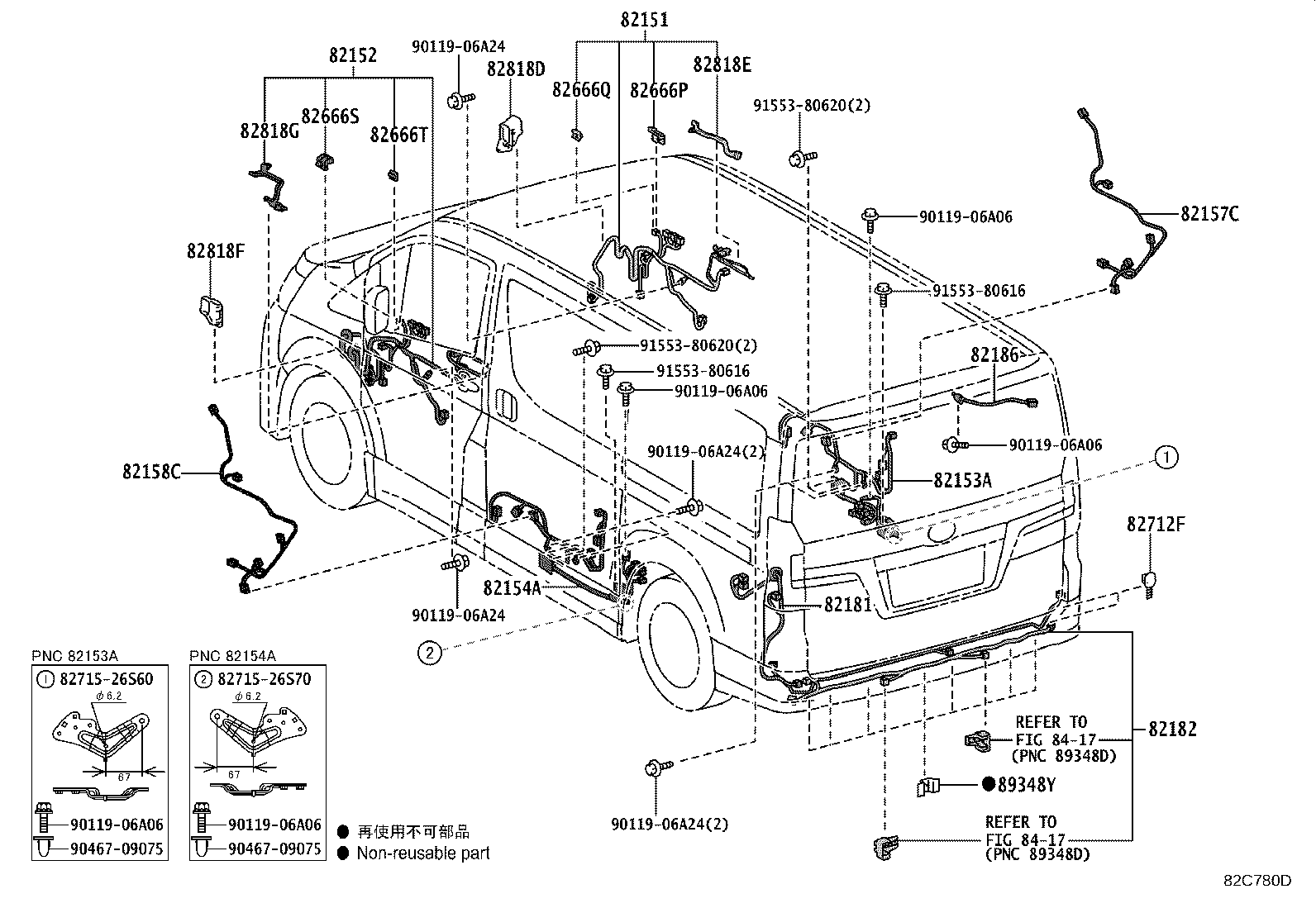

| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |
| 82188A | Wire, Back Door, NO.3 |
| 82189 | Wire, Back Door, NO.4 |

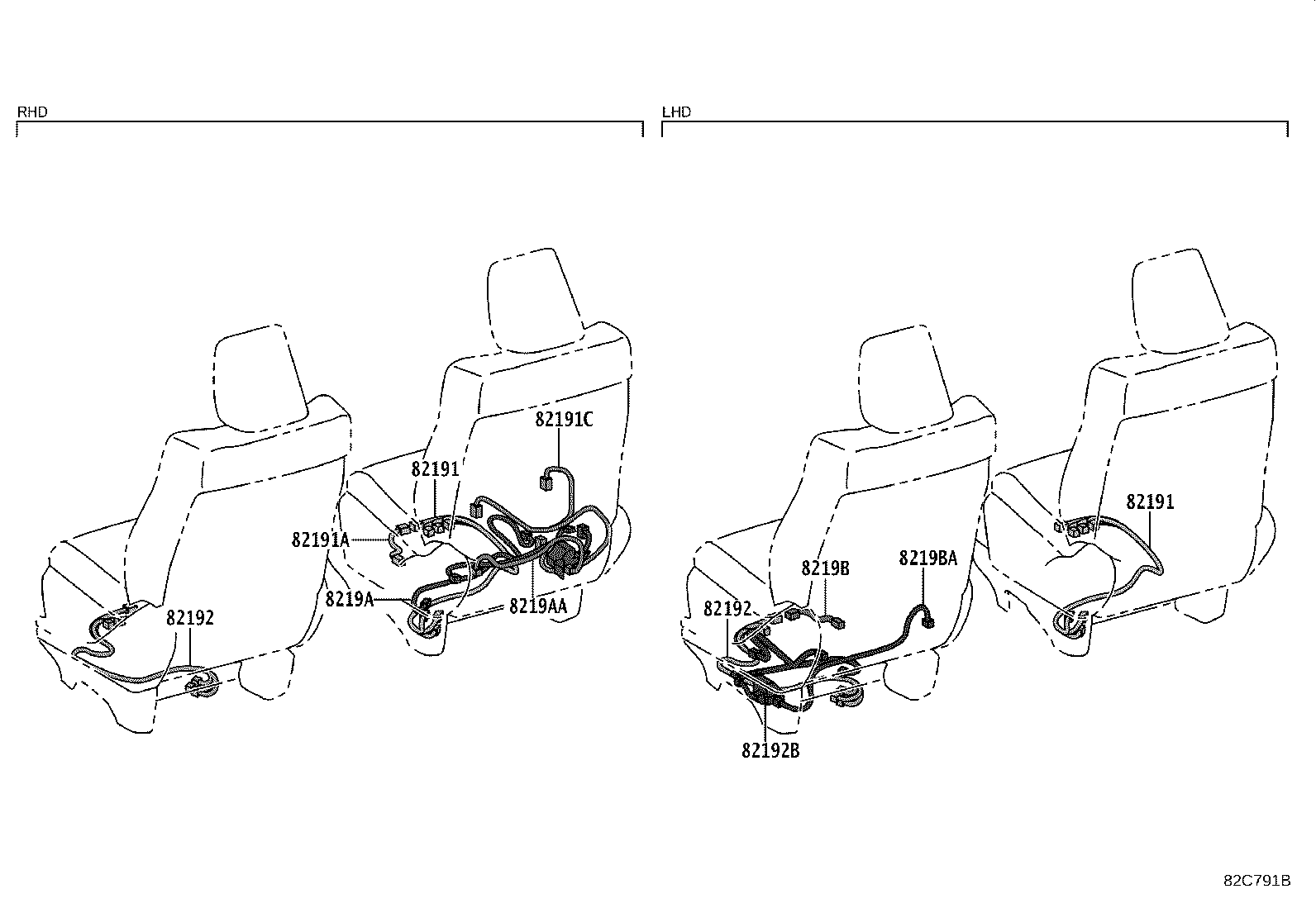

| 82191 | Wire, Front Seat, RH |
| 82191A | Wire, Front Seat, RH |
| 82191C | Wire, Front Seat, RH NO.4 |
| 82192 | Wire, Front Seat, LH |
| 82192B | Wire, Front Seat, LH NO.2 |
| 82193 | Wire, Rear Seat, RH |
| 82194 | Wire, Rear Seat, LH |
| 82195 | Wire, Rear Seat, RH NO.2 |
| 82195A | Wire, Rear Seat, RH NO.3 |
| 82195B | Wire, Rear Seat, RH NO.4 |
| 82196 | Wire, Rear Seat, LH NO.2 |
| 82196A | Wire, Rear Seat, LH NO.3 |
| 82196B | Wire, Rear Seat, LH NO.4 |
| 8219A | Wire, Front Seat, RH NO.2 |
| 8219AA | Wire, Front Seat, RH NO.3 |
| 8219B | Wire, Front Seat, LH NO.2 |
| 8219BA | Wire, Front Seat, LH NO.3 |
| 82214C | Wire, Room Lamp |
| 82214E | Wire, Room Lamp, NO.2 |
| 82214F | Wire, Room Lamp, NO.3 |
| 82214G | Wire, Room Lamp, NO.4 |
| 82217A | Wire, Front Window Defogger |
| 82219C | Wire, Sensor |
| 82235 | Wire, Room |
| 82236 | Wire, Room, NO.2 |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82666C | Holder, Connector NO.4 |
| 82666D | Holder, Connector NO.5 |
| 82666E | Holder, Connector NO.6 |
| 82666F | Holder, Connector NO.7 |
| 82666G | Holder, Connector NO.8 |
| 82666L | Holder, Connector NO.9 |
| 82666N | Holder, Connector NO.10 |
| 82666P | Holder, Connector NO.11 |
| 82666Q | Holder, Connector NO.12 |
| 82666S | Holder, Connector NO.13 |
| 82666T | Holder, Connector NO.14 |
| 82666V | Holder, Connector NO.15 |
| 82666W | Holder, Connector NO.16 |
| 82666X | Holder, Connector NO.17 |
| 82666Y | Holder, Connector NO.18 |
| 82666Z | Holder, Connector NO.19 |
| 82667E | Holder, Connector, NO.20 |
| 82667F | Holder, Connector, NO.21 |
| 82667G | Holder, Connector, NO.22 |
| 82667H | Holder, Connector, NO.23 |
| 82667J | Holder, Connector, NO.24 |
| 82667K | Holder, Connector, NO.25 |
| 82667L | Holder, Connector, NO.26 |
| 82667M | Holder, Connector, NO.27 |
| 82667N | Holder, Connector, NO.28 |
| 82667R | Holder, Connector, NO.29 |
| 82667S | Holder, Connector, NO.30 |
| 82712A | Support, Wiring Harness |
| 82712B | Support, Wiring Harness |
| 82712C | Support, Wiring Harness, NO.1 |
| 82712D | Support, Wiring Harness |
| 82712F | Support, Wiring Harness |
| 82712K | Support, Wiring Harness |

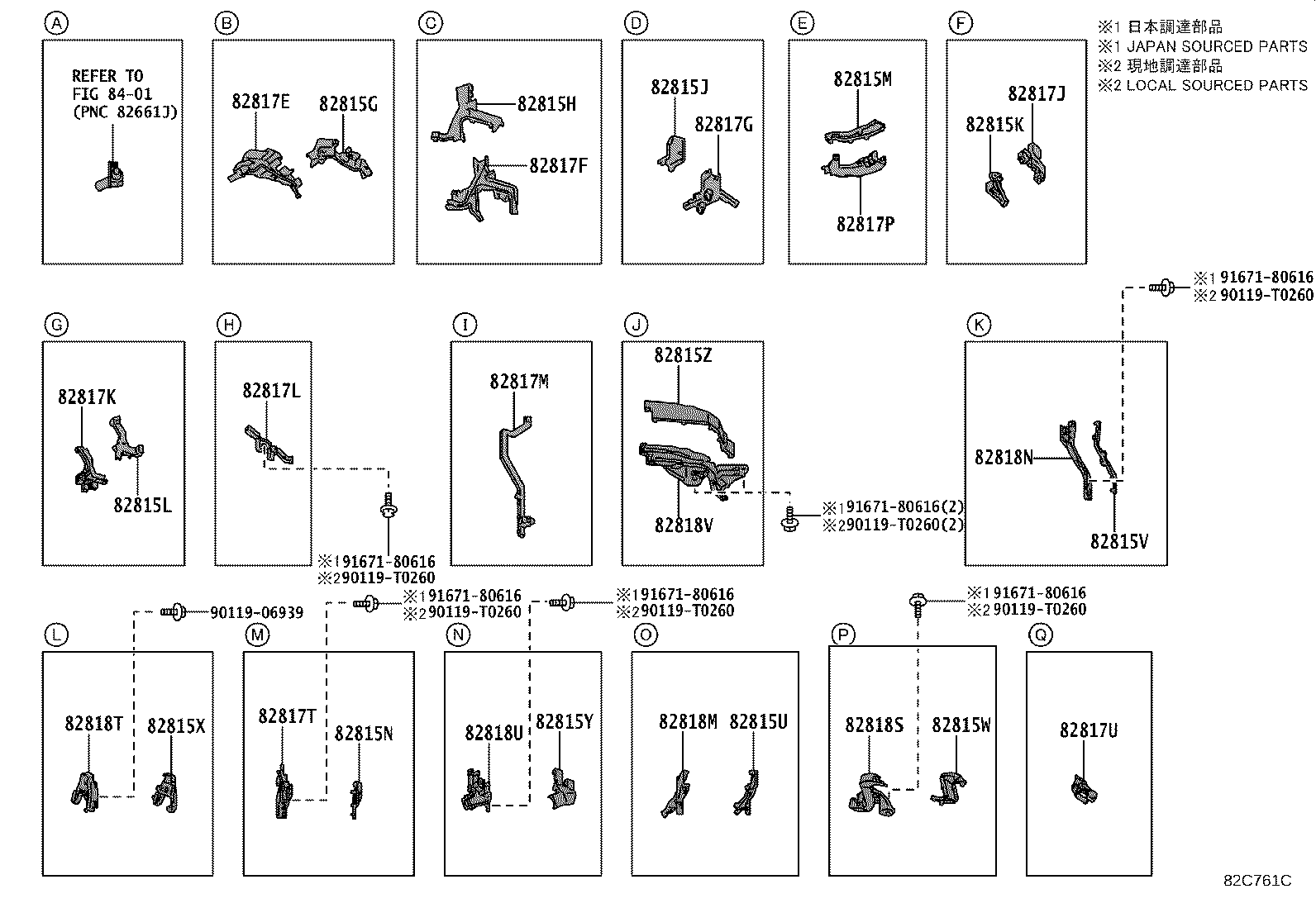

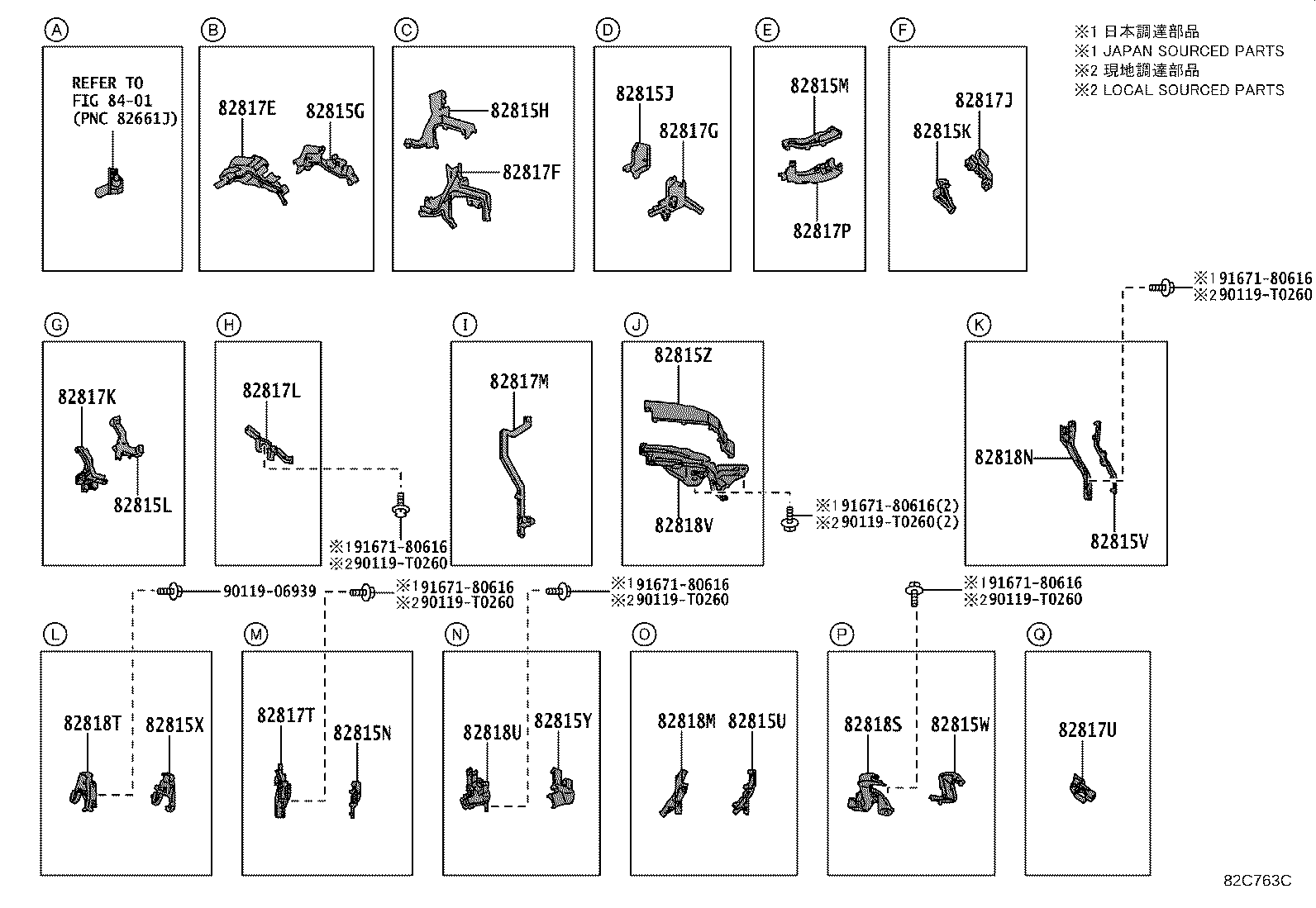

| 82815A | Cover, Wiring Harness Protector |
| 82815B | Cover, Wiring Harness Protector |
| 82815G | Cover, Wiring Harness Protector NO.5 |
| 82815H | Cover, Wiring Harness Protector NO.6 |
| 82815J | Cover, Wiring Harness Protector, NO.7 |
| 82815K | Cover, Wiring Harness Protector, NO.8 |
| 82815L | Cover, Wiring Harness Protector, NO.9 |
| 82815M | Cover, Wiring Harness Protector, NO.10 |
| 82815N | Cover, Wiring Harness Protector, NO.11 |
| 82815P | Cover, Wiring Harness Protector, NO.12 |
| 82815Q | Cover, Wiring Harness Protector, NO.13 |
| 82815R | Cover, Wiring Harness Protector, NO.14 |
| 82815S | Cover, Wiring Harness Protector, NO.15 |
| 82815T | Cover, Wiring Harness Protector, NO.16 |
| 82815U | Cover, Wiring Harness Protector, NO.17 |
| 82815V | Cover, Wiring Harness Protector, NO.1 |
| 82815W | Cover, Wiring Harness Protector, NO.2 |
| 82815X | Cover, Wiring Harness Protector, NO.3 |
| 82815Y | Cover, Wiring Harness Protector, NO.4 |
| 82815Z | Cover, Wiring Harness Protector, NO.18 |
| 82816C | Cover, Wiring Harness Protector, NO.2 |
| 82816D | Cover, Wiring Harness Protector, NO.3 |
| 82816F | Cover, Wiring Harness Protector, NO.4 |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817G | Protector, Wiring Harness, NO.8 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82817T | Protector, Wiring Harness, NO.15 |
| 82817U | Protector, Wiring Harness, NO.16 |
| 82817X | Protector, Wiring Harness, NO.17 |
| 82818 | Protector, Wiring Harness, NO.2 |
| 82818B | Protector, Wiring Harness, NO.3 |
| 82818C | Protector, Wiring Harness, NO.4 |
| 82818D | Protector, Wiring Harness, NO.5 |
| 82818E | Protector, Wiring Harness, NO.6 |
| 82818F | Protector, Wiring Harness, NO.7 |
| 82818G | Protector, Wiring Harness, NO.8 |
| 82818J | Protector, Wiring Harness, NO.10 |
| 82818K | Protector, Wiring Harness, NO.11 |
| 82818L | Protector, Wiring Harness, NO.12 |
| 82818M | Protector, Wiring Harness, NO.13 |
| 82818N | Protector, Wiring Harness, NO.14 |
| 82818S | Protector, Wiring Harness, NO.15 |
| 82818T | Protector, Wiring Harness, NO.16 |
| 82818U | Protector, Wiring Harness, NO.17 |
| 82818V | Protector, Wiring Harness, NO.18 |
| 82818W | Protector, Wiring Harness, NO.19 |
| 82818X | Protector, Wiring Harness, NO.20 |
| 82818Y | Protector, Wiring Harness, NO.21 |
| 82819C | Grommet, Wiring Harness |
| 82821A | Cover, Connector |
| 82821E | Cover, Connector |
| 82823T | Cap, Alternator Terminal |

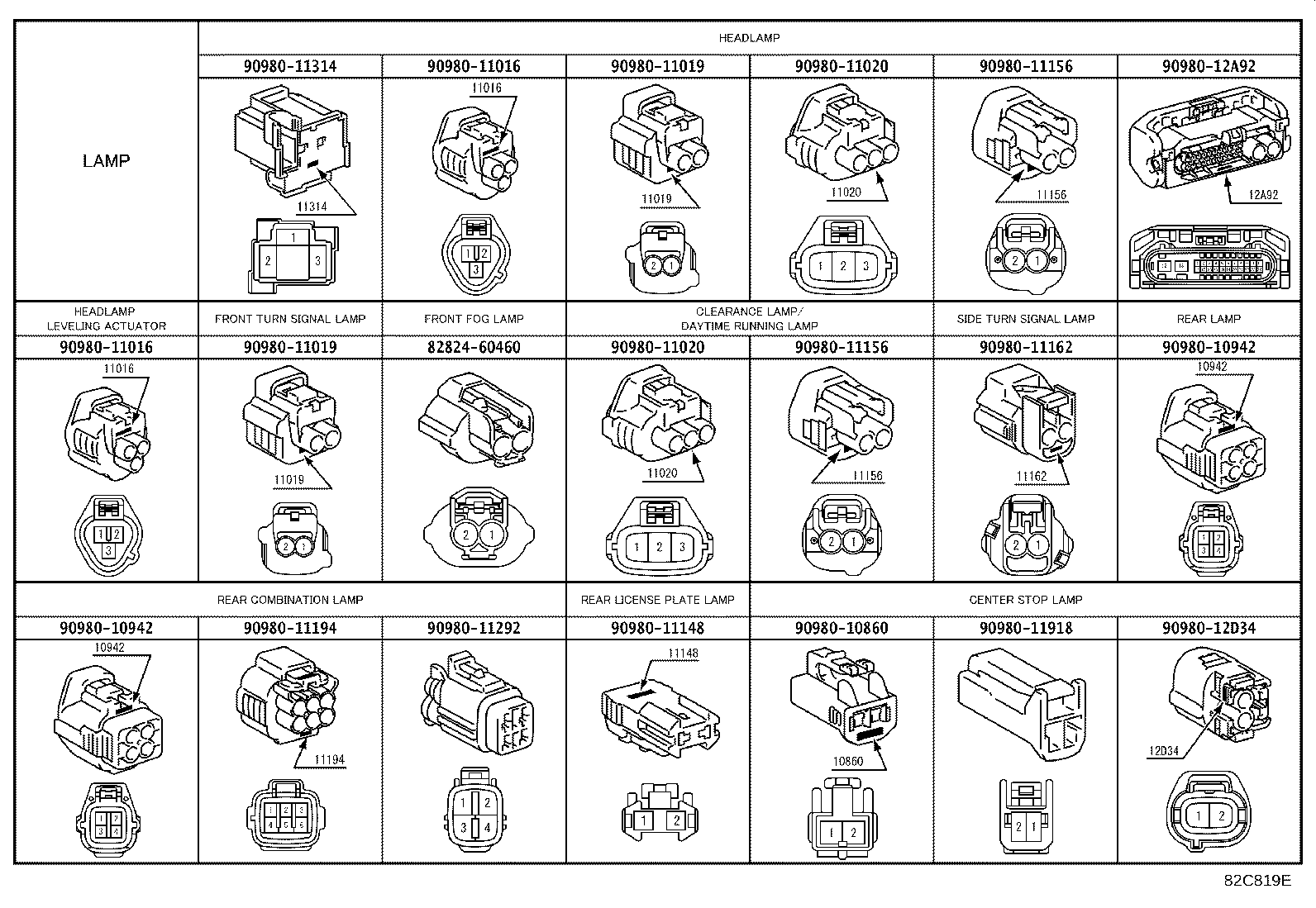

| 82824 | Connector, Wiring Harness |
| 82824A | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
| 86516D | Condenser |
| 89348Y | Clip, Ultrasonic Sensor, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
