Toyota Grnva/Hiace/Mjsty

2019-02 → present · chassis GDH30#,32#,GRH30#,32# · catalogue 711370 · General

Supported model Data version 2024-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

6 part groups · 3 illustrations

Illustrations

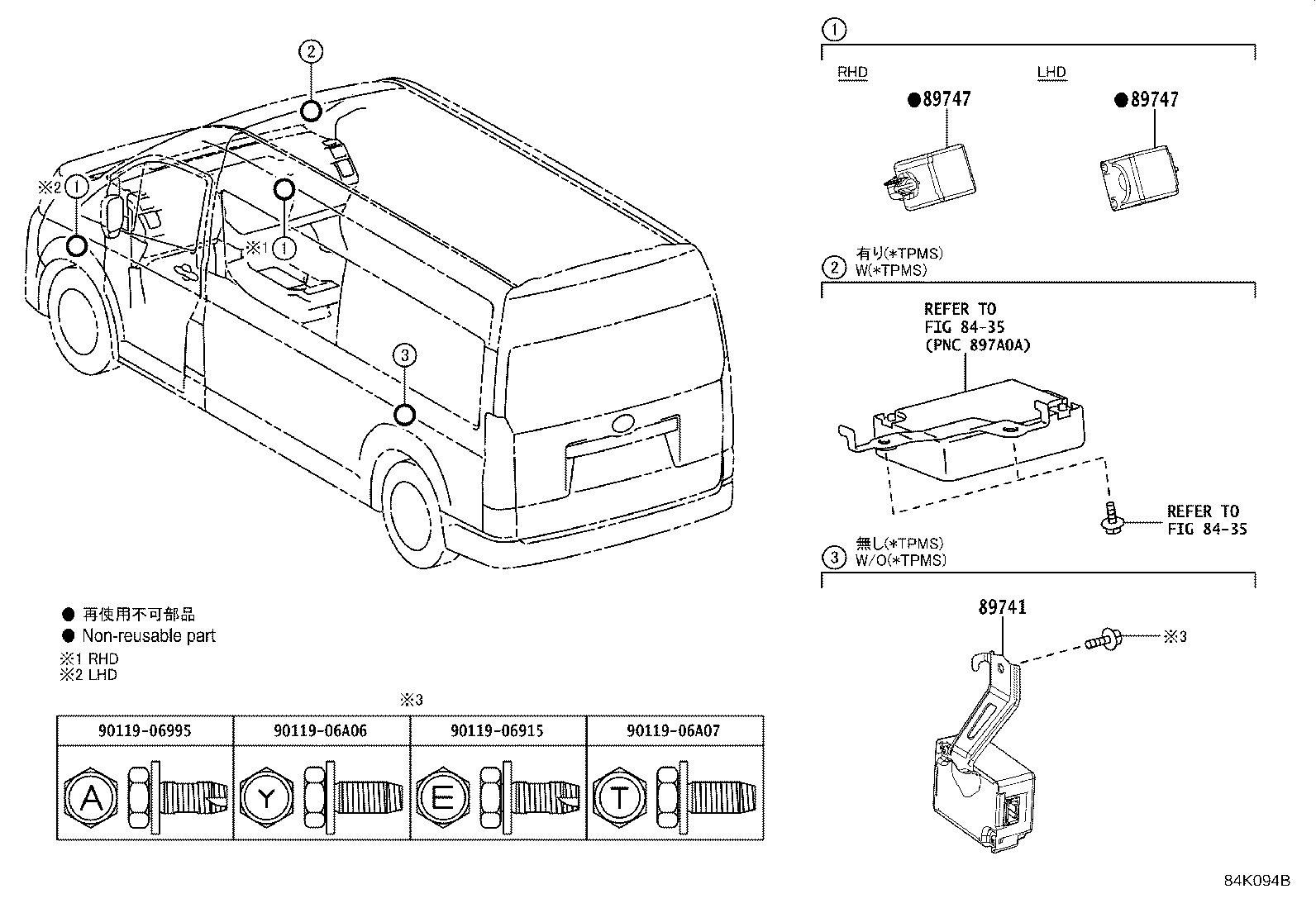

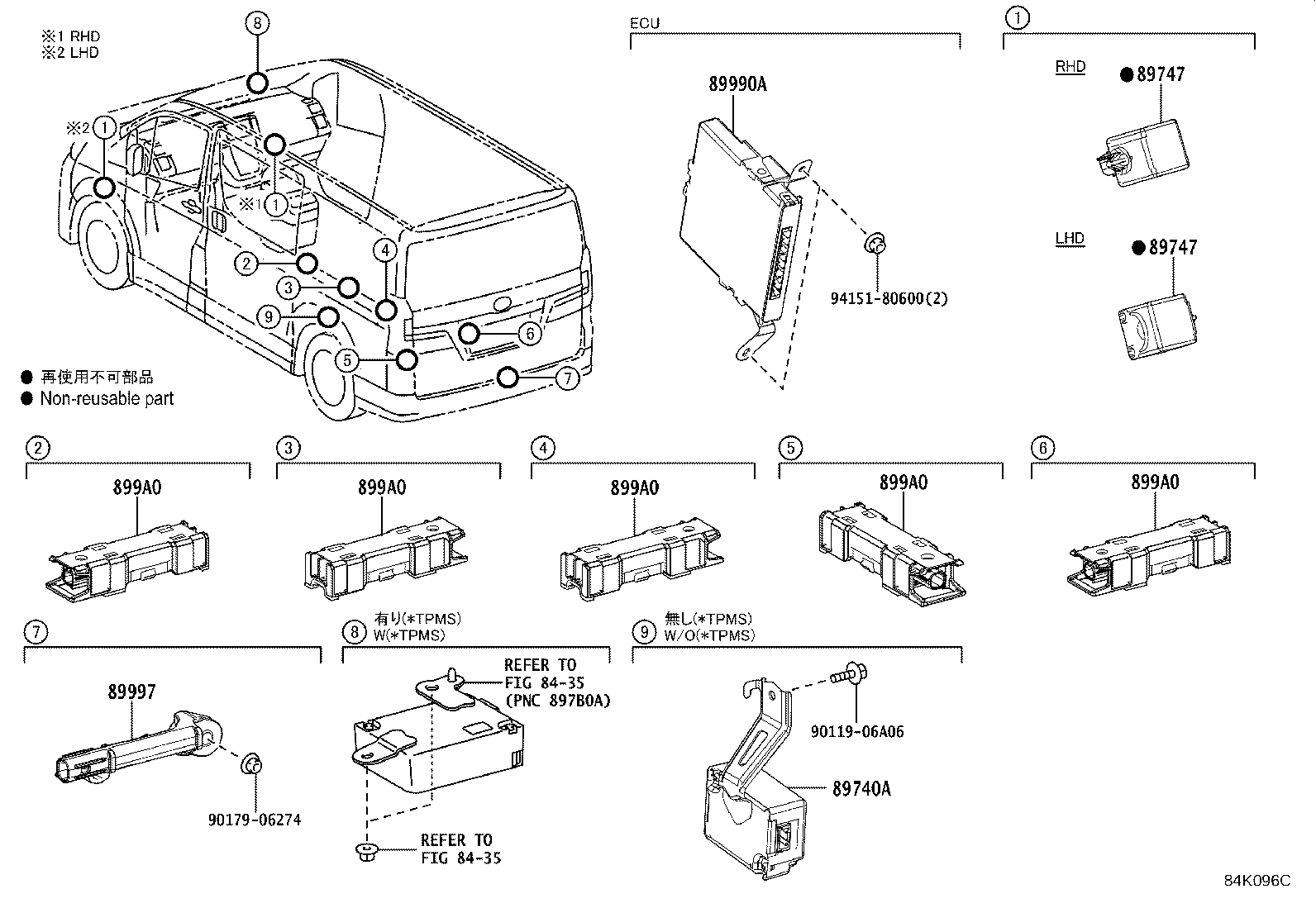

Figure 84K095B 84K095B 2019-02 → — Figure 84K094B 84K094B 2019-02 → — Figure 84K096C 84K096C 2019-07 → —

Part groups

PNCDescription
89740A Receiver Assy, Smart Door Control
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
