Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · General
Discontinued model
Data version 2012-01

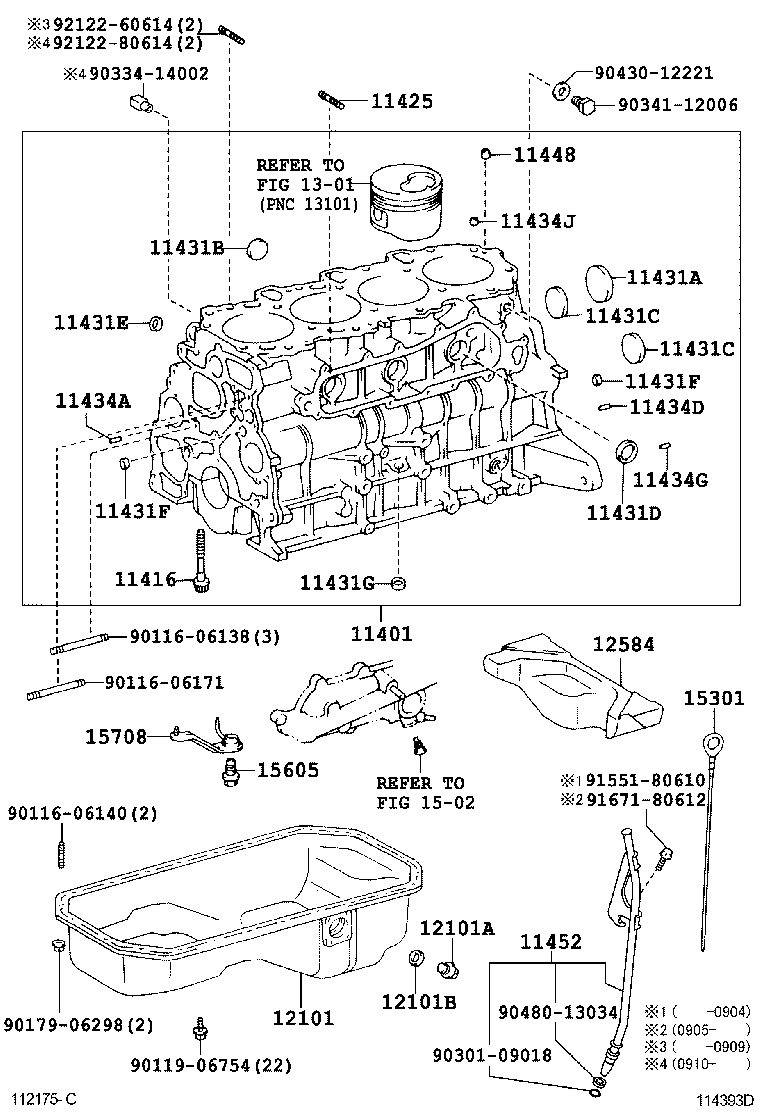

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11401 — Block Sub-assy, Cylinder | ||||
| 11401-59347 |
Block Sub-assy, Cylinder
1995-08 → 1998-04
ended
|
2L LXH12,22 | — | |
| 11401-59357 |
Block Sub-assy, Cylinder
1995-08 → 1998-04
ended
|
2LT LXH1#,2# | — | |
| 11401-59695 |
Block Sub-assy, Cylinder
1998-04 → 1999-07
ended
|
2L LXH12,22 | — | |
| 11401-59705 |
Block Sub-assy, Cylinder
1998-04 → 1999-07
ended
|
2LT LXH1#,2# | — | |
| 11401-79685 |
Block Sub-assy, Cylinder
1998-04 → 1999-04
ended
|
3RZFE RCH13,19,2# | — | |
| 11401-79686 |
Block Sub-assy, Cylinder
1999-04 → 1999-10
ended
|
3RZFE RCH13,19,23,29 DX,STD | — | |
| 11401-79725 |
Block Sub-assy, Cylinder
1995-08 → 1999-04
ended
|
2RZE RCH12,18,22,28 | — | |
| 11401-79726 |
Block Sub-assy, Cylinder
1999-04 → 1999-07
ended
|
2RZE RCH12 | — | |
| 11401-39535 |
Block Sub-assy, Cylinder
2001-08 → 2004-01
ended
|
2KDFTV KLH1#,2# | — | |
| 11401-39675 |
Block Sub-assy, Cylinder
2004-01 → 2004-08
ended
|
2KDFTV KLH1#,2# | — | |
| 11401-39745 |
Block Sub-assy, Cylinder
2004-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 11401-59695 |
Block Sub-assy, Cylinder
1999-07 → 2001-08
ended
|
2L LXH12,22 | — | |
| 11401-59705 |
Block Sub-assy, Cylinder
1999-07 → 2001-08
ended
|
2LT LXH1#,2# | — | |
| 11401-79686 |
Block Sub-assy, Cylinder
1999-07 → 2004-01
ended
|
3RZFE RCH13,19,23,29 | — | |
| 11401-79687 |
Block Sub-assy, Cylinder
2004-01 → —
|
3RZFE RCH1#,2# | — | |
| 11401-79726 |
Block Sub-assy, Cylinder
1999-07 → 2003-11
ended
|
2RZE RCH12,22 | — | |
| 11401-39855 |
Block Sub-assy, Cylinder
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11416 — Bolt(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 90910-02061 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 90910-02092 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 90910-02061 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 90910-02092 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
1999-07 → 2006-05
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 90910-02113 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90910-02113 |
Bolt(FOR CRANKSHAFT BEARING CAP SET)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11425 — Bolt, Stud(FOR OIL FILTER) | ||||
| 90116-08157 |
Bolt, Stud(FOR OIL FILTER)
1995-08 → 1995-11
ended
|
2L# LXH12 | — | |
| 92112-60825 |
Bolt, Stud(FOR OIL FILTER)
1995-11 → 1997-05
ended
|
2L# LXH1#,2# | — | |
| 92112-80825 |
Bolt, Stud(FOR OIL FILTER)
1997-05 → 1999-07
ended
|
2L# LXH1#,2# | — | |
| 90116-06171 |
Bolt, Stud(FOR OIL FILTER)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 92112-80825 |
Bolt, Stud(FOR OIL FILTER)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 90116-06171 |
Bolt, Stud(FOR OIL FILTER)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11431A — Plug, Tight, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 96411-42500 |
Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 96411-63000 |
Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 96411-42500 |
Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 96411-63000 |
Plug, Tight, NO.1(FOR CYLINDER BLOCK)
1999-07 → 2006-05
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 96411-64500 |
Plug, Tight, NO.1(FOR CYLINDER BLOCK)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 96411-64500 |
Plug, Tight, NO.1(FOR CYLINDER BLOCK)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11431B — Plug, Tight, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 96411-43500 |
Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 96411-63500 |
Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 96411-43500 |
Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 96411-63500 |
Plug, Tight, NO.2(FOR CYLINDER BLOCK)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 96411-63500 |
Plug, Tight, NO.2(FOR CYLINDER BLOCK)
1999-07 → 2006-05
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 96411-63500 |
Plug, Tight, NO.2(FOR CYLINDER BLOCK)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11431C — Plug, Tight, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 96411-45000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 96411-64000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1995-08 → 1999-07
ended
|
2RZE RCH12,18,22,28 | — | |
| 96411-64000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1998-04 → 1999-10
ended
|
3RZFE RCH13,19,23,29 DX,STD | — | |
| 96411-45000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 96411-64000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1999-07 → 2003-11
ended
|
2RZE RCH12,22 | — | |
| 96411-64000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
1999-07 → 2006-05
ended
|
3RZFE RCH13,19,23,29 | — | |
| 96411-64000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 96411-64000 |
Plug, Tight, NO.3(FOR CYLINDER BLOCK)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11431D — Plug, Tight, NO.4(FOR CYLINDER BLOCK) | ||||
| 90331-35004 |
Plug, Tight, NO.4(FOR CYLINDER BLOCK)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90331-35004 |
Plug, Tight, NO.4(FOR CYLINDER BLOCK)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11431E — Plug, Tight, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-62000 |
Plug, Tight, NO.5(FOR CYLINDER BLOCK)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 96411-62000 |
Plug, Tight, NO.5(FOR CYLINDER BLOCK)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11431F — Plug, Tight, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-61800 |
Plug, Tight, NO.6(FOR CYLINDER BLOCK)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 96411-61800 |
Plug, Tight, NO.6(FOR CYLINDER BLOCK)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11431G — Plug, Tight | ||||
| 90331-14006 |
Plug, Tight
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90331-14006 |
Plug, Tight
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11434A — Pin, Straight(FOR TIMING GEAR COVER SET) | ||||
| 90253-11021 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 90253-11021 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 90250-08120 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90253-11021 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 90250-08120 note |
Pin, Straight(FOR TIMING GEAR COVER SET)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11434D — Pin, Straight(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06003 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 90253-11021 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 90253-11021 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 90250-06003 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
1999-07 → 2006-05
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 90250-06068 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90253-11021 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 90250-06068 note |
Pin, Straight(FOR ENGINE REAR OIL SEAL)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11434G — Pin, Straight(FOR END PLATE) | ||||
| 90250-10113 |
Pin, Straight(FOR END PLATE)
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 90250-10113 |
Pin, Straight(FOR END PLATE)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 90250-10192 |
Pin, Straight(FOR END PLATE)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90250-10192 |
Pin, Straight(FOR END PLATE)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11434J — Pin, Ring (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
Pin, Ring (FOR CYLINDER HEAD SET)
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 90253-15001 |
Pin, Ring (FOR CYLINDER HEAD SET)
2004-02 → 2006-05
ended
|
3RZFE RCH1#,2# | — | |
| 90253-15016 |
Pin, Ring (FOR CYLINDER HEAD SET)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90253-15016 |
Pin, Ring (FOR CYLINDER HEAD SET)
1999-07 → 2004-02
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 90253-15016 |
Pin, Ring (FOR CYLINDER HEAD SET)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11448 — Orifice, Cylinder Block Oil | ||||
| 11448-54020 |
Orifice, Cylinder Block Oil
1995-08 → 1997-08
ended
|
2L# LXH1#,2# | — | |
| 11448-54020 |
Orifice, Cylinder Block Oil
1997-08 → 1999-07
ended
|
2LT LXH22 06S;2L LXH12 +5 | — | |
| 11448-54030 |
Orifice, Cylinder Block Oil
1998-04 → 1999-07
ended
|
2L LXH22 LHD 4DV | — | |
| 11448-54030 note |
Orifice, Cylinder Block Oil
1998-04 → 1999-07
ended
|
2L LXH12 09S;2L LXH12 +3 | — | |
| 90977-02011 |
Orifice, Cylinder Block Oil
1998-04 → 1999-10
ended
|
3RZFE RCH13,19,23,29 DX,STD | — | |
| 11448-54020 note |
Orifice, Cylinder Block Oil
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 11448-54030 note |
Orifice, Cylinder Block Oil
1999-07 → 2001-08
ended
|
2L LXH12 09S;2L LXH12 +3 | — | |
| 11448-67010 |
Orifice, Cylinder Block Oil
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90977-02011 |
Orifice, Cylinder Block Oil
1999-07 → 2006-05
ended
|
3RZFE RCH13,19,23,29 | — | |
| 11448-67010 |
Orifice, Cylinder Block Oil
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 11452 — Guide, Oil Level Gage | ||||
| 11409-75020 |
Guide, Oil Level Gage
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 11452-54130 |
Guide, Oil Level Gage
1995-08 → 1999-07
ended
|
2L# LXH12,22 | — | |
| 11452-54140 |
Guide, Oil Level Gage
1996-08 → 1999-07
ended
|
2LT LXH18,28 | — | |
| 11409-30020 |
Guide, Oil Level Gage
2001-08 → 2002-10
ended
|
2KDFTV KLH1#,2# | — | |
| 11409-30021 |
Guide, Oil Level Gage
2002-10 → 2003-08
ended
|
2KDFTV KLH1#,2# | — | |
| 11409-30022 |
Guide, Oil Level Gage
2003-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 11409-75020 |
Guide, Oil Level Gage
2003-11 → —
|
3RZFE RCH1#,2# | — | |
| 11409-75020 |
Guide, Oil Level Gage
1999-07 → 2003-11
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 11452-54130 |
Guide, Oil Level Gage
1999-07 → 2001-08
ended
|
2L# LXH12,22 | — | |
| 11452-54140 |
Guide, Oil Level Gage
1999-07 → 2001-08
ended
|
2LT LXH18,28 | — | |
| 11452-30080 |
Guide, Oil Level Gage
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 12101 — Pan Sub-assy, Oil | ||||
| 12101-54193 |
Pan Sub-assy, Oil
1995-08 → 1997-04
ended
|
2L# LXH12,22 | — | |
| 12101-54194 |
Pan Sub-assy, Oil
1997-04 → 1997-05
ended
|
2L# LXH12,22 | — | |
| 12101-54195 |
Pan Sub-assy, Oil
1997-05 → 1999-07
ended
|
2L# LXH12,22 | — | |
| 12101-54270 |
Pan Sub-assy, Oil
1996-08 → 1997-04
ended
|
2LT LXH18,28 | — | |
| 12101-54271 |
Pan Sub-assy, Oil
1997-04 → 1999-07
ended
|
2LT LXH18,28 | — | |
| 12101-75060 |
Pan Sub-assy, Oil
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH12,13,22,23 03S,05S,06S,09S | — | |
| 12101-75080 |
Pan Sub-assy, Oil
1996-08 → 1999-07
ended
|
2RZE,3RZFE RCH18,19,28,29 | — | |
| 12101-54195 |
Pan Sub-assy, Oil
1999-07 → 2000-09
ended
|
2L# LXH12,22 | — | |
| 12101-54196 |
Pan Sub-assy, Oil
2000-09 → 2001-08
ended
|
2L# LXH12,22 | — | |
| 12101-54271 |
Pan Sub-assy, Oil
1999-07 → 2001-08
ended
|
2LT LXH18,28 | — | |
| 12101-67091 |
Pan Sub-assy, Oil
2001-08 → 2003-12
ended
|
2KDFTV KLH12,22 | — | |
| 12101-67092 |
Pan Sub-assy, Oil
2003-12 → 2006-08
ended
|
2KDFTV KLH12,22 | — | |
| 12101-67101 |
Pan Sub-assy, Oil
2001-08 → 2006-08
ended
|
2KDFTV KLH18,28 | — | |
| 12101-75060 |
Pan Sub-assy, Oil
1999-07 → 2003-11
ended
|
2RZE,3RZFE RCH12,13,22,23 | — | |
| 12101-75060 |
Pan Sub-assy, Oil
2003-11 → —
|
3RZFE RCH13,23 | — | |
| 12101-75080 |
Pan Sub-assy, Oil
1999-07 → 2002-05
ended
|
3RZFE RCH19,29 | — | |
| 12101-75120 |
Pan Sub-assy, Oil
2002-05 → —
|
3RZFE RCH19,29 | — | |
| 12101-30120 |
Pan Sub-assy, Oil
2010-08 → —
|
2KDFTV KLH12,22 | — | |
| 12101-67092 |
Pan Sub-assy, Oil
2006-08 → 2010-08
ended
|
2KDFTV KLH12,22 | — | |
| 12101-67101 |
Pan Sub-assy, Oil
2006-08 → —
|
2KDFTV KLH18,28 | — | |
| 12101A — Plug(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
1995-08 → 1999-07
ended
|
2L# LXH1#,2# | — | |
| 90341-12026 |
Plug(FOR OIL PAN DRAIN)
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
1999-07 → 2006-05
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 90341-12012 |
Plug(FOR OIL PAN DRAIN)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 12101B — Gasket(FOR OIL PAN DRAIN PLUG) | ||||
| 90080-43030 |
Gasket(FOR OIL PAN DRAIN PLUG)
1998-04 → 1999-07
ended
|
2L LXH22 LHD 4DV | — | |
| 90080-43030 note |
Gasket(FOR OIL PAN DRAIN PLUG)
1998-04 → 1999-07
ended
|
2L LXH12 09S;2L LXH12 +3 | — | |
| 90430-12031 note |
Gasket(FOR OIL PAN DRAIN PLUG)
1995-08 → 1999-07
ended
|
2L# LXH1#,2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH1#,2# 03S,05S,06S,09S | — | |
| 90080-43030 note |
Gasket(FOR OIL PAN DRAIN PLUG)
1999-07 → 2001-08
ended
|
2L LXH12 09S;2L LXH12 +3 | — | |
| 90430-12031 note |
Gasket(FOR OIL PAN DRAIN PLUG)
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
1999-07 → 2006-05
ended
|
2RZE,3RZFE RCH1#,2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 90430-12031 |
Gasket(FOR OIL PAN DRAIN PLUG)
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 12584 — Insulator, Cylinder Brock, NO.4 | ||||
| 12584-67030 |
Insulator, Cylinder Brock, NO.4
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 12584-67030 |
Insulator, Cylinder Brock, NO.4
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 15301 — Gage Sub-assy, Oil Level | ||||
| 15301-54110 |
Gage Sub-assy, Oil Level
1995-08 → 1996-04
ended
|
2L# LXH12 | — | |
| 15301-54111 |
Gage Sub-assy, Oil Level
1996-04 → 1999-07
ended
|
2L# LXH12,22 | — | |
| 15301-54130 |
Gage Sub-assy, Oil Level
1996-08 → 1999-07
ended
|
2LT LXH18,28 | — | |
| 15301-75010 |
Gage Sub-assy, Oil Level
1996-08 → 1997-05
ended
|
2RZE RCH18,28 | — | |
| 15301-75011 |
Gage Sub-assy, Oil Level
1997-05 → 1999-07
ended
|
2RZE,3RZFE RCH18,19,28,29 | — | |
| 15301-75020 |
Gage Sub-assy, Oil Level
1995-08 → 1999-10
ended
|
2RZE,3RZFE RCH12,13,22,23 03S,05S,06S,09S | — | |
| 15301-30050 |
Gage Sub-assy, Oil Level
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 15301-54111 |
Gage Sub-assy, Oil Level
1999-07 → 2001-08
ended
|
2L# LXH12,22 | — | |
| 15301-54130 |
Gage Sub-assy, Oil Level
1999-07 → 2001-08
ended
|
2LT LXH18,28 | — | |
| 15301-75011 |
Gage Sub-assy, Oil Level
1999-07 → —
|
3RZFE RCH19,29 | — | |
| 15301-75020 |
Gage Sub-assy, Oil Level
1999-07 → 2003-11
ended
|
2RZE,3RZFE RCH12,13,22,23 | — | |
| 15301-75020 |
Gage Sub-assy, Oil Level
2003-11 → —
|
3RZFE RCH13,23 | — | |
| 15301-67031 |
Gage Sub-assy, Oil Level
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 15605 — Valve Sub-assy, Oil Check | ||||
| 15605-54010 |
Valve Sub-assy, Oil Check
1995-08 → 1999-07
ended
|
2L# LXH1#,2# | — | |
| 15605-17030 |
Valve Sub-assy, Oil Check
2001-08 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 15605-54010 |
Valve Sub-assy, Oil Check
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 15605-17030 |
Valve Sub-assy, Oil Check
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
| 15708 — Nozzle Sub-assy, Oil, NO.1 | ||||
| 15708-54060 |
Nozzle Sub-assy, Oil, NO.1
1995-08 → 1999-07
ended
|
2L# LXH1#,2# | — | |
| 15708-30010 |
Nozzle Sub-assy, Oil, NO.1
2001-08 → 2003-07
ended
|
2KDFTV KLH1#,2# | — | |
| 15708-30011 |
Nozzle Sub-assy, Oil, NO.1
2003-07 → 2006-08
ended
|
2KDFTV KLH1#,2# | — | |
| 15708-54060 |
Nozzle Sub-assy, Oil, NO.1
1999-07 → 2001-08
ended
|
2L# LXH1#,2# | — | |
| 15708-30011 |
Nozzle Sub-assy, Oil, NO.1
2006-08 → —
|
2KDFTV KLH1#,2# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
