Toyota Hiace/Hiace S.B.V
1995-08 → 2011-11 · chassis KLH1#,2#,LXH1#,2#,RCH1#,2# · catalogue 713210 · General
Discontinued model
Data version 2012-01
Oil Filter
16 part groups · 6 illustrations
Part groups

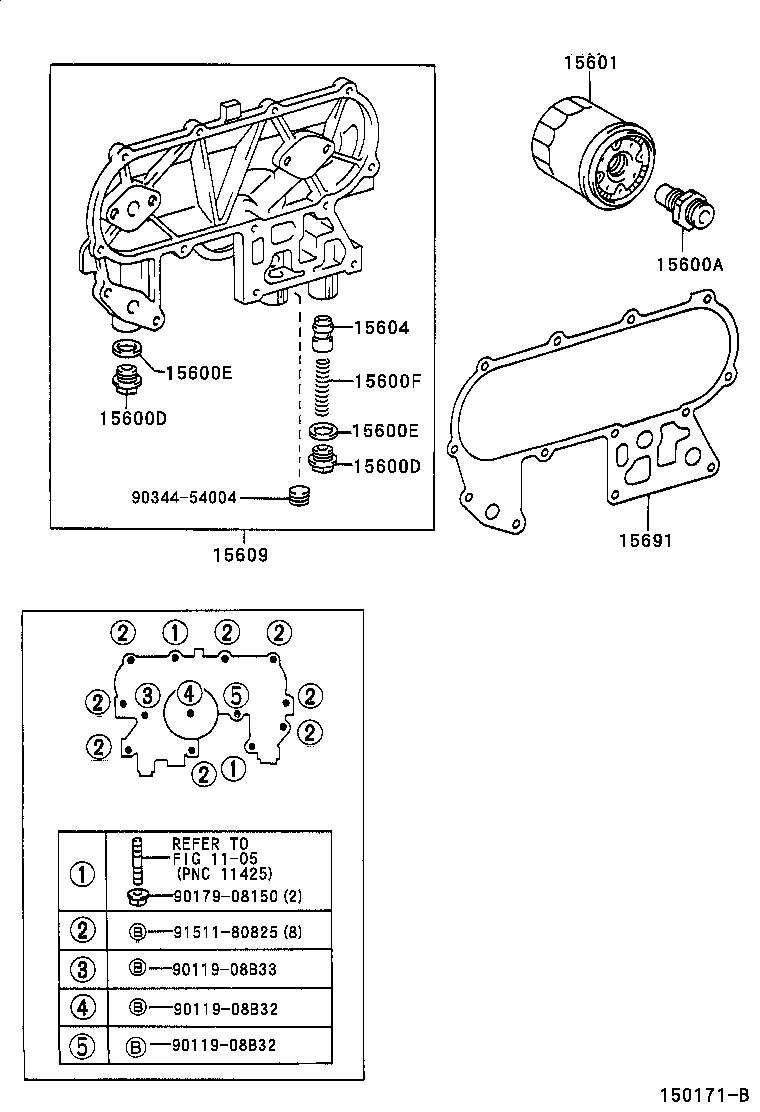

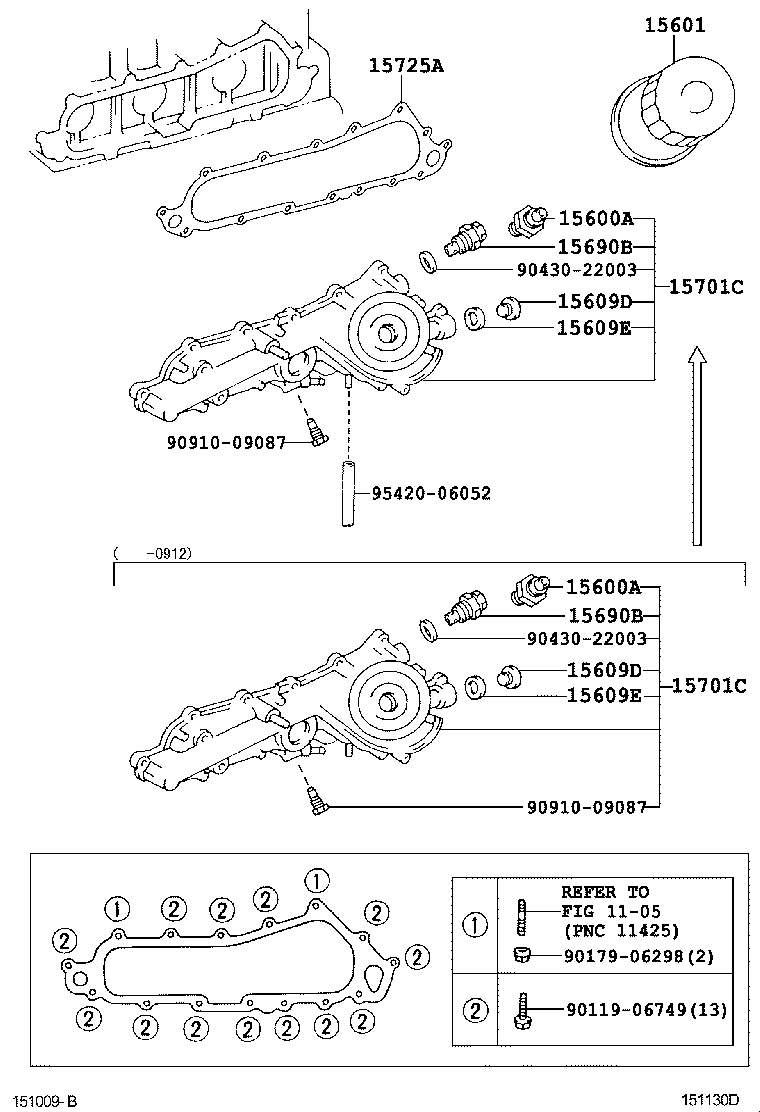

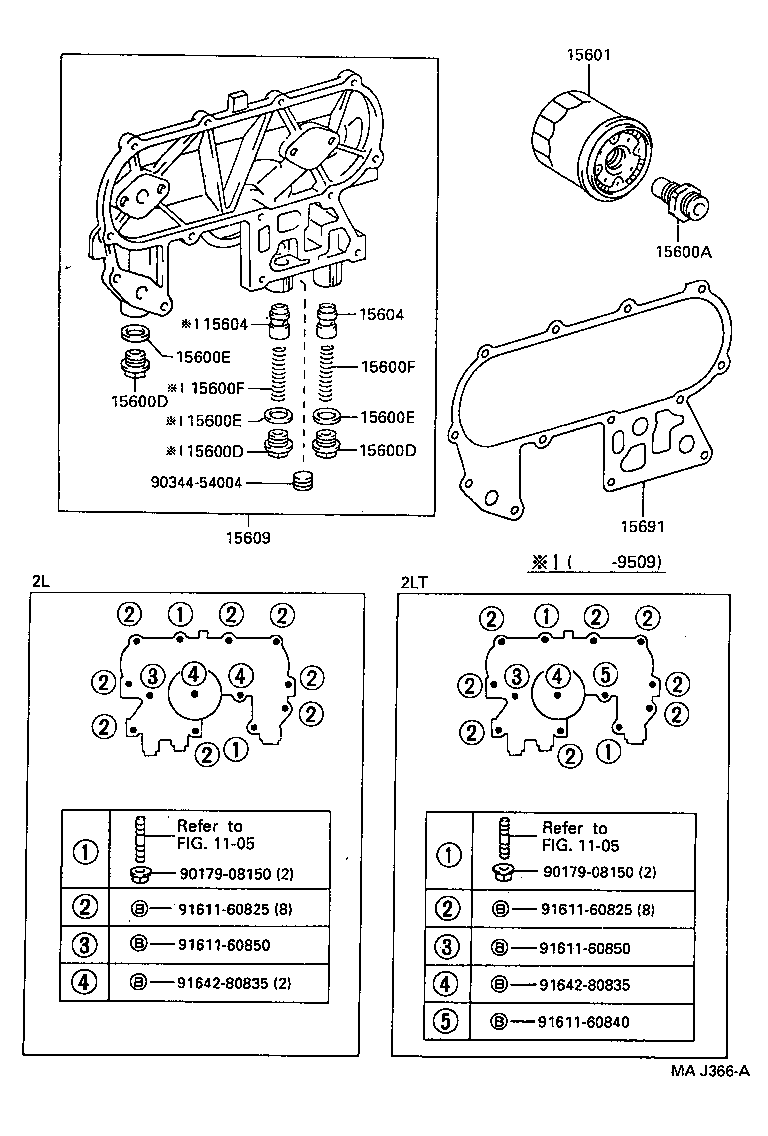

| PNC | Description |
|---|---|
| 15194A | Ring, O |
| 15600A | Union(FOR OIL FILTER) |
| 15600D | Plug(FOR OIL FILTER) |
| 15600E | Washer(FOR OIL FILTER) |
| 15600F | Spring, Compression(FOR OIL FILTER) |
| 15601 | Filter Sub-assy, Oil |
| 15604 | Valve Sub-assy, Oil Safety |
| 15609 | Bracket Sub-assy, Oil Filter |
| 15609C | Gasket(FOR OIL FILTER BRACKET UNION) |
| 15609D | Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) |
| 15609E | Gasket, W/Head Straight Screw Plug |
| 15609G | Bolt, Union(FOR OIL FILTER BRACKET) |
| 15690B | Valve Assy, Oil Cooler Relief |
| 15691 | Gasket, Oil Filter |
| 15701C | Cover Sub-assy, Oil Cooler |
| 15725A | Gasket, Oil Cooler Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
