Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 2 illustrations

Illustrations

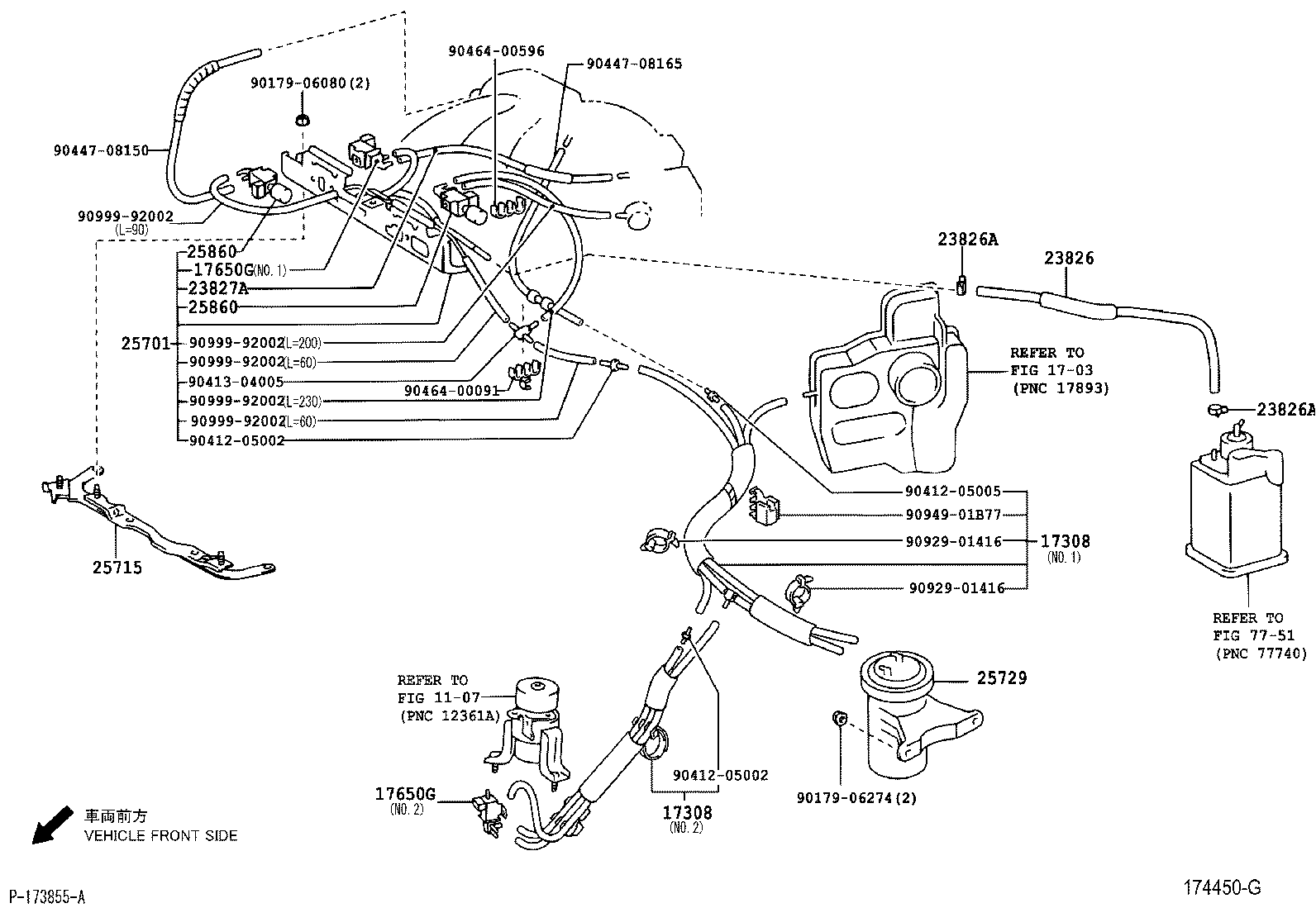

Figure 179121A 179121A 2003-12 → 2005-04 Figure 174450G 174450G 2005-04 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17346E Clip(FOR AIR HOSE NO.6)
17347B Hose, Air, NO.7
17347E Clip(FOR AIR HOSE NO.7)
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
25701 Valve Set, Emission Control
25715 Bracket, Emission Control Valve
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
